Built a midget press brake

Needed to bend some small 1/8" strips of steel so I made this out of what I had laying around... works pretty well:

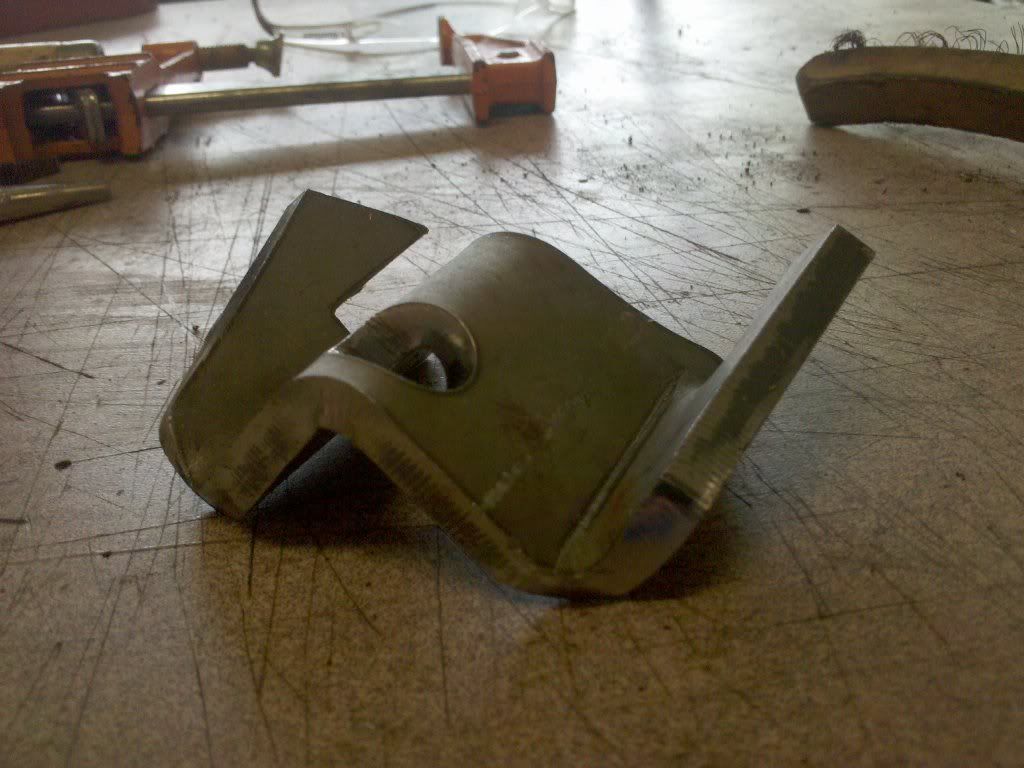

One of those pieces is 1/8" the wider one is 3/16"

And I was surprised it even bent 1/4"



It's made out of some cheap pipe, 1/8" angle, and 1/4" wall 2" sq tube.

I think I'm going to build a larger one to make normal sized brackets and stuff.

How are you guys making multiple 90 degree bends(to make a |_| kind of bracket) with those bends within 1.5-2 inches of each other when the side legs are kinda long? My issue is the last bend making the bracket want to hit the press... trying to make a larger brake so I can make bends as close as possible to each other and bend 1/4" up to 6" in length.

Discuss.


SOLDThe lumbering steel-laden pig - 2003 TJ - 40" LTBs - D60/D70HD - 5.86s - Detroit lockers - 110" wheelbase

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by 2006 Sport
Being able to make vroom vroom noises in Tonys Jeep was the highlight of my life.
Currently Jeepless.
flatlander757 is offline
Sponsored Links
Advertisement

post #2 of 14 Old 08-01-2010, 10:15 PM
ZeroGravity
Registered User
1991 YJ Wrangler

Join Date: Jul 2008
Location: Boston
Posts: 3,927
So how does it work?

91 YJ
98 XJ
2 door love
The U.S. Army vaguely envisioned something bigger than a motorcycle, smaller than a truck, and undaunted by the most difficult terrain.
ZeroGravity is offline
post #3 of 14 Old 08-01-2010, 10:17 PM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,295
Pretty cool.

Quote:
Originally Posted by flatlander757 View Post
How are you guys making multiple 90 degree bends(to make a |_| kind of bracket) with those bends within 1.5-2 inches of each other when the side legs are kinda long?
I cheat and use a couple local shops do bending for me.
Joe Dillard is offline
post #4 of 14 Old 08-02-2010, 01:31 AM
Fropleyqk
Registered User

Fropleyqk's Avatar
1999 TJ Wrangler

Join Date: Jun 2003
Location: Okinawa
Posts: 4,491
Stupid proxy. All I see is red X's.
Fropleyqk is offline
post #5 of 14 Old 08-02-2010, 11:31 AM Thread Starter
flatlander757
Registered User
2003 TJ Wrangler

Join Date: Nov 2006
Location: Dayton
Posts: 5,417
Quote:
Originally Posted by ZeroGravity View Post
So how does it work?
You place the bottom piece on a shop press... the piece that looks like this:

|V|


Then you place the piece you want to bend on top.


Then the top piece that looks like this...

__
\ /

Goes over the piece to be bent, you lower the press to compress the metal between the two "dies" if you will and it bends the metal.

It can do about an 80 degree bend, you gotta watch it towards the end to make sure you don't over-bend it so you don't have to tweak it if you want a perfect 90.

I'll take a pic and/or video to show it later tonight.

SOLDThe lumbering steel-laden pig - 2003 TJ - 40" LTBs - D60/D70HD - 5.86s - Detroit lockers - 110" wheelbase

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by 2006 Sport
Being able to make vroom vroom noises in Tonys Jeep was the highlight of my life.
Currently Jeepless.
flatlander757 is offline
post #6 of 14 Old 08-02-2010, 11:51 AM
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 24,184
I like it! nice idea


Useful Write-Ups:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Fabrication & Build:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Funny:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Unlimited04 is offline
post #7 of 14 Old 08-02-2010, 01:18 PM
Area.3.Fiftyone
Registered User
1996 ZJ

Join Date: Sep 2009
Location: Kingston, Pa. 18704
Posts: 3,469
What is that snot all over it?

Is that supposed to be some kind of a weld?


79' CJ7 - 82' CJ8 - 94' YJ - 96' ZJ
Diagonally parked in a parallel universe.......
Area.3.Fiftyone is offline
post #8 of 14 Old 08-02-2010, 02:08 PM Thread Starter
flatlander757
Registered User
2003 TJ Wrangler

Join Date: Nov 2006
Location: Dayton
Posts: 5,417
Hahaha no... the one really bad piece is ooooold when I was learning and playing around. Newest stuff is anti spatter sprayed where it's gotta be smooth

SOLDThe lumbering steel-laden pig - 2003 TJ - 40" LTBs - D60/D70HD - 5.86s - Detroit lockers - 110" wheelbase

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by 2006 Sport
Being able to make vroom vroom noises in Tonys Jeep was the highlight of my life.
Currently Jeepless.
flatlander757 is offline
post #9 of 14 Old 08-04-2010, 11:41 AM Thread Starter
flatlander757
Registered User
2003 TJ Wrangler

Join Date: Nov 2006
Location: Dayton
Posts: 5,417
Video finally uploaded... here you go:

YouTube - video-2010-08-02-20-44-07

SOLDThe lumbering steel-laden pig - 2003 TJ - 40" LTBs - D60/D70HD - 5.86s - Detroit lockers - 110" wheelbase

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by 2006 Sport
Being able to make vroom vroom noises in Tonys Jeep was the highlight of my life.
Currently Jeepless.
flatlander757 is offline
post #10 of 14 Old 08-04-2010, 04:20 PM
05Whiterubi
Registered User

Join Date: Apr 2005
Location: Spain
Posts: 45
WOW!! I'm in the process of building a mini shop press and fabricating something to be able to bend some steel strips, and I LOVE to see that a so simple design works so well!!

One question: You mention in the video that you made it so that you can go a little bit further than 90 degrees, which is something that I would also like. What did you do to accomplish it?


And about your question

How are you guys making multiple 90 degree bends(to make a |_| kind of bracket) with those bends within 1.5-2 inches of each other when the side legs are kinda long? My issue is the last bend making the bracket want to hit the press... trying to make a larger brake so I can make bends as close as possible to each other and bend 1/4" up to 6" in length.

I found some months ago in another forum these images, which show a more complex approach:





05Whiterubi is offline
post #11 of 14 Old 08-04-2010, 04:37 PM
Eaglekeeper
Registered User
1986 CJ7

Join Date: May 2010
Location: Panama City
Posts: 828
Great tip and thanks for posting. Thread came at a perfect time. I need a few heavy brackets and now know a simple way to make them.

86 CJ7, 258 Engine, T-177, Dana 300.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


A ton more pics here.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Eaglekeeper is offline
post #12 of 14 Old 08-04-2010, 06:18 PM
Netpackrat
Registered User
2001 TJ Wrangler

Join Date: Aug 2008
Location: Anchorage
Posts: 467
Netpackrat is offline
post #13 of 14 Old 08-05-2010, 10:50 AM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
Quote:
Originally Posted by 05Whiterubi View Post

One question: You mention in the video that you made it so that you can go a little bit further than 90 degrees, which is something that I would also like. What did you do to accomplish it?

Just make the dies at an 85deg angle instead of 90. That allows you to account for "spring back".

I have a similar bender that I made a few years back. I experimented until I was able to mark the bender for pretty consistent 90deg bends in the various brackets that I run thru it. I've made hundreds and hundreds of bends in my bender. Matter of fact, the "V" die has rounded edges from wear.

With "air bending", another thing you can use for the bottom "V" is a pair of solid rods welded about 2" apart (parallel). Just make sure it's deep enough that you don't bottom out your material before you hit a 90deg bend. Also keep in mind that trying to bend thicker metal (like 1/4") into too sharp of a radius will crack it. I think the general rule of thumb is a "V" die opening that is approx 10X the thickness of the steel.... 3/16"=1.88..... 1/4"=2.5"... etc. Although with smaller width brackets, you can usually tighten that measurement up a little without cracking.

Edit: Looks like Netpackrat's bender is using the two round rods.

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #14 of 14 Old 08-05-2010, 12:20 PM
05Whiterubi
Registered User

Join Date: Apr 2005
Location: Spain
Posts: 45
Thank you very much for the VERY detailed explanation! These advices and the video and the pictures that appear in the thread are extremely useful and I am sure that will help me really a lot when I have the necessary time to fabricate my press brake!

Thanks again and if you do not mind, I will post some pics of my brake when it is finished
