Building a Sierra rack

I am building a rack similar to the olympic sierra rack. I am by no means a fabricator but what follows is my DIY project. I want a rack to carry a cooler and free up space in the jeep. I was looking at the OLympic Sierra rack and thought I could make one myself. I want something that is easy to install and remove, also the rack can't interfere with the opening of the tail gate. This is my first build thread so if I miss something or if anyone wants me to go into more detail let me know.

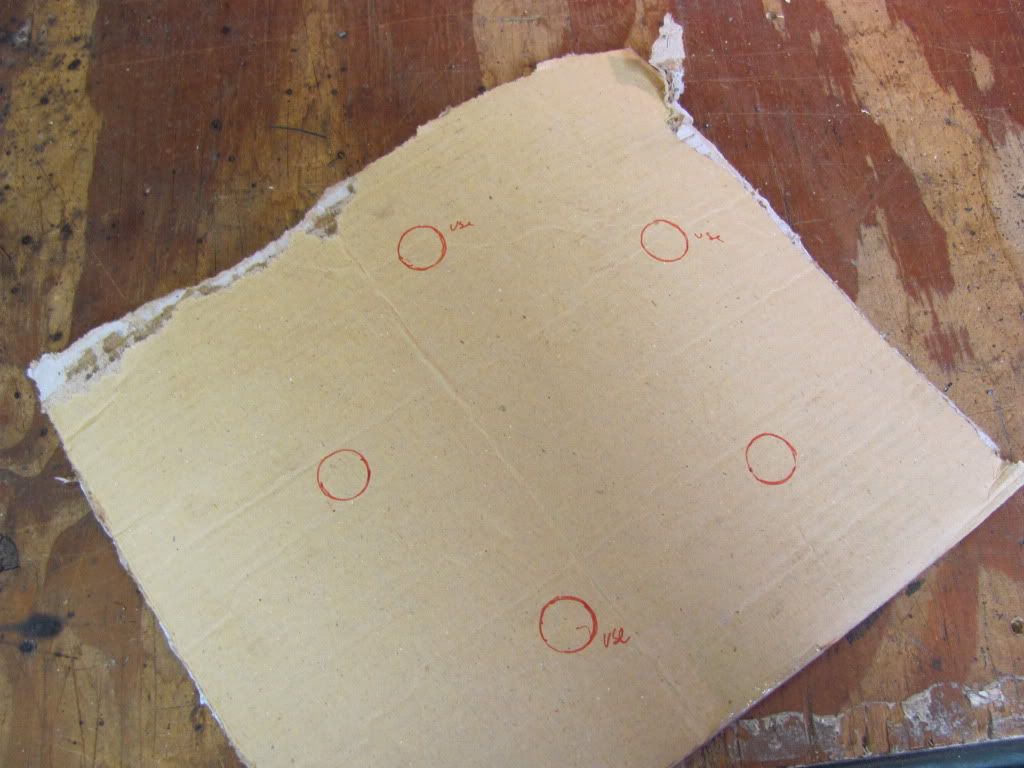

First thing I did was remove the spare tire and mark the lug pattern on a piece of cardboard.

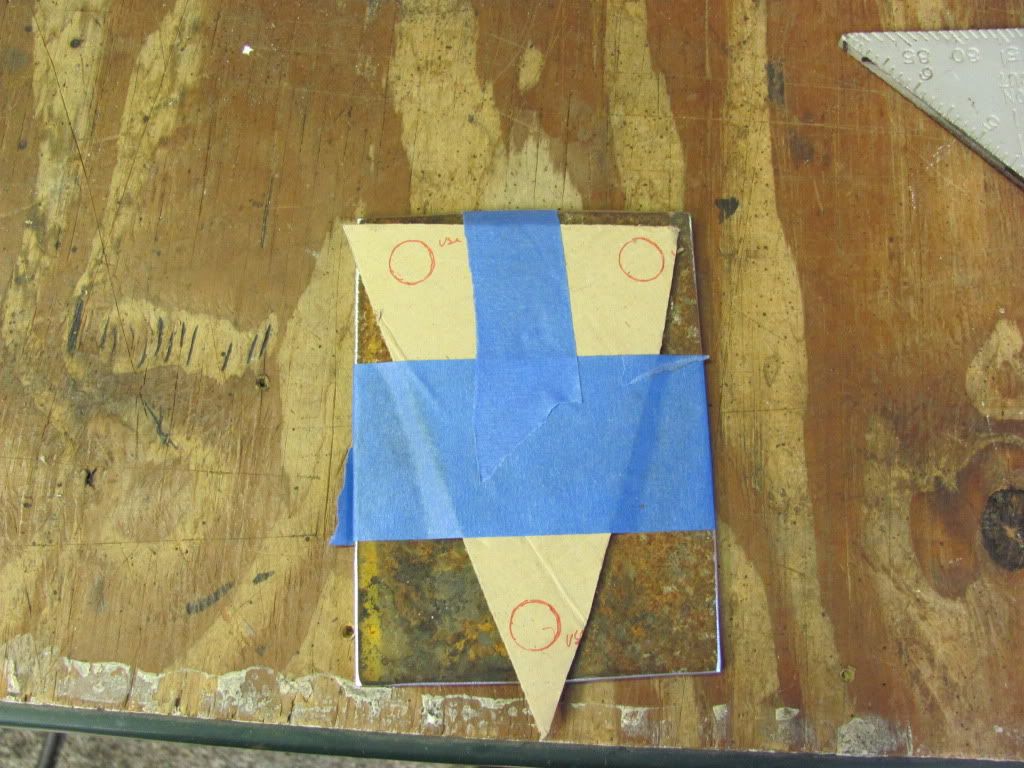

I layed out my pattern on a piece of 1/4" plate the same size as my spare tire mount.


__________________
"my biggest fear is that someday I will die and my wife will sell all my stuff for what I told her I paid for it"
tjwillis is offline   Reply With Quote Quick reply to this message
Unread 10-31-2010, 08:58 PM   #2
tjwillis
Registered User
2005 TJ Wrangler

Join Date: Jul 2010
Location: Jacksonville Fl
Posts: 80

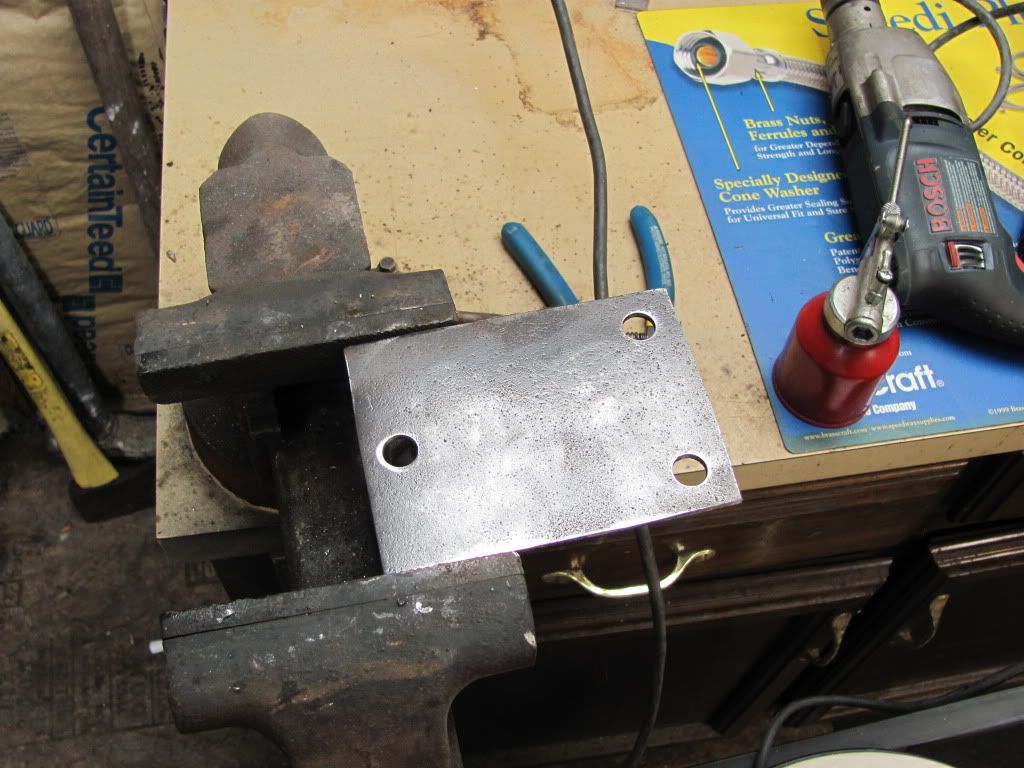

I marked and drilled my holes.

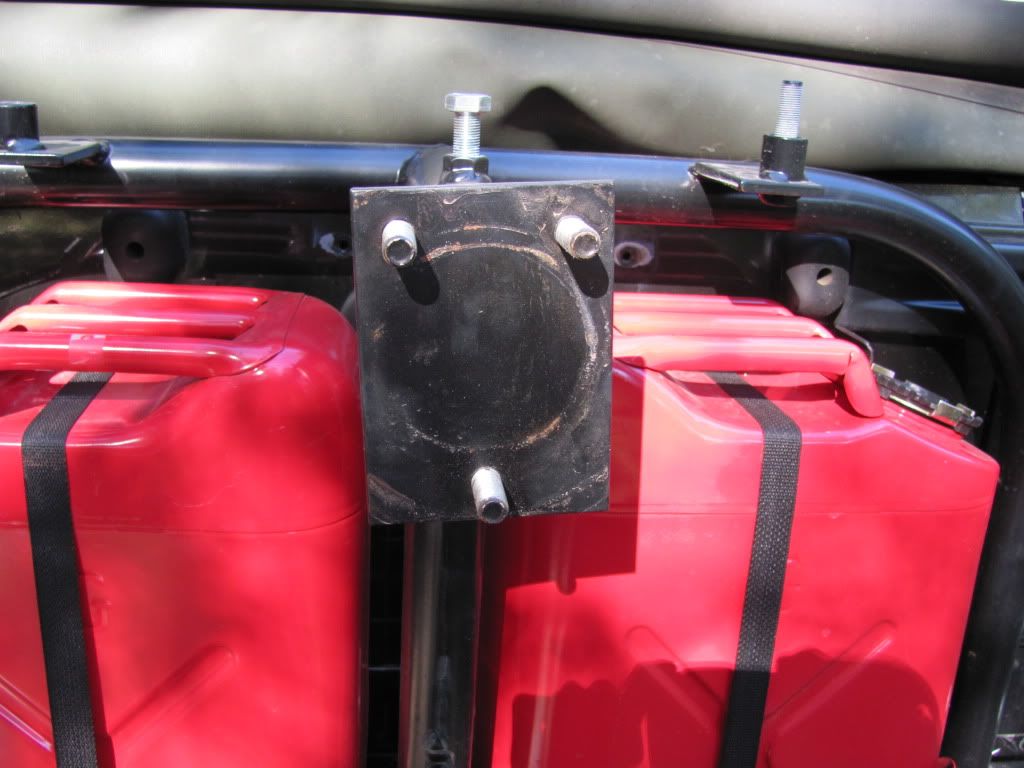

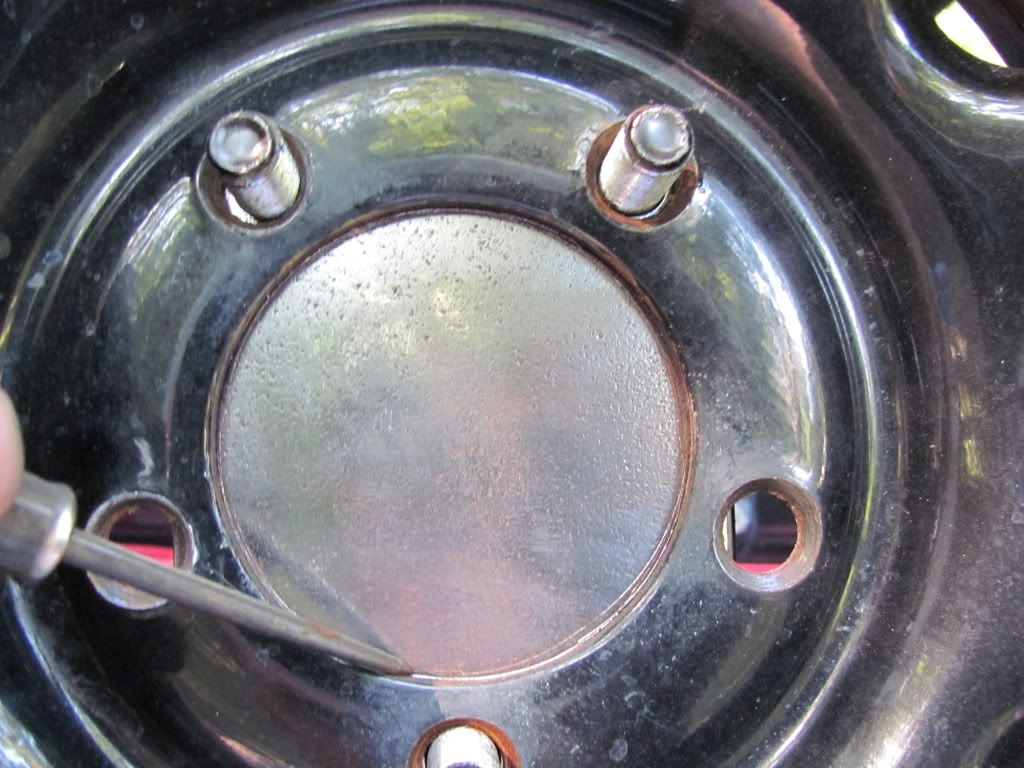

And installed the plate and the spare tire so I could mark the center of the tire.

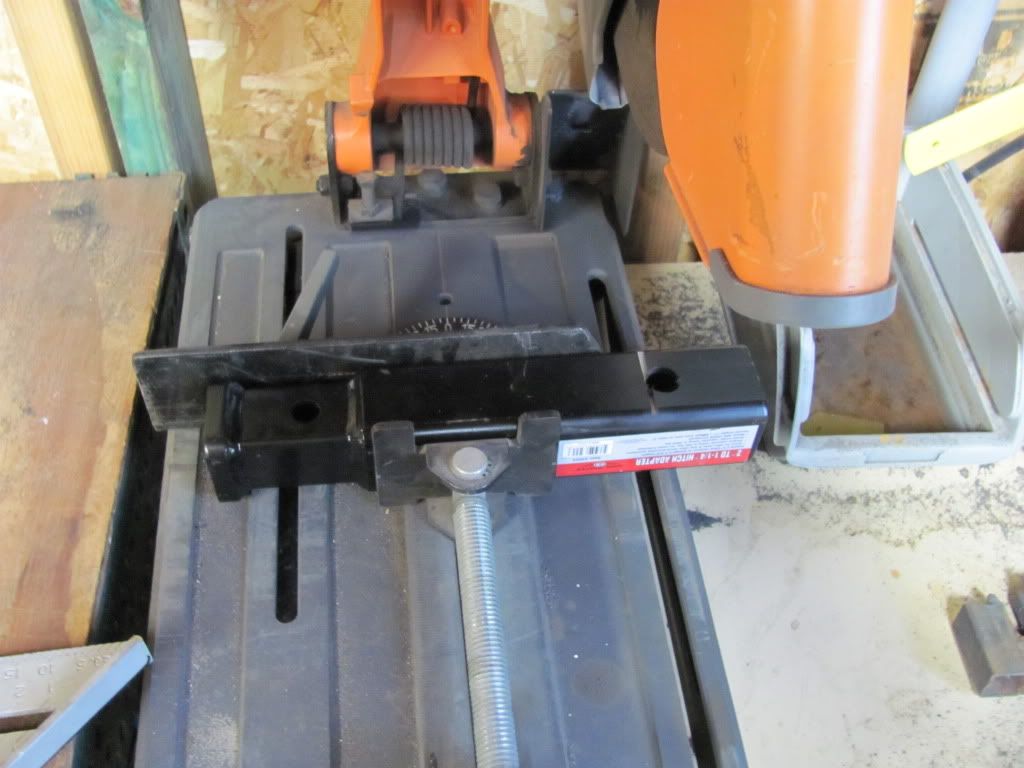

I bought a 2"x1 1/4" hitch adapter from Harbor Freight which will be used as the mounting point for my rack. This will allow me to easily install and remove the rack. I didn't like how far the reciever stuck out so I cut about half of it off.
__________________
"my biggest fear is that someday I will die and my wife will sell all my stuff for what I told her I paid for it"
tjwillis is offline   Reply With Quote Quick reply to this message
Unread 10-31-2010, 09:04 PM   #3
tjwillis
Registered User
2005 TJ Wrangler

Join Date: Jul 2010
Location: Jacksonville Fl
Posts: 80

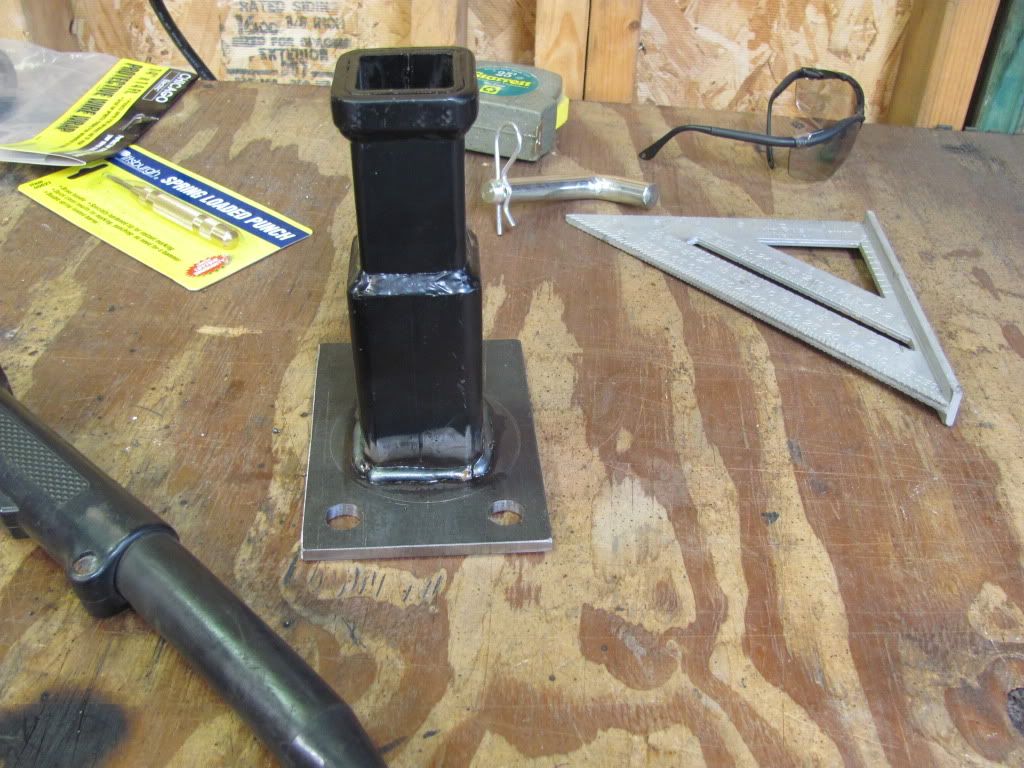

I wielded the cut adapter to the plate.

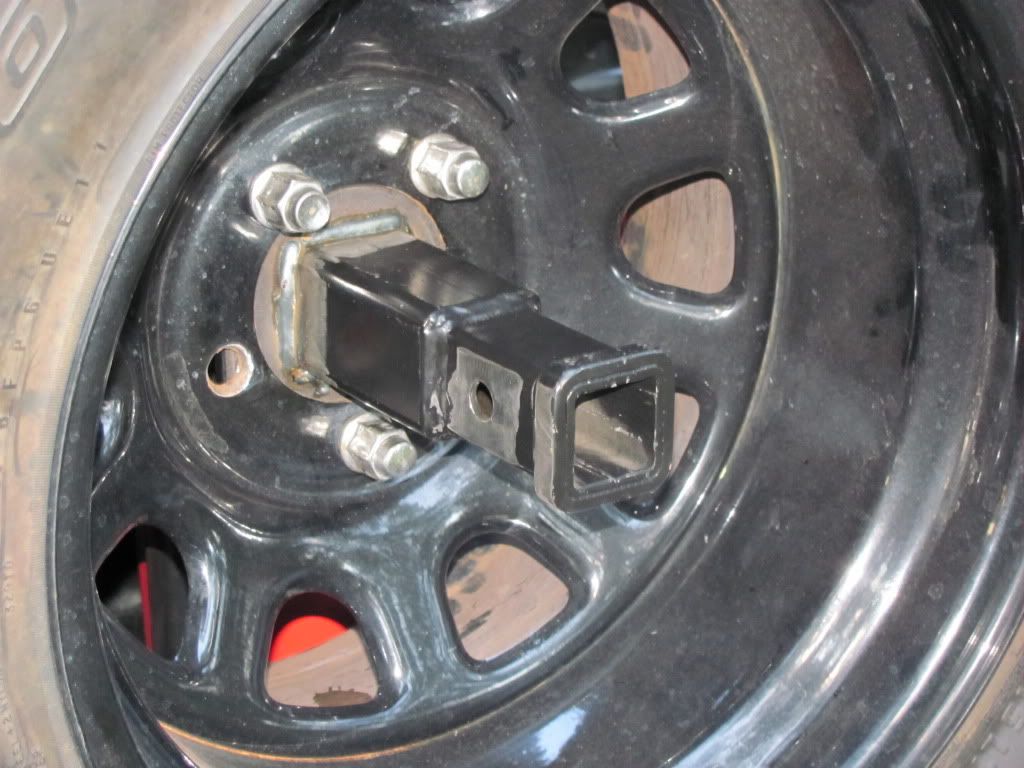

And here it is with the spare tire.



As you can see I now have a very sturdy reciever in the center of my spare tire. This opens up a whole new world of possibilities. For now I am just going to build the cooler rack but this would work for a Bike carrier,Hi lift mount, jerry can mount, and the third brake light that I will show next.
__________________
"my biggest fear is that someday I will die and my wife will sell all my stuff for what I told her I paid for it"
tjwillis is offline   Reply With Quote Quick reply to this message
Unread 10-31-2010, 09:15 PM   #4
tjwillis
Registered User
2005 TJ Wrangler

Join Date: Jul 2010
Location: Jacksonville Fl
Posts: 80
I bought a 2" reciever LED brake light from Harbor Freight. The reciever I Just insalled is 1 1/4" so some modification is in order.
I cut the 2" insert part of the light off. This is made of plastic so no problems here.

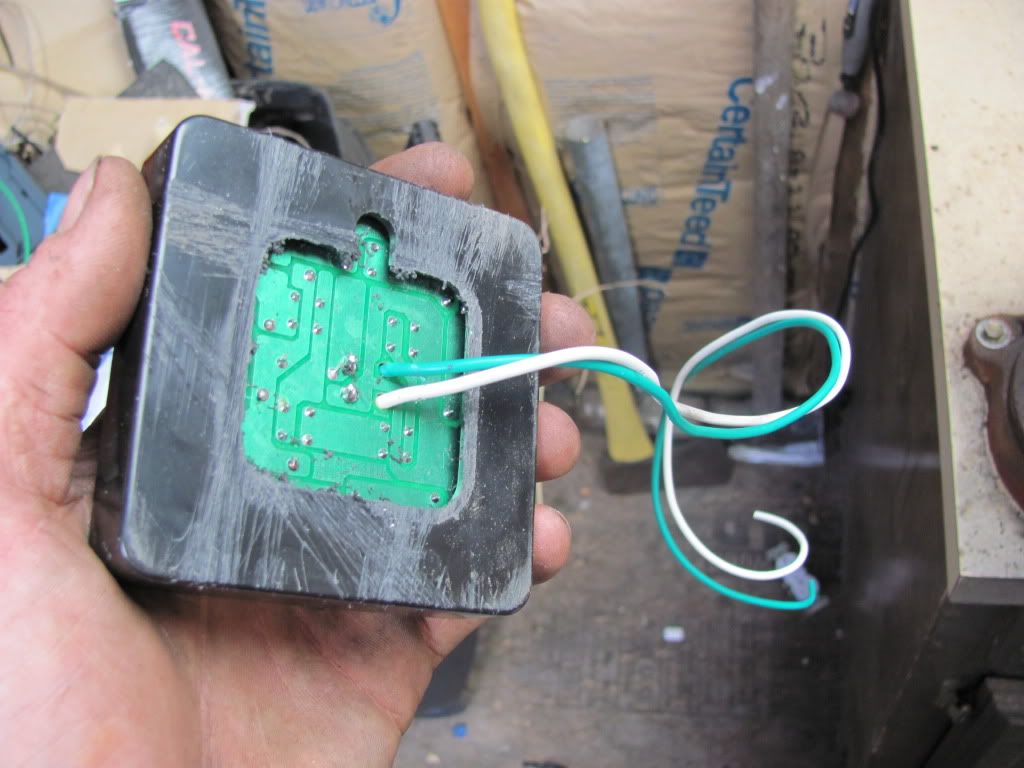

After the cut this is what I had (from the back of the light)

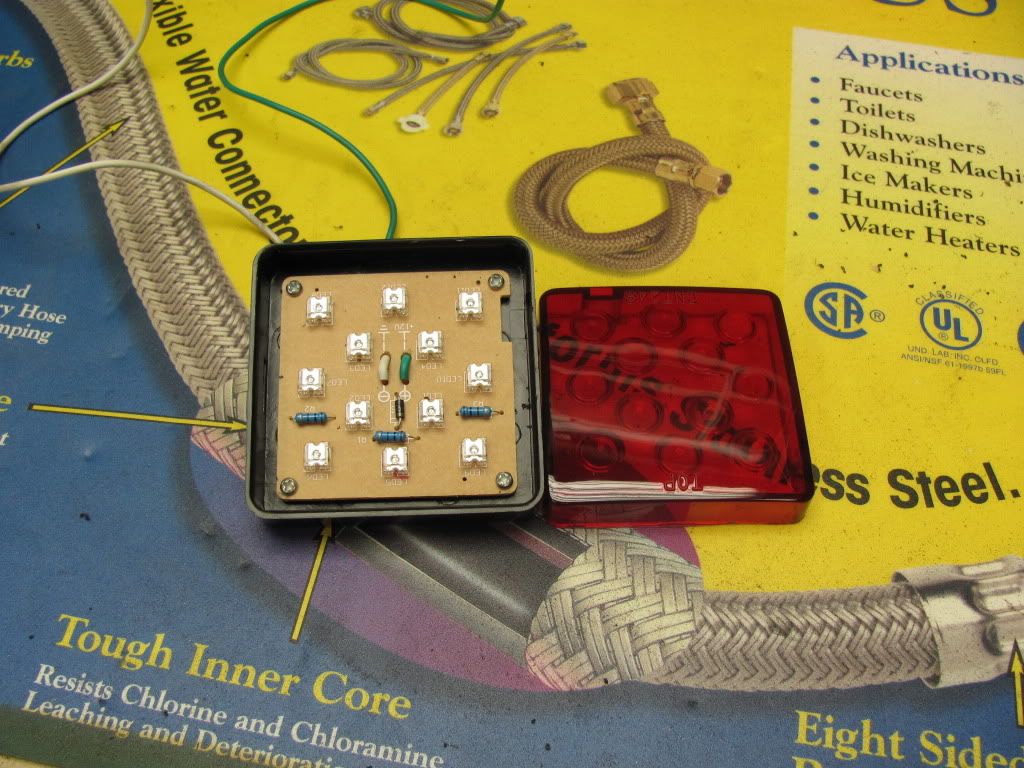

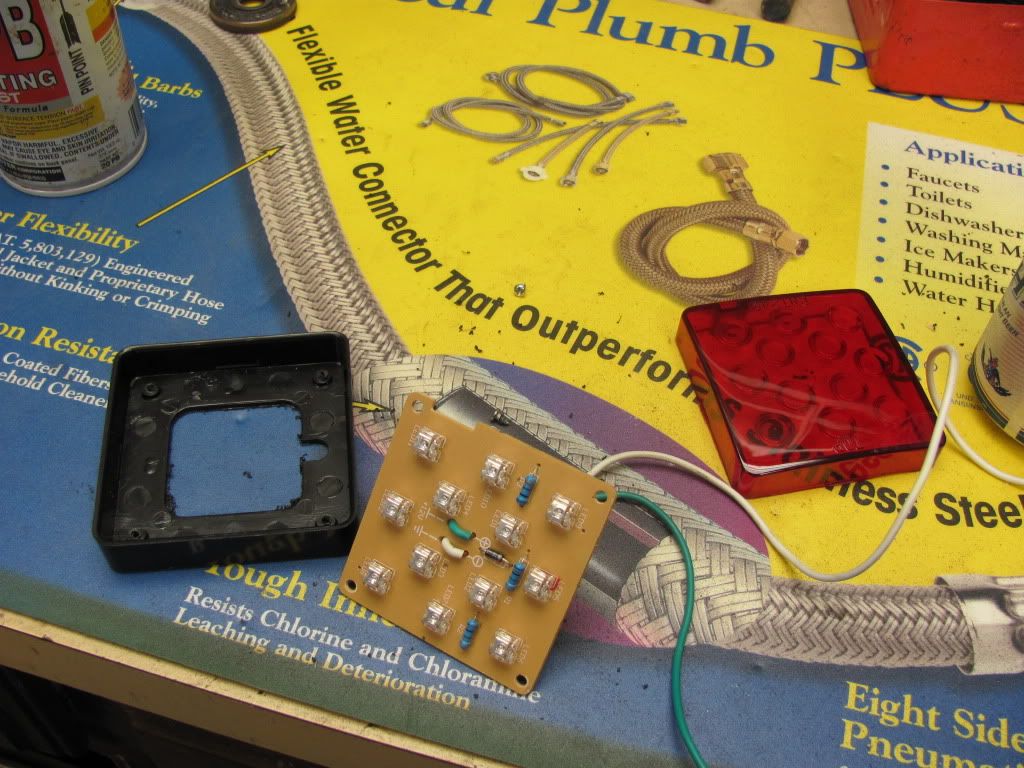

I opened up the light and removed the circuit board from the housing.

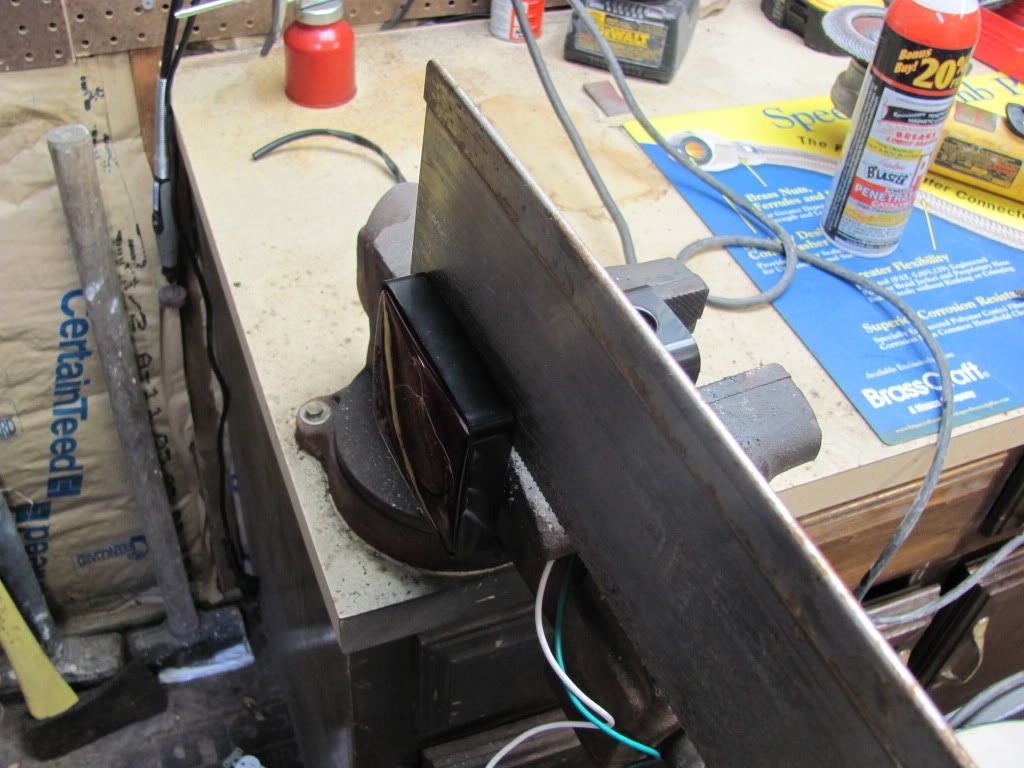

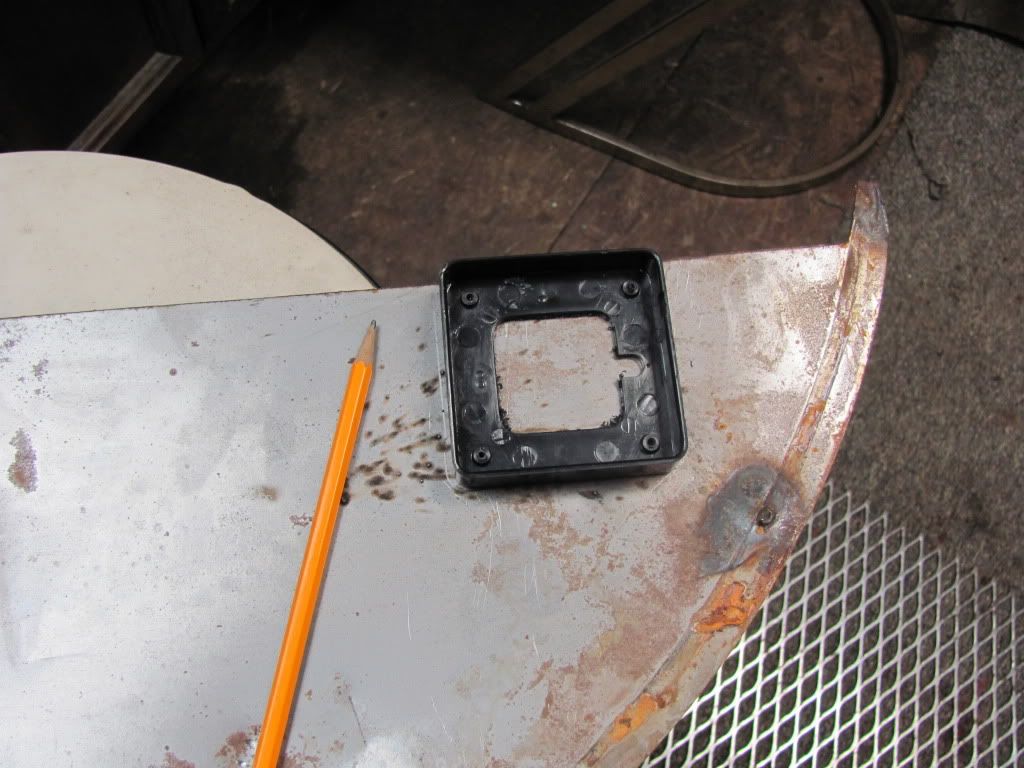

I placed the housing on a peice of heavy guage sheet metal I had laying around the shop and traced around it.

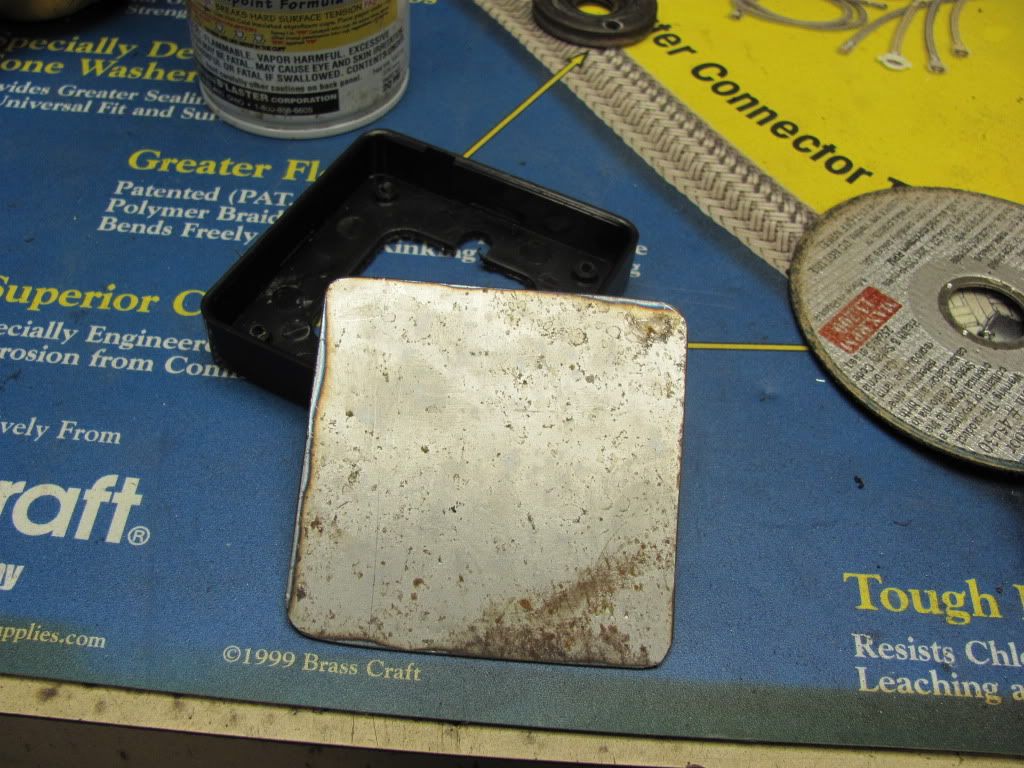

I cut it out with the angle grinder and cleaned it up a bit.
__________________
"my biggest fear is that someday I will die and my wife will sell all my stuff for what I told her I paid for it"
tjwillis is offline   Reply With Quote Quick reply to this message
Unread 10-31-2010, 09:25 PM   #5
tjwillis
Registered User
2005 TJ Wrangler

Join Date: Jul 2010
Location: Jacksonville Fl
Posts: 80

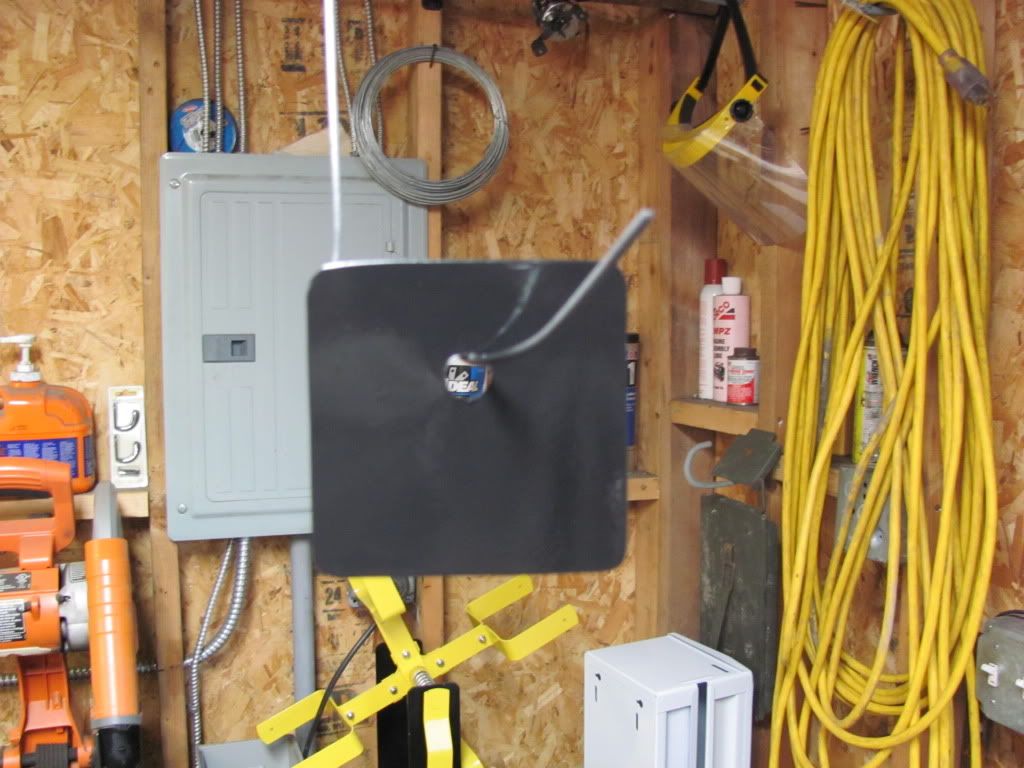

A little primer.

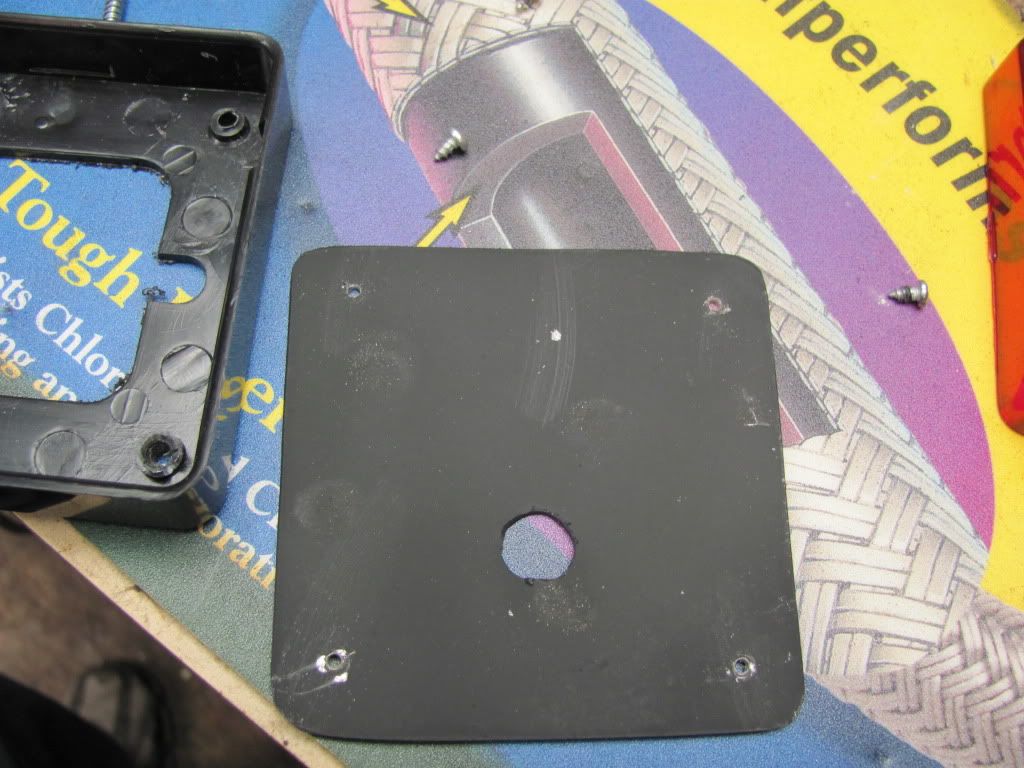

And I marked and drilled the holes to mount the light.

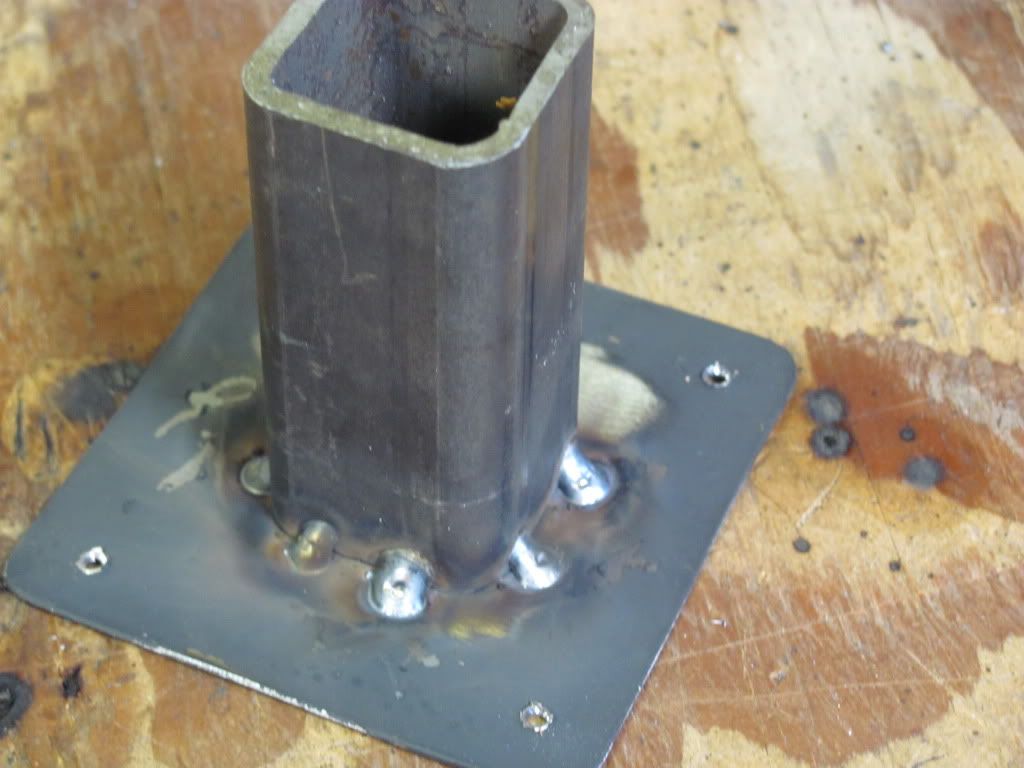

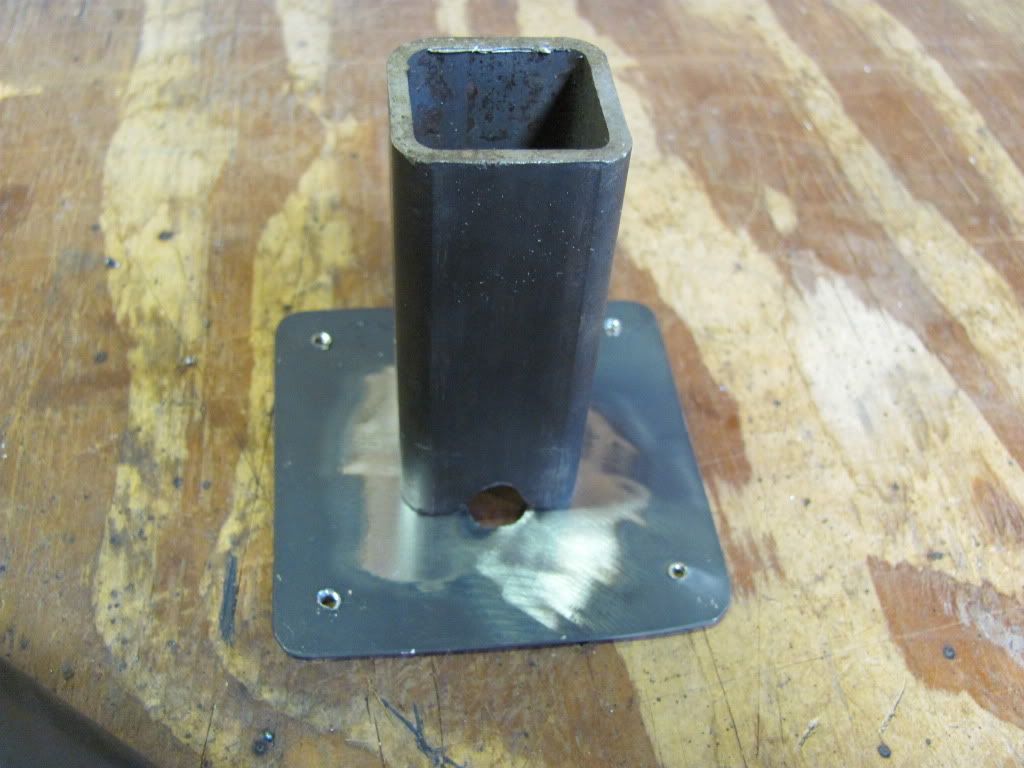

Next I cut a piece of 1 1/4" square tube to size and tacked it to the light mountin plate.

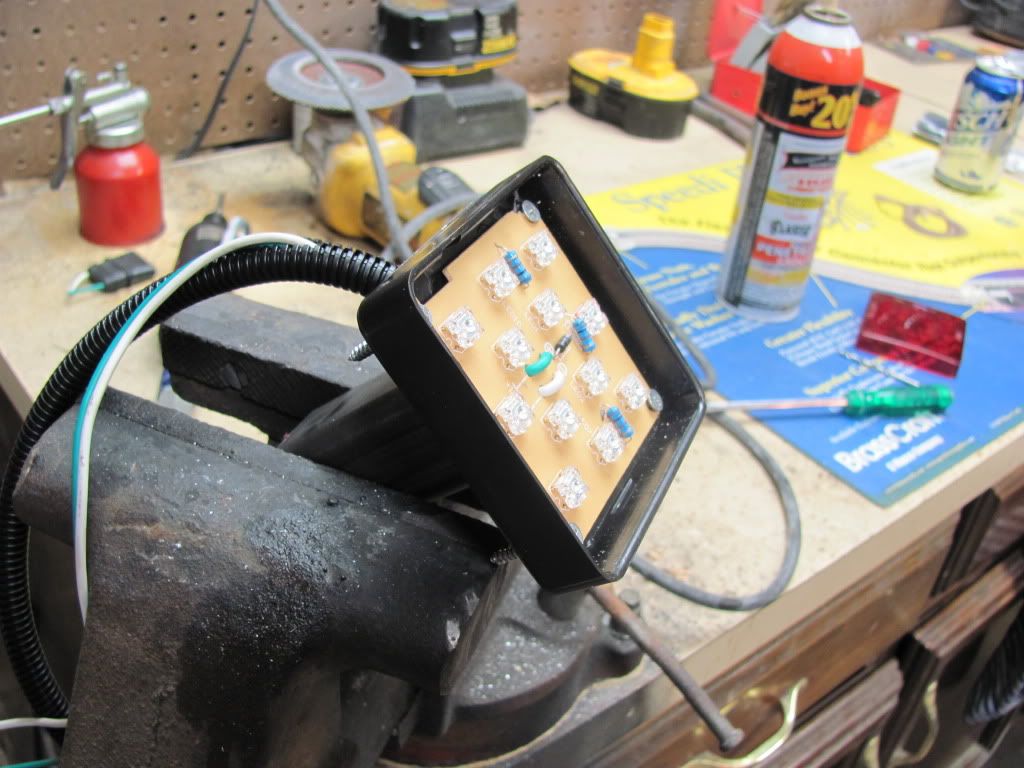

Here is the light reassembled and the wiring going in.

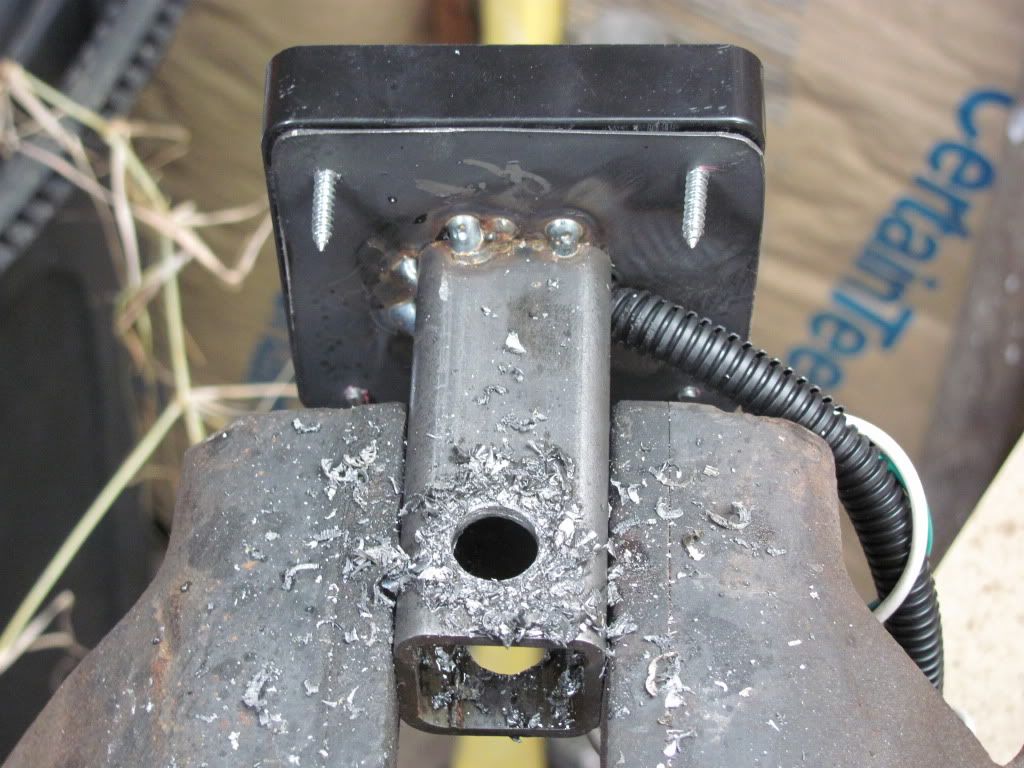

I marked and drilled the holes for the hitch pin.
__________________
"my biggest fear is that someday I will die and my wife will sell all my stuff for what I told her I paid for it"
tjwillis is offline   Reply With Quote Quick reply to this message
Unread 10-31-2010, 09:28 PM   #6
tjwillis
Registered User
2005 TJ Wrangler

Join Date: Jul 2010
Location: Jacksonville Fl
Posts: 80

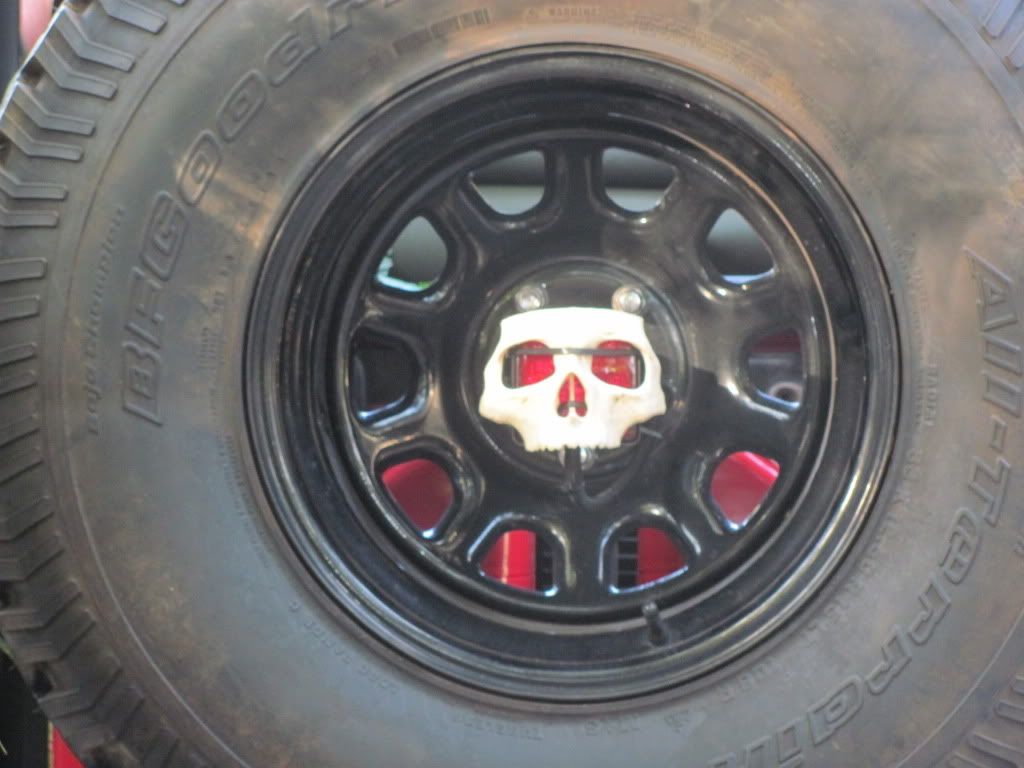

And here is the finnished product.
The skull was my wifes idea and very fitting for halloween. I will post more tomorrow when I start work on the rack.
__________________
"my biggest fear is that someday I will die and my wife will sell all my stuff for what I told her I paid for it"
tjwillis is offline   Reply With Quote Quick reply to this message
Unread 10-31-2010, 11:24 PM   #7
CJ7Pilot
Registered User

Join Date: Nov 2004
Location: Yuba City, California
Posts: 257
Really?!? All that work, and you finished it off with zip-ties?

Aside from that, I love it!

Edit: I missed that part about the skull idea... great job!
__________________
Now I must hurry on... for there they go, and I am their leader....
CJ7Pilot is offline   Reply With Quote Quick reply to this message
Unread 11-01-2010, 06:42 AM   #8
tjwillis
Registered User
2005 TJ Wrangler

Join Date: Jul 2010
Location: Jacksonville Fl
Posts: 80
Thanks. I will either figure out a way to mount the skull or I will take it off. I was thinking Hot glue? would that hold up? any better ideas?
__________________
"my biggest fear is that someday I will die and my wife will sell all my stuff for what I told her I paid for it"
tjwillis is offline   Reply With Quote Quick reply to this message
Unread 11-03-2010, 10:04 AM   #9
heavypedal
Registered User
2006 LJ Wrangler

Join Date: Sep 2007
Location: California
Posts: 11
Great looking project!
Was the skull removed after Halloween?
__________________
2006 LJ Rubicon, R.E. Long Arm lift, 35 inch BFG's, ORF sliders, LED's under frame, on board Viair, Hard-rock roll-cage and rear bumper/tire swing w/ gas cans, Cobra CB, Hanson front bumper, Warn 9.5ti winch, Rock Krusher Diff guards, Dana 44's front & rear w/E lockers, Optima battery, Metal Cloak fenders, LED blinkers, B&M trans cooler, Kilby steering skid, Gen-Right hood vents, Oh and... I wave!
heavypedal is offline   Reply With Quote Quick reply to this message
Unread 11-03-2010, 05:04 PM   #10
tjwillis
Registered User
2005 TJ Wrangler

Join Date: Jul 2010
Location: Jacksonville Fl
Posts: 80

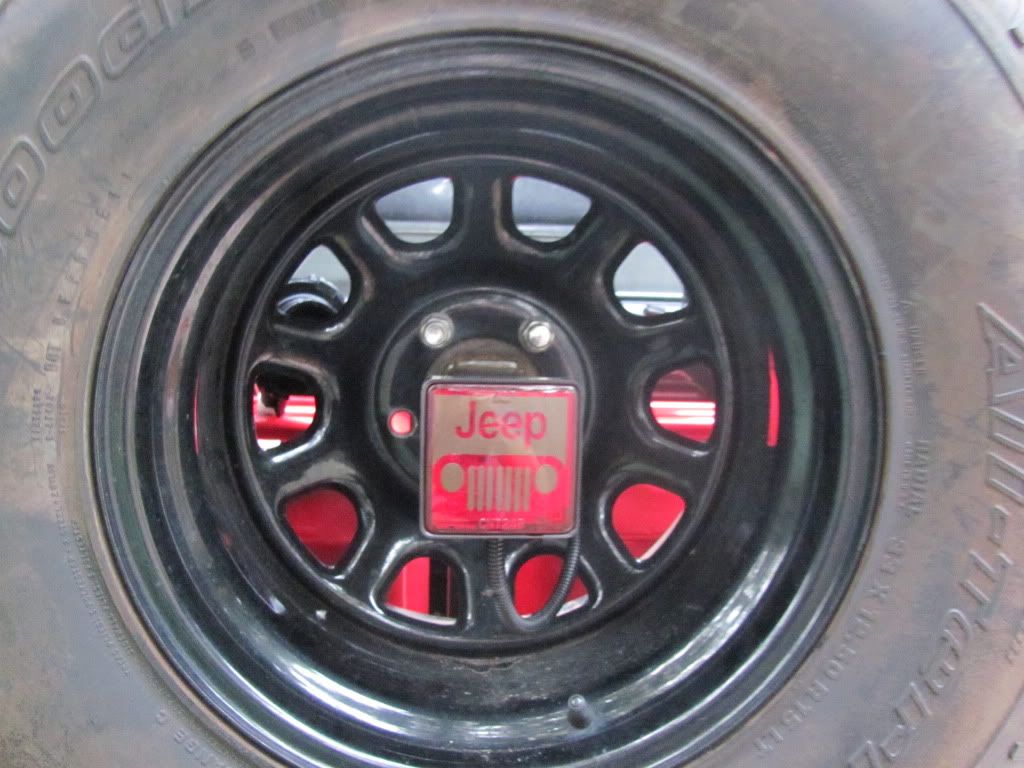

The skull was removed. I may do another one with the skull in the future. It was pretty cool. I had a buddy of mine do the Jeep logo in vinal for me.

This is the finished product.
__________________
"my biggest fear is that someday I will die and my wife will sell all my stuff for what I told her I paid for it"
tjwillis is offline   Reply With Quote Quick reply to this message
Unread 11-03-2010, 07:46 PM   #11
CJ7Pilot
Registered User

Join Date: Nov 2004
Location: Yuba City, California
Posts: 257
Nice! That looks really good.
__________________
Now I must hurry on... for there they go, and I am their leader....
CJ7Pilot is offline   Reply With Quote Quick reply to this message
Unread 05-06-2013, 04:17 PM   #12
b0bbymc
Registered User
2006 LJ Wrangler

Join Date: May 2009
Location: Texarkana, Ar
Posts: 178
I know this is a very old thread but I used this idea and built my own out of a 1.25" surco rack. I had to make my mount a bit different since I still have stock Moab wheels and the center hole is a lot smaller. It works the same, i just swapped the male and female ends. Let me know what y'all think!
image-3634520338.jpg   image-3450012601.jpg   image-3337609427.jpg   image-2336089353.jpg   image-344252486.jpg

b0bbymc is offline   Reply With Quote Quick reply to this message
Unread 05-17-2013, 11:31 PM   #13
Stretch2121
Registered User
2005 TJ Wrangler

Join Date: Dec 2011
Location: Pine Mountain Club, CA
Posts: 58
Quote:
Originally Posted by b0bbymc View Post
I know this is a very old thread but I used this idea and built my own out of a 1.25" surco rack. I had to make my mount a bit different since I still have stock Moab wheels and the center hole is a lot smaller. It works the same, i just swapped the male and female ends. Let me know what y'all think!
I like it...where did u get the actual rack?
