Unread 11-20-2013, 03:15 PM   #31
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,312
Quote:
Originally Posted by jeepster1407 View Post
This should turn out nice!
I hope so!

With all luck, I will turn the Jeep around in the garage and get started installing the PSC tailgate this weekend. I need that on before I start on the tire carrier.

Things are starting to settle down at the house, so I am hoping to get little things done here and there.

TXST8tj is offline   Reply With Quote
Unread 11-23-2013, 08:43 PM   #32
xbcasey
Registered User
2006 TJ Wrangler

Join Date: Mar 2012
Location: Ukiah, ca
Posts: 135
Like was said before, the '03 and later TJ's had far stronger hinges. The week point on them is actually the tailgate itself, the hinges bolt to the side of the tailgate and the tire carrier bolts to the center. This leaves the sheet metal to carry all the weight and that's why they start to sag and warp. I converted to a drop down tailgate and used my original hinges to build a tire carrier. I found that 1-1/2" square tubing sleeves right into the stock hinges on my '06, I used a Destaco latch and a home built catch on the other side to latch it. I carry a 32x12.50 on a steel wheel and a gas can for two years on a lot of off road with no issues. I just added a cargo rack and box to the setup and don't have concerns over strength of the hinge, I do have Rokemen trail corners on the way to help beef up the tub though.





xbcasey is offline   Reply With Quote
Unread 11-23-2013, 09:24 PM   #33
jeepster1407
Registered User
2000 TJ Wrangler

Join Date: Jan 2009
Location: Dahlonega, Georgia
Posts: 239
Nice setup! I didn't realize the later hinges were that strong...
jeepster1407 is offline   Reply With Quote
Unread 11-23-2013, 10:36 PM   #34
xbcasey
Registered User
2006 TJ Wrangler

Join Date: Mar 2012
Location: Ukiah, ca
Posts: 135
Thanks, the hinges hold the weight with no problem at all and still work just as smooth as ever. The tub shows no signs of stress after two years, but I am going to add the trail corners for piece of mind now that I added the rack on top.
xbcasey is offline   Reply With Quote
Unread 11-24-2013, 06:37 AM   #35
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,312
Nice setup.

The hinges on my Jeep were the weak point. I had to put my whole body into the tailgate to get it to swing open.

I just removed the tailgate yesterday to start on the PSC trail gate.
TXST8tj is offline   Reply With Quote
Unread 11-24-2013, 11:34 AM   #36
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,312
I pulled the factory tail gate in preperation for the PSC trail gate install.

I couldn't help but hold the brackets in place to see what I am working with.

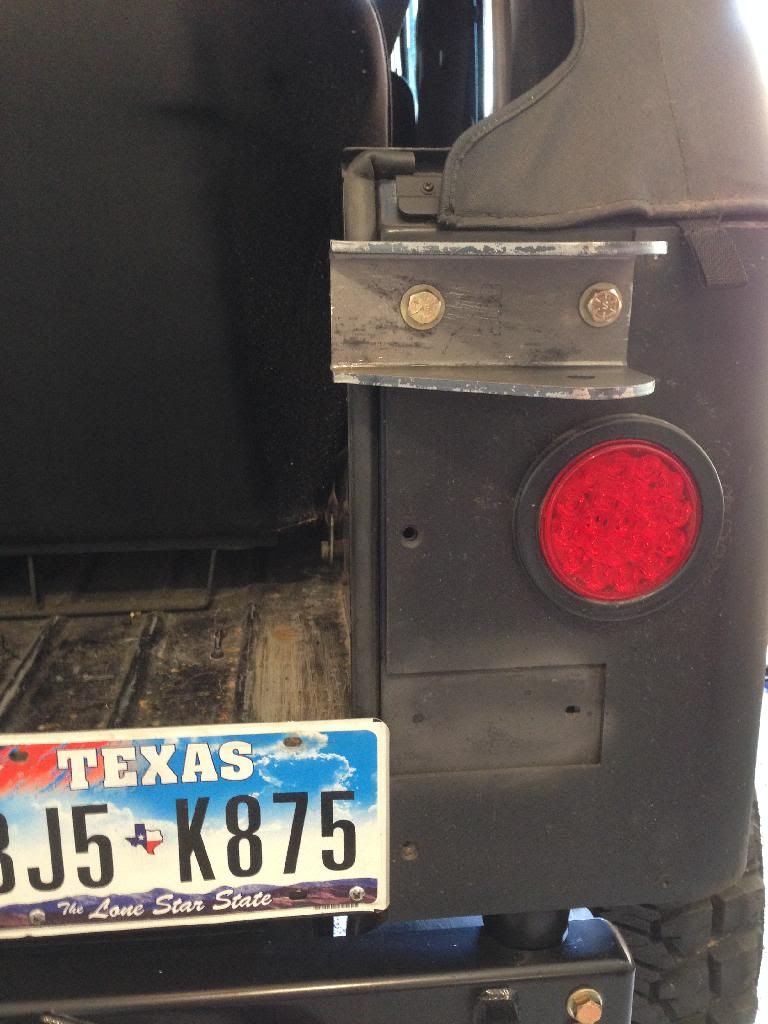

The link brackets fit perfectly height-wise in the blank space of the corner armor where the factory tailgate hinges were. There is maybe a 1/4" void at the upper hinge, but the bottom could not fit better.

The brackets are a hair too long, so they will get trimmed.

I think the backing plate and roll cage tie-in for the upper bracket will be pretty easy. There is much less visibility on the backside of the lower bracket, so it will take a little more work.


TXST8tj is offline   Reply With Quote
Unread 11-24-2013, 06:44 PM   #37
xbcasey
Registered User
2006 TJ Wrangler

Join Date: Mar 2012
Location: Ukiah, ca
Posts: 135
It looks like you could weld the brackets right into the spaces in the corner armor to spread the load across the entire corner. The are perfectly setup to weld front and back. I ordered the Rokemen trail corners for that very reason, they go completely under the hinges and carry the load.
xbcasey is offline   Reply With Quote
Unread 11-24-2013, 08:18 PM   #38
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,312
Unfortunately my Genright corner didn't go under the hinge. I would have to weld pieces in there and then weld the brackets to that. I do plan to weld the brackets to the armor, but it will only be around the edges. I figure it will still be better than nothing.
TXST8tj is offline   Reply With Quote
Unread 11-25-2013, 08:03 AM   #39
hums99tj
Registered User
1999 TJ Wrangler

Join Date: Feb 2012
Location: Jefferson County, PA
Posts: 61
I had plates cut to fill the void so I could weld them to the corners but like you said tying it into the cage on top will be plenty of support.
__________________
Keep on Jeepin' * lllllll *
hums99tj is offline   Reply With Quote
Unread 11-25-2013, 12:27 PM   #40
xbcasey
Registered User
2006 TJ Wrangler

Join Date: Mar 2012
Location: Ukiah, ca
Posts: 135
If the brackets are a close fit to the cutouts you could weld them right in, then you would be able to weld the backside as well
xbcasey is offline   Reply With Quote
Unread 11-30-2013, 01:54 PM   #41
Sparrows
It's coming...

Sparrows's Avatar
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
sub'd.
Wanna see how this turns out. I'm planning something very similar.

Cheers
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote
Unread 02-13-2014, 09:34 PM   #42
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,312
I messed around with one of the brackets for the tire carrier today. Going to mark and drill the lower one tomorrow. I drilled the holes out to use 1/2" grade 8 hardware. Will need to trim off the excess toward the tailgate opening.
They are bulky brackets (1/4" steel link brackets), but I think once the tube work is done and a tire is mounted, they will look proportional. There is some excess material there that can be trimmed away if they still look too big/unnecessary.



TXST8tj is offline   Reply With Quote
