Blue Torch Fab trail cage modified and installed

posted this in the TJ tech section,then realized it might be better off here
http://www.jeepforum.com/forum/f9/bt...alled-1351941/

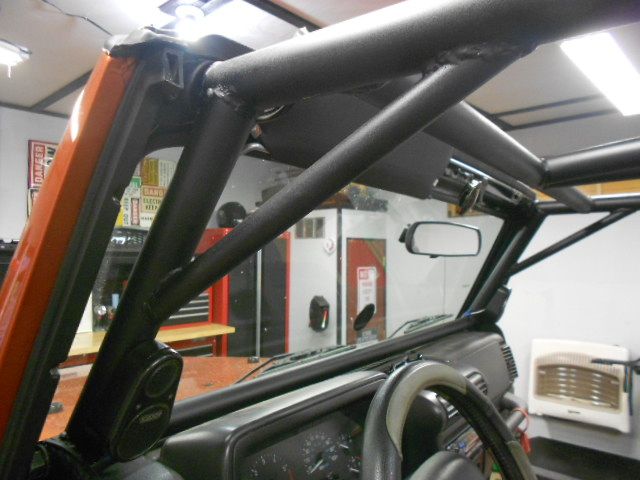

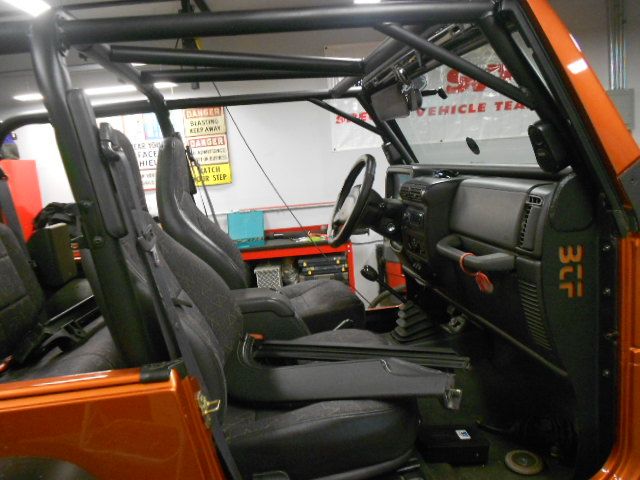

finally installed my BTF trail cage ,turned out really nice,we modified it so it can be removed in sections instead of a 1 piece cage

welded nuts inside the dash bar and bolted that thru the uprights

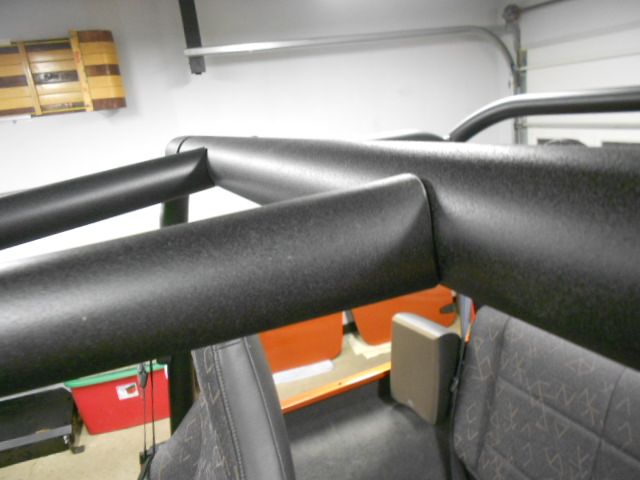

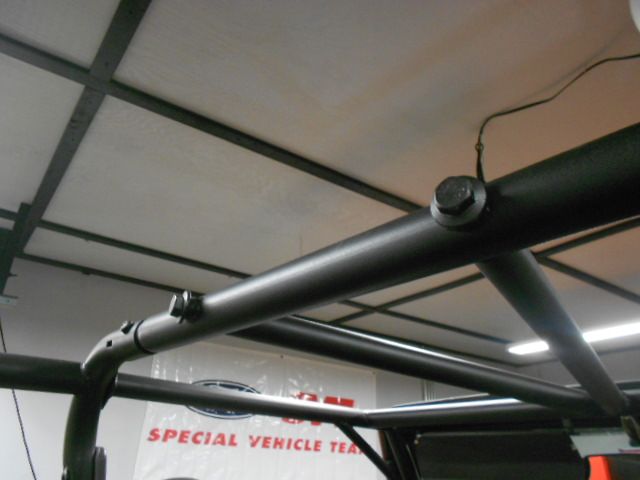

sleeved the center bar and bolted the spreader bars thru that with some massive bolts from a mercedes k-frame (at least 18mm bolts,the hex on that bolt is 1-1/16")

.

added some grab handles

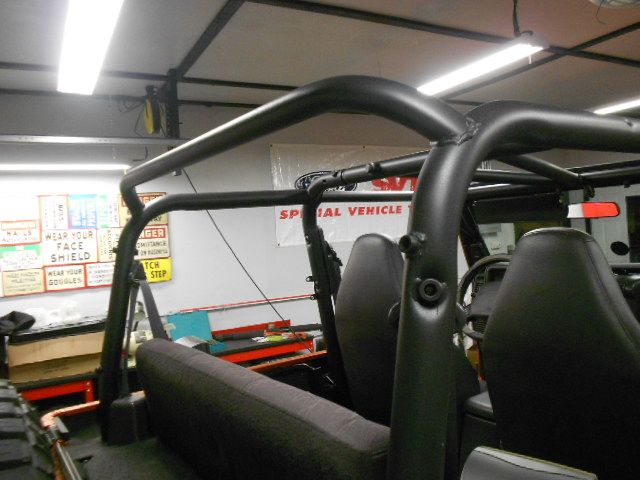

added a rear spreader bar

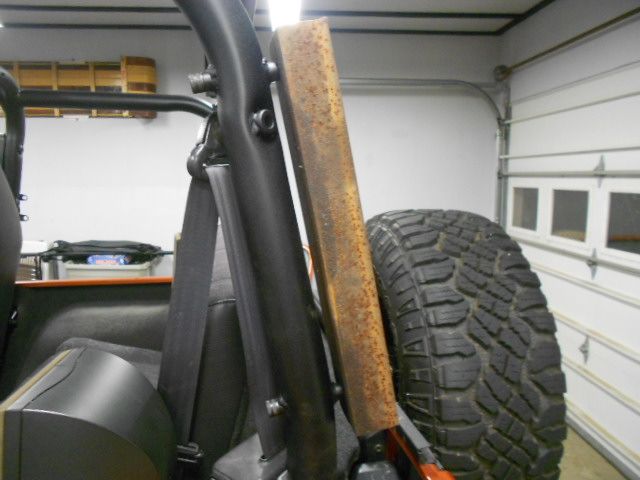

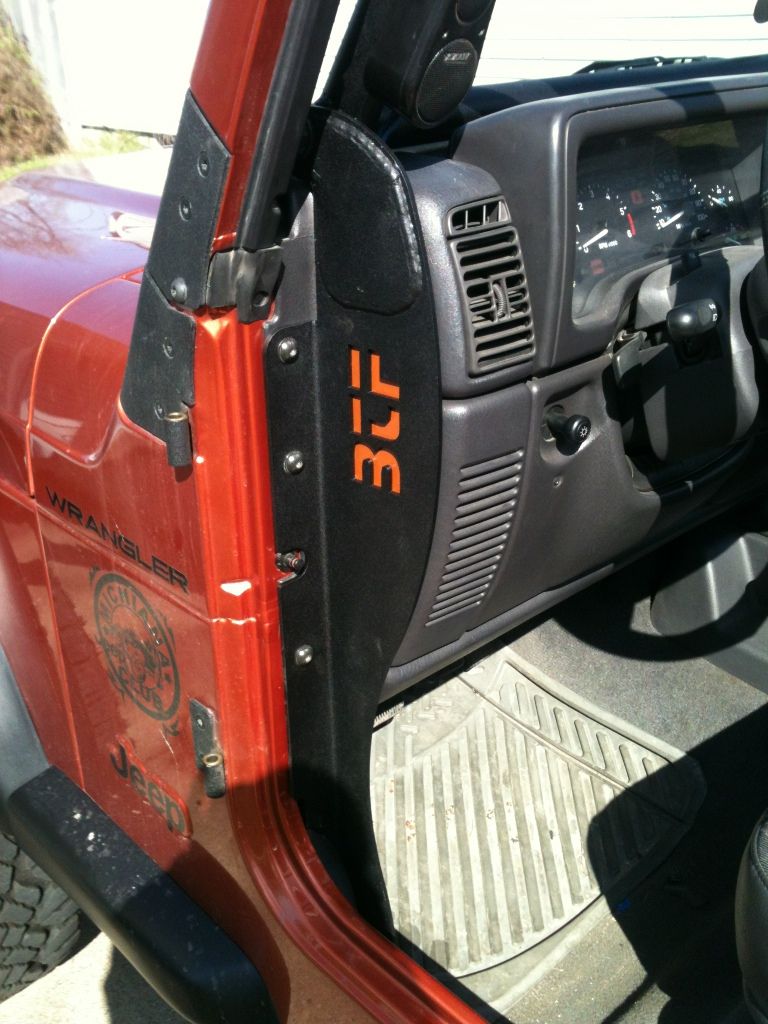

painted a piece of sheet metal for the backside of the BTF logo,color is a little off but not too bad,looks better in person

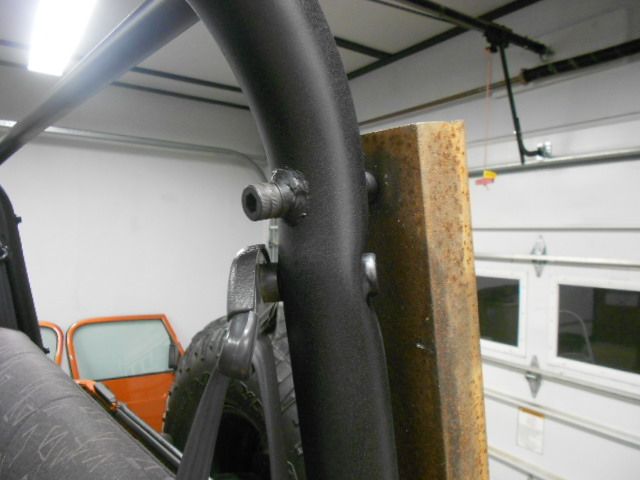

sleeved the rear bars for a later rack project


painted it with rust-oleum truck bed coating

svtkev is offline
Sponsored Links
Advertisement

post #2 of 16 Old 04-03-2012, 03:13 PM
youngjeepr
Registered User
1988 YJ Wrangler

Join Date: Aug 2009
Location: layton UT
Posts: 2,470
just curios why would you want to remove it in sections?

88 YJ- 4.7l stroker, AW4, SOA, 8.8, hp D30 powertrax no slip,3" front stretch with waggy springs, stock replacement springs in the rear, 35/12.5 r15 goodyear kevlars

Utah Jeep Crew



Build Thread
youngjeepr is offline
post #3 of 16 Old 04-03-2012, 03:18 PM
DualPurposeXJ
Registered User
1994 XJ Cherokee

Join Date: Nov 2010
Location: Menifee
Posts: 263
Quote:
Originally Posted by youngjeepr View Post
just curios why would you want to remove it in sections?
x2

If you're in control you're not going fast enough - parnelli jones
DualPurposeXJ is offline
post #4 of 16 Old 04-03-2012, 03:37 PM Thread Starter
svtkev
Registered User
2002 TJ Wrangler

Join Date: Feb 2011
Location: Mishawaka
Posts: 90
In case I have to remove the dash ( or even replace a speaker) sometime, and it was alot easier to put it in the jeep in sections
svtkev is offline
post #5 of 16 Old 04-04-2012, 01:48 AM
karlo
Registered User

Join Date: Jan 2009
Location: Florida
Posts: 1,586
Looks good and tough. Great job!
karlo is offline
post #6 of 16 Old 10-10-2012, 01:48 PM Thread Starter
svtkev
Registered User
2002 TJ Wrangler

Join Date: Feb 2011
Location: Mishawaka
Posts: 90

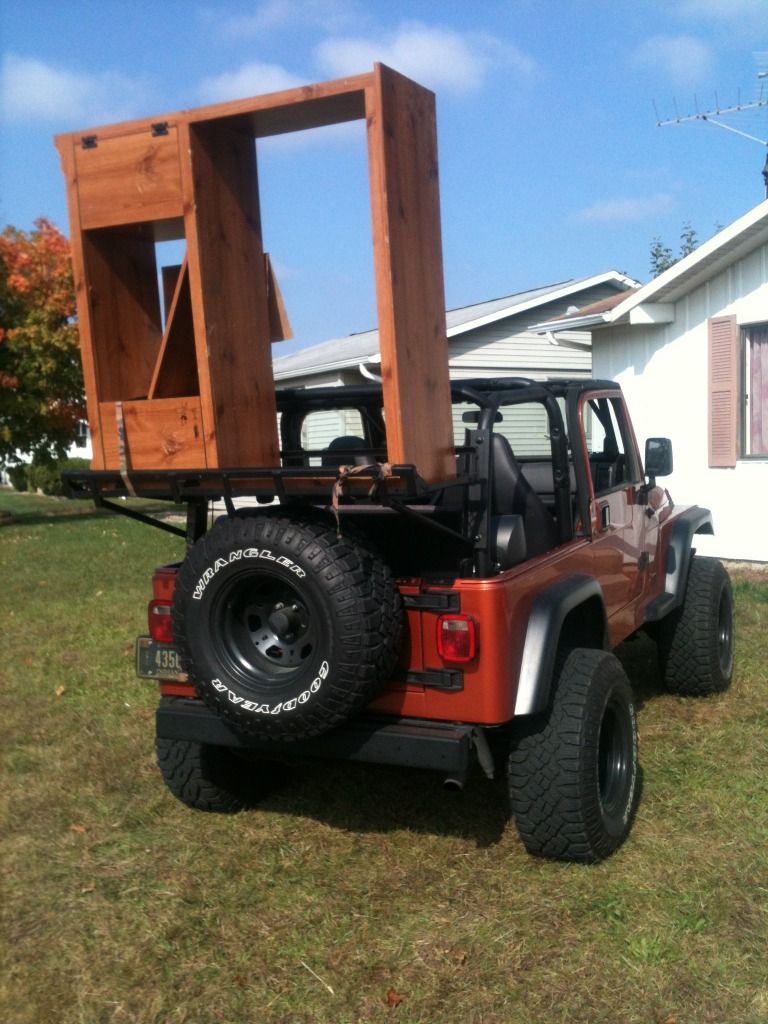

Little follow up info on the rack project that i sleeved the cage for

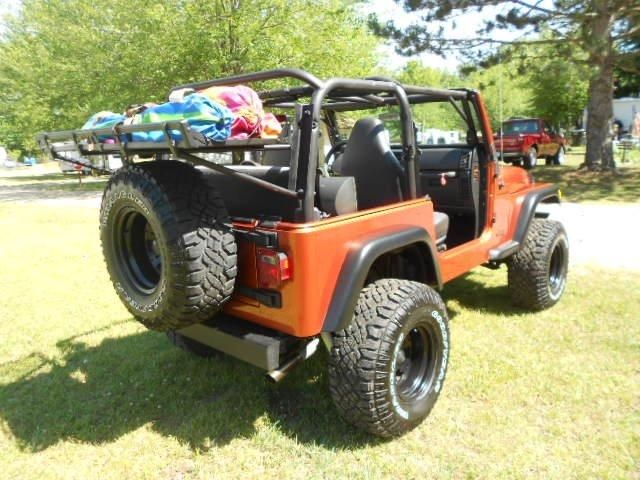

This was a hitch basket we hacked up
Wanted something we could take some things with us when we go on the dunes
since it bolts to the cage its plenty strong ,i was up on it and i weigh 235,its solid
Top goes on with the rack on just not the back window

.


.
good for haulin tires
.
.
or entertainment centers haha
svtkev is offline
post #7 of 16 Old 10-11-2012, 06:05 PM
sailsurf7713
Registered User
1999 TJ Wrangler

Join Date: Jun 2008
Location: Rhode Island
Posts: 1,117
That looks awesome. I like the modular idea. I may have to steal the idea for the rack as I never use a rear window. Only recommendation would be to round the corners on that angle before it unexpectedly gets someone. I'm torn between the BTF cage and the one Poly sells (which is twice the price!). Just don't like the fact that the BTF doesn't go through the dash, although it does look pretty stout.

'99 SE: The "It could be worse..." jeep

Quote:
Originally Posted by 97flexy View Post
...I say don't lift but CUT. :)
My Rusty Revival
sailsurf7713 is offline
post #8 of 16 Old 10-14-2012, 07:35 PM Thread Starter
svtkev
Registered User
2002 TJ Wrangler

Join Date: Feb 2011
Location: Mishawaka
Posts: 90
Thanks man , I had planned on rounding those edges but didn't realize I didn't do it until I was painting it , too late , still gonna do it maybe over this winter
Thanks for the compliment
svtkev is offline
post #9 of 16 Old 01-14-2013, 09:49 AM
duc202
Registered User
1997 TJ Wrangler

Join Date: Jan 2012
Location: montgomery village
Posts: 1,024
wow, that looks real good

can you still put on your hardtop/after installing the cage?
duc202 is offline
post #10 of 16 Old 01-14-2013, 09:50 AM
duc202
Registered User
1997 TJ Wrangler

Join Date: Jan 2012
Location: montgomery village
Posts: 1,024
also, i didnt notice, but would the stock sound bar be able to be used with the cage?
duc202 is offline
post #11 of 16 Old 01-14-2013, 09:57 AM Thread Starter
svtkev
Registered User
2002 TJ Wrangler

Join Date: Feb 2011
Location: Mishawaka
Posts: 90
I dont have a hardtop so im not sure , it doesnt interfere with the soft top at all so i would think it would fit ok,not sure tho

If the spreader bars were welded the soundbar would work ,the way i bolted mine together it would require it to be moved back an inch or so.
I dont use the soundbar in mine so i didnt miss it
svtkev is offline
post #12 of 16 Old 01-14-2013, 03:15 PM
duc202
Registered User
1997 TJ Wrangler

Join Date: Jan 2012
Location: montgomery village
Posts: 1,024
it looks good nonetheless dude

the top spreader bar at the rear of your jeep...did that come with the kit or was that something that you fabbed up? i didnt see it listed with the kit on their website

the price is fantastic also
duc202 is offline
post #13 of 16 Old 01-14-2013, 04:16 PM Thread Starter
svtkev
Registered User
2002 TJ Wrangler

Join Date: Feb 2011
Location: Mishawaka
Posts: 90
We made that rear spreader bar , they sell some bolt in ones but they are straight bars and leave no headroom for rear passengers
svtkev is offline
post #14 of 16 Old 01-19-2013, 02:57 PM
Molonlabemike
Registered User
1997 TJ Wrangler

Join Date: Oct 2011
Location: Rancho Chuchamonga
Posts: 549
Nice work and it looks thought out. Not a big fan of the bolt together setup but to each their own

My Build thread

Molon Labe
Molonlabemike is offline
post #15 of 16 Old 05-08-2013, 08:20 AM
mrJ
Registered User
2002 KJ Liberty

Join Date: Sep 2010
Posts: 3,875
started mine last night and having issues with the a-pillar and windshield support lining up. huge gaps at the welding areas. also, with the extra dash side plates, do you weld those on and then the lower windshield bar to that or just the windshield bar to the dash panels? and how the **** do you mount the windshield support to the rollbar? i see how the diamond shaped plate ties into the windshield, but the rollbar i can't figure out how that plate works. or do you just weld it to the rollbar? i emailed BTF and they weren't much help. i'm just worried now that we should have welded that extra dash side panel plate on first and then put the windshield bar on. but like i said, btf wasn't a big help when i emailed and just kinda said, "it's diy, good luck"

Build In Progress...http://www.jeepforum.com/forum/f22/0...-name-1113549/

It's a Jeep, it's not supposed to work right all the time.

Live in Florida? Check out Florida4x4.org!!!
mrJ is offline
