ANOTHER Rockridge4wd Creation!! Spare Tire Carrier Delete The Original 3/8" Ruffstuff Diff Cover!Even Better Heim Pricing! From Ruffstuff

Reply
Unread 07-28-2008, 07:52 PM   #16
raskull
Registered User
2003 TJ Wrangler

Join Date: Jun 2006
Location: Edmonton, Alberta
Posts: 1,799
My rockers. Click here for a fullsize version of the drawing.



The write-up on the install is here.

The gallery with all the images I have of them is here.

The thread in the fab section for them is here.

Here's a couple pics for this thread.









__________________
(O|||||||O)
l_l*-----*l_l

Raskull - Metallic Silver '03 Jeep TJ Sport (pic)
http://myjeeptj.com <- Write-ups on mods/maintenance/trips and a video/image gallery
Custom front bumper build
Custom rockers build
My build thread
raskull is offline   Reply With Quote Quick reply to this message
Unread 08-20-2008, 12:16 PM   #17
frumpy
Registered User

Join Date: Dec 2005
Location: Pembroke ON, Ontario
Posts: 2,013

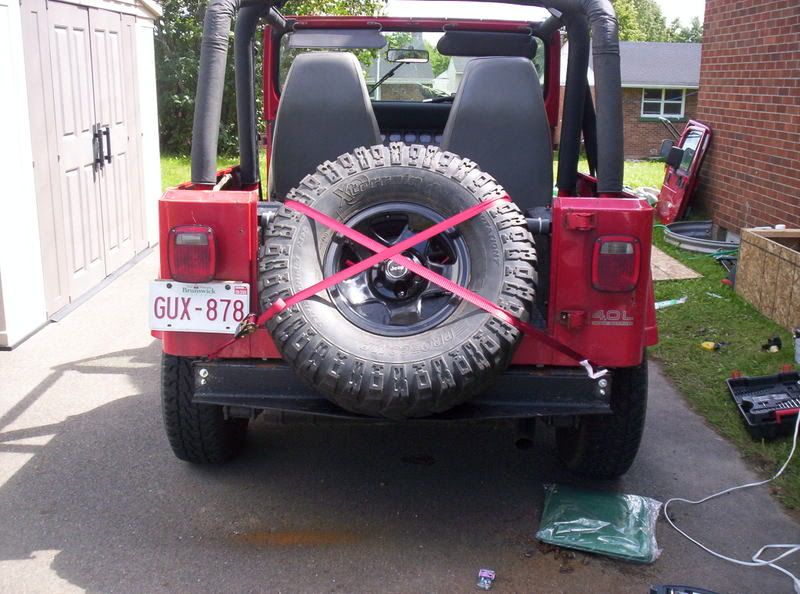

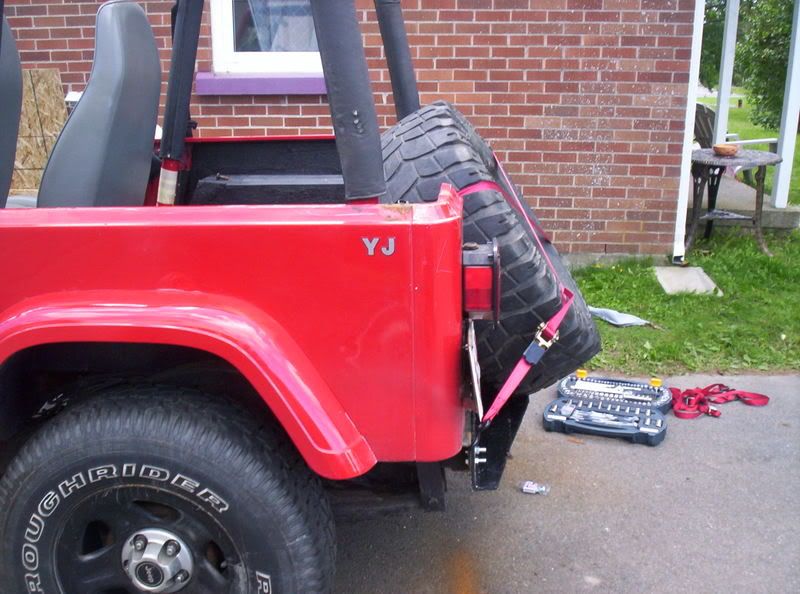

Pretty (ok really) simple tire carrier/bumper on a budget. Total costs including paint, rachet strap, hardware, and steel is under $100.

I'll let the pics speak for themselves





__________________
2002 Dodge Dakota quad cab V8
2011 Dodge Grand Caravan
frumpy is offline   Reply With Quote Quick reply to this message
Unread 10-09-2008, 01:46 AM   #18
raskull
Registered User
2003 TJ Wrangler

Join Date: Jun 2006
Location: Edmonton, Alberta
Posts: 1,799
Here's my front stubby bumper.

I cut the plate out, and drilled holes in all the corners of the cut-outs. I then connected the "dots" with a zip disc on a grinder, then made it look nice with a die-grinder. Big pain in the ***, but it's worth it for the pretty holes.




I had it all tacked together for a test fit.



Ok, fits good! Took it off to weld it, and put it on the jeep again to use a bumper until I work on it again.



Made the clevis tabs out of 1" thick QT100 plate, drilled 1" holes in them and welded them on, and welded up the whole bumper. I then spent a bunch of time cleaning up all the welds and spatter.







All done now but the paint and the 4 holes for the winch mount. The top plate that the winch mounts to is 1/4", the fairlead mount and formed bottom is all 3/16". There are also 1/4" doubler plates inside, opposite to where the clevis mounts are welded on for extra assurance.

The winch plate is not removable obviously, which means you have to remove the bumper to get the winch off. This is by design so it doesn't get stolen.

--------------

Full thread is here:

http://www.jeepforum.com/forum/showthread.php?t=550111
__________________
(O|||||||O)
l_l*-----*l_l

Raskull - Metallic Silver '03 Jeep TJ Sport (pic)
http://myjeeptj.com <- Write-ups on mods/maintenance/trips and a video/image gallery
Custom front bumper build
Custom rockers build
My build thread
raskull is offline   Reply With Quote Quick reply to this message
Unread 01-13-2009, 08:37 PM   #19
LalanP111
Registered User
2004 TJ Wrangler

Join Date: Dec 2008
Location: Oldtown, Maryland
Posts: 432
does any one have specs for a set of tube doors on a TJ??
__________________
1998 TJ, 4.0L, RC 2.5", 31x10.5-15 Duratracs (sold)
1988 MJ, 4.0L ..soon for be on 33's and 6.5" LA/SOA (project)
2004 TJ, 4.0L, Columbia Edition, 2.5" Rough Country, 33x12.5-15 Duratracs, Quadratec Winch, Dual Top (DD, future project)
Quote:
Originally Posted by Knuckelhead View Post
It takes care of me and in return, I take care of it. Takes me away from everything I don't want to be around, and back again when needed...
LalanP111 is offline   Reply With Quote Quick reply to this message
Unread 01-14-2009, 08:21 PM   #20
Gonewhln
Registered User
2006 TJ Wrangler

Join Date: Nov 2008
Location: Currituck, NC
Posts: 1,175
Quote:
Originally Posted by raskull View Post
Here's my front stubby bumper.

I cut the plate out, and drilled holes in all the corners of the cut-outs. I then connected the "dots" with a zip disc on a grinder, then made it look nice with a die-grinder. Big pain in the ***, but it's worth it for the pretty holes.




I had it all tacked together for a test fit.



Ok, fits good! Took it off to weld it, and put it on the jeep again to use a bumper until I work on it again.



Made the clevis tabs out of 1" thick QT100 plate, drilled 1" holes in them and welded them on, and welded up the whole bumper. I then spent a bunch of time cleaning up all the welds and spatter.







All done now but the paint and the 4 holes for the winch mount. The top plate that the winch mounts to is 1/4", the fairlead mount and formed bottom is all 3/16". There are also 1/4" doubler plates inside, opposite to where the clevis mounts are welded on for extra assurance.

The winch plate is not removable obviously, which means you have to remove the bumper to get the winch off. This is by design so it doesn't get stolen.

--------------

Full thread is here:

http://www.jeepforum.com/forum/showthread.php?t=550111
That stubby looks VERY VERY SWEET.....You took your time and it turned out super sweet,
Gonewhln is offline   Reply With Quote Quick reply to this message
Unread 01-15-2009, 10:12 AM   #21
GREASEMONKEY
Registered User
2003 TJ Wrangler

Join Date: Aug 2008
Location: Cayce, SC
Posts: 1,315
Air Tank Rear Bumper

Little rough around the edges, but still tough!


__________________
MY VID'S
My Rear Bumper - Tire Carrier
My Front Bumper/Stinger
My Ammo Can Console
------------------------------------------------------
Friendship is like peeing on yourself: everyone can see it, but only you get the warm feeling that it brings.

Last edited by GREASEMONKEY; 01-20-2009 at 10:58 PM..
GREASEMONKEY is offline   Reply With Quote Quick reply to this message
Unread 01-22-2009, 10:34 PM   #22
EK91YJ
Registered User
1991 YJ Wrangler

Join Date: Jun 2008
Location: Nebraska
Posts: 166
That is a sweet bumper!!! Do you have the specs for the winch plate?

Quote:
Originally Posted by raskull View Post
Here's my front stubby bumper.

I cut the plate out, and drilled holes in all the corners of the cut-outs. I then connected the "dots" with a zip disc on a grinder, then made it look nice with a die-grinder. Big pain in the ***, but it's worth it for the pretty holes.




I had it all tacked together for a test fit.



Ok, fits good! Took it off to weld it, and put it on the jeep again to use a bumper until I work on it again.



Made the clevis tabs out of 1" thick QT100 plate, drilled 1" holes in them and welded them on, and welded up the whole bumper. I then spent a bunch of time cleaning up all the welds and spatter.







All done now but the paint and the 4 holes for the winch mount. The top plate that the winch mounts to is 1/4", the fairlead mount and formed bottom is all 3/16". There are also 1/4" doubler plates inside, opposite to where the clevis mounts are welded on for extra assurance.

The winch plate is not removable obviously, which means you have to remove the bumper to get the winch off. This is by design so it doesn't get stolen.

--------------

Full thread is here:

http://www.jeepforum.com/forum/showthread.php?t=550111
__________________
Red 2.5l 4 inch Rubicon Express painted dash and rollbar padding black from spice
Square Headlights Member #147
Red Jeep Club #482
12 inch jl 3w3 sub in the back amped with Rockford Fosgate R500-1! Rockford Fosgate R300-4 amp powers 2 infinity 5022i in the centra pod and 2 pioneer 6x9s!

Last edited by EK91YJ; 01-22-2009 at 11:17 PM..
EK91YJ is offline   Reply With Quote Quick reply to this message
Unread 05-16-2009, 10:48 AM   #23
phillsam
Registered User
1993 YJ Wrangler

Join Date: Jan 2009
Location: Portland/Beaverton, Oregon
Posts: 339
Here is my bumper that i might,

In a few weeks i will have a degree in drafting and engineering graphics so i used solidworks to mock up the tire carrier and bumper and create shop drawings.

I hope to finish the tire carrier in the near future

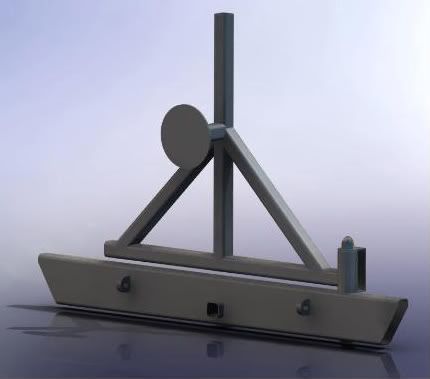

rendered image of assembly

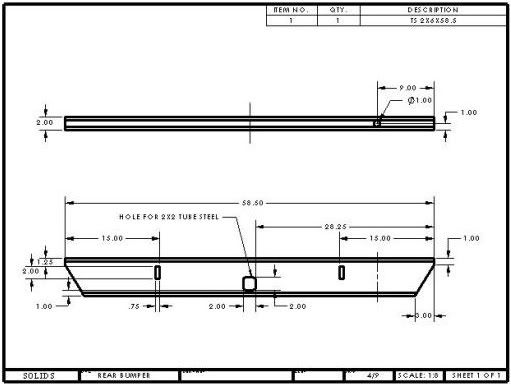

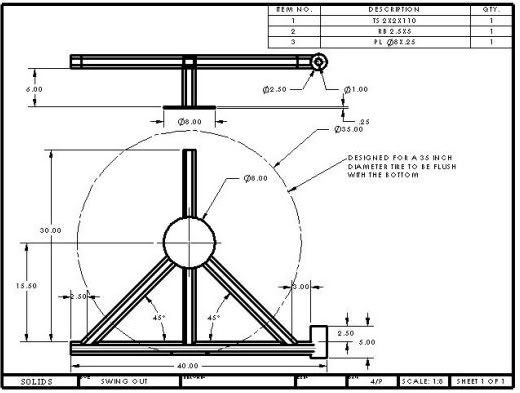

shop drawings

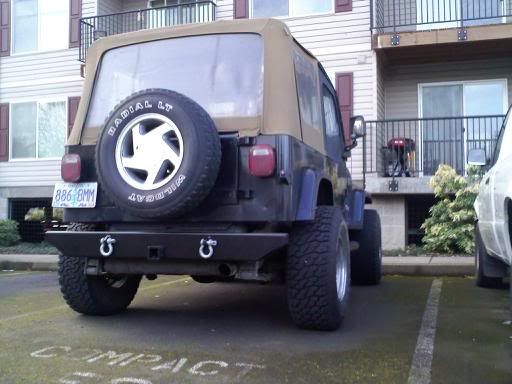

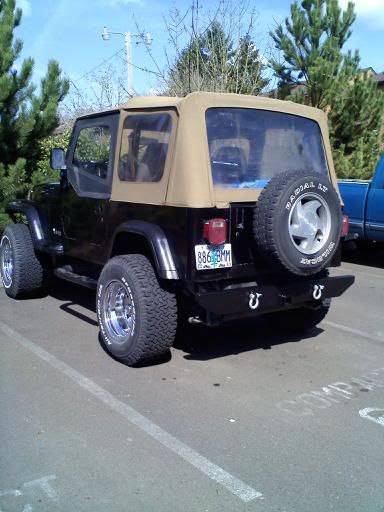

bumper finished and painted



(dont worry, the 3inch BL is coming off asap)
__________________
'93 YJ 2.5L 5spd,4" RC,33x12.5 trXus m/t,Rock-it intake,Clifford Performance header,Gibson cat-back, Mustang 19#Injectors, 3in BL(PO),5/8" Book Shackles
...homebrew rear bumper, boom shackles,ammo can speakers, center console sub, and sway bar discos,hi-lift/hood light bar... pics in build thread!
phillsam is offline   Reply With Quote Quick reply to this message
Unread 05-16-2009, 10:53 AM   #24
phillsam
Registered User
1993 YJ Wrangler

Join Date: Jan 2009
Location: Portland/Beaverton, Oregon
Posts: 339

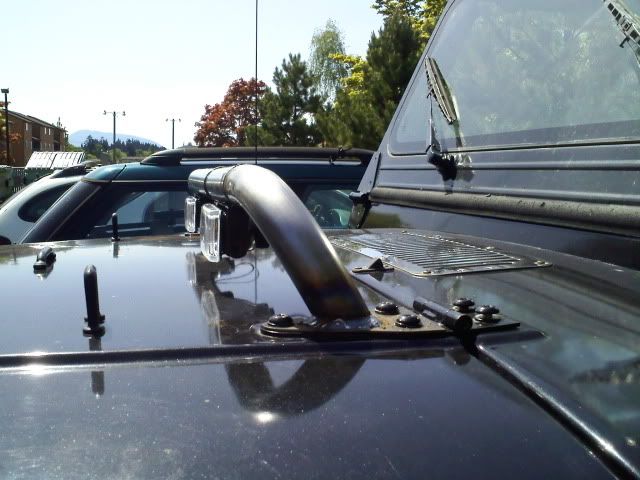

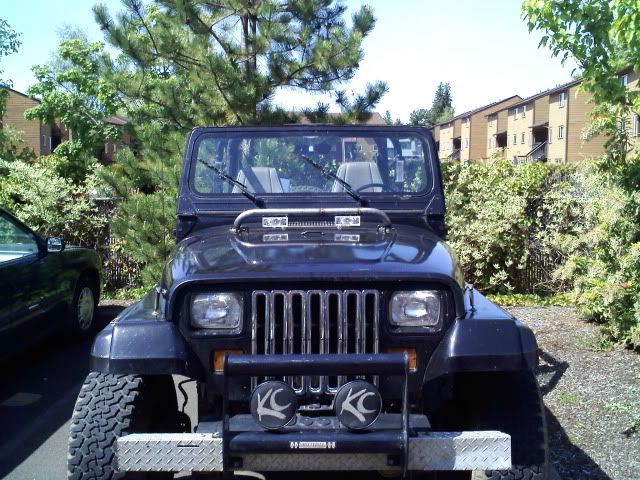

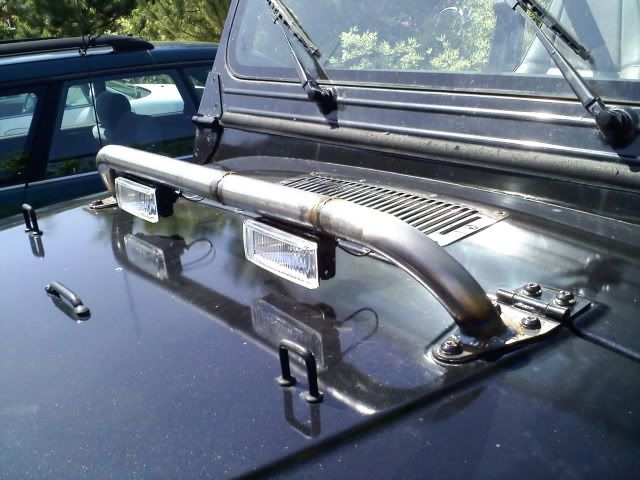

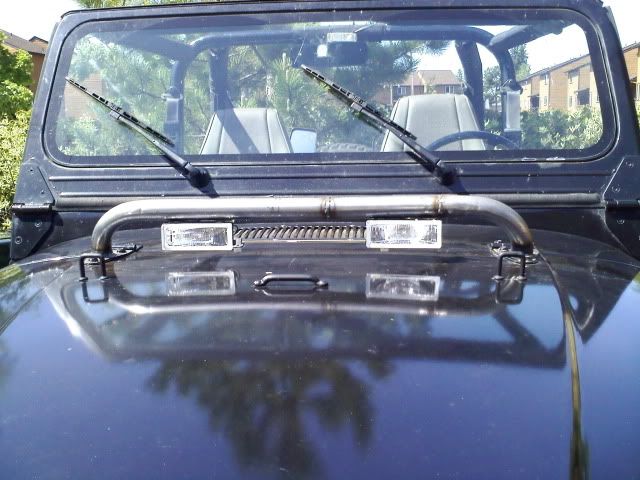

Im also in the process of a hood light bar/hi-lift mount...heres the light bar portion (should finish hi-lift tabs on tues




__________________
'93 YJ 2.5L 5spd,4" RC,33x12.5 trXus m/t,Rock-it intake,Clifford Performance header,Gibson cat-back, Mustang 19#Injectors, 3in BL(PO),5/8" Book Shackles
...homebrew rear bumper, boom shackles,ammo can speakers, center console sub, and sway bar discos,hi-lift/hood light bar... pics in build thread!
phillsam is offline   Reply With Quote Quick reply to this message
Unread 05-20-2009, 12:57 PM   #25
phillsam
Registered User
1993 YJ Wrangler

Join Date: Jan 2009
Location: Portland/Beaverton, Oregon
Posts: 339

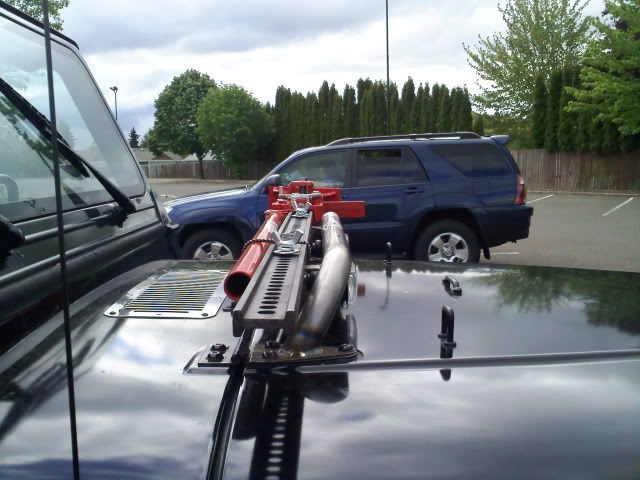

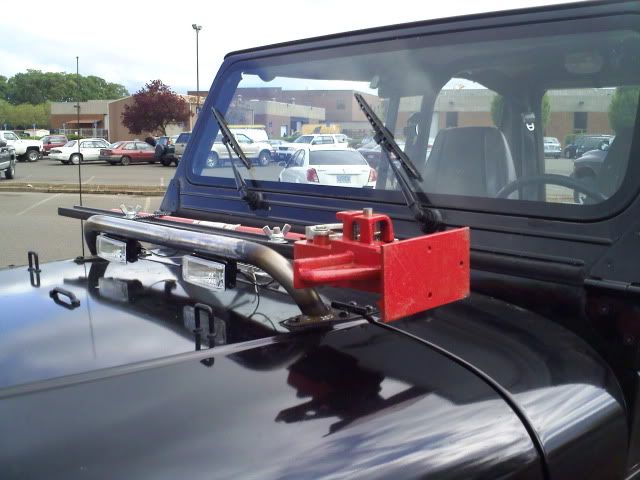

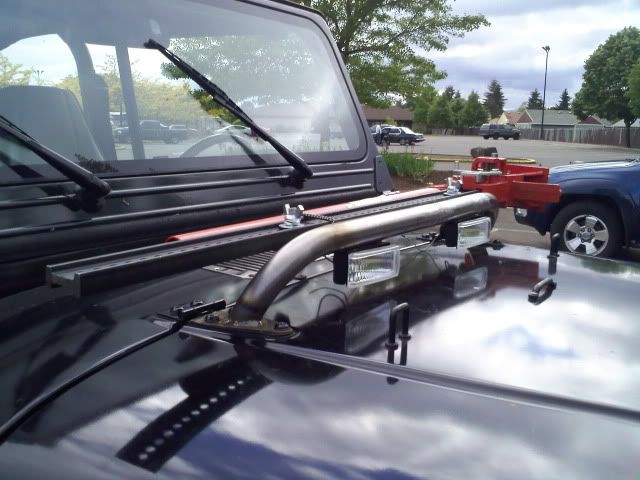

Got it done (minus paint)



__________________
'93 YJ 2.5L 5spd,4" RC,33x12.5 trXus m/t,Rock-it intake,Clifford Performance header,Gibson cat-back, Mustang 19#Injectors, 3in BL(PO),5/8" Book Shackles
...homebrew rear bumper, boom shackles,ammo can speakers, center console sub, and sway bar discos,hi-lift/hood light bar... pics in build thread!
phillsam is offline   Reply With Quote Quick reply to this message
Unread 06-29-2009, 03:29 AM   #26
StoutTJ
Registered User
1998 TJ Wrangler

Join Date: Feb 2009
Location: gresham
Posts: 56
Quote:
Originally Posted by phillsam View Post
Got it done (minus paint)



nice work.
StoutTJ is offline   Reply With Quote Quick reply to this message
Unread 09-14-2009, 02:04 PM   #27
rtbtitans50
Registered User
2003 TJ Wrangler

Join Date: Jun 2009
Location: Cincinnati,OH
Posts: 197
anyone have specs for a 1980 cj5 half doors
rtbtitans50 is offline   Reply With Quote Quick reply to this message
Unread 10-07-2009, 02:13 PM   #28
Ace88YJ
Registered User
1988 YJ Wrangler

Join Date: Oct 2009
Location: Fredericksburg
Posts: 1
Trying to FAB up a center console with no previous console available

I recently bought an 88 YJ and it came with a locking center console but I have no idea how to mount it inside. Any ideas let me know. Thanks all


Ace88YJ is offline   Reply With Quote Quick reply to this message
Unread 10-09-2009, 09:15 PM   #29
jeepsta
Registered User
1983 CJ5

Join Date: Feb 2003
Location: Farmington, NM
Posts: 238
Quote:
Originally Posted by rtbtitans50 View Post
anyone have specs for a 1980 cj5 half doors
I drew some up in google sketch up using either 1/2 inch or 3/4 inch IMC. I will see if I can find it when I get home.
__________________
83 CJ, yeah its a 5

1. Christopher Columbus did not need directions and neither do we.
jeepsta is offline   Reply With Quote Quick reply to this message
Unread 12-06-2009, 03:17 PM   #30
redjeeprunner1
Registered User
1998 TJ Wrangler

Join Date: Dec 2009
Location: Clearwater/Tampa fl, Florida
Posts: 37
I dont know if this is right for this thread but has anybody put a drop down tailgate on a tj i know they have kits now but i was wondering if there was a cheaper way.>>?
redjeeprunner1 is offline   Reply With Quote Quick reply to this message
