Another TJ 4 link... 3 link added!

Thought id put this in too since most of the other stuff ive done for my jeep is in here

been puttin this off for a long time but ive finally gotten sick of replacing RE stuff so decided id take the money itd cost for another rebuild and do this. Running all 7/8 ruff stuff heims, triangulated 4 link with 2" .25 was DOM.

to start heres kinda the rough out line of link placements, its changed since this screen shot but once its finished all re input the final numbers


start of the truss, made at work one day real quick, 3/8 x 3" plate


pulled the jeep in friday and cut the axle out



cleaned the frame, and then the 8.8 lost all its old brackets 200 bucks down the drain...


tacked the new truss on and threw it up under to check the clearance to the tub at full bump


took a wire hanger and used it to get the profile of the housing and then transferred that to some cardboard to get the actual shape.then traced it onto some 3/16 plate and cut it out

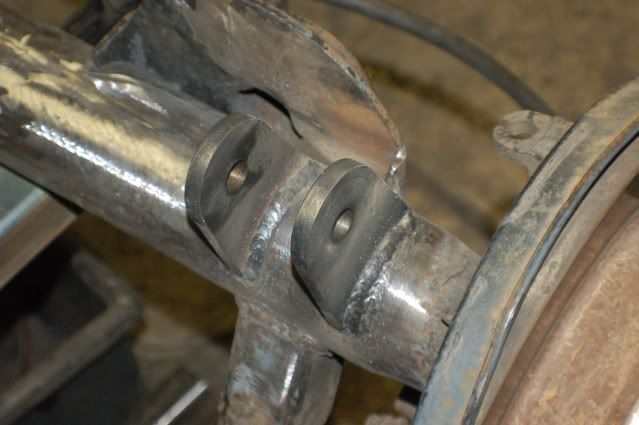

nick and herschel cleaning it up while i make the upper link tabs out of some 3/8



the result, nice and tight

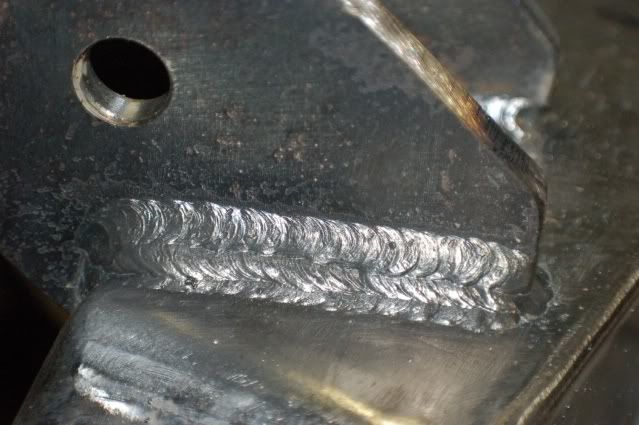

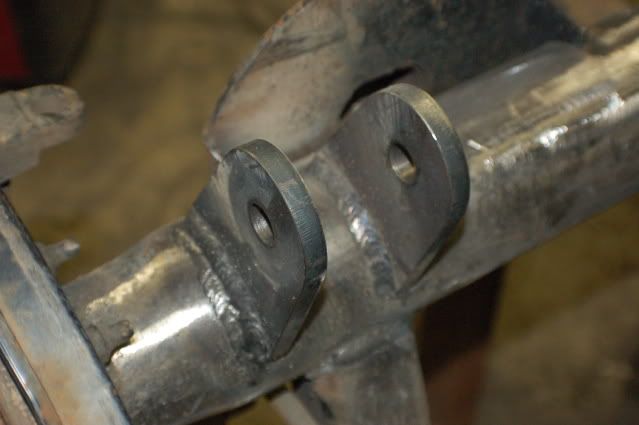

welds for the truss

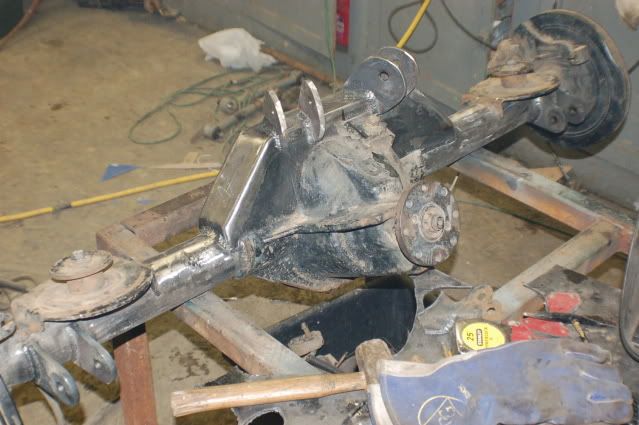

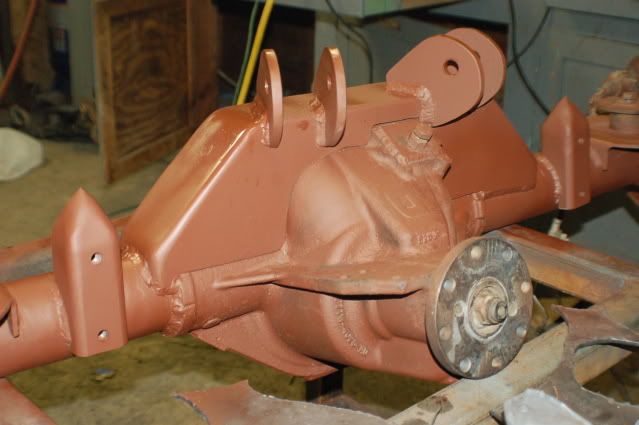

truss welded up and and cleaned



more sexy welds

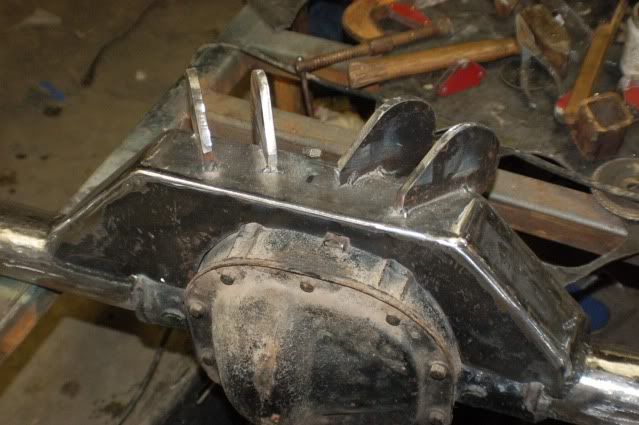

completed truss



cgmrdc is offline   Reply With Quote Quick reply to this message
Unread 01-31-2011, 02:55 AM   #2
cgmrdc
Registered User
1988 MJ Comanche

Join Date: Sep 2007
Location: Denton, Texas
Posts: 888

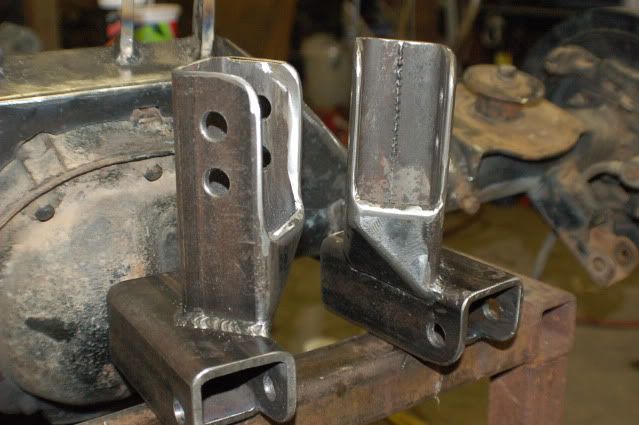

Heres the start of my frame mounts, theyll make more sense once they are welded to the frame and i add the supports...

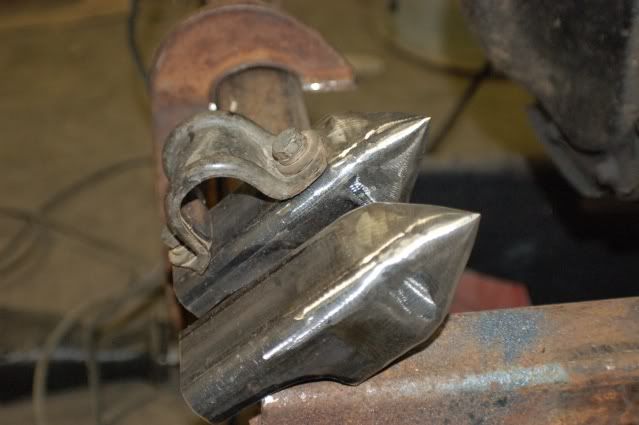

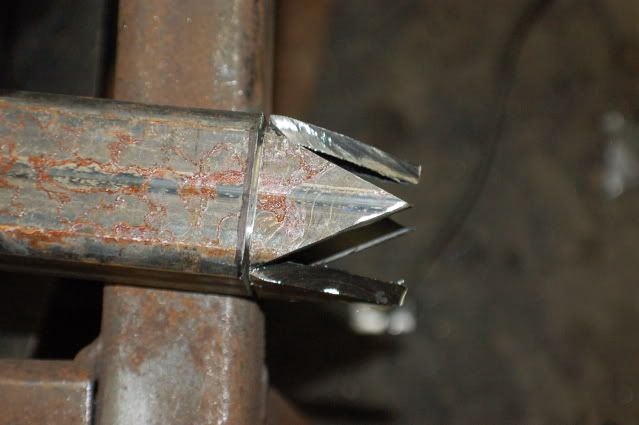

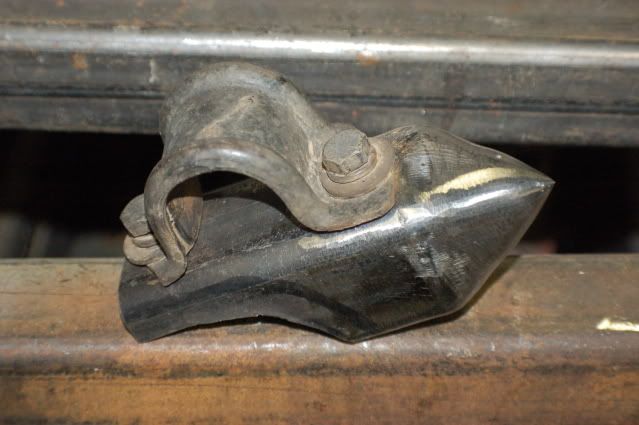

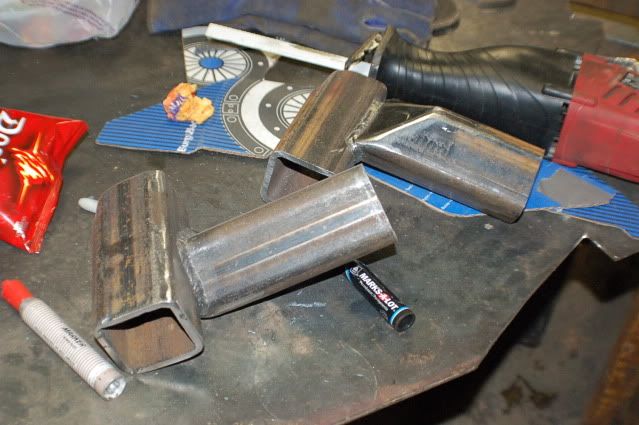

so my ruff stuff heims still havnt showed up and ive run out of things to do without them in hand so for the sway bar link mounts i thought id get creative.

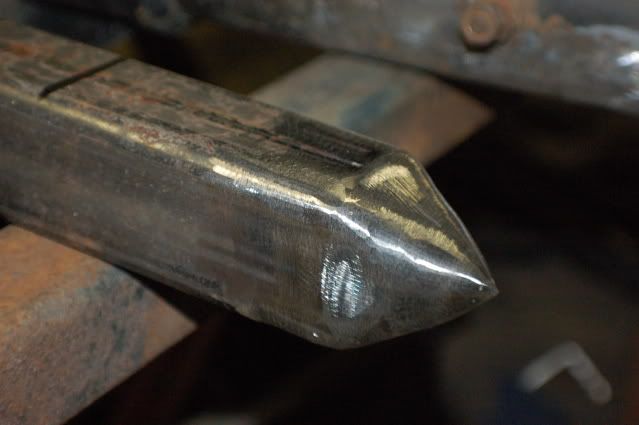

and last but not least Beer-a-myd!


like i said, hopefully the heims how up tomorrow and i can place the frame brackets and get them clearanced, drill all my holes and cut my links, ill keep this updated once more gets done. feel free to ask any questions
cgmrdc is offline   Reply With Quote Quick reply to this message
Unread 01-31-2011, 07:13 AM   #3
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,279
Nice work!! I'm gonna have to remember the coat hanger template thing.. looks like a real time-saver.

Drilling those 3/8" thick upper link mounts by hand..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 01-31-2011, 10:17 AM   #4
cgmrdc
Registered User
1988 MJ Comanche

Join Date: Sep 2007
Location: Denton, Texas
Posts: 888
Thanks! Def made for real clean install...

And yeah, by hand... been looking for a used drill press but havnt found any in my area. Thank god for step bits! And lots of cutting lube lol
cgmrdc is offline   Reply With Quote Quick reply to this message
Unread 01-31-2011, 10:17 AM   #5
cgmrdc
Registered User
1988 MJ Comanche

Join Date: Sep 2007
Location: Denton, Texas
Posts: 888
Thanks! Def made for real clean install...

And yeah, by hand... been looking for a used drill press but havnt found any in my area. Thank god for step bits! And lots of cutting lube lol
cgmrdc is offline   Reply With Quote Quick reply to this message
Unread 02-02-2011, 10:59 PM   #6
cgmrdc
Registered User
1988 MJ Comanche

Join Date: Sep 2007
Location: Denton, Texas
Posts: 888
its done!

heims finally showed up, but without the misalignment spacers so i drilled all the holes out to 5/8 and took a piece of 2" square tubing (measures just ever 2" wide) and also drilled a hole in it and bolted the tabs to it while i welded.

uppers

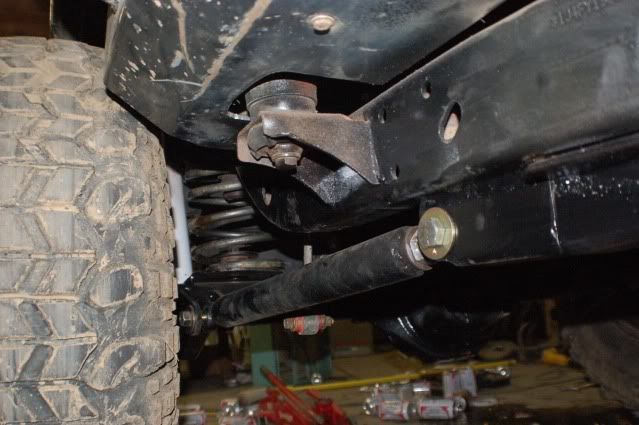

lowers

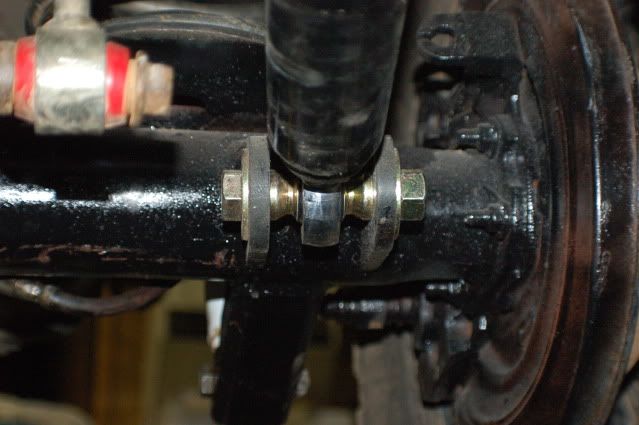

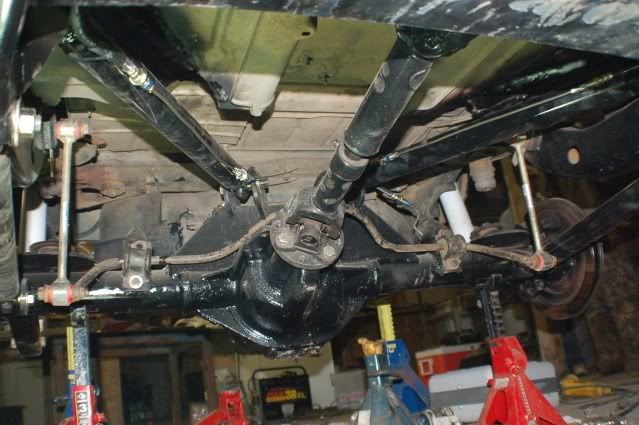

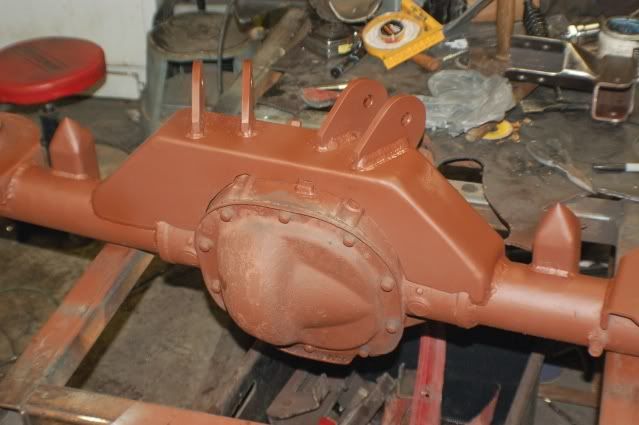

sway bar mounts and primer

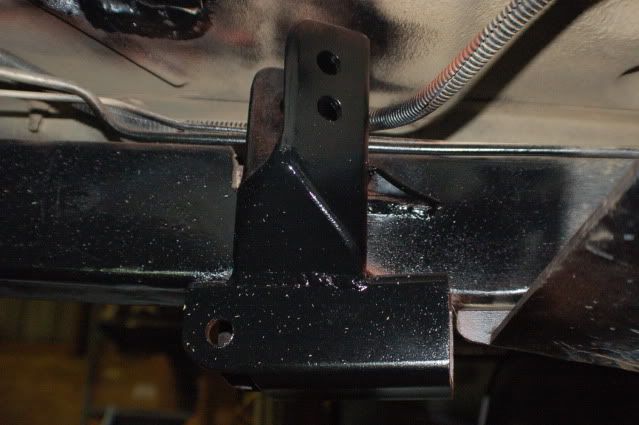

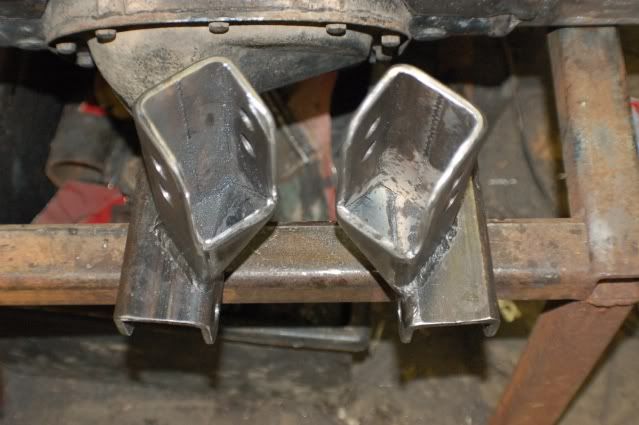

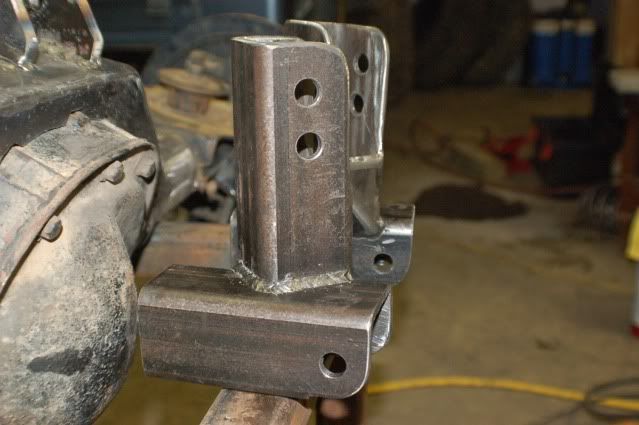

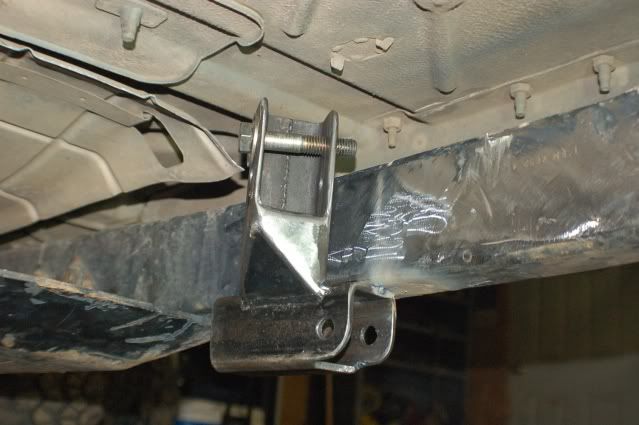

here are the frame brackets, holes allow for 50% and 70% AS

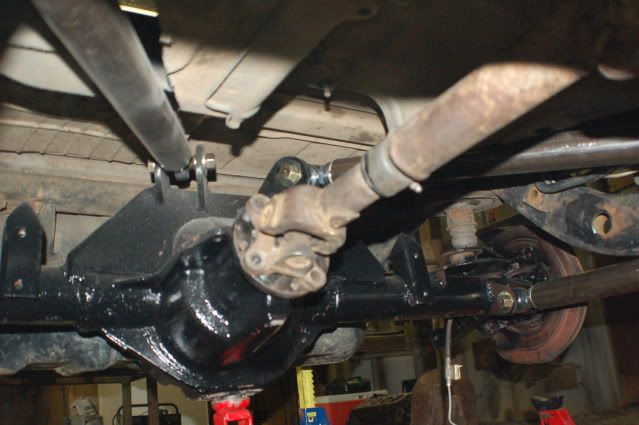

in place

the issue...


bc im using the 2.5" box its hard to space things away from the frame and i thought i had enough room... but alas... time to start cutting more...

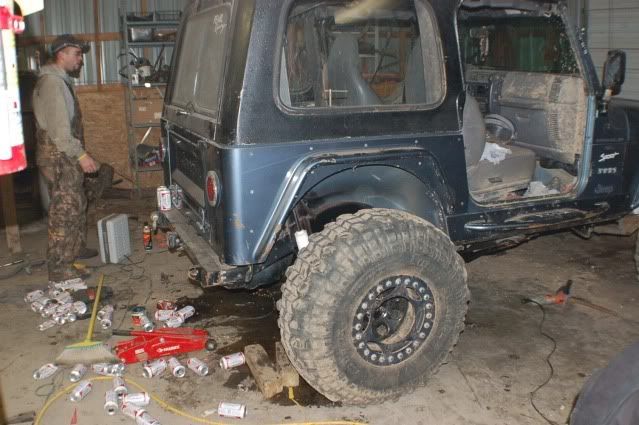

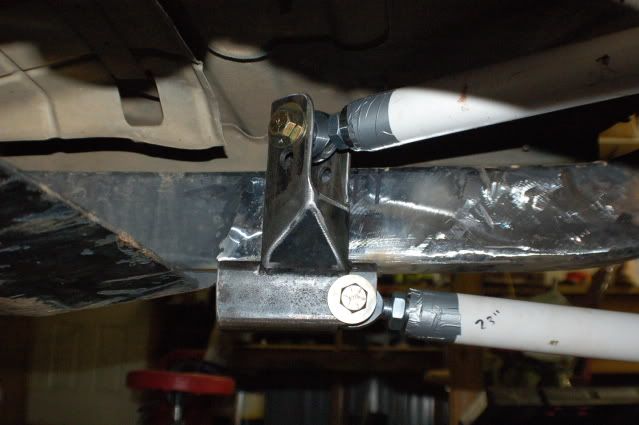

in the mean time (to keep all the guys helping me busy) we went ahead and mocked everything up with PVC so they could cut the links

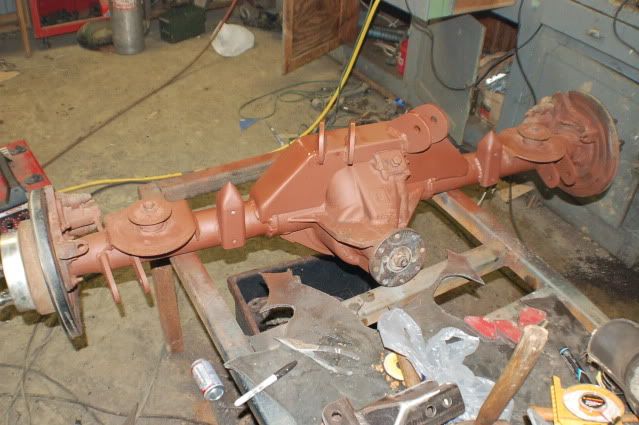

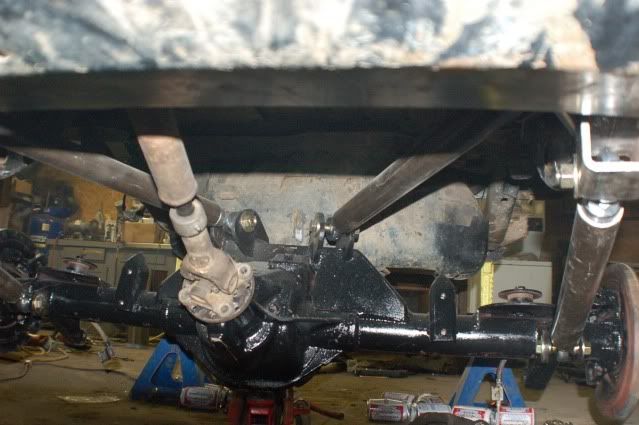

so while i worked on the frame notches the links got cut and the 8.8 got painted


and then another issue... but i knew it was gonna be the case. bc i run 5" of uptravel on 2.5" of lift, sometimes things get in the way of each other. nd i wasnt about to compromise the geometry i wanted bc of a little sheetmetal

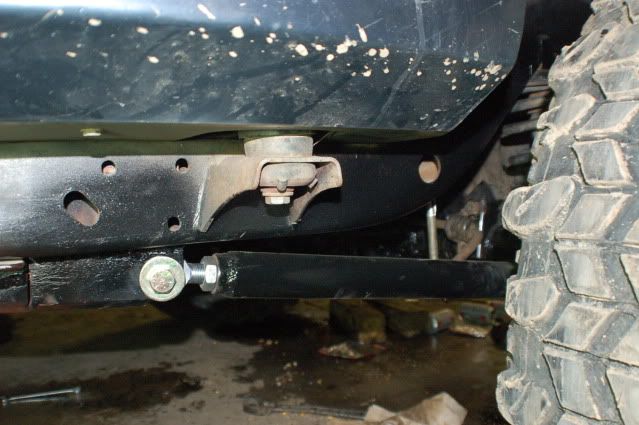

heres another clearance problem that i havnt taken care of yet, the lowers hit the frame with about 3/4 " of travel
cgmrdc is offline   Reply With Quote Quick reply to this message
Unread 02-02-2011, 11:00 PM   #7
cgmrdc
Registered User
1988 MJ Comanche

Join Date: Sep 2007
Location: Denton, Texas
Posts: 888

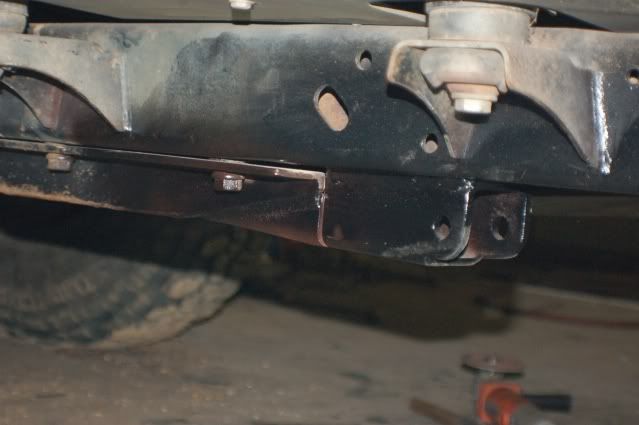

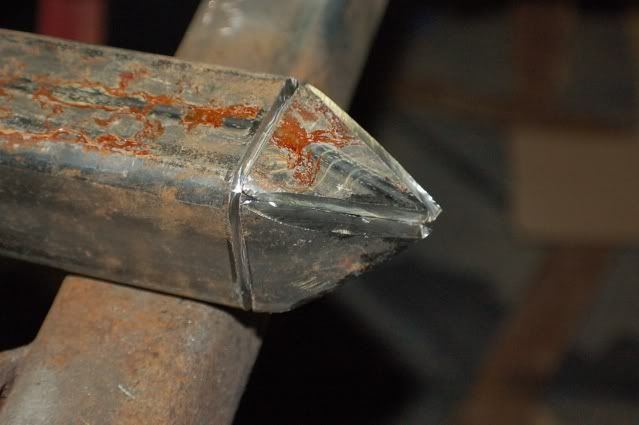

so now the solutions... i took and cut into the frame 2" down and half way into the top of the frame. then along to corner and just folded it in. then the ends were filled... i also gusseted the upper mount

which apparently i dont have a good picture of...

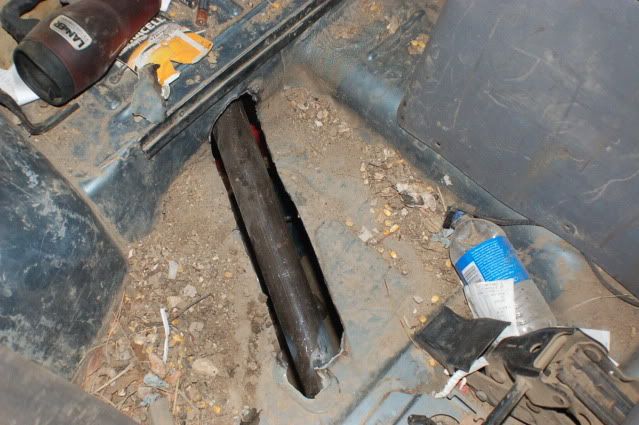

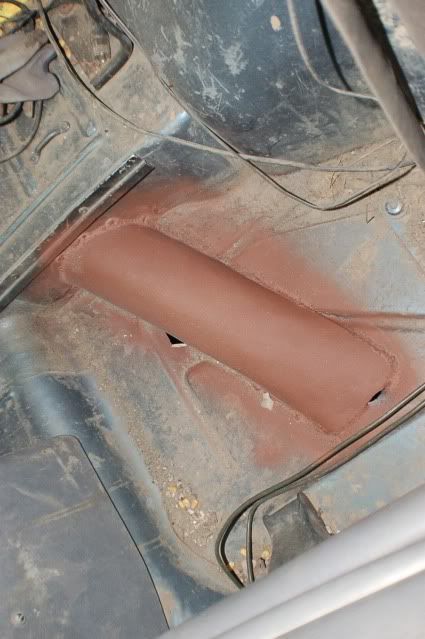

and the hole in the floor. 12 ga rolled and formed around the corner of my welding table... my buddy nick has prolly 4 hrs in em... would be nice to have the proper tools...


nick welding


so before anyone say, the lower mounts are butt ugly... why not shape em? well bc they are the same height as my skid so...

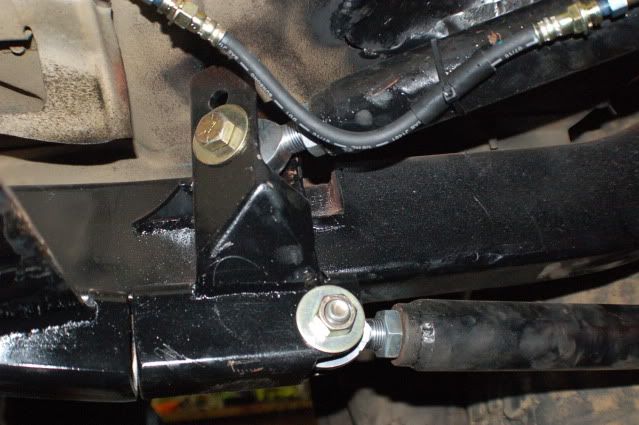

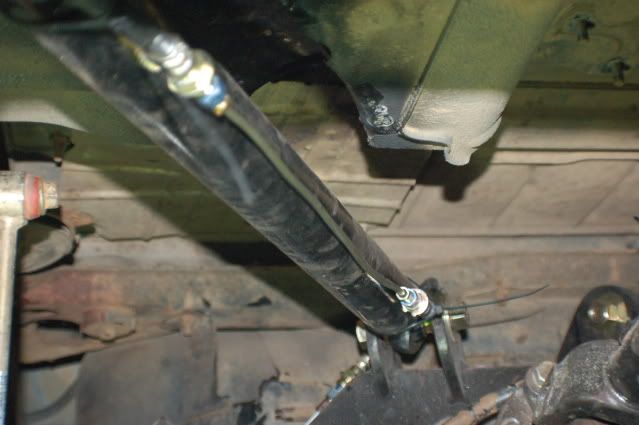

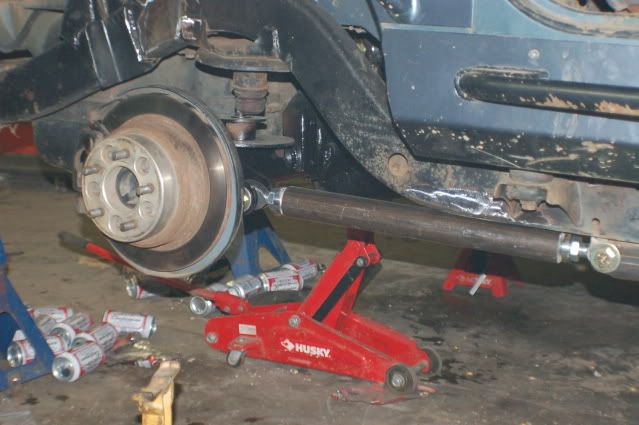

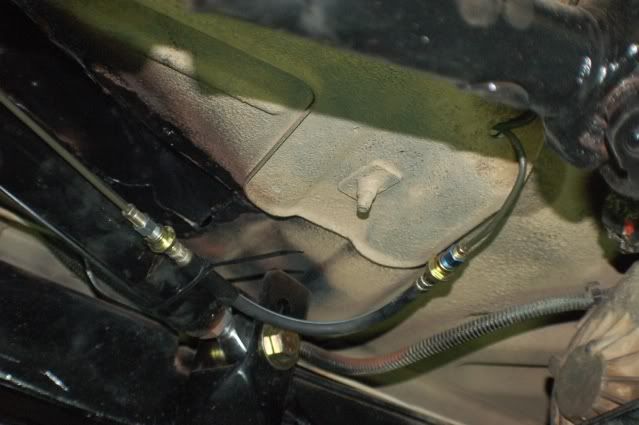

so bc the cutting brake needs separate lines i decided to run the lines down the uppers. i went through BOXES and BOXES of brake lines till i found soft lines with female ends on both ends. if anyone wants the pns let me know. they were like 12 bucks a piece but they only had two in stock... and you need 4...




need to get some clamps and actually permanently attach it but zip ties work for now...

on its own weight for the first time in 4 days

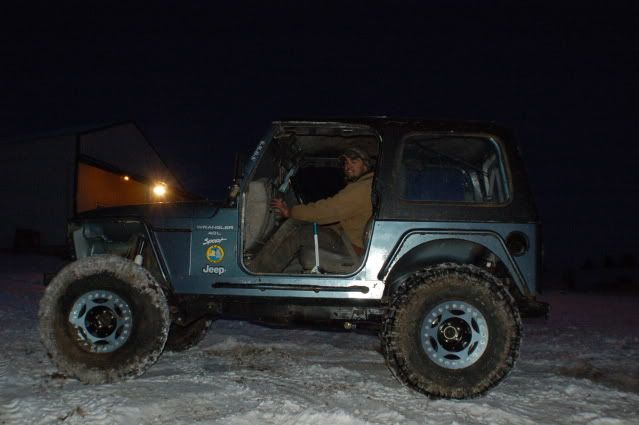

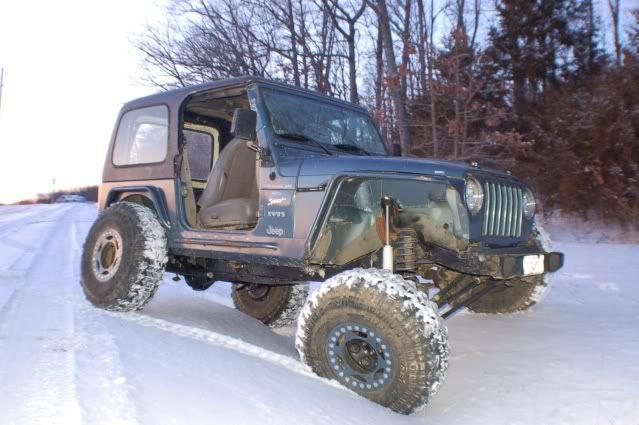

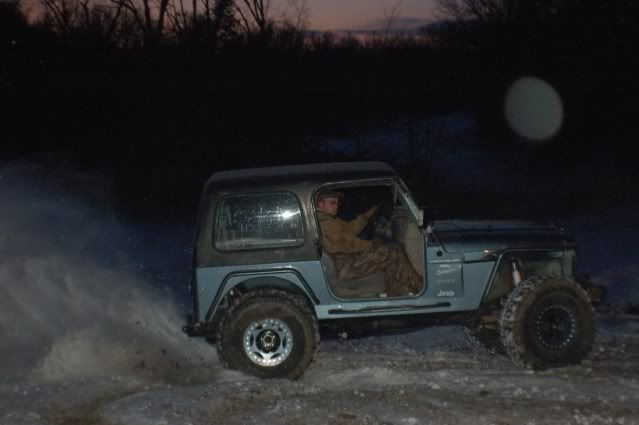

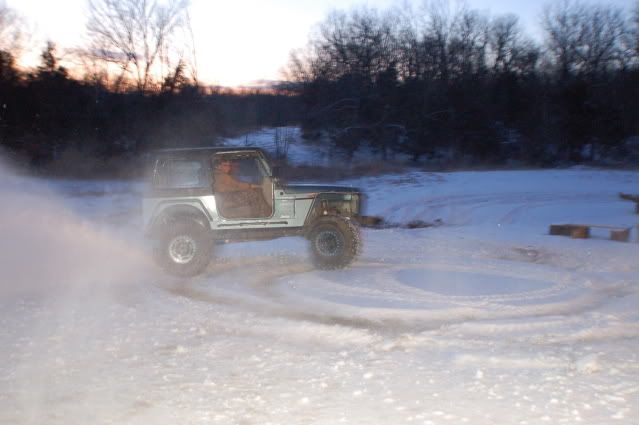

and the snowy shakedown... yes doorless
