Another bumper/tire carrier build...

I've never had a rear bumper, or a spare tire on my jeep ever since I've owned it. I figured that it's about time that I do.

So, I made one. I got a lot of ideas from others on the internet, as well as from Eddie (Bserk). To all that I copied, I thank you. I also added my own little details.

To save myself a ton of descriptive typing (I am a very slow typist...) I am pretty much going to show a bunch of pictures. most of this stuff is self explanatory, anyway.

The bumper is made from 4" x 3" x 3/16" tube.

The swing out carrier is 3" x 2" x .120 wall tube.

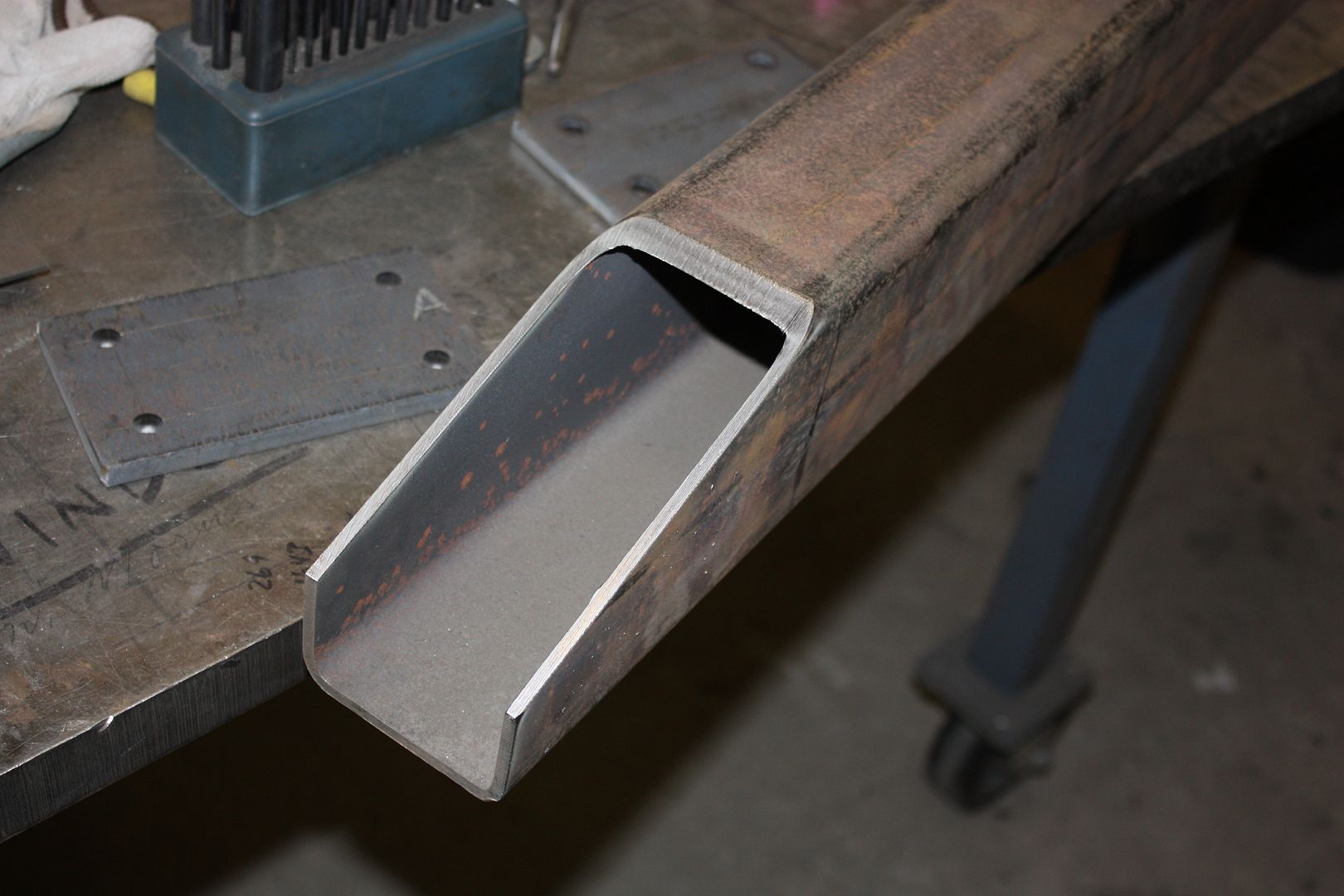

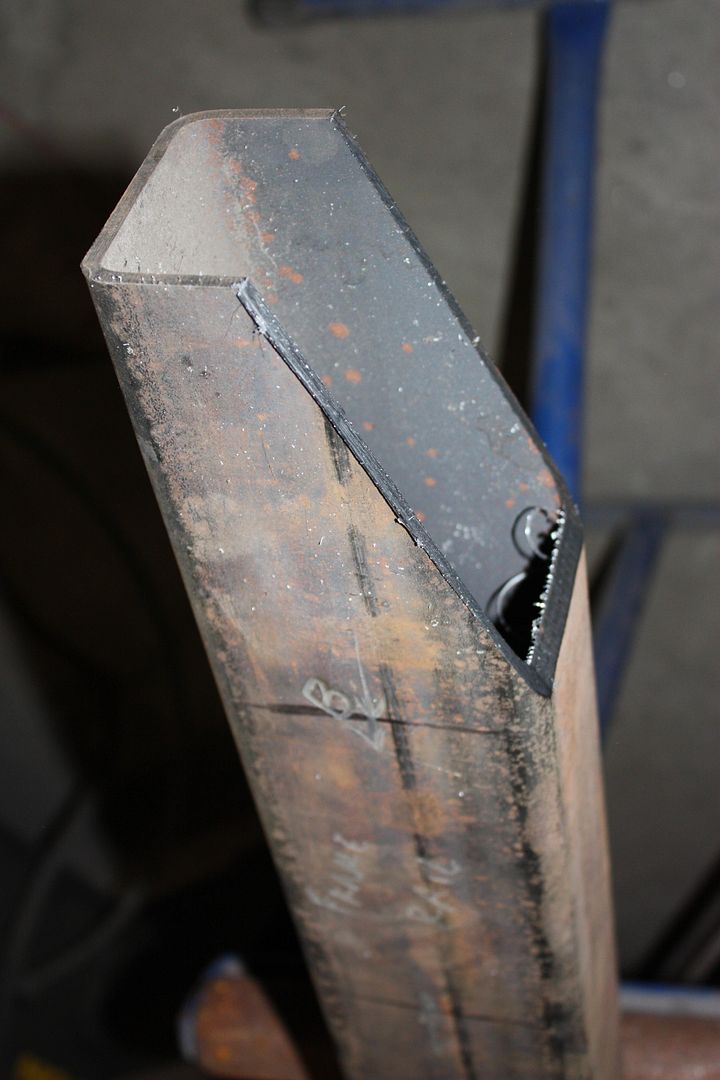

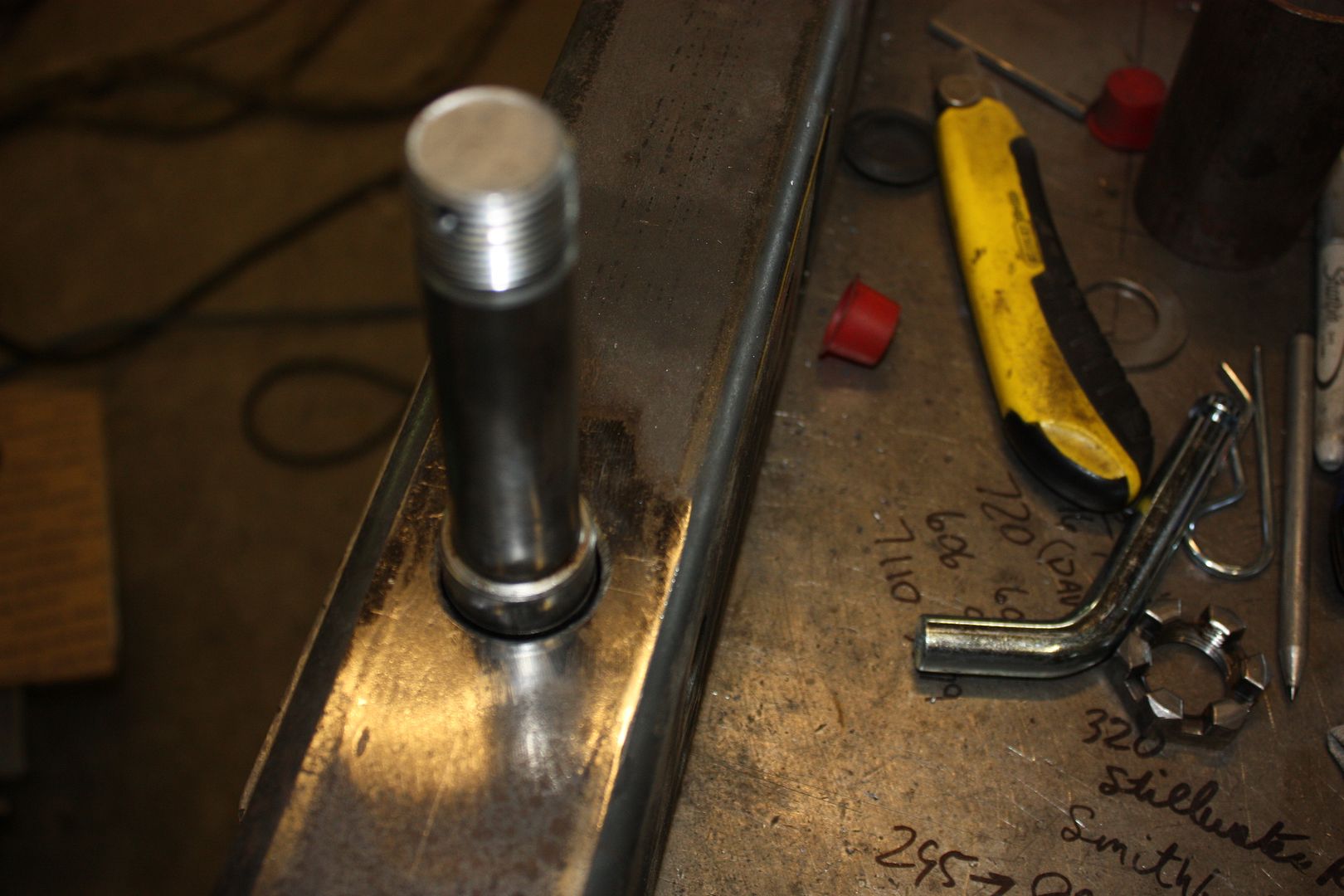

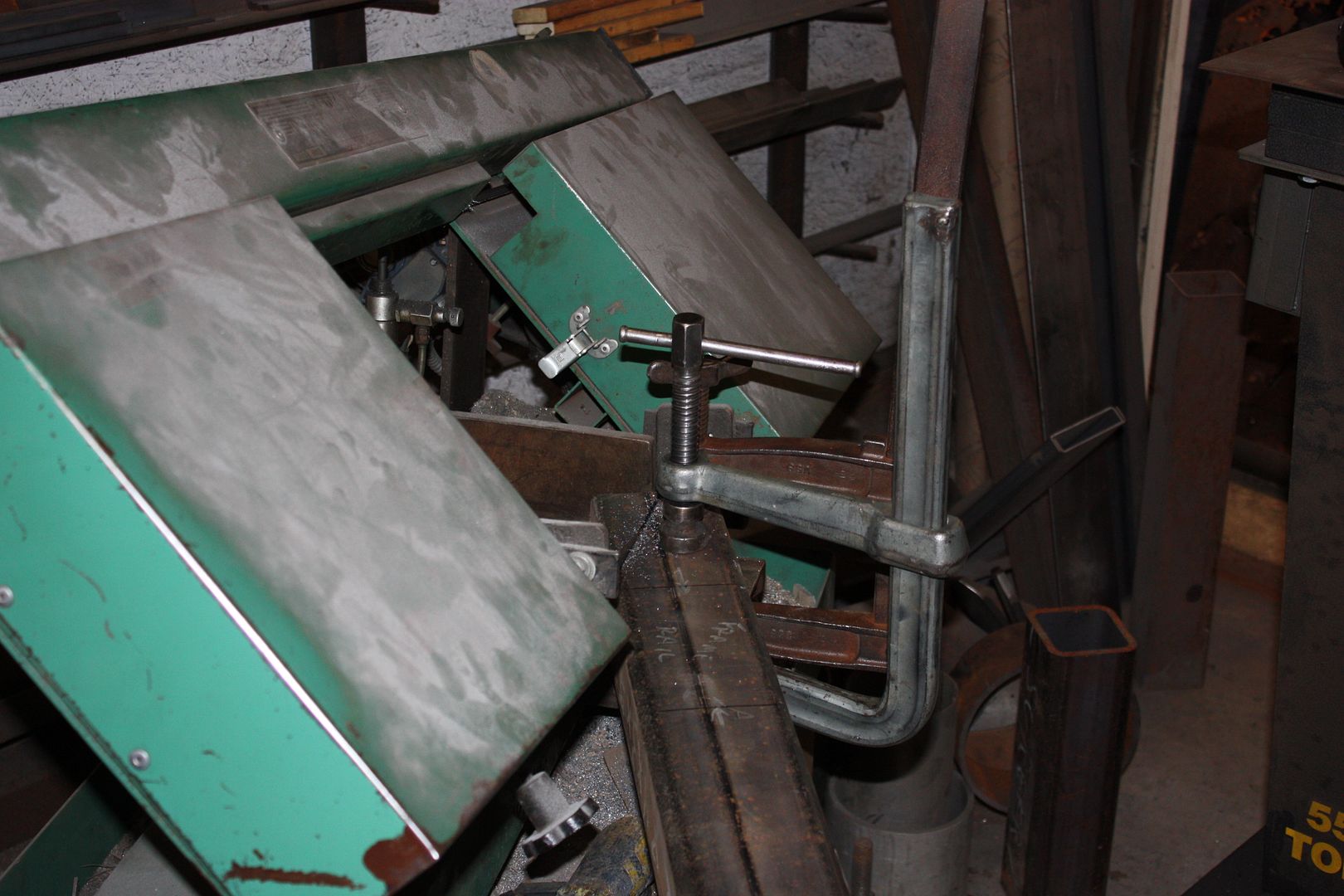

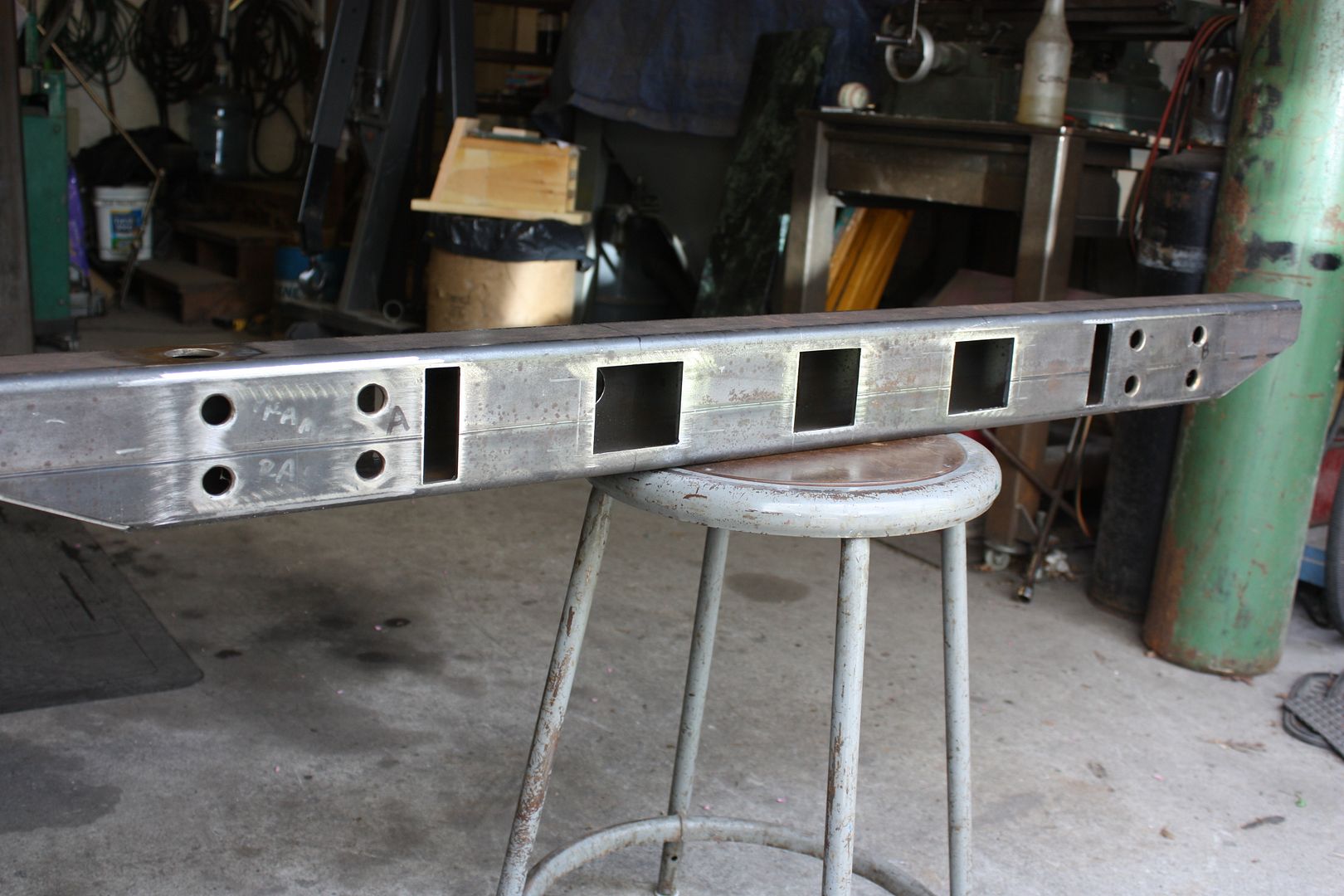

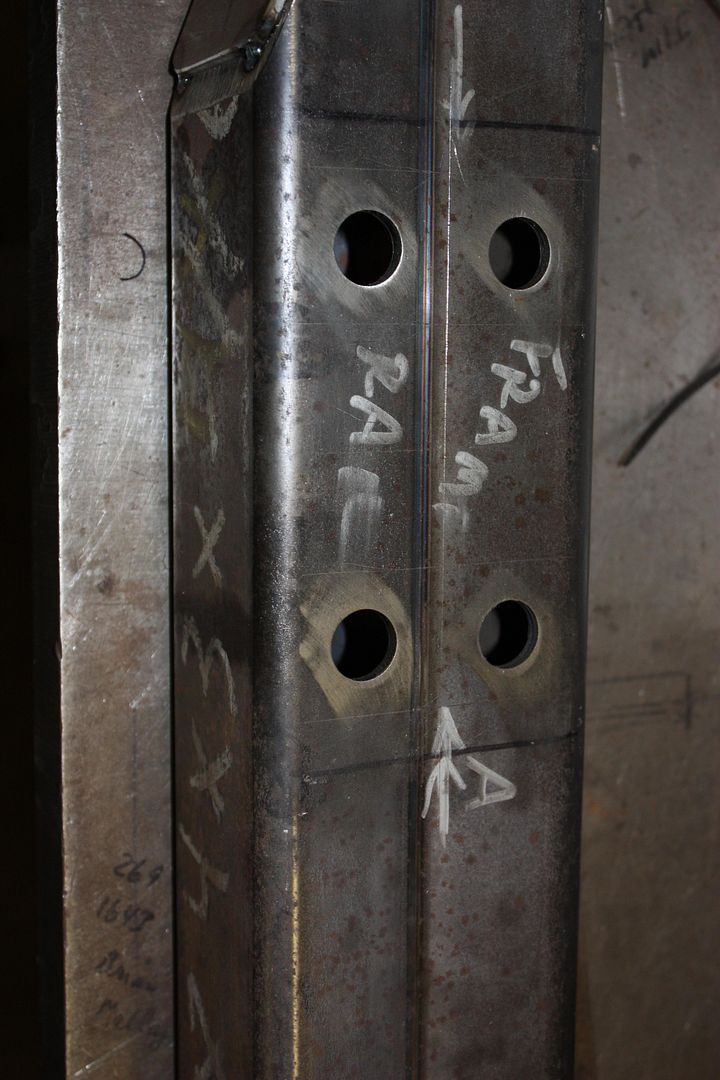

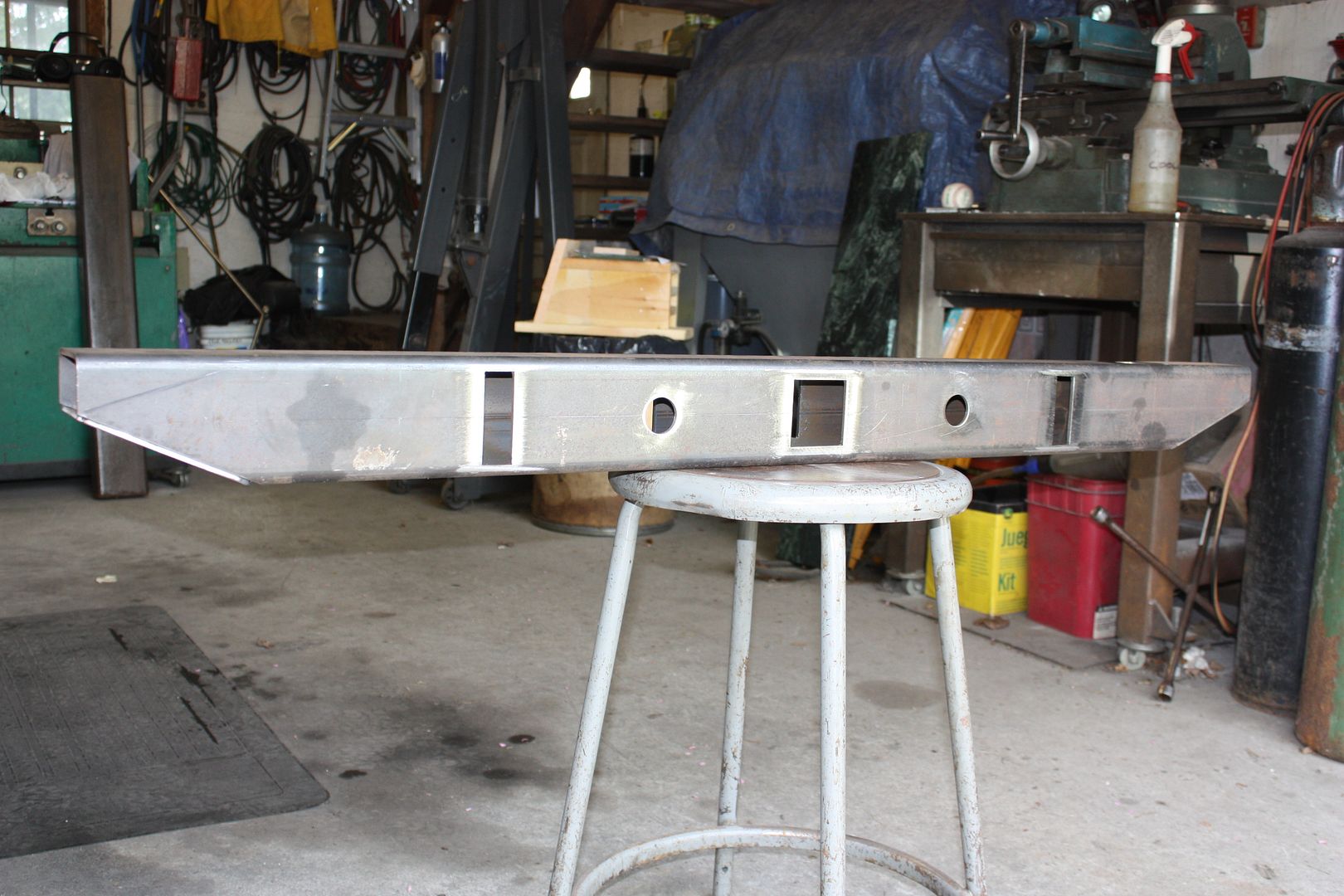

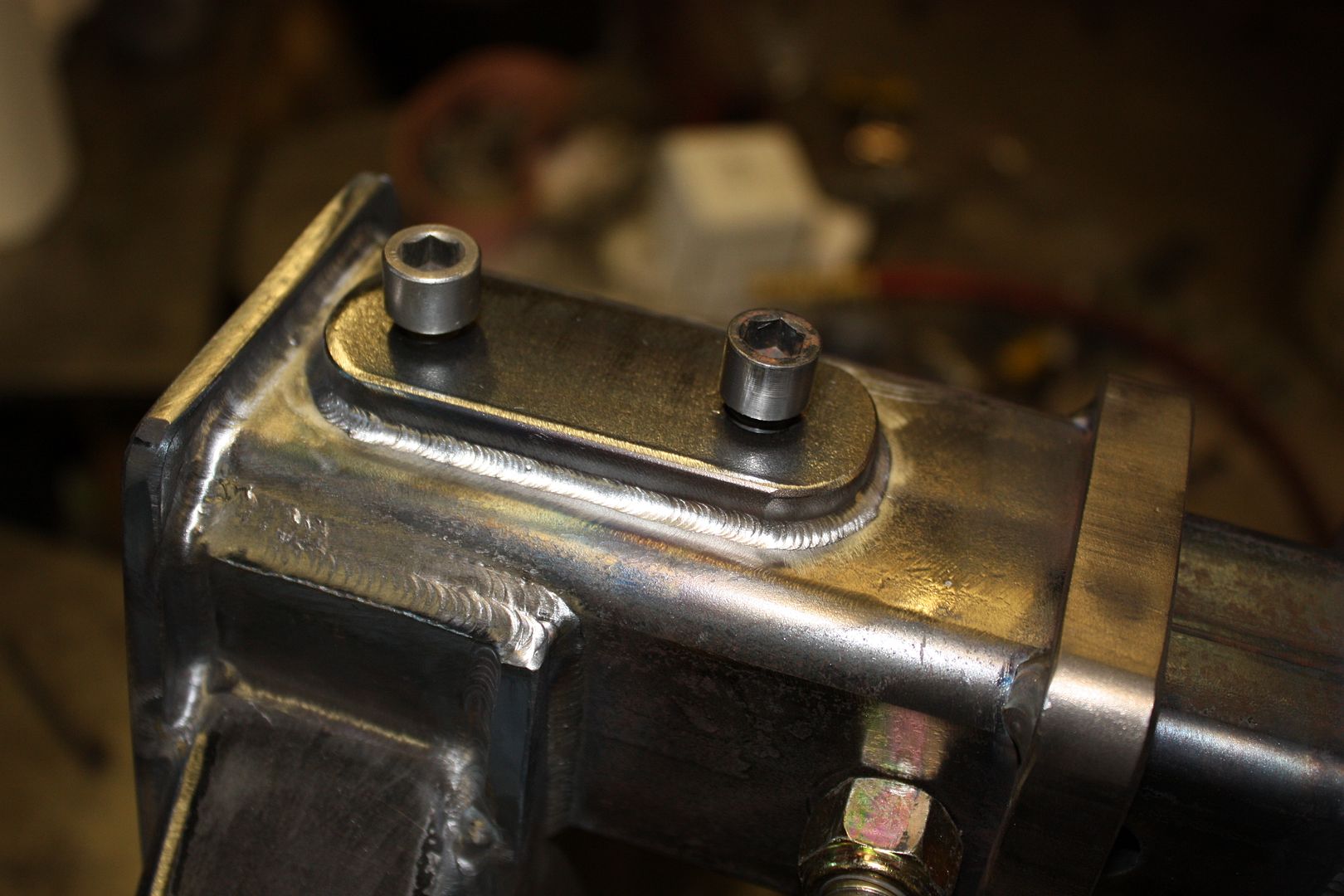

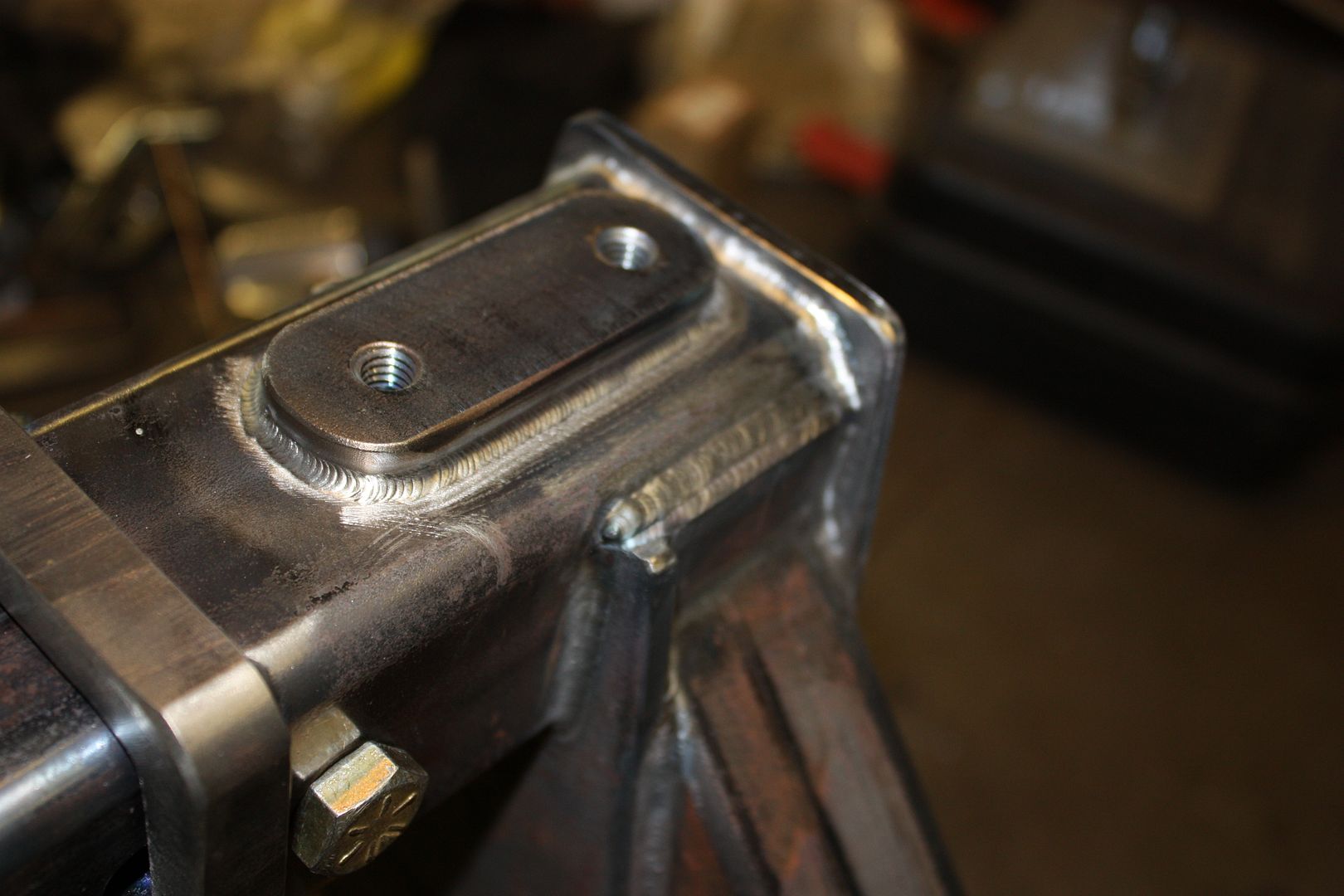

Here we go...making parts...

















[IMG]
http://i219.photobucket.com/albums/cc51/rixcj/Rear%20bumper%20build/IMG_4380_zps9159bb8c.jpg[/IMG]








Sustained a little injury...my hand got pulled into the bandsaw by a pair of gloves. DON'T WEAR GLOVES WHEN USING CERTAIN POWER TOOLS OR MACHINERY!!!!!!

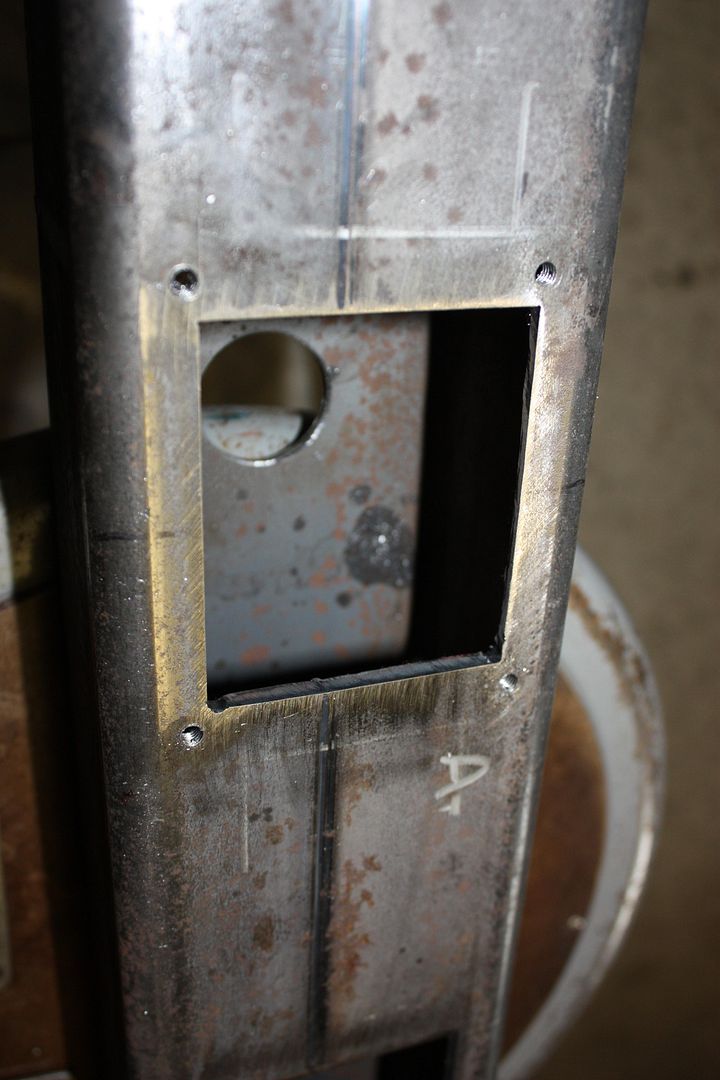

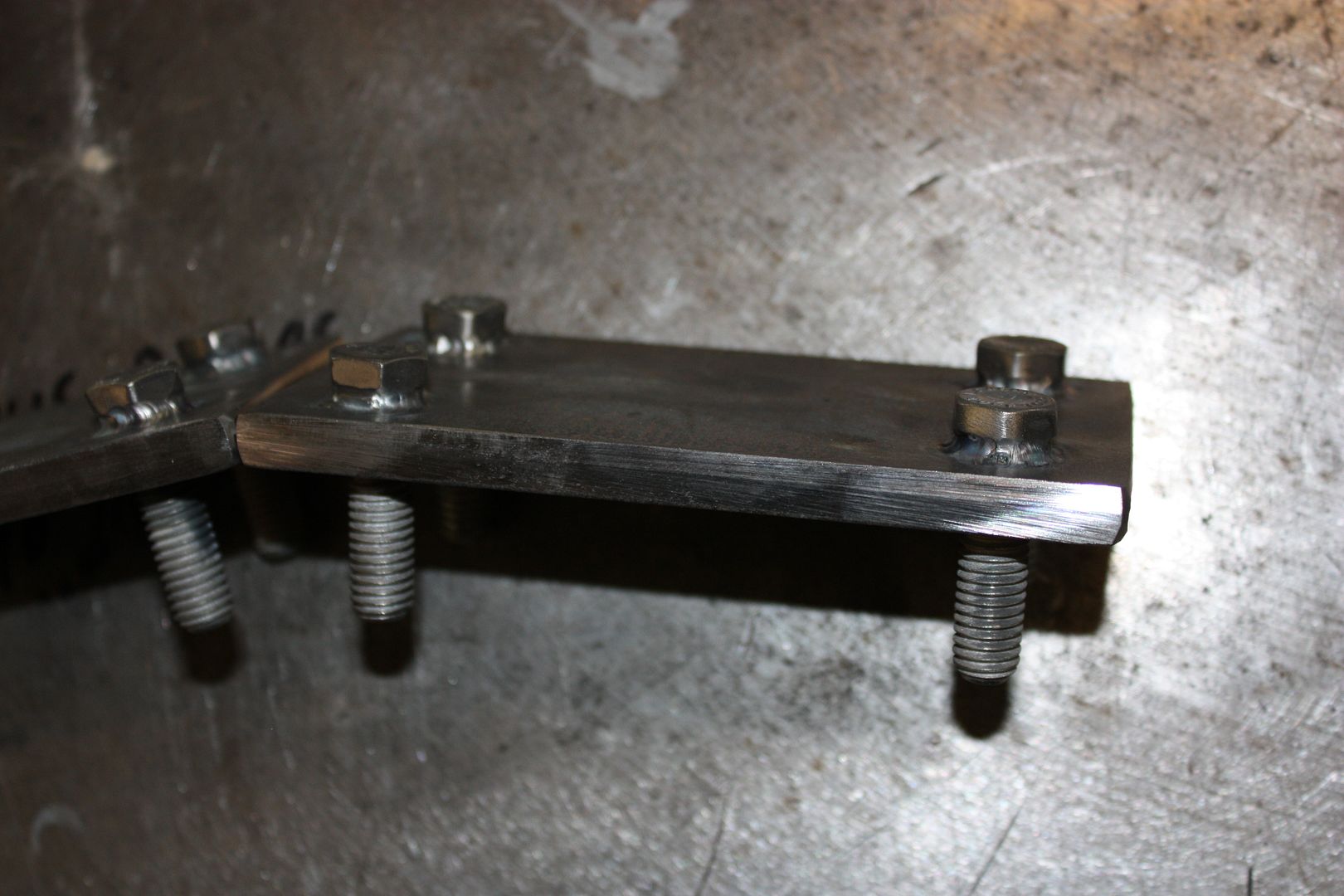

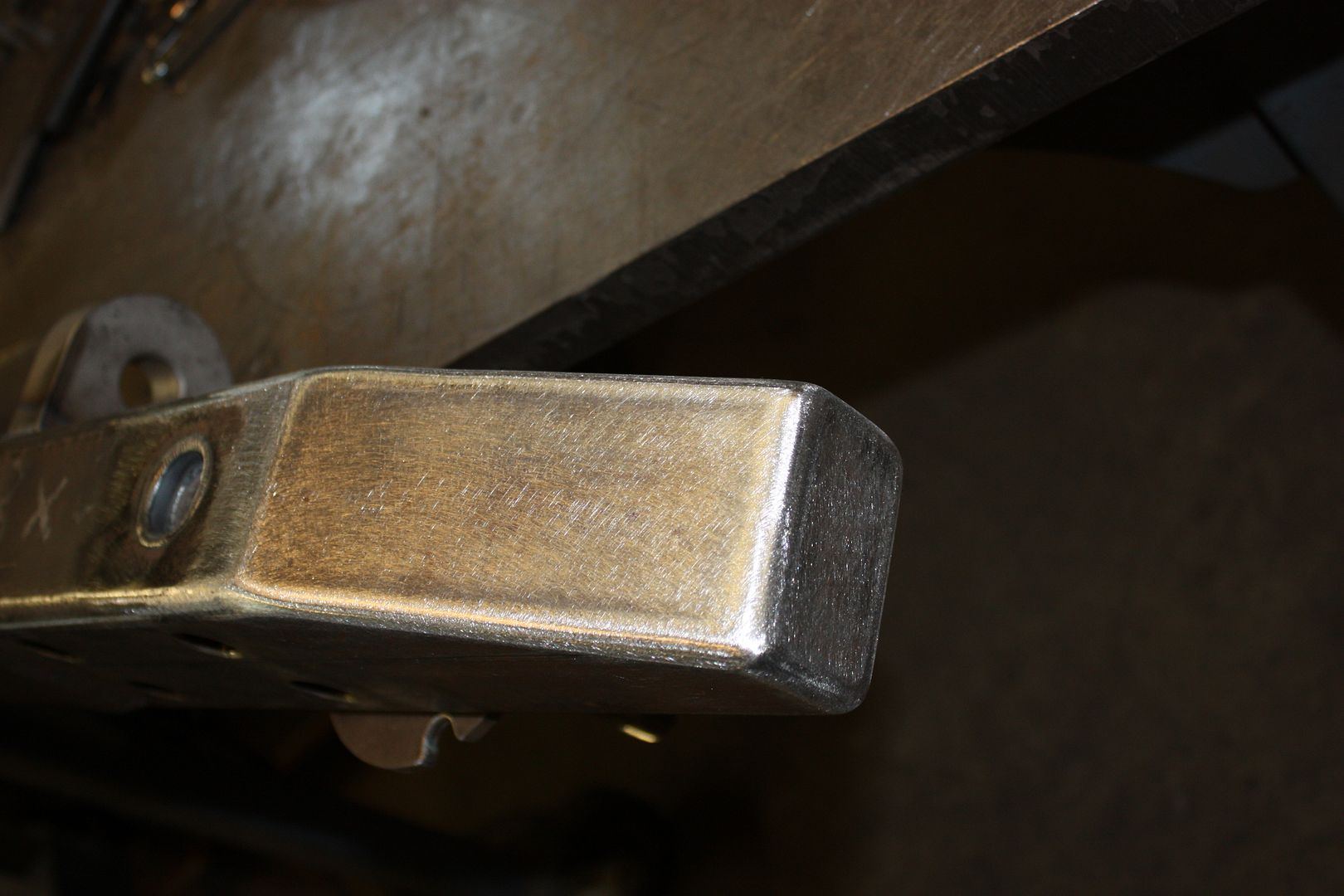

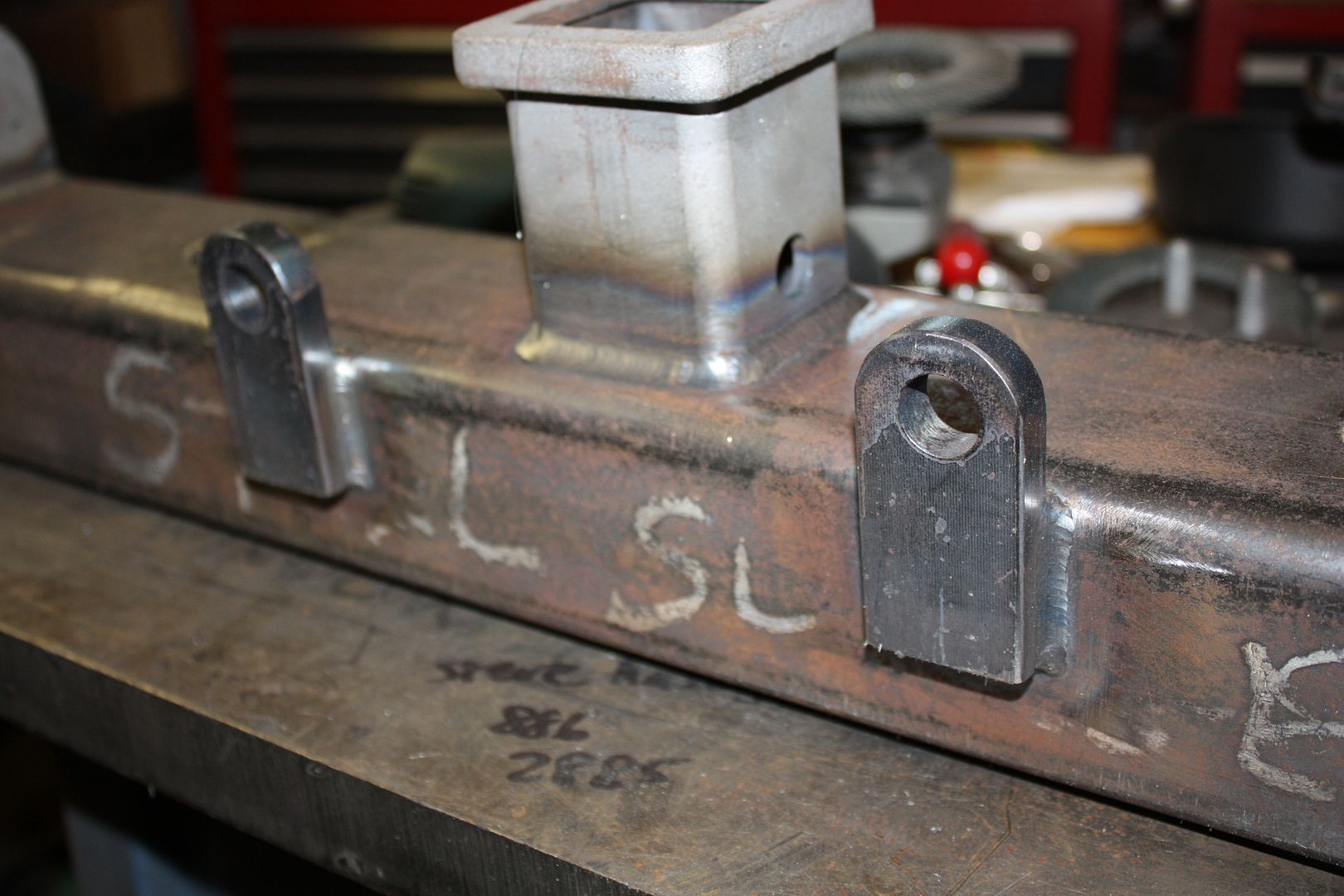

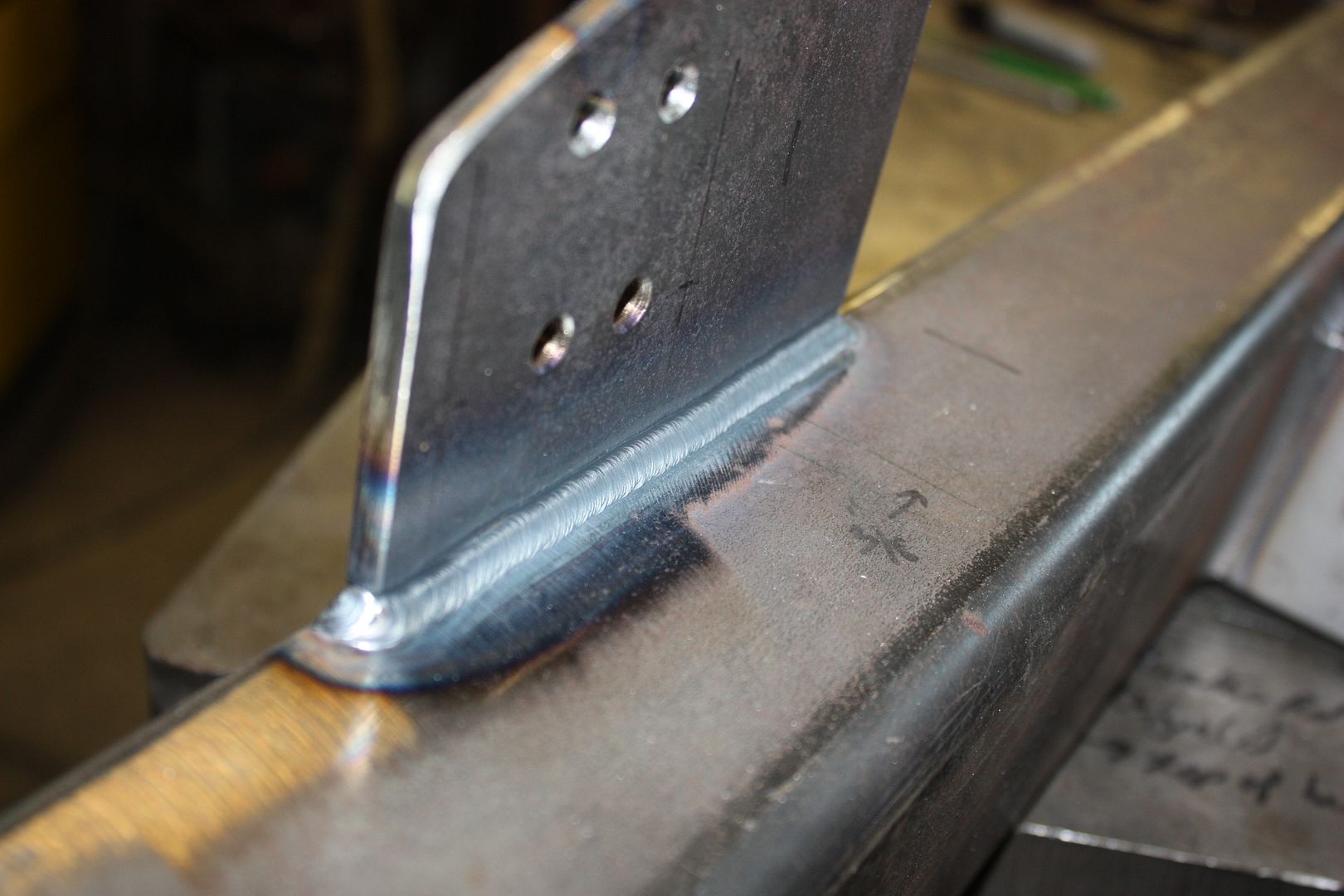

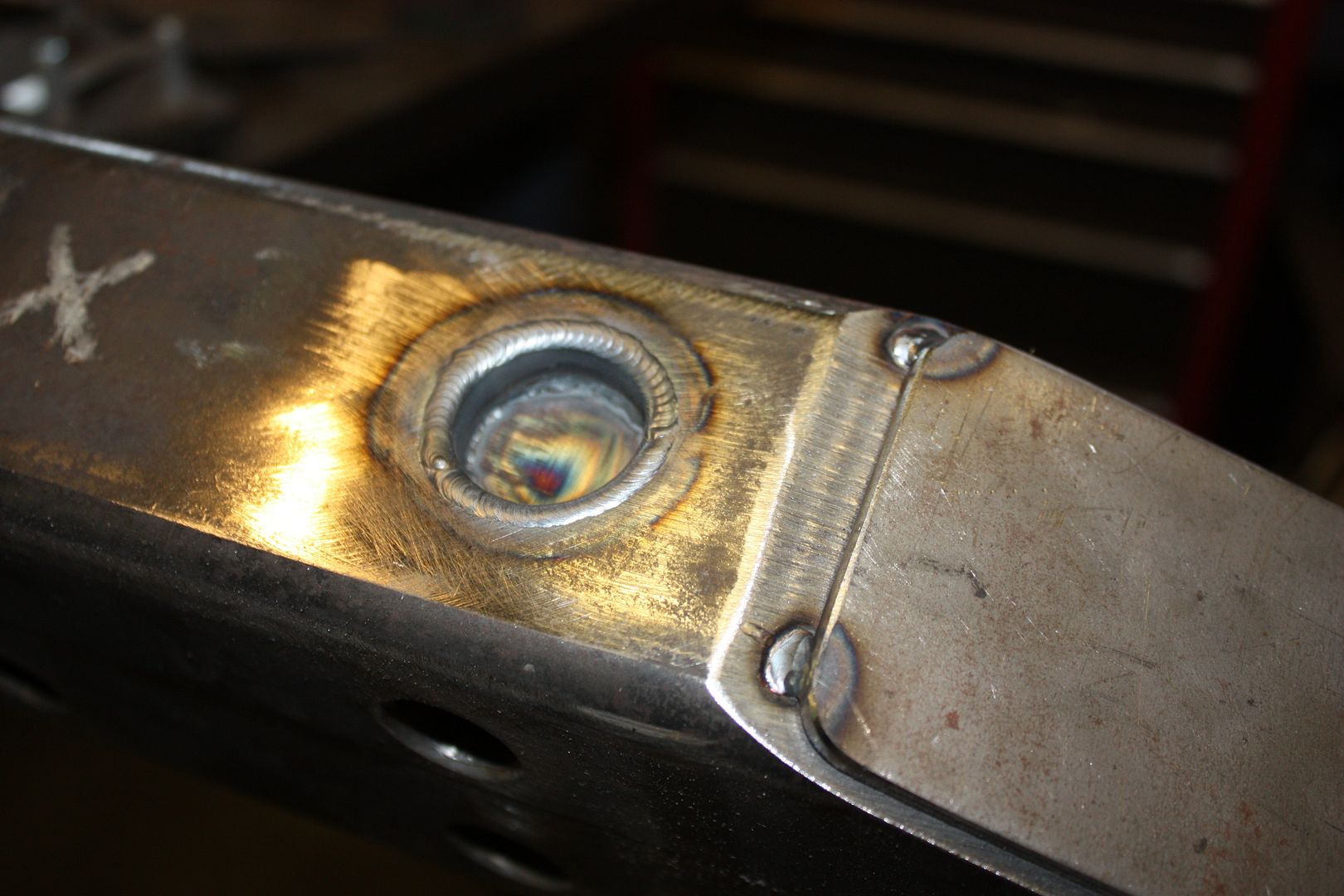

More parts...







__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote
Unread 01-04-2014, 07:06 PM   #2
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,675

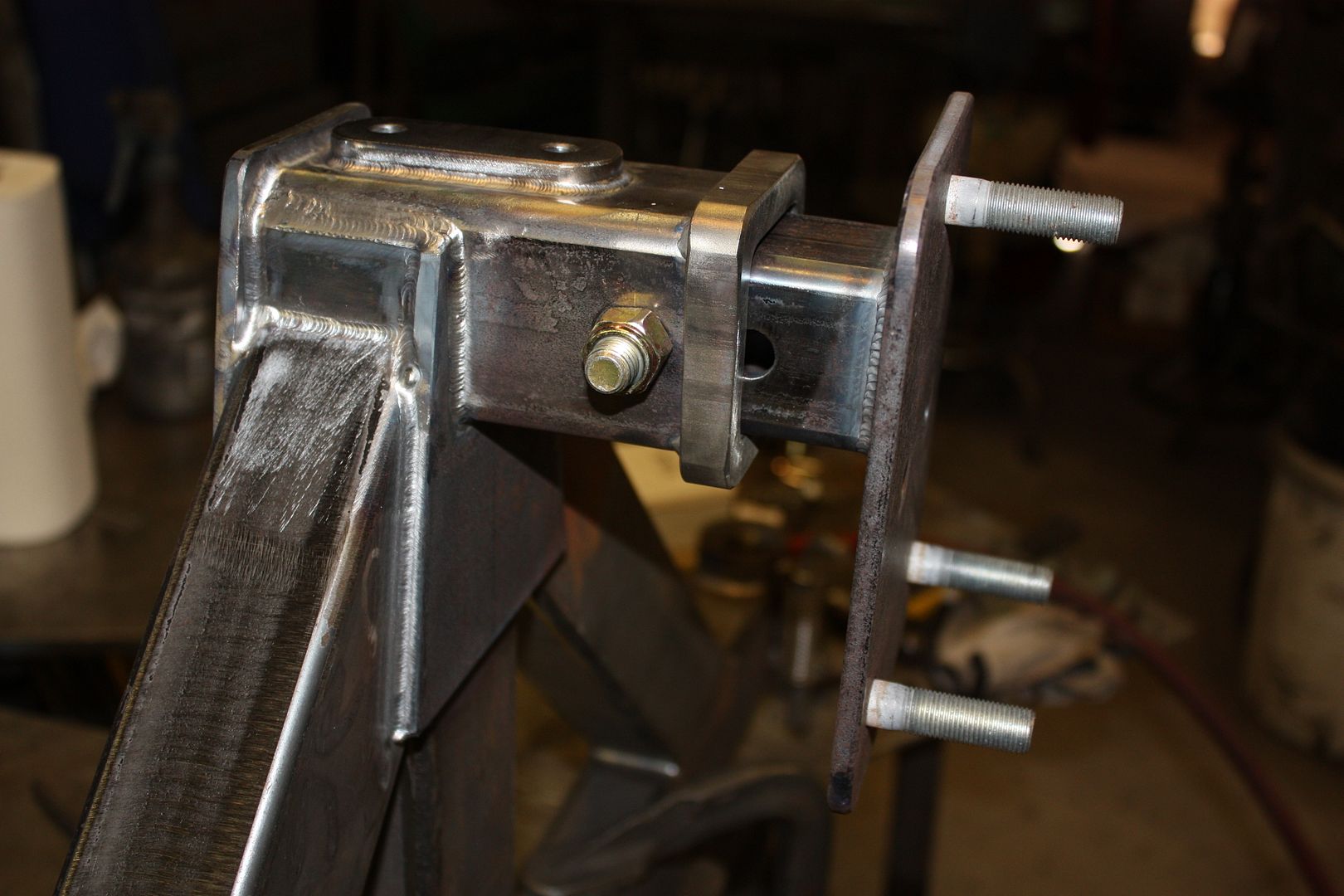

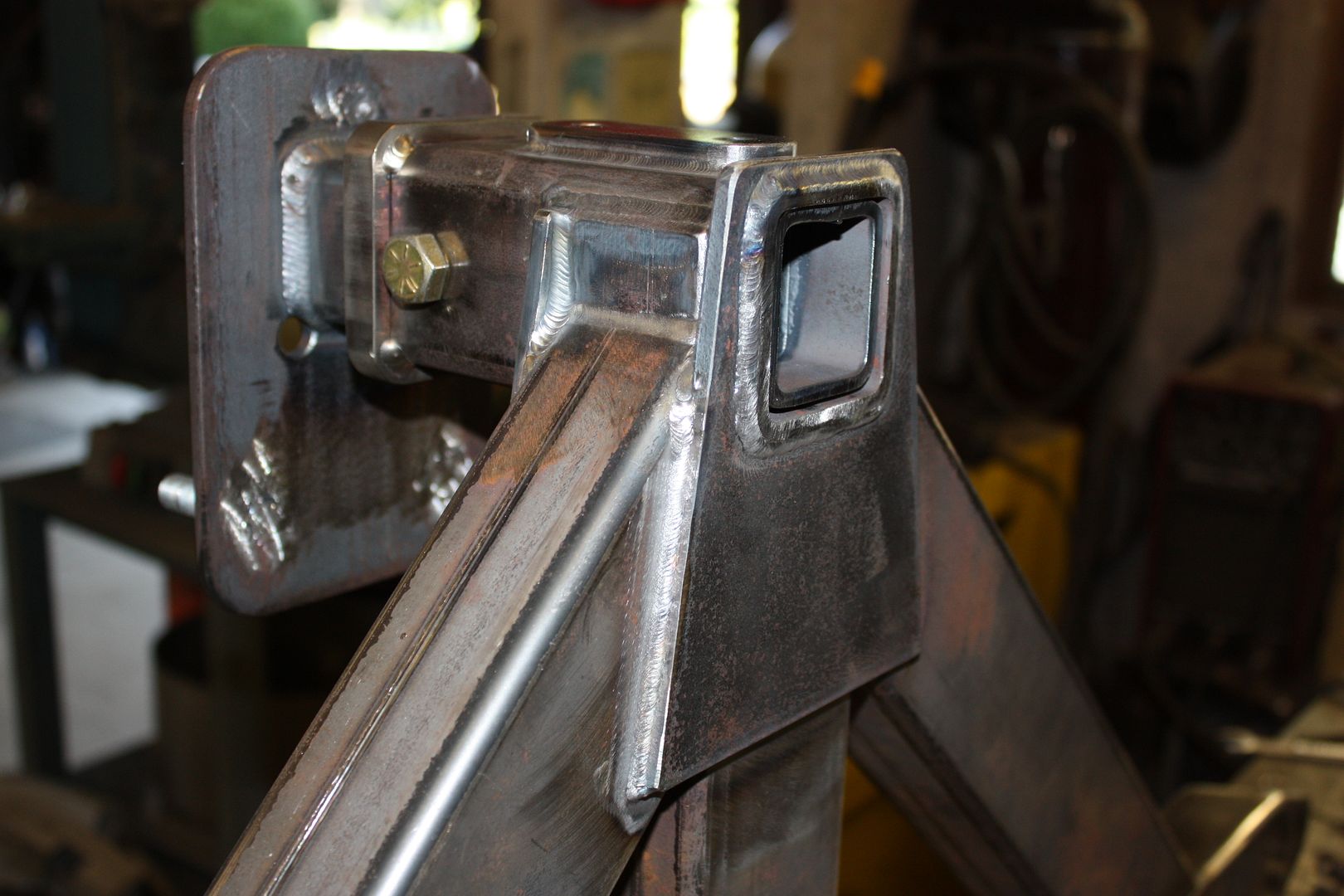

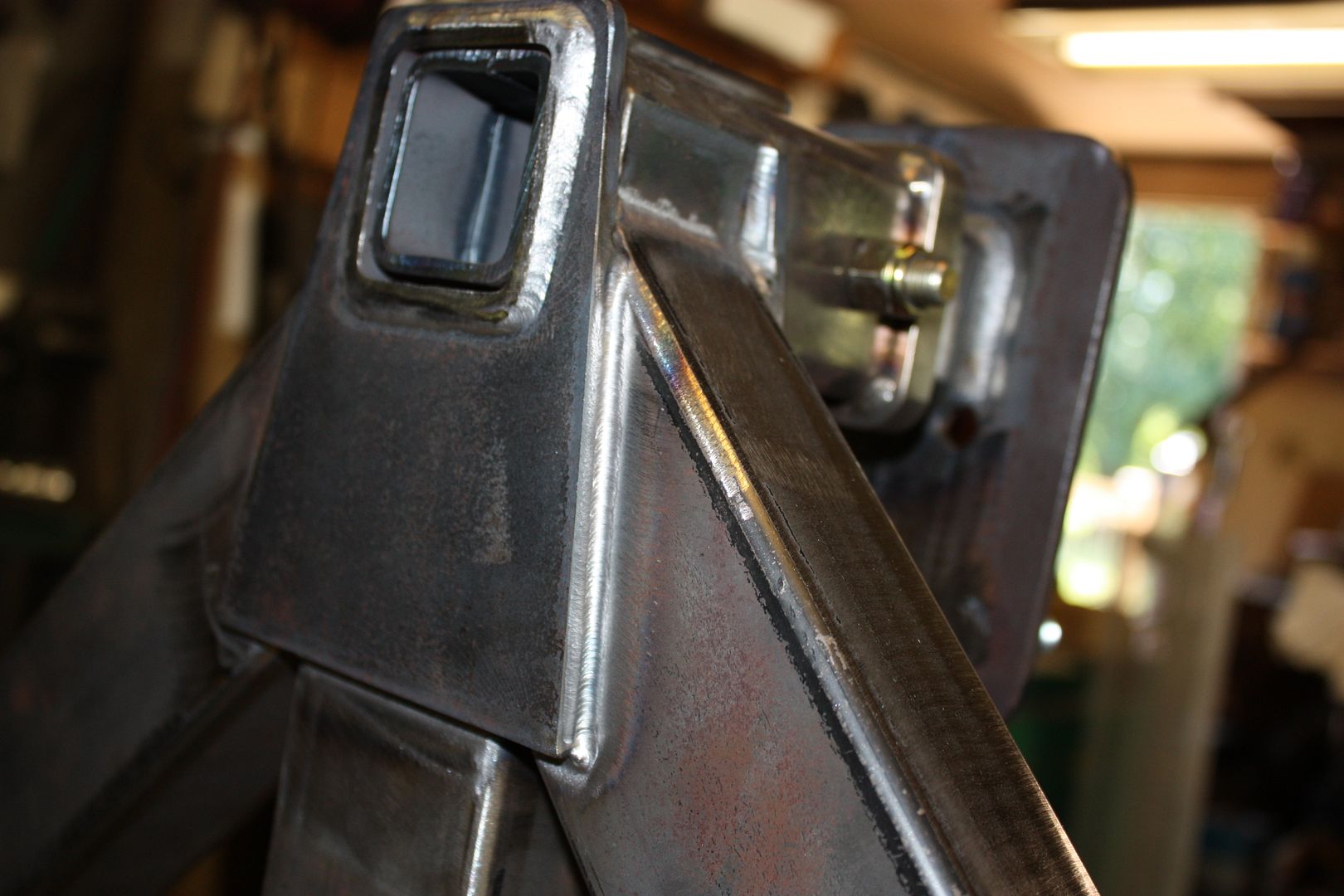

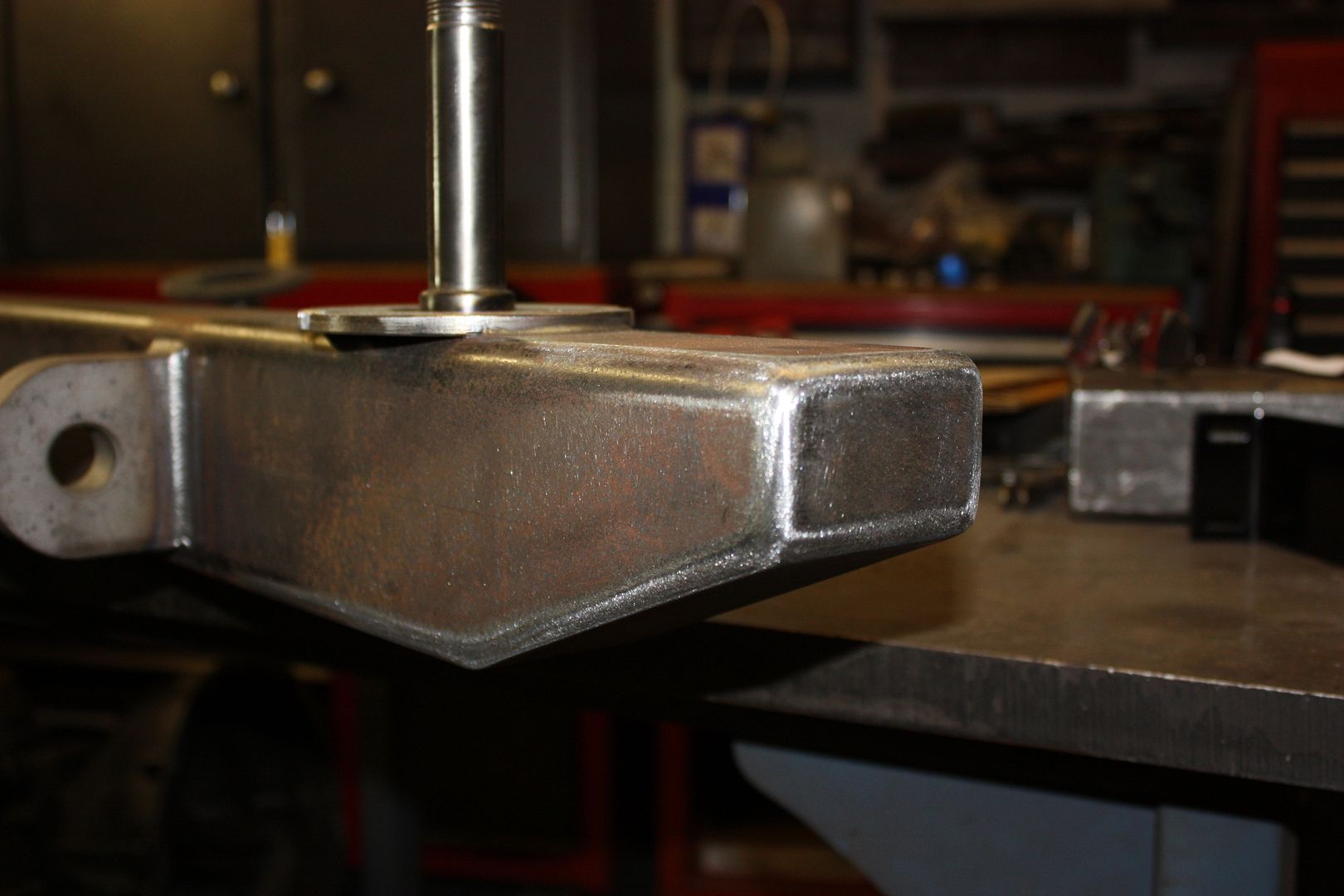

The backside...

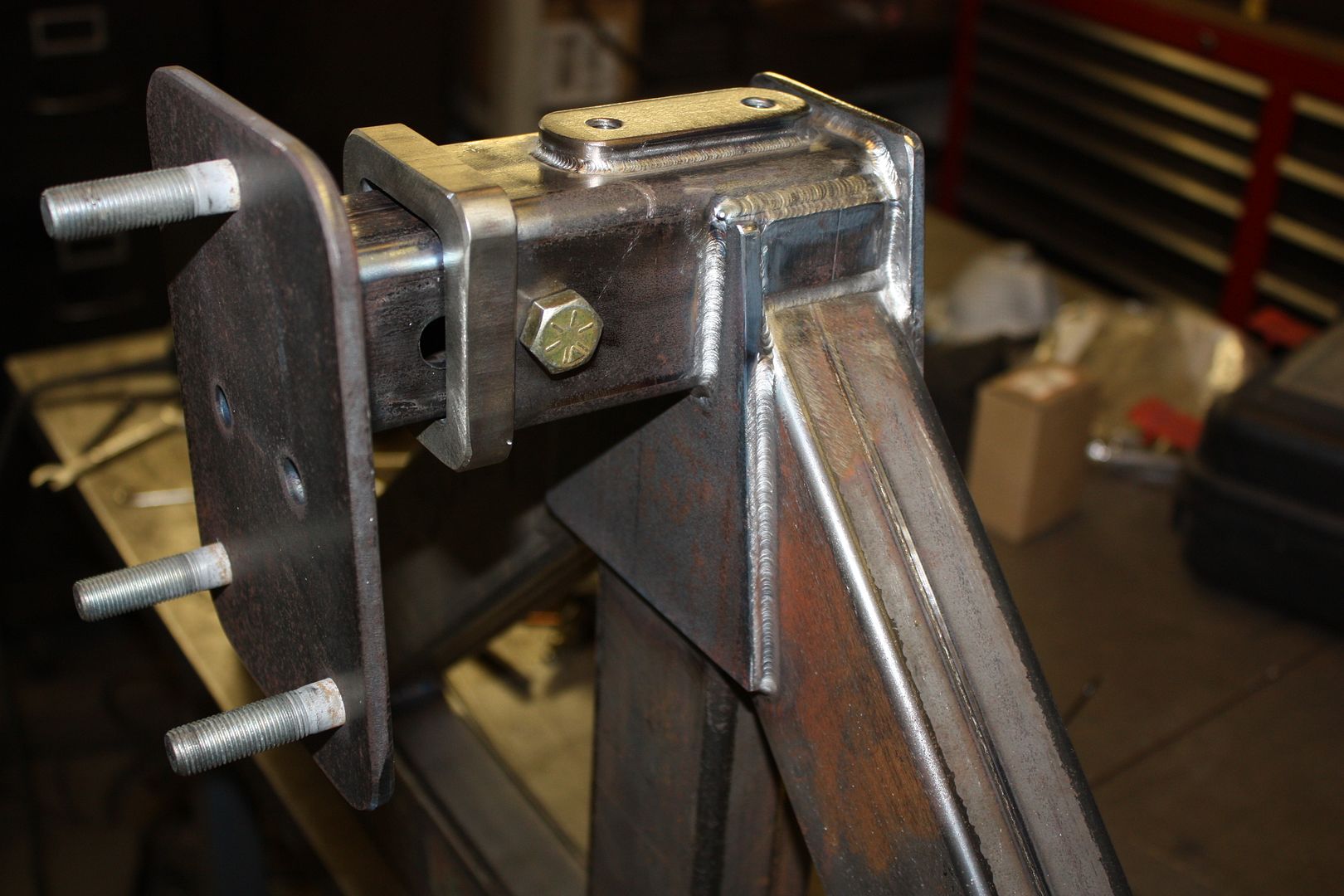

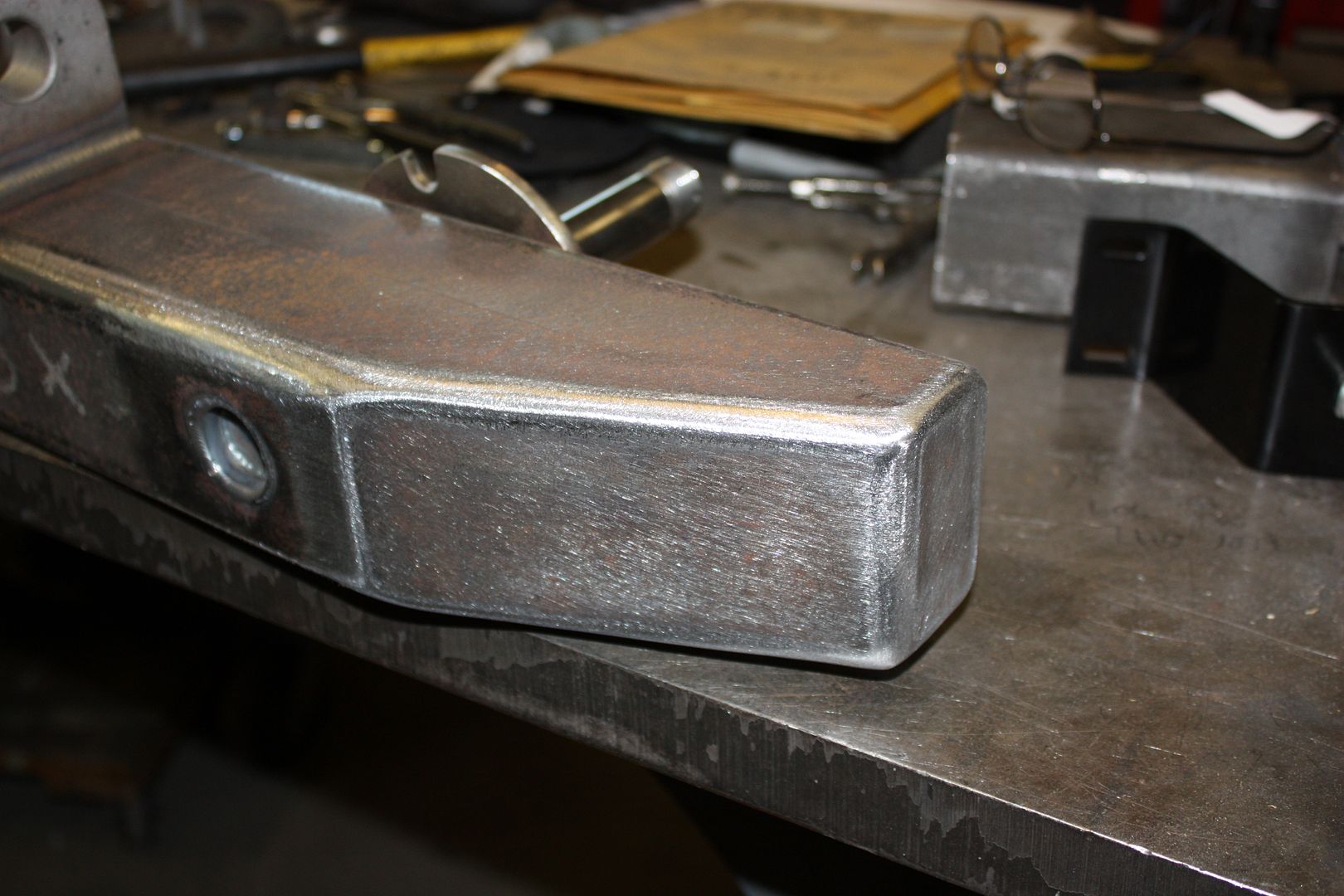

More parts...
































__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote
Unread 01-04-2014, 07:07 PM   #3
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,675

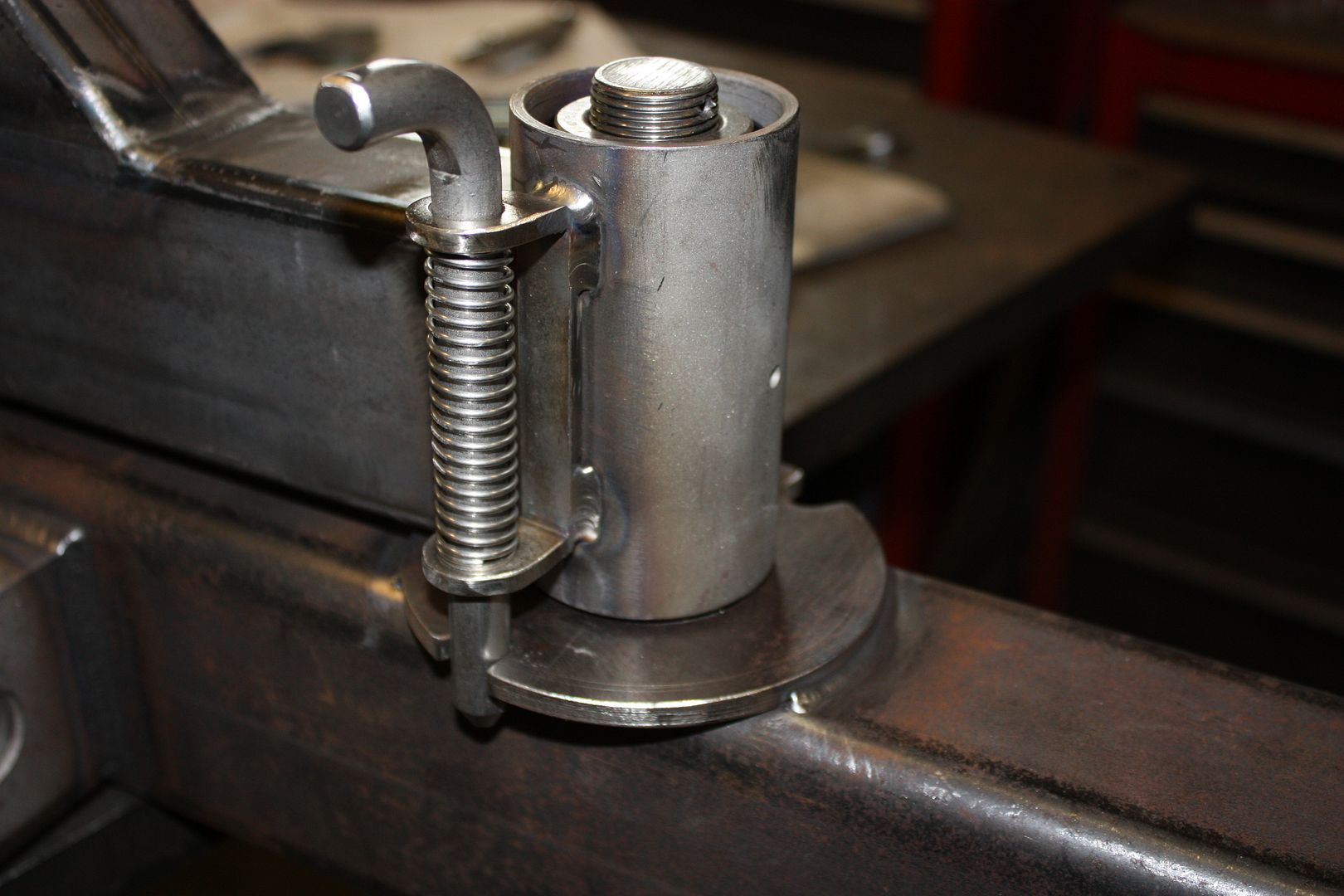

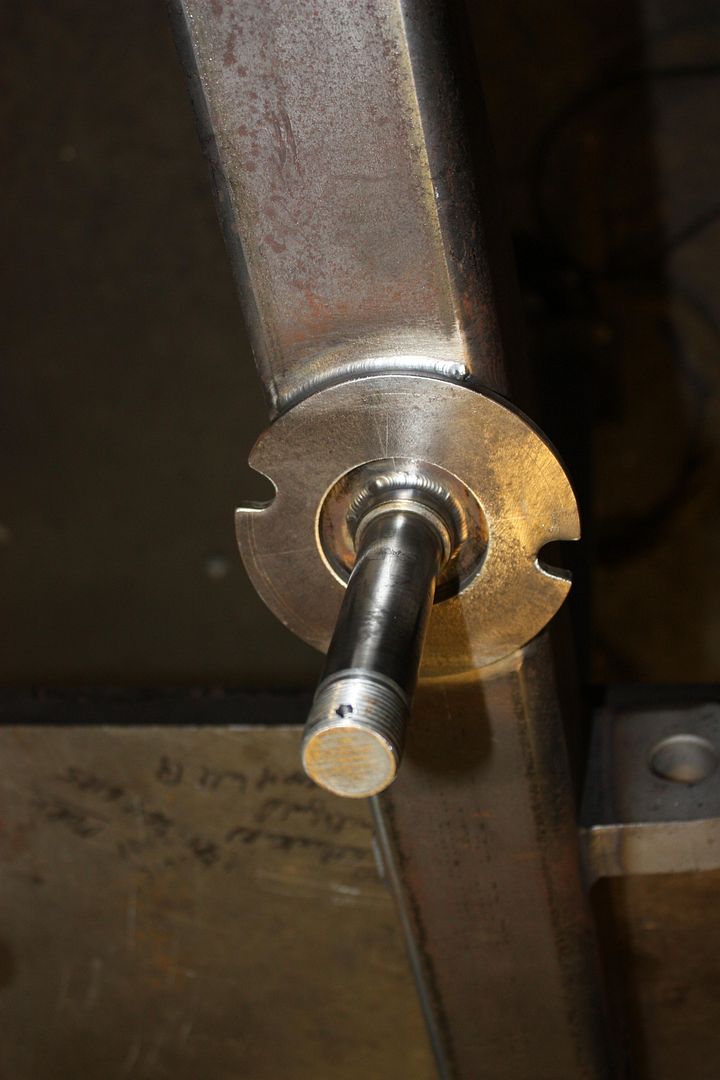

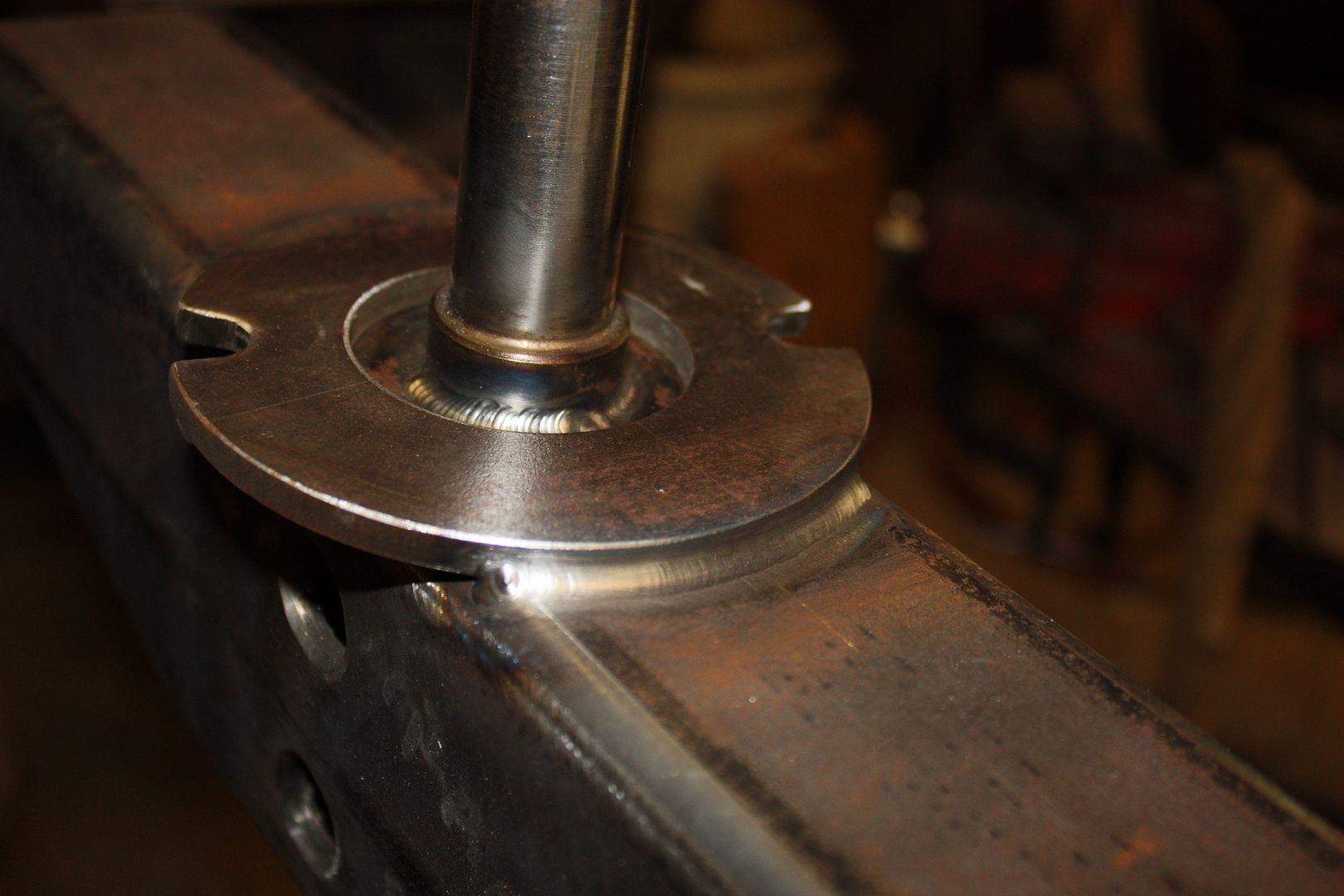

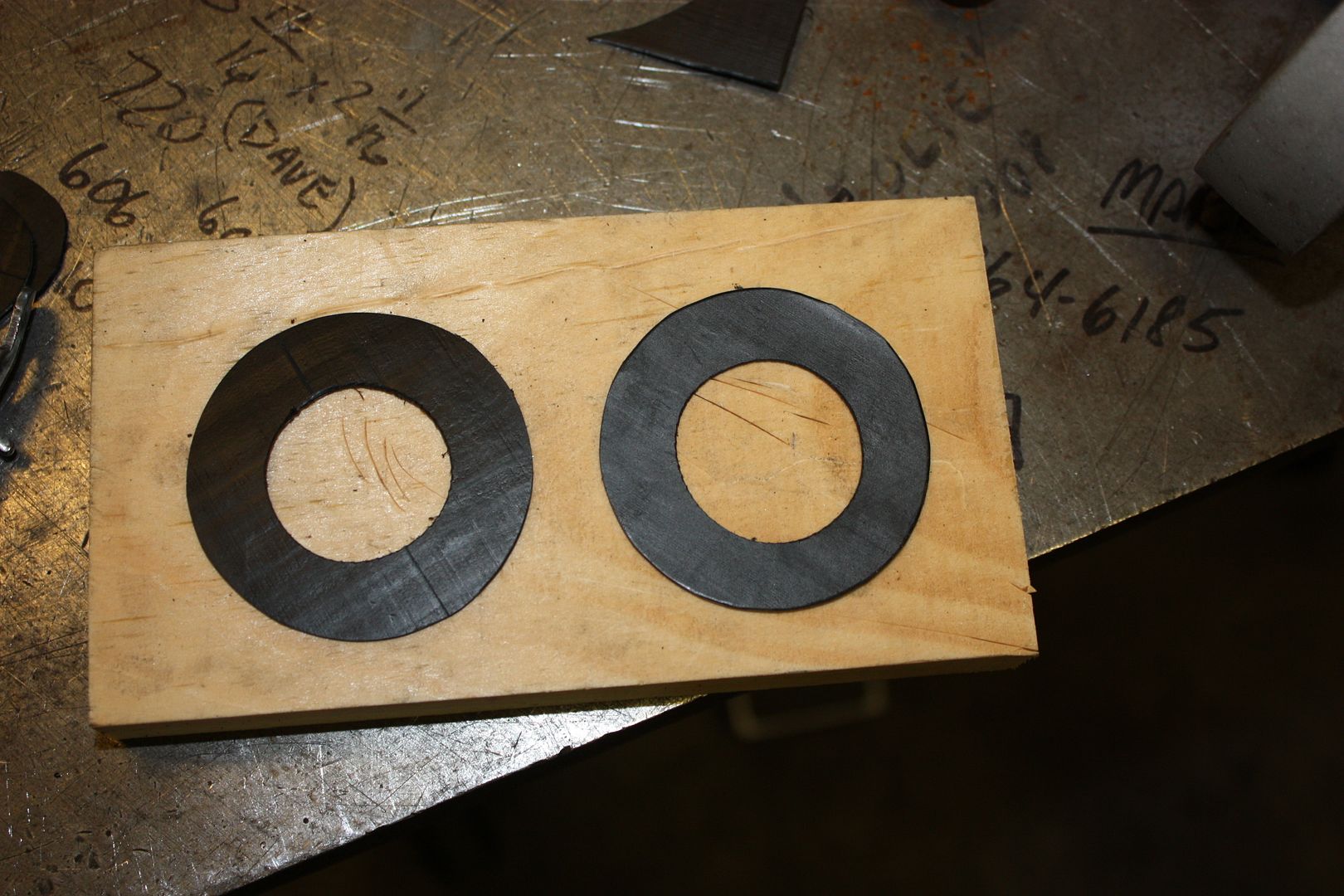

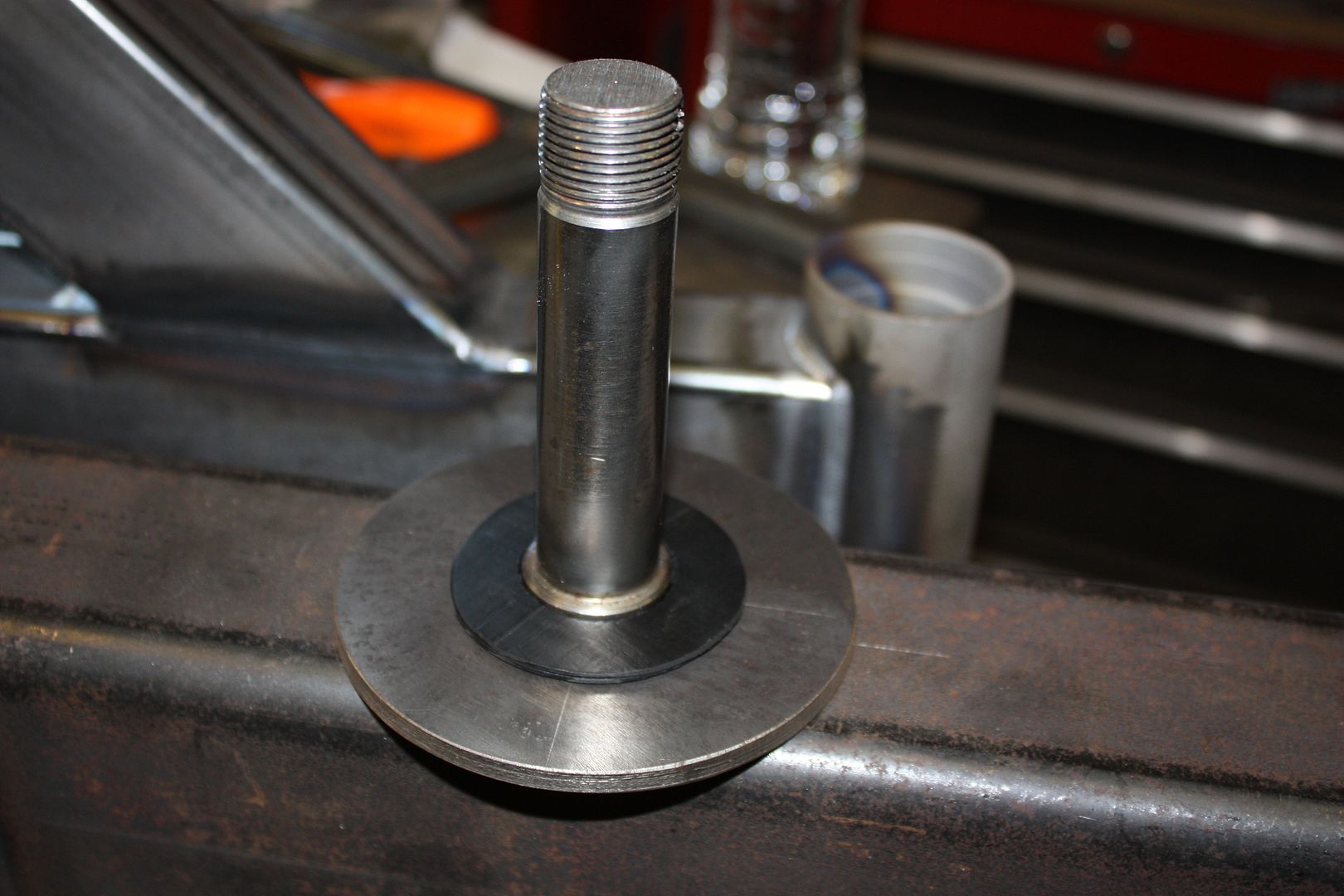

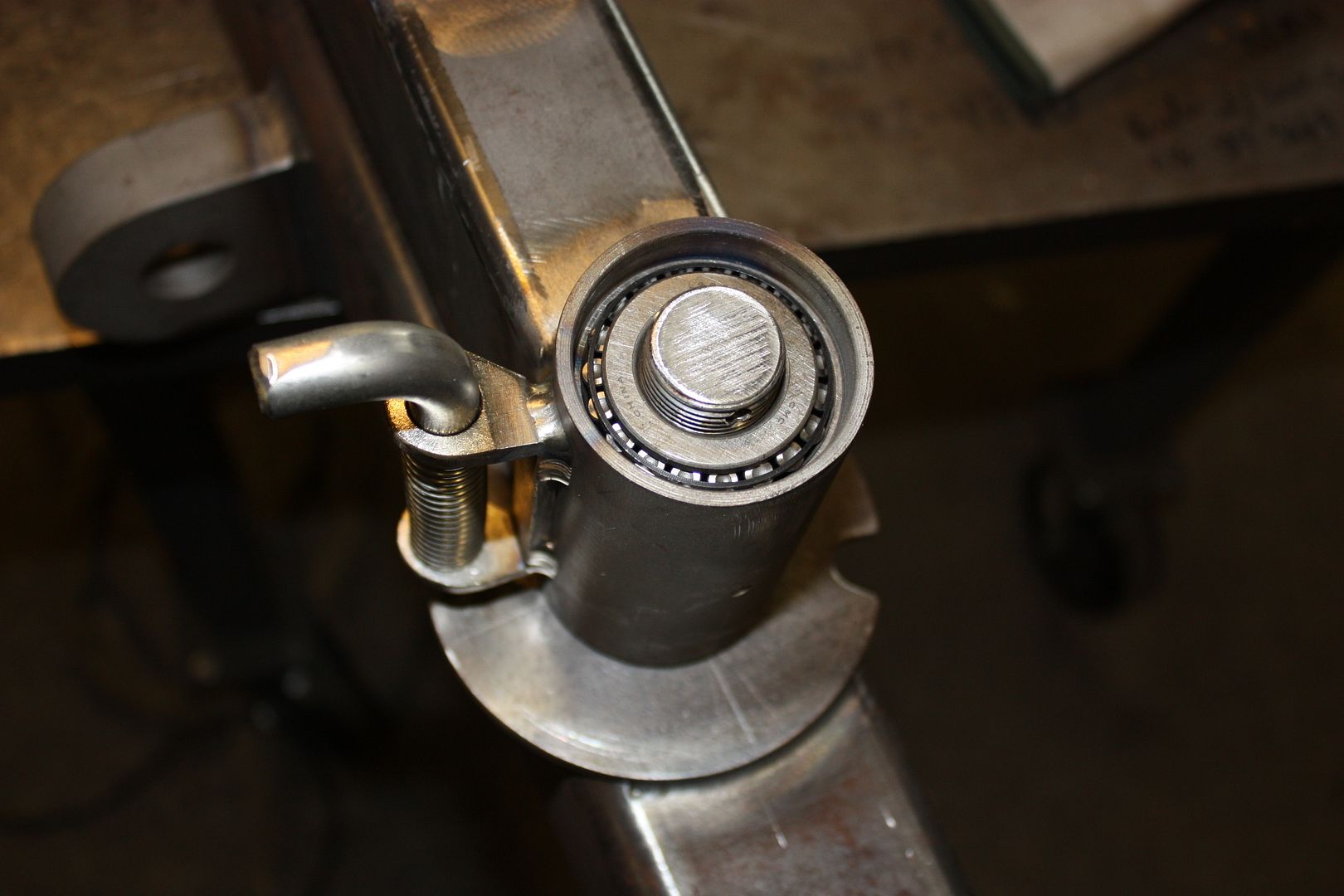

Teflon washers...

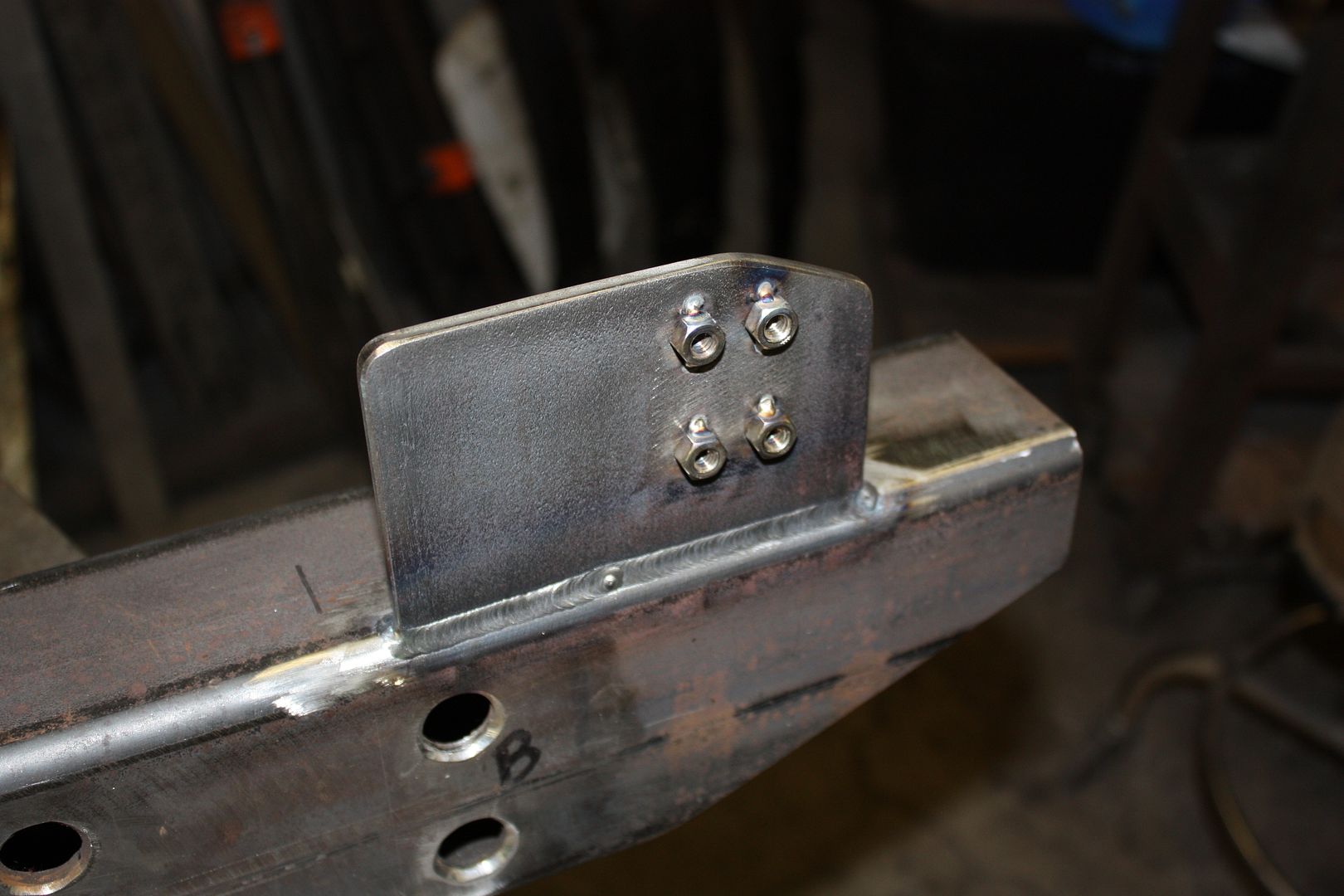

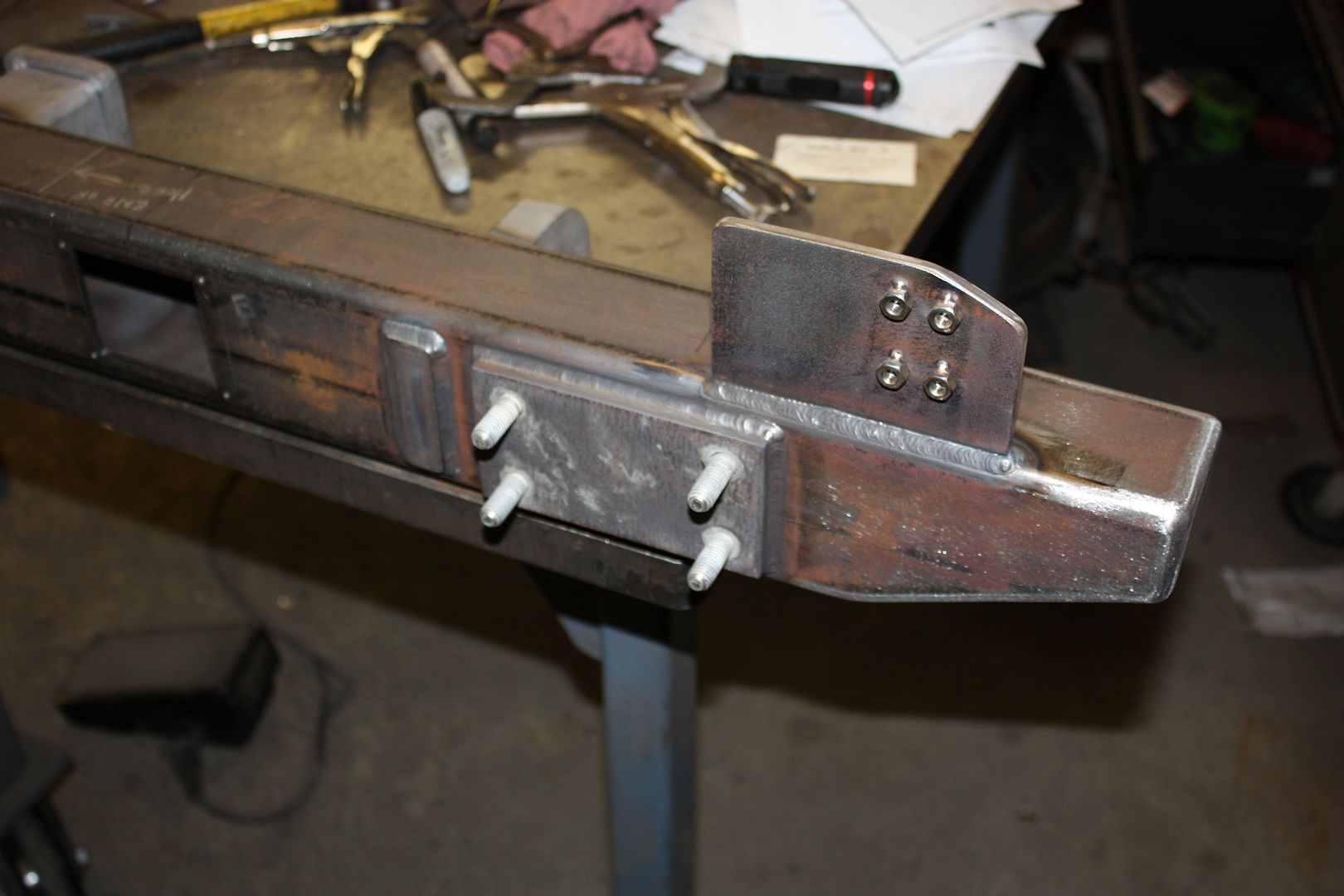

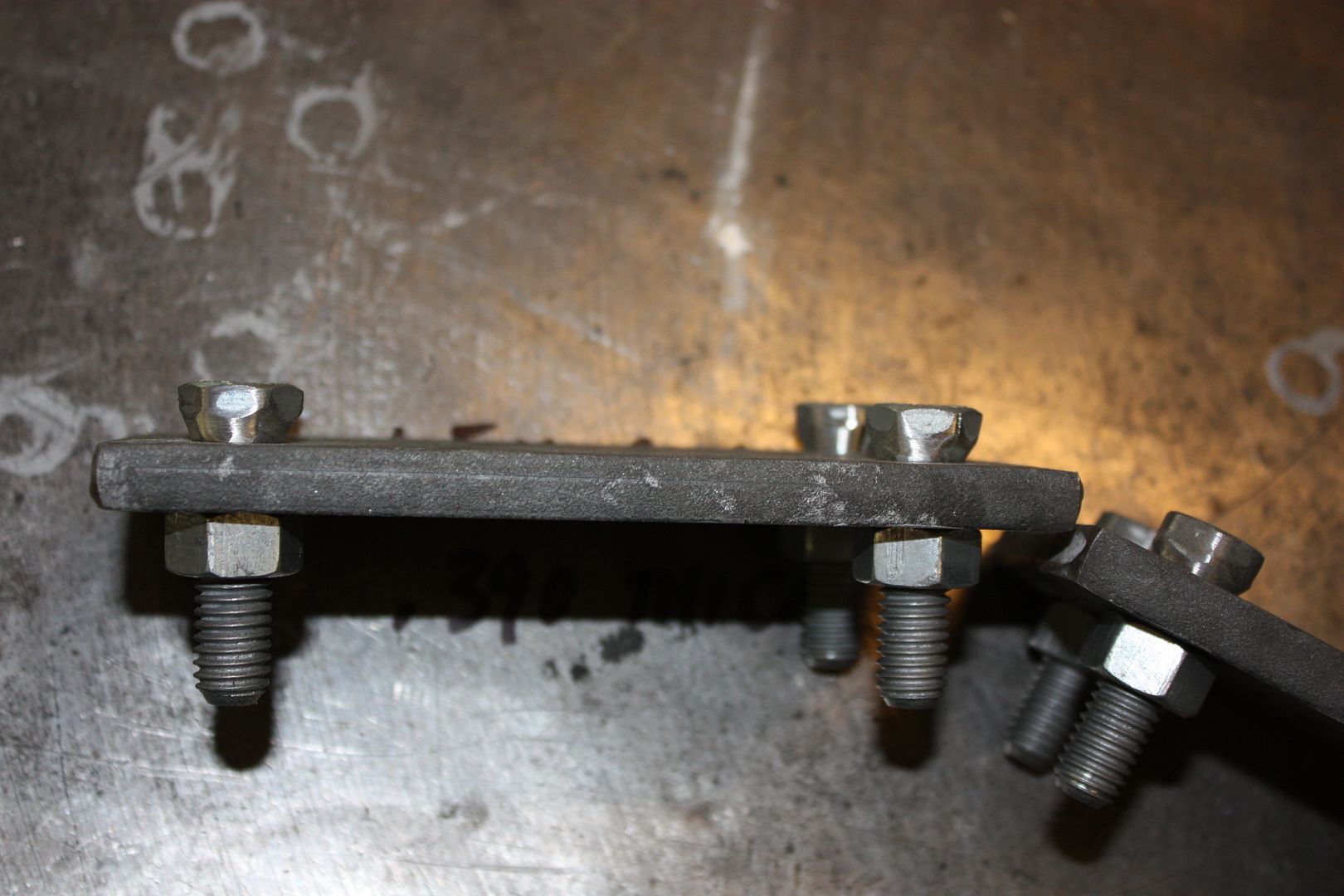

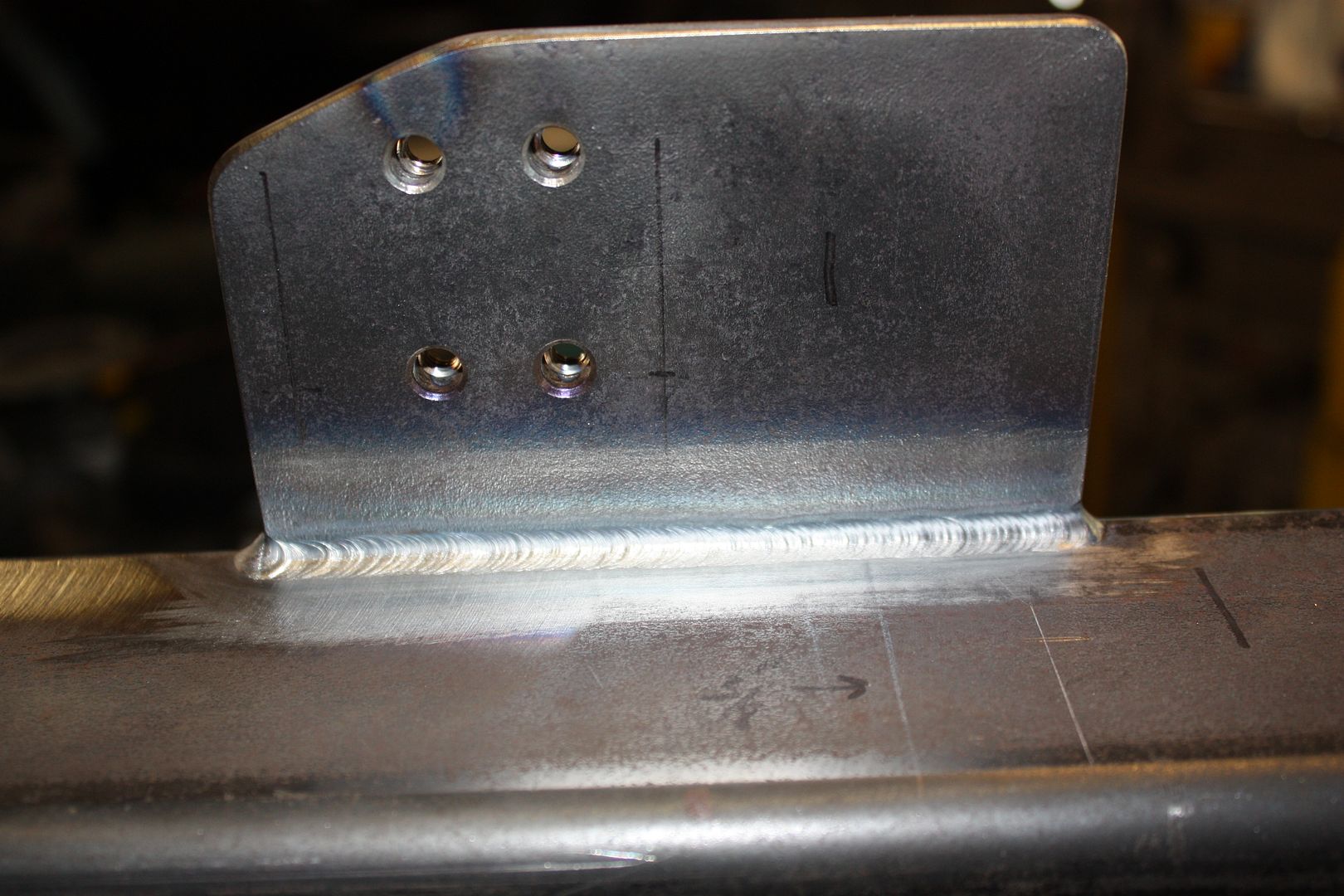

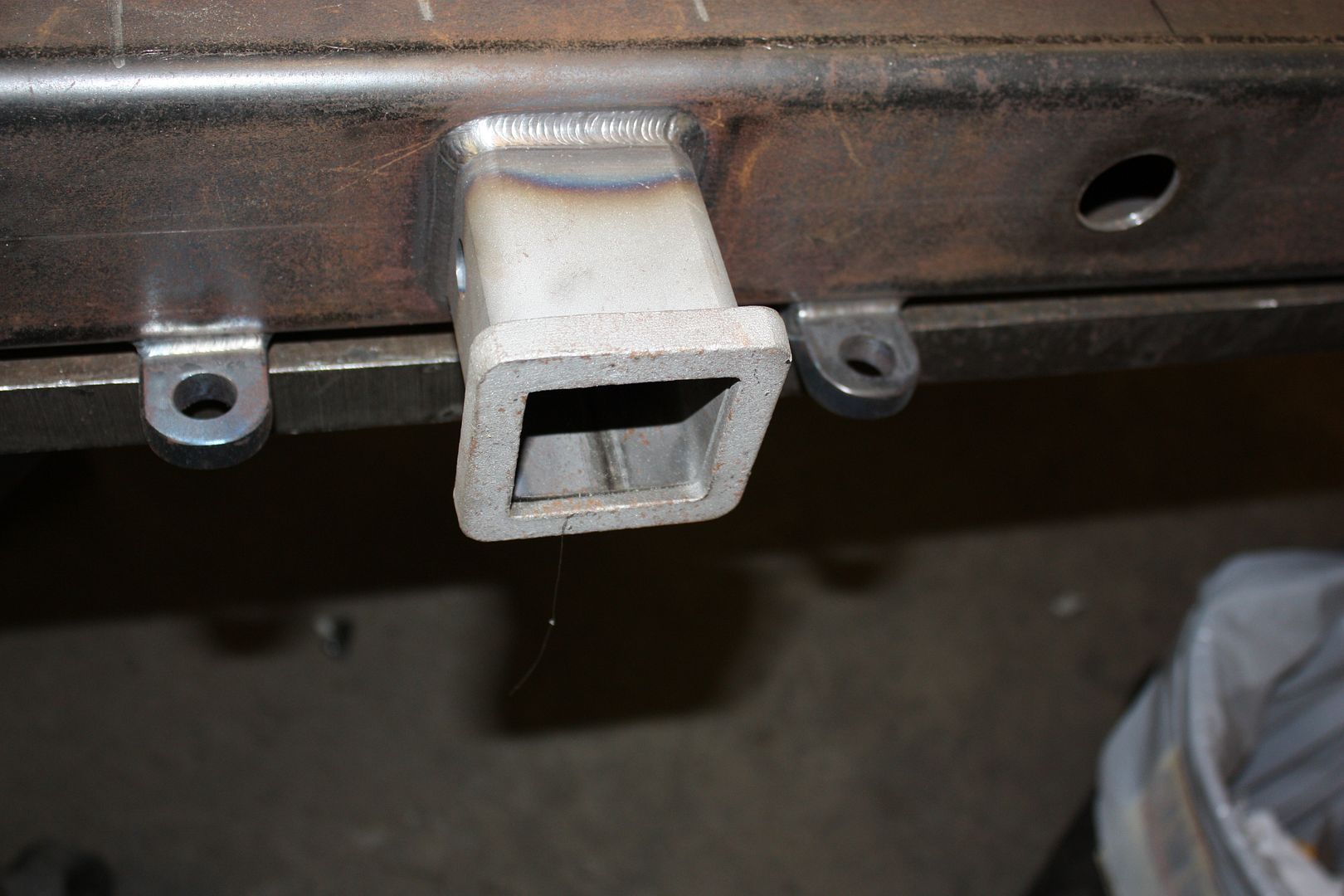

Safety chain tabs. I just happened to have these saved from a long time ago, and decided to use them here, because they look like miniature versions of the larger shackle pads...








Back to other stuff...




















__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote
Unread 01-04-2014, 07:08 PM   #4
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,675

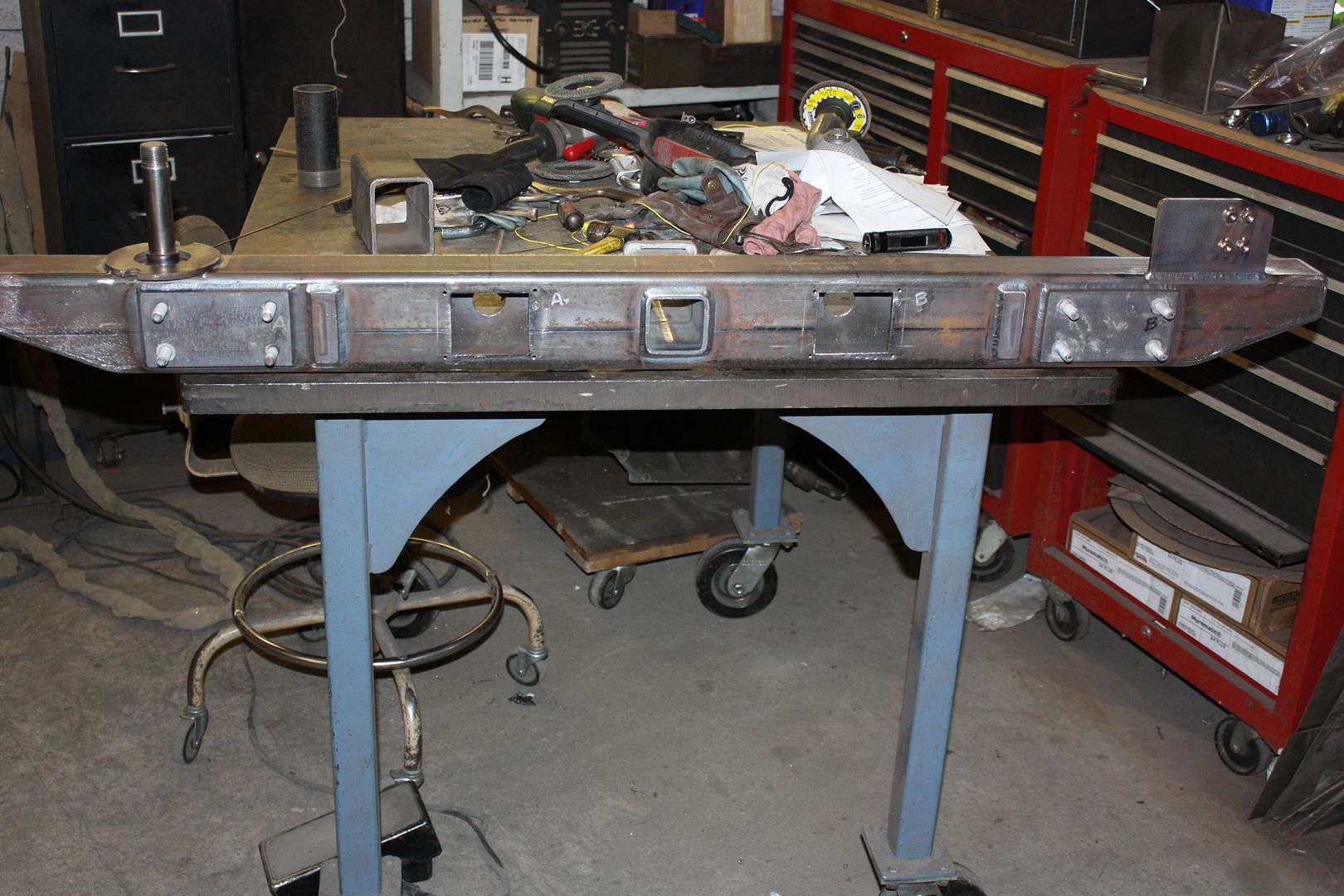

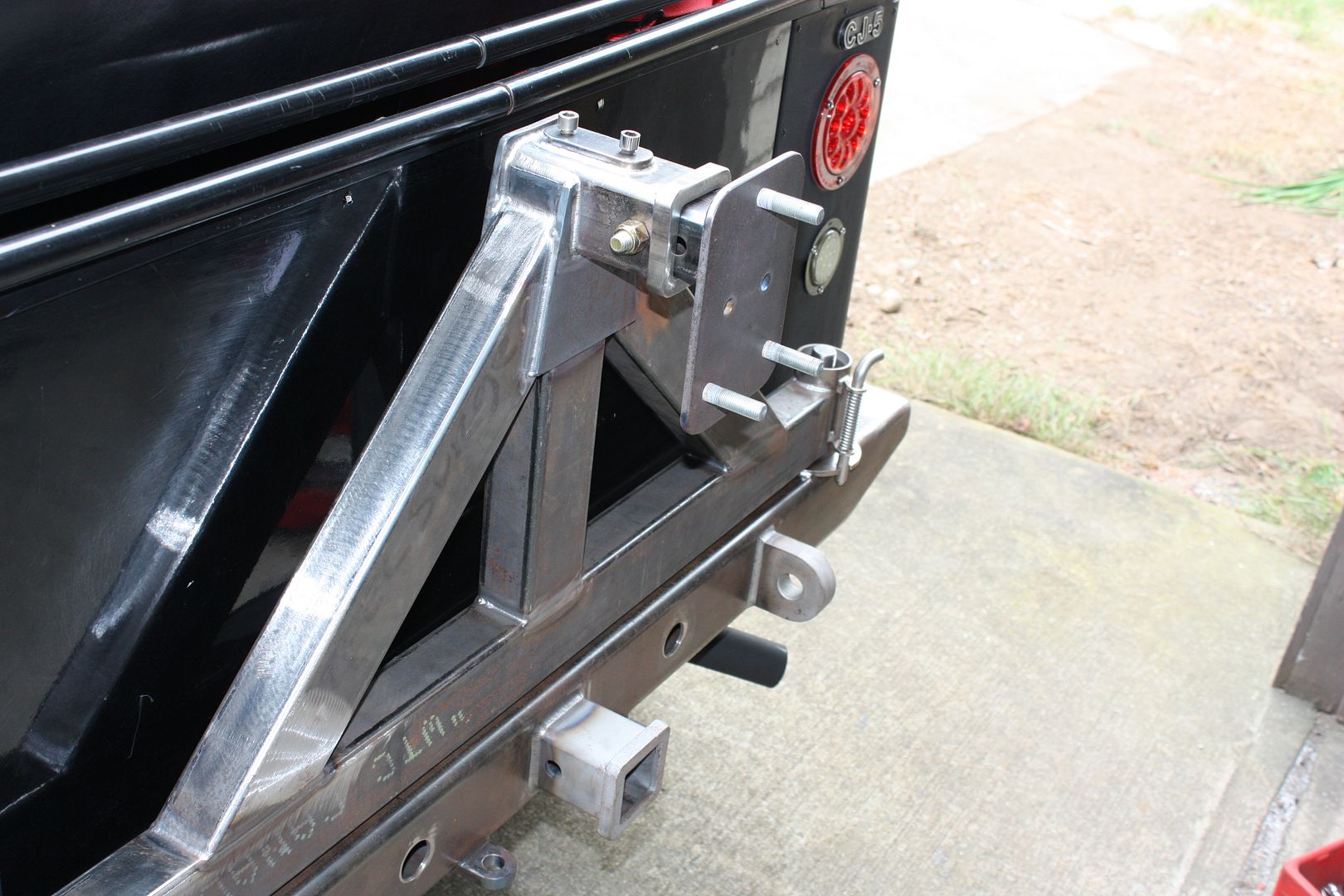

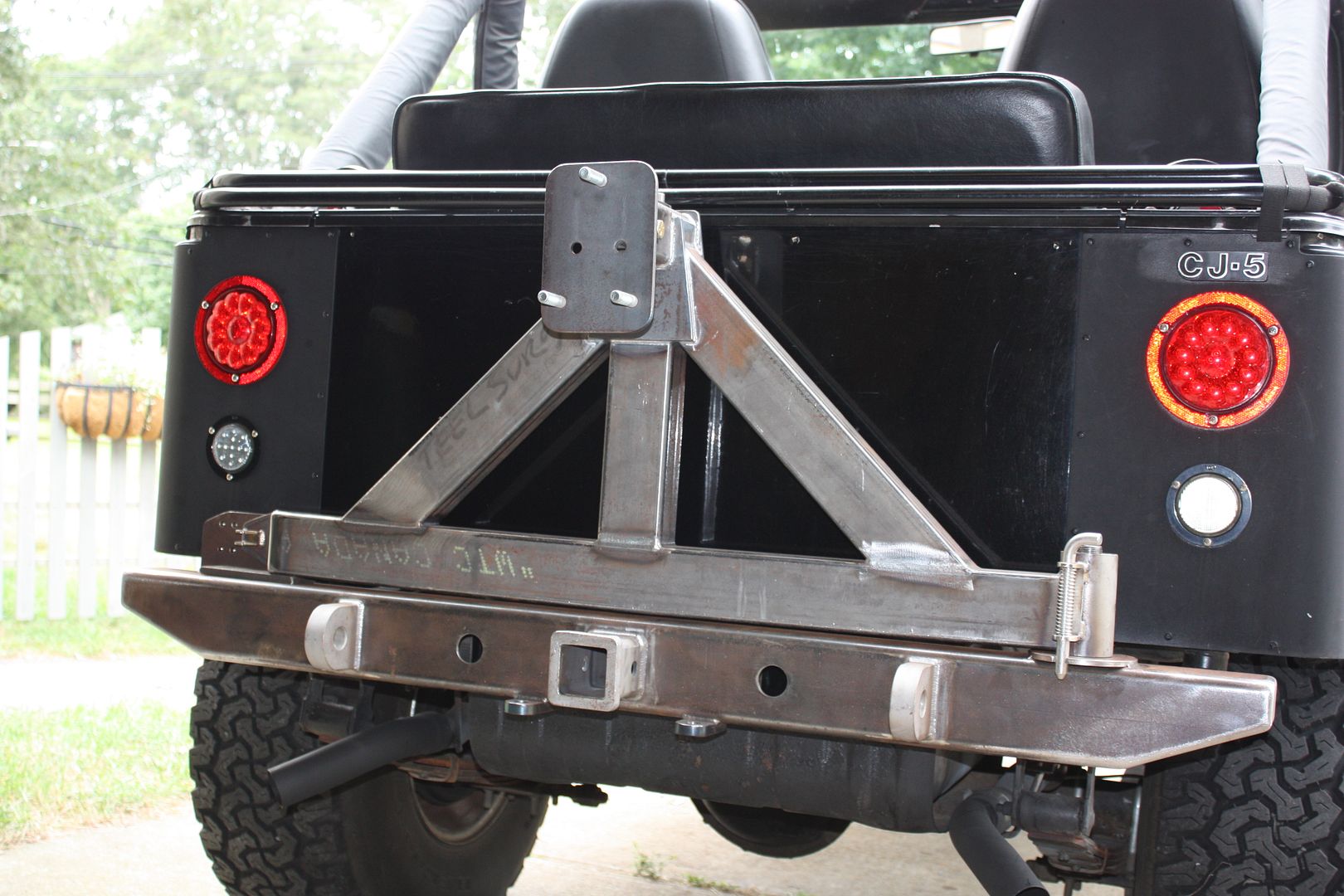

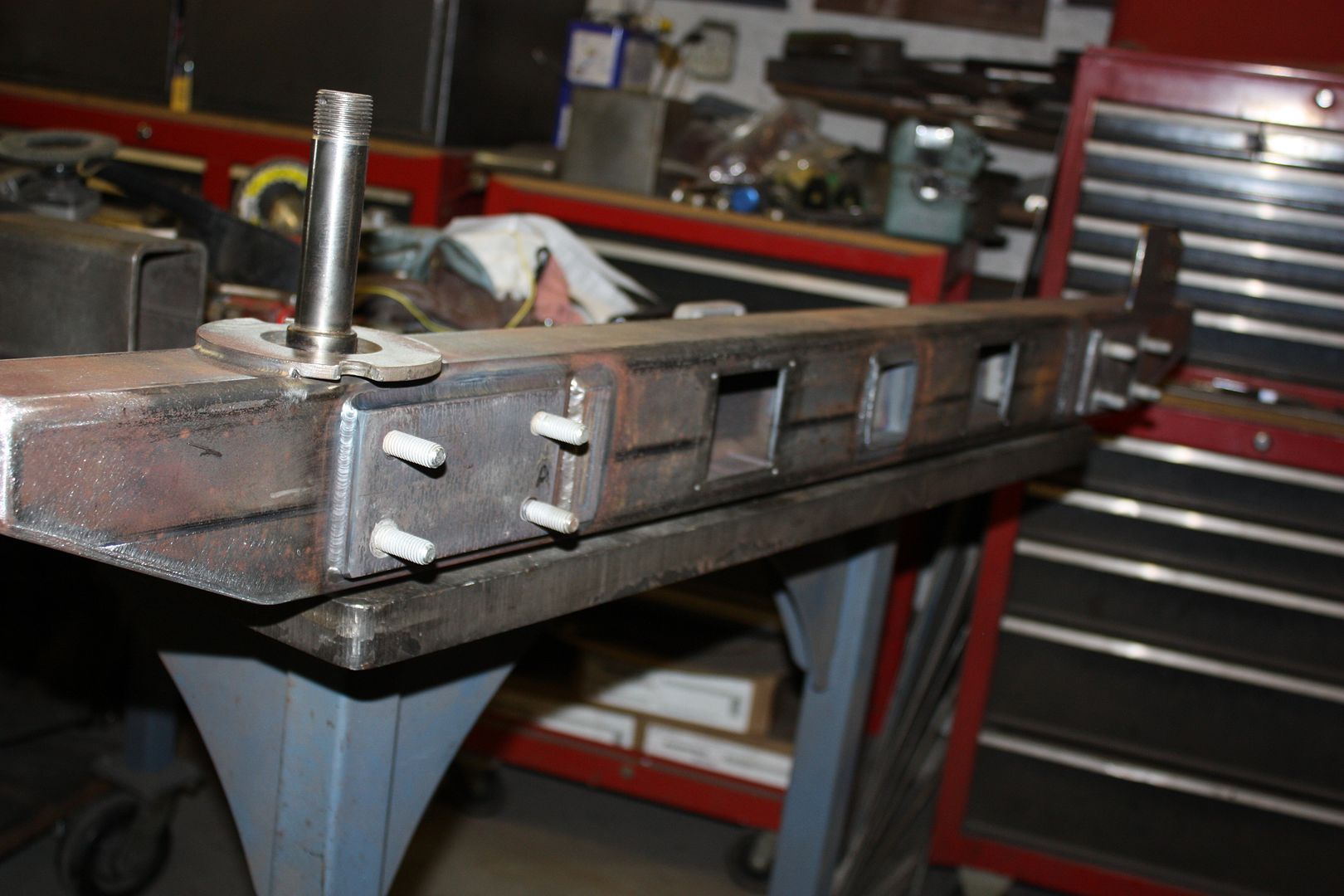

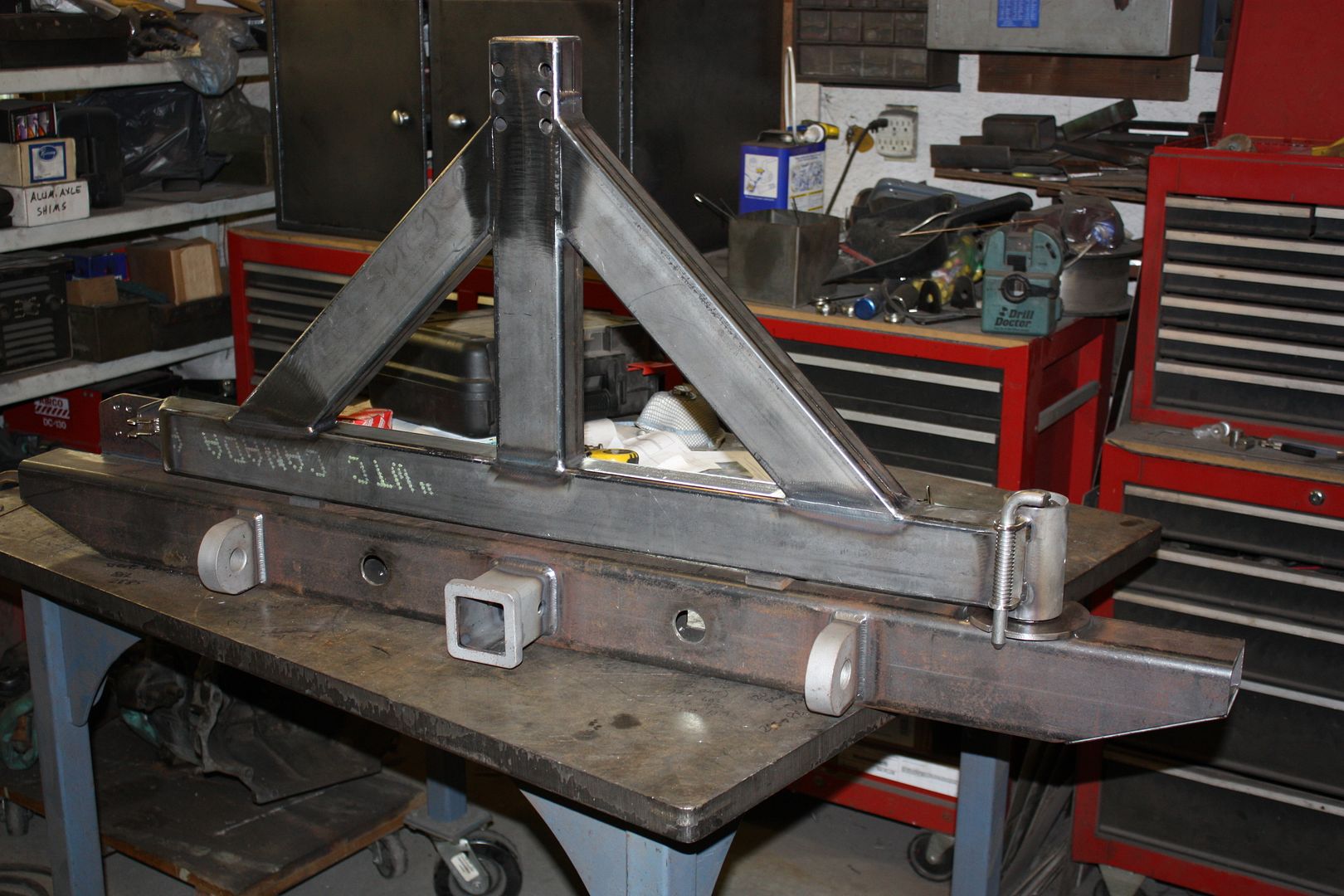

Dry fit...

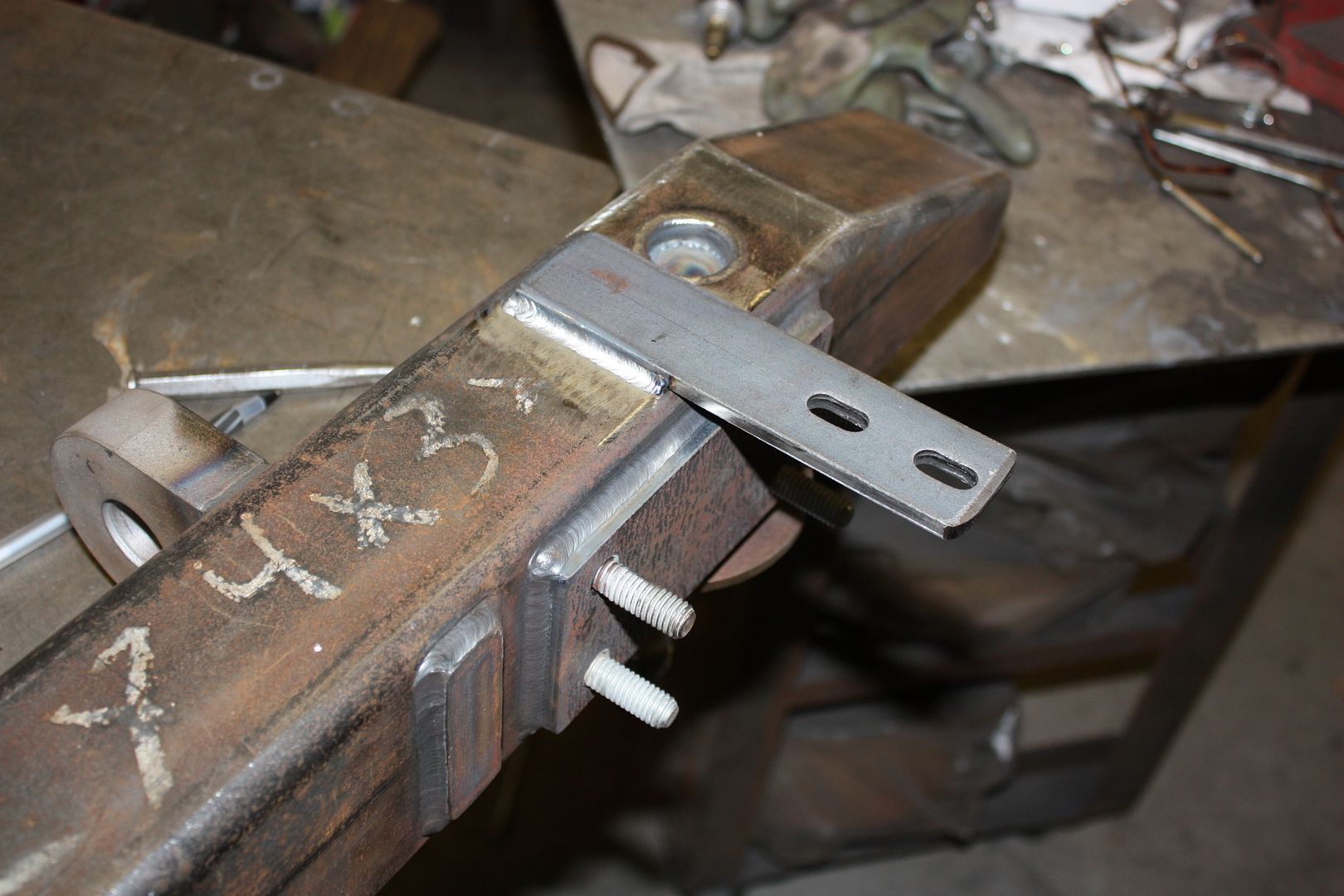

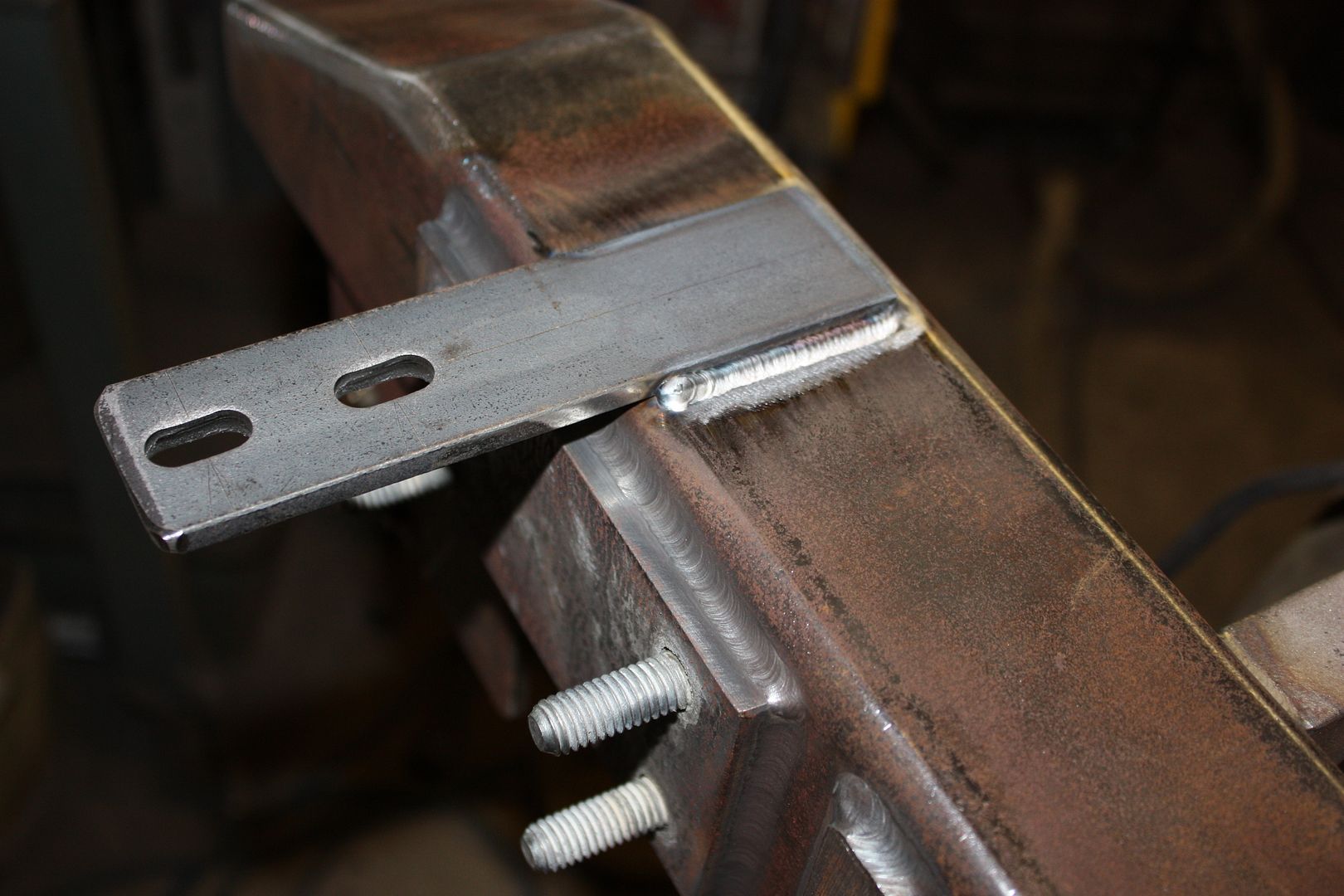

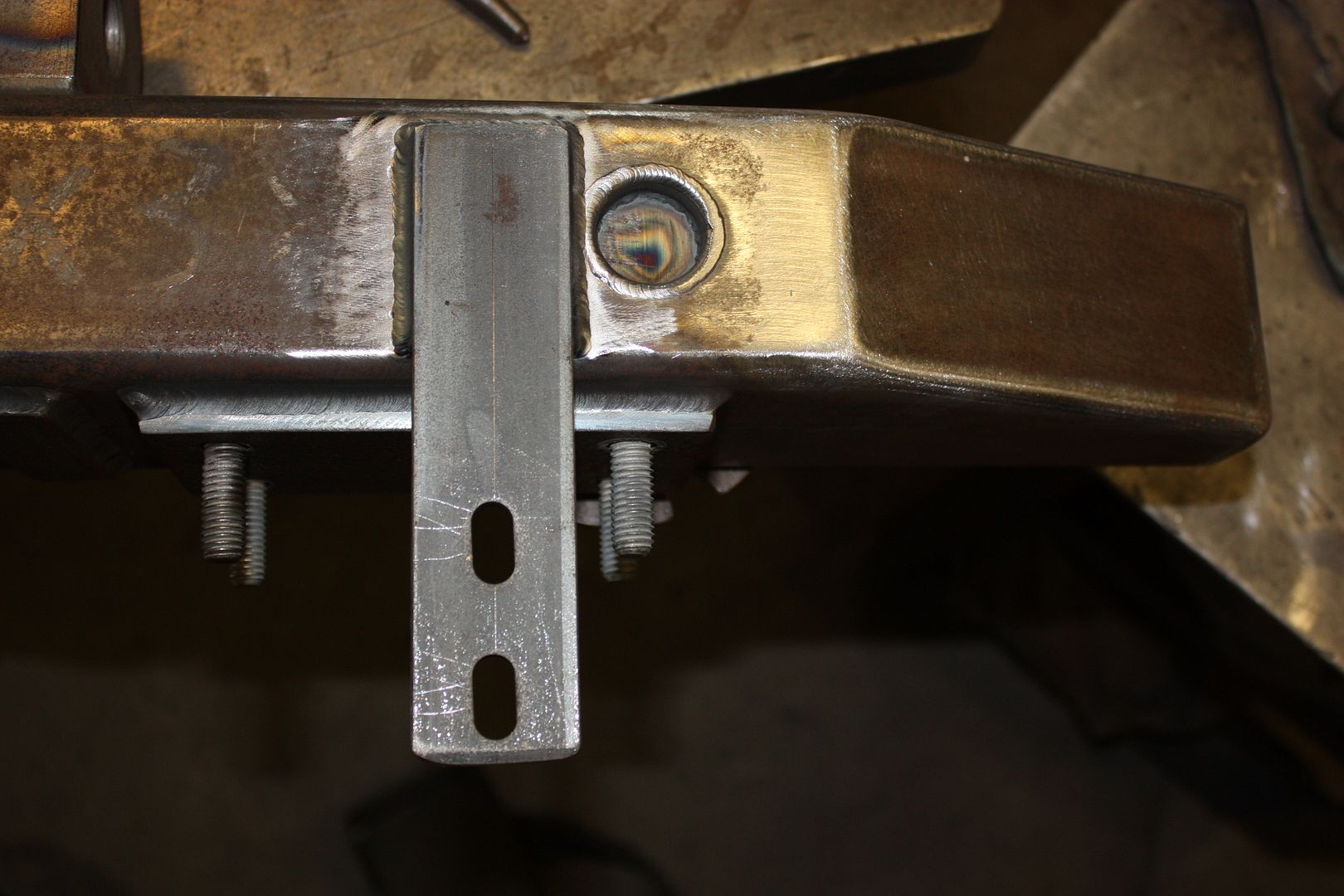

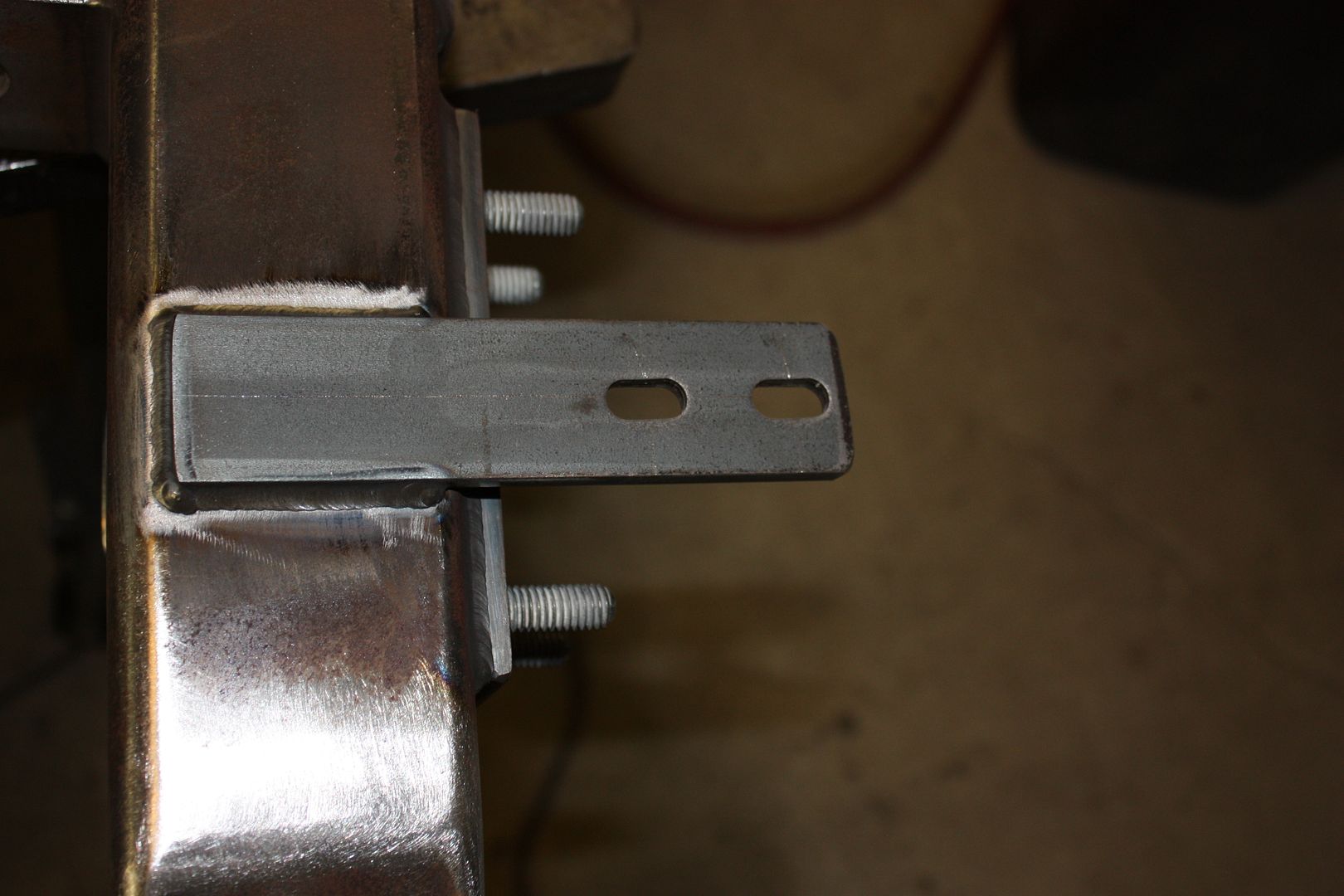

I decided to add tabs to attach to the bottom side of the frame...

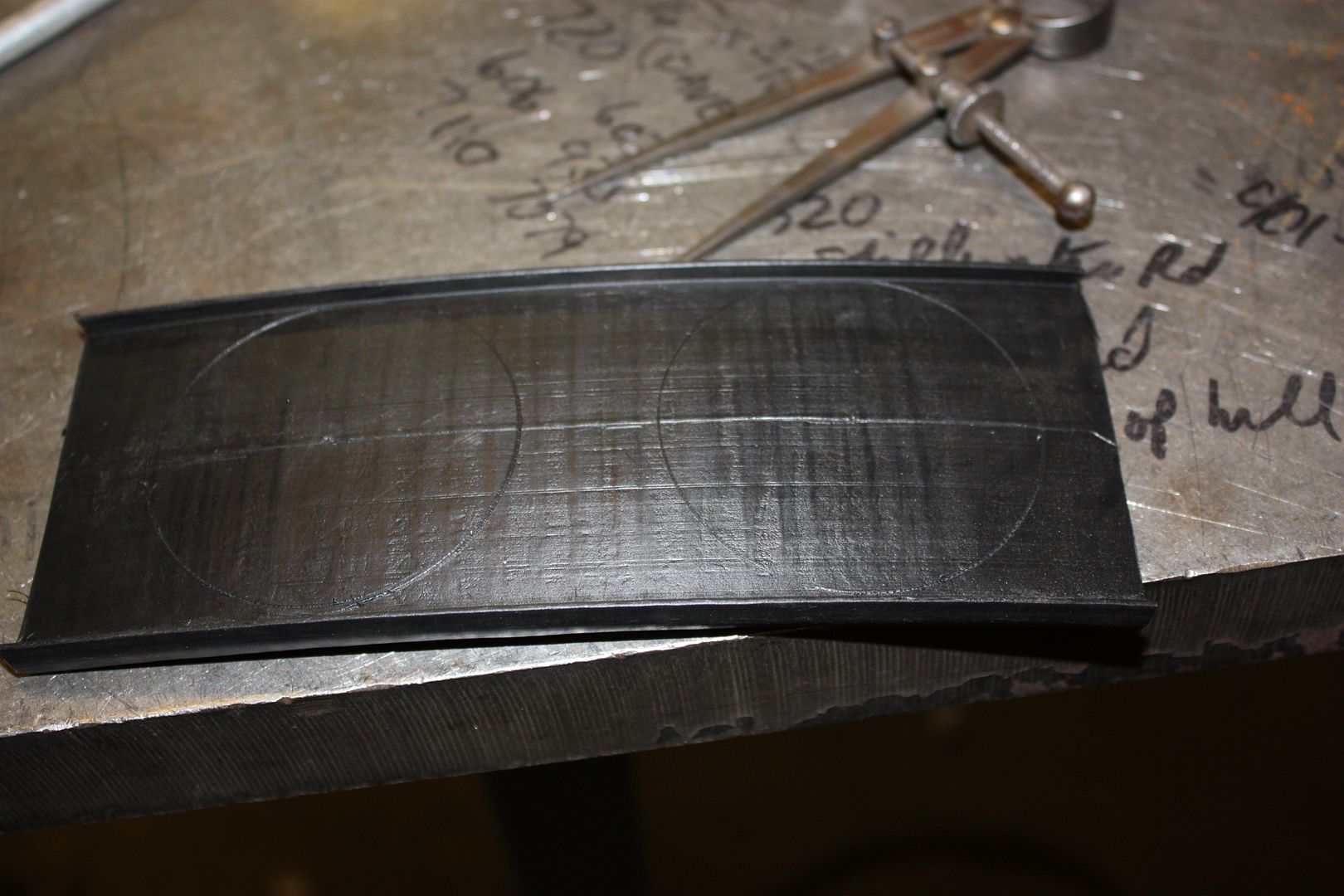

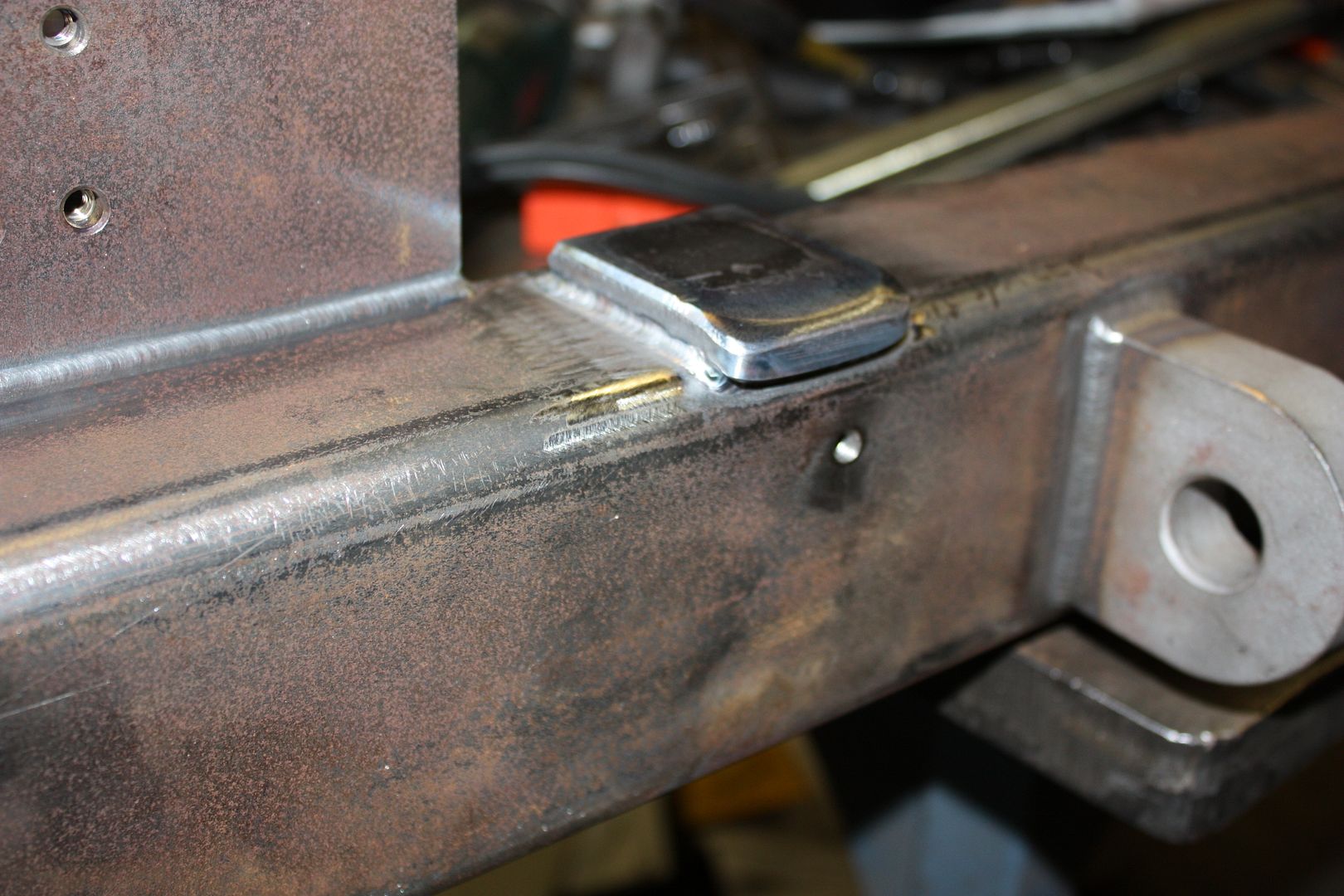

Added a buffer plate for the swing carrier to slide up on, when opening and closing. I added a piece of Teflon to the top surface, later on...

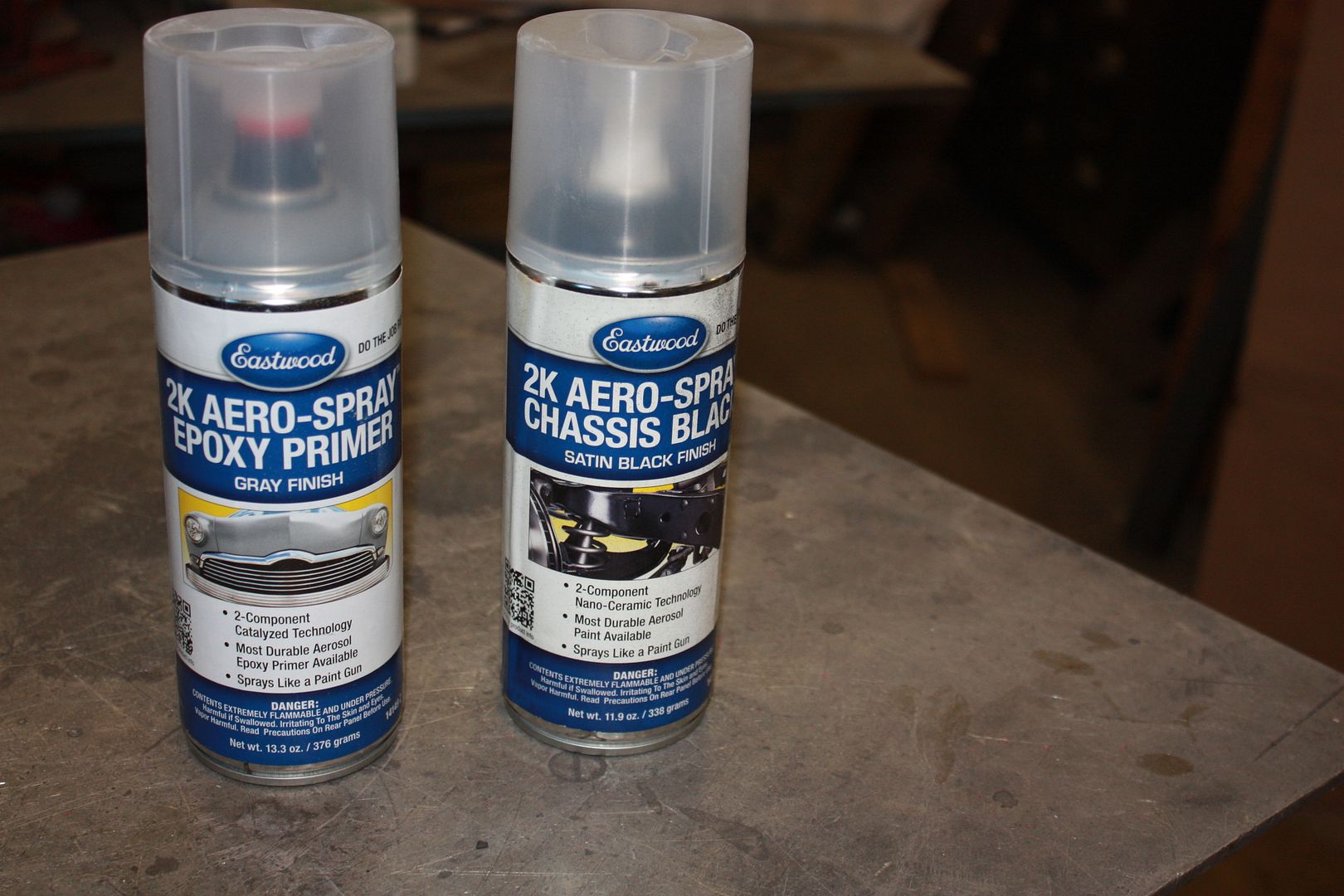

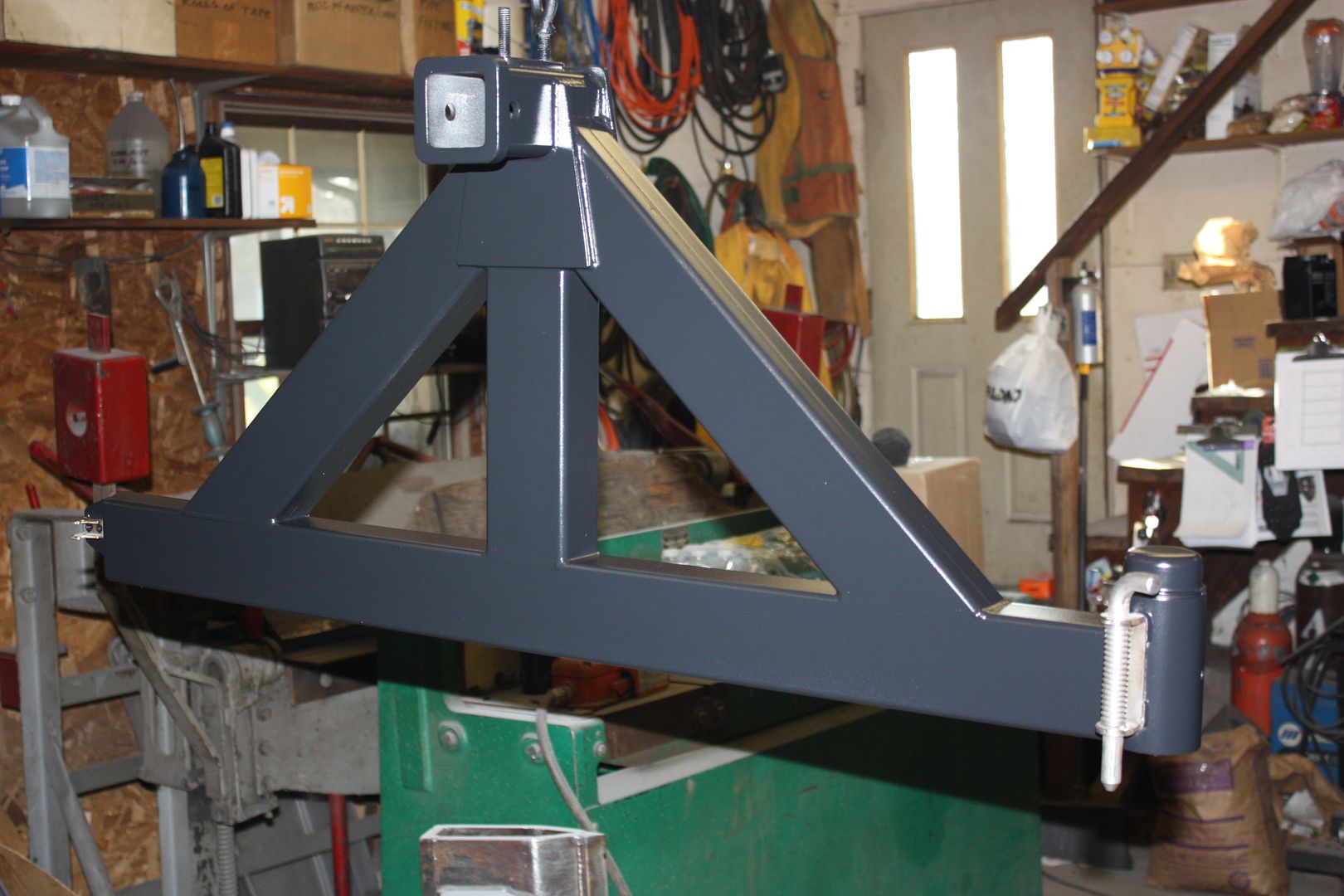

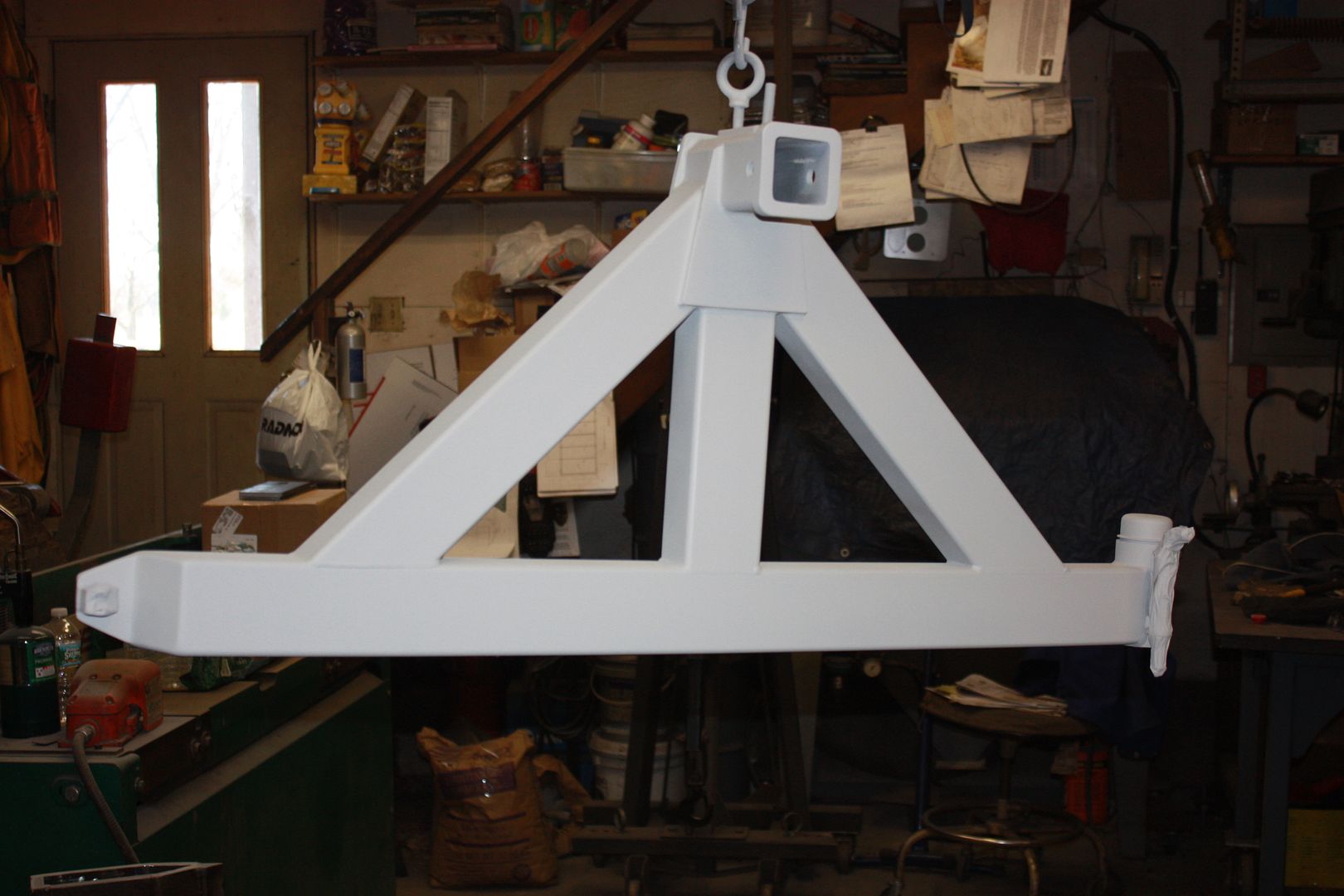

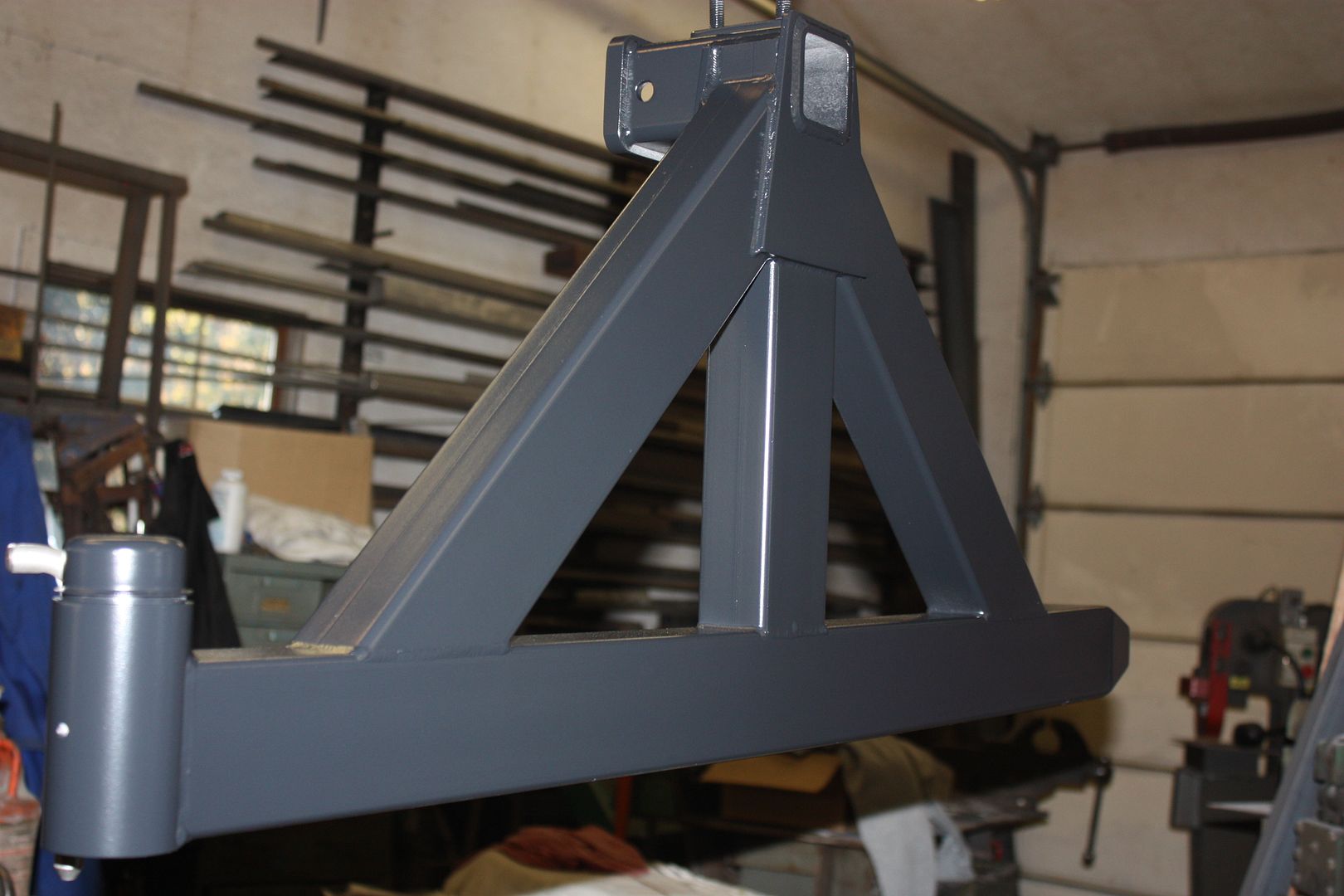

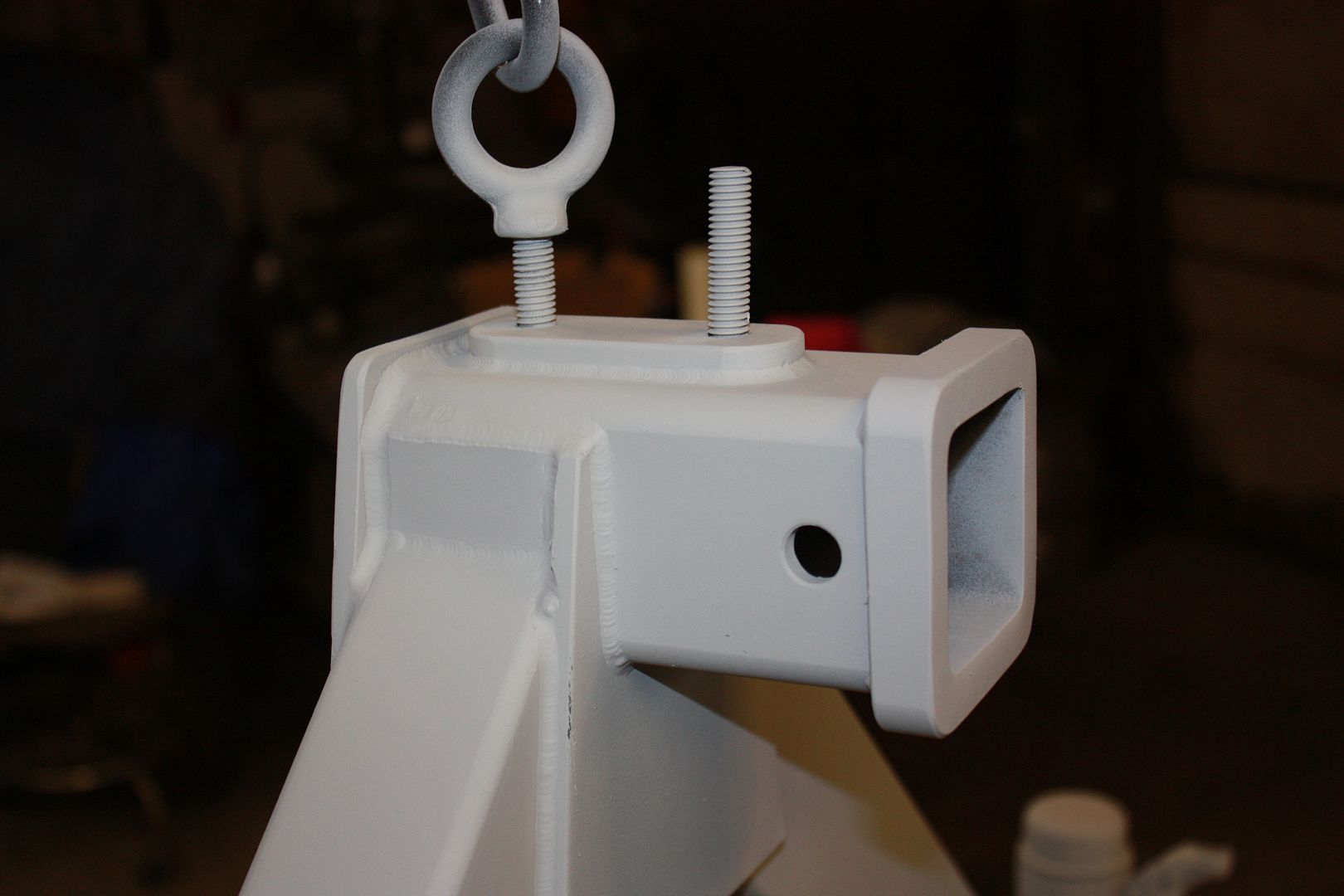

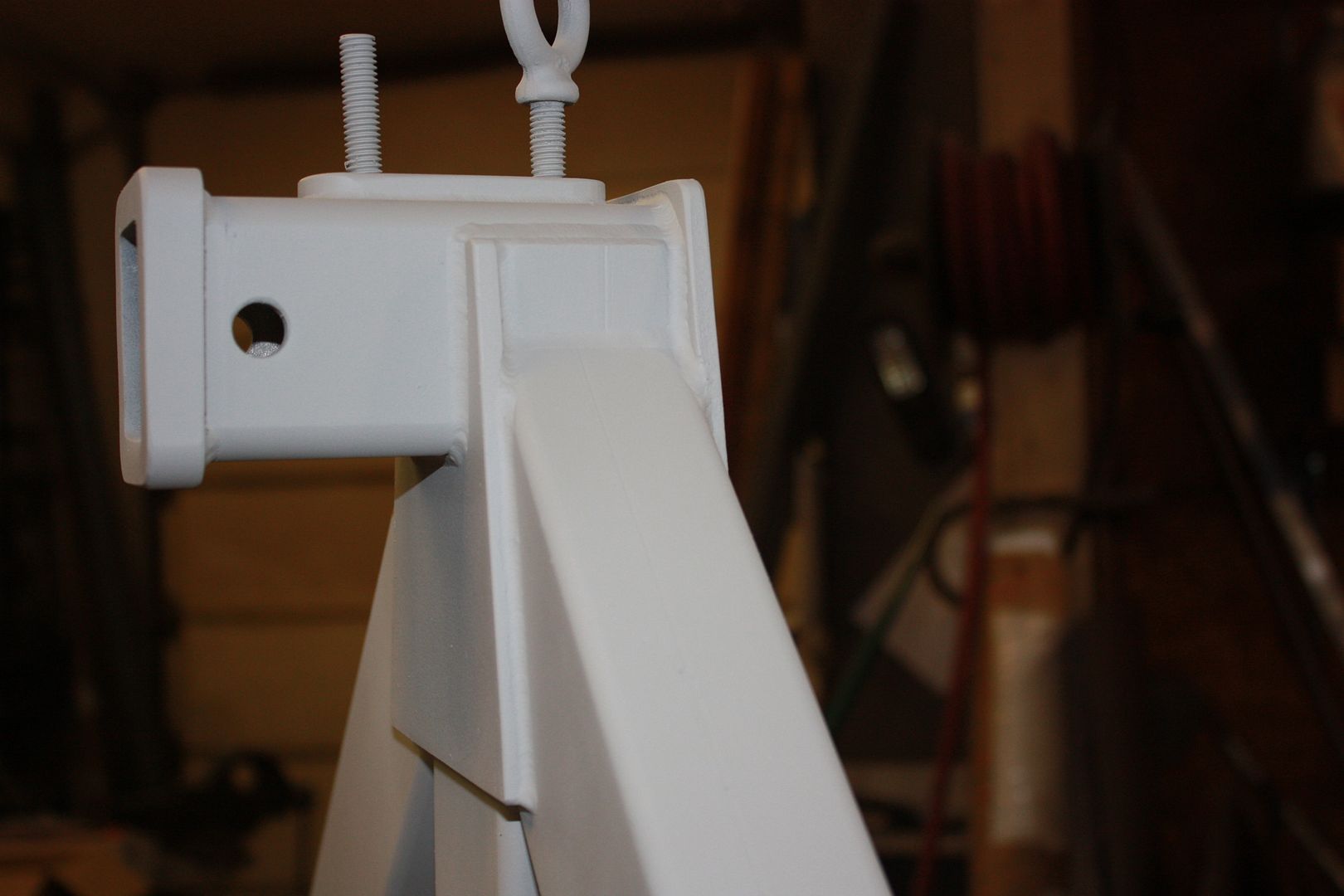

I primed and painted it with Eastwood's 2K Epoxy primer and paint...











__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote
Unread 01-04-2014, 07:08 PM   #5
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,675

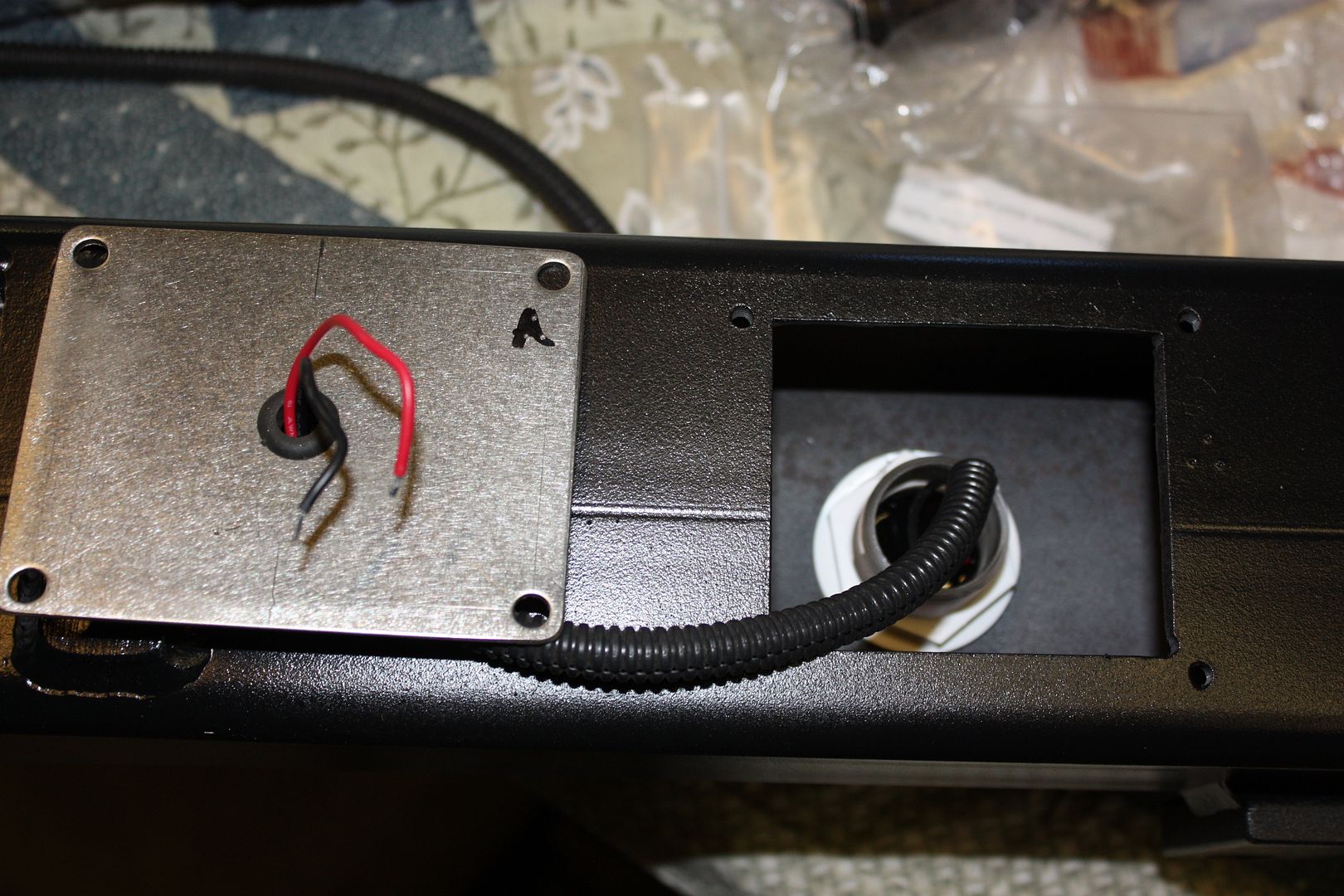

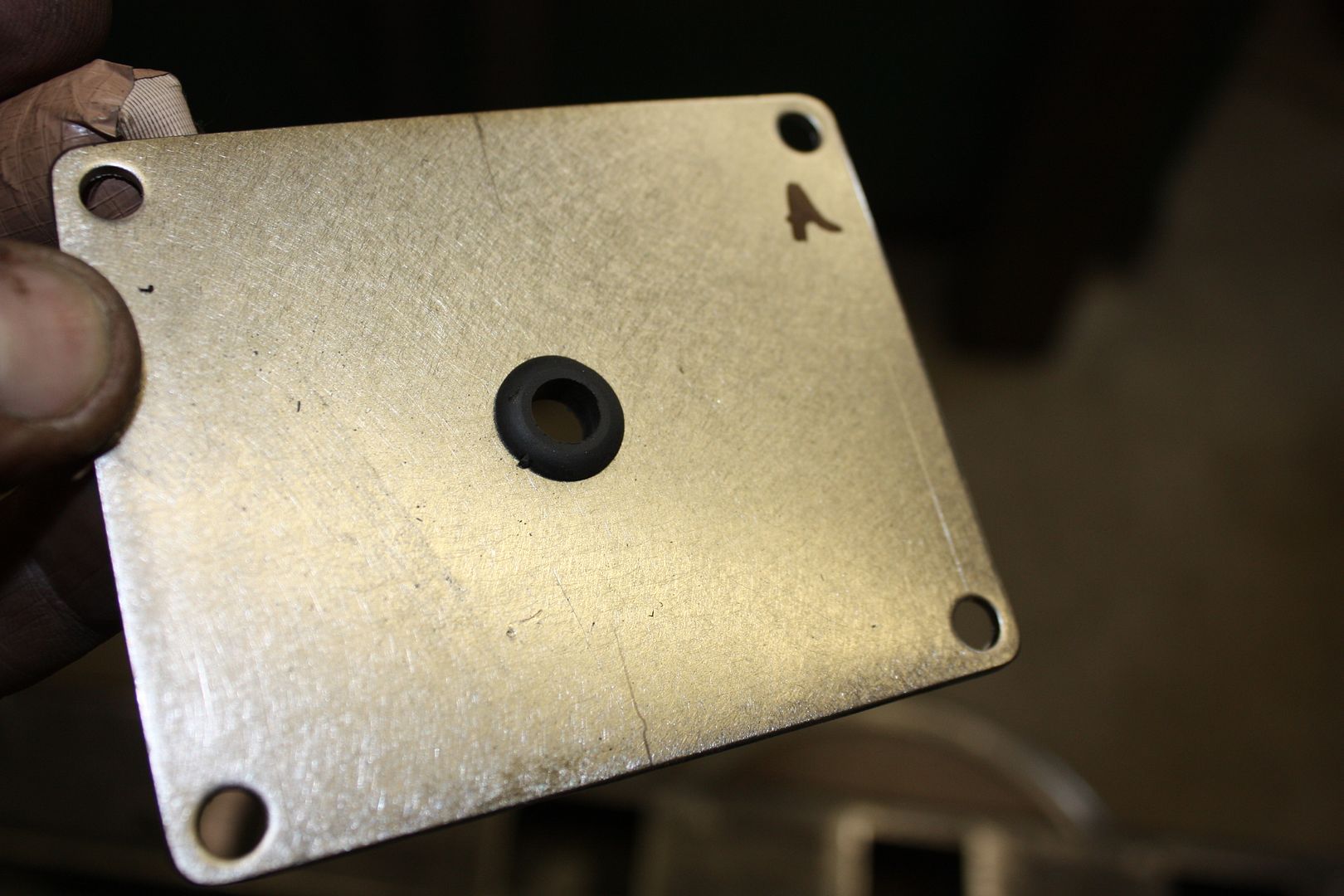

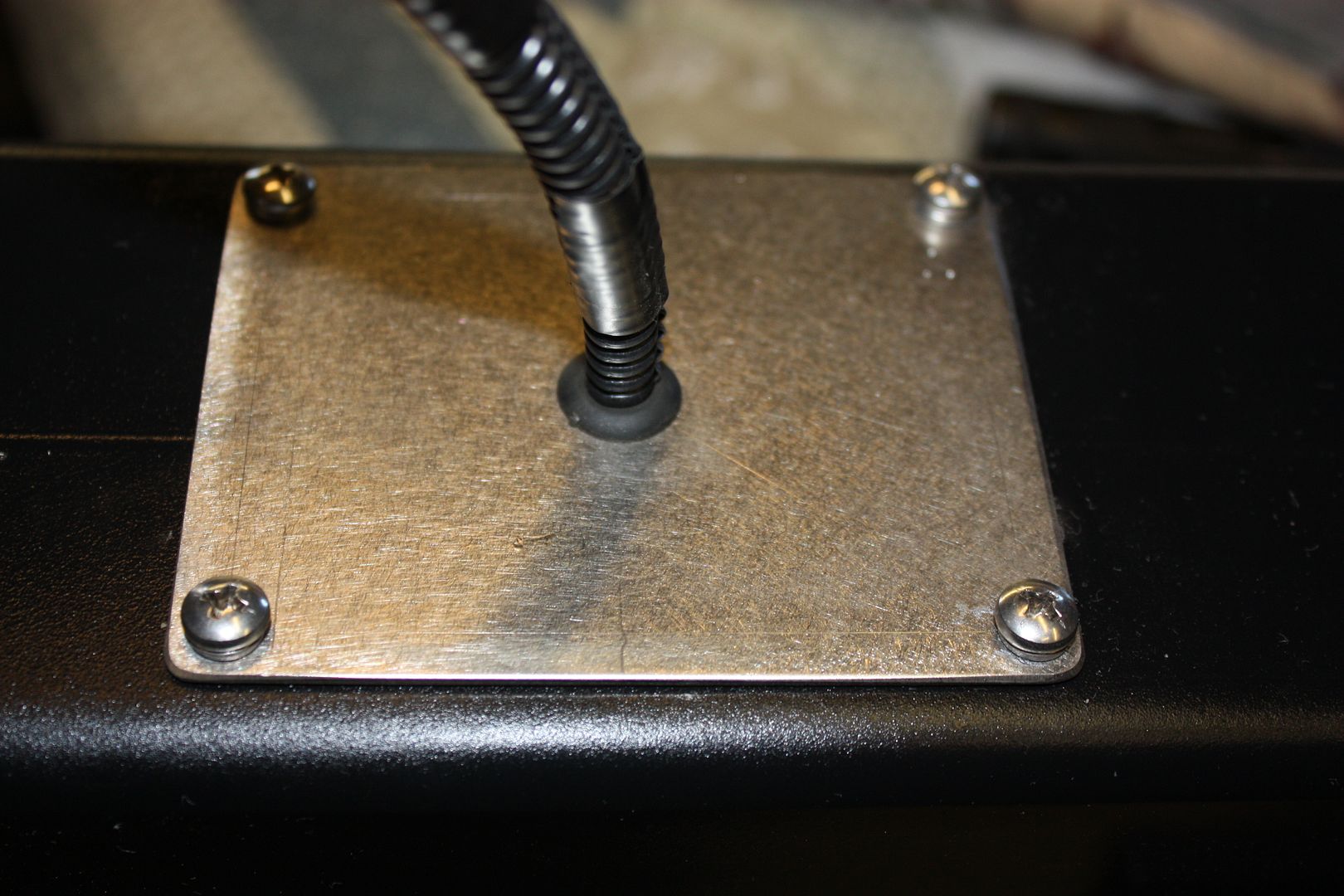

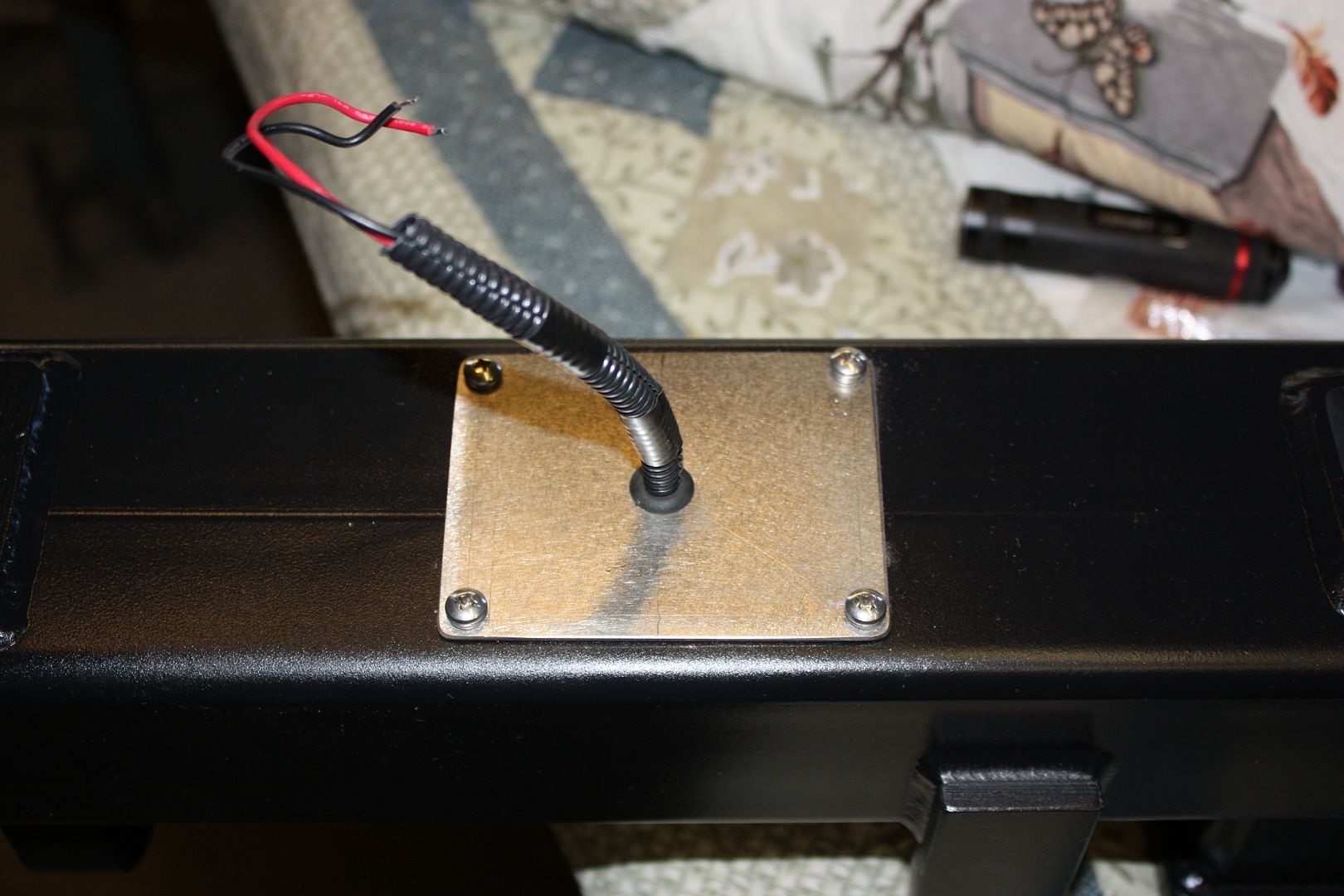

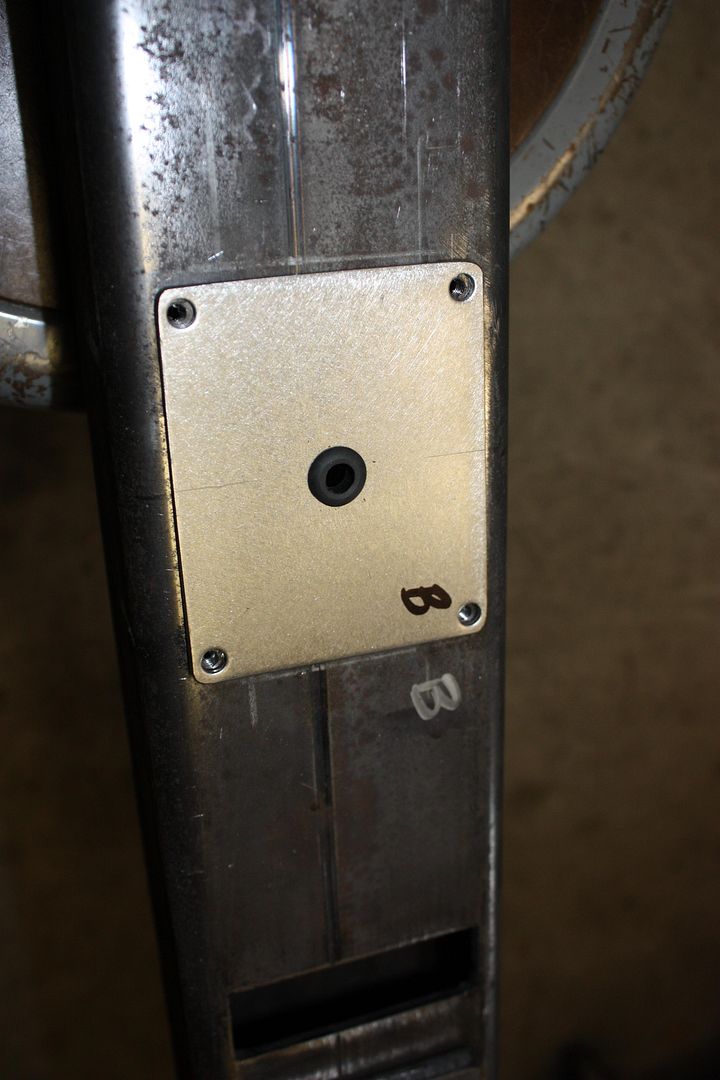

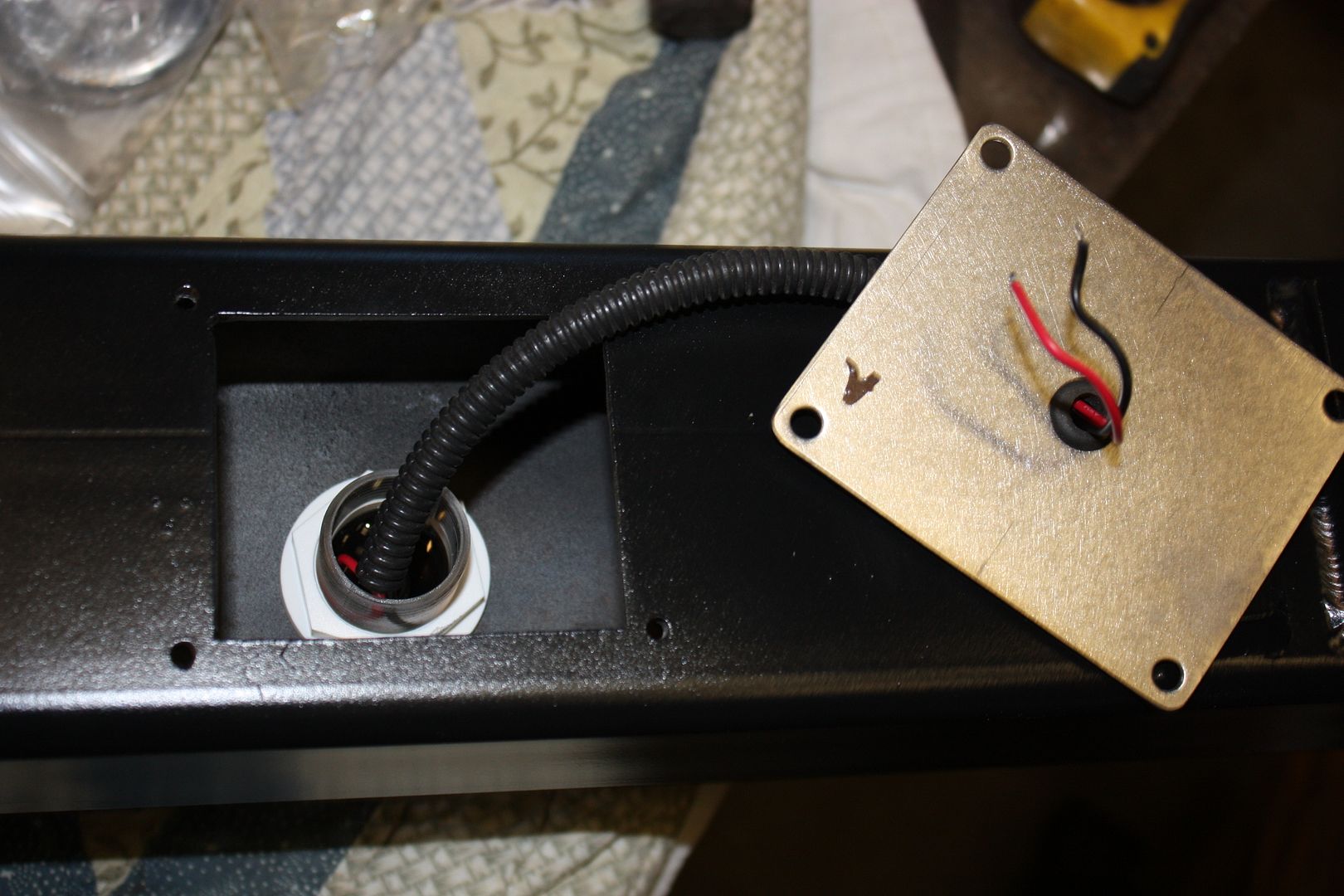

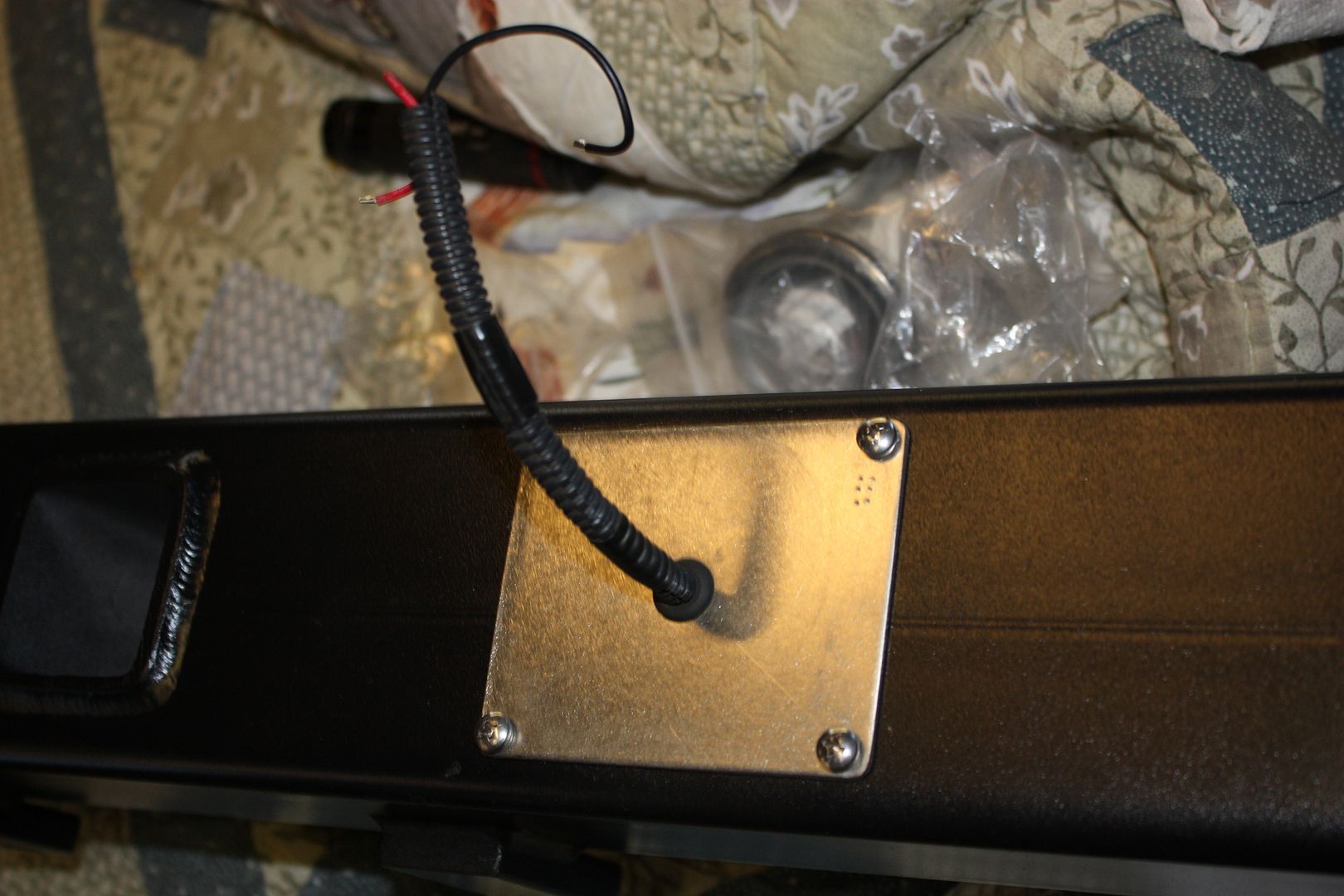

Wiring up the reverse lights... the silver colored cover plates are stainless steel...

















Well, that's it for now. The finished product is installed. I ended up adding a few little details to it, after I had a chance to see what the deal was. I will take more pics of it, and show you how it came out.


Rich
__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote
Unread 01-04-2014, 09:04 PM   #6
timatoe
Registered User
1990 YJ Wrangler

Join Date: Aug 2006
Location: Grass Valley California
Posts: 13,592
That's very nice. Wish my welds looked that good. BTW, glad to see you still got a finger.
__________________
Quote:
Originally Posted by George Orwell
We sleep safe in our beds because rough men stand ready in the night to visit violence on those who would do us harm.
timatoe is offline   Reply With Quote
Unread 01-04-2014, 09:15 PM   #7
NashvilleTJ
Member

NashvilleTJ's Avatar
2004 LJ Wrangler

Join Date: Jul 2010
Location: Nashville, TN, Tennessee
Posts: 200
Those are some beautiful welds. Very nicely done.

Jeff
NashvilleTJ is offline   Reply With Quote
Unread 01-04-2014, 10:28 PM   #8
firefighter315
I got a brain sneeze....

firefighter315's Avatar
1994 YJ Wrangler

Join Date: Jun 2008
Location: Kentucky
Posts: 1,828
Very nice! Well thought out and extremely clean work. Great job!
__________________
My YJ Build Thread http://www.jeepforum.com/forum/f12/f...hread-1181000/
firefighter315 is offline   Reply With Quote
Unread 01-05-2014, 04:04 AM   #9
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,675
Thanks guys. That finger injury was such a freak thing. I've been doing this type of work for almost 40 years. It's not like I NEVER get injured....I do. But this one never should have happened.

As far as this project being well thought out.....kinda,but not so much. Much of the work ended up being re-done.And, in the end, I would still change f few things. But....it's done.

Rich
__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote
Unread 01-05-2014, 07:51 AM   #10
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 374
Very nice.
jasonswelding is offline   Reply With Quote
Unread 01-05-2014, 09:17 AM   #11
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,675

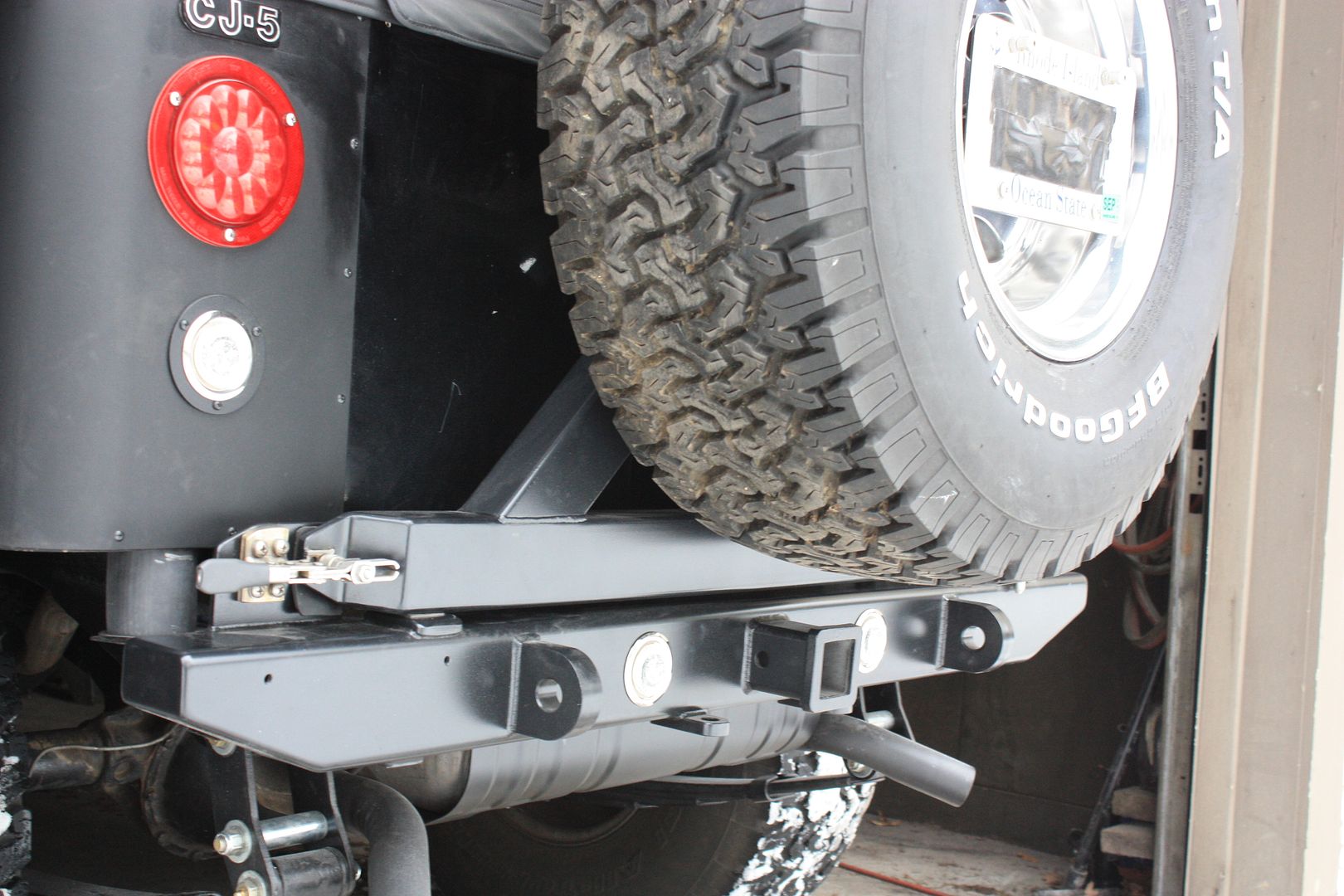

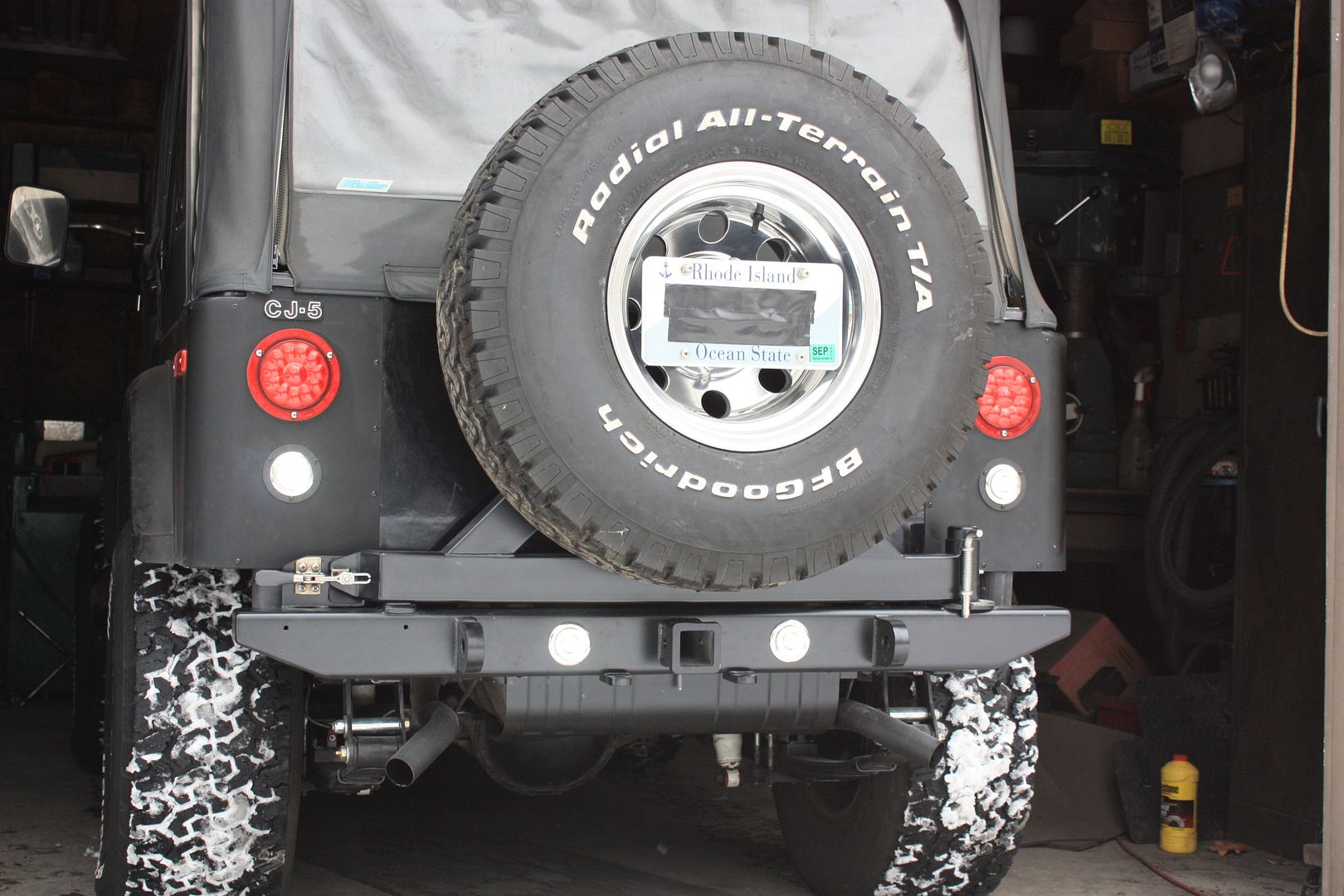

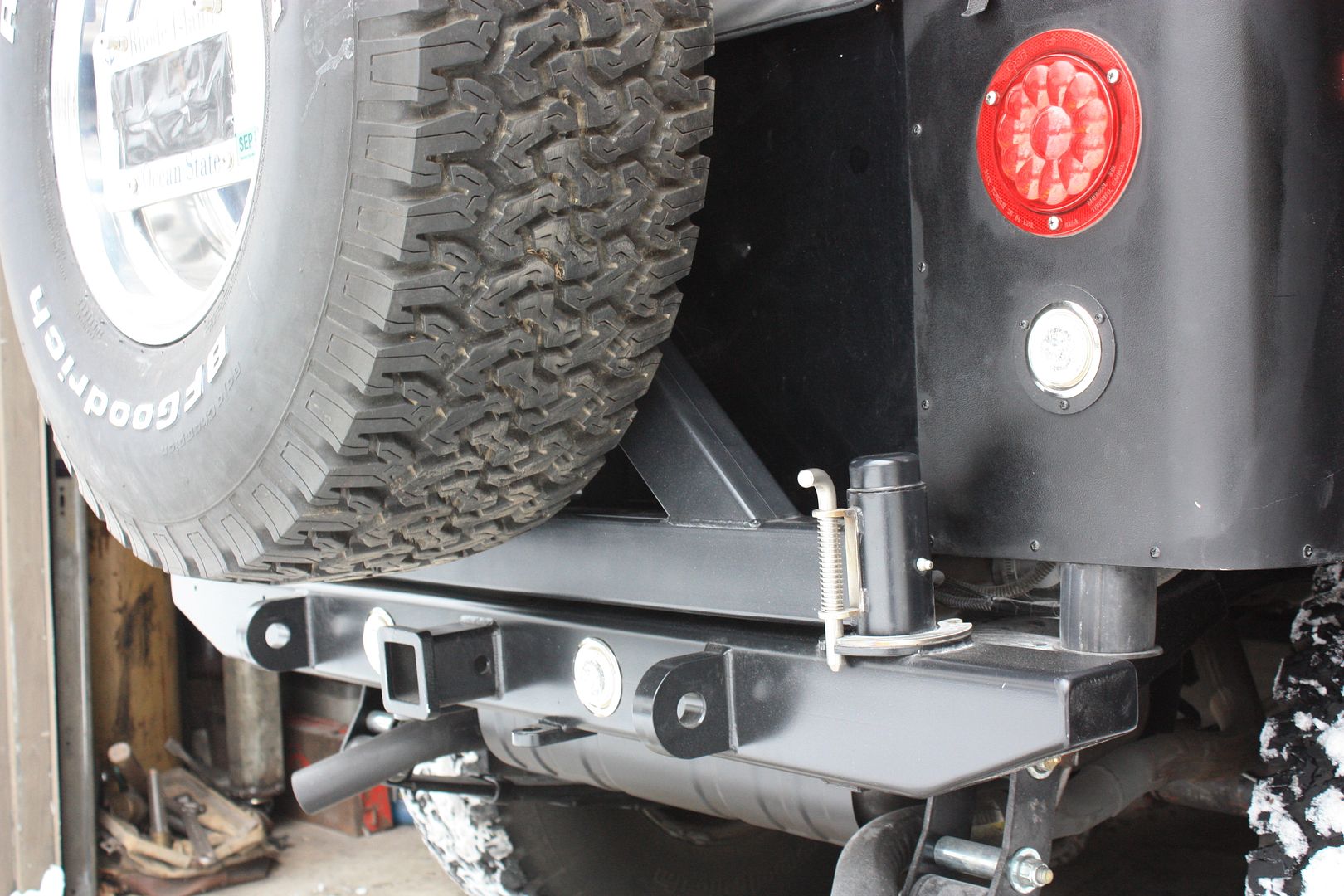

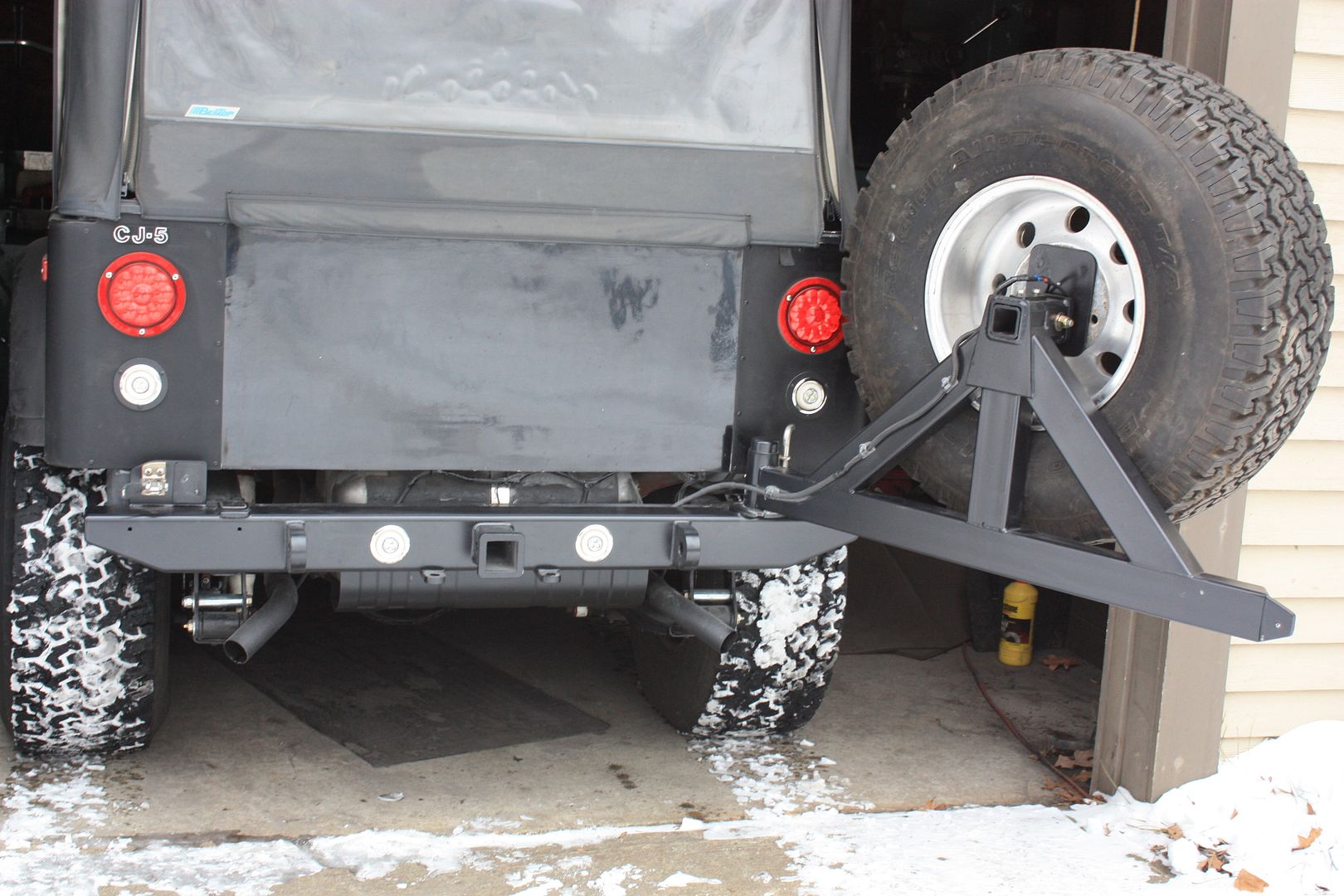

Here are a few parting shots of the final installation...

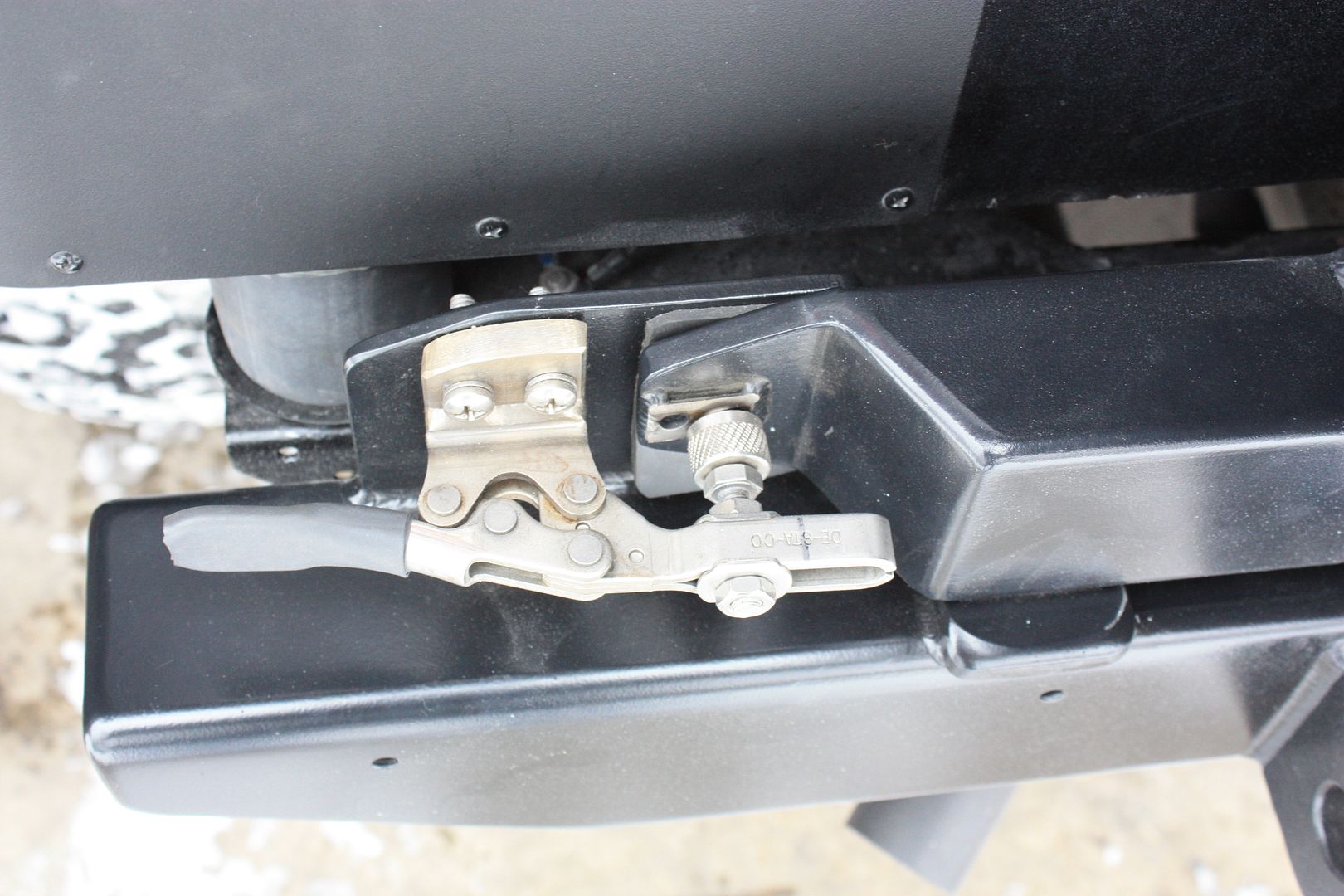

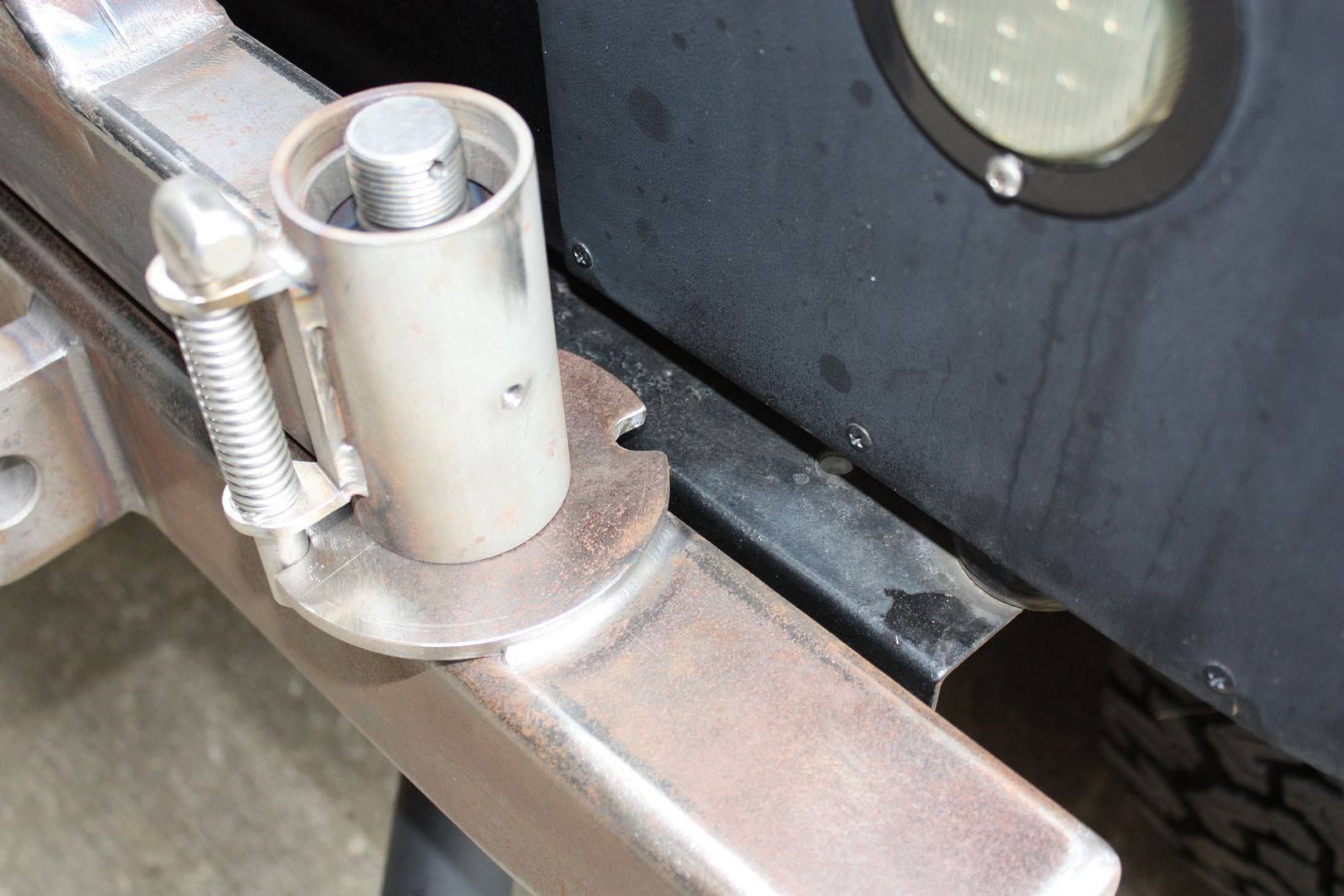

I decided to change to this style of clamp instead of the hook and pull one...

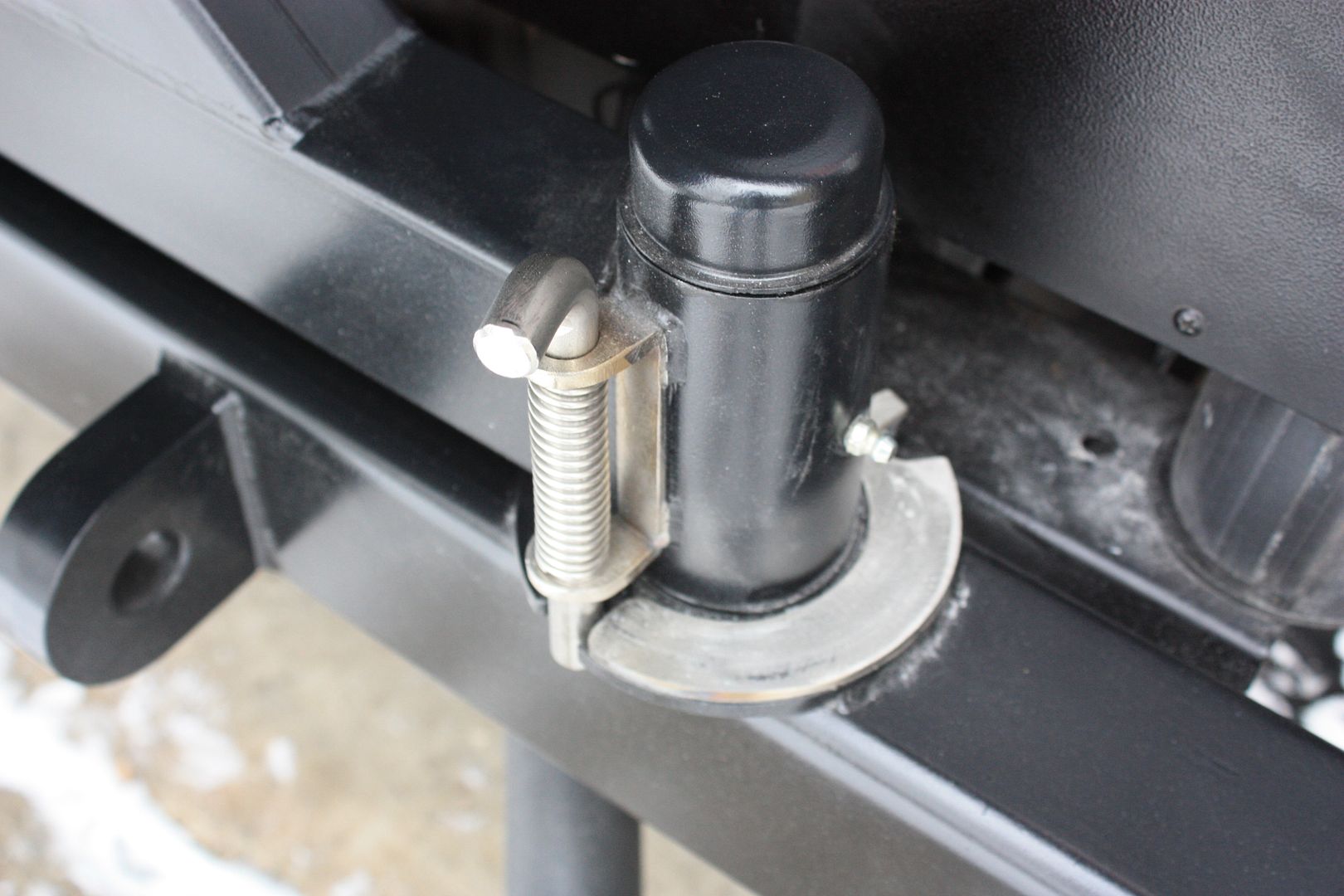

This thing is just a safety/backup feature....in case the clamp ever lets go, this will prevent the tire from just swinging out.





I liked the new bumper reverse lights better than the ones that I originally had in the Jeep, so I replaced the old ones with a set like the bumper has...



I drilled and tapped holes in the face of the bumper, to mount the license plate, but I didn't really want to put it there. So, I decided to mount the plate in the center of the spare tire.

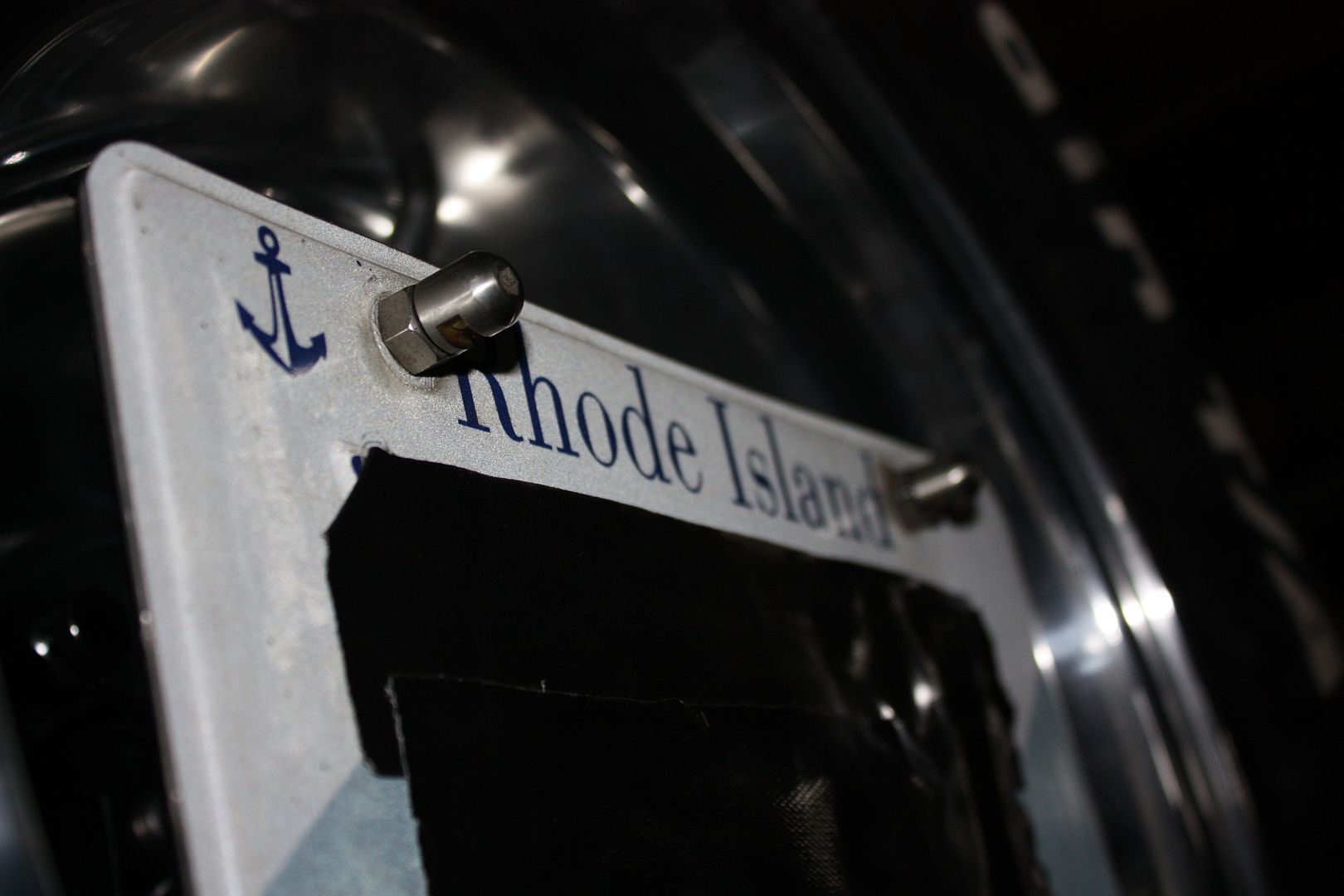

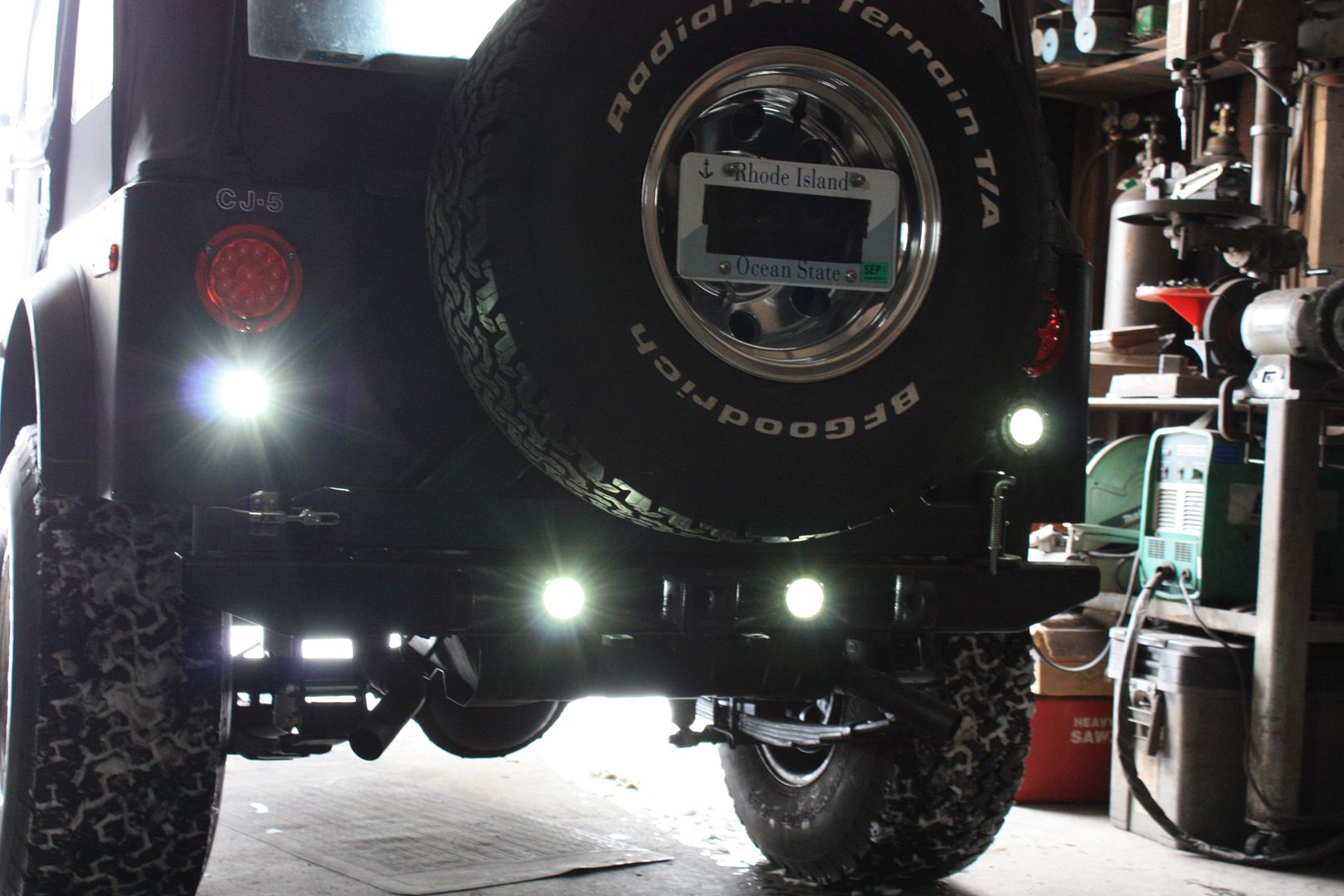

This created the challenge of wiring the license plate lights, so that the gate could still swing open. The top "screws" of the license plate are little bullet-style LED lights...

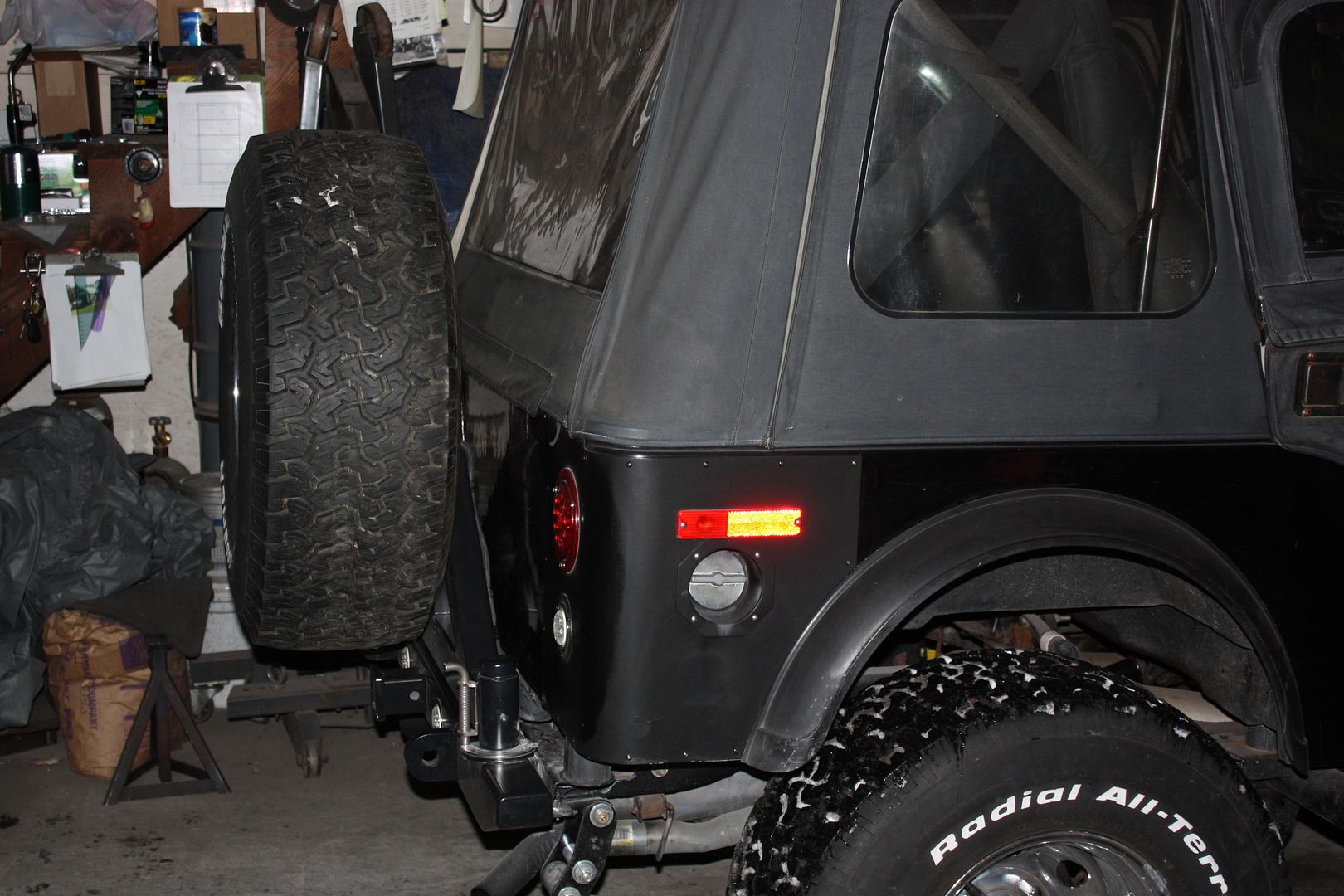

Side view...



That's about it...

Rich
__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote
Unread 01-05-2014, 11:20 AM   #12
Unlimitedlou
Registered User
2005 LJ Wrangler

Join Date: Feb 2010
Location: Louisville, KY
Posts: 787
Nice job! That thing is heavy duty.
__________________
2005 Unlimited Rubicon, too much junk to list!
My build: [url]http://www.jeepforum.com/forum/f22/unlimited-bottomless-pit-build-1241399/[/url]
Unlimitedlou is offline   Reply With Quote
Unread 01-05-2014, 01:06 PM   #13
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,260
Super clean work as usual!

But man... I had to scroll up like 3 times to look at those finger pics... Glad to see the entire finger is still attached. Scary stuff.
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 01-05-2014, 01:55 PM   #14
schitzangiggles
King of Macastan

schitzangiggles's Avatar
1993 YJ Wrangler

Join Date: May 2005
Location: Rigby, Idaho, Macastan (Idaho)
Posts: 6,018
So what is the story behind the finger. You should do a detailed AAR as a cautionary tale and maybe if we can find a moderator, get a sticky devoted to shop injuries, what tools were involved, how it happened, the carnage and what was learned to prevent it in the future with pictures or video showing the injury and the scene of the "crime" if you will to show how bad it gets. I think we have enough knowledge to create a fairly decent database of cautionary tails and reinforce proper safety actions. I think with the amount of new members and traffic that comes through JF we could help keep peopple new to the hobby and fabrication from suffering needles injuries because they don't know what they don't know.
__________________
"Axeheads are supposed to be sharp, but you are one blunt tool."
FLynes



If you love wealth more than liberty,the tranquility of servitude more than the animating contest of freedom, go home from us in peace. We seek not your counsel nor your arms. Crouch down and lick the hand that feeds you. May your chains sit lightly on your shoulders and may posterity forget that you were our countrymen.
-Samual Adams

A government big enough to give you everything you want is big enough to take everything you have.
Thomas Jefferson

Calling Illegal Aliens "Undocumented Immigrants" is like calling drug dealers "Unlicensed Pharmacists"

Nemo Me Impune Lacessit
"No one provokes (attacks) me with impunity".


"Your right, the Tea Party and the OWS are the same, just like the America Revolution and the French Revolution were the same. The only problem is the American Revolution ended with Liberty, Freedom, Justice for all and a shining light upon a hill. The French Revolution ended with lynchings, guillotines, murder and socialism. So yeah, I could see how one could confuse the two..."

Mac Wilson
schitzangiggles is offline   Reply With Quote
Unread 01-05-2014, 07:14 PM   #15
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,675
Quote:
Originally Posted by schitzangiggles View Post
So what is the story behind the finger. You should do a detailed AAR as a cautionary tale and maybe if we can find a moderator, get a sticky devoted to shop injuries, what tools were involved, how it happened, the carnage and what was learned to prevent it in the future with pictures or video showing the injury and the scene of the "crime" if you will to show how bad it gets. I think we have enough knowledge to create a fairly decent database of cautionary tails and reinforce proper safety actions. I think with the amount of new members and traffic that comes through JF we could help keep peopple new to the hobby and fabrication from suffering needles injuries because they don't know what they don't know.
I took your advice...

http://www.jeepforum.com/forum/f37/w.../#post19140658

Rich
__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote
