Unread 12-02-2011, 05:09 PM   #61
addicted2dunes
Registered User
1981 CJ8

Join Date: Jan 2006
Location: Orcutt, California
Posts: 866
Quote:
Originally Posted by Jason View Post
Eddie- Dumb question, but I'm curious. How did you cut the X's?
It's all CNC plasma'd

__________________
Cameron Gunlock
1981 CJ8 - http://www.jeepforum.com/forum/f8/project-krawln8-81-cj8-1276742/
http://www.facebook.com/pages/Central-Coast-Krawlers/139075302856004
addicted2dunes is offline   Reply With Quote
Unread 12-03-2011, 05:57 AM   #62
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
Yep.. basically, I imported the JPEG of the Iriquois Brake, traced it in CAD. Separated the parts (arms, shackles..etc.) and then started tweaking everything to fit the 4x8 sheets of steel. Probably have about 8hrs into the CAD drawings.. alot of it just sitting there looking at the screen. All the "X"s were added last. Took about 5 minutes to draw them and lay them out where I wanted them..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 12-03-2011, 03:30 PM   #63
KMD
Registered User
1976 CJ7

Join Date: Apr 2009
Location: Modesto, California
Posts: 1,285
Quote:
Originally Posted by webdog View Post
Looks great!

If I end up with 1 more piece of equipment I will be forced to get a shop, I have been looking for one and just cant decide when is the right time to pull the trigger...
Wait till you can afford a bigger shop than you need lol.

This brake is going to be so cool,can't wait to start building mine.
__________________
Locked and Loaded 4x4 Club
KMD is offline   Reply With Quote
Unread 12-03-2011, 03:56 PM   #64
webdog
DirtBound Offroad

webdog's Avatar
1990 XJ Cherokee

Join Date: Sep 2007
Location: Lost Angeles, CA
Posts: 1,549
Quote:
Originally Posted by Targetsfromus View Post
Wait till you can afford a bigger shop than you need lol.

This brake is going to be so cool,can't wait to start building mine.
Oh yea, I am in a 350 sq ft garage right now. I am looking at 1500sq ft minimum...
webdog is offline   Reply With Quote
Unread 12-04-2011, 02:04 PM   #65
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
Worked on that warped main punch plate today. I used a bottle jack and some chains to pull it straight and then welded one of the outer plates in place. The plate originally had a bow of about 3/4". Once I welded the outer plate in place, it was actually pulled back too far in the opposite direction by about 1/16". I'll fix that when I weld the opposite outer plate in place.

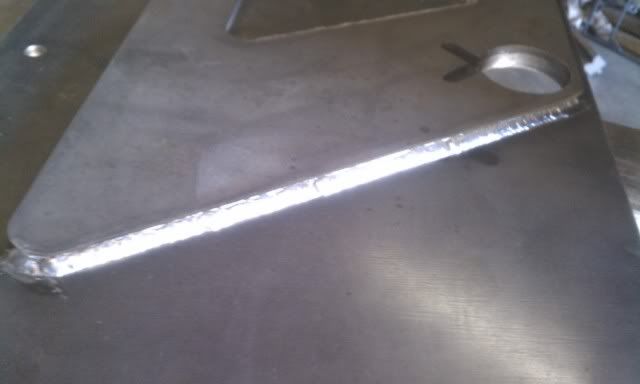

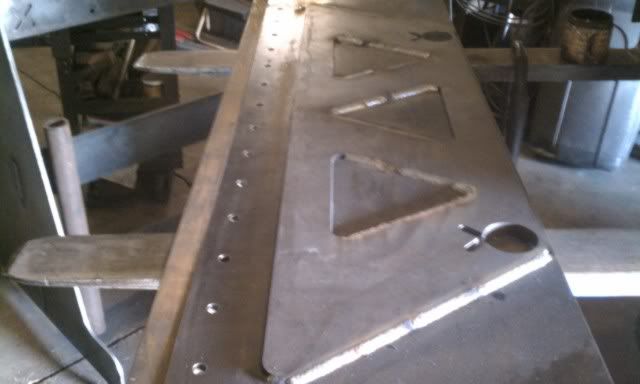

Here's the one outer plate in place..

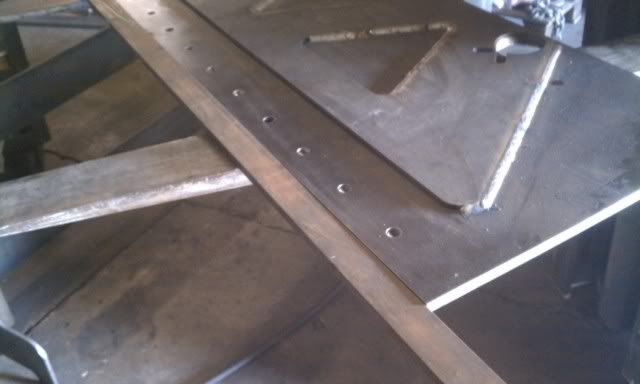

Here's my straightedge laid up against the plate.. you can see how it pulled it up just a bit too far at the ends.. I'll take care of that when I do the other side..

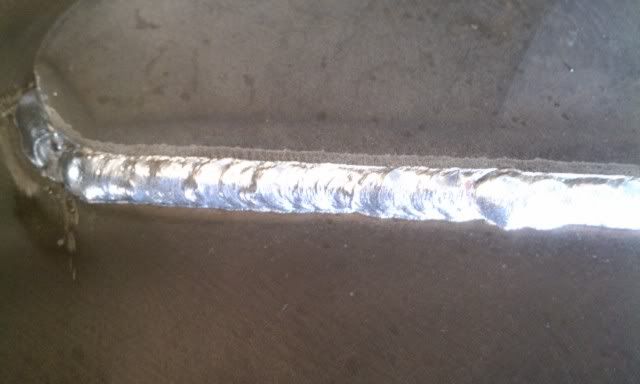

Really enjoying this Hobart Ironman 230..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 12-04-2011, 03:29 PM   #66
jatepper
Registered User
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,274
Man those are some ugly welds!!! j/k. Outstanding job as always.

I'm starting on my mini-BESRK brake this week.
__________________
1985 Jeep CJ-7
Automatic-258 I6- Detroit lockers front/rear - Superior 1-piece axles, Ramsey Pro 9000 Winch, Quick Disconnects, 33 BFG AT's, 4.10 gears, Howell TBI, DUI HEI Ignition, Ground Pounder Rear Bumper / Tire Carrier Combo, Handen Fab integrated winch plate front bumper w/hoop, ORF weld-in front sport cage.

USMC 1999-2004 Semper Fi!

Hood Hi-Lift Jack Mounts for CJ/YJ/TJ/JK

Torchmate CNC Plasma Table Build / Projects

The Target Man, LLC - AR500 Shooting Targets
jatepper is offline   Reply With Quote
Unread 12-04-2011, 03:36 PM   #67
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 5,499
Nice work Eddie. Hey what's the rabbit ear looking grooves around the holes for?
__________________
www.crabtreetool.com (Crabtree Shackle Hangers)

My build thread
http://www.jeepforum.com/forum/f8/ji...build-1093702/
Jim1611 is offline   Reply With Quote
Unread 12-04-2011, 04:15 PM   #68
addicted2dunes
Registered User
1981 CJ8

Join Date: Jan 2006
Location: Orcutt, California
Posts: 866
Quote:
Originally Posted by Jim1611 View Post
Nice work Eddie. Hey what's the rabbit ear looking grooves around the holes for?
I'd guess just a rosette weld spot near the holes to keep the plates from separating?
__________________
Cameron Gunlock
1981 CJ8 - http://www.jeepforum.com/forum/f8/project-krawln8-81-cj8-1276742/
http://www.facebook.com/pages/Central-Coast-Krawlers/139075302856004
addicted2dunes is offline   Reply With Quote
Unread 12-04-2011, 04:16 PM   #69
addicted2dunes
Registered User
1981 CJ8

Join Date: Jan 2006
Location: Orcutt, California
Posts: 866
Quote:
Originally Posted by jatepper View Post
Man those are some ugly welds!!! j/k.
Yeah, you should stop while you're ahead and just ship this one to me
__________________
Cameron Gunlock
1981 CJ8 - http://www.jeepforum.com/forum/f8/project-krawln8-81-cj8-1276742/
http://www.facebook.com/pages/Central-Coast-Krawlers/139075302856004
addicted2dunes is offline   Reply With Quote
Unread 12-04-2011, 05:30 PM   #70
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
Yeah.. they're just to tie the pivot tubes into the center plate with a little bit of weld..

As an afterthought. It would've worked better to cut the hole in the outer plates to leave about a 3/8" gap that could've been filled in with weld around the entire pivot tube.. oh well..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 12-06-2011, 05:12 PM   #71
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264

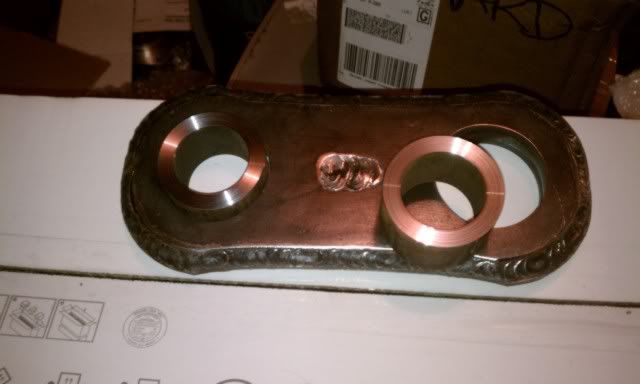

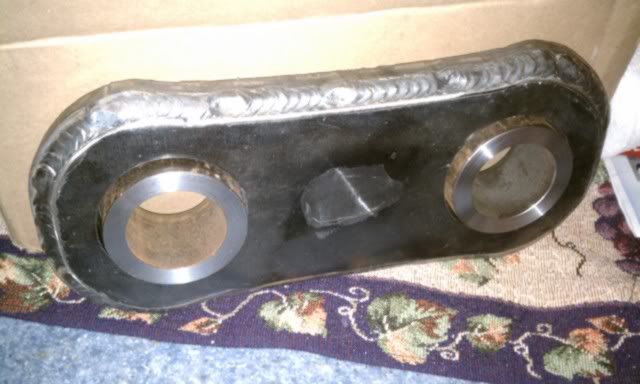

Got a little bit done this evening..Originally, I was just gonna laminate 2 pieces of 3/8" together for the shackles and arms. However, changed my mind and went with 3. I got one shackle welded up today and turned a couple pivot tubes for it. My son is gonna cut the rest of the pivot tubes tomorrow and we'll continue to weld stuff together.

Still waiting on the bushings..

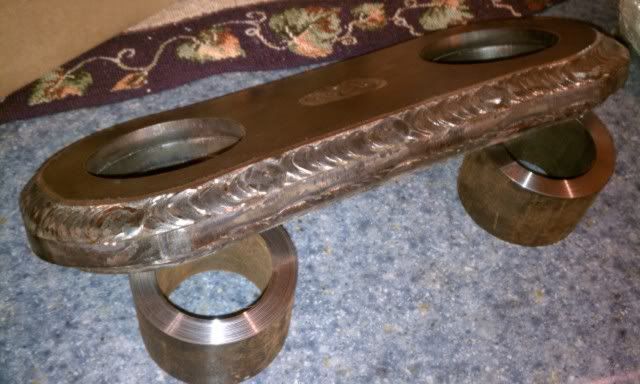

How'd you like to bolt a set of these shackles under your YJ?



__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 12-07-2011, 05:42 PM   #72
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
Just ordered $900 worth of hydraulic parts.. 5hp motor, pump, valve, couplers, reservoir, filter..etc.

Once I get it all situated, I'll pick up all the hoses.

Merry Xmas to me, Merry Xmas to me..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 12-27-2011, 08:10 AM   #73
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
Cut some more 1/2" plate. I cut some additional material to add to the bottom of the main frame (to reduce deflection) and also cut the punch plate guide plates.

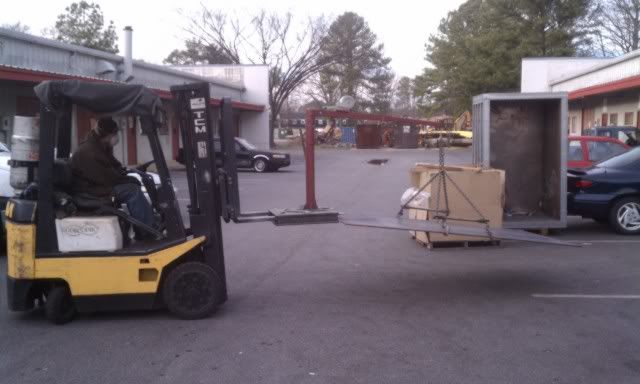

My crane.. straining..

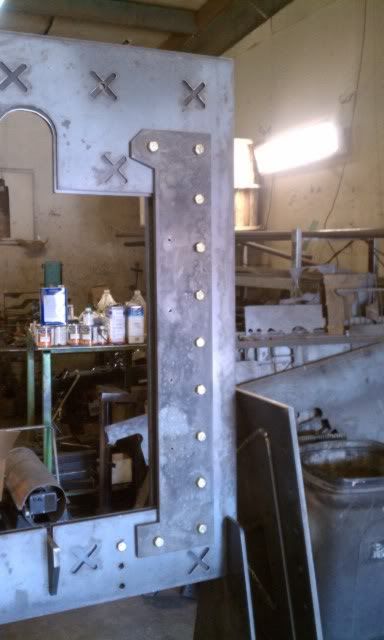

Here's the guide plates in place. There will a strip of 1/4" thick plastic bolted to the inside of each plate to act as a "wear" plate for the punch plate. I just ordered the plastic a few minutes ago..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 12-28-2011, 06:26 AM   #74
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 5,499
Along with the crane straining I see a nice addition riding along side the driver.
__________________
www.crabtreetool.com (Crabtree Shackle Hangers)

My build thread
http://www.jeepforum.com/forum/f8/ji...build-1093702/
Jim1611 is offline   Reply With Quote
Unread 12-28-2011, 07:36 AM   #75
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
Quote:
Originally Posted by Jim1611 View Post
Along with the crane straining I see a nice addition riding along side the driver.
I need to make a forklift saddle holster for it..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
