3" tapered front fender flares

Ive been thinking about the idea of getting some tube fenders for my YJ for a while but dont want to fork over the cash for some when i have the tools to make it. Ive really liked the flares Genright sells and modeled my flares after the tapered look and the perforated vent on the side. I drew some flares in Autodesk Inventor and plan on making some inner fenders as well. I still have a few things that i might change from the modeled drawings below; 1: i might want to put louvers on the side inserts on the fenders 2: make them black or body colored

So far i plan on picking up some 1.25 dia .120 wall 1018 DOM and some .125" thick steel sheet. ill pick up enough so i can make some rear fenders and tube doors in the near future.

ill make the fenders in 3 parts
1: the inner fender
2: the rear of the fender that has the louvered or perforated insert
(it will be welded to the sheet that goes along with the flare)
3: the front of the fender that includes the tube and the steel sheet that
goes along with the flare

At work ill lasercut some of the parts including the side panel where the preforated insert goes

To bend the tube ill use a 1.25"x90 degree die in a JD2 M32 bender

Any other work will be done with a sander, 4.5" cutoff wheel, 3" grinder with different disks, a harbor freight 90amp flux core welder (to tack stuff up when its on the jeep),and a miller dynasty 200.

Check out the pics below:







Any suggestions would be great

__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
[CENTER][URL="http://www.jeepforum.com/forum/f22/sloooooow-blue-yj-build-1234350"]My YJ Build[/URL][/CENTER]
04WJny is offline   Reply With Quote Quick reply to this message
Unread 08-20-2012, 08:25 AM   #2
drerict
Registered User
1983 CJ7

Join Date: Jul 2007
Location: Alamosa, CO
Posts: 121
I like it. I am planning something similar, no drawings yet.
I saw the poison spider daddy long legs build and they had some fenders before the extended flares that I am trying to emulate.

Eric
__________________
Firefighters Jeep Club
http://groups.jeepforum.com/Firefighters_Jeep_Club
drerict is offline   Reply With Quote Quick reply to this message
Unread 08-20-2012, 11:18 PM   #3
04WJny
Registered User
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 615
Quote:
Originally Posted by drerict View Post
I like it. I am planning something similar, no drawings yet.
I saw the poison spider daddy long legs build and they had some fenders before the extended flares that I am trying to emulate.

Eric
Thanks! just checked out the daddy longlegs build and if your making some fenders that look similar to that it should look sick. Ill be watching when you start making yours good luck
__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
In the process of putting in an 8.8, d30, 4.10's, SOA, and a homemade belly up skid
[CENTER][URL="http://www.jeepforum.com/forum/f22/sloooooow-blue-yj-build-1234350"]My YJ Build[/URL][/CENTER]
04WJny is offline   Reply With Quote Quick reply to this message
Unread 08-21-2012, 08:33 PM   #4
ssyj94
Registered User
1994 YJ Wrangler

Join Date: Jan 2009
Location: new york
Posts: 890
I was debating trying just about the same fender design the other day. Only thing different was making them with a small highline. I'm looking forward to seeing some progress with these .
__________________
Link locked and ready to rock
Http://www.jeepforum.com/forum/f12/y...lovers-1121183
ssyj94 is offline   Reply With Quote Quick reply to this message
Unread 08-22-2012, 09:33 PM   #5
04WJny
Registered User
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 615

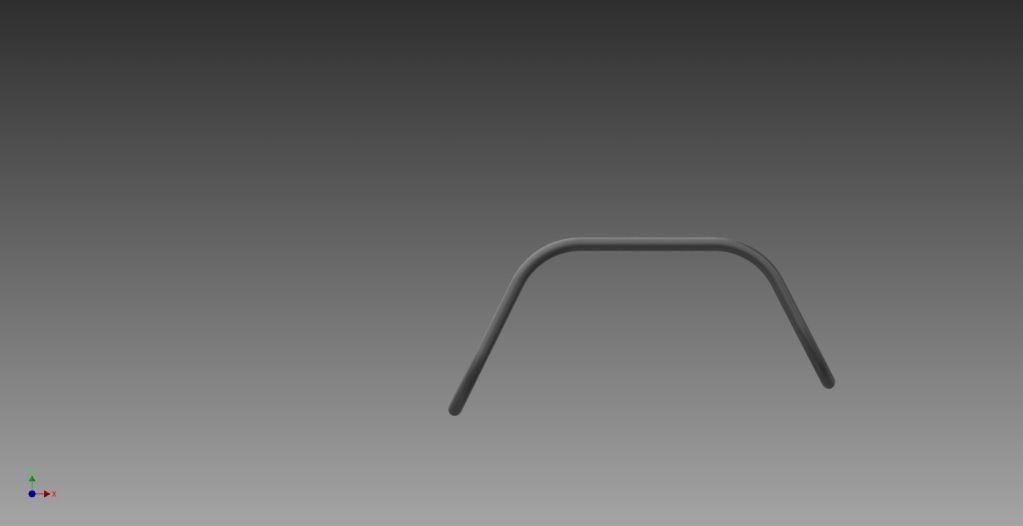

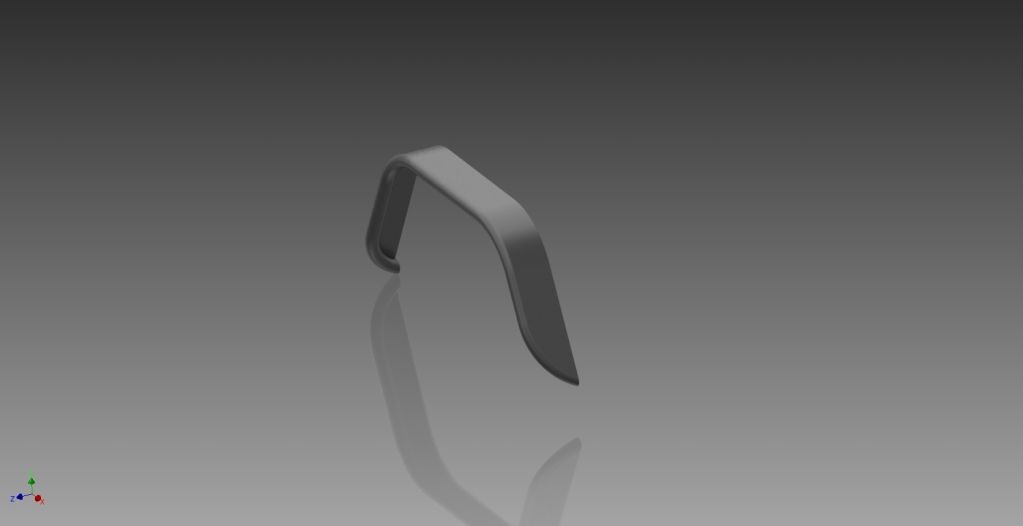

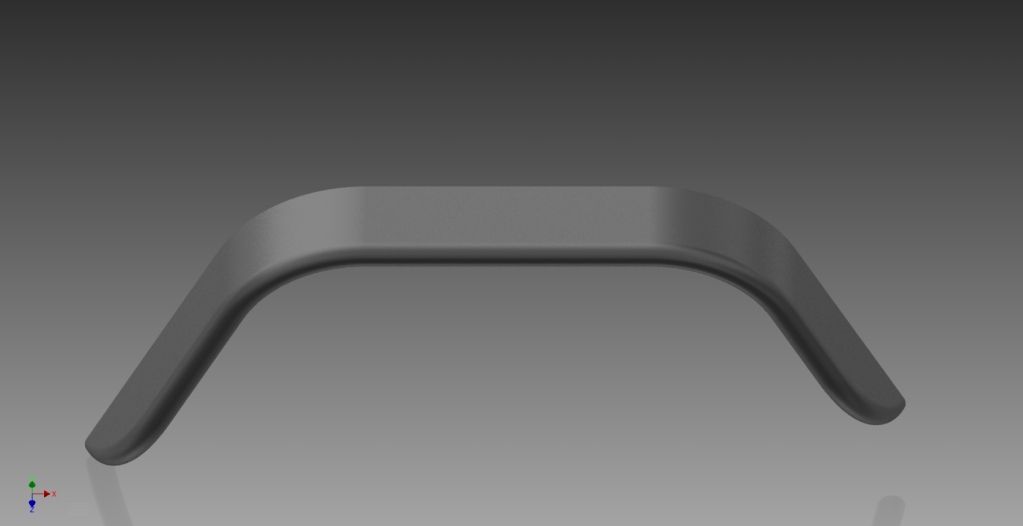

Just drew up the rear fenders. Ill be chainging the fronts to 4" flares to match the rear, i think 3" is a little too small Ill be doing all of the fenders at the same time because its cheaper to buy all of the steel at once, and its also easier to use the tubing bender for all of the tubes at once. Heres what the rear ones should look like:
