XJ 6.0L LS Swap

The swap has started.

2000 6.0L LQ4 and 4L80E in to a 2000 XJ. Headers and engine mounts should be here Thursday.

I know there may be better options, however this is a budget build (I have a hard time saying BUDGET on this project) and I got a deal on the engine and tranny. I am taking my time working on it in between customers cars, so this may take some time. I will do my best to make this as clean of a swap as I can.

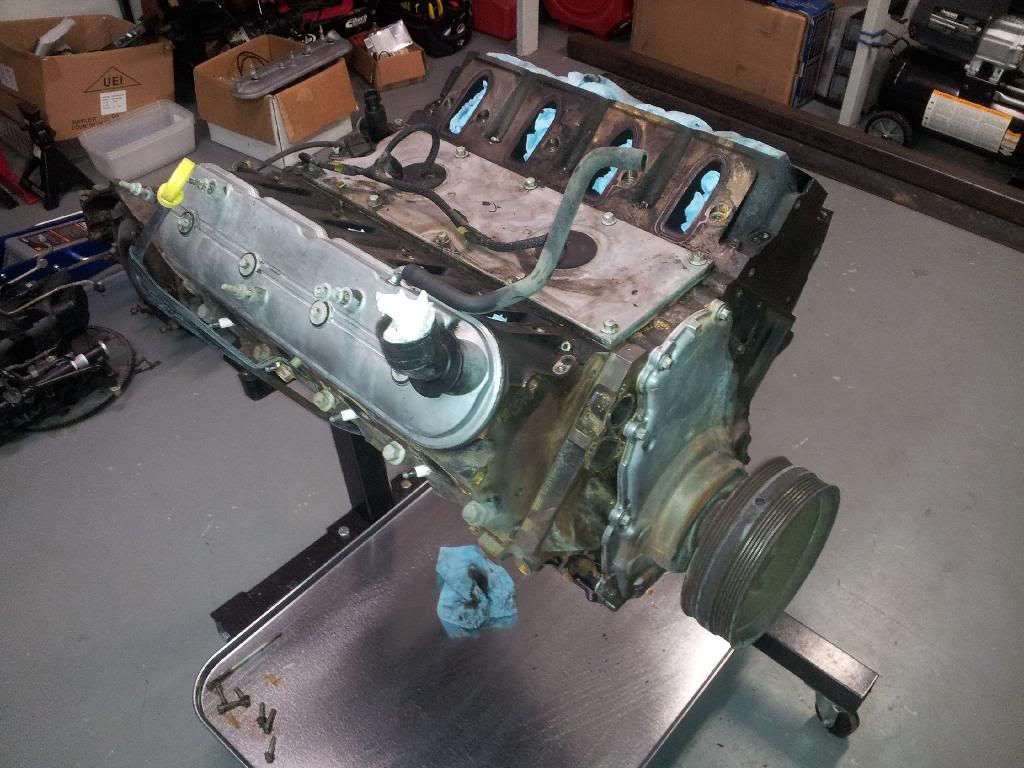

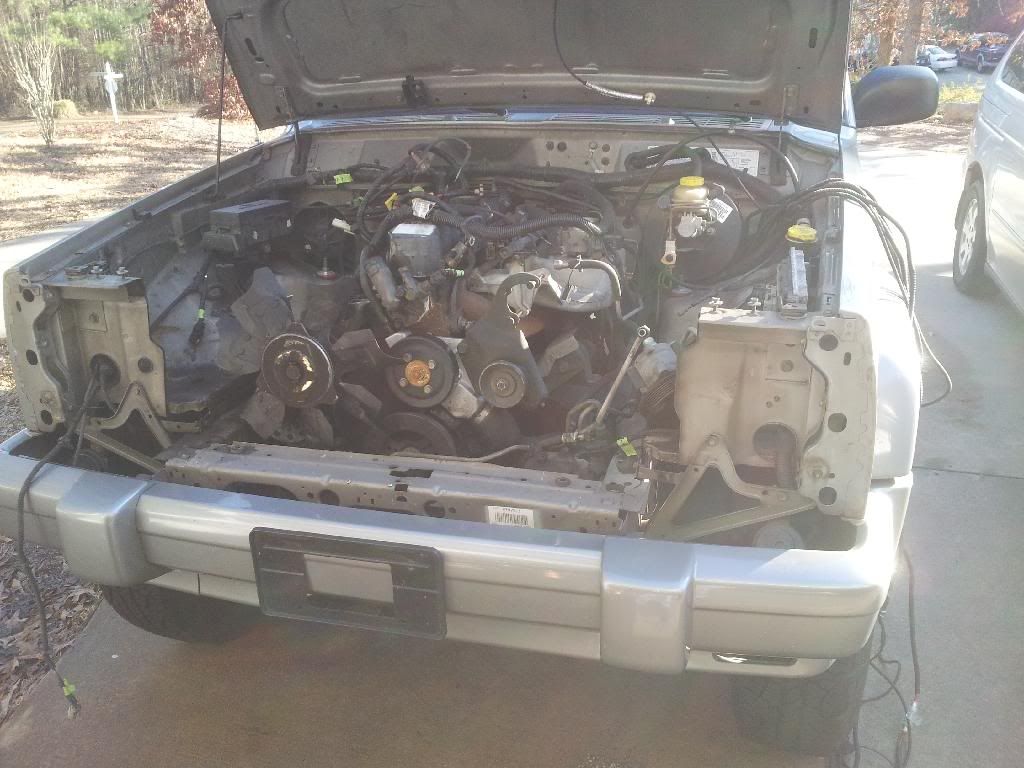

This is what I started with. (Yes that is a 2wd 4L80E, I will be converting it to 4wd).

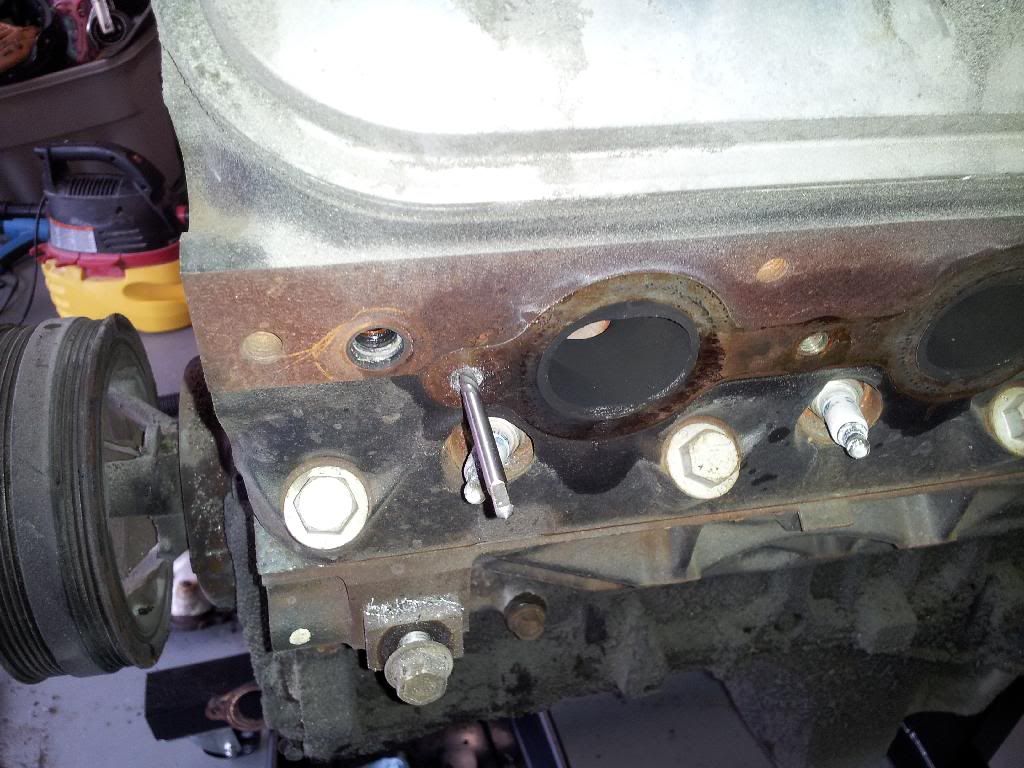

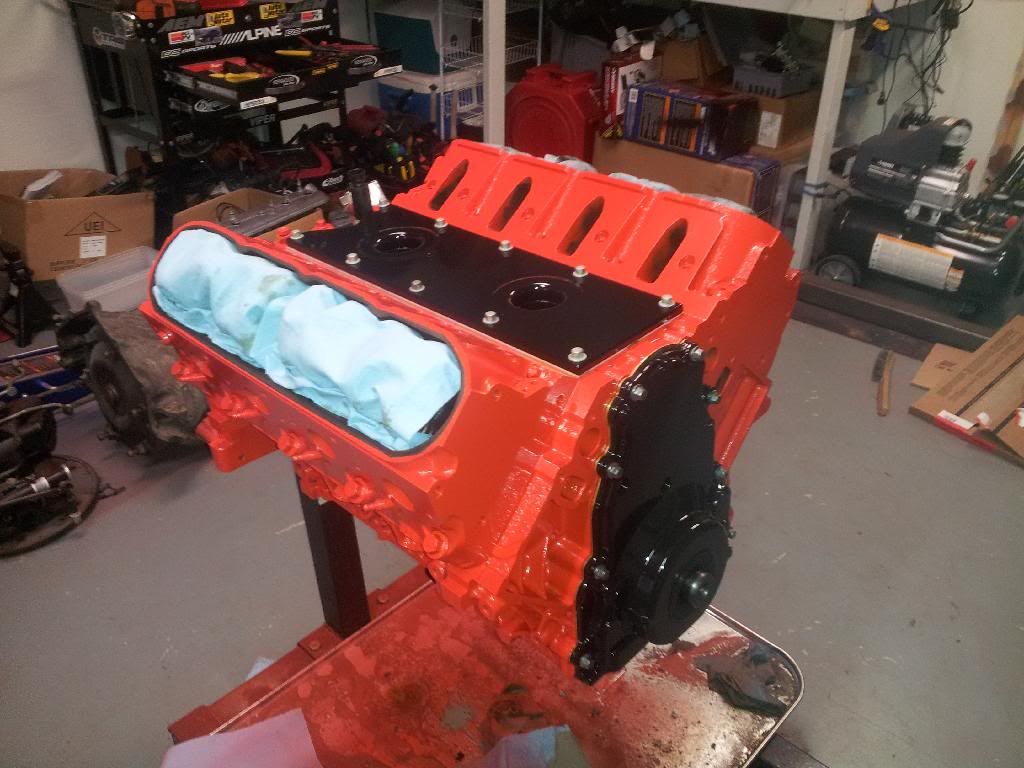

Repairing the 3 exhaust manifold bolts.


After new gaskets and some paint.

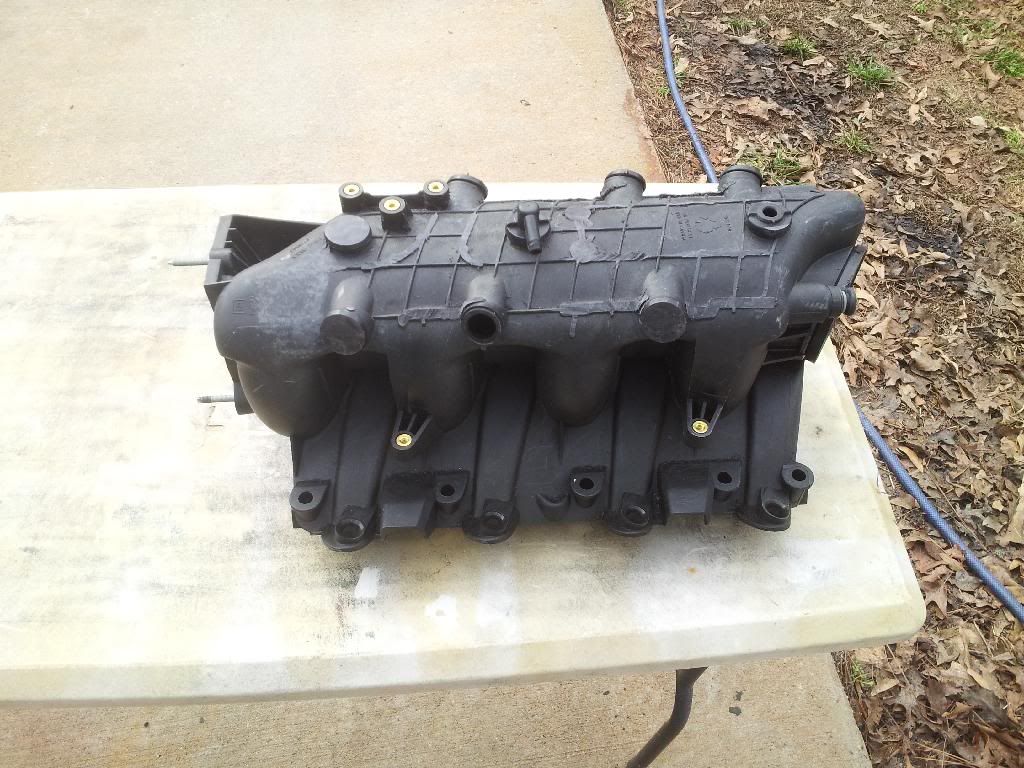

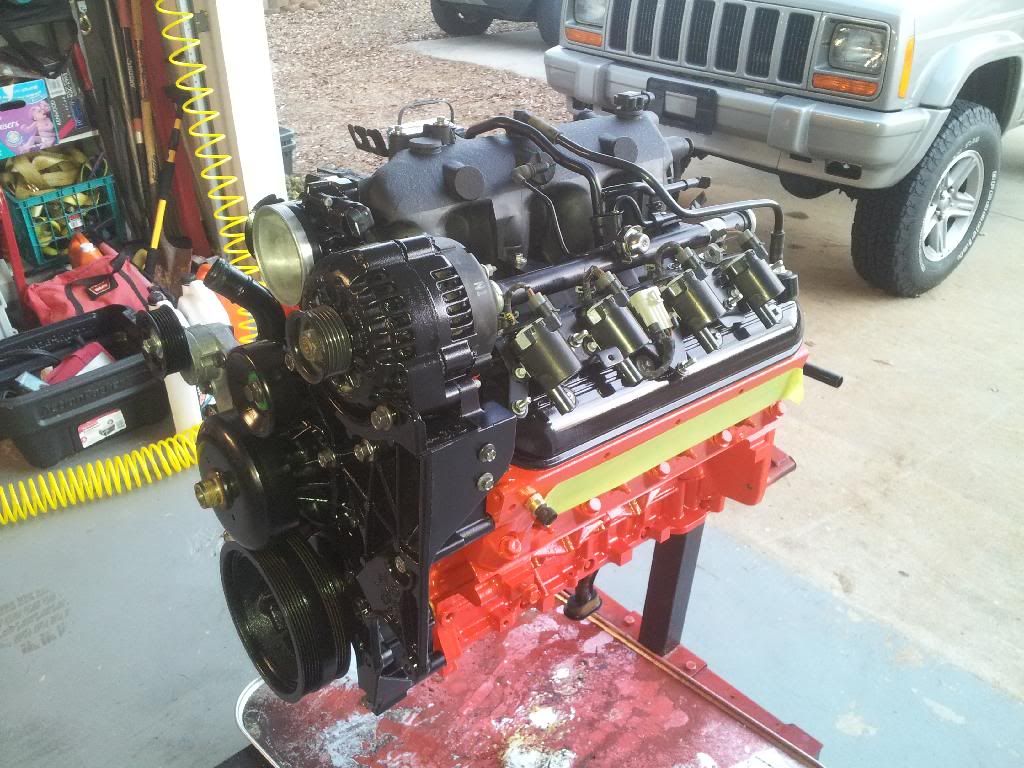

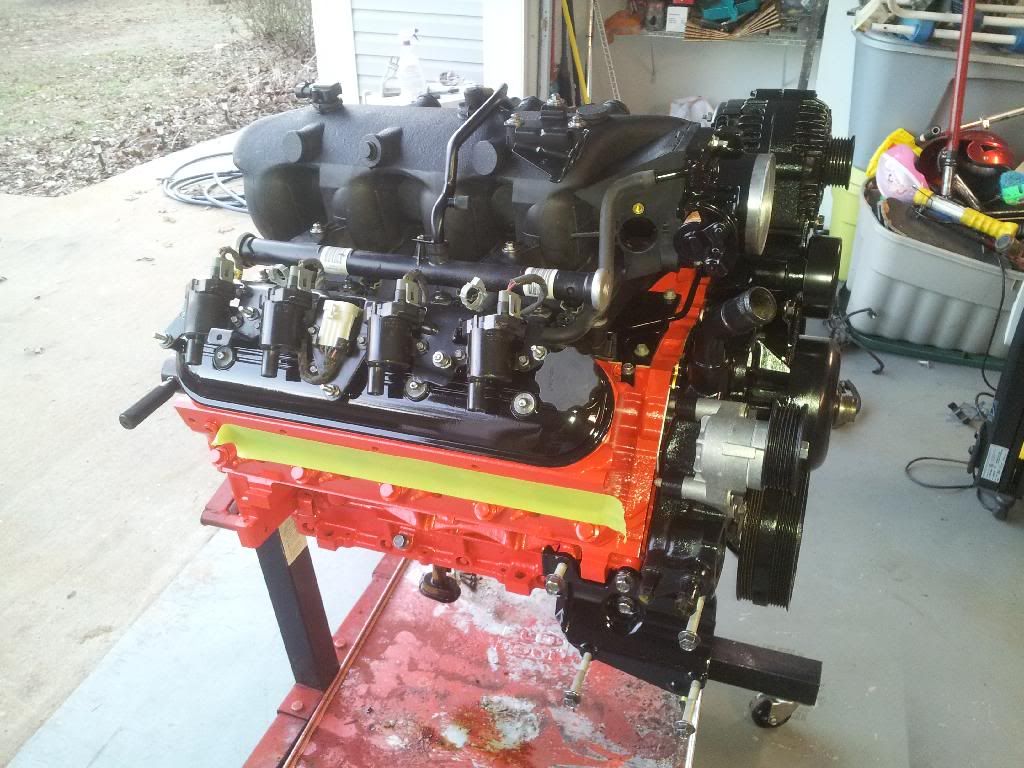

Trimming the intake.


Waiting on the headers, mounts and oil level sensor plug from Novak.






XJ Jeremy is offline   Reply With Quote Quick reply to this message
Unread 01-15-2014, 08:00 PM   #2
ltrail
Registered User
1984 XJ Cherokee

Join Date: Sep 2010
Location: mesa, AZ
Posts: 1,465
Very nice. My next build must have an ls. I've got a stroker in one and tbi 350 in another project. Glad to see it staying efi. I've seen too many brand new engines with carburetors lately.
__________________
84 xj 350tbi, sm465, 203/205, 60/70. links and other junk.
what size sawzall blades does it take to fit 40's?
ltrail is offline   Reply With Quote Quick reply to this message
Unread 01-16-2014, 08:33 AM   #3
XJ Jeremy
Registered User
1996 XJ Cherokee

Join Date: Aug 2007
Location: Senoia, GA
Posts: 167

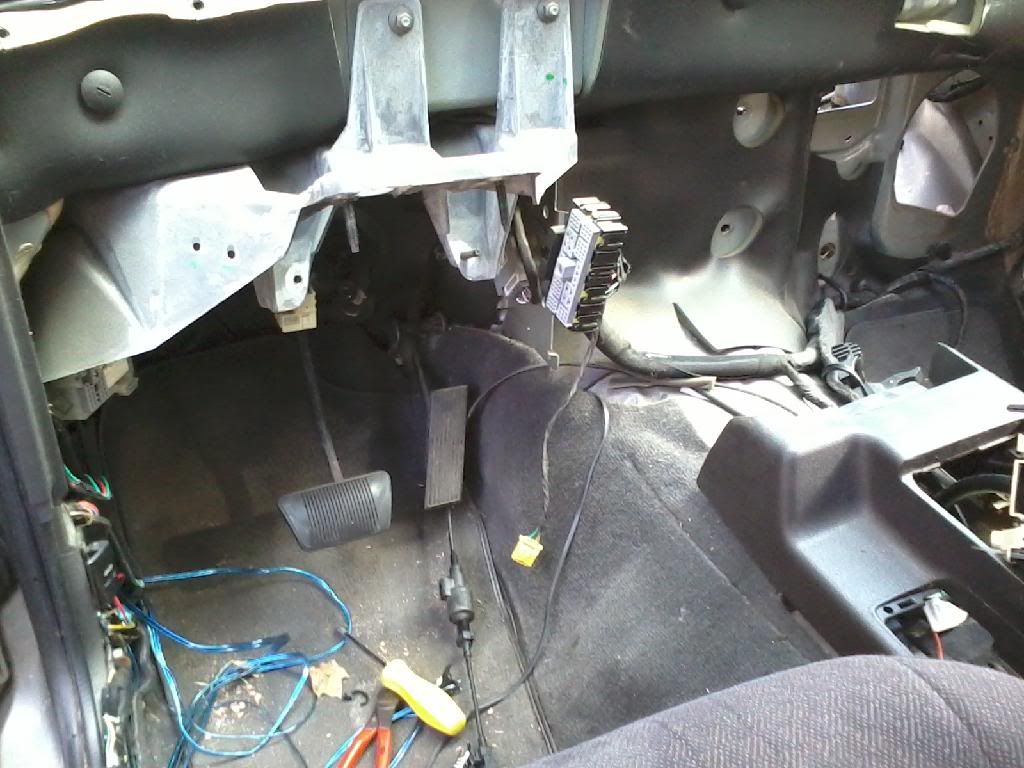

Removed the dash and started removing the engine today. I'm removing the dash so I can remove all unnecessary wires and make room for the ECU. I want the engine bay to be as clean as possible.

I also picked up a new p/s pump for a 03 1500 dew to the fact the LQ4s have a pump with hydroboost. You can plug the extra return port on the pump, but I don't want a hose with a bolt in it and now I know I have a good pump.

I tracked the Novak order and everything will be here today.




XJ Jeremy is offline   Reply With Quote Quick reply to this message
Unread 01-16-2014, 12:14 PM   #4
Randonexplosion
Trailer Queen

Randonexplosion's Avatar
1988 YJ Wrangler

Join Date: Sep 2010
Location: Cortez, Colorado
Posts: 4,748
Awesome! Dont see motor swaps in XJs often.
__________________
5.3/4l60e swap

August YJOTM

Exiled Offroad - Colorado
Randonexplosion is online now   Reply With Quote Quick reply to this message
Unread 01-17-2014, 09:52 PM   #5
XJ Jeremy
Registered User
1996 XJ Cherokee

Join Date: Aug 2007
Location: Senoia, GA
Posts: 167
The headers, mounts and oil level plug came in from Novak.

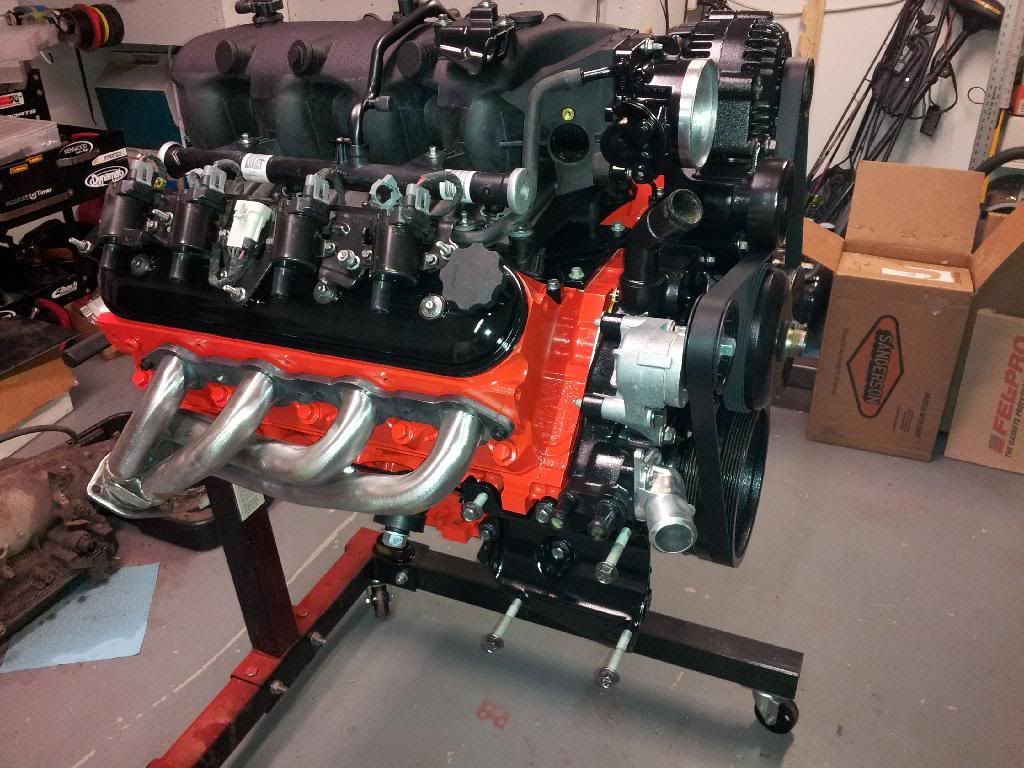

Installed the mounts and test fit the headers.


Cleaned the headers with acetone.

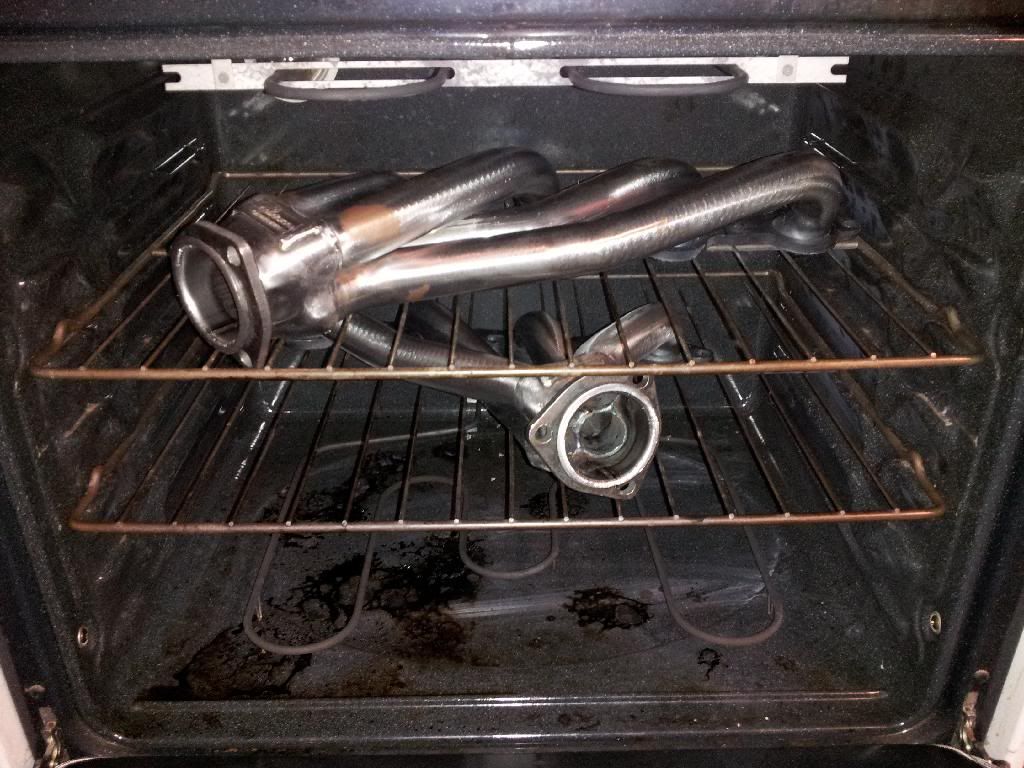

Baked at 250 degrees for 30 minutes.

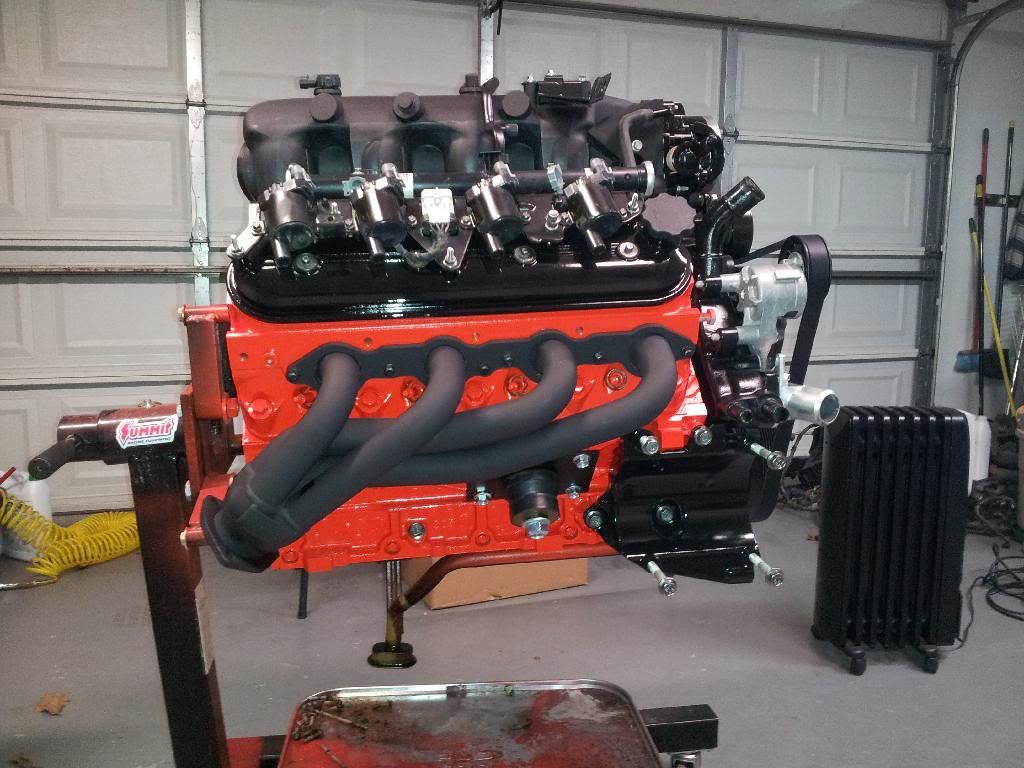

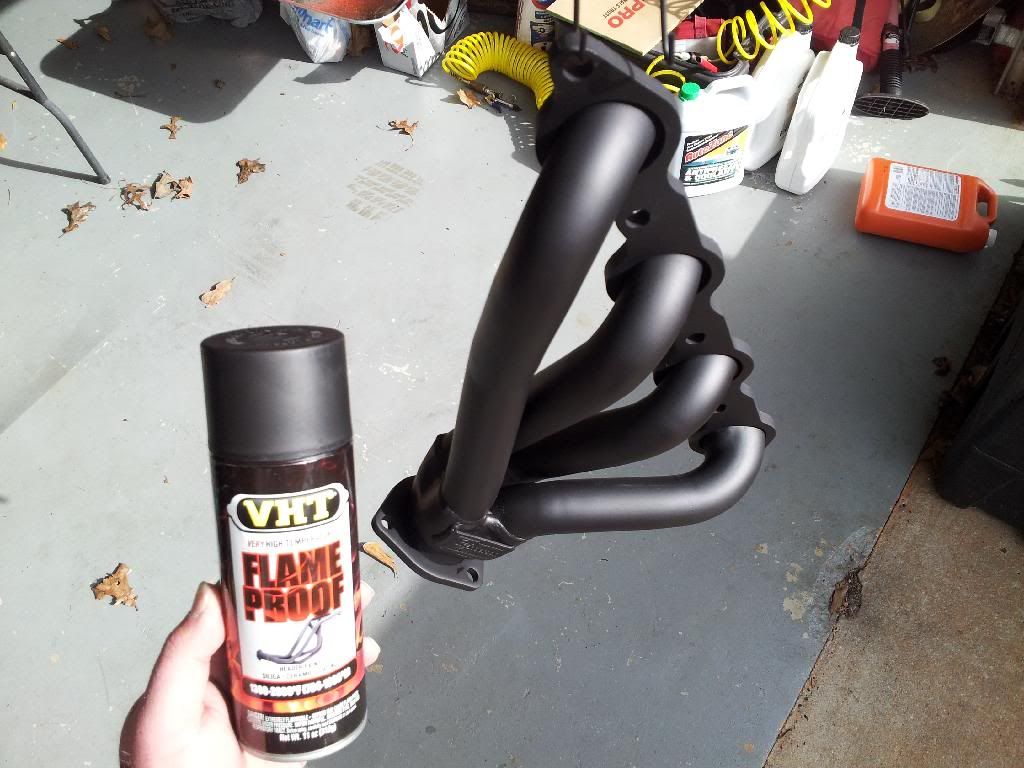

Took one out at a time and coated with VHT High Temp header paint wile it was still hot so it would bake the paint.

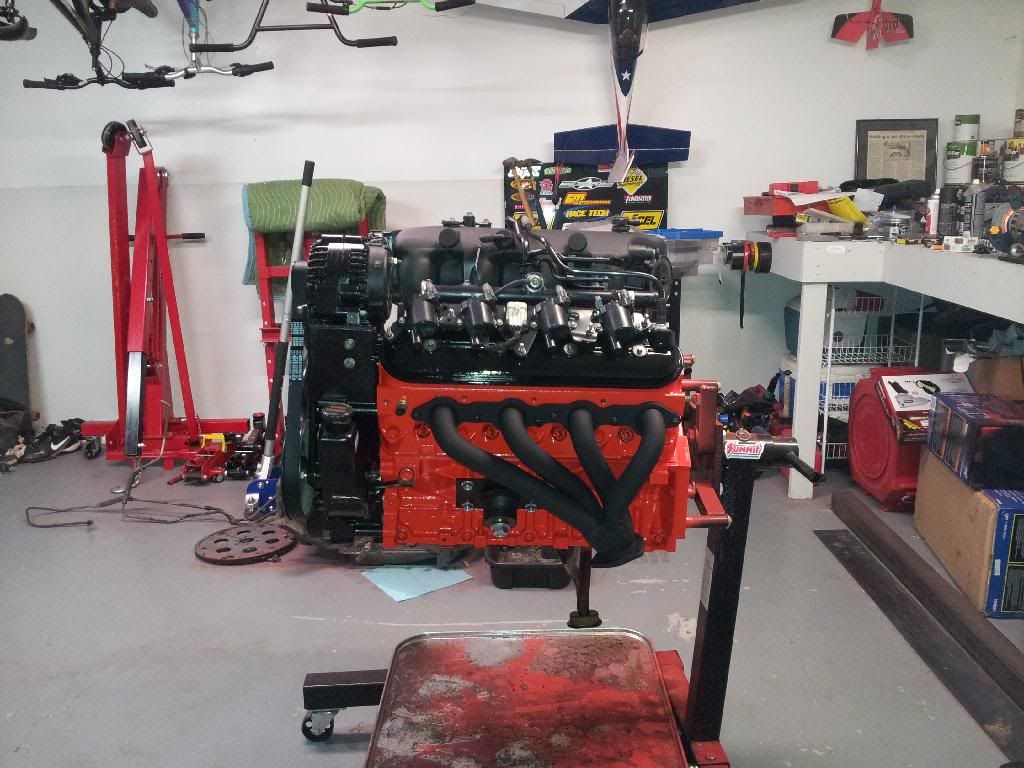

Reinstalled the headers with 1/8" bead of Permatex Ultra Black high temp RTV.


XJ Jeremy is offline   Reply With Quote Quick reply to this message
Unread 01-18-2014, 10:36 PM   #6
XJ Jeremy
Registered User
1996 XJ Cherokee

Join Date: Aug 2007
Location: Senoia, GA
Posts: 167

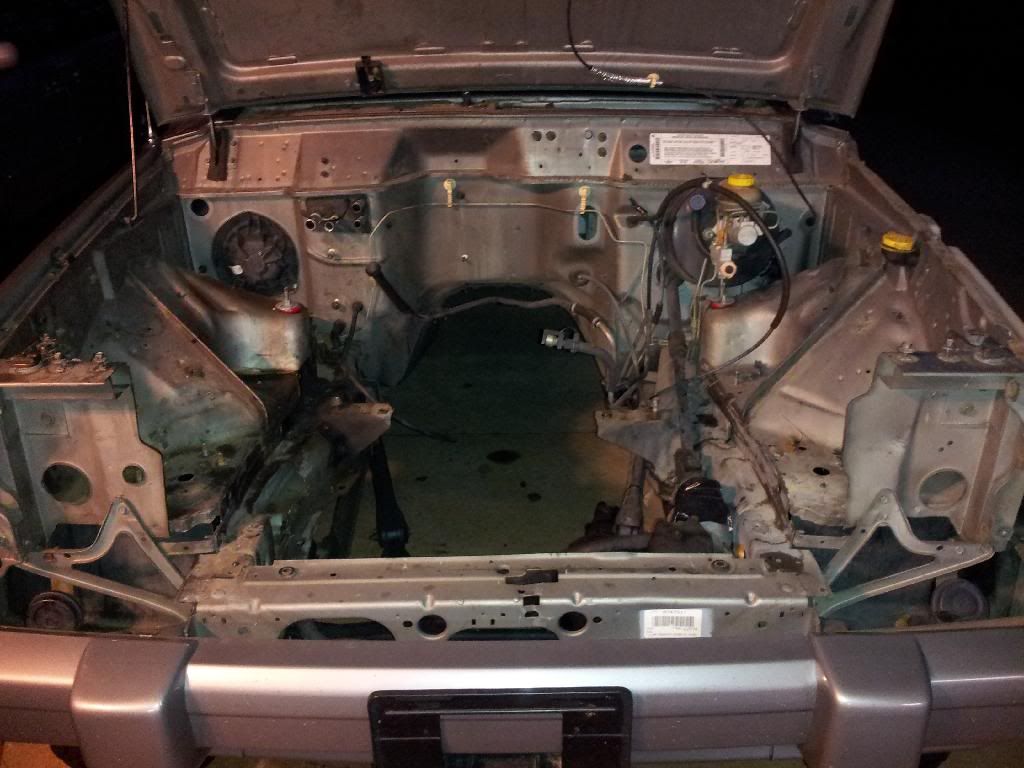

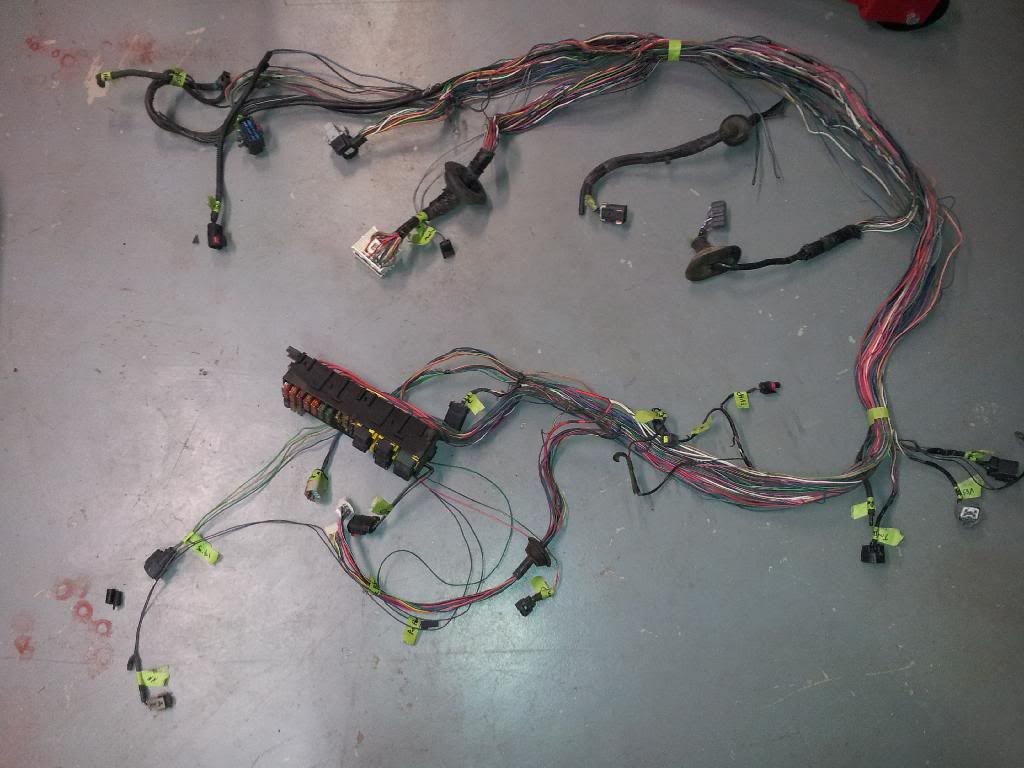

Today I was able to finally get some work done. First I removed the engine and tranny. Then removed the main harness and started removing unnecessary wires. NOT fun at all! My plan is to try and use the factory gauges (I have not seen a wright up where anyone had success) and mount both ECUs in the passenger area and fender tuck all of the wires.







XJ Jeremy is offline   Reply With Quote Quick reply to this message
Unread 01-21-2014, 12:34 PM   #7
XJ Jeremy
Registered User
1996 XJ Cherokee

Join Date: Aug 2007
Location: Senoia, GA
Posts: 167

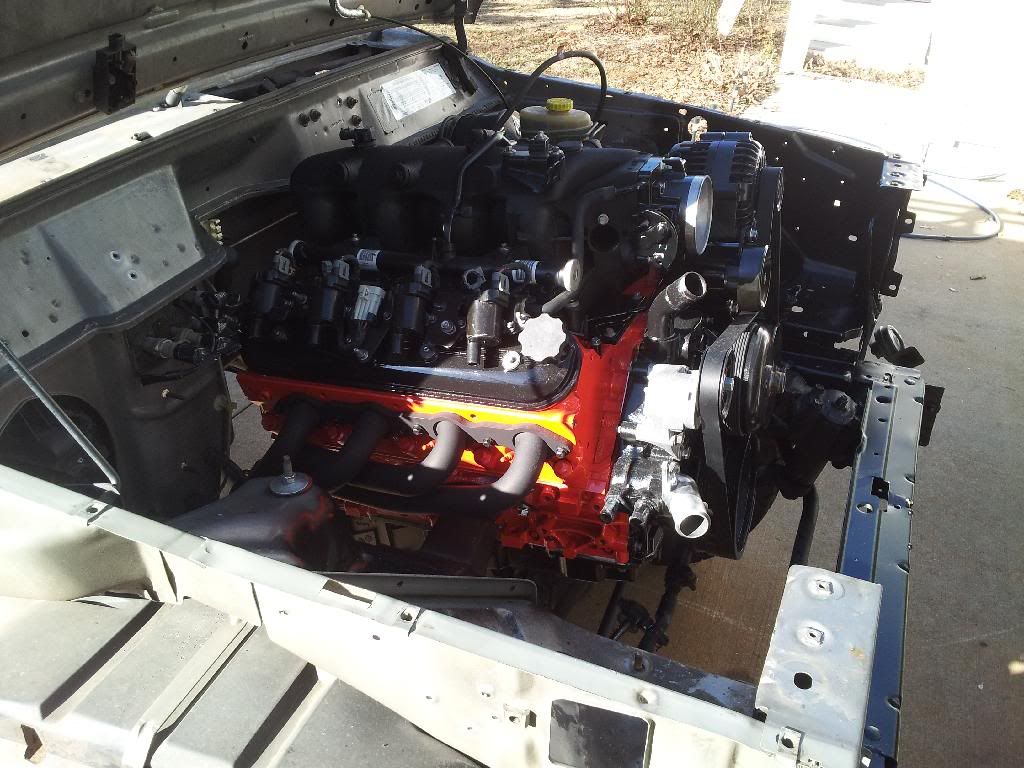

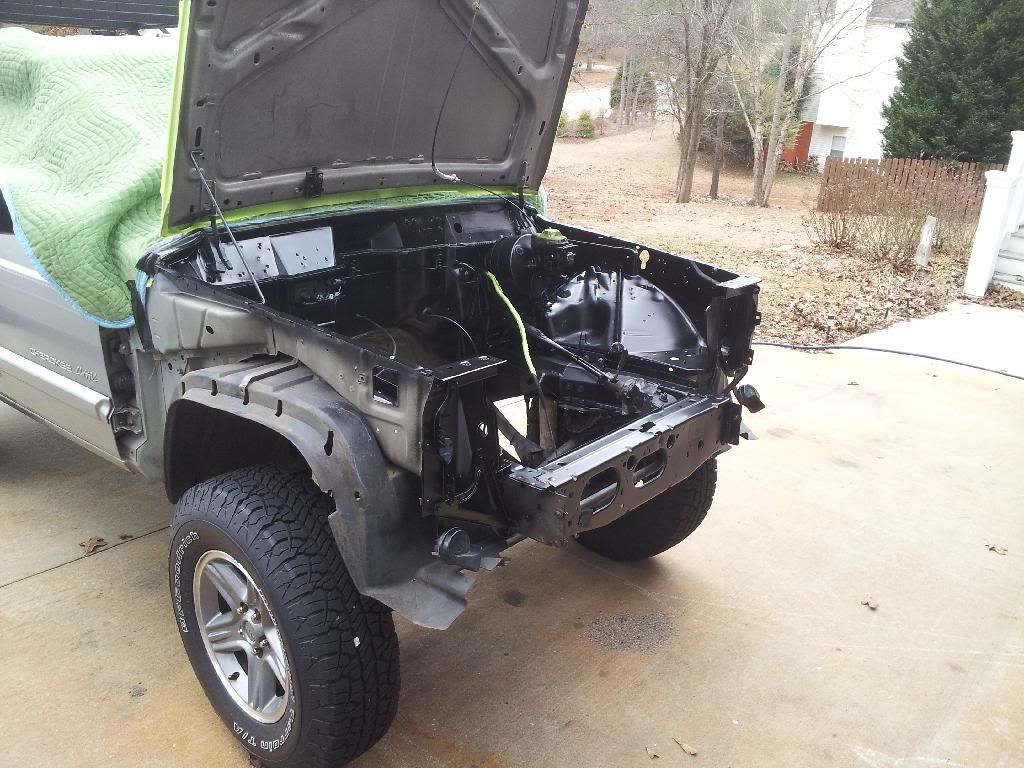

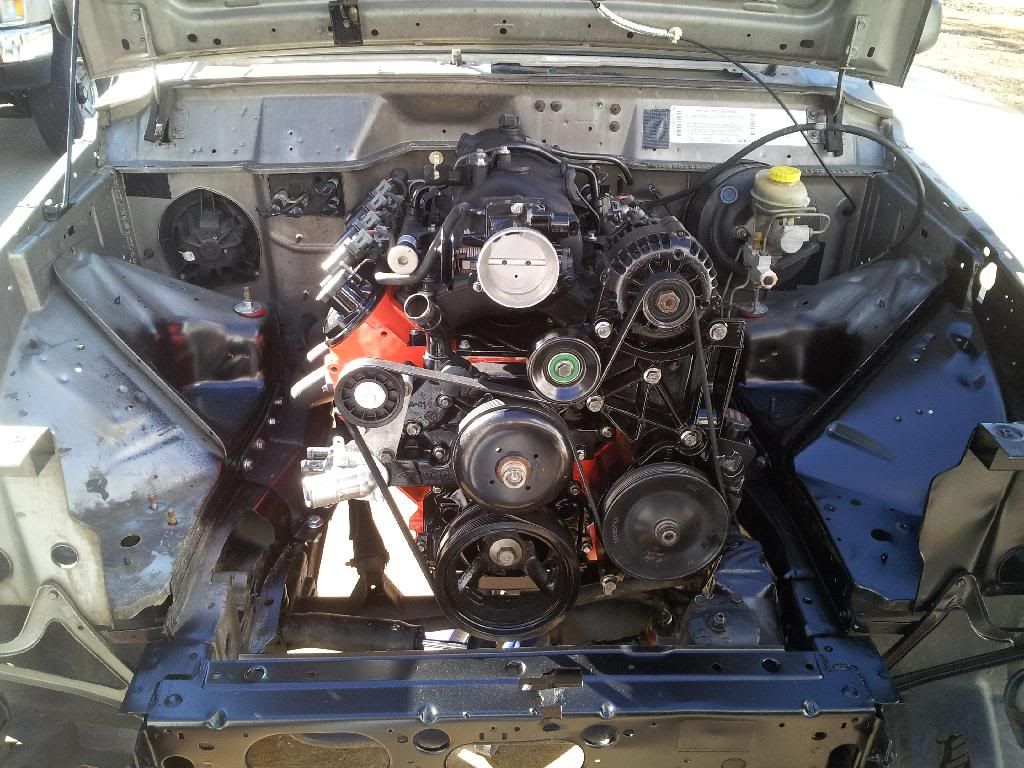

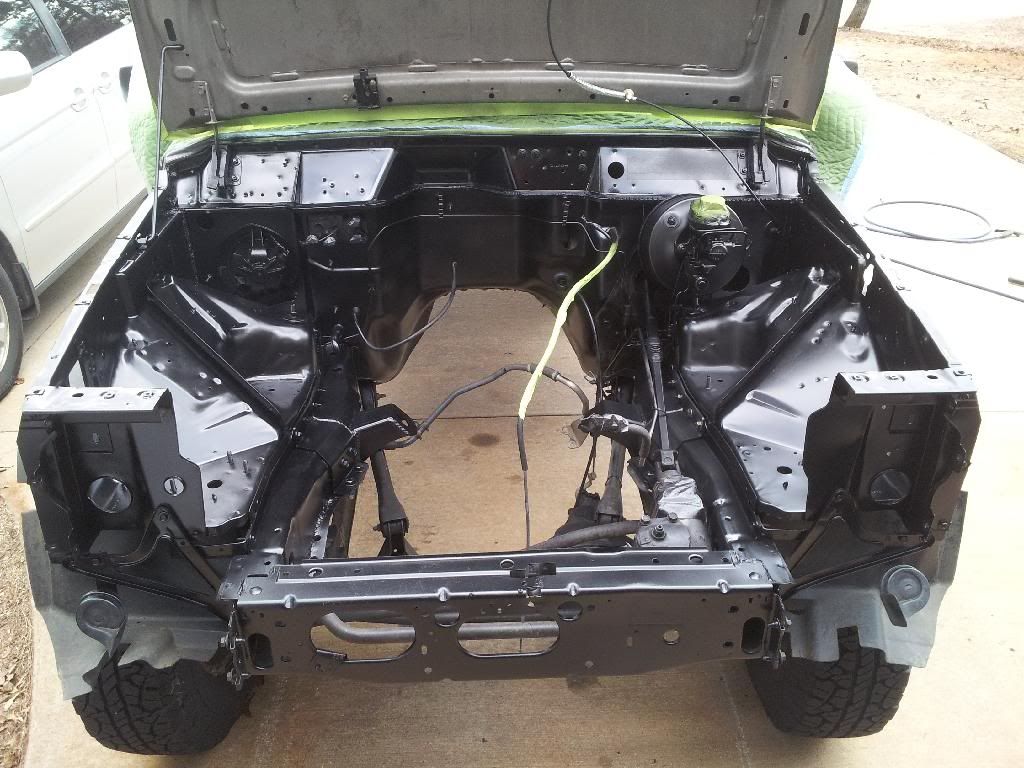

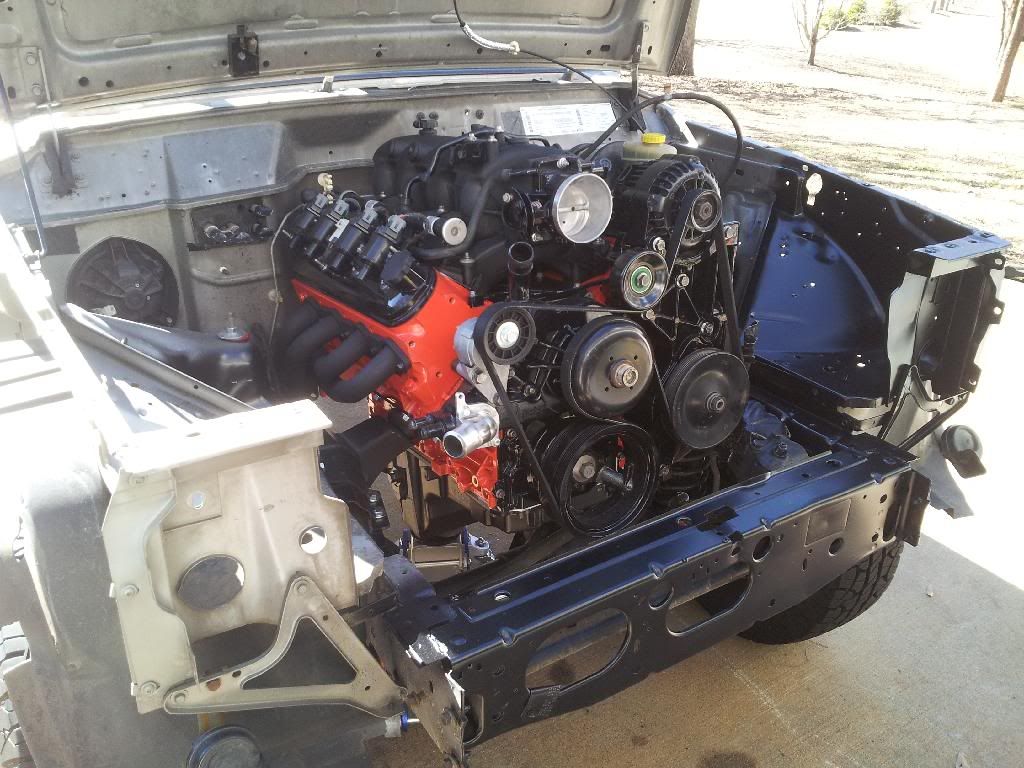

Still working on the harness at night. But I have made some progress. I test fit the engine to see where I want the harness to enter the cab and see where I could run the fuel lines. Very tight, but she fits. I am VERY glad I did not waste my time trying to make engine mounts. Novak did a great job on these and well worth the money. I got the bay clean and started painting.

Has any one used the Novak Fuel System Integration Kit?
http://www.novak-adapt.com/catalog/f...uel_module.htm














XJ Jeremy is offline   Reply With Quote Quick reply to this message
Unread 01-27-2014, 09:02 PM   #8
XJ Jeremy
Registered User
1996 XJ Cherokee

Join Date: Aug 2007
Location: Senoia, GA
Posts: 167

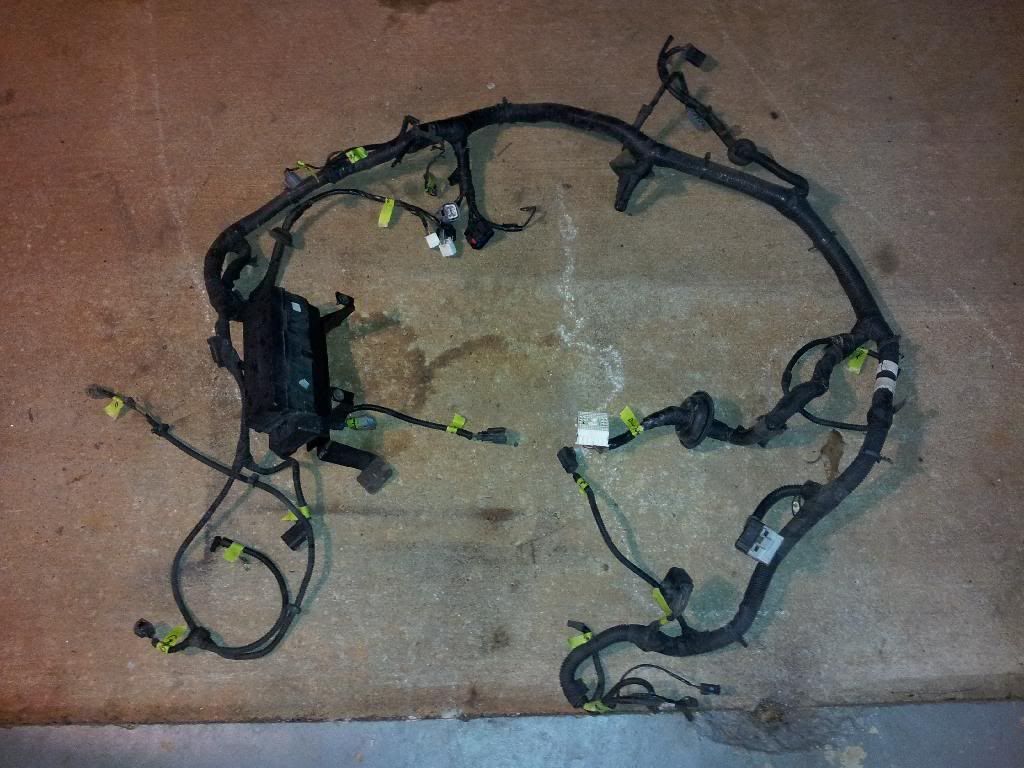

The GM harness is almost done. I just have to extend the trunk of harness to the PCM. I tucked the harnesses under the fuel rails to hide them the best I could.







XJ Jeremy is offline   Reply With Quote Quick reply to this message
Unread 01-27-2014, 09:03 PM   #9
XJ Jeremy
Registered User
1996 XJ Cherokee

Join Date: Aug 2007
Location: Senoia, GA
Posts: 167
Well, it was a very productive day. I was able to finish the GM harness, mate the trans, and install the engine and trans for the last time.





















XJ Jeremy is offline   Reply With Quote Quick reply to this message
Unread 01-27-2014, 09:10 PM   #10
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Sub'd. Holy crap so awesome!

cheers
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 01-28-2014, 09:51 PM   #11
ltrail
Registered User
1984 XJ Cherokee

Join Date: Sep 2010
Location: mesa, AZ
Posts: 1,465
Beautiful! I'll have to wait a while to do this but id rather learn from someone else's mistakes, thanks in advance!
__________________
84 xj 350tbi, sm465, 203/205, 60/70. links and other junk.
what size sawzall blades does it take to fit 40's?
ltrail is offline   Reply With Quote Quick reply to this message
Unread 01-31-2014, 02:37 PM   #12
XJ Jeremy
Registered User
1996 XJ Cherokee

Join Date: Aug 2007
Location: Senoia, GA
Posts: 167
I have not been able to get much done due to the weather in Atlanta. Driving around these people who have never been in the snow is not fun but its good for business! However we did get out and play a little with our other XJs.

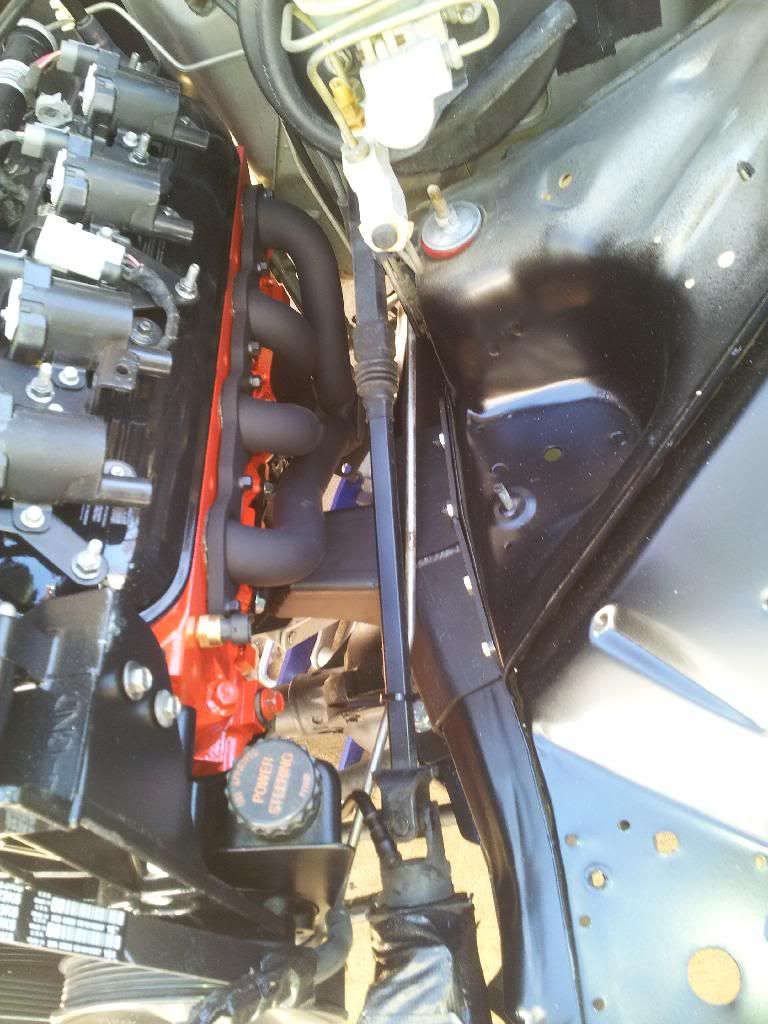

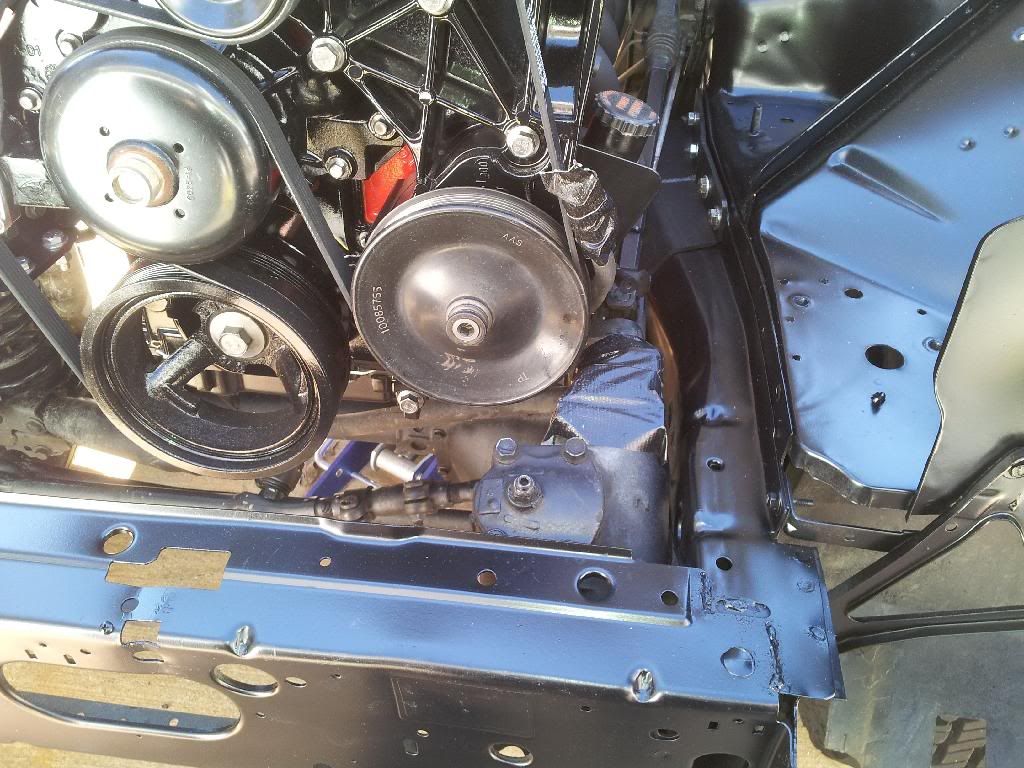

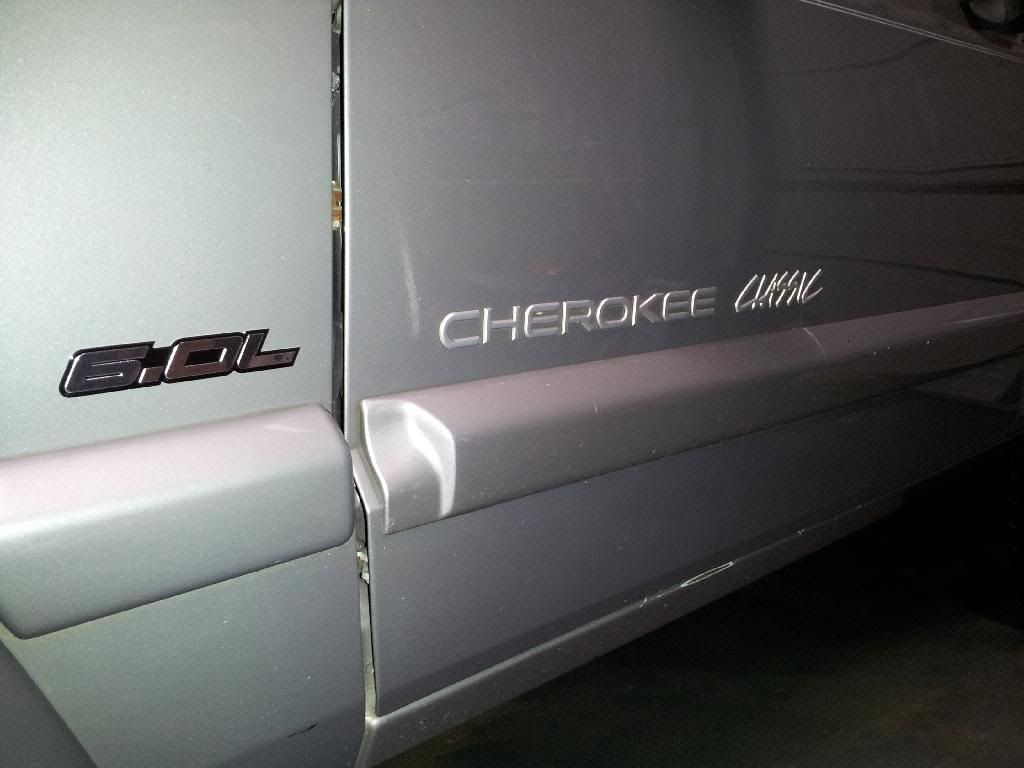

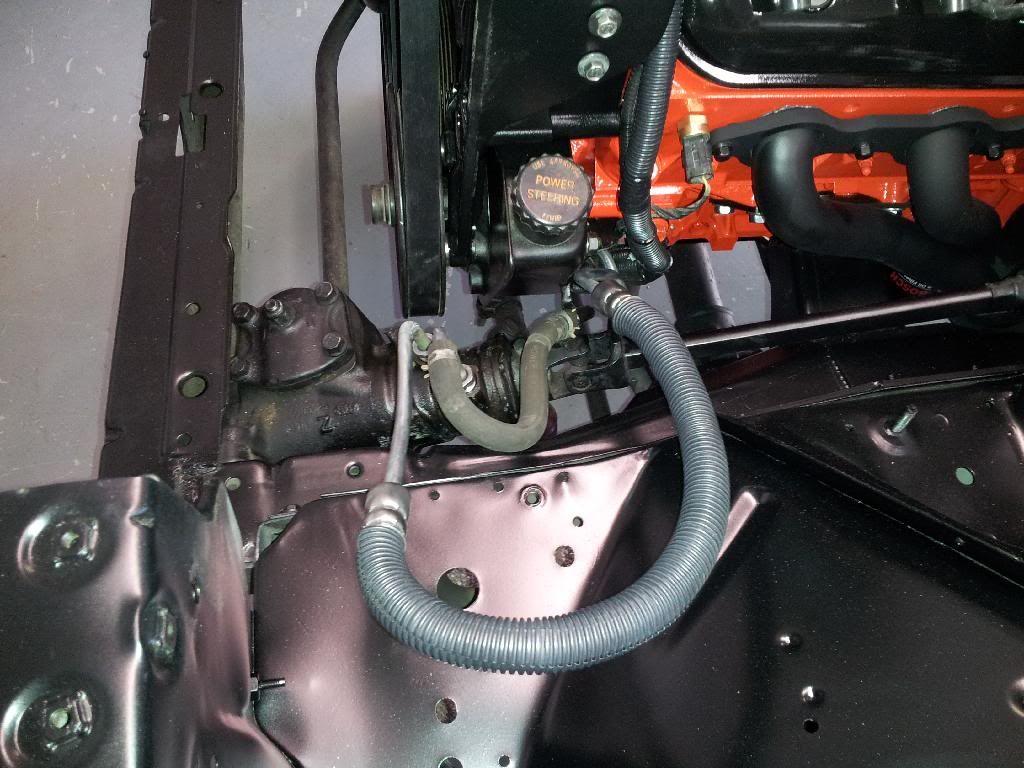

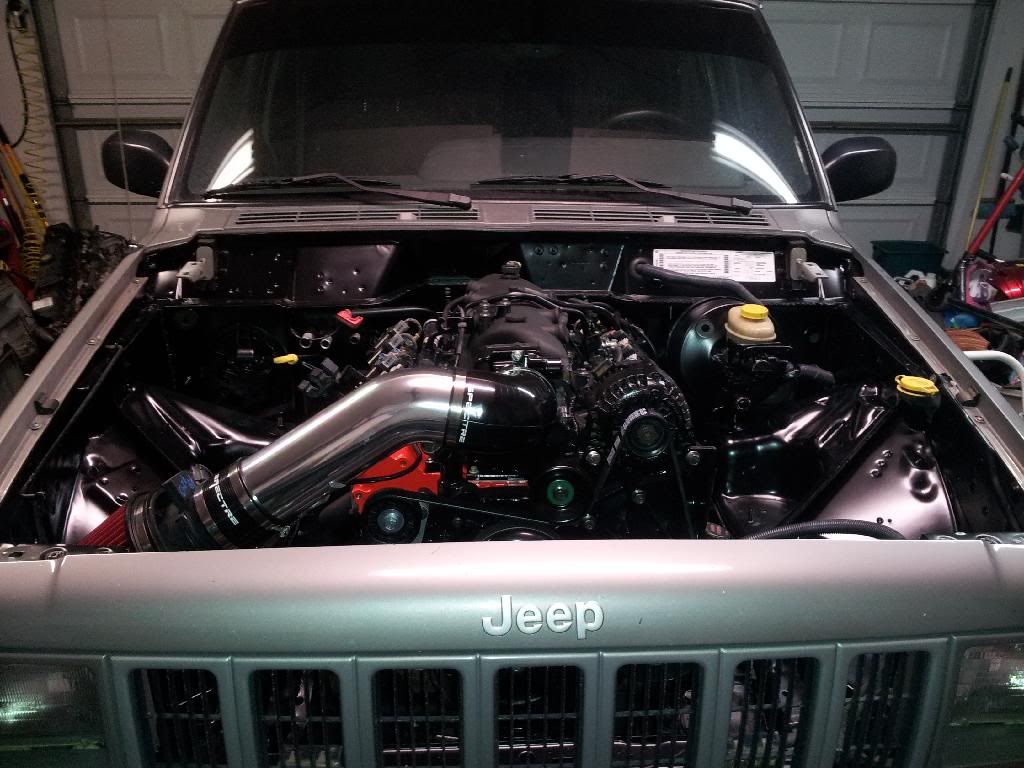

I finished putting the frontend back together to measure for the radiator. Put on the 6.0L emblems. I got the power steering plumed using the stock 6.0 pressure hose and the Jeep return hose. I did have to bend the lines and trim the return to make them work. I will have a new pressure line made later to make it look better in the bay, but for now this will work.











[URL=http://s147.photobucket.com/user/JeremyB07/media/2000%20XJ/20140130_164048_zpsx3ah2ile.jpg.html][/URL
XJ Jeremy is offline   Reply With Quote Quick reply to this message
Unread 02-03-2014, 10:24 PM   #13
Bama_WJ
Registered User
2001 WJ

Join Date: Sep 2007
Location: Owens Cross Roads, AL
Posts: 3,772
Great work!

I love the attention to detail in the wiring and not making it look like a rats nest. Look forward to seeing how you incorporate the stock gauge cluster.
__________________
Daniel
1 Ton WJ Build In Progress

The Daily: 2011 Chevy Cruze Eco - Trifecta tuned and 37+ MPG

Wife's Jeep: 2006 WK Overland - OME HD Lift, 265/70/17 BFG AT's, 1.25" SpiderTrax wheel spacers, 3" Gibson Cat-Back

North Alabama Jeep
42RE Vent Mod - Seal your transmission!
YouTube. - My Video Channel
Facebook - Wheeling Pictures/Videos
The Jeep Wave. Bringing it back.
Bama_WJ is offline   Reply With Quote Quick reply to this message
Unread 02-04-2014, 03:28 PM   #14
XJ Jeremy
Registered User
1996 XJ Cherokee

Join Date: Aug 2007
Location: Senoia, GA
Posts: 167

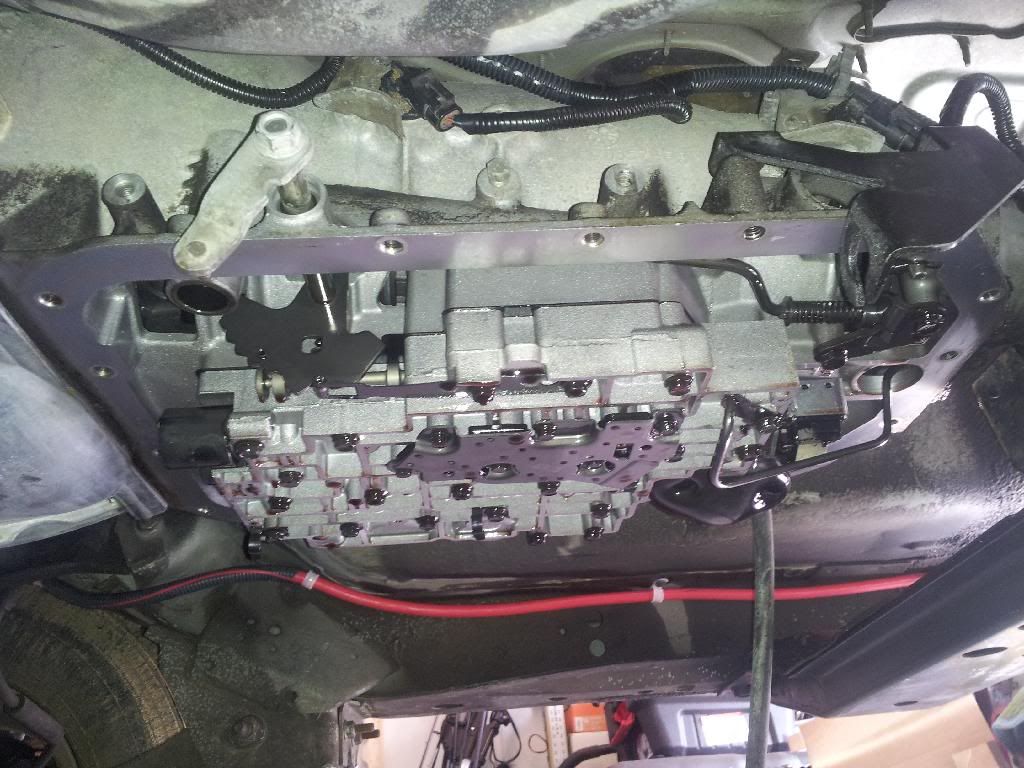

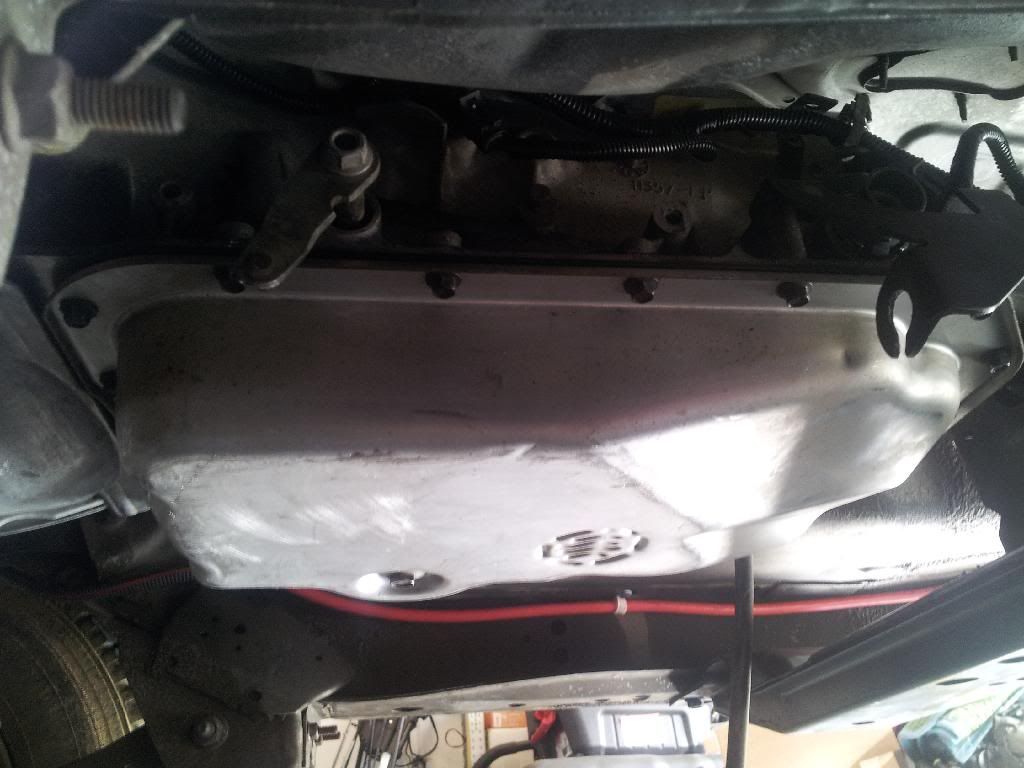

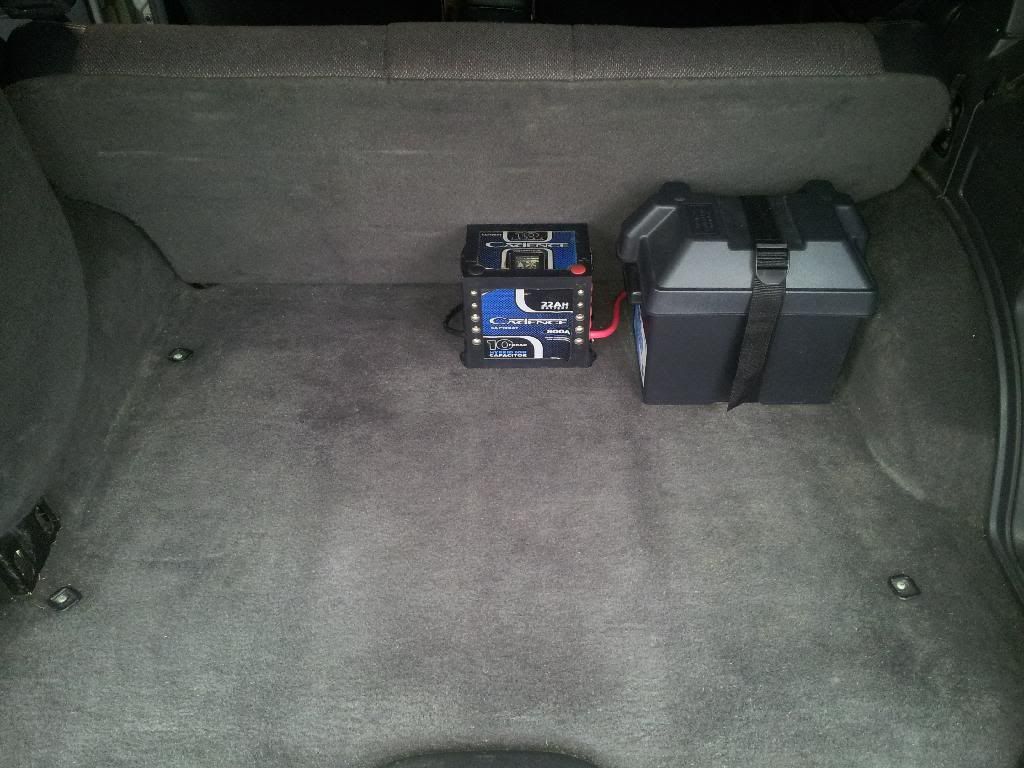

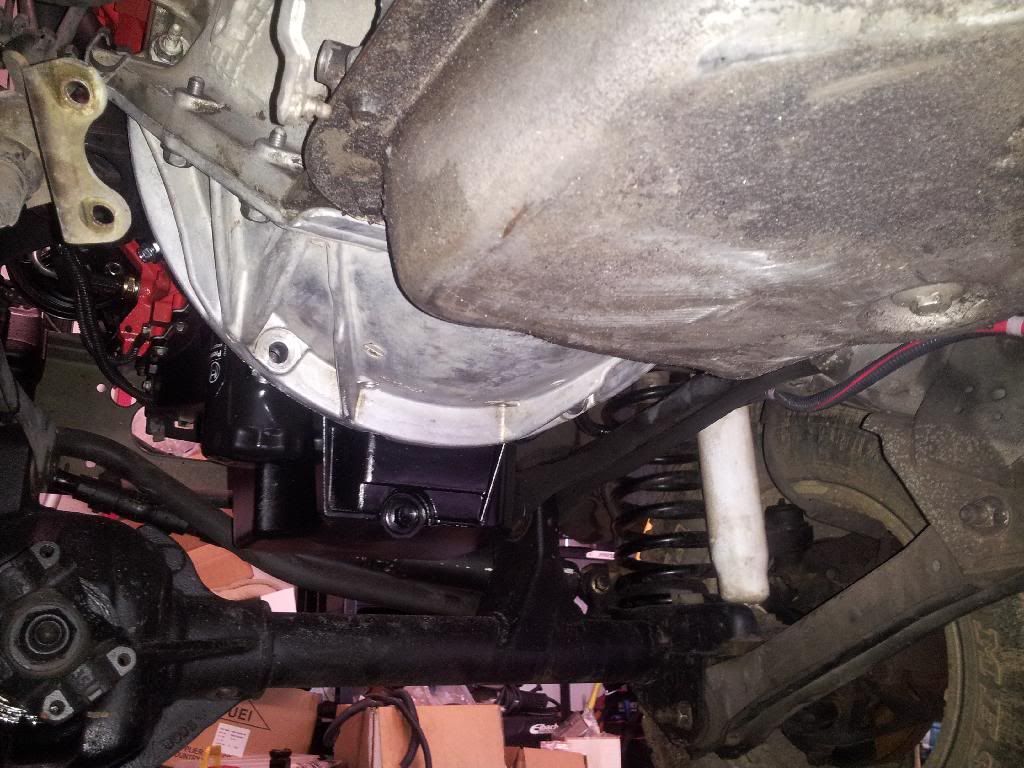

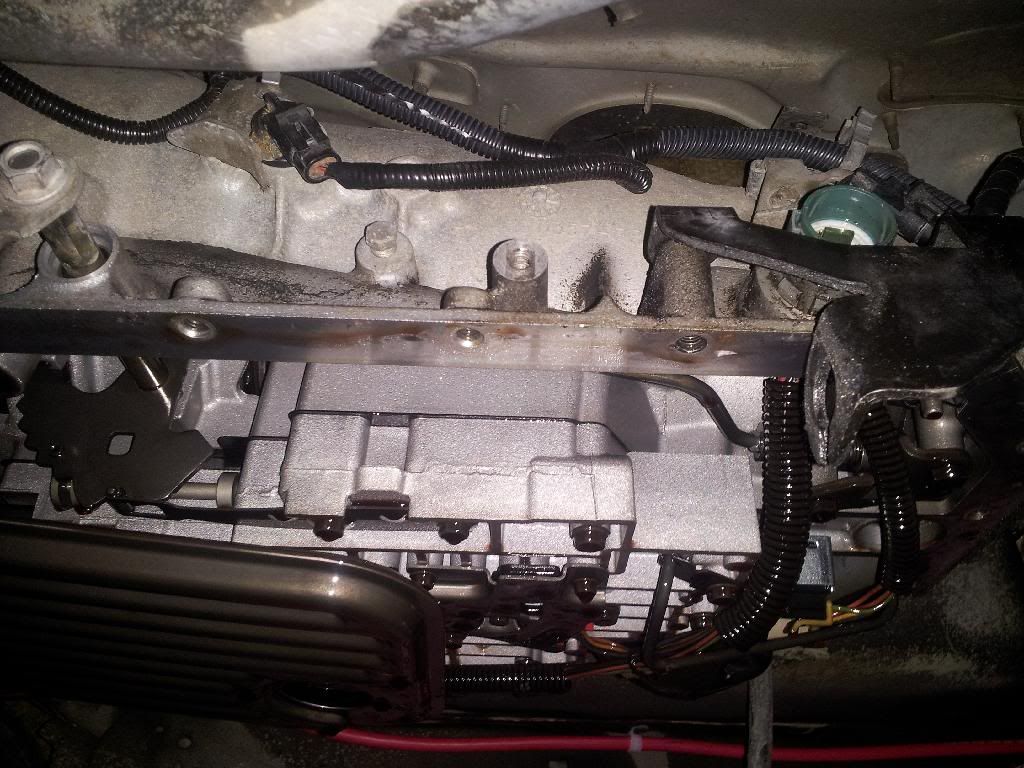

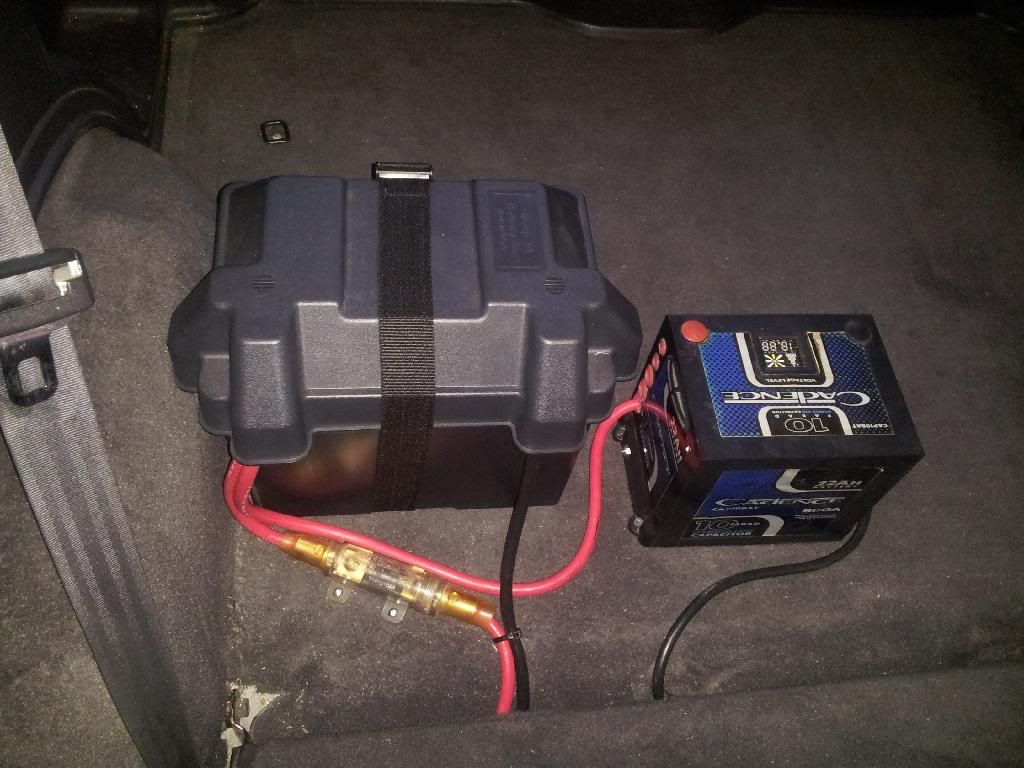

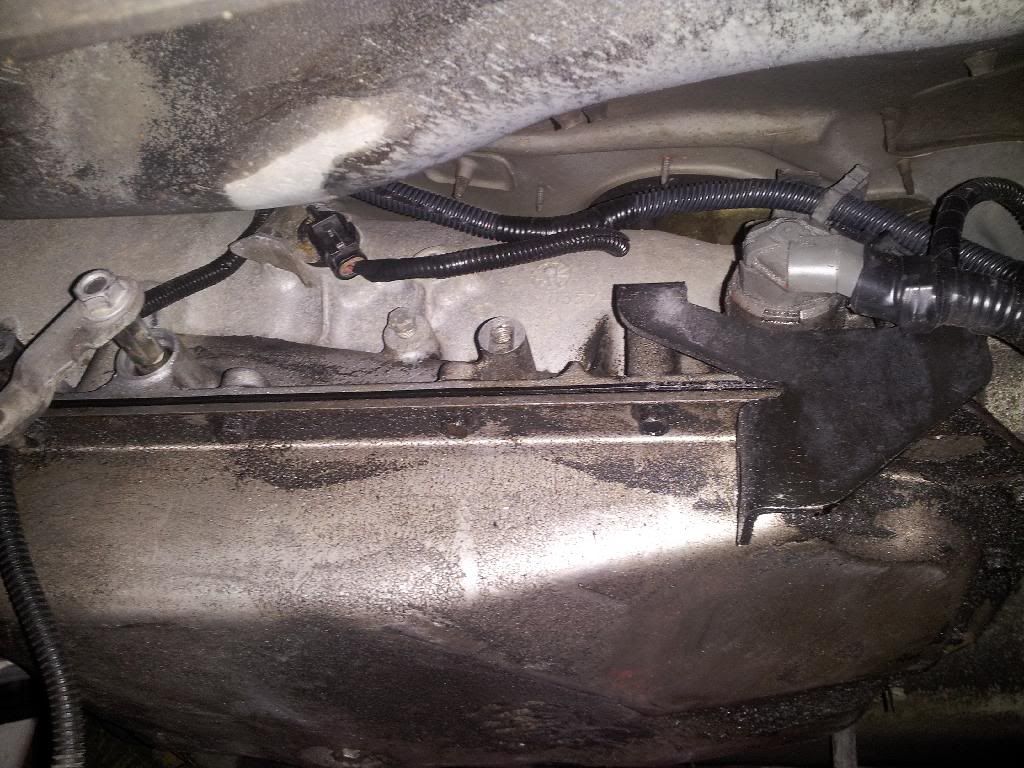

Today I was able to get the battery relocated to the back, run the new 2ga to the starter, install the starter, make new 4ga grounds, and start on replacing the wire harness in the 4L80E. The 4L80E is notorious for the harness to leak at the seal or through the connectors. I ordered a revised harness to prevent this issue.













XJ Jeremy is offline   Reply With Quote Quick reply to this message
Unread 02-05-2014, 09:48 PM   #15
XJ Jeremy
Registered User

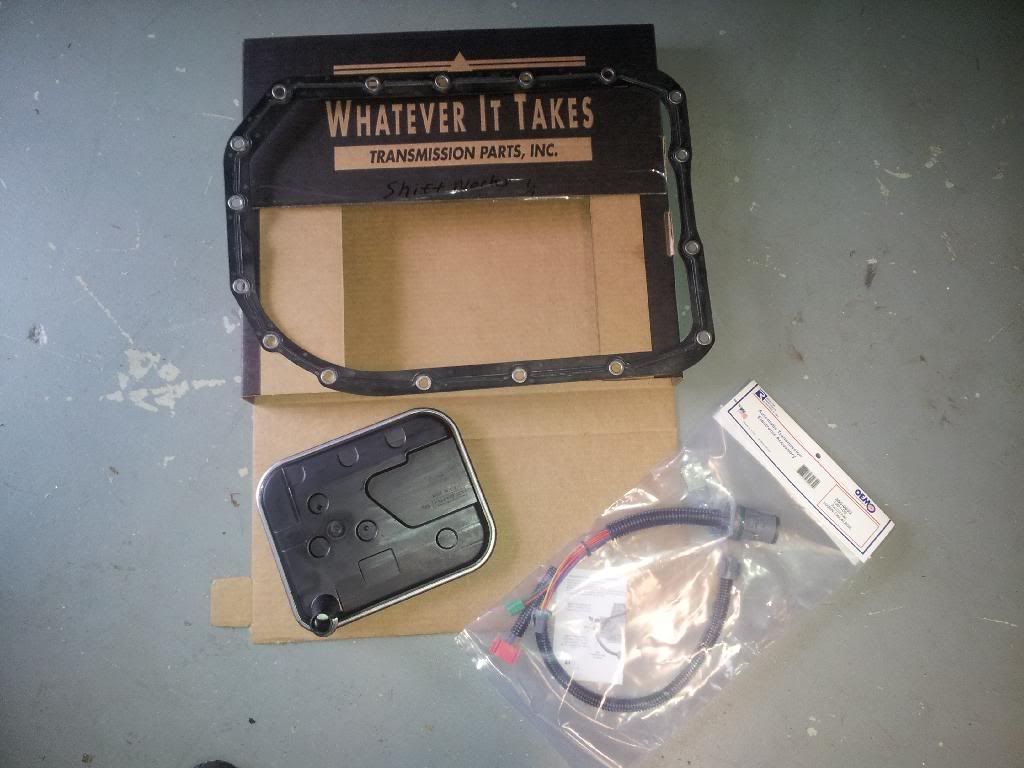

1996 XJ Cherokee

Join Date: Aug 2007
Location: Senoia, GA
Posts: 167

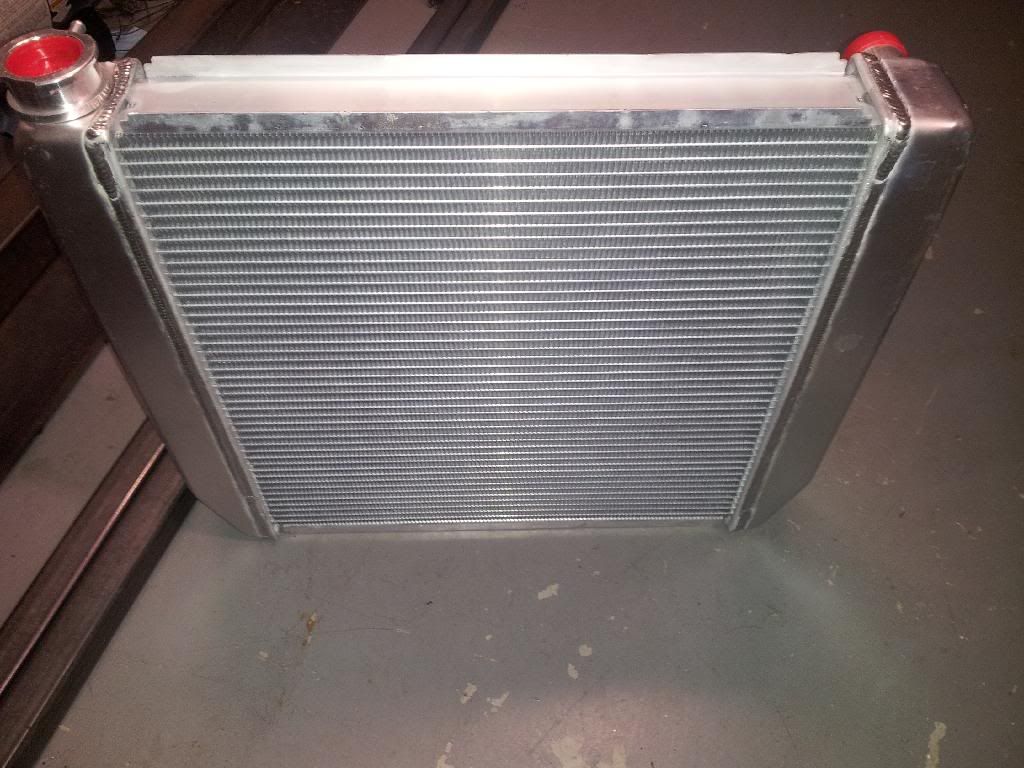

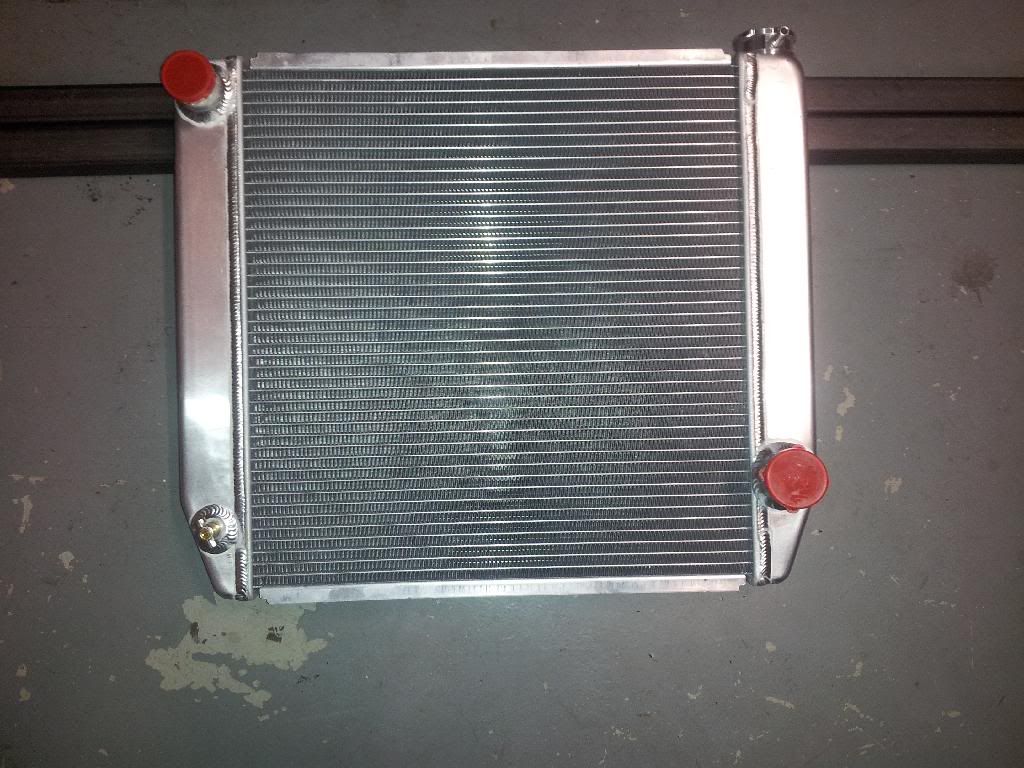

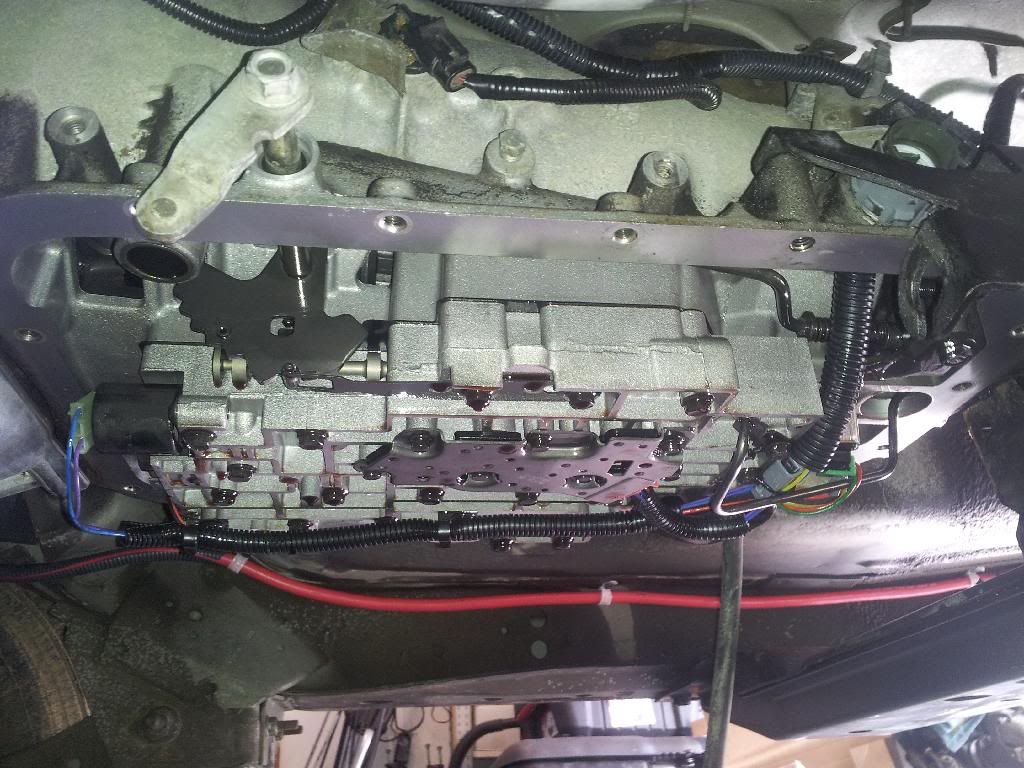

I was able to finish replacing the harness in the trans today and send off the ECU to lt1swap.com for programing. Then I started working on installing the Jeep under hood fuse box and PCM under the back seat. Then took a drive to Summit Racing to look at radiators. After looking and measuring 20+ I picked one to try out. Its a Griffin Pro Series 22x19x3 2 row rated for 400hp. I know its not a direct fit and its not the typical 35x11 XJ radiator, but if my measurements are correct it will work way better and save me tons of money $170 vs $650+.
