roll cage reinforcement

Ever since I rolled the YJ, beefing up the roll cage in my TJ has been on top of my list of stuff to do. I want to see your stock roll cage beefed up to give me some ideas. Also how you tie it into the frame if you do.
I'm not looking for full blown, built from scratch cages. Just a decent cage that was built from the stock cage.

__________________
04 TJ- Short Bus

Colbert 2016!
Sometimes I question my sanity. Occasionally it replies.
Budke is offline   Reply With Quote
Unread 01-26-2012, 05:19 AM   #2
Irongrave
Registered User
1992 YJ Wrangler

Join Date: Apr 2005
Location: Erie, PA
Posts: 1,640
AtoZ fab http://www.atozfabrication.com/store...rangler-s.html

blue torch fab http://www.bluetorchfab.com/Product/...-Cage-Kit.aspx

PSC http://shop.poisonspyder.com/TJ-LJ-T.../14-18-010.htm

I have and AtoZ cage in my YJ and my dad's TJ has a BTF cage
__________________
2006 Ram 1500, towhore, intake tune 285 70 17 KM2s 2001 18' Parker, crawler hauler
1997 TJ, Dad's Claytons 4:88s and stuff A TJ for Dad
1992 YJ crawler, getting 60s. Build thread the illusion of progress
North Jersey Jeep Club, AtoZ Fabrication, Rozzo Fabrication
Irongrave is offline   Reply With Quote
Unread 01-26-2012, 05:23 AM   #3
little_Jeep
Registered User
1998 TJ Wrangler

Join Date: Nov 2006
Location: Louisville, KY
Posts: 5,923
I added a Sport cage to mine...... I cut the factory base plates off, then welded on new base plates from Ballistic ("A", "B", & "C" pillars). I also added a frame tie in kit for the "A" and "C" pillars.
little_Jeep is offline   Reply With Quote
Unread 01-26-2012, 07:16 PM   #4
scubamc
Registered User
1991 YJ Wrangler

Join Date: Sep 2008
Location: USA
Posts: 1,399
Check out the cage thread in the fab section.
scubamc is offline   Reply With Quote
Unread 02-01-2012, 09:35 AM   #5
DualPurposeXJ
Registered User
1989 XJ Cherokee

Join Date: Nov 2010
Location: Menifee, CA
Posts: 254
Here's a couple pics of my brothers cage. We built it off the stock B pillar, we would have kept the tubes coming off the B pillar but they appeared to be .90 wall so we replaced them with 1 3/4" .120 wall


__________________
If you're in control you're not going fast enough - parnelli jones
DualPurposeXJ is offline   Reply With Quote
Unread 02-01-2012, 10:51 AM   #6
fratis
......

fratis's Avatar
1991 YJ Wrangler

Join Date: Dec 2003
Location: Hale'iwa, Hawai'i
Posts: 4,823
__________________
-insert meaningless out-of-place political diatribe-
fratis is offline   Reply With Quote
Unread 02-01-2012, 11:17 AM   #7
little_Jeep
Registered User
1998 TJ Wrangler

Join Date: Nov 2006
Location: Louisville, KY
Posts: 5,923
Nice looking cage. You may have a dash bar that I just don't see, but if you don't, you might want to consider adding one then place a gusset in each corner (circled). At the top of your "A" pillar, you might want to triangulate this corner more as Jeeps tend to roll onto one windshield corner or the other which will push your cage sideways and cause the down tubes to fold sideways.

little_Jeep is offline   Reply With Quote
Unread 02-01-2012, 02:16 PM   #8
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,466

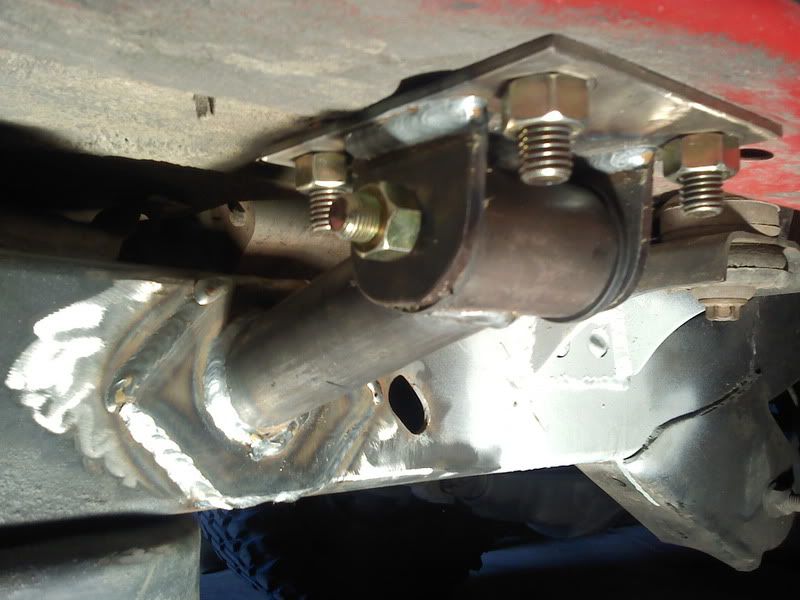

You said you weren't looking for pics of full, built from scratch cages, but here are a few pics of my tie-ins that may help you.

A Pillar tie-ins



C-pillar tie-in

__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote
Unread 02-01-2012, 02:19 PM   #9
ytowntj
Registered User
1999 TJ Wrangler

Join Date: May 2008
Location: Norfolk - Old Dominion, Va
Posts: 2,745
For the money, I dont think you can beat the BTF add on kit. I havent done one personally but will be getting one very soon. Its a great start and I will be adding on to id with some custom pieces as well as tying the A and Bpillars into the sliders and the frame. Genright, Poly performance, and KOZ also make very nice add ons.

http://www.bluetorchfab.com/Product/...-Cage-Kit.aspx
http://www.genright.com/ProductInfo....ductid=GRC2002
http://www.polyperformance.com/shop/...t-p-20215.html
Not that poly is 500 not 200 for the front section-the drop down p/n is misleading
http://www.kozoffroad.com/pages_cata...jrollcages.htm

Very nice MO2500, Ill be doing something similar with mine, only I think Im going to sandwich my sliders in bewteen the tub and plate
__________________
Parting my TJ:

http://norfolk.craigslist.org/pts/4338209219.html

My build - Odd approach to 33's
http://www.jeepforum.com/forum/f22/o...h-33s-1307968/
ytowntj is offline   Reply With Quote
Unread 02-01-2012, 05:10 PM   #10
DualPurposeXJ
Registered User
1989 XJ Cherokee

Join Date: Nov 2010
Location: Menifee, CA
Posts: 254
Quote:
Originally Posted by little_Jeep View Post
Nice looking cage. You may have a dash bar that I just don't see, but if you don't, you might want to consider adding one then place a gusset in each corner (circled). At the top of your "A" pillar, you might want to triangulate this corner more as Jeeps tend to roll onto one windshield corner or the other which will push your cage sideways and cause the down tubes to fold sideways.
If you look closely in the first picture you can see the dash bar. Ya the cage is being built to race specs so basically every joint is going to be gusseted and there will be a W in the b pillar that cage isn't even close to being done.
__________________
If you're in control you're not going fast enough - parnelli jones
DualPurposeXJ is offline   Reply With Quote
Unread 02-01-2012, 06:22 PM   #11
little_Jeep
Registered User
1998 TJ Wrangler

Join Date: Nov 2006
Location: Louisville, KY
Posts: 5,923
Quote:
Originally Posted by DualPurposeXJ View Post
If you look closely in the first picture you can see the dash bar. Ya the cage is being built to race specs so basically every joint is going to be gusseted and there will be a W in the b pillar that cage isn't even close to being done.


Never mind..... carry on.
little_Jeep is offline   Reply With Quote
Unread 02-01-2012, 06:55 PM   #12
DualPurposeXJ
Registered User
1989 XJ Cherokee

Join Date: Nov 2010
Location: Menifee, CA
Posts: 254
Quote:
Originally Posted by little_Jeep View Post
[/B]

Never mind..... carry on.
I guess I should have mentioned that in my first post
__________________
If you're in control you're not going fast enough - parnelli jones
DualPurposeXJ is offline   Reply With Quote
Unread 02-01-2012, 10:55 PM   #13
nitecop
Registered User
1999 TJ Wrangler

Join Date: Jun 2005
Location: midwest
Posts: 2,538
I've got a Rock Hard brand bolt in cage in my 99 TJ. (no frame tie-ins)

http://www.rockhard4x4.com/category_s/56.htm
__________________
Jim
USW, OAPSE Union member
99 TJ Sahara 4.0 5-Sp FUV + farm worker
Project f-Xj F150/XJ Ford eXtreme jeep combo
06 6 Speed LJ my daily driver.
Colorado Jeep club memeber #505
nitecop is offline   Reply With Quote
Unread 02-04-2012, 06:27 PM   #14
solman
Registered User
1997 TJ Wrangler

Join Date: Aug 2011
Location: Southern, PA
Posts: 32
Heres the BTF stort cage I installed in my TJ last week.
solman is offline   Reply With Quote
Unread 05-08-2013, 09:16 AM   #15
mrJ
Registered User
2002 KJ Liberty

Join Date: Sep 2010
Posts: 3,876
do the door uppers just weld into the rollbar and the brackets bolt into the windshield? we started on mine last night and couldn't figure out where the little oblong rectangle brackets go. and do you just put the dash reinforcement plates on after you weld in the lower windshield/dash bar for extra support or what?
__________________
Build In Progress...[url]http://www.jeepforum.com/forum/f22/03-wj-limited-build-she-needs-name-1113549/[/url]

It's a Jeep, it's not supposed to work right all the time.

Live in Florida? Check out Florida4x4.org!!!
mrJ is offline   Reply With Quote
