Outboarding front springs on a cj

Im thinking about using a scout front end on my cj and I will have to outboard the springs. There have been post about doing that on here and I was wondering if any of you guys that have done it could post some pics?

big_o_tom is offline
Sponsored Links
Advertisement

post #2 of 20 Old 03-19-2012, 07:12 PM
nshefbuch
Registered User
1982 CJ7

Join Date: May 2009
Location: piqua
Posts: 1,928
I welded these outriggers on and had to modify one for through frame bolt for steering box brace.
Attached Thumbnails
image-4249218322.jpg   image-801331786.jpg   image-842804733.jpg

CJ7/SOA YJ leaf/5.3LS/t18a/d300 clock/37"Pitbull Rockers/H1's/14 bolt/d44 ARB 4.10 High Steer
nshefbuch is offline
post #3 of 20 Old 03-19-2012, 11:00 PM Thread Starter
big_o_tom
Registered User
1978 CJ7

Join Date: Mar 2012
Location: Tazewell
Posts: 353
Whats the other end look like?
big_o_tom is offline
post #4 of 20 Old 03-20-2012, 12:08 AM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,163
I made these for my YJ.

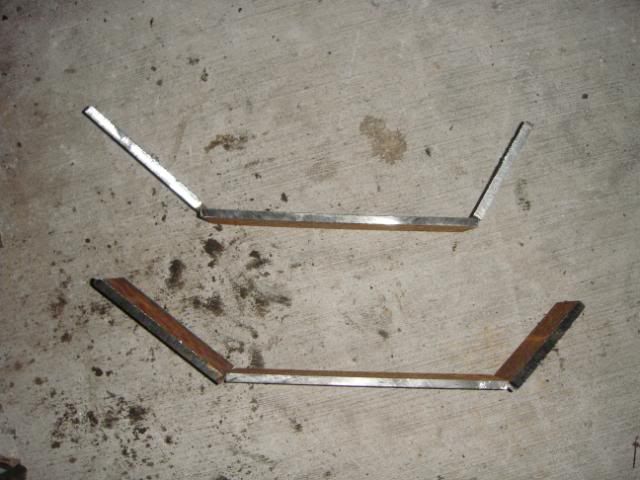

Front:

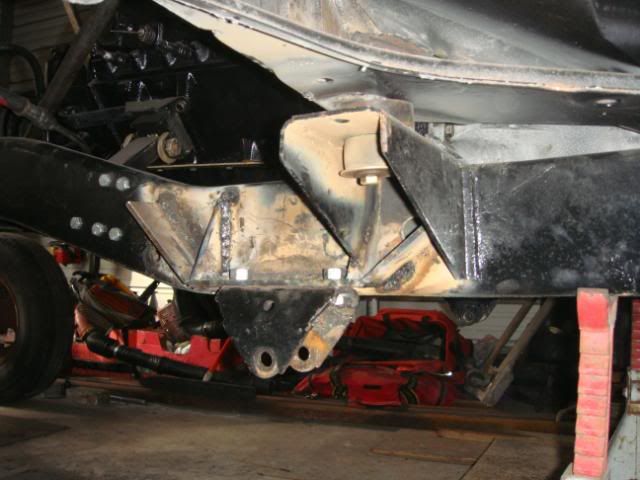

This is the front driver side shackle hanger before I welded it to the frame:




Rear:

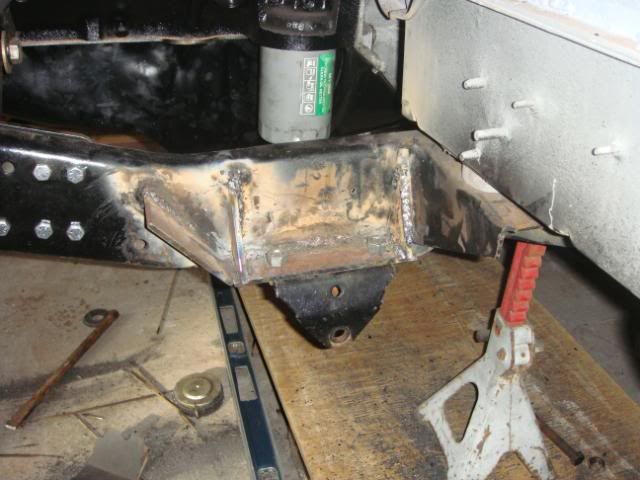

Added some gussets:

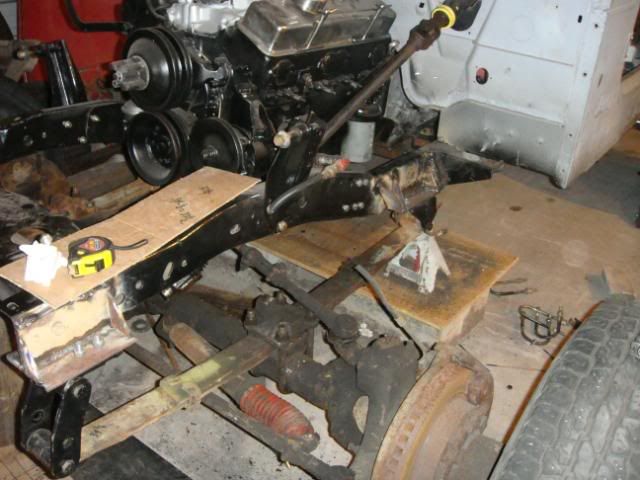

Driver side before all the welding was done:



You can kind of see how it turned out here:

Joe Dillard is offline
post #5 of 20 Old 03-20-2012, 05:18 AM
nshefbuch
Registered User
1982 CJ7

Join Date: May 2009
Location: piqua
Posts: 1,928
Quote:
Originally Posted by big_o_tom
Whats the other end look like?
Nothing fancy. Mr Dillard makes mine look like crap
Attached Thumbnails

CJ7/SOA YJ leaf/5.3LS/t18a/d300 clock/37"Pitbull Rockers/H1's/14 bolt/d44 ARB 4.10 High Steer
nshefbuch is offline
post #6 of 20 Old 03-20-2012, 06:01 AM Thread Starter
big_o_tom
Registered User
1978 CJ7

Join Date: Mar 2012
Location: Tazewell
Posts: 353
Those are some great pics, thanks guys.
big_o_tom is offline
post #7 of 20 Old 03-20-2012, 12:50 PM
addicted2dunes
Registered User
1981 CJ8

Join Date: Jan 2006
Location: Orcutt
Posts: 872
I like to see a spring outboarding done where the front hangers are tied together...... It may just be me though, I don't trust something just attached to the frame. Consider making your front hangers and front bumper as one unit, like BTF's:

http://www.bluetorchfab.com/Product/...-Axle-Kit.aspx

Cameron Gunlock
1981 CJ8 - http://www.jeepforum.com/forum/f8/project-krawln8-81-cj8-1276742/
http://www.facebook.com/pages/Central-Coast-Krawlers/139075302856004
addicted2dunes is offline
post #8 of 20 Old 03-20-2012, 03:53 PM
Joe Dillard
Electric Chair Operator

Joe Dillard's Avatar
1991 YJ Wrangler

Join Date: May 2004
Location: Lexington Park
Posts: 13,163
Quote:
Originally Posted by addicted2dunes View Post
It may just be me though, I don't trust something just attached to the frame.
I understand the concern. I'll try to explain.

Mine are very similar to a friends - which is where I modeled mine from except mine have more gusseting and a much higher degree of welded area to the frame. There's ~36" of welded area just on 1 rear hanger to the frame. Stock has 14". What you don't see - is there is more gusseting added that the pics don't show.

My friends (we both do film transportation crew for KOH) has survived KOH duties which require us to drive the KOH racecourse prior to race day, and again on race day ahead of the racers. In other words - we run most of the KOH racecoarse as a team of two Jeeps prior to race day, and again on race day ahead of the racers.

What I'm trying to say is - if his withstood KOH, I'm certain mine will too. If it'll hold-up to this type testing, it should be good to go.

My Jeep sees mostly JV/Hammers trails.
Joe Dillard is offline
post #9 of 20 Old 03-21-2012, 03:41 PM
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland
Posts: 1,700

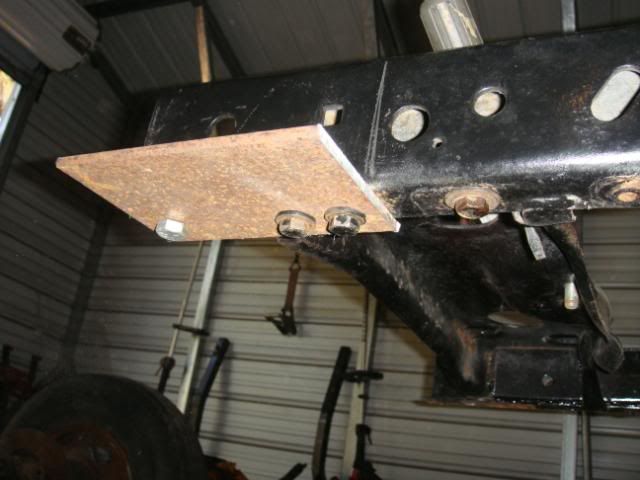

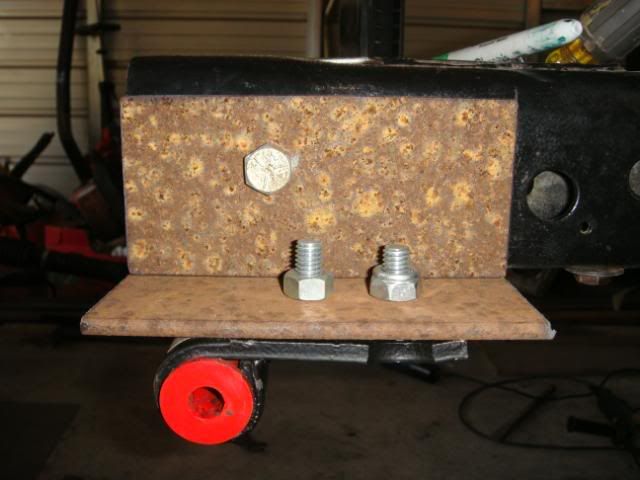

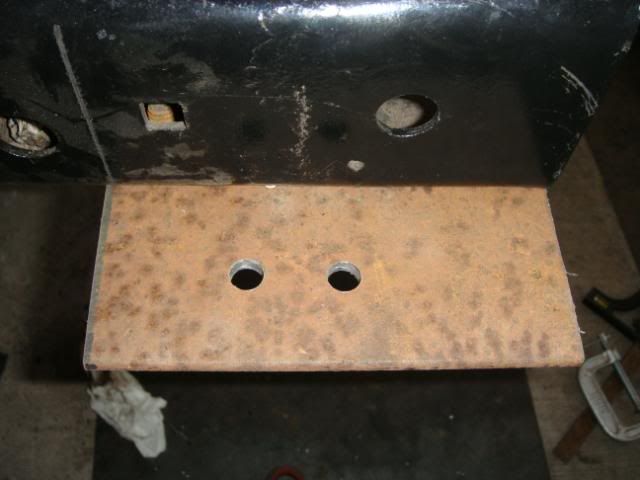

Here's how I did mine, nothing fancy, all cut out of 1/4" plate















jkl is offline
post #10 of 20 Old 11-08-2012, 04:55 PM
mountainman74
Registered User
1984 CJ8

Join Date: Sep 2012
Location: kelowna
Posts: 14
What kind of leaf springs are you guys using? Just about to start my one ton swap on my scrambler, and dont really want to use the cj springs......heard yj's are more flexy?
mountainman74 is offline
post #11 of 20 Old 11-09-2012, 10:20 AM
Noplainsdrifter
Registered User
1974 CJ5

Join Date: Jul 2011
Location: Hillsboro
Posts: 513
Quote:
Originally Posted by mountainman74 View Post
What kind of leaf springs are you guys using? Just about to start my one ton swap on my scrambler, and dont really want to use the cj springs......heard yj's are more flexy?
I used a set of stock YJ's for the front and some XJ's for the rear. I found the YJ's for $50 on CL. I took the extra set of springs from the YJ and added them to both sets of springs for a custom pack. When I first mounted the stock YJ's they were so soft it was scary.

It's a Jeep Thing, Chrysler Doesn't Understand!
Noplainsdrifter is offline
post #12 of 20 Old 11-09-2012, 03:34 PM
mountainman74
Registered User
1984 CJ8

Join Date: Sep 2012
Location: kelowna
Posts: 14
stock front yj springs in the front, or did you use rears? yj springs seem to be a dime a dozen, so using them would be best!
mountainman74 is offline
post #13 of 20 Old 11-09-2012, 09:03 PM
nshefbuch
Registered User
1982 CJ7

Join Date: May 2009
Location: piqua
Posts: 1,928
I'm using yj rears all around. Have several spares too as I have broken one recently this past summer


Got several for free and paid $10 a piece for spares. They are soft and that's why I put the money Into my shocks.
Attached Thumbnails
image-4131108645.jpg   image-1790315339.jpg

CJ7/SOA YJ leaf/5.3LS/t18a/d300 clock/37"Pitbull Rockers/H1's/14 bolt/d44 ARB 4.10 High Steer
nshefbuch is offline
post #14 of 20 Old 11-10-2012, 05:40 PM
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland
Posts: 1,700
I used stock yj all around
jkl is offline
post #15 of 20 Old 11-12-2012, 08:24 PM
Fatman
Web Wheeler

Fatman's Avatar
2008 CJ7

Join Date: May 2006
Location: Raleigh
Posts: 2,434
Nice work Joe. Cant wait to put in my 60.
Here's some pics of my outboard

http://www.jeepforum.com/forum/f8/ax.../#post13182273
