Unread 02-25-2013, 08:23 PM   #31
bronco2guy
Member
1997 TJ Wrangler

Join Date: Dec 2009
Location: St. Joseph, Missouri, Missouri
Posts: 117
Thats a good question? I didnt search much and just assummed you had to change entire tank, I will look into just the pump and mods??

bronco2guy is offline   Reply With Quote Quick reply to this message
Unread 02-25-2013, 08:51 PM   #32
muddigger95
Registered User
1995 YJ Wrangler

Join Date: Nov 2012
Location: Scottsbluff, NE
Posts: 53
Not sure of the product # cannot find a receipt or any kind of mark on the rad.It is a very high quality product and the ports are the same side giving it a cleaner look IMO. Call them up, that's what I did and ten minutes later it was payed for and on its way. There phone# is 586-463-8722.
__________________
Here, hold my beer and watch this SxxT
muddigger95 is offline   Reply With Quote Quick reply to this message
Unread 02-26-2013, 05:55 AM   #33
bronco2guy
Member
1997 TJ Wrangler

Join Date: Dec 2009
Location: St. Joseph, Missouri, Missouri
Posts: 117
Did not make the March Goal.
bronco2guy is offline   Reply With Quote Quick reply to this message
Unread 02-26-2013, 08:06 AM   #34
bronco2guy
Member
1997 TJ Wrangler

Join Date: Dec 2009
Location: St. Joseph, Missouri, Missouri
Posts: 117
Off work due to snow storm, what better to do than work on my jeep portion of the harness will update pics details later. Removing uneccesary wires.
bronco2guy is offline   Reply With Quote Quick reply to this message
Unread 02-26-2013, 06:28 PM   #35
bronco2guy
Member
1997 TJ Wrangler

Join Date: Dec 2009
Location: St. Joseph, Missouri, Missouri
Posts: 117

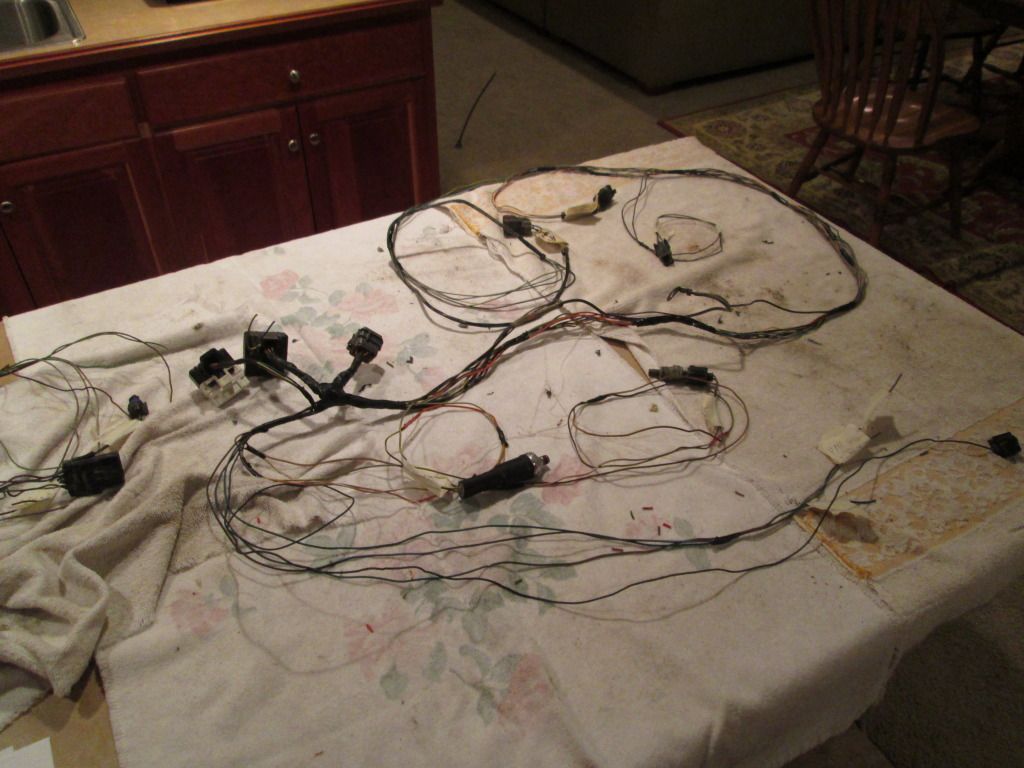

Today I modified my Jeep Harness Connectors A *Black* and B *white* that go directly into the Jeep PCM, and also C103 Grey plug just to right of those and little further right
C104 Black, I had pulled these and wiring off the Jeep it went around the engine and also back for the auto, t-case and back to the Fuel pump, I have simplified and will finalize all after install.

**Note I removed my ABS**
I left the Crank position K24 circuit and Camshaft Position sensor K44, from Black PCM plug , cause i think 1 may have something to do with stock tach? If I get Novak conversion tach box

I kept kept the VSS to t-case not that I plan on using but incase I do for speedo. I rerouted wires for ECT and Oil Pressure


I have labelled all my connections and few loose ends
bronco2guy is offline   Reply With Quote Quick reply to this message
Unread 02-26-2013, 06:37 PM   #36
bronco2guy
Member
1997 TJ Wrangler

Join Date: Dec 2009
Location: St. Joseph, Missouri, Missouri
Posts: 117
Some helpful info:
Connector C103 Grey Plug Info. Cav, Circuit #, Color, what it does
Cav 1, A142, DG/BK-Automatic Shut down Relay Output **Removed**
Cav 2 K72, DG/Org- ALT/Generator Field Source (+)
Cav 3 A14, Rd/WT- Fused B+
Cav 4- Empty
Cav 5- C3, DB/Blk --Unsure-pending any help? just 1 wire to connector??
Cav 6 K226 DB/LG - Fuel Level sensor signal
Cav 7 A141 DG/WT -Fuel Pump Relay output
Cav 8 K167, BR/YL -sensor ground
Cav 9 F12, RD/LG Fused ignition switch output
Cav 10 Z12, Bk/Tn- Ground
Cav 11 Z12 BK/LB- Ground
Cav 12 G7 WT/OR- VSS Input from T-case
Cav 13 G107 Bk/Rd -4wd sense from t-case
Cav 14 B6 wt/db - RF wheel speed sensor (-) **I removed**
Cav 15 B7 WT RF wheel speed sensor (+) ** I removed**
Cav 16 G106 Bk/WT -Mine didnt have wire?
bronco2guy is offline   Reply With Quote Quick reply to this message
Unread 02-26-2013, 06:43 PM   #37
bronco2guy
Member
1997 TJ Wrangler

Join Date: Dec 2009
Location: St. Joseph, Missouri, Missouri
Posts: 117
More helpful info

Connector C104 Black Plug

Cav 1 C90 LG20 -A/C select signal
Cav 2 C22 Db/wt -Ac request signal
Cav 3 B4 LG18 LR wheel speed sensor (+) ** I removed**
Cav 4 B3 LG/DB LR wheel speed sensor (-) * I removed*
Cav 5 T41 BR/LB P/N Position switch sense
Cav 6 B2 Y RR wheel speed sensor (+) ** I removed**
Cav 7 B1 Y/DB RR wheel speed sensor (-) ** I removed**
Cav 8 empty
Cav 9 L1 VT/BK Backup lamp sense/feed
Cav 10 F20 Vt/wt Fused Ignition Switch Output Run
bronco2guy is offline   Reply With Quote Quick reply to this message
Unread 02-28-2013, 07:29 AM   #38
bronco2guy
Member
1997 TJ Wrangler

Join Date: Dec 2009
Location: St. Joseph, Missouri, Missouri
Posts: 117
Just ordered my radiator from Superior radiators in Michigan, My goal is to hopefully drive it, or real close by end of next weekend. Will get pics and update more details as I go.
bronco2guy is offline   Reply With Quote Quick reply to this message
Unread 02-28-2013, 09:12 AM   #39
Robert0069
Registered User

Join Date: Mar 2011
Location: columbus, ohio
Posts: 273
did you get the internal cooler ? what are you doing for a trans mount ?
Robert0069 is offline   Reply With Quote Quick reply to this message
Unread 02-28-2013, 10:59 AM   #40
bronco2guy
Member
1997 TJ Wrangler

Join Date: Dec 2009
Location: St. Joseph, Missouri, Missouri
Posts: 117
I did get internal cooler, I plan to run that for now, but prolly add additional cooler later on.

I have a hi clearance belly skid. My goal is to build a separate cross member and mount so I can remove the skid without the tranny dropping. I will take pics with what I end up doing.
