First Gear Swap Waggy D44 & Front OX locker

I'm working on changing the gears in a Waggy D44 front axle, 3.31 to 4.88. standard carrier to OX locker. made setup bearings, got the pinion bearing preload, backlash & carrier bearing preload to spec, and finally got a good pattern.

Pressed on the new bearings and had to completely re-do my pinion bearing preload... and then when I dropped in the carrier there was zero carrier preload! and NO backlash! the Timkin bearings are the same part number; setups are The originals from 1991 (I think) and according to the surface plate at work they're about 0.0045" shorter than the new ones... what would cause this?? I measured the bearings 3 times just to be sure, the old ones are smaller...



ruined shims... going to order more...

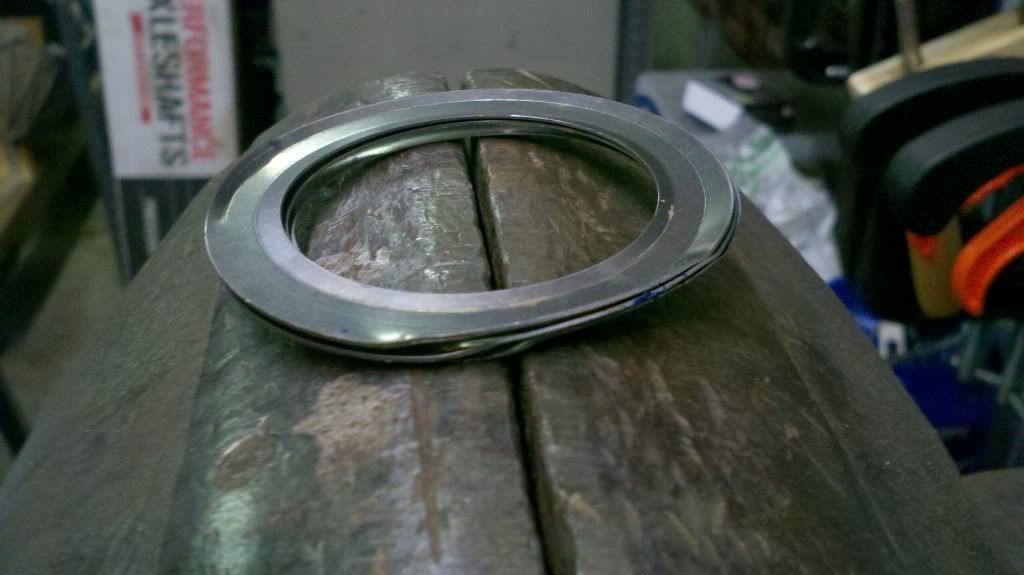

Did I press on the new bearings ...too hard? I'm starting to think the shims walked up the taper on the ox locker? Has anyone put interior shims on an ox-locker?

__________________
1992 YJ 1"Body Lift, Slip Yoke Eliminator & CV Driveshaft,
2.5" TJ exhaust, WJ valve cover, XJ Computer, External Slave Cyl AX15,
Durango Steeringbox, No track or sway bars, CJ tailgate, on 31's :)
#theneverendingaxe
HaskiE is offline   Reply With Quote
Unread 09-24-2012, 02:01 PM   #2
HaskiE
Thread Reviver

HaskiE's Avatar
1992 YJ Wrangler

Join Date: May 2008
Location: Lowell, MA
Posts: 1,395
anyone?
__________________
1992 YJ 1"Body Lift, Slip Yoke Eliminator & CV Driveshaft,
2.5" TJ exhaust, WJ valve cover, XJ Computer, External Slave Cyl AX15,
Durango Steeringbox, No track or sway bars, CJ tailgate, on 31's :)
#theneverendingaxe
HaskiE is offline   Reply With Quote
Unread 09-25-2012, 01:15 PM   #3
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,796
just happens sometimes.
i've had one out of 5 axles do that when the real bearings went in.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote
Unread 09-25-2012, 01:27 PM   #4
HaskiE
Thread Reviver

HaskiE's Avatar
1992 YJ Wrangler

Join Date: May 2008
Location: Lowell, MA
Posts: 1,395
Quote:
Originally Posted by ratmonkey
just happens sometimes.
i've had one out of 5 axles do that when the real bearings went in.
Weird. Thanks ratmonkey! I was starting to think I really F'd something up. What'd you do to finish the axle? Should I make another set of setup bearings?
__________________
1992 YJ 1"Body Lift, Slip Yoke Eliminator & CV Driveshaft,
2.5" TJ exhaust, WJ valve cover, XJ Computer, External Slave Cyl AX15,
Durango Steeringbox, No track or sway bars, CJ tailgate, on 31's :)
#theneverendingaxe
HaskiE is offline   Reply With Quote
Unread 09-25-2012, 03:06 PM   #5
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,796
Quote:
Originally Posted by HaskiE View Post
Weird. Thanks ratmonkey! I was starting to think I really F'd something up. What'd you do to finish the axle? Should I make another set of setup bearings?
compared measurements and made an educated guess. had to adjust while using the really real bearings twice. it sucked, but sometimes those are the breaks. a clamshell style puller would have made things easier. went through an extra pack of shims cause i couldn't be careful enough.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote
Unread 09-25-2012, 05:49 PM   #6
HARLEYX2
Registered User
1987 YJ Wrangler

Join Date: Dec 2005
Location: Canton, Georgia
Posts: 517
How did th pinion preload change? Doesnt the front pinion use shims and not a crush sleve? If so your pinion preload should not have changed.
HARLEYX2 is offline   Reply With Quote
Unread 09-25-2012, 09:31 PM   #7
HaskiE
Thread Reviver

HaskiE's Avatar
1992 YJ Wrangler

Join Date: May 2008
Location: Lowell, MA
Posts: 1,395
Quote:
Originally Posted by HARLEYX2
How did th pinion preload change? Doesnt the front pinion use shims and not a crush sleve? If so your pinion preload should not have changed.
No crush sleeve, yeah, shims on both ends. I made setup races (now I know I only really needed one setup race!) And I'm guessing the bearings are slightly a different size because after I drove in the new races (with what I thought were the right shims behind the big race), and was bringing the pinion to torque I could feel the preload get waaaay too tight... tested to well over 40in lbs; spec is 20-25; so I re-did the preload hoping nothing else changed; but that's when the carrier just slid in with no preload or case spreading... :/
__________________
1992 YJ 1"Body Lift, Slip Yoke Eliminator & CV Driveshaft,
2.5" TJ exhaust, WJ valve cover, XJ Computer, External Slave Cyl AX15,
Durango Steeringbox, No track or sway bars, CJ tailgate, on 31's :)
#theneverendingaxe
HaskiE is offline   Reply With Quote
Unread 09-27-2012, 09:00 AM   #8
jon87yj
Registered User

Join Date: Sep 2012
Location: Billerica, MA
Posts: 24
The bearings are different due to variability and being used. Its why you need shims and why there are different preload numbers for new vs used bearings.
jon87yj is offline   Reply With Quote
Unread 09-27-2012, 09:58 AM   #9
HaskiE
Thread Reviver

HaskiE's Avatar
1992 YJ Wrangler

Join Date: May 2008
Location: Lowell, MA
Posts: 1,395
Quote:
Originally Posted by jon87yj View Post
The bearings are different due to variability and being used. Its why you need shims and why there are different preload numbers for new vs used bearings.
Just ordered another set of bearings & shims (exact same kit) going to shelve my old bearings and make the new ones I have already into setups. hopefully I can get this on try #2!
__________________
1992 YJ 1"Body Lift, Slip Yoke Eliminator & CV Driveshaft,
2.5" TJ exhaust, WJ valve cover, XJ Computer, External Slave Cyl AX15,
Durango Steeringbox, No track or sway bars, CJ tailgate, on 31's :)
#theneverendingaxe
HaskiE is offline   Reply With Quote
Unread 09-30-2012, 12:37 PM   #10
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,825
Good luck with try #2. It usually takes me 10 to 20 tries to get a dana setup correctly.
foggybottombob is offline   Reply With Quote
Unread 10-01-2012, 01:01 PM   #11
HaskiE
Thread Reviver

HaskiE's Avatar
1992 YJ Wrangler

Join Date: May 2008
Location: Lowell, MA
Posts: 1,395
Quote:
Originally Posted by foggybottombob View Post
Good luck with try #2. It usually takes me 10 to 20 tries to get a dana setup correctly.
hahaha I hear that! It took me about a whole afternoon to get the shims right on the pinion first and then the carrier took about the same, and then I did the pinion again... I dont even want to think about how much time I have into this!!!! but, learning takes time. Next I'm honing the bearings out with the dremmel to make the new setup's; when the new bearings finally get here with the new shims hopefully I't be a swap and load, done....
__________________
1992 YJ 1"Body Lift, Slip Yoke Eliminator & CV Driveshaft,
2.5" TJ exhaust, WJ valve cover, XJ Computer, External Slave Cyl AX15,
Durango Steeringbox, No track or sway bars, CJ tailgate, on 31's :)
#theneverendingaxe
HaskiE is offline   Reply With Quote
Unread 10-17-2012, 06:05 PM   #12
HaskiE
Thread Reviver

HaskiE's Avatar
1992 YJ Wrangler

Join Date: May 2008
Location: Lowell, MA
Posts: 1,395
Ok so new bearings finally came in, and I'm making my new setup bearings, and maybe I'm over thinking this, but I wanted to get your guys thoughts on this; Last time I swapped out all 4 bearings (cone+race) for setups. I'm thinking it might be smarter; or (possibly the right way?) to start with the final side races & final inner cone? Ie, use as many final parts as I can...? Drawing:
__________________
1992 YJ 1"Body Lift, Slip Yoke Eliminator & CV Driveshaft,
2.5" TJ exhaust, WJ valve cover, XJ Computer, External Slave Cyl AX15,
Durango Steeringbox, No track or sway bars, CJ tailgate, on 31's :)
#theneverendingaxe
HaskiE is offline   Reply With Quote
Unread 10-17-2012, 08:10 PM   #13
ratmonkey
R.I.P.

ratmonkey's Avatar
1997 ZJ

Join Date: Dec 2006
Location: , Pennsylvania
Posts: 19,796
on the d44/60 i use the "good" inner pinion cone and outer pinion cup. they don't have anything under them that needs adjusted so there's no reason to go through the effort of set up bearings/races.
i use whatever was matched up on the carrier bearings.
__________________
'97 zj 5.2, some stuff, some other suff, and some things that even work sometimes.

ratmonkey is offline   Reply With Quote
Unread 10-18-2012, 05:25 AM   #14
HaskiE
Thread Reviver

HaskiE's Avatar
1992 YJ Wrangler

Join Date: May 2008
Location: Lowell, MA
Posts: 1,395
Quote:
Originally Posted by ratmonkey View Post
on the d44/60 i use the "good" inner pinion cone and outer pinion cup. they don't have anything under them that needs adjusted so there's no reason to go through the effort of set up bearings/races.
i use whatever was matched up on the carrier bearings.
That's just what I wanted to hear! thanks man!

I made 2x setups last night, hopefully I can make some progress tonight.
__________________
1992 YJ 1"Body Lift, Slip Yoke Eliminator & CV Driveshaft,
2.5" TJ exhaust, WJ valve cover, XJ Computer, External Slave Cyl AX15,
Durango Steeringbox, No track or sway bars, CJ tailgate, on 31's :)
#theneverendingaxe
HaskiE is offline   Reply With Quote
