cage rattles. how do I get rid of the rattles completely?

Hey guys,

My Jeep (09 JK 2 dr) rattles pretty bad over bumps, etc. We tied the entire cage into the frame of the vehicle, but not really into the bed. We're going to do plate around the bed into the frame/cage, which should help with rattles.

However, I can't help notice the rubber body mounts really like to cause the tub to move. Have any of you guys done aluminum body mounts to get rid of this movement? Any negatives about going this direction?

__________________
2009 Jeep Wrangler Rubicon (6mt) (in progress)
- 42x14.50 MTR's, Custom Cage, FF D60's F/R w/ ARB's and 5.38's, 4 Link Rear, 3 Link Front, 14" RR King 2.5's, 18" RR Fox 2.5's, Fox Air Bumps
- 108" wheel base
guarnibl is offline   Reply With Quote
Unread 12-21-2011, 09:44 PM   #2
mferrari
DelmarvaOffroad.com

mferrari's Avatar
1998 TJ Wrangler

Join Date: May 2005
Location: Ocean City, MD
Posts: 2,647
Pictures of your current setup? Do you have bushings between the cage and frame or is everything fixed? If fixed you will get all the vibrations through the cage and body. Simple fix would be to redo the mounts allowing bushings to be installed between the cage and the body.

For instance when we build them for daily driven rigs we you plate the sandwich the tub (one inside, one under the jeep). Then on the frame time in we use a bushing between the tub mount and the frame. This allows for the normal vibrations that are absorbed in the body mounts to be absorbed in the cage bushing as well.
__________________
Michael Ferrari
Team 120 - DOR Racing - Racing for Operation Homefront
Operation Homefront (OHF) provides emergency financial and other assistance to the families of our service members and wounded warriors.
Thanks to our Sponsors:
Delmarva Offroad - F-O-A Shocks - BD Turnkey Engine - Under Cover Fab - Jer-C Transmissions - Quigley Driveshafts

Delmarva Offroad
You call it rolling, we call it R&D! 443-951-JEEP
mferrari is offline   Reply With Quote
Unread 12-21-2011, 10:50 PM   #3
guarnibl
Registered User
2009 JK Wrangler

Join Date: Dec 2010
Location: Scottsdale, AZ
Posts: 608
Here's an old picture with everything stripped. We've touched it up a lot since then and I'm running different seats. It's back at my friends where we do the cage work. We're plating the tub and tying the cage to the body. He seems to think this will reduce / eliminate the vibrations but the rubber mounts aren't the best since they will cause tearing over time since they have a tendency to want to allow the tub to move.

We didn't install any bushings between the cage and frame. So you're saying install bushings between the cage and body via re-doing the cab mounts I assume?

__________________
2009 Jeep Wrangler Rubicon (6mt) (in progress)
- 42x14.50 MTR's, Custom Cage, FF D60's F/R w/ ARB's and 5.38's, 4 Link Rear, 3 Link Front, 14" RR King 2.5's, 18" RR Fox 2.5's, Fox Air Bumps
- 108" wheel base
guarnibl is offline   Reply With Quote
Unread 12-21-2011, 11:14 PM   #4
guarnibl
Registered User
2009 JK Wrangler

Join Date: Dec 2010
Location: Scottsdale, AZ
Posts: 608
Do you think you could elaborate a bit more or do you have pictures of what you're doing here?
__________________
2009 Jeep Wrangler Rubicon (6mt) (in progress)
- 42x14.50 MTR's, Custom Cage, FF D60's F/R w/ ARB's and 5.38's, 4 Link Rear, 3 Link Front, 14" RR King 2.5's, 18" RR Fox 2.5's, Fox Air Bumps
- 108" wheel base
guarnibl is offline   Reply With Quote
Unread 12-22-2011, 07:21 AM   #5
biffgnar
Web Wheeler

biffgnar's Avatar
2006 TJ Wrangler

Join Date: May 2008
Location: Westchester, NY
Posts: 13,127
Quote:
Originally Posted by guarnibl View Post
However, I can't help notice the rubber body mounts really like to cause the tub to move. Have any of you guys done aluminum body mounts to get rid of this movement? Any negatives about going this direction?
Wouldn't this lead to a lot more vibration transfer to the tub? I do like my aluminum Savvy BL pucks, but they sit on top of the stock rubber mounts to maintain that dampening.
__________________
Thank you Dave Cole, Dynomax, Falken and all the Spec Class sponsors!!
biffgnar is online now   Reply With Quote
Unread 12-22-2011, 07:28 AM   #6
Hussler
Registered User
1992 XJ Cherokee

Join Date: Jan 2009
Location: utica, new york
Posts: 5,288
The rubber mounts have a couple of functions. One being road isolation and another allowing for frame flex. The frame does flex, the difference being its your body mounts being squished instead of your doors grinding open like on a unibody lol.

Could you take a pic of the tub mounts, both sides? If you dont have nice backer plates welded I could see this being a problem
__________________
Quote:
Originally Posted by chris87xj View Post
Sometimes a restoration project is a labor of love, at which point cost, time, and labor involved become irrelevant.
Quote:
Originally Posted by BorderC View Post
I see you also twizzled your scart lead. Well done! :thumbsup:
92 XJ with ARB's, 5" lift, too much armor, 33's and some other garbage
Hussler is offline   Reply With Quote
Unread 12-22-2011, 09:09 AM   #7
guarnibl
Registered User
2009 JK Wrangler

Join Date: Dec 2010
Location: Scottsdale, AZ
Posts: 608
Quote:
Originally Posted by biffgnar View Post
Wouldn't this lead to a lot more vibration transfer to the tub? I do like my aluminum Savvy BL pucks, but they sit on top of the stock rubber mounts to maintain that dampening.
I would assume so. He said ride quality would suffer. We're plating first, see if it reduces things (not removing the rubber mounts) and then going from there. The sandwich idea seemed logical.

Quote:
Originally Posted by Hussler View Post
The rubber mounts have a couple of functions. One being road isolation and another allowing for frame flex. The frame does flex, the difference being its your body mounts being squished instead of your doors grinding open like on a unibody lol.

Could you take a pic of the tub mounts, both sides? If you dont have nice backer plates welded I could see this being a problem
I will take some pictures when I get a chance. The frame flex makes sense, and yes I can see the rubber mounts helping in those areas. I think the idea of putting an extra rubber mount or isolator between the tub and the cage would be good as well.
__________________
2009 Jeep Wrangler Rubicon (6mt) (in progress)
- 42x14.50 MTR's, Custom Cage, FF D60's F/R w/ ARB's and 5.38's, 4 Link Rear, 3 Link Front, 14" RR King 2.5's, 18" RR Fox 2.5's, Fox Air Bumps
- 108" wheel base
guarnibl is offline   Reply With Quote
Unread 12-22-2011, 09:31 AM   #8
mferrari
DelmarvaOffroad.com

mferrari's Avatar
1998 TJ Wrangler

Join Date: May 2005
Location: Ocean City, MD
Posts: 2,647
Here is what we use for cage plates in order to add a bushing between the tub and tub frame: (don't mind some small ground clamp tab tacked to it)


I was looking around for pictures on my photobucket and didn't find a bushing on the underside so this is from MO2500. We are ours very similar.
__________________
Michael Ferrari
Team 120 - DOR Racing - Racing for Operation Homefront
Operation Homefront (OHF) provides emergency financial and other assistance to the families of our service members and wounded warriors.
Thanks to our Sponsors:
Delmarva Offroad - F-O-A Shocks - BD Turnkey Engine - Under Cover Fab - Jer-C Transmissions - Quigley Driveshafts

Delmarva Offroad
You call it rolling, we call it R&D! 443-951-JEEP
mferrari is offline   Reply With Quote
Unread 12-22-2011, 06:51 PM   #9
MO2500
Fabramicator

MO2500's Avatar
1997 TJ Wrangler

Join Date: Mar 2009
Location: MoCo, MD
Posts: 6,465
Quote:
Originally Posted by mferrari View Post
I was looking around for pictures on my photobucket and didn't find a bushing on the underside so this is from MO2500. We are ours very similar.
That pic looks familiar

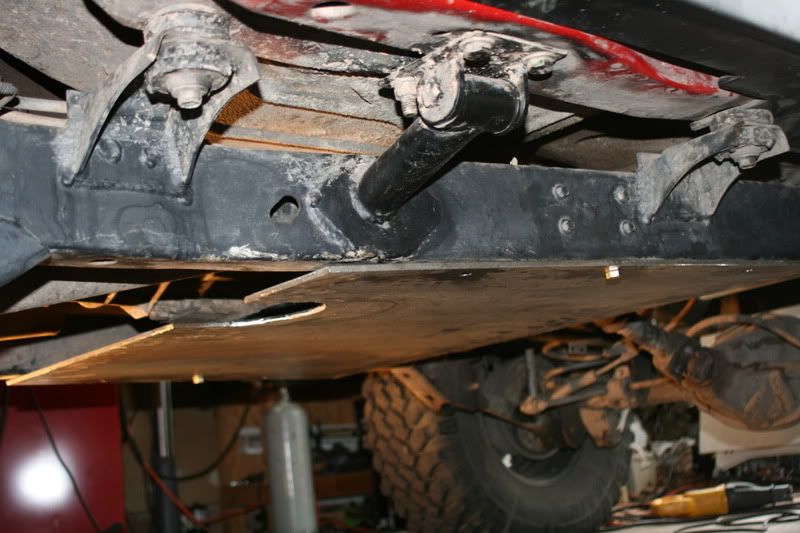

Here are a few more pics of how I did mine. Most important is to place the bushing away from the frame side of the tie-in to avoid creating a hinge point that could allow the cage to push through the tub in a roll.

A-pillar tie-ins




C-pillar tie-ins

__________________
My Jeep Build
Useful tech links:
Stu-Offroad - great technical write-ups!
What's a CV shaft and why do I need one?
Driveline 101
TJ Specs
-Mike-
MO2500 is offline   Reply With Quote
