Unread 11-28-2011, 02:19 PM   #91
andrewmacc
Registered User
1998 XJ Cherokee

Join Date: May 2010
Location: BC Canada
Posts: 607
Quote:
Originally Posted by jkl View Post
My Barnes 4WD order arrived yesterday while I was at work. My other 2 orders should be here Monday, and of course I'm on duty again


Let's see some work!

How's it coming along? I'm trying to find a torch to get my outside front stiffeners sucked up against the big dip in the frame rail (where the motor mount sits on the inside). Can't seem to get it to close up.

__________________
"Chilton's and Haynes are for brake jobs, oil changes and starting campfires." - CJ7-Tim
'98 2dr/5spd Cherokee rockin' on tons, 5.9L V8 Magnum, HP60/14b, 5.13:1, locked, 14" coilovers, Dana 300 4:1 twin stick... oink oink!
andrewmacc is offline   Reply With Quote
Unread 11-29-2011, 05:46 PM   #92
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland, Fl
Posts: 1,700
More parts arrived yesterday! Just waiting on the 2 Johnny Joints being shipped from Currie. Started welding on the driver side frame stiffener tonight, no pics though.



__________________

'13 10th Anniversary Unlimited Rubi
'05 LJ on 35s
1 Ton XJ on 40s...went up in flames :(
1 Ton Scrambler Build Thread:"Project Taildragger"
...now parting out
jkl is offline   Reply With Quote
Unread 12-03-2011, 02:51 PM   #93
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland, Fl
Posts: 1,700
My other 2 JJs arrived on Thurs! Today I finished welding up the drivers side frame stiffener. Heres a crappy cell pic.

__________________

'13 10th Anniversary Unlimited Rubi
'05 LJ on 35s
1 Ton XJ on 40s...went up in flames :(
1 Ton Scrambler Build Thread:"Project Taildragger"
...now parting out
jkl is offline   Reply With Quote
Unread 12-09-2011, 01:36 PM   #94
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland, Fl
Posts: 1,700

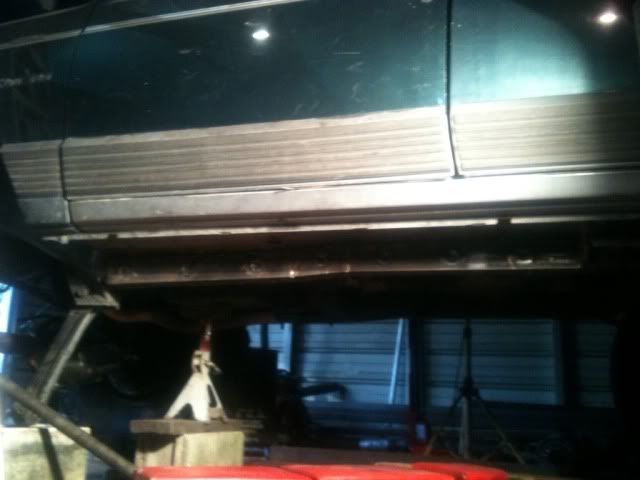

Over the last few days I've got to work on it here and there. Plated part of the inner frame with 1/8" plate the used a piece of 3 x 3/16" angle over that and butted it up to the frame stiffener. Plated a small section of the floor with 1/8" to tie the mount into the floor. Had to modify the Barnes upper link mount a bit cause it was a little to big. Just a little cut and bend and it fit better. Have about 4 1/2" vertical seperation on the frame end and about 8" on the axle end. Lower link is going to be roughly 36.5" long and upper about 36".



__________________

'13 10th Anniversary Unlimited Rubi
'05 LJ on 35s
1 Ton XJ on 40s...went up in flames :(
1 Ton Scrambler Build Thread:"Project Taildragger"
...now parting out
jkl is offline   Reply With Quote
Unread 12-09-2011, 04:29 PM   #95
andrewmacc
Registered User
1998 XJ Cherokee

Join Date: May 2010
Location: BC Canada
Posts: 607
Quote:
Originally Posted by jkl View Post
Over the last few days I've got to work on it here and there. Plated part of the inner frame with 1/8" plate the used a piece of 3 x 3/16" angle over that and butted it up to the frame stiffener. Plated a small section of the floor with 1/8" to tie the mount into the floor. Had to modify the Barnes upper link mount a bit cause it was a little to big. Just a little cut and bend and it fit better. Have about 4 1/2" vertical seperation on the frame end and about 8" on the axle end. Lower link is going to be roughly 36.5" long and upper about 36".

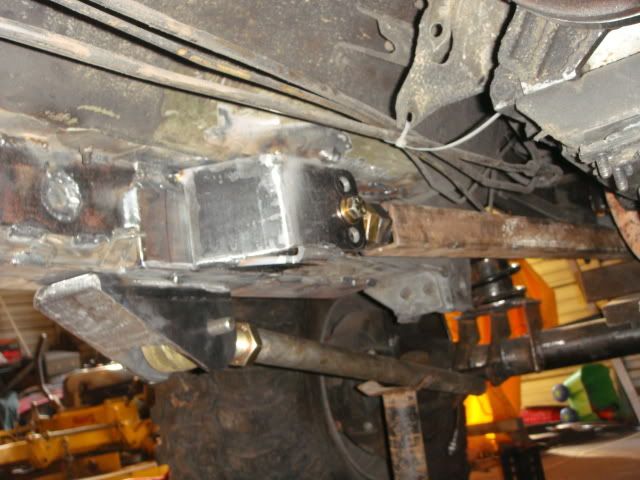

]http://i278.photobucket.com/albums/kk93/kevinlatta/XJ/DSC02368.jpg[/IMG]

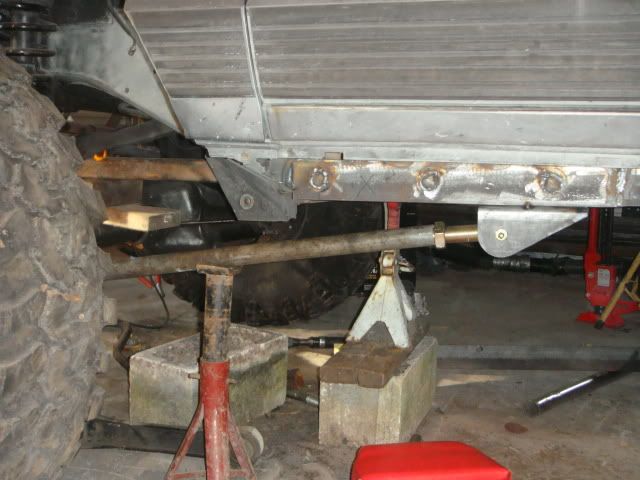

]http://i278.photobucket.com/albums/kk93/kevinlatta/XJ/DSC02367.jpg[/IMG]
Very friggin' sweet!

You worried about lock-to-lock clearance at all?

I took my lower links to a shop to get a 20* bend in them so that the tire will just fit in the nook of the bend. It will make alignments a little more difficult, but I figured the extra turning radius was worth it. Just waiting on them now.. -twiddles thumbs-

I like the way your upper link turned out - that's on the driver's side of the tube, correct?

I'm a little envious that you decided to make the upper link work like that.. my grinder had a bad day and I'm missing a lot of floorboard now because I wanted the upper link up inside the cabin.


Looking good!
__________________
"Chilton's and Haynes are for brake jobs, oil changes and starting campfires." - CJ7-Tim
'98 2dr/5spd Cherokee rockin' on tons, 5.9L V8 Magnum, HP60/14b, 5.13:1, locked, 14" coilovers, Dana 300 4:1 twin stick... oink oink!
andrewmacc is offline   Reply With Quote
Unread 12-09-2011, 06:16 PM   #96
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland, Fl
Posts: 1,700
Quote:
Originally Posted by andrewmacc View Post
Very friggin' sweet!

You worried about lock-to-lock clearance at all?

Turning the wheels it looks like there is enough clearance. Might have slight scrubage at very low psi (not sure until its all together). Remeber mine has DRW hubs, if I change to SRW hubs it might have issues.

I like the way your upper link turned out - that's on the driver's side of the tube, correct?

Yes

I'm a little envious that you decided to make the upper link work like that.. my grinder had a bad day and I'm missing a lot of floorboard now because I wanted the upper link up inside the cabin.

I didn't want mine coming through the floor either. After I laid down and stared at it for a while I decided that if I cut part of the bracket and bend the lower end up that it should work.

And in other news, my friend showed up today with a check for the motor and trans he wanted. Time to go shopping again!
__________________

'13 10th Anniversary Unlimited Rubi
'05 LJ on 35s
1 Ton XJ on 40s...went up in flames :(
1 Ton Scrambler Build Thread:"Project Taildragger"
...now parting out
jkl is offline   Reply With Quote
Unread 12-10-2011, 11:35 AM   #97
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland, Fl
Posts: 1,700
Placed an order with Ruff Stuff last night for their track bar kit. Hopefully I can pick up a stick of 2x1/4" tubing soon and get this thing back together soon. After that it should be just driveshafts and tie up a few loose ends to take it for a test drive.
__________________

'13 10th Anniversary Unlimited Rubi
'05 LJ on 35s
1 Ton XJ on 40s...went up in flames :(
1 Ton Scrambler Build Thread:"Project Taildragger"
...now parting out
jkl is offline   Reply With Quote
Unread 12-11-2011, 03:17 PM   #98
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland, Fl
Posts: 1,700

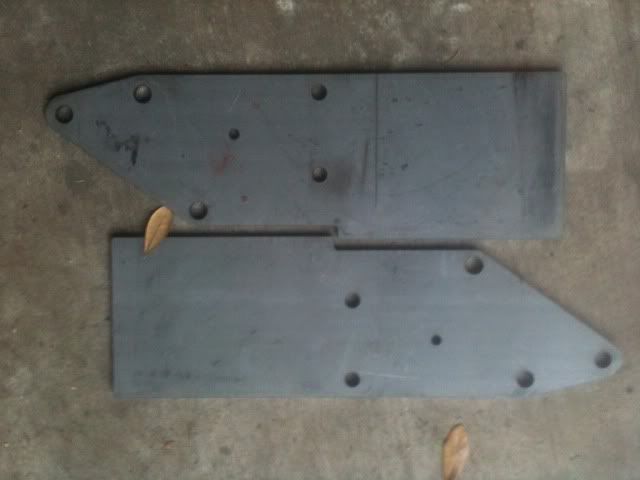

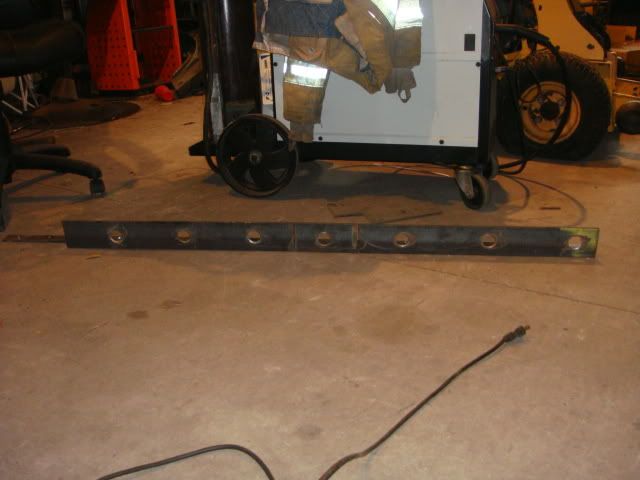

Got the pass side frame stiffener ready to go. Maybe I'll get it on tomorrow.

__________________

'13 10th Anniversary Unlimited Rubi
'05 LJ on 35s
1 Ton XJ on 40s...went up in flames :(
1 Ton Scrambler Build Thread:"Project Taildragger"
...now parting out
jkl is offline   Reply With Quote
Unread 12-12-2011, 03:21 PM   #99
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland, Fl
Posts: 1,700
Got the pass side frame stiffener and link mount on today. Plan on picking up 2" tubing on Wednesday to make the control arms.

__________________

'13 10th Anniversary Unlimited Rubi
'05 LJ on 35s
1 Ton XJ on 40s...went up in flames :(
1 Ton Scrambler Build Thread:"Project Taildragger"
...now parting out
jkl is offline   Reply With Quote
Unread 12-18-2011, 07:20 PM   #100
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland, Fl
Posts: 1,700

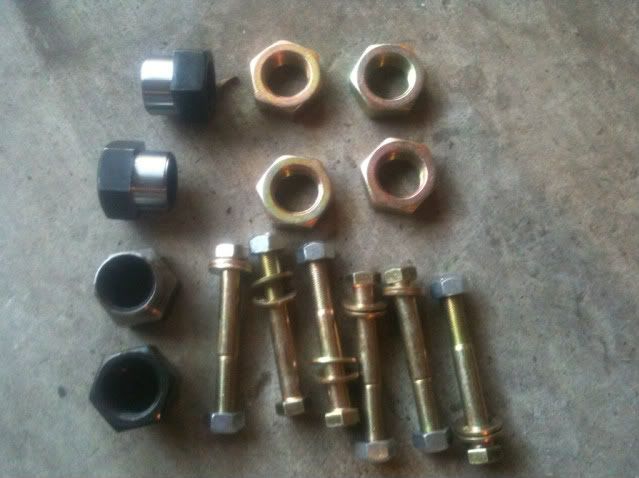

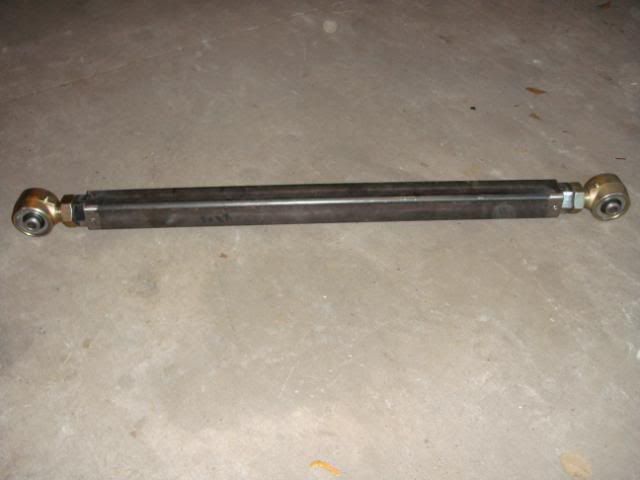

Got the lower links together today. Decided to use Johnny Joints on both ends so I also placed an order for 2 more joints, nuts and tube inserts for the upper link. Lowers ended up at 36.75" and the wheelbase is at 106.5"



__________________

'13 10th Anniversary Unlimited Rubi
'05 LJ on 35s
1 Ton XJ on 40s...went up in flames :(
1 Ton Scrambler Build Thread:"Project Taildragger"
...now parting out
jkl is offline   Reply With Quote
Unread 12-20-2011, 10:14 AM   #101
egodfrey
Web Wheeler

egodfrey's Avatar
1998 XJ Cherokee

Join Date: Jul 2009
Location: Whitney Point, NY
Posts: 3,170
Good call using Jhonny joints on both ends.

Never heard anyone complain about it on a dedicated wheeler.
__________________
This space reserved for future cool stuff

DO NOT DO WORK WITH DRAKEN OFFROAD IN NY!!!
(also known as dragons garage in Oneonta NY)
egodfrey is offline   Reply With Quote
Unread 12-20-2011, 09:48 PM   #102
Azzy
Web Wheeler

Azzy's Avatar
1996 XJ Cherokee

Join Date: Sep 2010
Location: Finleyville
Posts: 3,200
Wow, this is an impressive build. Thanks for documenting it so much, its given me some ideas, which may not be as extreme, but will save me in the long run.
__________________
ADW - Custom gauges, decals, and now laser engraving. Check out the gallery here.
Azzy is offline   Reply With Quote
Unread 12-24-2011, 05:35 PM   #103
2doorxj
Registered User

2doorxj's Avatar
1998 XJ Cherokee

Join Date: Jul 2009
Location: NNJ
Posts: 2,918
Quote:
Originally Posted by egodfrey View Post
Good call using Jhonny joints on both ends.

Never heard anyone complain about it on a dedicated wheeler.
Ive heard of issues before, but never had personal experience, so take what you want from that. But i have never heard of issues coming from a rufftuff heim, and i currently run them and love them.

Right now i run ruffstuff heims on both sides on my upper, (you dont want any rubber, poly, bushing etc) otherwise youll run into issues with axle wrap. I had issues with my old radius arm setup with rubber bushings, and it sucked.

Now i can romp the gas in 4 low and there is no axle wrap at all, not to mention it climbs like a mountain goat.
__________________
Waggy 44s, chromo shafts, 4.88s, spools, mid arm 3 link, 35" kevlars

2012 Cherokee of the Year
2doorxj is offline   Reply With Quote
Unread 12-24-2011, 05:47 PM   #104
airwolf9090
Registered User
1996 ZJ

Join Date: May 2011
Location: Clyo, Ga
Posts: 553
Quote:
Originally Posted by jkl View Post
Got the lower links together today. Decided to use Johnny Joints on both ends so I also placed an order for 2 more joints, nuts and tube inserts for the upper link. Lowers ended up at 36.75" and the wheelbase is at 106.5"



What part of Lakeland you in?? I am down from Sav visiting family (Near auburndale walmart) and would love to see that project! and get your opinion on my ZJ
__________________
1996 Jeep ZJ Orvis
1996 Jeep XJ Sport classic 2wd
airwolf9090 is offline   Reply With Quote
Unread 12-25-2011, 01:42 PM   #105
jkl
Registered User
2005 LJ Wrangler

Join Date: Mar 2008
Location: Under my Jeep in Lakeland, Fl
Posts: 1,700
Quote:
Originally Posted by egodfrey View Post
Good call using Jhonny joints on both ends.
Had to cut a slight angle on the axle end so the arms would point in toward the frame some. One side worked out almost perfect and one binded like hell (both cut at the same angle), so instead of trying to figure out what the issue was I just decided to run JJs.


Quote:
Originally Posted by 2doorxj View Post
Ive heard of issues before, but never had personal experience, so take what you want from that. But i have never heard of issues coming from a rufftuff heim, and i currently run them and love them.

Right now i run ruffstuff heims on both sides on my upper, (you dont want any rubber, poly, bushing etc) otherwise youll run into issues with axle wrap. I had issues with my old radius arm setup with rubber bushings, and it sucked.

Now i can romp the gas in 4 low and there is no axle wrap at all, not to mention it climbs like a mountain goat.

I've seen plenty of harcore and street driven rigs with JJs on both ends so I don't think there should be any problems. I considered Ruff Stuff's heims but decided on the JJs due to the mud here in the south. I think it would eat up the heims pretty quick and the JJs are greasable.
