WJ Tube front winch bumper and rear bumper with tire carrier build

hey figured Id throw up some pics of my rear bumper and tire carrier build. The build is almost identical to shinobi's with a few basic mods. All of the tube is 1.25"x.120 and all the plate is 1/4". more pics as I make progress.















Also working on a front winch bumper as well. Constructive criticism welcome.






pulsepb is offline
Sponsored Links
Advertisement

post #2 of 20 Old 12-11-2011, 03:51 PM Thread Starter
pulsepb
Registered User
2000 WJ

Join Date: Nov 2005
Posts: 148
*reserved for future pics*
pulsepb is offline
post #3 of 20 Old 12-11-2011, 04:18 PM
alwaysHI
Registered User
2003 WJ

Join Date: Dec 2010
Location: Hilo
Posts: 2,418
woww.....great work man! i wish i had access to that kinda machinery.
can you post some more pics of the rear bumper, and its mounting points?

Bronson = 21 yrs. old
BUILT, NOT BOUGHT - WORKED HARD FOR, NOT KISSED MOMMY/DADDYS A** FOR!
Build Thread -
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
SOLD
alwaysHI is offline
post #4 of 20 Old 12-11-2011, 04:28 PM
Sohcvtec1995
Registered User
2001 WJ

Join Date: May 2011
Location: Orlando
Posts: 998
ehh. imo i don't like it. its not clean or flush, just looks like a bunch of bars. also doesn't look like it would protect much of anything.
Sohcvtec1995 is offline
post #5 of 20 Old 12-11-2011, 04:41 PM
4x4Jeep
Registered User
2001 WJ

Join Date: Jan 2009
Location: Orlando
Posts: 2,340
that is why it is called a tube bumper

Build -
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
SOLD
4x4Jeep is offline
post #6 of 20 Old 12-11-2011, 06:52 PM
Sohcvtec1995
Registered User
2001 WJ

Join Date: May 2011
Location: Orlando
Posts: 998
but i would think it would at least decent and have some sort of function
sorta like this
Sohcvtec1995 is offline
post #7 of 20 Old 12-11-2011, 08:27 PM
alwaysHI
Registered User
2003 WJ

Join Date: Dec 2010
Location: Hilo
Posts: 2,418
Quote:
Originally Posted by pulsepb View Post
more pics as I make progress.
Quote:
Originally Posted by Sohcvtec1995 View Post
but i would think it would at least decent and have some sort of function
/img]
pretty sure he's not done yet.........
and thats not functional if you wanna put a winch on it.

Bronson = 21 yrs. old
BUILT, NOT BOUGHT - WORKED HARD FOR, NOT KISSED MOMMY/DADDYS A** FOR!
Build Thread -
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
SOLD
alwaysHI is offline
post #8 of 20 Old 12-11-2011, 09:02 PM
Dasko
Registered User
2001 WJ

Join Date: Oct 2011
Location: 39 12' N 78 10' W
Posts: 577
i agree and im looking forward to where he is going with this. theres something about the rear bumper that i REALLY do like though i just cant put a finger on it.


2005 Grand Cherokee Limited - 5.7 HEMI - QDII - 2" Rough Country BB - AFE Stage 2 CAI - Monkey Navigated - Rear Shackle

2001 WJ- SOLD

Quote:
Originally Posted by mrJ
It's a Jeep, it's not supposed to work right all the time.
Dasko is offline
post #9 of 20 Old 12-11-2011, 09:15 PM
240impala
Registered User
2003 WJ

Join Date: Sep 2010
Location: Greenville
Posts: 1,486
thats nice wish I had some machinery to do this. Very nice, good welding too. Thumbs up man

"Don't Do It"



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


IRO 6.5" lift, IRO Front long arms, rear iro adj upper a arm and adj rear lower, custom 4x4 fab front bumper, rough country winch, 15" crager soft 8's, procomp 35-12.50 tire, fenders trimmed KOR light bar, malone roof rack
240impala is offline
post #10 of 20 Old 12-11-2011, 10:12 PM
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville
Posts: 3,077
I like the rear, and will reserve judegement on the front til more of it is completed. Very interested to see what you come up with! Looks like you've got access to some nice equipment. How hard would it be to make me a set of weld on d-ring tabs? I'd like something like this (just the triangle piece)

2000 WJ 4.5L - Stroked, Locked, & Long-Armed
Looking for 6" WJ springs!
StrokedWJ is offline
post #11 of 20 Old 12-11-2011, 10:27 PM
Msokol13
Registered User

Join Date: Apr 2009
Location: Arizona
Posts: 124
The front looks like something Mel Gibson should be driving in the road warrior!

I wish I had the time and room to do something like that
Msokol13 is offline
post #12 of 20 Old 12-18-2011, 11:15 PM Thread Starter
pulsepb
Registered User
2000 WJ

Join Date: Nov 2005
Posts: 148
Sohcvtec- Im not really sure what you mean by not being flush, clean or offering protection.
as far as function I was looking for
1) increased approach angles
2) tire carrying ability for rear
3)winch carrying ability for the front

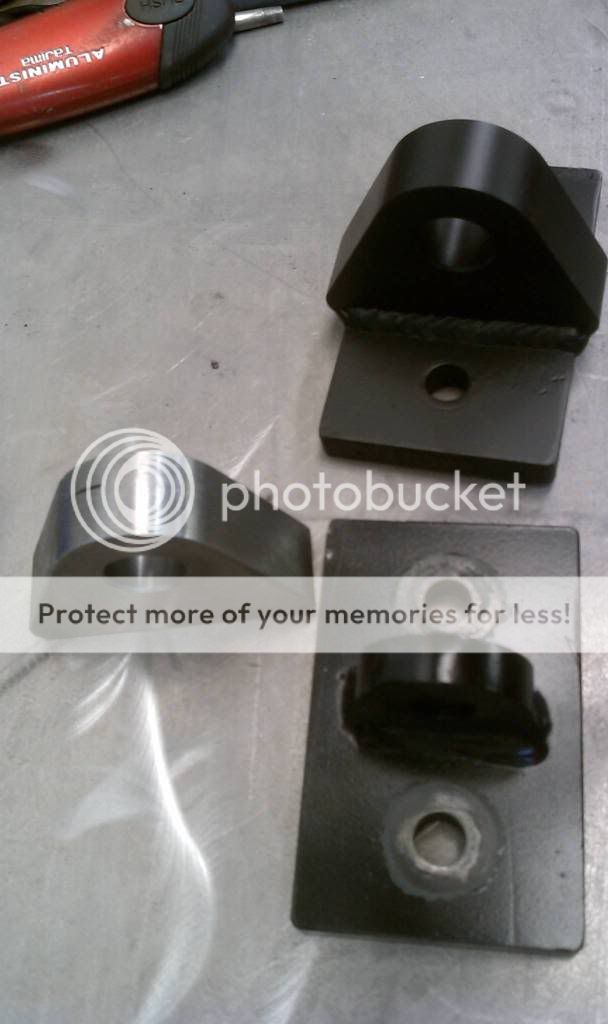

Strokedwj - I could make those relatively easily but it would be time consuming as I would be making them by hand. Check ebay for d-ring weld tabs. Theyre pretty cheap probably because there being laser or waterjet cut from longer stock.

AlwaysHI- here are some more pics of the mounting points. I welded 1/4 inch flatbar on both sides of the hitch in the rear and near the front of the hitch behind the tire are 2 other mounting points.



an updated picture of the front

I was planning on filling in the pieces below the "stinger" with dimple died sheet metal like on the rear but Ive had to put it on hold because I just graduated college and am getting ready to enter the workforce. I was also going to mount my lights but Ive had to put that on hold as well. For those who may wonder I just completed my BS in Mechanical Engineering.

current cost is around $400 so far for front and rear
pulsepb is offline
post #13 of 20 Old 12-19-2011, 12:31 AM
alwaysHI
Registered User
2003 WJ

Join Date: Dec 2010
Location: Hilo
Posts: 2,418
perfect!
thank you!

Bronson = 21 yrs. old
BUILT, NOT BOUGHT - WORKED HARD FOR, NOT KISSED MOMMY/DADDYS A** FOR!
Build Thread -
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
SOLD
alwaysHI is offline
post #14 of 20 Old 12-19-2011, 12:55 AM
fasteddy47
Registered User
2001 WJ

Join Date: Dec 2009
Location: canada
Posts: 79
Looks Great!!!!! Can't wait to see the end result!!!

cheers
Eddy
fasteddy47 is offline
post #15 of 20 Old 07-11-2012, 10:54 AM
Big_Fisch
Registered User
2002 WJ

Join Date: Apr 2008
Location: Northwest Arkansas
Posts: 820
Just out of curiosity, pulsepb :
1) What are the chances you'd duplicate that build?
2) What do you figure you'd charge, parts & labor total?
&
3) Where are you located (would be best to have WJ there for fitment)?

I'm mulling over a spare tire mount that bases off the top of the existing tow hitch and is embedded IN the rear bumper, more or less, but I've always like the idea of DOM tube bumpers, so I'm just wanting to check out some options.

Let me know.

:pickle: :banana: :bacon: :carrot: DANCING FOOD ROCKS!!! :pickle: :banana: :bacon: :carrot:


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
