WJ rock sliders build plans

Any one made there own rock sliders and still have the plans, measurements and/or instructions on how to build them. Im looking to make my own but i have no idea how to. Any advice would be great.

Krisalrube is offline   Reply With Quote Quick reply to this message
Unread 11-08-2010, 11:42 PM   #2
JeeperCreeper94
Registered User
1999 WJ

Join Date: Nov 2010
Location: Memphis, TN
Posts: 75
Bump. I want em too!
__________________
1999 WJ 4" IRO, Cb, Baja Racing Lights, 31" Treadrights
JeeperCreeper94 is offline   Reply With Quote Quick reply to this message
Unread 11-08-2010, 11:45 PM   #3
Scibbyz99WJ
Registered User
1999 WJ

Join Date: Jun 2010
Location: Howell, Michigan
Posts: 866
yep. ive got a few ideas for my own, but itd be nice to see some veteran work!!
__________________
'99 stroked 4.5L WJ 2" BDS lift
2008 Fire Red F150 XLT 4X4 3V 5.4LV8

Closed minds should go hand in hand with closed mouths
Scibbyz99WJ is offline   Reply With Quote Quick reply to this message
Unread 11-09-2010, 09:48 AM   #4
smunns
Registered User

Join Date: Apr 2002
Location: , Nebraska
Posts: 1,225

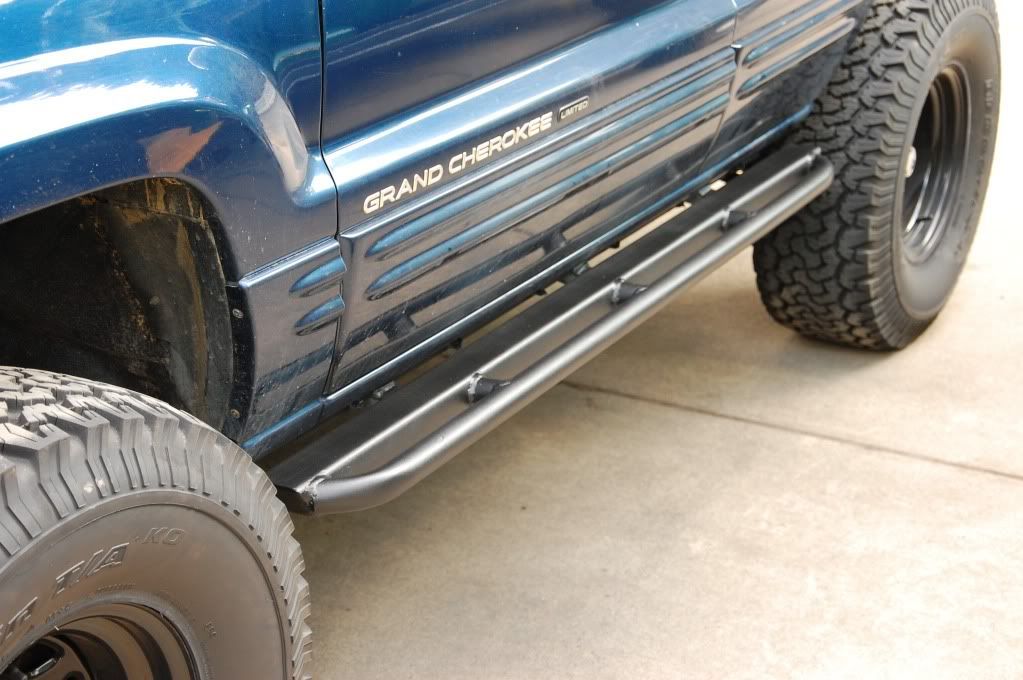

Here's the ones I built.











Materials used:

1. (2) 68" long 2 1/2" x 1 1/2" 1/8" rectangular tubing for the sliders
2. (4) 9-10" long 1" x 1 1/2" rectangular tubing 3/16" for the supports + about 8" of the same material cut into 1" - 2" pieces to connect the sliders to the pinch seam and supports.
3. (4) 3" x 4" 3/16" flat plate for the frame mounts
4. (2) 1" x 48" 1/4" flat bar for the pinch seam.

Directions:

1. I cut out the four 3/16" frame mounts, and drilled four holes in them. I then marked where I wanted to mount them on the frame, drilled the holes in the frame, and tapped them. I then bolted the plates to the frame using 3/8" grade 8 hardware.

2. I drilled 6 or 7 holes along each piece of 1/4" flat bar for the pinch seams, clamped them to the pinch seams, drilled out the pinch seams, then bolted the flat bar to the pinch seams using 5/16" grade 8 hardware.

3. I held each 1" x1 1/2" support in place between the plates on the frame and the flat bar on the pinch seam, and measured the angles I needed to cut with a magnetic angle finder. I then cut the angles, and trimmed the supports so that they lined up with the face of the 1/4" flat bar bolted to the pinch seam.

4. Tack weld the supports to the frame plates and 1/4 flat bar bolted to the pinch seam. Cut some short sections of the left over 1" x 1 1/2" rectangular tubing, and tack weld them to the face of the supports/pinch seam flat bar.

5. Cut the sliders to 68" with whatever angle you'd like on the ends. I think I did 22.5 degrees. Tack weld the sliders in place.

6. After everything is tacked in place, remove the sliders and finish welding them up. I added a few 1" x 1/2" rectangular tubing supports between the 1/4" flat bar and sliders. I also capped the sliders.

Building off the mounts like this gave me a perfect fit.
smunns is offline   Reply With Quote Quick reply to this message
Unread 11-09-2010, 09:59 AM   #5
Krisalrube
Registered User
2000 WJ

Join Date: Apr 2010
Location: TROUT LAKE WA
Posts: 137
Thanks a bunch Your jeep is amazing by the way!! Love the work youve done to it.
Krisalrube is offline   Reply With Quote Quick reply to this message
Unread 11-09-2010, 10:05 AM   #6
Jason_alex
Registered User
2001 WJ

Join Date: Jul 2010
Location: Parsons, kansas
Posts: 712
WOW, thats a nice looking slider, love the flex
Jason_alex is offline   Reply With Quote Quick reply to this message
Unread 11-12-2010, 04:11 PM   #7
Jason_alex
Registered User
2001 WJ

Join Date: Jul 2010
Location: Parsons, kansas
Posts: 712
How thick is the frame and is that fine or course threaded bolts?
Jason_alex is offline   Reply With Quote Quick reply to this message
Unread 11-12-2010, 06:21 PM   #8
MoonyJohn
Mountain Climber

MoonyJohn's Avatar
2004 WJ

Join Date: Feb 2008
Location: West Linn, Oregon
Posts: 6,690

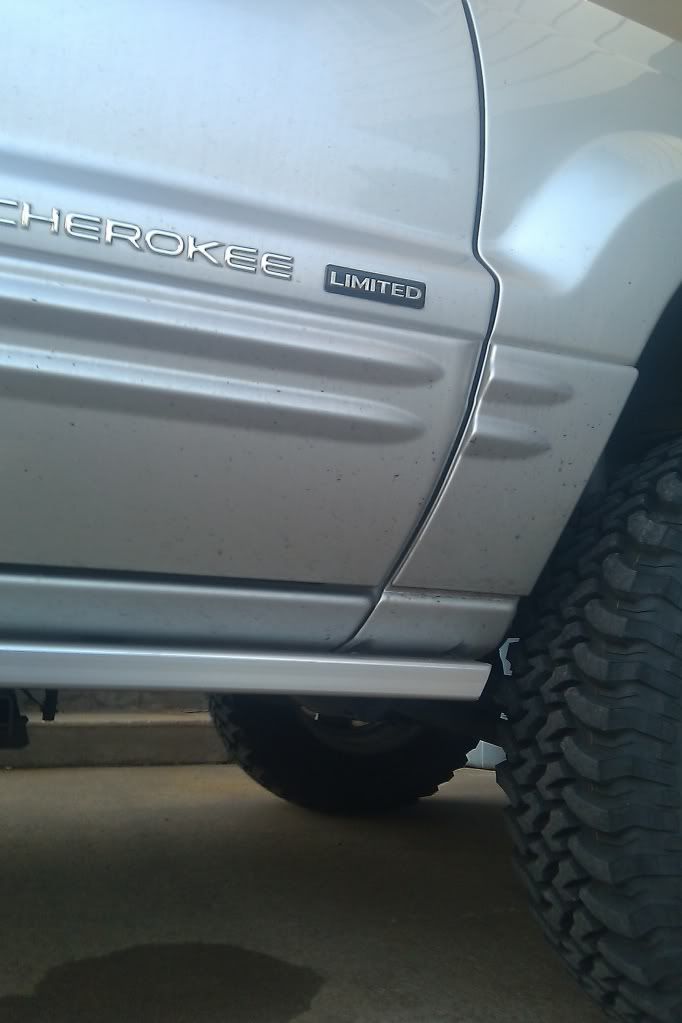

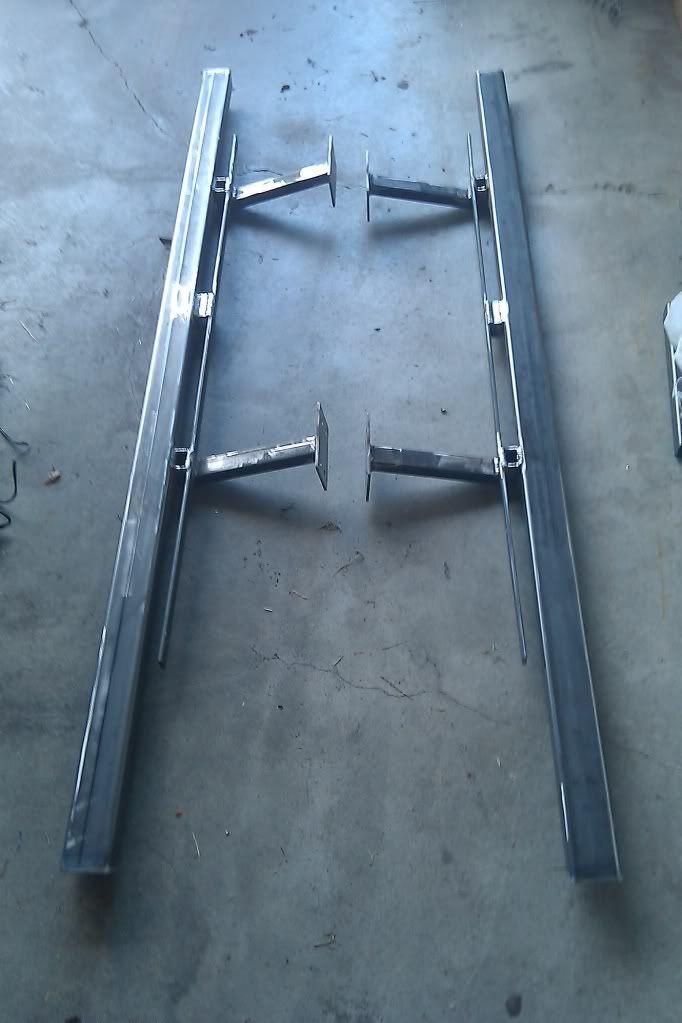

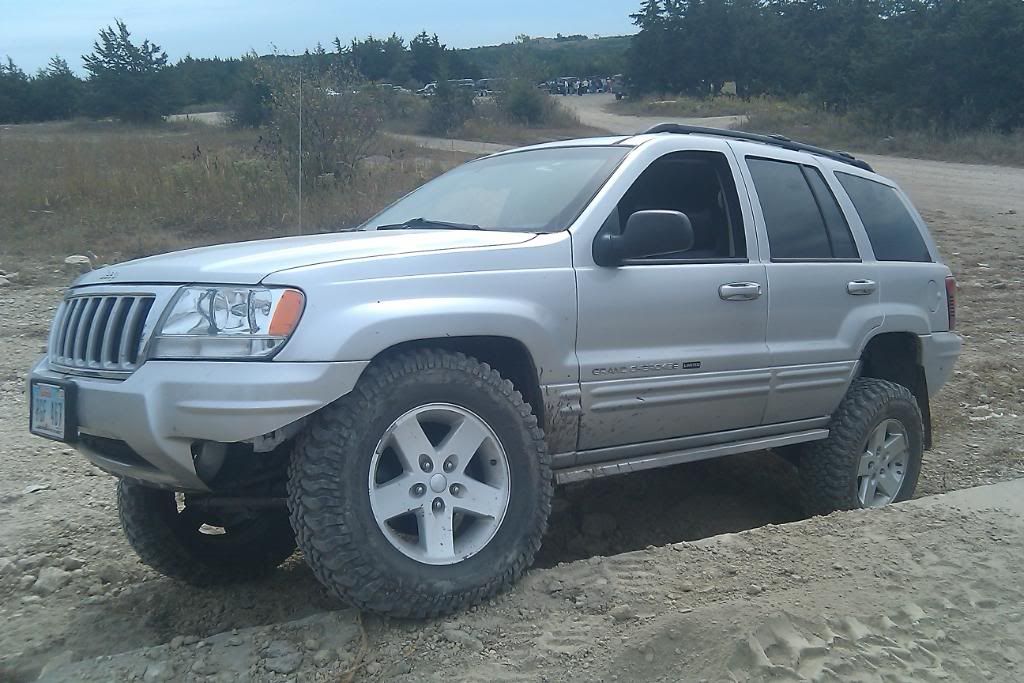

Heres mine in my build thread. I have the measurements too, ill dig those up. They copy JCR sliders, i got the same measurements from somebody else on here who has them. I later on added a tube..

1. (2) 66-68" long 2" x 3" sq. tubing 3/16" as the slider
2. (3) 9 5/8" long 1" x 2" sq. tubing 3/16" for the posts
3. (6) 3" x 4" 3/16" flat bar for the shoes
4. (2) 60" long 1" x 1/4" flat stock
5. (12) 9/16" bolts with ceramic nuts
6. (24) 1 1/4" 3/8" self tapping sheet metal bolts (lax bolts)
7. As for paint.. 2 cans of rustoleum rubber undercoating spray paint

http://www.jeepforum.com/forum/f197/...9/index27.html



__________________
"Water covers 3/4 of the earth, Jeep covers the rest"
MoonyJohn is offline   Reply With Quote Quick reply to this message
Unread 05-10-2011, 10:49 PM   #9
markmacak
Registered User
2004 WJ

Join Date: Mar 2011
Location: Indy area, IN
Posts: 28
what are the round tube sizes on ur wj and whats best way to shape it the way u did???
markmacak is offline   Reply With Quote Quick reply to this message
Unread 05-11-2011, 01:28 AM   #10
PDXCoug
Registered User
2002 WJ

Join Date: May 2010
Location: Portland
Posts: 228
You can't go wrong by copying those 2
__________________
Washington State University GO COUGS!
PDXCoug is offline   Reply With Quote Quick reply to this message
Unread 05-11-2011, 12:00 PM   #11
PhantomWJ
Registered User
2003 WJ

Join Date: Jan 2010
Location: IE
Posts: 3,381
Quote:
Originally Posted by smunns View Post
Here's the ones I built.











Materials used:

1. (2) 68" long 2 1/2" x 1 1/2" 1/8" rectangular tubing for the sliders
2. (4) 9-10" long 1" x 1 1/2" rectangular tubing 3/16" for the supports + about 8" of the same material cut into 1" - 2" pieces to connect the sliders to the pinch seam and supports.
3. (4) 3" x 4" 3/16" flat plate for the frame mounts
4. (2) 1" x 48" 1/4" flat bar for the pinch seam.

Directions:

1. I cut out the four 3/16" frame mounts, and drilled four holes in them. I then marked where I wanted to mount them on the frame, drilled the holes in the frame, and tapped them. I then bolted the plates to the frame using 3/8" grade 8 hardware.

2. I drilled 6 or 7 holes along each piece of 1/4" flat bar for the pinch seams, clamped them to the pinch seams, drilled out the pinch seams, then bolted the flat bar to the pinch seams using 5/16" grade 8 hardware.

3. I held each 1" x1 1/2" support in place between the plates on the frame and the flat bar on the pinch seam, and measured the angles I needed to cut with a magnetic angle finder. I then cut the angles, and trimmed the supports so that they lined up with the face of the 1/4" flat bar bolted to the pinch seam.

4. Tack weld the supports to the frame plates and 1/4 flat bar bolted to the pinch seam. Cut some short sections of the left over 1" x 1 1/2" rectangular tubing, and tack weld them to the face of the supports/pinch seam flat bar.

5. Cut the sliders to 68" with whatever angle you'd like on the ends. I think I did 22.5 degrees. Tack weld the sliders in place.

6. After everything is tacked in place, remove the sliders and finish welding them up. I added a few 1" x 1/2" rectangular tubing supports between the 1/4" flat bar and sliders. I also capped the sliders.

Building off the mounts like this gave me a perfect fit.

Those look sweet...
PhantomWJ is offline   Reply With Quote Quick reply to this message
Unread 05-11-2011, 01:34 PM   #12
FleshEater
Registered User
2014 JK Wrangler

Join Date: Dec 2010
Location: Hell, PA
Posts: 2,494
When I get around to it I plan on building boat sides. I think the first set of sliders will work peferct for those and will save me from doing some measuring.
__________________
2014 JKU Rubicon *DAILY DRIVER*
Gone but not forgotten; 2005 LJ *SOLD* 1987 XJ *SOLD* 2002 WJ *SOLD* 1995 ZJ *SOLD*
FleshEater is offline   Reply With Quote Quick reply to this message
Unread 05-11-2011, 07:56 PM   #13
PhantomWJ
Registered User
2003 WJ

Join Date: Jan 2010
Location: IE
Posts: 3,381
smunns....thank you for the measurements....that is definately on the list after the bumper gets built (currently in progress)....
PhantomWJ is offline   Reply With Quote Quick reply to this message
Unread 10-09-2012, 08:57 AM   #14
derekmac
Senior Member

derekmac's Avatar
2002 WJ

Join Date: Mar 2012
Location: Elmsdale, NS
Posts: 661
Since there's a few threads asking about rock sliders, I figured I'd put this TTT.
__________________
2002 WJ Olympics Commemorative Edition
245/70-17 Duratracs
2" BB
Future: 4" lift and lockers

Build thread.
derekmac is offline   Reply With Quote Quick reply to this message
Unread 02-07-2014, 12:48 AM   #15
wjidaho
Registered User
1999 WJ

Join Date: Mar 2013
Location: boise, id
Posts: 2,097
Nice sliders guys
__________________
[SIZE="4"][url=http://www.exiledoffroad.com]EXILED OFFROAD[/url][/SIZE]

My build thread
[url]http://www.jeepforum.com/forum/f22/wjidahos-expedition-build-1904282/[/url]
