So I guess this is my first write up of any sort. But here it goes…
I wanted an inverter in the Jeep for a number of reasons phone chargers, camping stuff, and just to have the option. So I read many of the write ups here on JF and decided to o my own.
First I bought this inverter from Amazon http://www.amazon.com/Cobra-400-Watt...2526405&sr=8-1
I went to look for solid mounting locations in the Jeep but failed to find any. So I saw a couple of guys mounting CBs where the ashtray goes so I decided to put the power inverter in there but it didn’t fit. So I took it apart and voided the warranty.

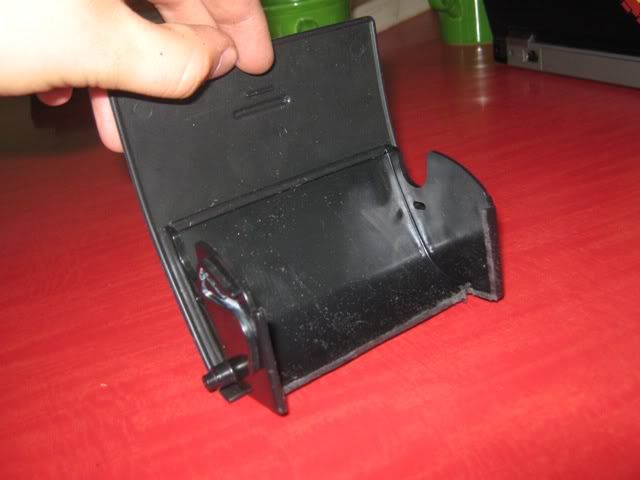

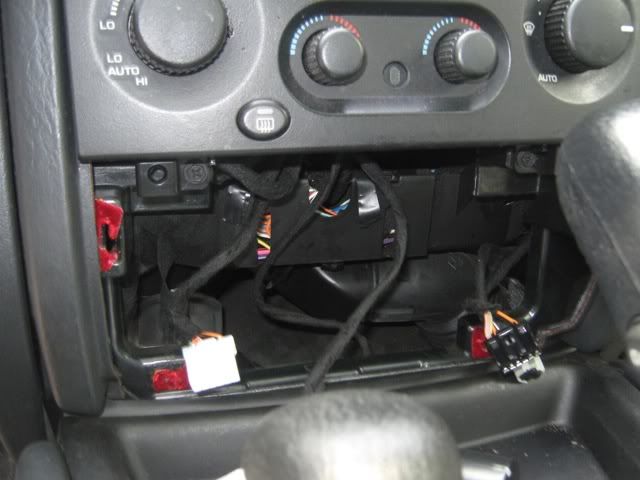

I took out the faceplate of the ashtray

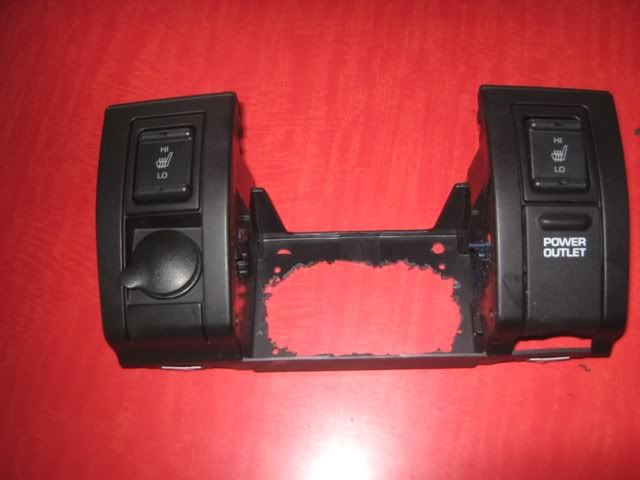

and let the girlfriend cut it out (trying to get her involved since she let me work on the Jeep even though I’m only home for 48 hours) here’s the picture.

Midshipmen Patrick 1/C USMMA DD: 2004 Golf GLS TDI 43mpg and 2002 Overland: Zone 4in, 32in Treadwright MTRs, IRO upper CAs, lift gate light mod, Alpine/Polk speakers, and power inverter with USB in dash mod, CB, custom rear swing out tire carrier Build thread http://www.jeepforum.com/forum/f22/a...thread-902929/ SOLD

Last edited by Apollo21; 08-22-2010 at 07:54 PM.
Apollo21 is offline
post #3 of 57 Old 08-22-2010, 12:23 PM Thread Starter
Apollo21
Registered User
2002 WJ

Join Date: Jun 2009
Location: Frederick, MD
Posts: 3,113
Then I (secretly) cleaned up the hole and mounted the faceplate from the inverter in it. I used the left over screws that mounted the faceplate in the old inverter box to screw it into the ashtray cut out.
Here’s what it looked like

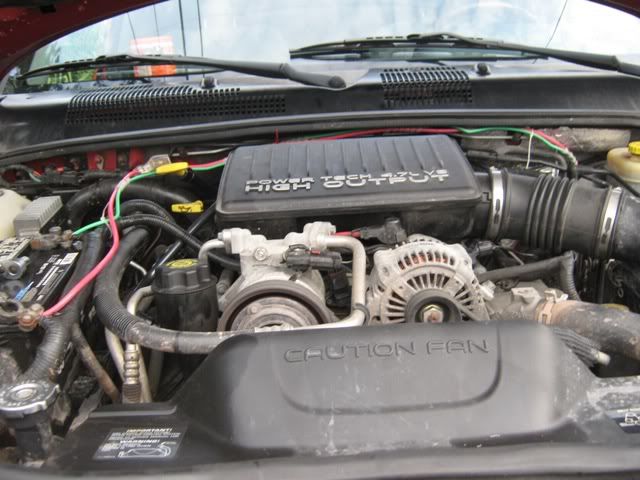

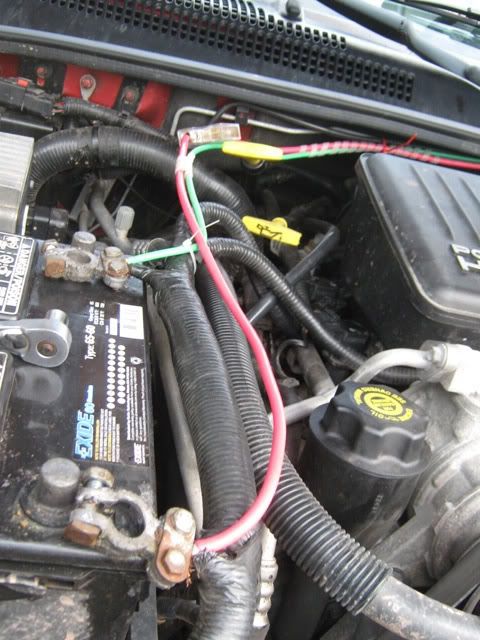

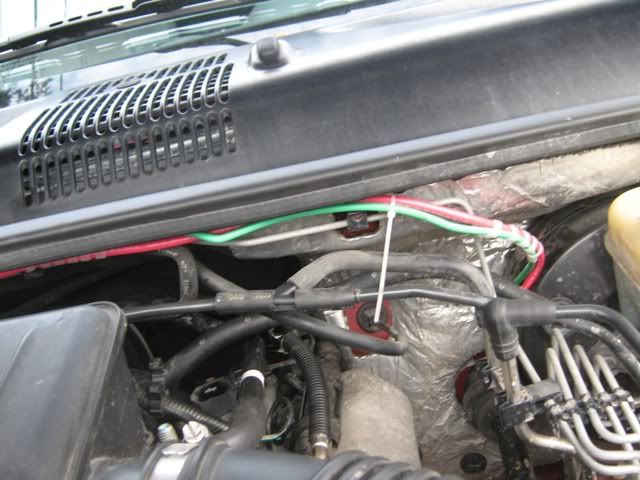

So then I ran wires from the battery around the engine and through where the fuses go through the firewall. I ran a couple of feet of 8 AWG wire with an 80 Amp inline fuse. I then crimped that wire to the 2in of 12 AWG that was soldered to the circuit board of the inverter.

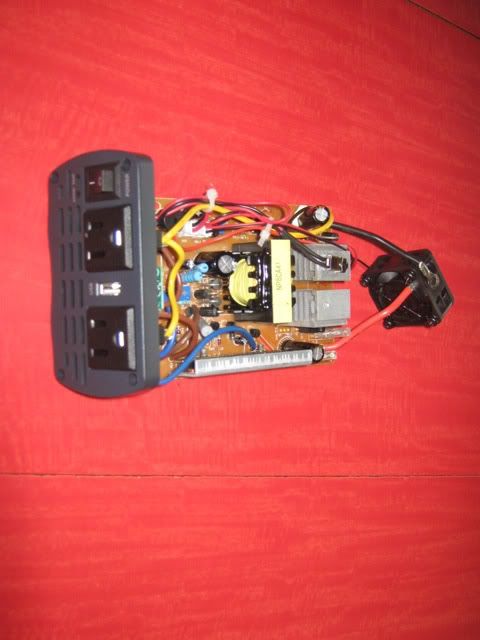

So I put everything in back there along with the fan which is set up to help cool it. There are more fans online and I might order another one to help if it gets too hot.

Midshipmen Patrick 1/C USMMA DD: 2004 Golf GLS TDI 43mpg and 2002 Overland: Zone 4in, 32in Treadwright MTRs, IRO upper CAs, lift gate light mod, Alpine/Polk speakers, and power inverter with USB in dash mod, CB, custom rear swing out tire carrier Build thread http://www.jeepforum.com/forum/f22/a...thread-902929/ SOLD

Last edited by Apollo21; 08-22-2010 at 07:55 PM.
Apollo21 is offline
post #4 of 57 Old 08-22-2010, 12:23 PM Thread Starter
Apollo21
Registered User
2002 WJ

Join Date: Jun 2009
Location: Frederick, MD
Posts: 3,113

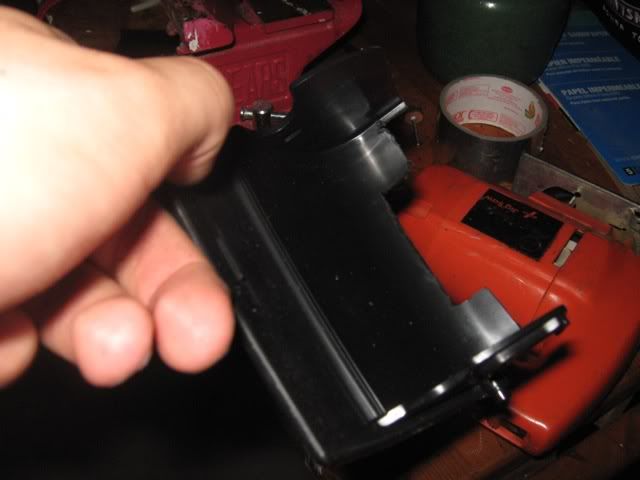

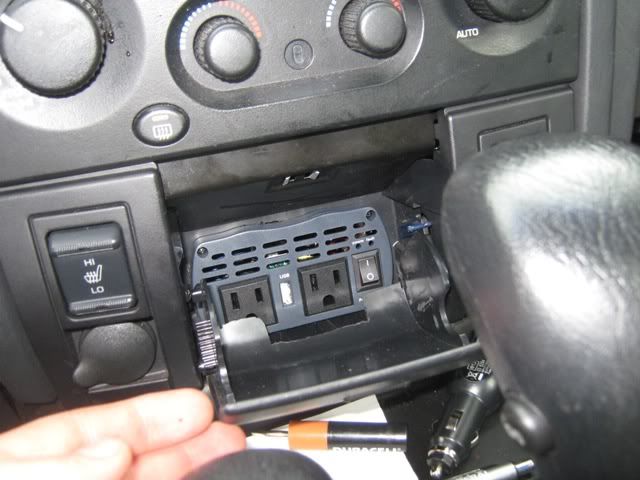

Then I trimmed the ashtray door so that I could reattach it to cover up the inverter and keep the stock look. I will probably end up trimming a little more.

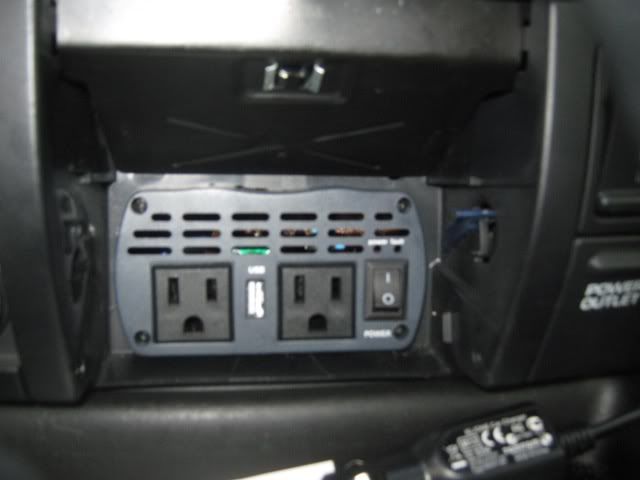

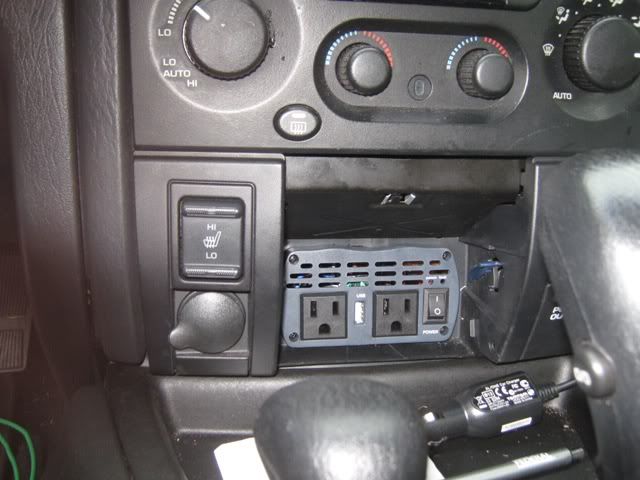

Here it is all together.


So that’s it hope you enjoyed it. I’m open to any comments, questions, and concerns. I have almost no background in wiring I had my dad look everything over along with a neighbor who has a restore CJ-7 that he did.

Midshipmen Patrick 1/C USMMA DD: 2004 Golf GLS TDI 43mpg and 2002 Overland: Zone 4in, 32in Treadwright MTRs, IRO upper CAs, lift gate light mod, Alpine/Polk speakers, and power inverter with USB in dash mod, CB, custom rear swing out tire carrier Build thread http://www.jeepforum.com/forum/f22/a...thread-902929/ SOLD

Last edited by Apollo21; 08-22-2010 at 07:55 PM.
Apollo21 is offline
post #5 of 57 Old 08-22-2010, 02:28 PM
narnwv
Moderator

narnwv's Avatar
2000 WJ

Join Date: Sep 2009
Location: Cross Lanes
Posts: 6,417
anxiously awaiting, as I was just looking at where I could permanently install mine.
narnwv is offline
post #6 of 57 Old 08-22-2010, 02:48 PM
billzcat1
Chicken in a Turkey Suit
2003 WJ

Join Date: Oct 2008
Location: Redmond
Posts: 8,532
Under the driver's side rear seat perhaps? Use some 12 or 14ga wiring and mount a 2-outlet plug in the cargo area? My only concern would be cooling for the inverter.
billzcat1 is offline
post #7 of 57 Old 08-22-2010, 03:46 PM
myjeeplovesmud
Registered User
2004 WJ

Join Date: Mar 2009
Location: Madison
Posts: 3,240
heres what a guy that lives by me did

2004 WJ Limited 4.7 H.O
K&N FIPK - Magnaflow Exhaust
17" XD Series Spy Rims- Custom Painted
ZONE 4" Lift With 32" Duratracs
Hella Lighting - Rola Rack - KOR 3/4 Spacers
IRO Sliders - Rusty's Hooks - Cobra CB

MY BUILD THREAD
BAD TO THE BONE ZONE


November 2010 GCOTM
myjeeplovesmud is offline
post #8 of 57 Old 08-22-2010, 04:53 PM
WJChris
Registered User

WJChris's Avatar
2000 WJ

Join Date: Nov 2007
Location: Santa Rosa, California
Posts: 2,801
this is exactly what I'll be doing soon. I may go with dual inverters, just in case. I'll have to upgrade the alternator for the lights anyway.

Please go into detail on the USB connection.
WJChris is offline
post #9 of 57 Old 08-22-2010, 07:56 PM Thread Starter
Apollo21
Registered User
2002 WJ

Join Date: Jun 2009
Location: Frederick, MD
Posts: 3,113
It's all posted up.

Midshipmen Patrick 1/C USMMA DD: 2004 Golf GLS TDI 43mpg and 2002 Overland: Zone 4in, 32in Treadwright MTRs, IRO upper CAs, lift gate light mod, Alpine/Polk speakers, and power inverter with USB in dash mod, CB, custom rear swing out tire carrier Build thread http://www.jeepforum.com/forum/f22/a...thread-902929/ SOLD
Apollo21 is offline
post #10 of 57 Old 08-22-2010, 08:01 PM
myjeeplovesmud
Registered User
2004 WJ

Join Date: Mar 2009
Location: Madison
Posts: 3,240
i too have been thinking about installing one. i dont' have an ashtray, so i'll have to find another spot for mine.
looks good bud

2004 WJ Limited 4.7 H.O
K&N FIPK - Magnaflow Exhaust
17" XD Series Spy Rims- Custom Painted
ZONE 4" Lift With 32" Duratracs
Hella Lighting - Rola Rack - KOR 3/4 Spacers
IRO Sliders - Rusty's Hooks - Cobra CB

MY BUILD THREAD
BAD TO THE BONE ZONE


November 2010 GCOTM
myjeeplovesmud is offline
post #11 of 57 Old 08-22-2010, 08:07 PM
myjeeplovesmud
Registered User
2004 WJ

Join Date: Mar 2009
Location: Madison
Posts: 3,240
i like how its all hidden

2004 WJ Limited 4.7 H.O
K&N FIPK - Magnaflow Exhaust
17" XD Series Spy Rims- Custom Painted
ZONE 4" Lift With 32" Duratracs
Hella Lighting - Rola Rack - KOR 3/4 Spacers
IRO Sliders - Rusty's Hooks - Cobra CB

MY BUILD THREAD
BAD TO THE BONE ZONE


November 2010 GCOTM
myjeeplovesmud is offline
post #12 of 57 Old 08-22-2010, 08:09 PM Thread Starter
Apollo21
Registered User
2002 WJ

Join Date: Jun 2009
Location: Frederick, MD
Posts: 3,113
Thanks Mud

Midshipmen Patrick 1/C USMMA DD: 2004 Golf GLS TDI 43mpg and 2002 Overland: Zone 4in, 32in Treadwright MTRs, IRO upper CAs, lift gate light mod, Alpine/Polk speakers, and power inverter with USB in dash mod, CB, custom rear swing out tire carrier Build thread http://www.jeepforum.com/forum/f22/a...thread-902929/ SOLD
Apollo21 is offline
post #13 of 57 Old 08-22-2010, 08:10 PM
myjeeplovesmud
Registered User
2004 WJ

Join Date: Mar 2009
Location: Madison
Posts: 3,240
does it seem to get hot?

2004 WJ Limited 4.7 H.O
K&N FIPK - Magnaflow Exhaust
17" XD Series Spy Rims- Custom Painted
ZONE 4" Lift With 32" Duratracs
Hella Lighting - Rola Rack - KOR 3/4 Spacers
IRO Sliders - Rusty's Hooks - Cobra CB

MY BUILD THREAD
BAD TO THE BONE ZONE


November 2010 GCOTM
myjeeplovesmud is offline
post #14 of 57 Old 08-22-2010, 08:12 PM Thread Starter
Apollo21
Registered User
2002 WJ

Join Date: Jun 2009
Location: Frederick, MD
Posts: 3,113
Well i haven't run it for long periods under heavy loads yet so i won't know till i go back home and go camping with it. I think i have enough to run a TV and an Xbox haha

Midshipmen Patrick 1/C USMMA DD: 2004 Golf GLS TDI 43mpg and 2002 Overland: Zone 4in, 32in Treadwright MTRs, IRO upper CAs, lift gate light mod, Alpine/Polk speakers, and power inverter with USB in dash mod, CB, custom rear swing out tire carrier Build thread http://www.jeepforum.com/forum/f22/a...thread-902929/ SOLD
Apollo21 is offline
post #15 of 57 Old 08-22-2010, 08:39 PM
myjeeplovesmud
Registered User
2004 WJ

Join Date: Mar 2009
Location: Madison
Posts: 3,240
halo in the campground? hmmmmmm
i'm a PS3 guy myself, but i could see CODing it up lol
