WJ: 9" axle swap/build/help

I've slowly been collecting parts for my rear axle swap over the last year or so. Now I'm taking a continuing ed welding class at the local CC and ready to start preparing the axle to go under the back of the heep. So far I've ordered 4.56's, Detroit locker, LCA, spring buckets, & shock mount tabs (ballistic) and I had Moser re-drill the axle shafts to 5x5 bp.

I've got custom LA's on the WJ made by a local friend. It uses radius arms up front, with a 3-link in the rear (2 long lowers + the factory upper A-Arm). I'd like to keep the rear suspension as is so I can keep the exhaust system in tact. I also would like to re-use the WJ's brakes on the 9 due to needing a E-brake to pass inspection and cheapness since I already have a complete set of rear WJ brakes from a WJ that was parted out.

My plan is to tack weld the LCA, spring buckets, and shock mount tabs on at home using my Clarke 130EN welder, then burning them in using a 220v welder during class. I thought I'd be best to get the shock tabs and LCA brackets as high up as possible on the axle for more clearance, i.e. around the axle center line. Is that correct? or is there a reason the factory design has the shock and LCA's below the axle? For the pinion angle, I'm going to measure the angle my current axle is at and add a few degrees (~10*), then weld on the spring buckets at 0*.

For the disk brakes, I did a quick mock up with the WJ caliper bracket and rotor to see that the hat of the WJ rotor was too deep. I will need to custom make a weld on caliper bracket using the plasma cutter at school. Any tips or pointers?

Also looking for recommendations for the upper mount. I have purchased a new a-arm upper ball joint and was thinking about making a weld on truss which the ball joint would bolt down to similar to the OEM setup.


Obviously this is my first time doing this, so any help or advise is appreciated.

__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote
Unread 06-07-2009, 05:08 PM   #2
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 2,999

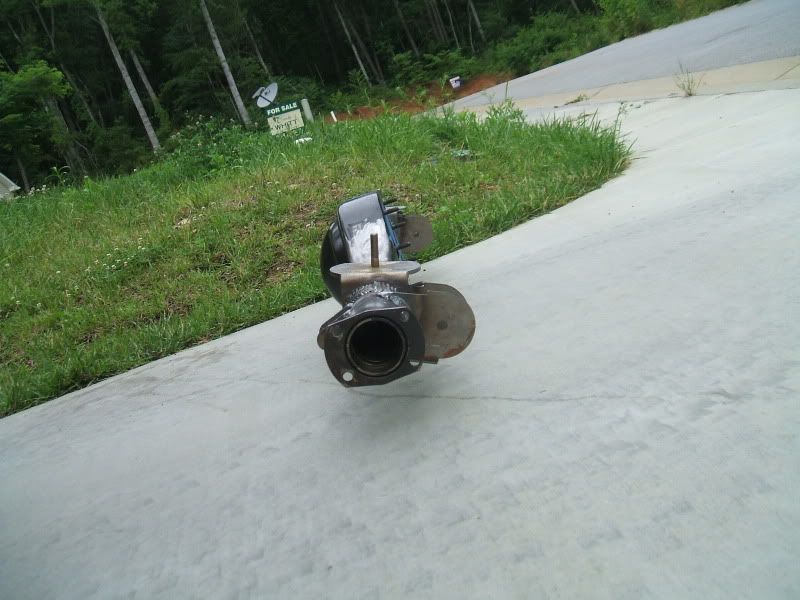

A couple of weeks ago somebody posted a technical drawing of the ZJ rear axle from Claytons website. At that time, there was nothing on there for the WJ, but last week Clayton came out with some High Clearance Brackets for the WJ rear axle, so now theres a WJ diagram up too. Its going to be extremely helpful in laying everything out.

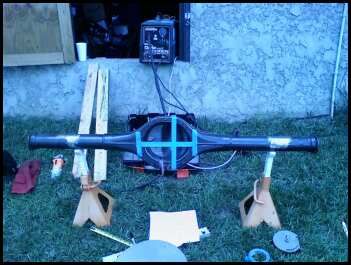

So armed with the diagram, I set to work. Got the center of the axle measured out and started with the spring perches. I had to fill in some gouges I made with the cut-off wheel during removal of the OEM spring perches first. Then I tack welded the spring buckets on. I set the pinion angle to 14* and tacked on the spring buckets at 0*.

Isn't my "workspace awesome?!?! Don't ask me WTF the idiots were doing that built my crawlspace door 3 ft. off the ground...


I'll burn them in completely using a 220v Miller during class on Tues. After doing some reading on MC and Pirate, most people weld the LCA mounts on so that the mounts are flush with the axle centerline. It'll push the axle back about 1", but my arms are adjustable, so it should be fine.
__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote
Unread 06-07-2009, 05:34 PM   #3
skain8
Under Construction

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Location: Reading, PA
Posts: 3,616
I know you want to keep your exhaust in tact, but the factory a-arm limits you in terms of adjustability once you get to a certain point. You may not be there now, but I see 35's in your future. My only suggestion would be to reconsider a 4-link and have a local exhaust shop make it work. I know I've seen a few rigs over on MC that have retained stock exhaust with Clayton's rear.

Good stuff, keep us updated.
__________________
Tom

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's
'99 XJ: stock
'99 XJ: stolen
'06 XK: sold
231HD build guide
skain8 is offline   Reply With Quote
Unread 06-17-2009, 05:28 PM   #4
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 2,999

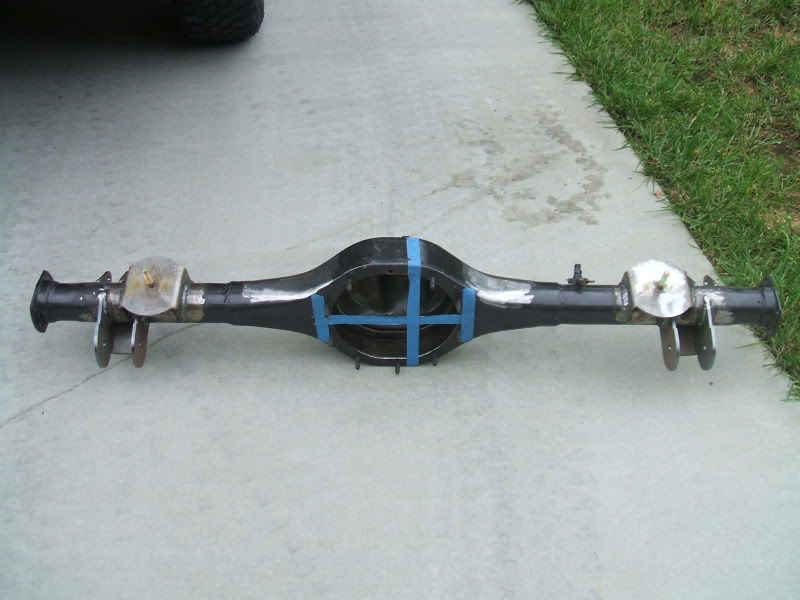

Got the LCA mounts, spring perches and shock tabs welded on. Tomorrow I'll get started on the mount for the upper A-Arm...still gotta figure out brakes :shrug:

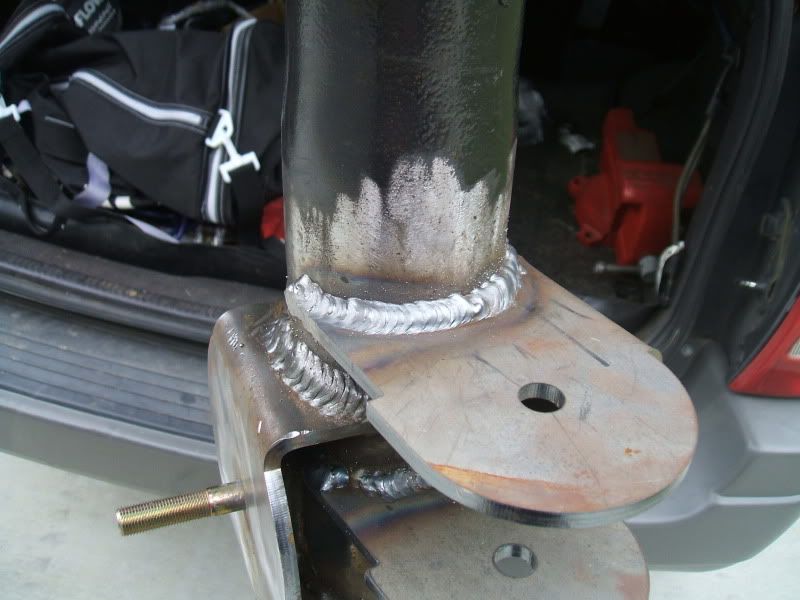

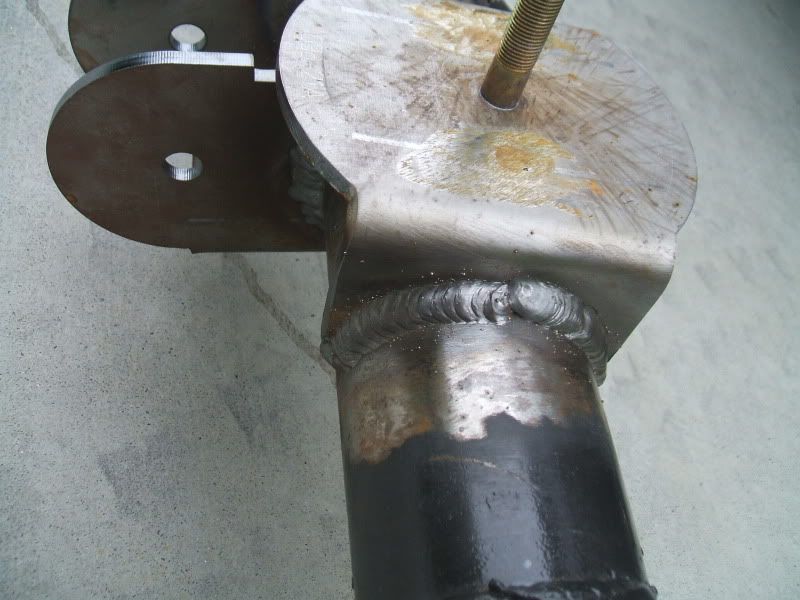

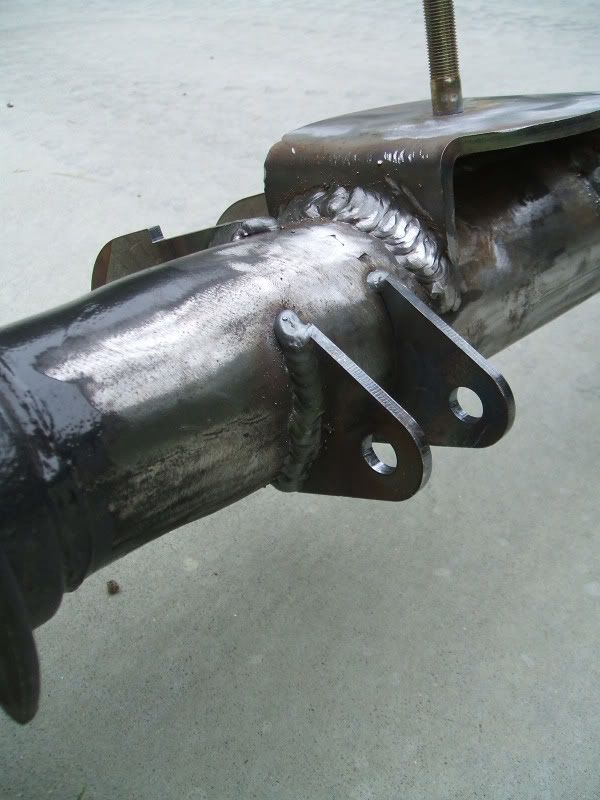

My newbie welds:




__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote
Unread 06-17-2009, 05:39 PM   #5
sandman
Registered User
1993 ZJ

Join Date: Apr 2007
Location: Wilsonville, Oregon
Posts: 5,354
maybe add a tiny bit quicker wire speed but those welds arent bad at all.
__________________
1993 Jeep ZJ. 4.0
sandman is offline   Reply With Quote
Unread 06-17-2009, 06:15 PM   #6
Bama_WJ
Web Wheeler

Bama_WJ's Avatar
2001 WJ

Join Date: Sep 2007
Location: Owens Cross Roads, AL
Posts: 3,766
Nice looking welds. Looking forward to seeing some updates. Its going to look sick under the WJ.
__________________
Daniel
1 Ton WJ Build In Progress

The Daily: 2011 Chevy Cruze Eco - Trifecta tuned and 37+ MPG

Wife's Jeep: 2006 WK Overland - OME HD Lift, 265/70/17 BFG AT's, 1.25" SpiderTrax wheel spacers, 3" Gibson Cat-Back

North Alabama Jeep
42RE Vent Mod - Seal your transmission!
YouTube. - My Video Channel
Facebook - Wheeling Pictures/Videos
The Jeep Wave. Bringing it back.
Bama_WJ is offline   Reply With Quote
Unread 06-17-2009, 09:34 PM   #7
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 2,999
So here's the plan for the upper mount.


The two red lines are 4x2 c-channel and the blue line is 3/8" plate. The A-Arm ball joint will just bolt down to the top plate.

This is what I've figured up from looking at the suspension calculator.



I'd like to get the antisquat up closer to 90%, but I don't know how much higher I can realistically mount the axle side of the uppers. Anyone know if my estimate for the WJ's COG is close?
__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote
Unread 06-17-2009, 10:45 PM   #8
xJoshxx
Web Wheeler

xJoshxx's Avatar
2012 WK

Join Date: Sep 2008
Location: Burlington, Kentucky
Posts: 5,500
Quote:
Originally Posted by YHC2000WJ View Post
So here's the plan for the upper mount.


The two red lines are 4x2 c-channel and the blue line is 3/8" plate. The A-Arm ball joint will just bolt down to the top plate.

This is what I've figured up from looking at the suspension calculator.



I'd like to get the antisquat up closer to 90%, but I don't know how much higher I can realistically mount the axle side of the uppers. Anyone know if my estimate for the WJ's COG is close?
WTF IS that thing using windows 98/2000? i do see a linksys wireless card icon in the corner tho.
__________________
Interested in Amsoil? Sold4" Hybrid lift TeraFlex coils IRO Adjustable LA's Jks tracbar 1.25spidertrax spacers 265/75/16 Dura-tracs
Quote:
Originally Posted by moPowered View Post
The SRt-8's are a liberty design.
2011 WK2 ORA2
2012 WK2 SRT8
xJoshxx is offline   Reply With Quote
Unread 06-17-2009, 10:51 PM   #9
CaribouLouWJ
Registered User
2007 WK

Join Date: Jan 2009
Location: Yermoms house
Posts: 2,282
win2k ftw!
__________________
2007 WK Overland
5.7 Hemi, 18% tint, baby seats
2000 F350 PSD CC LB
2001.5 B5S4 500awhp gutted track car
2002 WJ Limited
4.7 HO, 6.5" LA, 37's, JK 44's SOLD
CaribouLouWJ is offline   Reply With Quote
Unread 06-17-2009, 11:53 PM   #10
gatorayde
Registered User
1999 WJ

Join Date: Jun 2008
Location: Crystal Lake, IL
Posts: 3,334
win2k is for losers, win 95 is where it's at.
gatorayde is offline   Reply With Quote
Unread 06-18-2009, 06:21 AM   #11
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 2,999
LOL, someone said the same thing over on MC. That comp is from ~ 1998 and the only one I've around not running vista. I couldn't find a 4 link calc that worked in vista...
__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote
Unread 06-18-2009, 07:27 AM   #12
Wheelin98TJ
JEEP FREAK

Wheelin98TJ's Avatar
1998 TJ Wrangler

Join Date: Apr 2004
Location: , Southeast MI
Posts: 24,402
Looks like its coming along nicely.

Is it going to be high pinion or low pinion?
Wheelin98TJ is online now   Reply With Quote
Unread 06-18-2009, 08:38 AM   #13
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 2,999
Its LP. I had a Currie Hi9 center for it, but a piston broke in the engine over the winter and I had to sell it to fund the rebuild/stroker.
__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote
Unread 05-15-2010, 09:05 PM   #14
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 2,999

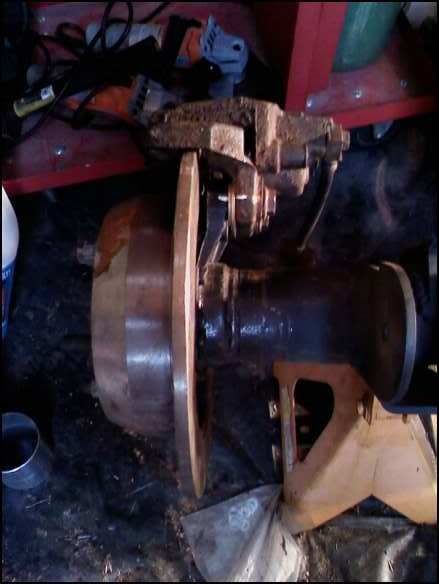

Still working on this a little bit at a time...getting closer to finishing it up. Here's my take on getting the WJ disc's on the 9. My 9 has the big bearing, late style ends. Here's the redrill and grinding I did to make the caliper bracket flat.

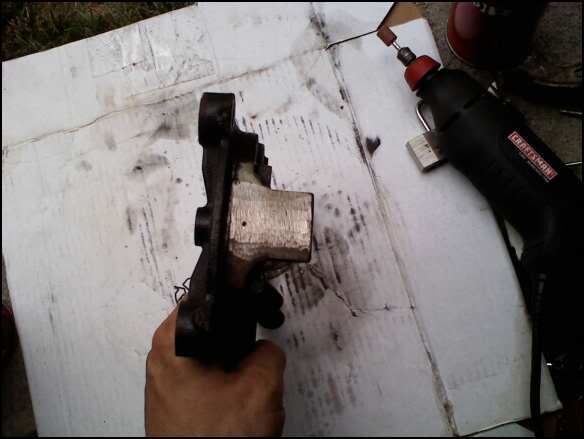

And I took a little off the piece inside the rotor hat. The clearance here was really tight since the rotor sits a little deeper on the 9 than the 35.

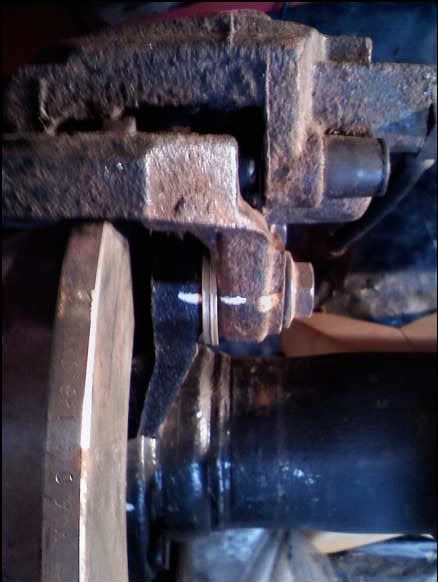

I got a 1/4" spacer from Currie that is supposed to be used with their Explorer disc brake setup and had it pressed on with some new bearings. I had to cut off a small piece of the axle retainer to clear the Currie spacer. Here's the setup. From the inside-->out, caliper bracket(not pictured), axle bearing/seal assembly, Currie spacer, axle retainer.

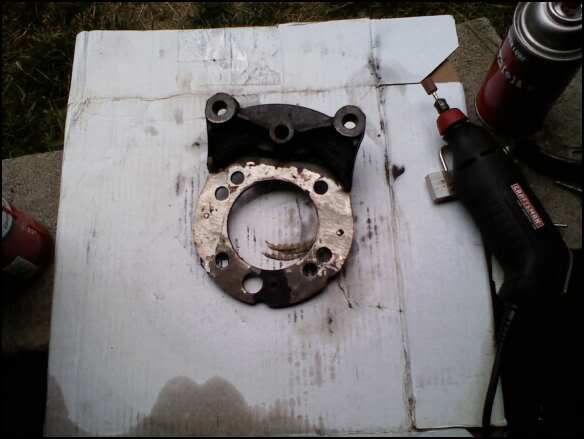

I had to take a very small amount of metal out of the center of the rotor to make it fit over the 9" axle flange. I kept taking very small amounts and test fitting so that the rotor was still a hub-centric fit. Instead of using a 1/4" spacer between the rotor and axle flange like AP, I found that 2 washers stacked between the caliper bracket and caliper created the proper spacing. Here's the rotor and caliper mounted with the washers as spacers.
