Two unidentified brackets on 2004 4.7 HO

Putting things back together and I realize that I didn't document as well as I usually do. The first bracket seems to fit between the timing cover and the bottom of the a/c compressor. Not sure if that's the right place for it.



And the other bracket is L shaped and I vaguely remember it was attached to something between the right side valve cover and the throttle body. But I'm not sure.



Would greatly appreciate some guidance. I'd like to get this wrapped up tomorrow.

Knoxes is offline   Reply With Quote Quick reply to this message
Unread 08-23-2014, 04:32 PM   #2
asatxj
Registered User
2001 WJ

Join Date: Jan 2004
Location: West Michigan
Posts: 949
Pic one is correct. Pic 2, I don't recall a bracket there. It might support the vac. line that is supposed to be heading from the rear of the valve cover up to the oil filler.
__________________
Jeep Fleet Maintenance Director
'00 WJ, son's Jeep,'01 WJ mine, '04 TJ, brother's Jeep,00 WJ daughter's
Maintain your stuff so you don't have to fix your junk
ASAT= All Season All Terrain
asatxj is offline   Reply With Quote Quick reply to this message
Unread 08-23-2014, 04:41 PM   #3
Knoxes
Registered User
2004 WJ

Join Date: Feb 2004
Posts: 308
Thanks on #1. (seems like an odd and unnecessary piece of metal there).

Possible, but I don't think so on #2. Since it lays flat like that (and I can't see any other way to mount it), the vac line would need to have a plastic rivet connector. It might, but I don't think that it does.
Knoxes is offline   Reply With Quote Quick reply to this message
Unread 08-23-2014, 06:37 PM   #4
HighOutput
Registered User
2003 WJ

Join Date: Jun 2012
Location: Red Centre, NT
Posts: 102
Quote:
Originally Posted by Knoxes View Post
Thanks on #1. (seems like an odd and unnecessary piece of metal there).

Possible, but I don't think so on #2. Since it lays flat like that (and I can't see any other way to mount it), the vac line would need to have a plastic rivet connector. It might, but I don't think that it does.

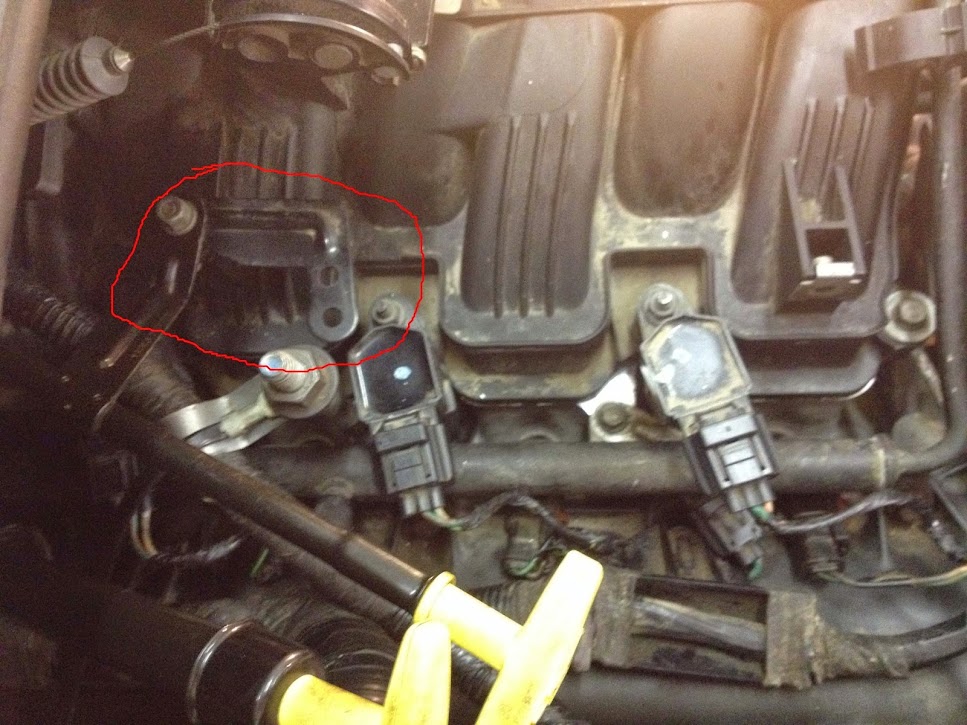

I did my spark plugs yesterday 03 Overland and the last plug on left side has the bracket attached to the coil nut. There is another plug with red markings that has 2 screws underneath and the 2 screws just allow the plug to sit into the 2 holes you see on the L bracket.

See plug below with red markings sitting on the L bracket.

HighOutput is offline   Reply With Quote Quick reply to this message
Unread 08-23-2014, 08:30 PM   #5
Knoxes
Registered User
2004 WJ

Join Date: Feb 2004
Posts: 308
Ok, that connector goes between the last two coil packs on the passenger side and mounts on that bracket. Excellent - thanks!
Knoxes is offline   Reply With Quote Quick reply to this message
Unread 08-25-2014, 09:31 AM   #6
Knoxes
Registered User
2004 WJ

Join Date: Feb 2004
Posts: 308
Quote:
Originally Posted by asatxj View Post
Pic one is correct. Pic 2, I don't recall a bracket there. It might support the vac. line that is supposed to be heading from the rear of the valve cover up to the oil filler.
The part in bold caught my attention. I see a small fitting on the side of the oil filler, but I don't recall anything connected. Should there be something there?

I do have a mystery part - it looks a lot like the CCV system tubing. It could be the "vapor purge harness", part number 53013636AD, but I'm not sure that's it. I spent a ridiculous amount of time trying to find a home for that thing yesterday.
