Track Bar Adjustment Question..

Im on 3" Lift. I just got my track Bar Yesterday.
I absolutely have no clue how to adjust it, to bring back the Jeep to its center spec. Can anybody help me. Thanks.

blazepsi is offline   Reply With Quote Quick reply to this message
Unread 11-16-2010, 07:50 AM   #2
Nubster
Registered User
2002 WJ

Join Date: Feb 2009
Location: Romney, WV
Posts: 786
You have to measure each side to make sure there is the same amount of space on both sides. Take your tape measure and with your front wheels pointed straight, find a spot on the tire to measure from to a point on the frame or body of the Jeep inside the wheel well area. Do the same on the other side using the exact same points. If it is out use a ratchet strap to pull it back to even and install the track bar then remove the strap.
__________________
My 2002 WJ Build Thread

"When I Die, Bury me in my Jeep. 'Cause it's never been in a hole it couldn't get out of!"

White Jeep Club #132
Nubster is offline   Reply With Quote Quick reply to this message
Unread 11-16-2010, 09:36 AM   #3
blazepsi
Registered User
2001 WJ

Join Date: Jan 2010
Location: LAS VEGAS
Posts: 698
Can I measure using the Nuts? Ive read that steering the wheels as i measure will do the trick as well. Does this apply to WJs as well?
blazepsi is offline   Reply With Quote Quick reply to this message
Unread 11-16-2010, 11:59 AM   #4
Nubster
Registered User
2002 WJ

Join Date: Feb 2009
Location: Romney, WV
Posts: 786
I think the steering wheel trick will work too but you need someone to turn it as you measure and mount the bar. The ratchet strap trick is more for when you don't have help and honestly I think it would work better anyways and be more precise.

Not sure what you mean but using the nuts?
__________________
My 2002 WJ Build Thread

"When I Die, Bury me in my Jeep. 'Cause it's never been in a hole it couldn't get out of!"

White Jeep Club #132
Nubster is offline   Reply With Quote Quick reply to this message
Unread 12-08-2010, 05:11 PM   #5
blazepsi
Registered User
2001 WJ

Join Date: Jan 2010
Location: LAS VEGAS
Posts: 698
where do i strap the ratchet strap? any points on the jeep. Im guessing axle and what? Im having a hard time locating on which part of the body should i strap it in. driver side Btw. tnx
blazepsi is offline   Reply With Quote Quick reply to this message
Unread 12-09-2010, 09:26 AM   #6
RedlegWJ
Registered User
1999 WJ

Join Date: Jun 2009
Location: Lansing Michigan, Michigan
Posts: 1,523
I just parked in a level spot. Used a short carpenters level vertically at the center of each fender at the hub. Measured center of outer tire wall to inside edge of the level on both sides and split the difference. Adjust the track bar, then check your measurement again. Usually, cranking the steering the other way got the holes lined up enough to get the bolt in.
RedlegWJ is offline   Reply With Quote Quick reply to this message
Unread 12-09-2010, 10:09 AM   #7
blazepsi
Registered User
2001 WJ

Join Date: Jan 2010
Location: LAS VEGAS
Posts: 698

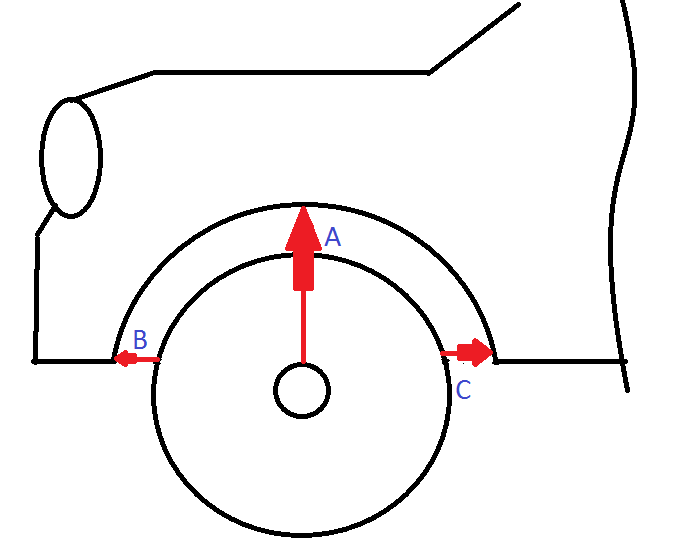

Darn it.i think im measuring it on the wrong points. where should i measure it? A? B? C? or the right way D?
blazepsi is offline   Reply With Quote Quick reply to this message
Unread 12-09-2010, 10:23 AM   #8
tsconver
Registered User
2003 WJ

Join Date: Nov 2007
Location: Durham, North Carolina
Posts: 2,943
D would be the answer. THe track bar is side to side under the vehicle not up and down or front to rear which are the measurements in your drawing.
__________________
Speak softly and carry a big stick.

We have room but for one flag, the American flag . . . We have room but for one language, and that is the English language . . . And we have room for but one sole loyalty...and that is a loyalty to the American people. T. Roosevelt 1919

2003 Grand Cherokee 4.0L Laredo

My Build Thread

A few goodies
http://s257.photobucket.com/albums/h...umb55839/jeep/

2001 Kawasaki 1200 ZRX
A few Speed parts, fun to ride
http://www.zrxoa.org/

2006 Red Liberty
Wife's ride, pretty stock
http://i257.photobucket.com/albums/h...mage0008-1.jpg

http://www.cnc4x4.org/

http://www.treadlightly.org/

tsconver is offline   Reply With Quote Quick reply to this message
Unread 12-09-2010, 10:25 AM   #9
blazepsi
Registered User
2001 WJ

Join Date: Jan 2010
Location: LAS VEGAS
Posts: 698
Waa! I just read some more stuff about adjusting this. I was doing A, Which is completely stupid. I thought i have to measure the height from each side. No wonder why my tires shows more outside of the fender than the other.
Ive read more of it but is till don't get it. Can anyone can make me an illustration like what i did on how to properly measure it.
Ill do the steering trick, i just don't know where to measure it. Ones i learn this i might as well do a write up about it. I couldn't find one with pics.
oh well, thats how we all learn. by asking. so can anyone please help.tnx.
blazepsi is offline   Reply With Quote Quick reply to this message
Unread 12-09-2010, 10:40 AM   #10
blazepsi
Registered User
2001 WJ

Join Date: Jan 2010
Location: LAS VEGAS
Posts: 698

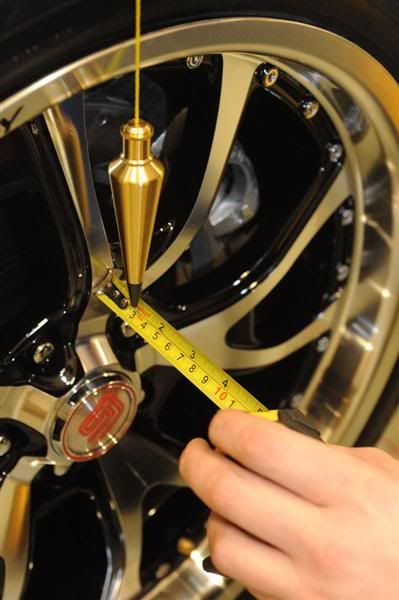

I guess this is how im suppose to do it...?



blazepsi is offline   Reply With Quote Quick reply to this message
Unread 12-09-2010, 10:48 AM   #11
RedlegWJ
Registered User
1999 WJ

Join Date: Jun 2009
Location: Lansing Michigan, Michigan
Posts: 1,523
The track bar centers the axle under the vehicle from left to right (left and right are always taken from the driver's perspective). When you go up in lift, the stock track bar will bring the center of the axle (center being between the the 2 wheels) closer to the driver side of the vehicle. An adjustable track bar allows you to puch the center of the axle to the right, back under the center of the vehicle. On level ground, I was describing measuring the gap of both sides of the vehicle, between the outer edge of the fender and the tire. Subtract the difference of the 2 measurements and that will be your track bar adjustment.

Edit- You posted the pics while I was typing, yes, that's how but I oculdn't find my plumb bob and just used a 3 ft level.
RedlegWJ is offline   Reply With Quote Quick reply to this message
Unread 12-09-2010, 11:10 AM   #12
blazepsi
Registered User
2001 WJ

Join Date: Jan 2010
Location: LAS VEGAS
Posts: 698
Awesome. I'm thinking that i should find the center of the axle and center of the body then try to let them meet up at the middle. Which i believe is the harder way, or just measure the Fender-to-Hub from each side(the easier way.

Funny how i was doing it all wrong. I learned what a plumb bob looks like. now time to readjust. Tnx folks. ill make a write up to share.
blazepsi is offline   Reply With Quote Quick reply to this message
Unread 12-09-2010, 12:42 PM   #13
RedlegWJ
Registered User
1999 WJ

Join Date: Jun 2009
Location: Lansing Michigan, Michigan
Posts: 1,523
Hopefully the plumb bob line in the picture isn't touching the tire as it appears to be, if so, he's just measuring the wheels backspacing.
RedlegWJ is offline   Reply With Quote Quick reply to this message
