Rear axle seal removal

Quick question,

is a slide hammer absolutely necessary to remove the rear axle? I'd hate to spend an extra $150.

as350b3e is offline   Reply With Quote Quick reply to this message
Unread 04-26-2013, 08:03 PM   #2
Jeffro06
October 2012 TJOTM

Jeffro06's Avatar
2006 TJ Wrangler

Join Date: Jun 2007
Location: Total, Confusion
Posts: 9,796
I don't know the answer to that (but am inclined to say you don't), but I'm sure you could find a autoparts store that loans/rents tools.
__________________
Member of JGW (Jeff's Gone Wheeling) and IndyORV
My Old YJ Build My Mods My YouTube Channel

Moab Trails I've done: Onion Creek, Long Canyon, Dome Plateau, Top of The World (2), Fins-N-Things (2), Poison Spider,
Golden Spike, Gold Bar Rim, Hell's Revenge (2), Baby Lion Back, Cliff Hanger, Moab Rim, Kane Creek Canyon, Strike Ravine

Shortcuts to key points in my build: MTRk's OME 2" HD Lift Antirock Skidrow steering box & radiator skids LoD rear bumper
Rokmen Mercenary bumper w/Superwinch Rokmen sliders Skidrow engine skid Rampage Top CB set up
Custom trunk Rokmen 1" Billet spacers JJ track bar Rokmen Adjustable Control Arms Currectlync Steering
Rokmen Trail Corners Metalcloak Overlines Kentrol Hood Latches JK Turn Signals Xenon 4" Flat Flares Hood Decal Duratracs
Derale Tranny Cooler DieHard Factor 55 Thimble Ten Factory Front Chromo Shafts

Get your build sheet here.
Jeffro06 is offline   Reply With Quote Quick reply to this message
Unread 04-26-2013, 08:13 PM   #3
as350b3e
Registered User
1999 WJ

Join Date: Aug 2012
Location: Fort McMurray, Alberta
Posts: 67
Here in Fort McMurray where the shop rate is $210 /hr at dealer there is no such thing as renting tools......
as350b3e is offline   Reply With Quote Quick reply to this message
Unread 04-26-2013, 08:26 PM   #4
Jeffro06
October 2012 TJOTM

Jeffro06's Avatar
2006 TJ Wrangler

Join Date: Jun 2007
Location: Total, Confusion
Posts: 9,796
Not a dealer, a parts store.
__________________
Member of JGW (Jeff's Gone Wheeling) and IndyORV
My Old YJ Build My Mods My YouTube Channel

Moab Trails I've done: Onion Creek, Long Canyon, Dome Plateau, Top of The World (2), Fins-N-Things (2), Poison Spider,
Golden Spike, Gold Bar Rim, Hell's Revenge (2), Baby Lion Back, Cliff Hanger, Moab Rim, Kane Creek Canyon, Strike Ravine

Shortcuts to key points in my build: MTRk's OME 2" HD Lift Antirock Skidrow steering box & radiator skids LoD rear bumper
Rokmen Mercenary bumper w/Superwinch Rokmen sliders Skidrow engine skid Rampage Top CB set up
Custom trunk Rokmen 1" Billet spacers JJ track bar Rokmen Adjustable Control Arms Currectlync Steering
Rokmen Trail Corners Metalcloak Overlines Kentrol Hood Latches JK Turn Signals Xenon 4" Flat Flares Hood Decal Duratracs
Derale Tranny Cooler DieHard Factor 55 Thimble Ten Factory Front Chromo Shafts

Get your build sheet here.
Jeffro06 is offline   Reply With Quote Quick reply to this message
Unread 04-26-2013, 08:31 PM   #5
SuperStew11
Registered User
2000 WJ

Join Date: Mar 2013
Posts: 204
Yes you do need a slide hammer to take off your axles, changed my seal and bearings last year
SuperStew11 is offline   Reply With Quote Quick reply to this message
Unread 04-26-2013, 08:34 PM   #6
RevNL
Registered User
1999 WJ

Join Date: Jul 2009
Location: Northern VA
Posts: 129
Since I was replacing the discs at the same time, I bolted the discs on backwards and beat on them with a hammer until the axle came out. It didn't really take a lot of effort.
RevNL is offline   Reply With Quote Quick reply to this message
Unread 04-26-2013, 08:34 PM   #7
as350b3e
Registered User
1999 WJ

Join Date: Aug 2012
Location: Fort McMurray, Alberta
Posts: 67
Ok, I guess I will need to get a slide hammer then.
Thanks.
as350b3e is offline   Reply With Quote Quick reply to this message
Unread 04-26-2013, 08:45 PM   #8
dru_b
Registered User
2008 JK Wrangler

Join Date: Mar 2013
Location: rock island, il
Posts: 100
like said before, the local auto parts store may have a rental tool program... advanced auto, oreillys, autozone all near me do so. cost me $35 to rent a slide hammer with a full refund upon return of tool within 48hrs. although i did pull the rear axles without one. i did this:

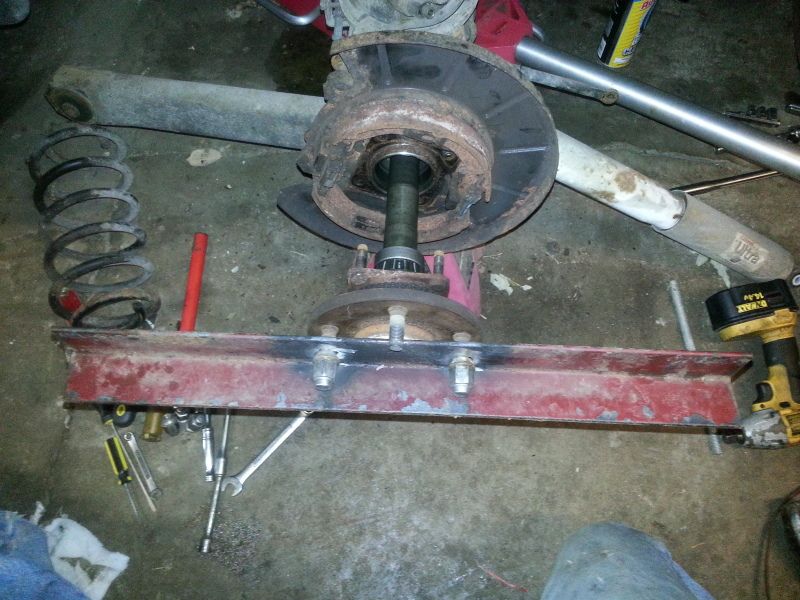

i used a torch for the holes but a drill and bit would work just fine. flat plate would work also if it is thick enough not to bend when whacked.
