Question paint marks on hub & lugs - pic

What are they and what do they mean? Including the yellow on on the single lug bolt...

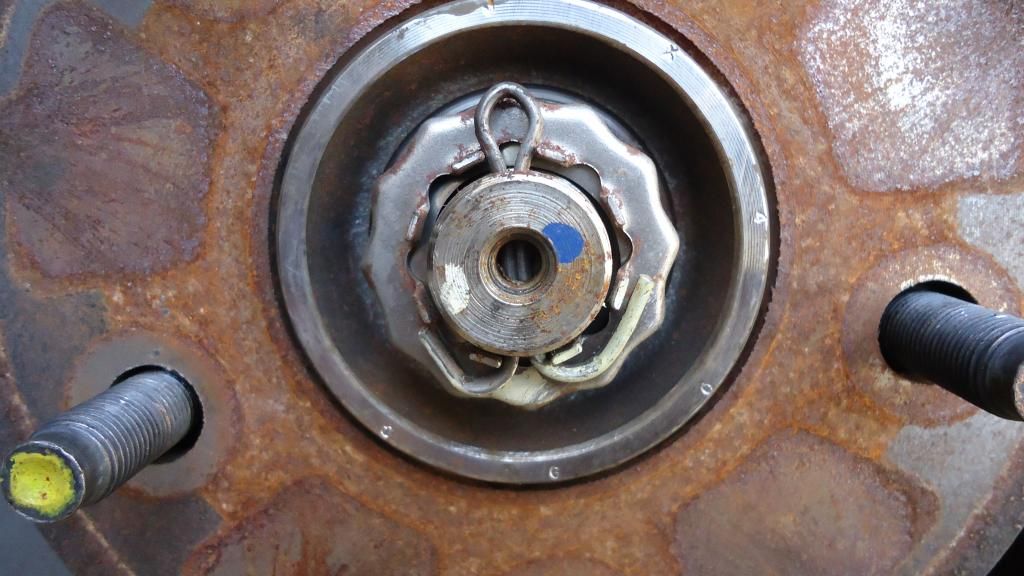

Are they to line up something with the hub so you can tighten the nut correctly or what? Notice there are actually TWO white marks...one is below the open end of the cotter pin and harder to see




ZJ - 5.9 Limited
WJ - '04 4.7 Laredo
WJ - '04 4.7 H.O. Freedom
WJ - '04 Overland
FastSUV is offline
Sponsored Links
Advertisement

post #2 of 4 Old 08-18-2014, 09:17 PM
79chiefs
Registered User
1988 XJ Cherokee

Join Date: Dec 2012
Location: Lillington
Posts: 994
Not sure about the hub, but from MY understanding the dot on the stud should line up with the tire valve stem, and should be the stud you out the locking lug nut on if you have one.
Also the dot on a tire means the same thing, the valve stem should be aligned to the dot when mounting for the best balance from the get-go.

99WJ Laredo I6-A 2wd
88XJ-Building on a budget.
95 E34 540i-DD
79chiefs is offline
post #3 of 4 Old 08-19-2014, 01:06 PM Thread Starter
FastSUV
Registered User
1998 ZJ

Join Date: Sep 2012
Posts: 807
Quote:
Originally Posted by 79chiefs View Post
Not sure about the hub, but from MY understanding the dot on the stud should line up with the tire valve stem, and should be the stud you out the locking lug nut on if you have one.
Also the dot on a tire means the same thing, the valve stem should be aligned to the dot when mounting for the best balance from the get-go.
well, if you have new tires, then I don't see how that could remain the same lug bolt forever?

ZJ - 5.9 Limited
WJ - '04 4.7 Laredo
WJ - '04 4.7 H.O. Freedom
WJ - '04 Overland
FastSUV is offline
post #4 of 4 Old 08-19-2014, 02:38 PM
WJChris
Registered User

WJChris's Avatar
2000 WJ

Join Date: Nov 2007
Location: Santa Rosa, California
Posts: 2,801
I believe they are assembly markings. QA marks to assure certain processes are completed before the next step on the line during build.
