Unread 04-13-2012, 06:09 AM   #76
dr hook
Registered User
1996 ZJ

Join Date: Feb 2006
Location: Cedartown, GA
Posts: 661
The carrier is lookin good man. I do, however, have a small bit of advice that come from the experience from my first tire carrier build on my TJ...

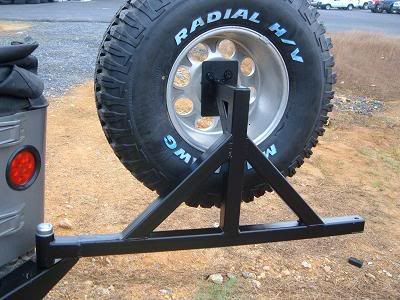

The upright for the tire mount NEEDS to be braced. The best way would be like this


Even if it has great weld penetration, the stress of that tire hanging on that single upright will eventually crack the welds and cause it to fail.

__________________
96 V8 ZJ with stuff. "It's not purple... it's MURPLE". You know, kinda maroon, kinda purple :rofl:
dr hook is offline   Reply With Quote Quick reply to this message
Unread 04-13-2012, 06:27 AM   #77
mrJ
Registered User
2002 KJ Liberty

Join Date: Sep 2010
Posts: 3,874
Is that 2x2 on everything?
__________________
Build In Progress...[url]http://www.jeepforum.com/forum/f22/03-wj-limited-build-she-needs-name-1113549/[/url]

It's a Jeep, it's not supposed to work right all the time.

Live in Florida? Check out Florida4x4.org!!!
mrJ is offline   Reply With Quote Quick reply to this message
Unread 04-13-2012, 06:34 AM   #78
dr hook
Registered User
1996 ZJ

Join Date: Feb 2006
Location: Cedartown, GA
Posts: 661
Quote:
Originally Posted by mrJ View Post
Is that 2x2 on everything?

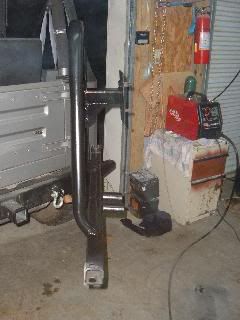

yes it was. the tire was a 35, and I started seeing stress fractures on the welds closest to the body. i changed my design to tuck the tire closer to the body by doing this:


and the tire rested on these 2 small standoffs to distribute the weight


sorry for the hijack, i would just hate to see a "my tire carrier broke" thread
__________________
96 V8 ZJ with stuff. "It's not purple... it's MURPLE". You know, kinda maroon, kinda purple :rofl:
dr hook is offline   Reply With Quote Quick reply to this message
Unread 04-13-2012, 08:26 AM   #79
4Doors
Registered User
1999 WJ

Join Date: Jan 2007
Location: FL Panhandle
Posts: 833
Haha, I love your sticker!
4Doors is offline   Reply With Quote Quick reply to this message
Unread 04-13-2012, 11:33 AM   #80
thisguyhasadd2
Registered User
2002 WJ

Join Date: May 2008
Location: Fort Collins/Lake Zurich, Coloroado/Illinois
Posts: 1,026
Quote:
Originally Posted by dr hook View Post
The carrier is lookin good man. I do, however, have a small bit of advice that come from the experience from my first tire carrier build on my TJ...


The upright for the tire mount NEEDS to be braced. The best way would be like this


Even if it has great weld penetration, the stress of that tire hanging on that single upright will eventually crack the welds and cause it to fail.
i agree 100% however im only going to brace it on one side
__________________
2002 Overland - 4" rc -255/75/17/Jk Moabs
1982 Yamaha XT200J- dead, rebuild winter
Colorado Jeep Club Member#259
thisguyhasadd2 is offline   Reply With Quote Quick reply to this message
Unread 04-13-2012, 12:05 PM   #81
Apollo21
Registered User
2002 WJ

Join Date: Jun 2009
Location: Frederick, MD/Kings Point, NY, MD/NY
Posts: 3,112
Quote:
Originally Posted by thisguyhasadd2 View Post
i agree 100% however im only going to brace it on one side
thats what i did
__________________
Midshipmen Patrick 1/C USMMA DD: 2004 Golf GLS TDI 43mpg and 2002 Overland: Zone 4in, 32in Treadwright MTRs, IRO upper CAs, lift gate light mod, Alpine/Polk speakers, and power inverter with USB in dash mod, CB, custom rear swing out tire carrier Build thread [url]http://www.jeepforum.com/forum/f22/apollo21-build-thread-902929/[/url] SOLD
Apollo21 is offline   Reply With Quote Quick reply to this message
Unread 04-19-2012, 04:47 PM   #82
thisguyhasadd2
Registered User
2002 WJ

Join Date: May 2008
Location: Fort Collins/Lake Zurich, Coloroado/Illinois
Posts: 1,026
Lowered the tire 2" and pulled it closer to the body, also braced it. Two more weeks of weld time do gotta finish




__________________
2002 Overland - 4" rc -255/75/17/Jk Moabs
1982 Yamaha XT200J- dead, rebuild winter
Colorado Jeep Club Member#259
thisguyhasadd2 is offline   Reply With Quote Quick reply to this message
Unread 04-19-2012, 04:59 PM   #83
mrJ
Registered User
2002 KJ Liberty

Join Date: Sep 2010
Posts: 3,874
Attaboy. Sucks only having one day a week. I know. Hopefully gonna finish mine this weekend bc jeep beach is next weekend!
__________________
Build In Progress...[url]http://www.jeepforum.com/forum/f22/03-wj-limited-build-she-needs-name-1113549/[/url]

It's a Jeep, it's not supposed to work right all the time.

Live in Florida? Check out Florida4x4.org!!!
mrJ is offline   Reply With Quote Quick reply to this message
Unread 04-19-2012, 06:21 PM   #84
duranged
Registered User
2001 WJ

Join Date: Dec 2005
Location: SoCal
Posts: 259
Quote:
Originally Posted by thisguyhasadd2 View Post
Lowered the tire 2" and pulled it closer to the body, also braced it. Two more weeks of weld time do gotta finish
can you post a pic of the rear? (straight on view) I'm making a carrier but might have it only go 1/2 across.
__________________
2001 WJ Limited; 4.7L; 4.5" RK LA; 305:65:17 ProComp Xtreme AT; 231 HD w/ SS SYE; KOR sliders; ARB front w/Warn and in-cab controls; Custom4x4Fab rear; Dual Battery via 12voltguy.
duranged is offline   Reply With Quote Quick reply to this message
Unread 04-19-2012, 07:30 PM   #85
jonnythunder
Registered User
1999 WJ

Join Date: Nov 2007
Location: Kimberly, WI
Posts: 50
I really like your design! Very well thought out. I'd suggest turnin' the heat up on your welder a bit. It'll help burn it in a little and not be so pronounced (less grinding). Looks great though! Keep it up!
__________________
There's the right way, there's the wrong way, and then there's MY way, which is like the wrong way, only faster.
jonnythunder is offline   Reply With Quote Quick reply to this message
Unread 04-19-2012, 10:25 PM   #86
thisguyhasadd2
Registered User
2002 WJ

Join Date: May 2008
Location: Fort Collins/Lake Zurich, Coloroado/Illinois
Posts: 1,026
Thanks for the compliment, im clearly still a noob with welding, especially working with the different settings , ill just be happy if it all stays together... I wish I had someone watching and giving me tips throughout. Might need to buy my own and get balls deep in practicing ha.

Ill get a picture for you in the morning straight on. Why do you want to only go halfway? Steel cost would only be like 20$ cheaper. I still plan on asking a jerry can for dirt bike fuel and placement four skis and snowboards.
On a side note I plan to only have fuel in it on a trip, my teacher was telling me how a friend of his had been rearended and the tanks blew up and killed him. Sad story.
Jerry can mount will be perfect to relocate the license plate n light
__________________
2002 Overland - 4" rc -255/75/17/Jk Moabs
1982 Yamaha XT200J- dead, rebuild winter
Colorado Jeep Club Member#259
thisguyhasadd2 is offline   Reply With Quote Quick reply to this message
Unread 04-19-2012, 11:14 PM   #87
duranged
Registered User
2001 WJ

Join Date: Dec 2005
Location: SoCal
Posts: 259
Quote:
Originally Posted by thisguyhasadd2 View Post
...Why do you want to only go halfway? Steel cost would only be like 20$ cheaper. I still plan on asking a jerry can for dirt bike fuel and placement four skis and snowboards.
i want my spare as far left as possible so i still have over-the-shoulder view out the rear. that would leave a lot of empty space. that's kinda why a wanted to see what it looked like. i think protofab uses 1/2 length.

who knows, maybe i'll keep it full length and add mounts for a jerry can and co2 tank.

BTW: are you using a lockout pin?
__________________
2001 WJ Limited; 4.7L; 4.5" RK LA; 305:65:17 ProComp Xtreme AT; 231 HD w/ SS SYE; KOR sliders; ARB front w/Warn and in-cab controls; Custom4x4Fab rear; Dual Battery via 12voltguy.
duranged is offline   Reply With Quote Quick reply to this message
Unread 04-20-2012, 11:26 AM   #88
thisguyhasadd2
Registered User
2002 WJ

Join Date: May 2008
Location: Fort Collins/Lake Zurich, Coloroado/Illinois
Posts: 1,026
Heres that pic


im using a half inch pin I bent and tappered, gravity and a snug fit
__________________
2002 Overland - 4" rc -255/75/17/Jk Moabs
1982 Yamaha XT200J- dead, rebuild winter
Colorado Jeep Club Member#259
thisguyhasadd2 is offline   Reply With Quote Quick reply to this message
Unread 04-20-2012, 03:17 PM   #89
thisguyhasadd2
Registered User
2002 WJ

Join Date: May 2008
Location: Fort Collins/Lake Zurich, Coloroado/Illinois
Posts: 1,026
Quote:
Originally Posted by rickcricket View Post
Since we are on the topic, I am looking at doing a modified version of this tire carrier for a JK. Trying to think of a way to get it to lock though.,,I dunno?
found a jeep in town with this carrier and got you some pictures of that hinge if you see this...
that jk also has an srt8 motor and 37s
526163_10150755287188044_501853043_9456524_841163087_n.jpg   549348_10150755279568044_501853043_9456514_2026954104_n.jpg
__________________
2002 Overland - 4" rc -255/75/17/Jk Moabs
1982 Yamaha XT200J- dead, rebuild winter
Colorado Jeep Club Member#259
thisguyhasadd2 is offline   Reply With Quote Quick reply to this message
Unread 04-20-2012, 03:33 PM   #90
duranged
Registered User
2001 WJ

Join Date: Dec 2005
Location: SoCal
Posts: 259
Quote:
Originally Posted by thisguyhasadd2 View Post
Heres that pic
im using a half inch pin I bent and tappered, gravity and a snug fit
Thanks! I think i'll make it full length for now and if i really don't like it i'll chop it down later.
__________________
2001 WJ Limited; 4.7L; 4.5" RK LA; 305:65:17 ProComp Xtreme AT; 231 HD w/ SS SYE; KOR sliders; ARB front w/Warn and in-cab controls; Custom4x4Fab rear; Dual Battery via 12voltguy.
duranged is offline   Reply With Quote Quick reply to this message
