Unread 12-23-2012, 04:52 PM   #46
Bphase
Registered User
1999 WJ

Join Date: Oct 2011
Location: Corning, Ny
Posts: 267
Not quite finished.

Bphase is offline   Reply With Quote Quick reply to this message
Unread 12-23-2012, 05:16 PM   #47
gcjeeping
Web Wheeler

gcjeeping's Avatar
2001 WJ

Join Date: Feb 2007
Location: -----Sacramento-----, USAF RETIRED 462X0
Posts: 3,503
Looks good. What are going to do about the lock handle. Pretty sure its going to hit the bottom of the grill. Doesnt look like yours can be rotated down either.
gcjeeping is offline   Reply With Quote Quick reply to this message
Unread 12-23-2012, 06:35 PM   #48
Bphase
Registered User
1999 WJ

Join Date: Oct 2011
Location: Corning, Ny
Posts: 267
I was thinking about cutting the top of the bumper and putting a hinge on it, for access to the handle and to be able to see the cable when respooling.
Bphase is offline   Reply With Quote Quick reply to this message
Unread 12-23-2012, 06:48 PM   #49
gcjeeping
Web Wheeler

gcjeeping's Avatar
2001 WJ

Join Date: Feb 2007
Location: -----Sacramento-----, USAF RETIRED 462X0
Posts: 3,503
You can see in this pic there is no room for the handle. I was thinking also the plate could go on top of the uniframe and have the ends bend up that way the handle faces down. Put the header on and show a pic.

gcjeeping is offline   Reply With Quote Quick reply to this message
Unread 12-24-2012, 10:24 AM   #50
Bphase
Registered User
1999 WJ

Join Date: Oct 2011
Location: Corning, Ny
Posts: 267
Ok, so its together but I had to hack up the bumper and grill a lot to get it to work. I'll pick up another bumper and grill sometime and trim a little better but it doesn't look too bad.
Bphase is offline   Reply With Quote Quick reply to this message
Unread 12-24-2012, 10:25 AM   #51
Bphase
Registered User
1999 WJ

Join Date: Oct 2011
Location: Corning, Ny
Posts: 267
Also, I'm going to get a fair lead licence plate holder cover thingie.
Bphase is offline   Reply With Quote Quick reply to this message
Unread 12-24-2012, 11:30 AM   #52
gcjeeping
Web Wheeler

gcjeeping's Avatar
2001 WJ

Join Date: Feb 2007
Location: -----Sacramento-----, USAF RETIRED 462X0
Posts: 3,503
Yeah I figured the handle would hit the grill and a Limited bumper cover would be the best for covering the winch and plate.

Also why didnt you relocate the solenoid box so you wouldn't have to cut the top of the bumper. Also flipping the plate to the top of the frame rail would be an option.
gcjeeping is offline   Reply With Quote Quick reply to this message
Unread 12-24-2012, 01:30 PM   #53
Bphase
Registered User
1999 WJ

Join Date: Oct 2011
Location: Corning, Ny
Posts: 267
I will look into the limited bumper when I go to pick a part. I didn't relocate the box because I'd still have to cut the grill and I was low on time. Xmas and everything.
Bphase is offline   Reply With Quote Quick reply to this message
Unread 12-24-2012, 01:32 PM   #54
PhantomWJ
Registered User
2003 WJ

Join Date: Jan 2010
Location: IE
Posts: 3,246
Quote:
Originally Posted by Bphase View Post
Not quite finished.
Dont you lose strenght with out reinforcing the the hole as it would be with the box shaped mount?
PhantomWJ is offline   Reply With Quote Quick reply to this message
Unread 12-24-2012, 01:50 PM   #55
gcjeeping
Web Wheeler

gcjeeping's Avatar
2001 WJ

Join Date: Feb 2007
Location: -----Sacramento-----, USAF RETIRED 462X0
Posts: 3,503
I dont know if he added sides or not. But if has the sides and back it will probably be stronger than the piece removed. 1/4" plate is way beefier than the sheet metal removed.
gcjeeping is offline   Reply With Quote Quick reply to this message
Unread 12-24-2012, 04:05 PM   #56
Bphase
Registered User
1999 WJ

Join Date: Oct 2011
Location: Corning, Ny
Posts: 267
I added sides that bolted to the sides of the "frame rail ". I believe laterally its stronger but not sure about twisting. We will see.
Bphase is offline   Reply With Quote Quick reply to this message
Unread 12-29-2012, 11:11 AM   #57
alfaitalia
CRD Pilot!

alfaitalia's Avatar
2004 WJ

Join Date: Feb 2011
Location: Bognor, West Sussex. England. Great Britain
Posts: 2,993
gcjeeping (or anyone fitting a hidden winch plate!)

Do you know the distance between the frame rails at the front? It looks to be about 27 - 28 inches just lying on the floor and looking but dont want to take the bumper cover off just to measure and I need accurate numbers.......the reason is Im waiting for the seller of this (below) to come back with dimensions to see if I can "make" it fit. Dont have quite your fab skills...or the time to be honest...but this might be able to be modded! Also I could barely buy the materials for that price!!

http://www.ebay.co.uk/itm/Land-rover...item35c110cb21

Thanks in advance.
__________________
Before you judge a man, walk a mile in his shoes; after that, who cares?! He's a mile away and you've got his shoes!
alfaitalia is offline   Reply With Quote Quick reply to this message
Unread 12-29-2012, 12:47 PM   #58
soupy688
Registered User
2002 WJ

Join Date: Nov 2009
Location: Pittsburgh, Pennsylvania
Posts: 334
This winch plate is awesome. I've been following this tread and since I got a new welding machine I think this will be on my things to do list. Looks good man. Now you need to get stuck and see how she works. Lol
__________________
2002 Overland. Rough country Long arm kit with BB on top. Bilstein 5100 front 5125 rears Pro Comp RockCrawler Wheels, 315/75/16 Duratracs. Overland Sliders bedlined, Halfed Bumper painted black with 100w fog lights, HID's. Rola roof rack. Hitch mounted spare tire carrier under construction.
soupy688 is offline   Reply With Quote Quick reply to this message
Unread 12-29-2012, 02:07 PM   #59
gcjeeping
Web Wheeler

gcjeeping's Avatar
2001 WJ

Join Date: Feb 2007
Location: -----Sacramento-----, USAF RETIRED 462X0
Posts: 3,503
Quote:
Originally Posted by alfaitalia View Post
gcjeeping (or anyone fitting a hidden winch plate!)

Do you know the distance between the frame rails at the front? It looks to be about 27 - 28 inches just lying on the floor and looking but dont want to take the bumper cover off just to measure and I need accurate numbers.......the reason is Im waiting for the seller of this (below) to come back with dimensions to see if I can "make" it fit. Dont have quite your fab skills...or the time to be honest...but this might be able to be modded! Also I could barely buy the materials for that price!!

http://www.ebay.co.uk/itm/Land-rover...item35c110cb21

Thanks in advance.

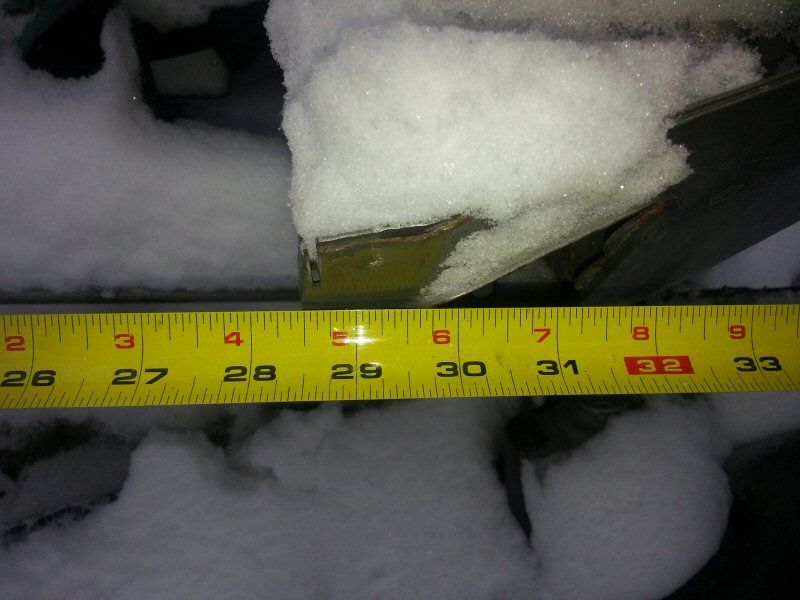

This is the measurement from inside to inside(piece I cut out)(28 1/2")

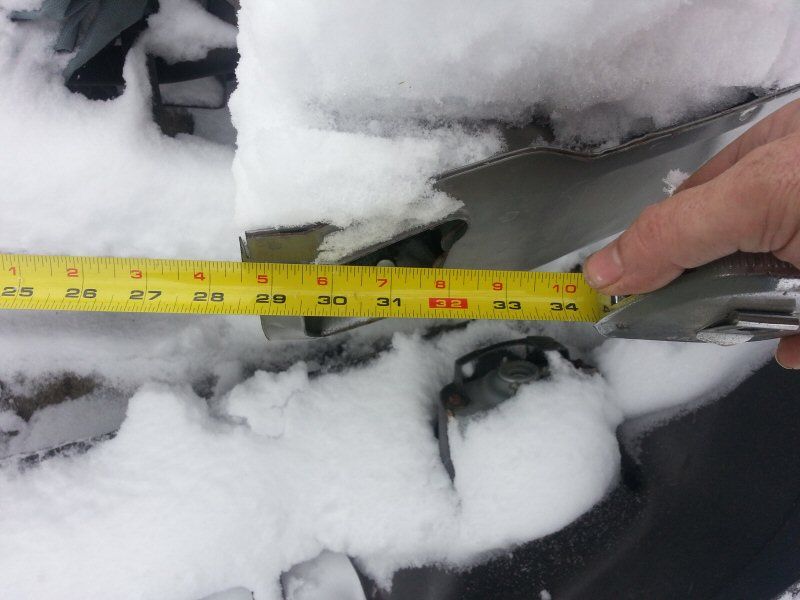

This is the measurement across the bottom and how wide you would want the plate to be able to use all the holes on the bottom(36").

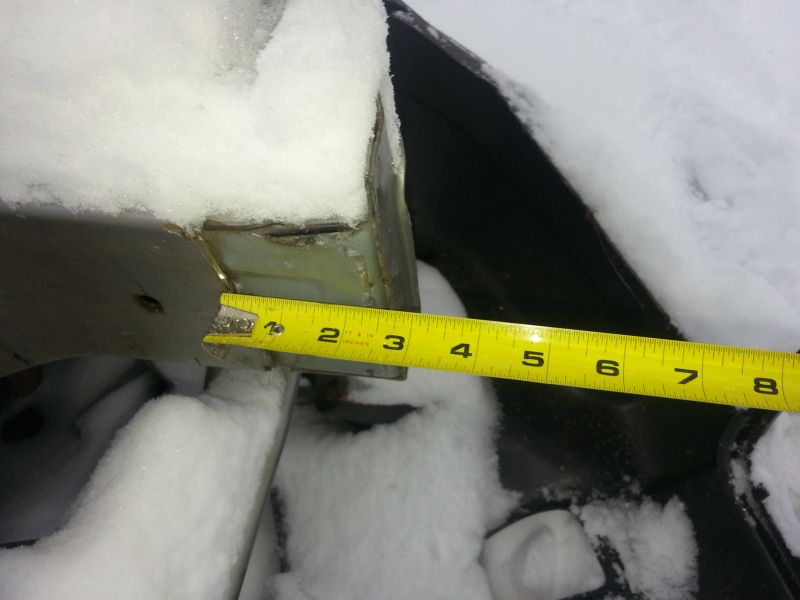

This is how deep the piece was I cut off (2 1/2"). Also the the radiator sits about 1 1/2" deeper than the back cut off piece




Quote:
Originally Posted by soupy688 View Post
This winch plate is awesome. I've been following this tread and since I got a new welding machine I think this will be on my things to do list. Looks good man. Now you need to get stuck and see how she works. Lol
I havent gotten any further on mine due to weather (snow and cold). Will pick it up shortly though.




.
gcjeeping is offline   Reply With Quote Quick reply to this message
Unread 12-30-2012, 04:01 AM   #60
alfaitalia
CRD Pilot!

alfaitalia's Avatar
2004 WJ

Join Date: Feb 2011
Location: Bognor, West Sussex. England. Great Britain
Posts: 2,993
Wow...thanks alot mate....all the info I needed and more. I did not expect you to traipse out into the snow and measure for me it but its much appreciated. (we have not had snow here for nearly 3 years) I will keep this thread informed if I find one that fits.....or near enough that it can be made to!!! Cant wait to see to see the ones on here finished. You have skills! I have a welder and will weld most things up but when it comes to things requiring the sort of strength that a winch plate will I dont think I could trust my limited ability to be sure it would not break! Thanks again Sir!
__________________
Before you judge a man, walk a mile in his shoes; after that, who cares?! He's a mile away and you've got his shoes!
alfaitalia is offline   Reply With Quote Quick reply to this message
