my home made snorkel V2

i know its crazy ghetto built but it works and in the end thats all that matters and i actually gained .5 MPG causes its 4" of ram air soo all parts avalible at your local home depot (except the filter) doesnt wistle in the wind at all, and i get tons of stares from people haha

this is snorkel V1 http://www.jeepforum.com/forum/f13/5-2l-home-made-snorkel-551259/

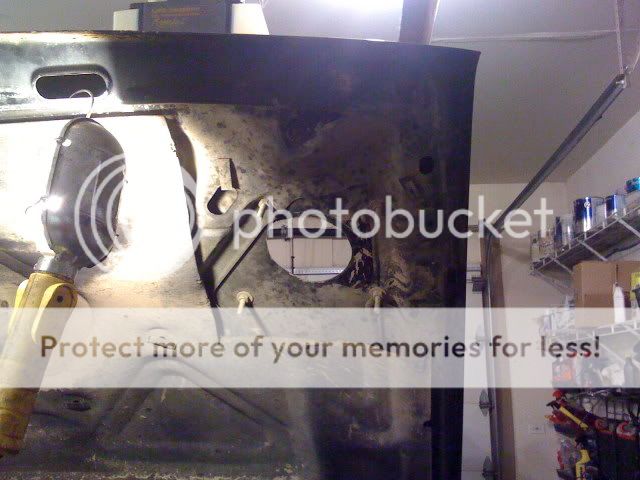

the bolts in the hood is from snokel V1 were it was only a 3 inch and i used a vent roofing rubber gasket to stop it from bouncing around, now the new one is 4 inch, i didnt need it, and just left the bolts in

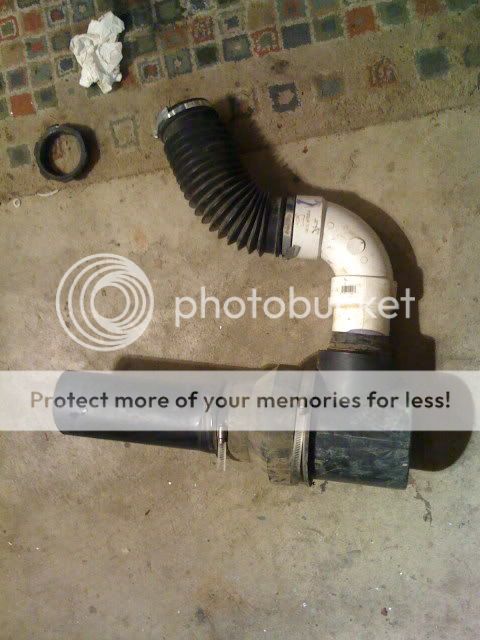

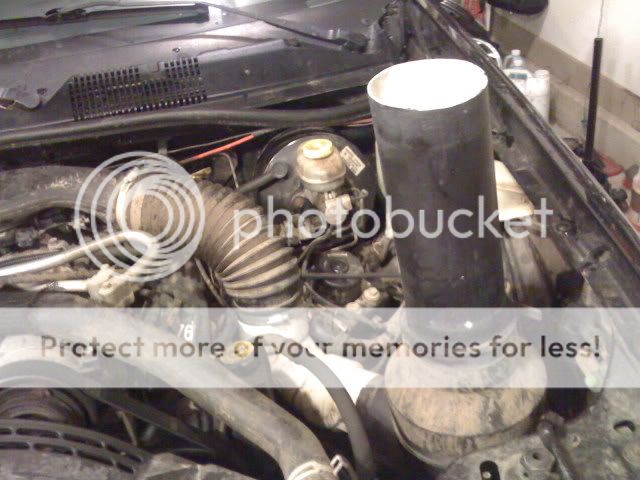

ok the part that sticks out the hood is a a peice of 4" *drainage pipe * that drops below the hood into a catch basin that is made for rain , and some how a cold air filter drops PERFECTLY in, from that i RTV sealed it in, at the bottom of the basin i drilled a tiny, tiny hole incase its raining out so it doenst fill with water, then when i go to the trails i just throw some tape on it

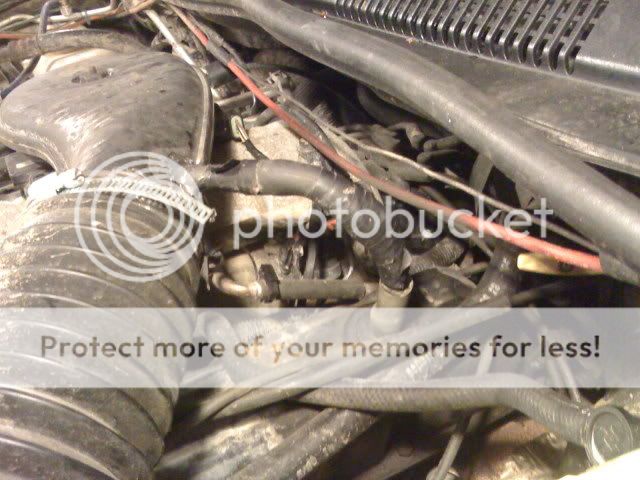

out the back is regular 3" PVC pipe and connects to the rest of the stock intake the only real modification you have to make is A, a 4" hole in your hood (we did it with a big wood bit on a drill used to make holes for pipes in houses) ( i know its retarded but it worked just had to make sure i lubercated the bit as i did it cause when it catches in the metal it can easily make the drill bust your wrist) and B relocate the PCV line (im going to make the line prettier so lay off and yes part of it is an old spark plug boot) but the whole thing only cost $50 and is tested as i have gotten water over the hood so let me know what you think





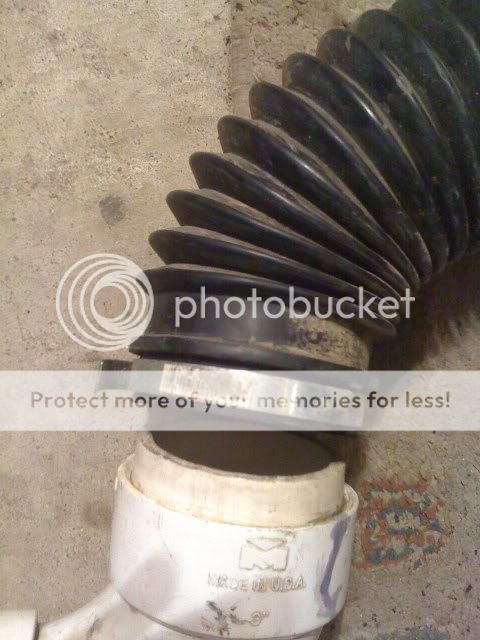

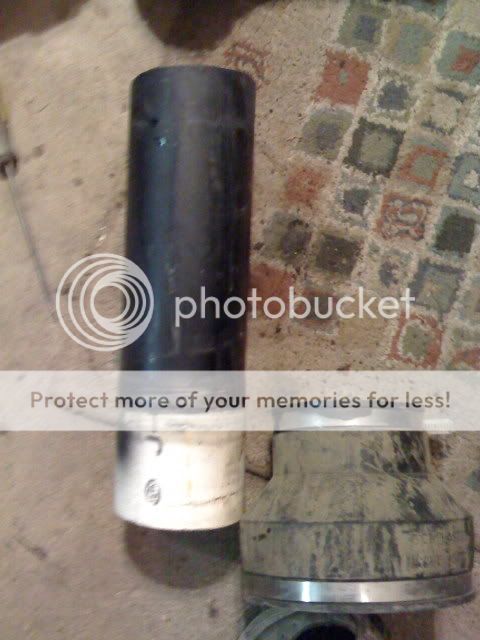

wish i made that inner pipe just a lil longer and i RTV'ed this joint when i put it back together

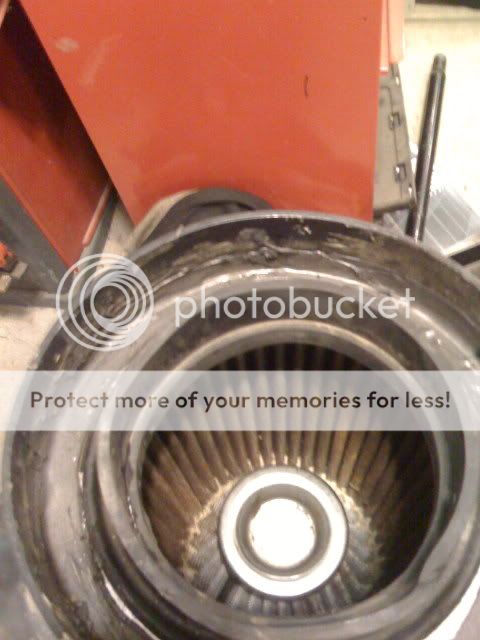

i need a new filter this one is getting a bit ugly from the snow and rain


please dont rag on this, i made it from what ever i had inthe garage i will make it better soon

this is the veiw from the driver seat, you could cut the 4" pipe down so its out of the way and have a longer one for the trails



98 ZJ 3" lift homemade snorkel. JKS quicker disco 5.2L 150,000, 31x10.5 pro comp muds

Last edited by jeepheller98; 04-01-2009 at 03:36 AM.
jeepheller98 is offline
Sponsored Links
Advertisement

post #2 of 61 Old 04-01-2009, 03:43 AM
sandman
Registered User
1993 ZJ

Join Date: Apr 2007
Location: Wilsonville, Oregon
Posts: 5,354
its ugly but i like it. its defanetly functional.

1993 Jeep ZJ. 4.0
sandman is offline
post #3 of 61 Old 04-01-2009, 07:26 AM
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville
Posts: 3,076
Looks like a periscope!

2000 WJ 4.5L - Stroked, Locked, & Long-Armed
Looking for 6" WJ springs!
StrokedWJ is offline
post #4 of 61 Old 04-01-2009, 08:03 AM
Contra
Registered User
1997 TJ Wrangler

Join Date: Aug 2008
Location: San Antonio, Tx
Posts: 1,297
should have put it on the passenger side, it obstructs your view some...
but other than that is is OK

Ever Gone Geocaching?
Opencaching
Contra is offline
post #5 of 61 Old 04-01-2009, 08:20 AM
SplitPoly
Registered User
2003 WJ

Join Date: Sep 2008
Location: Boston
Posts: 139
That is nothing short of AMAZING! I don't know if I could cut a hole in my hood, but my hat is off to you.

If you drive fast enough, you'd get Ram Air! Some non-functional hood vents would set it off nicely!

- Rick
SplitPoly is offline
post #6 of 61 Old 04-01-2009, 09:30 AM
vredenburg08
Registered User
2000 WJ

Join Date: Aug 2007
Location: St. Charles Missouri
Posts: 139
Do you have to take it apart when you want to look under the hood?

2000 Jeep Grand Cherokee
3" Iro
265/70 16 BFG ATs on JK wheels

Quote:
Originally Posted by yjislander
used to have one that walked on mine .22 took care of that
vredenburg08 is offline
post #7 of 61 Old 04-01-2009, 10:13 AM
gatorayde
Registered User
1999 WJ

Join Date: Jun 2008
Location: Crystal Lake, IL
Posts: 3,330
What about when you hit a mud/water hole and water goes splashing up into the intake?
gatorayde is offline
post #8 of 61 Old 04-01-2009, 10:43 AM Thread Starter
jeepheller98
Registered User
1998 ZJ

Join Date: Mar 2008
Location: park ridge
Posts: 1,089
to open the hood all i have to do is take off the elbow, and when im in the trails i have a plastic drainage cover and i just turn the elbow around (acutally removed in this pic cause i had the hood open just before i took it)
and yes it does great in water/mud holes you can see how far the water acutally splashed up


98 ZJ 3" lift homemade snorkel. JKS quicker disco 5.2L 150,000, 31x10.5 pro comp muds

Last edited by jeepheller98; 04-02-2009 at 01:45 AM.
jeepheller98 is offline
post #9 of 61 Old 04-01-2009, 11:03 AM
rugermack
Registered User
1995 ZJ

Join Date: Feb 2009
Location: Sonoita
Posts: 2,093
You must be a plumber.

95' Jeep Grand Cherokee Laredo, 148k, 5.2, NP242, 46RH, 4" RC lift, all new adjustable ca's(2 IRO front uppers and the rest RC adjustables), nitro shocks, JKS TB's, Jet Chip, Dynamax cat back, Magnaflow cat, GTP hood vents. 31" Pro Comps with Rock Krawler "D"s. Westin brush/grill guard with Hella 500s, 411's, Solid diff covers, detroit locker rear, power lock in front, SYE and Tom Wood's front/rear shafts, RE discos, BPE's, d-rings front and back, factory tc and rad skid, hitch, Sliders next.
03' Jeep Grand Cherokee Laredo, (wifes Jeep) 99k, 4.7 5 speed auto, K&N, KYB shocks, drilled-slotted rotors, All the toys.
2000' Ford Superduty, F250, 7.3, 198K, 37's, too much to list.

Built Not Bought #257

Parts for sale d30 and d35 parts http://www.jeepforum.com/forum/f126/...-parts-1004499
rugermack is offline
post #10 of 61 Old 04-01-2009, 11:11 AM
rustynail
Registered User
1996 ZJ

Join Date: Jul 2008
Location: Vancouver, British Columbia
Posts: 1,108
Thanks man, I gently hydrolocked my ZJ and was hunting for ideas on here and was thinking I would run the air intake into where the air comes in for the heater/vents but I didn't want to make it noisy in the cab. Here's my idea thanks to you.

I could do the same thing using the factory airbox but run the intake out the grill instead of the hood. I could have the snorkel part removable since I generally avoid deep holes but sometimes you just have to go for it to venture on down the trail. It could be made nice and tidy looking when the snorkel is not on there. I plan to also plug the tiny drain holes in the airbox since they have no one way valves (stupid). I'll put a larger drain in there with a valve like what my quad has.

Thanks for posting your custom snorkel that's just awesome!

- Russ
5.9 ORVIS 33x12.5 MTR-Kevlar, 7" fr adj IR LA's, 7" rr adj RE SF SA's, adj JKS TB's, RE SB disc, RE Springs, JKS ACOS, 13" RS9000XL's, OME SS, NP231, Durango box, IR Sliders, IR Skid, 3" Flowmaster 70, K&N, Superwinch EPi9.0, Optima Yel, 2 air comp, Alpine, Garmin, Sunroof
rustynail is offline
post #11 of 61 Old 04-01-2009, 11:12 AM
mikesad27
Registered User
1997 ZJ

Join Date: Jul 2008
Location: hopewell jct
Posts: 50
Creative! I like it, a lot cheaper than the real thing, and if it works hey it's worth it. Don't have to look pretty.

Sadass JR. running the 33's now!

mikesad27 is offline
post #12 of 61 Old 04-01-2009, 11:30 AM
rustynail
Registered User
1996 ZJ

Join Date: Jul 2008
Location: Vancouver, British Columbia
Posts: 1,108
Did you ever look into that Hummer snorkel top that was posted in your V1 thread? I think it would look awesome on your rig and solve the rainwater issue.

- Russ
5.9 ORVIS 33x12.5 MTR-Kevlar, 7" fr adj IR LA's, 7" rr adj RE SF SA's, adj JKS TB's, RE SB disc, RE Springs, JKS ACOS, 13" RS9000XL's, OME SS, NP231, Durango box, IR Sliders, IR Skid, 3" Flowmaster 70, K&N, Superwinch EPi9.0, Optima Yel, 2 air comp, Alpine, Garmin, Sunroof
rustynail is offline
post #13 of 61 Old 04-01-2009, 11:34 AM
CLNinja
Registered User

CLNinja's Avatar
1993 ZJ

Join Date: Apr 2007
Location: Denver, CO
Posts: 6,977
so what have you done to waterproof the rest of your engine?

Matt
**September 2009 Grand Cherokee Of The Month**
Colorado Jeep Club Member #88
CLNinja is offline
post #14 of 61 Old 04-01-2009, 01:38 PM
iluvtruenos
Registered User
2000 WJ

Join Date: Dec 2006
Location: Chicago
Posts: 1,345
No f'in way!

I saw you at Joketon all the time last semester and last night debated putting a note on your car saying 'Let's go wheeling" but it was raining, and I didn't want it to smear.

Nevertheless, I'm at Oakton MW 6-8pm, TTr 8-10pm.

I've got a stock WJ that's usually covered in mud.
iluvtruenos is offline
post #15 of 61 Old 04-01-2009, 02:11 PM
YJMCBoy
Registered User

YJMCBoy's Avatar
2010 JK Wrangler

Join Date: Mar 2005
Location: Halifax, Massachusetts
Posts: 350
I am not going to lie- I laughed when I first saw the pics, but whatever works man! esp. on a budget

edit: When's the matching one going on the range parked next to it?!?!

2010 JK 4-Door Unlimited Sport- Soft top, V6, 6-speed standard, bone stock for now
YJMCBoy is offline
