Unread 01-21-2008, 08:02 PM   #1
nierace
Registered User
2003 WJ

Join Date: Jun 2005
Location: CT
Posts: 8,242
Jeep WJ 247-242HD Swap

1999-04 Jeep Grand Cherokee WJ Quadra-Trac/Quadra-Drive to Selec-Trac
(NP247 -> NP242HD)



Parts needed:

242HD (Only found in 2002-03 V8 grand Cherokees with Selec-Trac)
Matching drive shaft out of a 2002-03 V8 WJ with Selec-Trac
2 quarts of ATF +4

Optional:
Shifter assembly from a WJ with Selec-Trac
Mopar Part number: 52109671AB

If you have a 1999-2001 WJ, you might have a CV joint at the transfer case instead of a u-joint. In this case you will need to also find a donor shaft out of a 02+ V8 Grand Cherokee, or swap your old output to the new transfer case. The u-joint setup is much better and highly recommended however.


Tools needed:

1/4” Ratchet set
Short 1/4“ extension
14mm or 9/16” deep socket
14mm or 9/16” regular socket
14mm or 9/16” wrench (ratcheting wrench highly recommended)
12mm regular socket
8mm regular socket
10mm Allen key
Pliers
Slotted screw driver
Lock-tite
Oil bucket
Floor jack
Jack stands (optional)



NP247 Removal:

1.) Depending on the rig you are working on you may or may not want to put it on jack stands.
a. If you have a 4” lift you will have enough room to work underneath on level ground, if not I would recommend putting it on stands.
b. Putting it on stands will also make it easier to take off the drive shafts.

2.) Once on stands and you have a transfer case skid plate, you will need to remove it. The stock one uses 3 bolts on the cross member, and 2 on the unibody.

3.) You will now need to drain the transfer case fluid.
a. Place your oil bucket below the drain plug.
b. Using a 10mm Allen key remove the fill and drain plugs.
c. Clean them and put them some where safe.

Diagram 1.1:


4.) While the transfer case drains remove the rear drive shaft.
a. Using a 1/4“ ratchet, extension and 8mm socket, remove the bolts and the straps on the universal joint at the differential end of the rear drive shaft. Place them in a safe place.
b. Use a mallet if needed to knock the u-joint out of the yoke on the rear differential.
c. Once freed pull the drive shaft out of the slip yoke end of the transfer case. Place some where safe, though it will not be re-used.

5.) Remove the front drive shaft.
a. Using a 1/4“ ratchet and 12mm regular socket remove the bolts from the front output of the transfer case to the drive shaft.
b. Use a mallet if needed to knock the u-joint out of the yoke at the transfer case.
c. Once free you can rest the drive shaft on the cross member as you will be re-using it.

Diagram 1.2:



6.) Lower the cross member so that you have room to work.
a. Use a floor jack to support the center of the cross member, jack it up so there is some pressure on the floor jack.
b. Remove the bolts.
- Use 15mm socket on the bolts.
- I have Claytons LA’s, so I use 14mm sock and wrench.
- Place the bolts/nuts in a safe location.
c. Carefully Lower the cross member 1-2” ***Do not drop it lower***

Diagram 1.3:

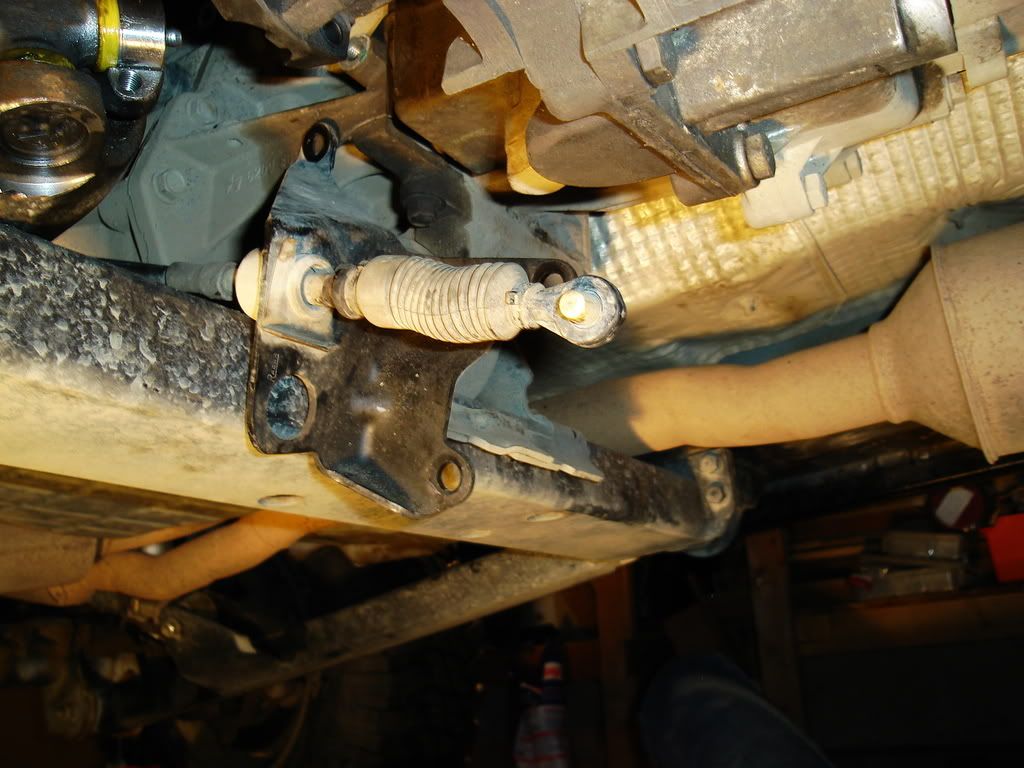

7.) Remove shifter lever cable and bracket.
a. Pop the cable end off of the lever at the transfer case, you should be able to use your hands, if not use a slotted screw driver to pry it off.
b. Using 14mm socket remove 3 bolts located on driver side on the transmission. (Diagram 1.4)
c. Using a large wrench, put the bottom jaw on the bottom of the bracket, then the top jaw on the lip of the spring clamp holding the cable in the bracket. Apply pressure and it will pop right off. (Diagram 1.5)
d. Put the cable through the bottom hole, then put the spring clamp back on.

Diagram 1.4:


Diagram 1.5 - In original position:


Diagram 1.6 – In new position:


8.) Remove transfer case nuts.
a. Clean off the showing thread and soak in penetrating oil or WD40.
b. Use a combination of the 14mm deep socket, regular socket and ratcheting wrench.
c. The reason you will need the short sockets is there is not much room once you start to unthread the nuts on some of them. So you need to swap out or it will get stuck and you wont be able to get the wrench/socket out.
d. Be very patient as you will be doing a lot of 1 click ratcheting.
e. Clean the nuts thoroughly.

9.) Once the bolts are out, remove the transfer case. Having another person would be helpful, it weighs 80lbs so you should be able to manage it on your own. Place in a safe place.
a. Check your transmission output seal and replace if needed.
b. Check your breather tube to make sure its not split, if it is, cut off the split section and connect a new piece.

Diagram 1.7:



NP242HD Installation:

1.) Lift up and line up the 242HD with the bolt holes in the transmission mount.
a. You may need to rotate the input of the transfer case to line up with the transmission for it to slide in.
b. Once all the way in, it will be able to support its on weight.
c. Put the transfer case nuts back on, and use anti-seize.

2.) Once the transfer case is in position, bolt the shifter cable bracket back up.
a. Reinstall the 3 14mm bolts.
b. Clip the end of the cable onto the transfer case shifter, you may need to use a pair of pliers to pop it on.

3.) Bolt the cross member back up. Torque the 15mm bolts to 30-34ft lbs

4.) Reconnect the front drive shaft. Apply lock tite on the 12mm bolts then tighten.

5.) Connect the new rear drive shaft.
a. Slide the transfer case end into the slip yoke. You may need to rotate it so the splines match up.
b. Place the differential end back in the yoke, put the u-joint straps on, apply lock-tite to the 8mm bolt then tighten.

6.) Drain any remaining oil in the NP242HD.
a. Place your oil bucket below the drain plug.
b. Using a 10mm Allen key remove the fill and drain plugs.
c. Let what ever is in it drain out, then reinstall the drain plug.
d. Now use 2 quarts of ATF+4 to fill the transfer case.
e. Reinstall the fill plug

Diagram 1.8:



7.) Reinstall skid plate.

8.) Remove jack stands.


Notes:

I used a sticker instead of switching out the shifter assembly, since you can use your old one without a problem.

Expect to spend approximately 4-8 hrs to complete this swap.

***I just noticed when I did this write up it was before I started working with Carolina Driveline - I highly recommend them, I ended up using them and replacing the junkyard shaft when I went from 5" to 8" of lift.

__________________
Nickerdoodle
03 WJ 4.7 242HD Kolak/IRO 5" Clayton LA's
35" BFGoodrich KM2
sira4x4.net North East Offroad Club
www.carolinadriveline.com
www.ironrockoffroad.com
kolak@aol.com
nierace is offline   Reply With Quote Quick reply to this message
Unread 01-21-2008, 08:48 PM   #2
TX-WJ
Senior Member

TX-WJ's Avatar
2004 WJ

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 918
Awsome write-up .
__________________
David.

2004 WJ Ltd. (steel blue pearlcoat)
4.7, 242 HD swap, 6" Clayton's, 35" BFG KM2s, F/R chromo'd JK Rubi D44s
TX-WJ is offline   Reply With Quote Quick reply to this message
Unread 01-21-2008, 09:19 PM   #3
MuddyLuxury
Registered User
1999 WJ

Join Date: Jun 2007
Location: Northern VA
Posts: 1,425
did you take it for a test drive to see if this helped with your vibes??
__________________
-Jeb
99 WJ 4.7V8 selc-trac swap
285s re-tread
IRO 6.5 Long Arms
Aussie Locked Rear

in the works... lots deployments are great for jeep budgets

Go Doorless!


Things i need..
good spots in the mid atlantic to camp, hike, fish, kyak and wheel, if you know please share

Quote:
Originally Posted by 5.9 ANDY
i would do the rear.
MuddyLuxury is offline   Reply With Quote Quick reply to this message
Unread 01-21-2008, 09:23 PM   #4
nierace
Registered User
2003 WJ

Join Date: Jun 2005
Location: CT
Posts: 8,242
All gone.

Just have very minor vibes from 50-55 in the rear, still have to do the pinion angle for the different shaft.
__________________
Nickerdoodle
03 WJ 4.7 242HD Kolak/IRO 5" Clayton LA's
35" BFGoodrich KM2
sira4x4.net North East Offroad Club
www.carolinadriveline.com
www.ironrockoffroad.com
kolak@aol.com
nierace is offline   Reply With Quote Quick reply to this message
Unread 01-21-2008, 09:55 PM   #5
10achik
I ate what?

10achik's Avatar
1999 WJ

Join Date: Sep 2003
Location: STL (IL side)
Posts: 8,341
Nice Job Nick, hope you don't mind, but I added your write-up to the FAQ's
__________________
Ken

99 GC Limited - 4.7L HO V8, 6.5" IRO HC LA lift, F&R D44s locked & trussed, 242HD, IRO TC Skid, KMA Bumper, 35's
2006 Saturn Redline -2.0L Eaton supercharged I4, GMPP Stage 2, Custom Tune, AEM CAI, Ebiach Pro Kit w/ swaybars, EVO Ventus V12s (13.76 @ 103.85)
2006 Pontiac G6 GTP
2012 Nissan Juke - (hers)
2000 SV650 - naked, integrated tail light, sliders, corbin, pilot roads, RK chain & sprokets, D&D full exhaust, FactoryPro Stage I jet kit, +4 Ignition Advancer, Barnett race clutch
2006 Triumph America 900 - Full Dresser

January 2009 Grand Cherokee of the Month (GCOTM)
10achik is offline   Reply With Quote Quick reply to this message
Unread 01-21-2008, 09:57 PM   #6
QuadraTokn
Registered User
1930 WJ

Join Date: Dec 2006
Location: Chicago, IL
Posts: 5,047
Can you find the HD in the '02-03 I6's too, or are they only in the V8's?
QuadraTokn is offline   Reply With Quote Quick reply to this message
Unread 01-21-2008, 10:11 PM   #7
nierace
Registered User
2003 WJ

Join Date: Jun 2005
Location: CT
Posts: 8,242
Quote:
Originally Posted by QuadraTokn
Can you find the HD in the '02-03 I6's too, or are they only in the V8's?
V8's ONLY!
__________________
Nickerdoodle
03 WJ 4.7 242HD Kolak/IRO 5" Clayton LA's
35" BFGoodrich KM2
sira4x4.net North East Offroad Club
www.carolinadriveline.com
www.ironrockoffroad.com
kolak@aol.com
nierace is offline   Reply With Quote Quick reply to this message
Unread 01-21-2008, 10:55 PM   #8
TX-WJ
Senior Member

TX-WJ's Avatar
2004 WJ

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 918
I'd love to do that someday, but that is such a tough find tho, a donor V8 with a 242......
TX-WJ is offline   Reply With Quote Quick reply to this message
Unread 01-21-2008, 10:56 PM   #9
Virmagicus
Headed Out West

Virmagicus's Avatar
1998 ZJ

Join Date: Feb 2006
Location: Northern Indiana
Posts: 6,428
Excellent writeup with great pics. Super job Nick.
Virmagicus is offline   Reply With Quote Quick reply to this message
Unread 01-21-2008, 11:48 PM   #10
erocksnow
Registered User

Join Date: Nov 2006
Location: Denver, CO
Posts: 368
nicely done....I definitely want to do this one day...quadra drive sucks with big tires
__________________
-Eric
Colorado Jeep Club Member #67


2007 Wrangler Sahara Unlimited...sold
erocksnow is offline   Reply With Quote Quick reply to this message
Unread 01-22-2008, 06:08 AM   #11
MSU.WJ
Registered User
2000 WJ

Join Date: Dec 2005
Location: Golden, CO
Posts: 603
Nice job, and no vibes? Keeping your jeep now?
__________________
2000 WJ Laredo 4.7 NP242
3" Lift, 31" MT/Rs, Aussie Locked D44A, JKS sliders, more
Want places to wheel? Support the Blue Ribbon Coalition: http://www.sharetrails.org
MSU.WJ is offline   Reply With Quote Quick reply to this message
Unread 01-22-2008, 06:16 AM   #12
nierace
Registered User
2003 WJ

Join Date: Jun 2005
Location: CT
Posts: 8,242
Yeah just very minor rear vibes, front ones are completely gone.

The aussie behaves much better and doesn't bind up now even if its in 2wd or FT 4wd, FT 4wd it is best.

We'll see about selling it I may not have a choice...I'd like to keep it.
__________________
Nickerdoodle
03 WJ 4.7 242HD Kolak/IRO 5" Clayton LA's
35" BFGoodrich KM2
sira4x4.net North East Offroad Club
www.carolinadriveline.com
www.ironrockoffroad.com
kolak@aol.com
nierace is offline   Reply With Quote Quick reply to this message
Unread 01-22-2008, 07:21 AM   #13
ArloGuthroJeep
Mr. Hyde!

ArloGuthroJeep's Avatar
2004 WJ

Join Date: Mar 2005
Location: Boulder, CO
Posts: 23,084
Quote:
Originally Posted by 10achik
Nice Job Nick, hope you don't mind, but I added your write-up to the FAQ's
Yeah, you added it right after I did
__________________
'04 WJ, 6" Clayton LA's, 242 SYE, 35" BFG MT KM2's, 4.56 gears, & D44a locked
'14 WK2 Limited w/5.7L, ORAI, & Tow Package
ArloGuthroJeep is offline   Reply With Quote Quick reply to this message
Unread 11-03-2008, 11:53 PM   #14
natrosso
Registered User
1999 WJ

Join Date: Nov 2008
Location: Canada, Surrey
Posts: 1
Thanks for all the info on the swapout
I did this conversion on my 4.0L, and it works great.
natrosso is offline   Reply With Quote Quick reply to this message
Unread 01-18-2009, 06:26 PM   #15
darmstro
Registered User

Join Date: Feb 2004
Posts: 22
Thanks for this write up. I found a 242HD and will be getting rid of my non-working Quadra-Drive unit in the next couple of weeks.
darmstro is offline   Reply With Quote Quick reply to this message
Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the JeepForum.com forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid e-mail address for yourself.
Note: All free e-mails have been banned due to mis-use. (Yahoo, Gmail, Hotmail, etc.)
Don't have a non-free e-mail address? Click here for a solution: Manual Account Creation
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.


Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
