Unread 12-16-2013, 09:03 PM   #46
Kodiak17
Registered User
1998 TJ Wrangler

Join Date: Sep 2010
Location: Kutztown, PA/ Andover, NJ, Pennsylvania
Posts: 3,709
Cool stuff. Come to RC this sunday, I'd love to see it in person.

__________________
Maintain, wheel, upgrade, repeat.

My build: http://www.jeepforum.com/forum/f22/thor-dd-weekend-warrior-1348534/
Kodiak17 is offline   Reply With Quote Quick reply to this message
Unread 12-28-2013, 06:52 AM   #47
skain8
Under Construction

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Location: Reading, PA
Posts: 3,634
Quote:
Originally Posted by Kodiak17 View Post
Cool stuff. Come to RC this sunday, I'd love to see it in person.
No dice. See you in the spring.
__________________
Tom

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's
'99 XJ: stock
'99 XJ: stolen
'06 XK: sold
231HD build guide
skain8 is offline   Reply With Quote Quick reply to this message
Unread 12-28-2013, 06:58 AM   #48
skain8
Under Construction

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Location: Reading, PA
Posts: 3,634
Updated 9" pics

Here are a few more pictures of the 9" *mostly* complete (no shock mounts or swaybar mounts in these pics, or gears, paint, etc... ).

Front:


Rear:


Angle:


Full compression w/drum. Note: the tank will be chopped, but the axle truss fits under full compression with no modification:

__________________
Tom

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's
'99 XJ: stock
'99 XJ: stolen
'06 XK: sold
231HD build guide
skain8 is offline   Reply With Quote Quick reply to this message
Unread 12-28-2013, 09:00 AM   #49
fast540
Registered User
1999 WJ

Join Date: Aug 2012
Location: rohnert park, ca
Posts: 1,541
Looking pretty awesome
fast540 is offline   Reply With Quote Quick reply to this message
Unread 12-29-2013, 06:52 AM   #50
skain8
Under Construction

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Location: Reading, PA
Posts: 3,634
Quote:
Originally Posted by fast540 View Post
Looking pretty awesome
Thank you.

The nice thing is, that apart from the complete axle kits, several of these individual components incorporated into the overall build (i.e. rear swaybar frame plates, coil retainers, etc..) are specific to the WJ, not available elsewhere, and can be used with any lift, or even stock.
__________________
Tom

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's
'99 XJ: stock
'99 XJ: stolen
'06 XK: sold
231HD build guide
skain8 is offline   Reply With Quote Quick reply to this message
Unread 01-03-2014, 07:56 PM   #51
Eshindi
Registered User
1999 WJ

Join Date: Sep 2007
Location: Long Island, NY
Posts: 589
Love the swap, I did the exact same swap for my WJ. Except that I went with rear disc brakes and no truss yet.
Great write up too. Did you have a speed sensor in your Transfer case or does your WJ use the ABS sensor for the speedo?
__________________
'99 WJ I6 w/ 180k (and Purrs like a kitten)
Claytons LA | 6.5" | HP D44 | F9" | 35's\

My Build Log
Eshindi is offline   Reply With Quote Quick reply to this message
Unread 01-04-2014, 05:20 PM   #52
skain8
Under Construction

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Location: Reading, PA
Posts: 3,634
Quote:
Originally Posted by Eshindi View Post
Love the swap, I did the exact same swap for my WJ. Except that I went with rear disc brakes and no truss yet.
Great write up too. Did you have a speed sensor in your Transfer case or does your WJ use the ABS sensor for the speedo?
Thanks.

Speed sensor in 231. ABS delete.

I know where you can get a truss for your 9".
__________________
Tom

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's
'99 XJ: stock
'99 XJ: stolen
'06 XK: sold
231HD build guide
skain8 is offline   Reply With Quote Quick reply to this message
Unread 01-05-2014, 10:29 AM   #53
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 2,999
Maybe I missed it, but any thoughts/provision for a rear sway bar? You may want to think about adding a drain plug to the bottom of the 9 too.
__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote Quick reply to this message
Unread 01-05-2014, 01:00 PM   #54
skain8
Under Construction

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Location: Reading, PA
Posts: 3,634
Quote:
Originally Posted by StrokedWJ View Post
Maybe I missed it, but any thoughts/provision for a rear sway bar? You may want to think about adding a drain plug to the bottom of the 9 too.
Rear swaybar pics/info not yet added. Stock bar retained. Using TJ style JKS disconnects, modified for length. Swaybar brackets welded to rear of truss. Mounts raised high as possible without inference with the OEM tank skid while retaining optimal angle.

As far as the drain plug, it was considered, but the shape of the 9" requires the drain to be on the very bottom. Enough gouging and scraping and it becomes difficult to remove. A hardened washer can be welded in and serve as a skid, but it would obviously stick out a bit and potentially catch or snag. Only one opinion, of course.
__________________
Tom

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's
'99 XJ: stock
'99 XJ: stolen
'06 XK: sold
231HD build guide
skain8 is offline   Reply With Quote Quick reply to this message
Unread 01-05-2014, 02:02 PM   #55
StrokedWJ
Web Wheeler

StrokedWJ's Avatar
2000 WJ

Join Date: Oct 2007
Location: Asheville, NC
Posts: 2,999

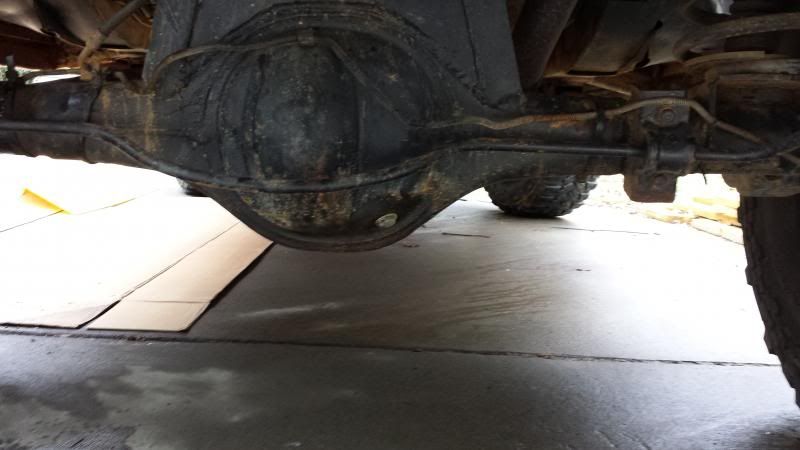

. That's where I put mine. Pretty well hidden and drains all but the very last bit of fluid. Enough to decrease the waterfall mess. Lol
__________________
2000 WJ 4.5L - Stroked, Locked, & Long-Armed

Click this -->Think you can beat me?
StrokedWJ is offline   Reply With Quote Quick reply to this message
Unread 01-06-2014, 05:38 PM   #56
Eshindi
Registered User
1999 WJ

Join Date: Sep 2007
Location: Long Island, NY
Posts: 589
One other thing I'm jealous of is the fact that it looks like you kept your rear lower spring isolator in the rear. The claytons kit doesn't keep the isolator so the spring is right against the metal and it really gets noisy when on a bumpy road. I really want to copy our design to make my rear more quiet.
__________________
'99 WJ I6 w/ 180k (and Purrs like a kitten)
Claytons LA | 6.5" | HP D44 | F9" | 35's\

My Build Log
Eshindi is offline   Reply With Quote Quick reply to this message
Unread 01-06-2014, 07:38 PM   #57
skain8
Under Construction

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Location: Reading, PA
Posts: 3,634
Quote:
Originally Posted by Eshindi View Post
One other thing I'm jealous of is the fact that it looks like you kept your rear lower spring isolator in the rear. The claytons kit doesn't keep the isolator so the spring is right against the metal and it really gets noisy when on a bumpy road. I really want to copy our design to make my rear more quiet.
Post #44 shows the front and rear coil designs, which do retain the factory isolators upper & lower. The f/r bottom isolators fit snugly onto a cup to hold them firmly into place.The half-moon retainer is then bolted to the cup. Pretty slick. No one likes clangy springs.
__________________
Tom

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's
'99 XJ: stock
'99 XJ: stolen
'06 XK: sold
231HD build guide
skain8 is offline   Reply With Quote Quick reply to this message
Unread 01-26-2014, 03:57 PM   #58
skain8
Under Construction

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Location: Reading, PA
Posts: 3,634
For the rear swaybar links, I am using JKS disconnects from a TJ. I intend to keep the rear swaybar hooked up, but the TJ JKS disco's will permit more free movement of the swaybar with articulation. The TJ disco's are too short at my lift height, so they had to be modified. Originally, the thought was that the thread rod was glued into the eye piece. Heat didn't work, so it was cut off, ground smooth, and will be drilled and tapped with longer threaded rod.

Heat didn't work:


Cut and ground flat:


The "frame" rail at the upper rear swaybar was cracked. This was with the stock rear swaybar. It was permanently fixed with a plate. This fix/strength upgrade is a wise choice for the masses (especially those with the Addco), and should be available from Endless Mtn Fab soon.

Crack (cleaned):


Weld crack:


Grind clean:


Zinc pain between new plate and frame rail:


Plug & perimiter weld the plate:

__________________
Tom

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's
'99 XJ: stock
'99 XJ: stolen
'06 XK: sold
231HD build guide
skain8 is offline   Reply With Quote Quick reply to this message
Unread 01-26-2014, 04:34 PM   #59
skain8
Under Construction

skain8's Avatar
2002 WJ

Join Date: Oct 2004
Location: Reading, PA
Posts: 3,634
Steering - update to post #8

Post #8 of this thread shows the mock-up of the inverted Y steering. Here is how it looks now [mostly] complete

This is the draglink, which in an inverted Y design, attaches to the knuckle and the tie rod attaches to it. This piece is completely fabricated, with the machined metal insert piece interference fit in the tube, then plug and perimeter welded, and ground smooth:


Front view. Yes, the trackbar is there, you just can't see it because the geometry is that good . This is at ride height. Notice the flat angles of the draglink and trackbar (+/- 10*), and the lengths of these bars. Overall length of the trackbar and draglink are within a 3/8" of each other. The steering is so long I have come to refer to it as the Lexington Steel inverted y:


Side view towards the pitman arm. Note the clearance and how parallel and in plane the trackbar and draglink are.


Here is a better pic of the front, showing the fabricated draglink and the steering in general (yes, the trackbar is there -- can you find it? ). With the near-equal length of the trackbar and draglink, coupled with the other two factors of parallel and plane, the steering geometry is better than stock. Really. :

__________________
Tom

'02 WJ: 4.7L, 5", HP44/9", 231HD, tall & skinny KM2's
'99 XJ: stock
'99 XJ: stolen
'06 XK: sold
231HD build guide
skain8 is offline   Reply With Quote Quick reply to this message
Unread 01-27-2014, 04:19 AM   #60
wvracer821
Web Wheeler

wvracer821's Avatar
2000 WJ

Join Date: May 2010
Location: Morgantown, West Virginia
Posts: 1,001
why did you choose to mount the tie rod to the drag link instead of the drag link to the tie rod like the picture below? wont this change the toe angle with suspension movement?

__________________
DD: 2014 RAM 3500 Megacab Larmie 6.7L Cummins
Junk: 2000 WJ, 4.0L
Build Thread: http://www.jeepforum.com/forum/f197/...build-1436556/
http://www.pirate4x4.com/tech/
wvracer821 is offline   Reply With Quote Quick reply to this message
