Unread 06-28-2014, 01:23 AM   #1
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 779

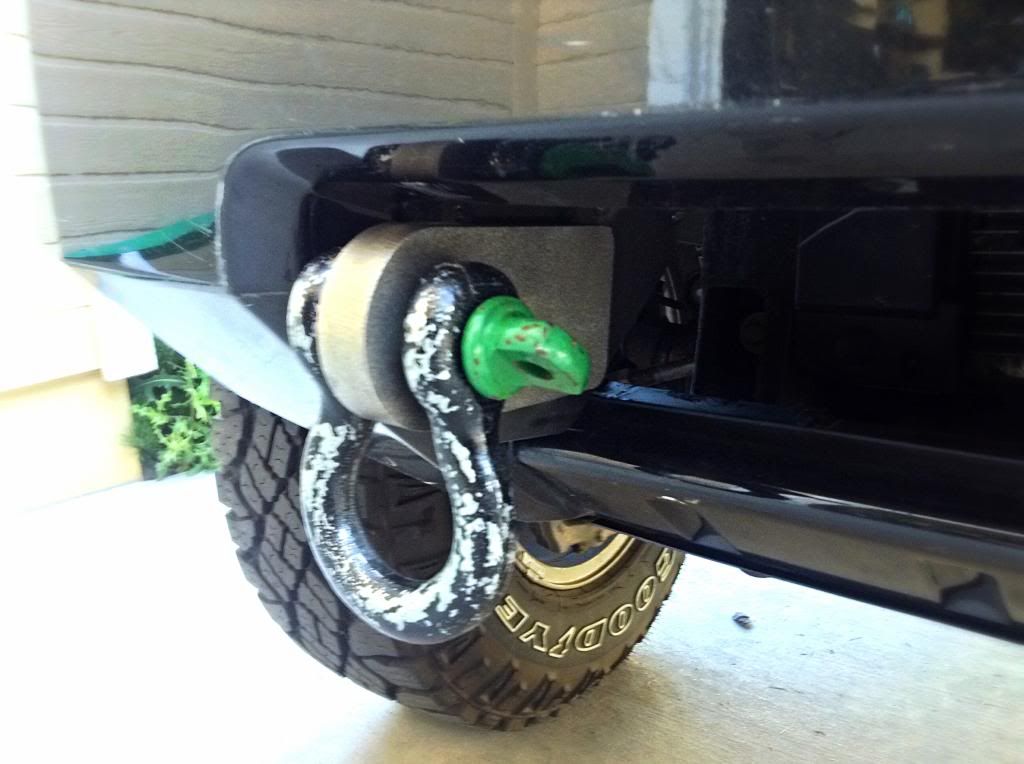

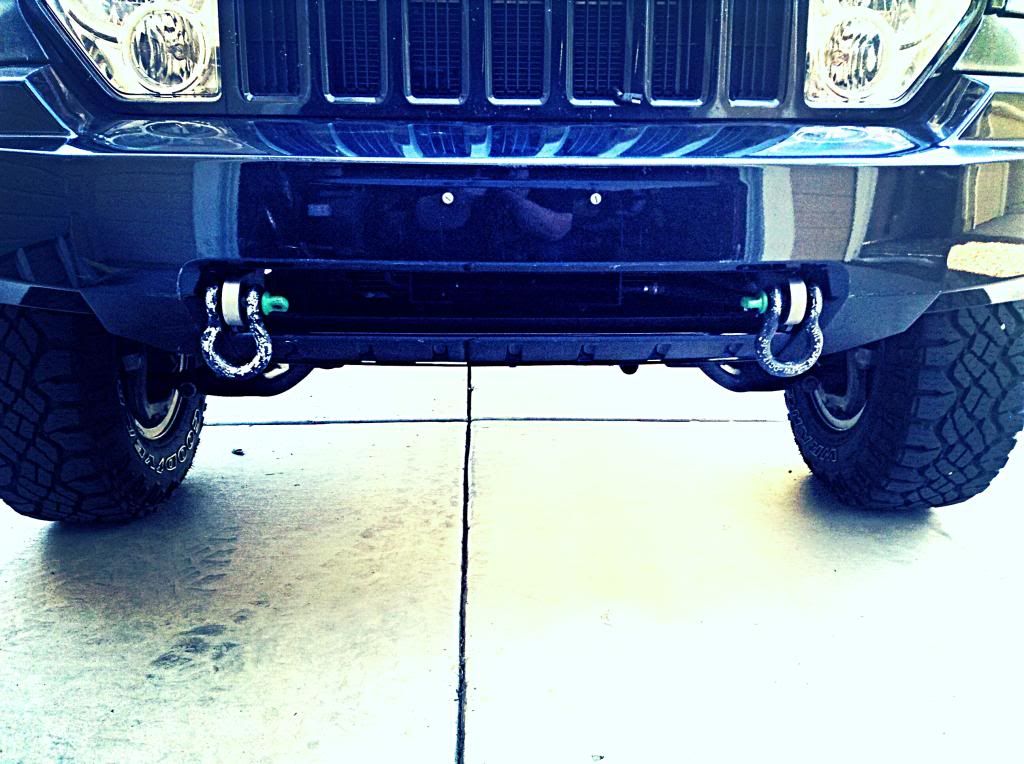

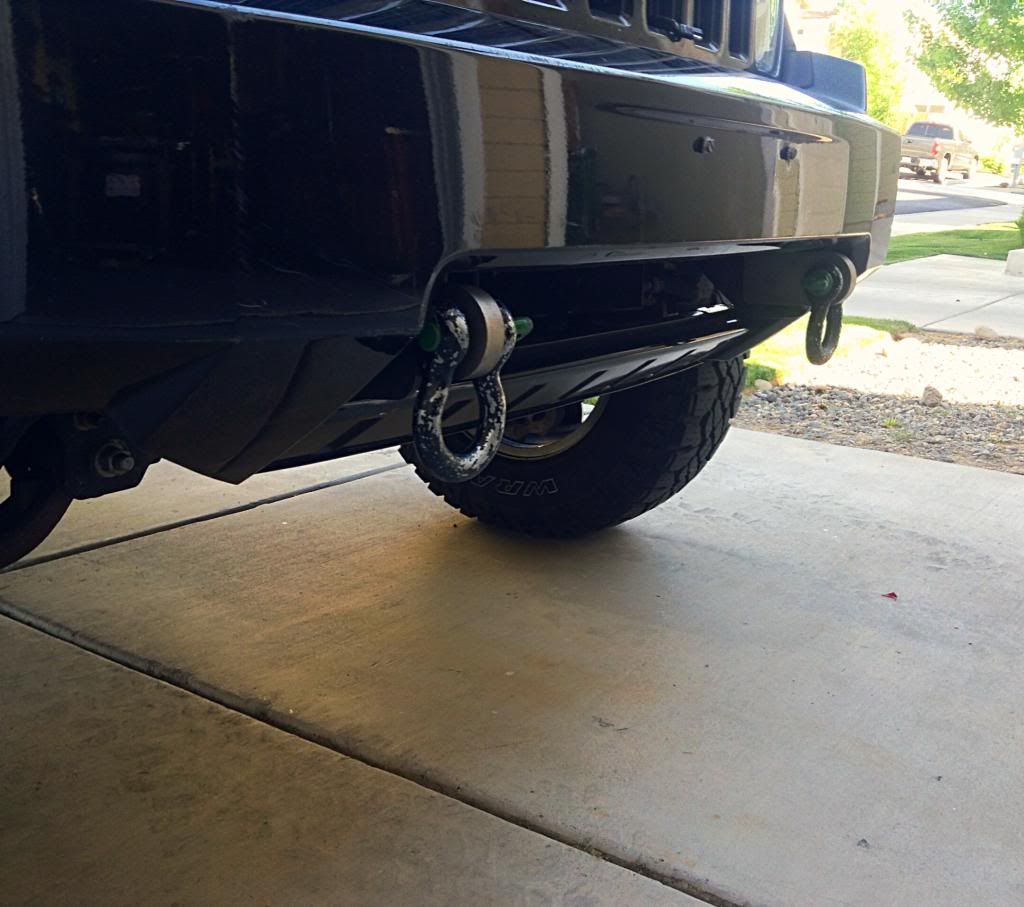

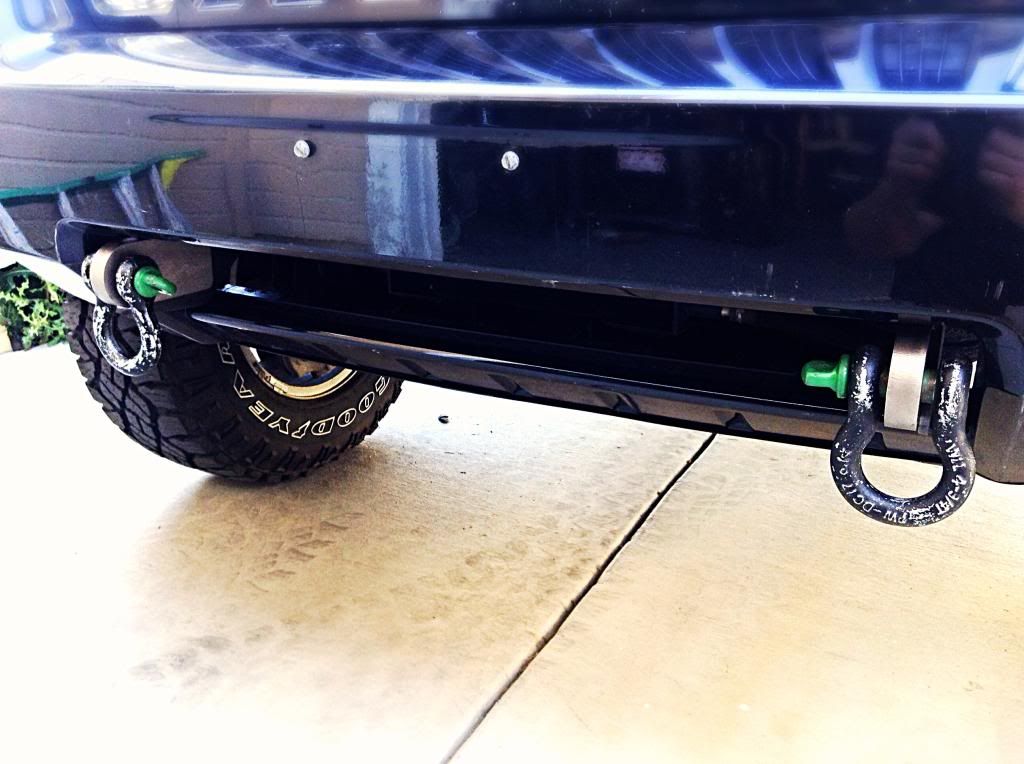

This is a great solution for those who want simple and strong front recovery points. They are individual shackle tabs (sold as a set) that bolt to the factory tow hook mounting locations and accept a standard 3/4" shackle with a 7/8" pin. The mounts are built from cnc cut and bent 1/4" plate and the shackle tabs are laser cut and media tumbled 3/4" thick stock. They bolt up using included grade 8 bolts and 1/4" thick backing plates that sandwich the unibody. The problem with the factory tow hooks is they use either a dangerous 'm bolt' which is known to rip out of the unibody or a thin 'stud plate'. The stud plate is actually sold as a separate hardware kit, forcing you to buy both if you want any reliability. Everything you need for installation is included with these shackle mounts. They tuck up nice and tight to the plastic bumper so maximum approach angle is maintained. Using shackles offers more versatility and safety over hooks, plus they just look good! They ship bare steel, ready for the coating if your choice. Shackles are not included. https://m.facebook.com/story.php?sto...35959336669912






AtTheHelm is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 11:30 AM   #2
rescue575
Registered User
2011 KK Liberty

Join Date: Feb 2012
Location: Franklin Square, NY
Posts: 931
Does the bumper need to be removed I. Order to mount these?

Sent from my iPhone using JeepForum
__________________
2011 Liberty Sport
2 KC Slimlite[RIGHT] 130 Watt Long Range on JK Bar
TMS Aluminum Roof Rack Cross Bars
Cobra 75, Firestik Door Jam Mount, HD Spring, 2Ft Firestik
Dunlop Fierce Attitude M/T
rescue575 is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 11:55 AM   #3
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 779
Yep you need to pull the bumper cover off to install these, same goes with any front recovery options for the kk/kj.
AtTheHelm is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 12:22 PM   #4
rescue575
Registered User
2011 KK Liberty

Join Date: Feb 2012
Location: Franklin Square, NY
Posts: 931
Quote:
Originally Posted by AtTheHelm
Yep you need to pull the bumper cover off to install these, same goes with any front recovery options for the kk/kj.
Ok! 😞. Have to wait till I'm more comfortable doing that. Lol.

Sent from my iPhone using JeepForum
__________________
2011 Liberty Sport
2 KC Slimlite[RIGHT] 130 Watt Long Range on JK Bar
TMS Aluminum Roof Rack Cross Bars
Cobra 75, Firestik Door Jam Mount, HD Spring, 2Ft Firestik
Dunlop Fierce Attitude M/T
rescue575 is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 12:49 PM   #5
lfhoward
Registered User
2008 KK Liberty

Join Date: Nov 2012
Location: Ann Arbor, MI
Posts: 559
Diggerfreek's bumper removal instructions
__________________
2008 Liberty Sport 4x4 Automatic
lfhoward is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 01:14 PM   #6
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 779
Thanks LF for posting that.

Rescue you got it man! The only tricky part is releasing the clips from the flares, but very doable....
AtTheHelm is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 01:33 PM   #7
lfhoward
Registered User
2008 KK Liberty

Join Date: Nov 2012
Location: Ann Arbor, MI
Posts: 559
I've had my bumper off 3 times for various reasons, and it will be off again sometime this summer so I can repaint my ATH front recovery system. Winter was hard on it, but same is true for my rock rails and roof basket too. It is not too bad of a job to get the bumper off, and it gets easier the more times you do it. As for paint (after grinding off rust and using mineral spirits to clean the surface), I've been using 2 coats of Rustoleum gray primer followed by 3 coats of Rustoleum hammered black. I can't afford powder coating. Is there a better way to keep the rust off?
__________________
2008 Liberty Sport 4x4 Automatic
lfhoward is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 02:46 PM   #8
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 779
I'm gonna try por-15 on my bumpers soon. Rust isn't much of a problem here but I want durability.

As for prep try phosphoric acid. It's a good rust inhibitor and etches the metal.
AtTheHelm is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 02:53 PM   #9
bsad67
Registered User
2012 KK Liberty

Join Date: Jun 2012
Location: clay, ny
Posts: 118
Might have to order these, Have to find someone to install them first. I like these much better than having a hitch style.
__________________
2012 KK Latitude Chrome grille, chrome bug deflector, chrome door handles,
chrome mirror caps, chrome gas door and Jeep Cargo Area Liner.
AVS vent shades and factory dealer installed remote start.
http://www.forjeepsonly.com/jeep-forum/showthread.php?108-Member-from-FABO
bsad67 is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 05:08 PM   #10
rescue575
Registered User
2011 KK Liberty

Join Date: Feb 2012
Location: Franklin Square, NY
Posts: 931
Quote:
Originally Posted by AtTheHelm
Thanks LF for posting that. Rescue you got it man! The only tricky part is releasing the clips from the flares, but very doable....
I'm sure I'm capable, but being that this is mostly my wife's DD, I'm more cover bed with listening to her! Ha ha ha ha.

Sent from my iPhone using JeepForum
__________________
2011 Liberty Sport
2 KC Slimlite[RIGHT] 130 Watt Long Range on JK Bar
TMS Aluminum Roof Rack Cross Bars
Cobra 75, Firestik Door Jam Mount, HD Spring, 2Ft Firestik
Dunlop Fierce Attitude M/T
rescue575 is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 07:40 PM   #11
lfhoward
Registered User
2008 KK Liberty

Join Date: Nov 2012
Location: Ann Arbor, MI
Posts: 559
Rescue, if you're ever in the Philly area and want to install those, PM me. We could have your bumper off, tow points installed, and bumper back on in an hour or less, without breaking anything!
__________________
2008 Liberty Sport 4x4 Automatic
lfhoward is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 08:27 PM   #12
NAMoulton
Registered User
2010 KK Liberty

Join Date: Dec 2013
Location: Harrisonburg, VA
Posts: 416
Quote:
Originally Posted by lfhoward View Post
Rescue, if you're ever in the Philly area and want to install those, PM me. We could have your bumper off, tow points installed, and bumper back on in an hour or less, without breaking anything!
Bring zipties just in case haha. I think I have a dozen or so for my inner fender liners and other knick nacks hahaha.
__________________
Custom Bumper-4" JBA Lift-16x8 M13 Rims-265/70 General Grabber AT2s-K&N CAI-Airaid TBS
NAMoulton is online now   Reply With Quote Quick reply to this message
Unread 06-28-2014, 09:17 PM   #13
rescue575
Registered User
2011 KK Liberty

Join Date: Feb 2012
Location: Franklin Square, NY
Posts: 931
Quote:
Originally Posted by lfhoward
Rescue, if you're ever in the Philly area and want to install those, PM me. We could have your bumper off, tow points installed, and bumper back on in an hour or less, without breaking anything!
Ha ha. Sounds like a plan. I'll bring the beers!

Sent from my iPhone using JeepForum
__________________
2011 Liberty Sport
2 KC Slimlite[RIGHT] 130 Watt Long Range on JK Bar
TMS Aluminum Roof Rack Cross Bars
Cobra 75, Firestik Door Jam Mount, HD Spring, 2Ft Firestik
Dunlop Fierce Attitude M/T
rescue575 is offline   Reply With Quote Quick reply to this message
Unread 06-28-2014, 11:08 PM   #14
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 779

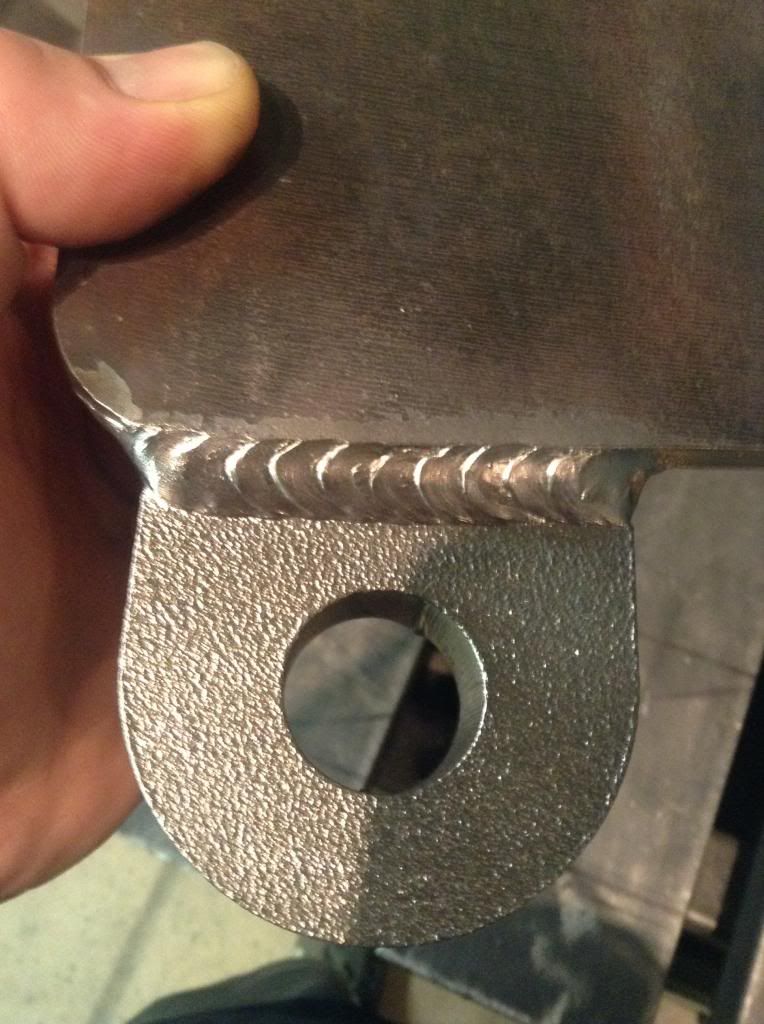

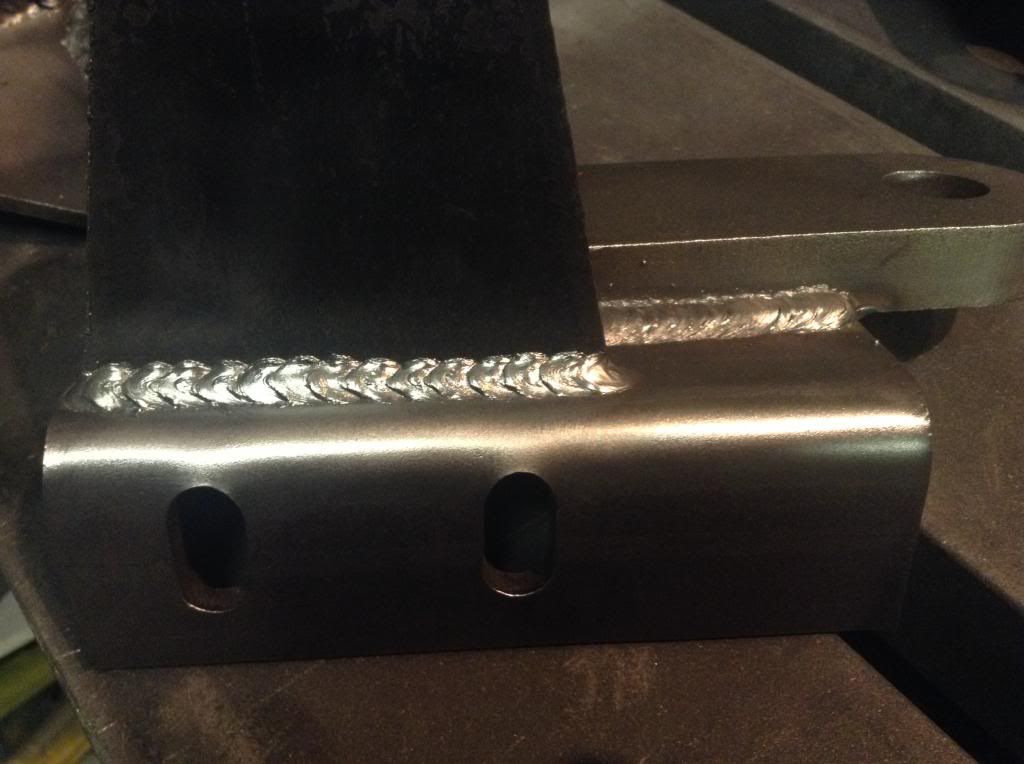

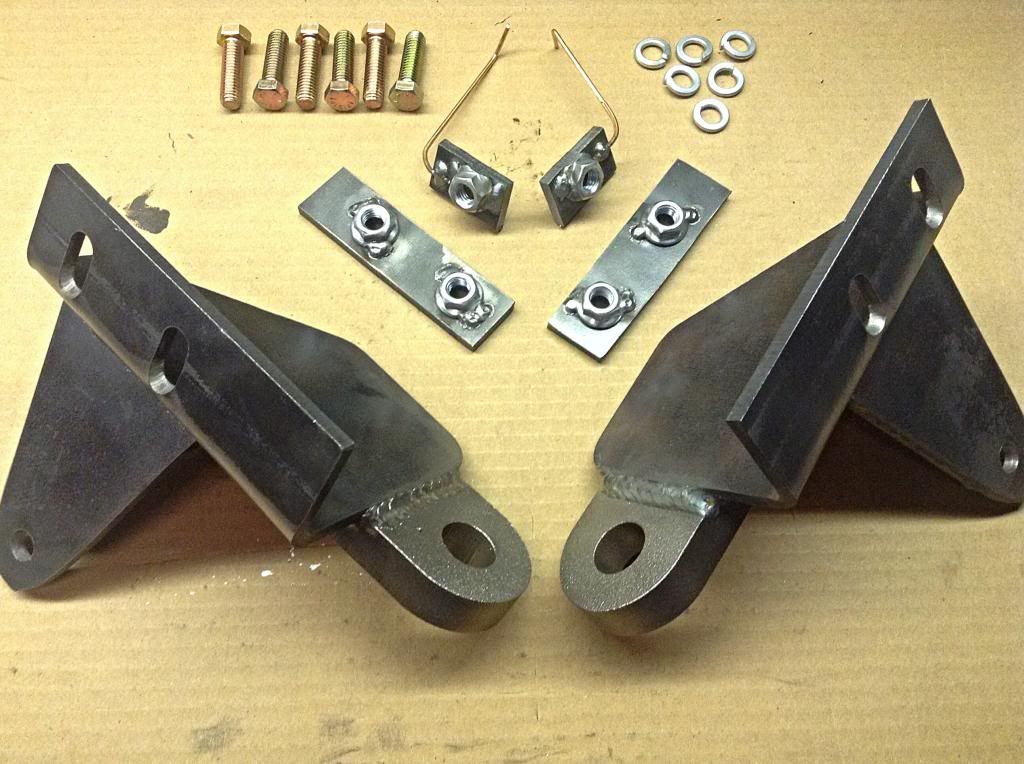

Updated pics in my first post to show how they're built and exactly what you get.
AtTheHelm is offline   Reply With Quote Quick reply to this message
Unread 06-30-2014, 11:06 PM   #15
kiwi_outdoors
Registered User
2008 KK Liberty

Join Date: Mar 2014
Location: Oakland, CA
Posts: 50
mount for hi lift rack

I think I could adapt those eyes to carry a "hi lift" jack - it would need two adapter plates (one for each padeye)
__________________
1997 XJ, automatic, stock 4x4
2008 KK Sport 6 speed, stock 4x4
kiwi_outdoors is offline   Reply With Quote Quick reply to this message
