AtTheHelm's KK roof rack

Nothing fancy, just a nice and sturdy steel rack. The side rails are 1.32" x 0.133" A500 pipe size tube with 1" x 0.095" HREW tube cross rails. I'm going to add another front and rear cross tube with the 1.33" stuff that has bends in it for maximum space. I decided to make it a flat top to keep it low and also so I can still haul plywood up there. I have been really pushing my luck with the factory side rails and homemade crossbars. The last and probably sketchiest thing I hauled up there were the pieces of 21' tube. The distance wasn't far and all slow back roads but it still made me nervous.
Building this is a lot easier than I thought. All I planned on doing was bending side rails and I ended up with this:
Side bars

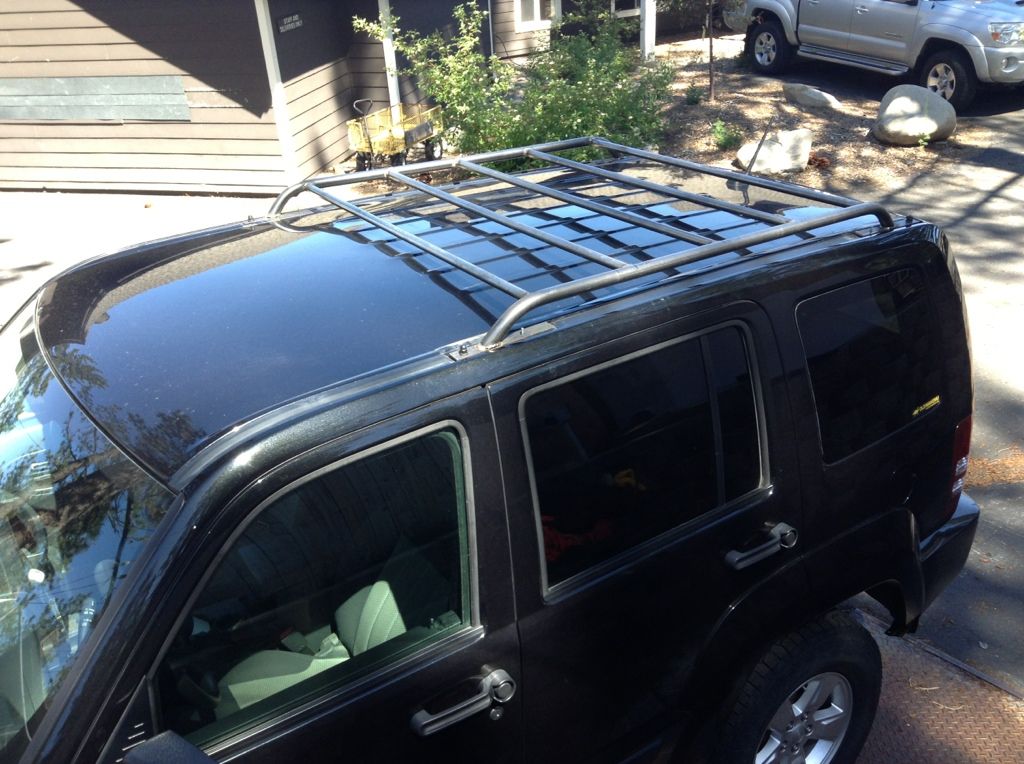

Most of the rack


It weighs about 50lbs hopefully it doesn't affect handling too much. Looks like the weak point will be the studs coming out of the roof. There are 8 of them but they are only 6 mm. Haven't heard really anything about them breaking, but I wonder about them shearing in an impact or hard flex.[/quote]

AtTheHelm is offline
Sponsored Links
Advertisement

post #2 of 20 Old 06-02-2013, 05:45 PM Thread Starter
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe
Posts: 863

AtTheHelm is offline
post #3 of 20 Old 06-02-2013, 10:41 PM
swamppro
Registered User
2008 KK Liberty

Join Date: Sep 2011
Location: Metairie
Posts: 319
Sparked my interest for sure!
swamppro is offline
post #4 of 20 Old 06-02-2013, 10:45 PM
xxxxxxxxxxxxSmetna
Guest
2011 KK Liberty

Join Date: Nov 2012
Location: Finger Lakes
Posts: 93
Me likey. How much $$??
xxxxxxxxxxxxSmetna is offline
post #5 of 20 Old 06-02-2013, 10:58 PM Thread Starter
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe
Posts: 863
According to ups' website they would be too big to ship. Shame because i'd be able to sell them at a pretty good price. I'll look around at other options to see if they can be shipped at a reasonable price.
AtTheHelm is offline
post #6 of 20 Old 06-02-2013, 11:15 PM
Poncherello
Moderator
2010 KK Liberty

Join Date: Apr 2011
Location: Paterson
Posts: 1,128
Nice rack At the Helm

When you get knee-deep in a situation, floor it.
Poncherello is offline
post #7 of 20 Old 06-03-2013, 12:23 AM
Bmxer524
Registered User
2011 KK Liberty

Join Date: Aug 2011
Location: Lindenhurst
Posts: 1,571
Looks good. Ever think of selling just the side rails? Surely UPS wouldn't consider that too big. It'd be a nice alternative to RRO side rails, and possibly Rock Lizard(I know they make KJ rails, idk about KK rails).
Bmxer524 is offline
post #8 of 20 Old 06-03-2013, 04:39 PM Thread Starter
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe
Posts: 863
Added the extra bars. The front will likely get removed or modified because there is now a lot of wind noise. The rear also needs adjusting because I managed to put it right were the antenna sits. Sh*t.





AtTheHelm is offline
post #9 of 20 Old 06-03-2013, 08:39 PM
Poncherello
Moderator
2010 KK Liberty

Join Date: Apr 2011
Location: Paterson
Posts: 1,128
You know what could help eliminate the wind noise a simple fairing similar to Yakima or Thule or something you can make up.
Attached Thumbnails
jeffs pics2 00751.jpg

When you get knee-deep in a situation, floor it.
Poncherello is offline
post #10 of 20 Old 06-04-2013, 11:26 AM
carlosburitica
Registered User
2010 KK Liberty

Join Date: Feb 2013
Location: fort lauderdale
Posts: 173
Quote:
Originally Posted by AtTheHelm View Post
According to ups' website they would be too big to ship. Shame because i'd be able to sell them at a pretty good price. I'll look around at other options to see if they can be shipped at a reasonable price.
all you need to is make it able to be cut on half, like a male and female parts on the middle or instead welding the cross bars they can be bolted in so you have to esmable it your self if you buy it.

you know i am in. love your recovery system and love this rack as well
carlosburitica is offline
post #11 of 20 Old 06-04-2013, 02:57 PM Thread Starter
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe
Posts: 863
I'll try and think of some way to make it broken down and still clean looking and stout.
AtTheHelm is offline
post #12 of 20 Old 06-04-2013, 02:57 PM Thread Starter
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe
Posts: 863
Took off the front bar, now wind noise is cut down 90%. Can hardly hear anything.
Also took care of the rear antenna issue. As my first tube project I gotta say its way more fun than plate!

Notched out

Small piece of tube replaced

Ground down and finished


Nice and low
AtTheHelm is offline
