swing gate door handle assembly

I am looking for a detailed diagram of internal assembly for swing gate door handle. I am currently able to pop glass up with remote but have to reach in door panel to pull rod to open latch that opens door. I am wondering where/how the other end of the rod connects directly to door handle. I am thinking I may need to order a connecting part. Any help in this matter is sincerely appreciated.

ajf66 is offline   Reply With Quote Quick reply to this message
Unread 06-08-2010, 08:26 AM   #2
teamfast
Registered User
2007 KJ Liberty

Join Date: Aug 2009
Location: montreal QC
Posts: 90
you need the door latch mechanism. Be ready to pay about 250 bucks. Ridiculous. Takes about 20 min to complete this job.
teamfast is offline   Reply With Quote Quick reply to this message
Unread 06-08-2010, 08:20 PM   #3
Gramps
The Necessary Evil

Gramps's Avatar
2007 MK Compass

Join Date: Aug 2006
Location: Madison/Janesville, Wisconsin
Posts: 5,624

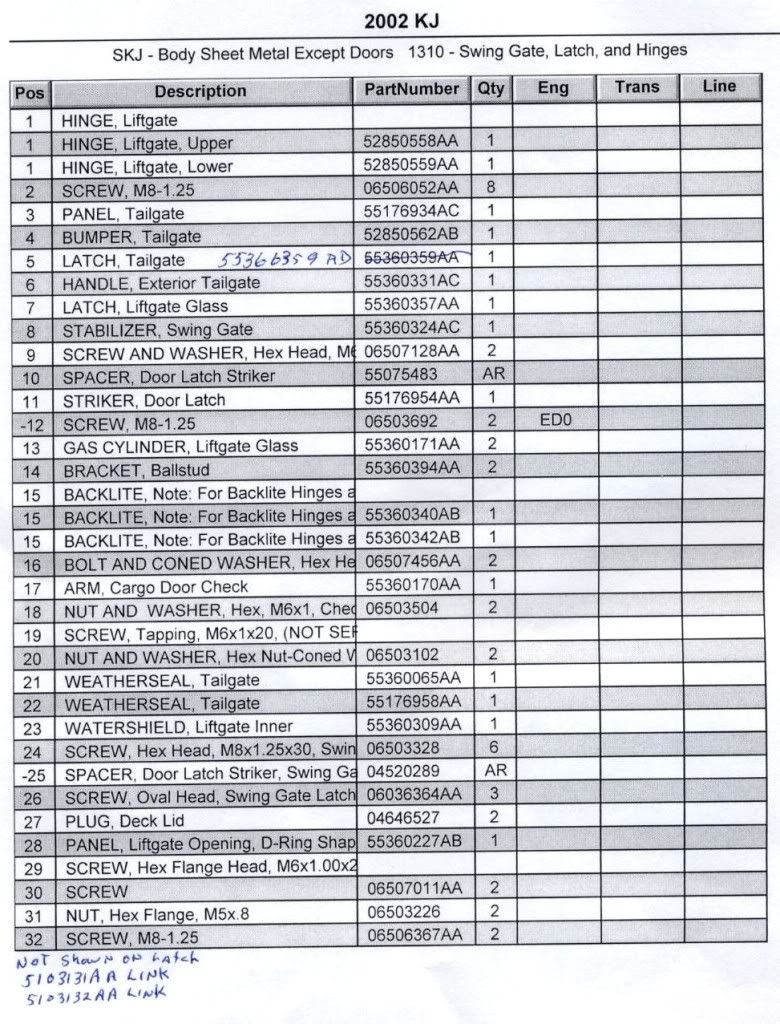

The links to the latch assembly are not shown but I put the part numbes at the bottom of the parts list and the latest part number for the latch is #5. Hope this helps.







__________________
Bob

Artificial intelligence is no substitute for natural stupidity

MK Skid Plate fasteners for sale posts 68 & 69

Also visit me at Photobucket
'06 WK Grand Cherokee Limited Quadra-Drive II, 5.7
'07 MK Compass Limited 4X4, AutoStick
Gramps is offline   Reply With Quote Quick reply to this message
Unread 06-10-2010, 03:44 AM   #4
soulfinger
Registered User
2002 KJ Liberty

Join Date: Sep 2009
Location: Corona CA
Posts: 50
Quote:
Originally Posted by ajf66 View Post
I am looking for a detailed diagram of internal assembly for swing gate door handle. I am currently able to pop glass up with remote but have to reach in door panel to pull rod to open latch that opens door. I am wondering where/how the other end of the rod connects directly to door handle. I am thinking I may need to order a connecting part. Any help in this matter is sincerely appreciated.
Depending on what broke, you may actually need the handle and not the latch. Mine broke and I thought it was the latch but the part that broke off, which was inside the gate, is actually part of the handle assembly. What happens when you pull on the handle? Does the handle pull out freely like there's no resistance?

If you do need the latch I have a brand new one for a 2002 that I can let you have for $110 shipped. (Dealer price is $217). Just PM me if you want it.
__________________
2002 KJ Limited, ARB bullbar, 245/75/16 Goodyear MT/R

Last edited by soulfinger; 07-01-2010 at 01:17 PM..
soulfinger is offline   Reply With Quote Quick reply to this message
Unread 07-02-2010, 12:03 AM   #5
ajf66
Registered User
2002 KJ Liberty

Join Date: Jun 2010
Location: Las Vegas, Nv.
Posts: 8
Yes, I pull handle with no resistance. I have been able to reattach lever that opens open door but still unsuccessful in opening door. I guess I needed to replace whole handle assembly. Would a salvage yard find work just as well? Or am I better off purchasing from Jeep?
ajf66 is offline   Reply With Quote Quick reply to this message
Unread 07-02-2010, 11:02 AM   #6
soulfinger
Registered User
2002 KJ Liberty

Join Date: Sep 2009
Location: Corona CA
Posts: 50
Quote:
Originally Posted by ajf66 View Post
Yes, I pull handle with no resistance. I have been able to reattach lever that opens open door but still unsuccessful in opening door. I guess I needed to replace whole handle assembly. Would a salvage yard find work just as well? Or am I better off purchasing from Jeep?
I think you'd be fine either way. Depends on how you feel about the price. You can buy the handle new online for $65 or so.

Do you have any pictures of exactly what broke?
__________________
2002 KJ Limited, ARB bullbar, 245/75/16 Goodyear MT/R

Last edited by soulfinger; 07-02-2010 at 11:14 AM..
soulfinger is offline   Reply With Quote Quick reply to this message
Unread 07-02-2010, 10:35 PM   #7
ajf66
Registered User
2002 KJ Liberty

Join Date: Jun 2010
Location: Las Vegas, Nv.
Posts: 8

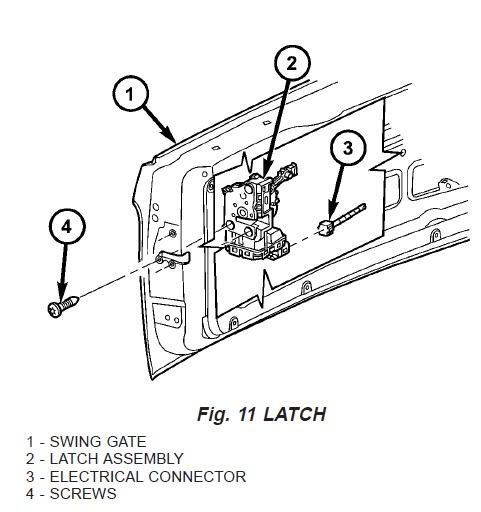

That's just it, I am not sure what broke. Gramps provided a few diagrams. Figure 11 Latch bottom diagram 2/ latch actuator rod connector is my guess.
