warn m8000, solenoid not assembled completely?

So my M8000 arrived today, and I was mounting the winch to the winch plate in my living room, with plans to mount it all on the jeep this weekend.

I opened up the plastic case that covers up the solenoids because it sounded like there was alot of rattling going on in there, and there were a few wires sticking out of it that didn't feel like they were connected to anything. Sure enough, not much is connected in there.

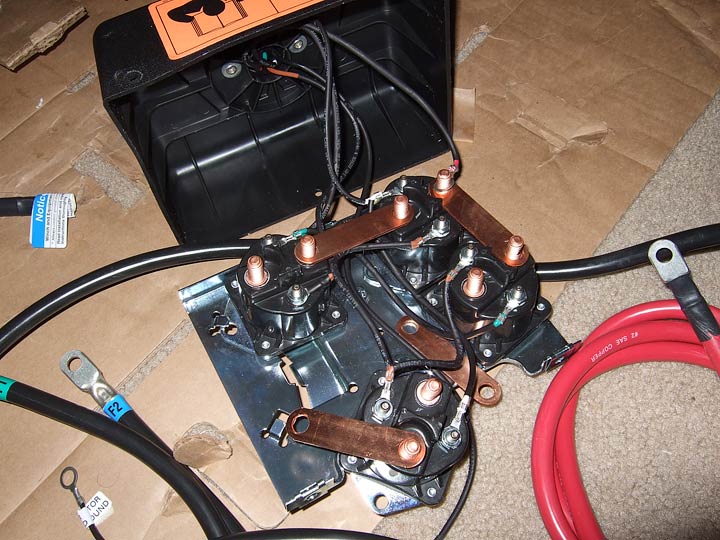

It looks like quite a few things are not connected properly? None of the copper looking posts have nuts on them to secure the connecting copper pieces to each other (I assume they should?) And I'm not sure where to connect the black main big thick wires (sitting outside the case in the photo). They are labeled on one side (the posts on the winch itself) but on the solenoid side, I'm not sure which wires should be on which posts. The ends of the big wires were just shoved into the box, not connected to anything. And the solenoids are not bolted to the metal part of the case, should they be just free floating inside of there? or are they missing some hardware?

Is this normal, is this how it's supposed to arrive? (it's new, not used) It kinda just looks like it's not finished being put together yet, and I don't see anything in the instructions mentioning the solenoid connections inside the box at all. If this is how it's supposed to arrive, I'm dissapointed. If this is NOT how it's supposed to arrive, I'm still dissapointed. Also dissapointed that there is no mounting bracket for the solenoid box, I guess the old threads that I read are still accurate, warn still does not provide this item in the kit.

I'm glad I opened it up before I started trying to mount it all to the jeep.

I'm gonna call up Warn tomorrow, but figured I'd post up here since the M8000 seems to be a commonly used model.
