Converting a portable smittybuilt compressor to onboard air

hey guys I had a buddy of mine give me a fairly new smittybuilt portable air compressor (fairly certain it is the 2780 model (2.54 CFM / 72 LPM). This compressor has a on off switch on the housing and cables to connect directly to the battery (battery post clamps). The question I had and I am looking for suggestions on is converting this to a full on board system with a small tank reservoir.

So here is my plan:
In looking at the housing on the compressor I can disassemble / gain access to the switch I would think I can just by pass this run wiring from the compressor to a toggle switch in the dash.
I figure I can do the same with the power cords and chop the connectors of the end and splice in new wire and hard wire it directly to the battery (via an inline fuse).

Once installed I plan to then add a small tank as well as run an air gauge to the dash.

This seems pretty straight forward "in theory" BUT I wanted to get some additional input in case I am overlooking something. I've done stuff like this before with power tools (converting a circular saw into a table saw) but nothing on a vehicle.

Any thoughts or suggestions?

thanks

mudcrwsr is offline   Reply With Quote
Unread 08-22-2013, 07:09 AM   #2
TJDaveX
Motorized Toy Collector

TJDaveX's Avatar
2004 TJ Wrangler

Join Date: Dec 2007
Location: Eastern WA
Posts: 2,887
Subscribed. I won the same larger SB compressor at a jamboree a couple years ago.
It's big, but faster than any other portable I have seen. I am also looking to do the same thing with it.
I
TJDaveX is online now   Reply With Quote
Unread 08-22-2013, 11:42 AM   #3
matthew900
Senior Member

matthew900's Avatar
2002 TJ Wrangler

Join Date: Nov 2008
Location: Las Vegas, NV
Posts: 924
I'd recommend adding a pressure regulator switch to the tank and put it in line with the switch so the compressor does not over fill the tank. Otherwise the compressor or the tank could go if you forget to turn it off when the tank is full.
matthew900 is offline   Reply With Quote
Unread 08-22-2013, 12:59 PM   #4
mudcrwsr
Registered User
2001 TJ Wrangler

Join Date: May 2012
Location: Wilmington, NC
Posts: 64
Quote:
Originally Posted by matthew900 View Post
I'd recommend adding a pressure regulator switch to the tank and put it in line with the switch so the compressor does not over fill the tank. Otherwise the compressor or the tank could go if you forget to turn it off when the tank is full.
Yeah good idea, didn't think of that. For any interested I found a few on Ebay 90/120 psi ranging from $6 - $16. I'm gonna pick one up and test this thing out. I'll post a build thread once I get it together for any interested

link to regulator: http://compare.ebay.com/like/3805773...ypes&var=sbar#
mudcrwsr is offline   Reply With Quote
Unread 08-22-2013, 01:09 PM   #5
hustler905
Registered User
2002 TJ Wrangler

Join Date: Mar 2010
Location: Canada, Eh! Aboot here!, Ontario
Posts: 3,622
I made a similar system, and took it back out because it didn't meet my expectations.

I used a(n):
Two head compressor, sounds like what you are talking about, mounted in the engine bay
"Relocated" the switch on the compressor to near where the air hose hooked up, near the front bumper
Hot dog shaped tank that fit under the drivers side passenger floor near the frame rail
Pressure switch
Air line, barbed fittings, etc.

It was a waste of time. Airing up tires meant getting a quick rush of air for about two seconds, then as soon as the air in the tank was gone I was just running off the compressor. Why not save some time and money and just run off the compressor in the first place?
hustler905 is offline   Reply With Quote
Unread 08-22-2013, 01:14 PM   #6
biffgnar
Web Wheeler

biffgnar's Avatar
2006 TJ Wrangler

Join Date: May 2008
Location: Westchester, NY
Posts: 13,261
Quote:
Originally Posted by hustler905 View Post
Airing up tires meant getting a quick rush of air for about two seconds, then as soon as the air in the tank was gone I was just running off the compressor. Why not save some time and money and just run off the compressor in the first place?

Everybody puts a tank into their system (myself included) because thats how they've seen others set up. Unless the tank is much larger than is usually convenient for a TJ this is exactly what happens.
__________________
Thank you Dave Cole, Dynomax, Falken and all the Spec Class sponsors!!
biffgnar is offline   Reply With Quote
Unread 08-22-2013, 01:16 PM   #7
mudcrwsr
Registered User
2001 TJ Wrangler

Join Date: May 2012
Location: Wilmington, NC
Posts: 64
Quote:
Originally Posted by hustler905
I made a similar system, and took it back out because it didn't meet my expectations.

I used a(n):
Two head compressor, sounds like what you are talking about, mounted in the engine bay
"Relocated" the switch on the compressor to near where the air hose hooked up, near the front bumper
Hot dog shaped tank that fit under the drivers side passenger floor near the frame rail
Pressure switch
Air line, barbed fittings, etc.

It was a waste of time. Airing up tires meant getting a quick rush of air for about two seconds, then as soon as the air in the tank was gone I was just running off the compressor. Why not save some time and money and just run off the compressor in the first place?
Yeah I thought of that as well. Where my plan is a bit different is I plan to mount the compressor inside the jeep bolted to the top of the rear fender. My intent was to use a tank for other accessories like a rear locker. For airing the tires I would bypass the tank and run directly off the compressor.. You do have me thinking though. Thanks for the input
mudcrwsr is offline   Reply With Quote
Unread 08-22-2013, 01:41 PM   #8
hustler905
Registered User
2002 TJ Wrangler

Join Date: Mar 2010
Location: Canada, Eh! Aboot here!, Ontario
Posts: 3,622
I have still been toying with putting the compressor back in, hard mounted somewhere, with a switch and air line hookup outside the engine compartment. That way there's no handling a hot compressor after airing back up, and the compressor is securely mounted in a place where it won't be in the way.

I know your idea was to use the air system for lockers. ARB? The simplest way is to use the ARB harness and switch ...
hustler905 is offline   Reply With Quote
Unread 08-22-2013, 02:06 PM   #9
mudcrwsr
Registered User
2001 TJ Wrangler

Join Date: May 2012
Location: Wilmington, NC
Posts: 64
Quote:
Originally Posted by hustler905
I have still been toying with putting the compressor back in, hard mounted somewhere, with a switch and air line hookup outside the engine compartment. That way there's no handling a hot compressor after airing back up, and the compressor is securely mounted in a place where it won't be in the way.

I know your idea was to use the air system for lockers. ARB? The simplest way is to use the ARB harness and switch ...
I was thinking I might save a few bones rigging my own on board system up (with a tank) and hooking up the locker. I'm starting to think I may run it straight like you guys are suggesting. And use another compressor for the locker such as the arb.
mudcrwsr is offline   Reply With Quote
Unread 08-22-2013, 03:05 PM   #10
AdamLC
Registered User
2003 TJ Wrangler

Join Date: Jan 2013
Location: Oklahoma City, Oklahoma
Posts: 68

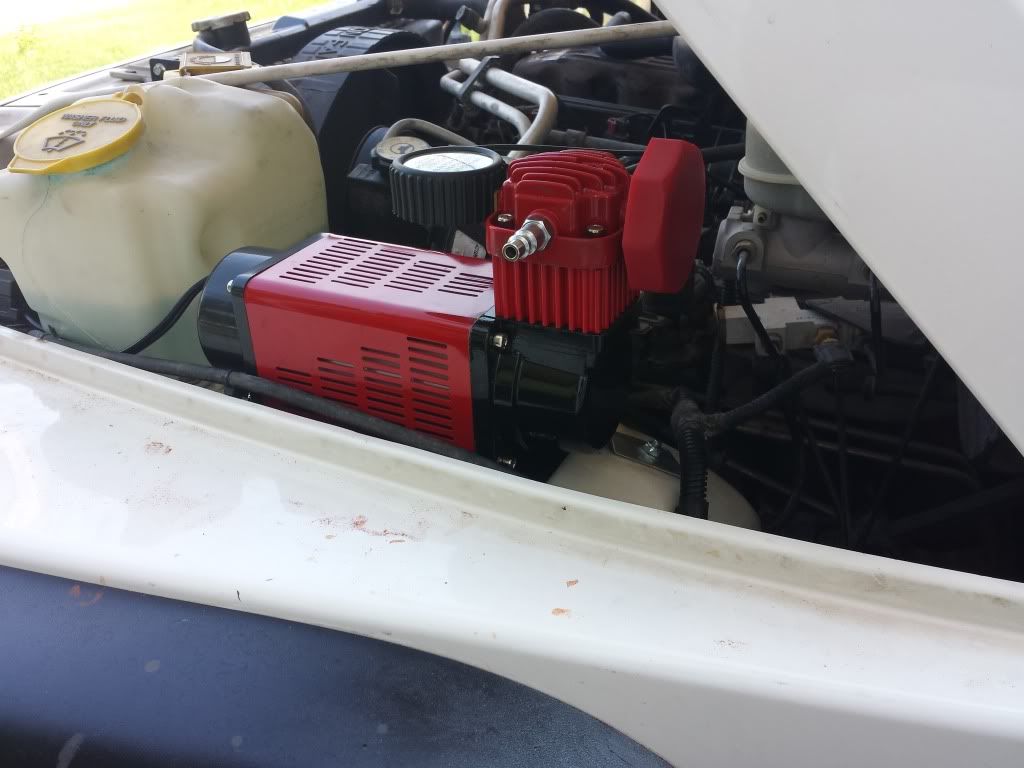

I just hard mounted my MV50 Compressor . It came with alligator clips like yours. I split them to within a foot of the compressor. Kept the one with inline fuse long and snipped the other one to a length where I could ground to a bolt nearby my mounting location. Put a terminal on it then ran the power wire with the fuse to a power source. If you want it switch from inside the vehicle I would run a relay setup. I didn't bother as its under my hood and ill just flip the switch on the compressor when I hook up the air line.



AdamLC is offline   Reply With Quote
Unread 08-22-2013, 03:13 PM   #11
bbradUSMC
Registered User
2004 TJ Wrangler

Join Date: May 2010
Location: Corpus Christi, Texas
Posts: 1,365
Quote:
Originally Posted by AdamLC View Post
I just hard mounted my MV50 Compressor . It came with alligator clips like yours. I split them to within a foot of the compressor. Kept the one with inline fuse long and snipped the other one to a length where I could ground to a bolt nearby my mounting location. Put a terminal on it then ran the power wire with the fuse to a power source. If you want it switch from inside the vehicle I would run a relay setup. I didn't bother as its under my hood and ill just flip the switch on the compressor when I hook up the air line.



How long does it take to fill up tires and what size tires?
bbradUSMC is offline   Reply With Quote
Unread 08-22-2013, 03:22 PM   #12
AdamLC
Registered User
2003 TJ Wrangler

Join Date: Jan 2013
Location: Oklahoma City, Oklahoma
Posts: 68
I just finished installing yesterday. Ill air down to 12psi and report back.
AdamLC is offline   Reply With Quote
Unread 08-22-2013, 04:05 PM   #13
jeeprubi2005
Registered User
2005 TJ Wrangler

Join Date: Apr 2011
Location: bloomsburg, pa
Posts: 150
I have the air ride compressor off of a 80s caddy its slow as hello bust its saved me more than once ill get pics when i get out of work
jeeprubi2005 is offline   Reply With Quote
Unread 08-22-2013, 04:53 PM   #14
Tblack
Registered User
2000 TJ Wrangler

Join Date: Oct 2010
Location: Murray, UT
Posts: 1,173
I have mine mounted on board, it is the smitty as well that I received as a gift. I have an amplifier that is mounted under the rear seat. I had a leftover splitter (for 2 amplifiers) that came in the wiring kit. I put that in and ran the compressor wires to the splitter as I had to mount the compressor in the back because the charcoal canister is mounted under the hood in my jeep and I also have the manual with the clutch master cylinder in the way. This means everything is already fused and ready to go through the amp wiring. The one thing I don't have is a tank. But this system works great for filling up my tires after a trail run in less than 10 minutes.
__________________
Safety 3rd!
Tblack is offline   Reply With Quote
Unread 08-22-2013, 06:23 PM   #15
bbradUSMC
Registered User
2004 TJ Wrangler

Join Date: May 2010
Location: Corpus Christi, Texas
Posts: 1,365
sweet I have been wanting to buy one. I think guys are actually moding these to make them more efficeint.
bbradUSMC is offline   Reply With Quote
