Warbird 2

Tile Page

Here we go. I have set up a bunch of indexes, hopefully I can keep everything organized and do a lot better at keeping information easily accessible!

I will use this post to keep an updated photo and current specs as things progress!

Current Pic


Specs
1995 Jeep YJ
2.5/Ax15
d35/d30 open/open
122,xxx miles
31x10.5x15 "off brand" tires
Barricade Soft Top

Pretty much stock and 99% rust free!

Goals
The goal with this build will be to transform that stock YJ in Warbird 2! My overall goal is to build a rig that is an across the board compromise between comfortable daily driver capable of making long road trips, a weekend warrior rock crawler, and a descent expedition rig capable of going on prolonged outings into the wilderness of the west.

Rough Plan
5.3/4l60e swap (in progress!)
8.8/d30 built (lockers, chromos, etc)
35" Tires
Full Armor (body and skids)
Upgraded cage
Upgraded seats
Lighting
Warbird paint job
Expo Jeep Trailer

Why...
When I first was mapping out this build I had a desire to keep the Jeep small (32s, mild lift, stock motor, etc) but decided that long term I would never be happy with that set up. I then swung in the opposite direction and began hunting for some tons and started planning for 37 or 38 inch tires. I finally made the decision that in order to fully meet all my requirements, a build based on 35s would be my best choice; big enough to do some pretty great rock crawling, but small enough to be a descent daily driver and expo rig.

Some of my other links
--Previous iteration of this build thread. I will still use it for discussion and gathering opinions and info as to not clog this thread up too bad. http://www.jeepforum.com/forum/f22/s...2-0-a-1715954/
--My first JF YJ build, aka Warbird 1: http://www.jeepforum.com/forum/f12/h...hread-1501631/

That's it for now I think...

Cheers

__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-21-2014, 11:24 PM   #2
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Main Index
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-21-2014, 11:25 PM   #3
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
5.3 swap index

5.3 Swap Parts List

Stages, write ups, and other info
1. Picking up the 5.3, parts removal, and parts paint
2. Intake Manifold Shave
3. 5.3 Harness Modification
4. Advanced Adapters np231 27 spline input shaft install
5. Advanced Adapters 4l60e to np231j adapter install
6. Novak Motor Mount Install
7. Running Fuel Lines
8. Novak np231 shifter install
9. Radiator/Cooling
10. Transmission cooler/lines
11. Crossmember
12. UFC 1" Drop skid
13. Lokar Shifter Install
14. Setting up stock Gauges
15. Air Intake

Other reference threads
1. XJ Jeremy's 6.0 in an XJ swap
2. Randonexplosion's 5.3 into a YJ build thread
3. www.lt1swap.com- Amazing wiring, harness, and PCM reference
4. http://www.jeepforum.com/forum/f22/p...stall-1400506/ Why J?'s build thread.
5. http://www.jeepforum.com/forum/f12/t...-hold-2220801/ Stacy1993joob turbo 5.3 thread



Cheers
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-21-2014, 11:25 PM   #4
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
SOA Lift Index

1.RuffStuff 63 front hangers in the WRONG place
2. RuffStuff 63 front hangers in the RIGHT place
3.Rebuilt Stock Springs
4. MORE front shock hoop install
5. BTF Crossover Steering Bracket
6.
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-21-2014, 11:26 PM   #5
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Axles Index
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-21-2014, 11:26 PM   #6
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Paint Job Index

1. Interior Monstaliner
2. Painting Armor
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-21-2014, 11:27 PM   #7
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Interior Index

1. Poison Spyder Full Cage Bungs
2. Poison Spyder Full Cage paint
3. Poison Spyder Full Cage Installed
4. Kicker Dash Speakers
5. Corbeau Front Seat, Bestop Trailmax II Rear Seat
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-21-2014, 11:28 PM   #8
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Misc Mod Index

1. Cutting the rear wheel opening
2.
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-21-2014, 11:28 PM   #9
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Wheeling Pics Index
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-21-2014, 11:29 PM   #10
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
And Just In Case I Didn't Think Of Something Index
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-22-2014, 12:02 AM   #11
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
The first thing I'm starting with is the motor swap.
DISCLAIMER: I have almost zero experience with things like this! I've never done a motor swap before and only have limited knowledge of fuel injected engines and how they go together, much less how to make it work in my jeep. I have spent the last 6 months or more reading, reading, reading, reading, and reading on the subject, and I have learned just enough to get me in trouble! I'm confident that with the support of the write ups here on JF, the community, and being able to pick the brains of a few friends whom have done a swap like this before, I will get it figured out and learn a ton in the process!

So I had my eye on a 6.0 but it sold while I was down on the /f12 Moab trip. No worries, the yard had an '03 5.3 in stock with 89,xxx on the clock and 180 compression in each cylinder. Sweet! Drove over to Ontario Oregon to pick her up!



The yard had the motor on a pallet all ready for me when I got there!


Got the engine/transmission loaded up...

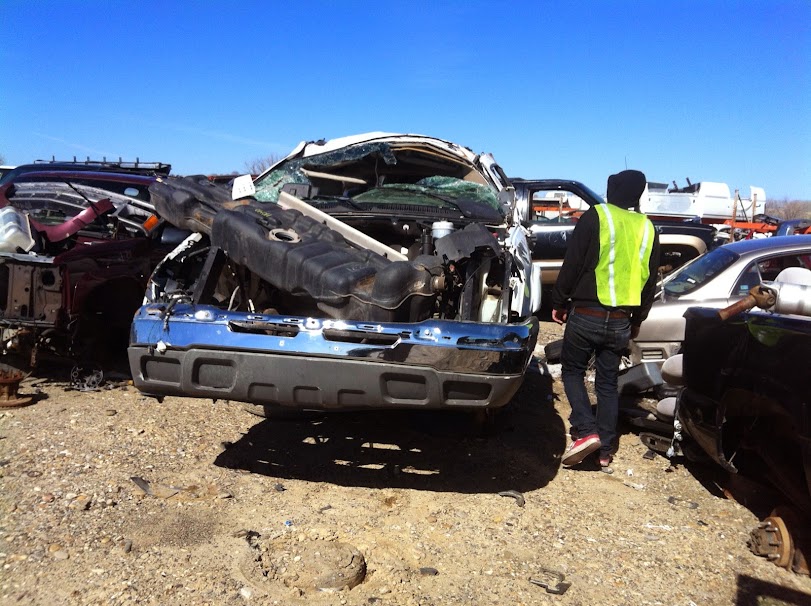

Then made a quick sweet of the yard to check out the rig it was pulled from;



Grabbed the trans cooler and headed out.


And headed home!



Cheers
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-22-2014, 12:05 AM   #12
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Got home from grabbing the motor and decided to spend a day cleaning my garage and building some shelves. I wanted to get my work space organized before I began.

Before:

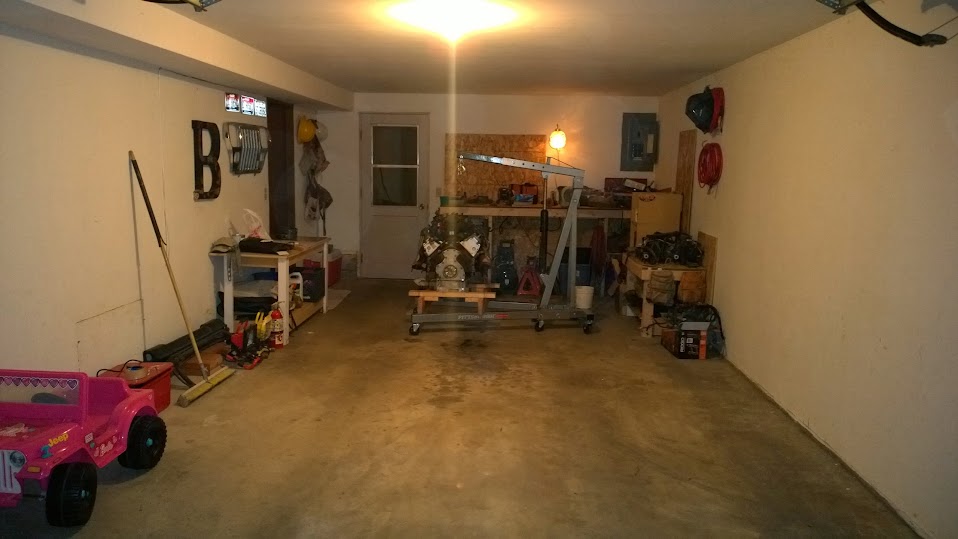

After:


Much better! I still need some more shelving but it will work for now. As you can see, I also got the 5.3 into the garage, ready to go.

Cheers
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-22-2014, 12:06 AM   #13
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Yesterday I had a kind of family emergency, so I didn't get nearly as much done as I wanted. I did get most of the accessories and the wiring harness stripped off the motor though.


Cheers
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-22-2014, 12:14 AM   #14
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Today I again was dealing with my family issues and had Exiled Offroad stuff to manage so once again, I didn't have as much time as I would have liked.
I got the rest of the engine stripped down as far as I'm taking it.

Almost naked!


I then spent a couple hours cleaning EVERYTHING with a wire/soft brush, brake cleaner, mineral spirits, and compressed air. It was very time consuming but worth it! I'm glad I stripped everything off. As I was removing parts I found out that the yard had previously disassembled the motor down to the block and heads and sorted the individual parts in their warehouse. When I called to ask about the motor and reserve it, they had grabbed all the parts and put it back together, but most of the bolts were only hand tight or just past hand tight. Glad I checked and didn't try to fire it like that!

Next I painted everything up.

Block



Valve covers. Side by side, one cleaned and painted and the other straight off the head.


And all the accessories cleaned and painted;


I really want to take my time and make things on this build as clean as I am capable. It was time consuming but worth it!

Cheers
__________________
WARBIRD 2
EXILED OFFROAD
June '13 YJOTM
Sparrows is offline   Reply With Quote Quick reply to this message
Unread 03-22-2014, 12:17 AM   #15
Sparrows
Registered User
1995 YJ Wrangler

Join Date: Dec 2012
Location: Boise, ID
Posts: 4,526
Got my motor mounts in the mail today as well.


I got the Novak mounts. Shipping was fast! Arrived at my door around 48 hours from the time I placed my order. The mounts are beef and I went with them since Novak already did the hard part and figured out the best placement for them. That way all I have to do is measure (and remeasure!), burn them in, and can be confident that everything will fit as intended with out having to test fit the engine multiple times while adjusting the mounts and trying to measure a hundred different clearances.

Pretty much brings us up to now!
