post #541 of 746 Old 05-24-2013, 05:51 AM Thread Starter
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids
Posts: 6,565
Quote:
Originally Posted by OutoOfMyMindCJ View Post
My basic understanding is that you want to modify the c103 and c104 plugs on the engine side of the harness to retain the plugs. basically the donor does have these plugs so you are doing the splicing from the engine side of the jeep harness and the engine side on the donor harness. In doing this you will keep the firewall side of the jeep harness (including the PDC) alone and stock appearing. In spending an hour or so staring at my two harnesses this is what seemed to make logical sense to me, however I am often wrong lol. Thanks for the help it is appreciated.
The donor does not have the C103 and C104 plugs, at least not in my case or any other I've seen. The Jeep was designed so that you could remove the black and white PCM plugs and all the associated wiring and leave the Grey PCM plug in the Jeep. The C103 and C104 give a means to separate the Grey plug wires and some of the senors and what not aft of the firewall. Pretty sure I made my splices after the plugs.


"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline
Sponsored Links
Advertisement

post #542 of 746 Old 05-25-2013, 05:42 AM
OutoOfMyMindCJ
Registered User
1997 TJ Wrangler

Join Date: Jan 2012
Location: Lexington
Posts: 95
Sorry that is what I meant. Thanks for the clarification, it does seem that after you just sit down and stare at the two harnesses it becomes more self evident of what you need to do. How many hours do you think you had total in doing your wiring?
OutoOfMyMindCJ is offline
post #543 of 746 Old 05-27-2013, 04:11 PM Thread Starter
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids
Posts: 6,565
I think I had it done in 4 days, but I work slow and methodical. I also went from a manual to an auto, which added a little complexity.

"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline
post #544 of 746 Old 06-11-2013, 12:12 AM
andrewmacc
Registered User
1998 XJ Cherokee

Join Date: May 2010
Location: BC Canada
Posts: 608
Any news to share with the class?

"Chilton's and Haynes are for brake jobs, oil changes and starting campfires." - CJ7-Tim
'98 2dr/5spd Cherokee rockin' on tons, 5.9L V8 Magnum, HP60/14b, 5.13:1, locked, 14" coilovers, Dana 300 4:1 twin stick... oink oink!
andrewmacc is offline
post #545 of 746 Old 06-11-2013, 08:38 PM Thread Starter
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids
Posts: 6,565
Very little to share right now because it is summer and very little seems to occur Jeep wise in the summer around here. I have another project in full swing right now (non-Jeep, therefore uninteresting), so Jeep stuff is on the back burner.

I DID have a little time to start test fitting my high line tube fender kit and found some disturbing things. The holes on the mounting brackets don't line up on the grille or tub.

On the tub with the bracket positioned as low as possible, the bracket is about 3/4" too high. They are slotted a bit, which allows for some up and down movement, but not enough to make the piece mate nicely with the tub. The blue tape is for contrast only:



This also caused the top to be too high:



Now, the tub side isn't that big of a deal. I can modify the bracket to fit and it would look fine by cutting the top to fit the tub profile and filling/welding/whatever'ing the bottom to look good.

The grille was a different story however. The holes on the bracket were cut 3" on center.



However, my grille has the holes spaced about 2 9/16". If I put the center bolt in with the piece slid all the way DOWN in the slot, I can just get the top bolt in, but the bottom bolt hole isn't even close. If I slide the piece all the way UP, I can only get the center bolt in; neither the top nor the bottom bolt will go in. I couldn't get it to photograph well, but if you blow this pic up, you can see a part of the hole showing through the pre-cut holes in the bracket, and there's no way that all three bolts will go in:



Now, I could modify this piece to work too, but it would either look like hell because those slots would be opened way up, or it would take a lot of time to fill in and re-drill those holes appropriately. I bought a pre-cut kit to save time, but if I have to re-do all the cuts, then I might as well have built them myself from the start.

I emailed the vendor that supplied these, and he indicated that new ones would be cut and sent. Haven't seen them yet, but I believe it was only a week ago, so I'm not terribly concerned since I'm not working real hard on it anyways.

Transmission is dripping again, but it doesn't appear to be from the shift shaft seal that I replaced. It seems to be the pan gasket because it's not wet higher than that. I haven't had the time to look harder than that.

"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline
post #546 of 746 Old 06-21-2013, 10:00 PM Thread Starter
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids
Posts: 6,565
Tiny little update:

I tightened those pan bolts a bit. Half of them were loose and needed 1/2 turn or better to be snug.

Since my fenders are long gone, and no word yet on my replacement parts, I put some turn signals in the bumper on a break from work.

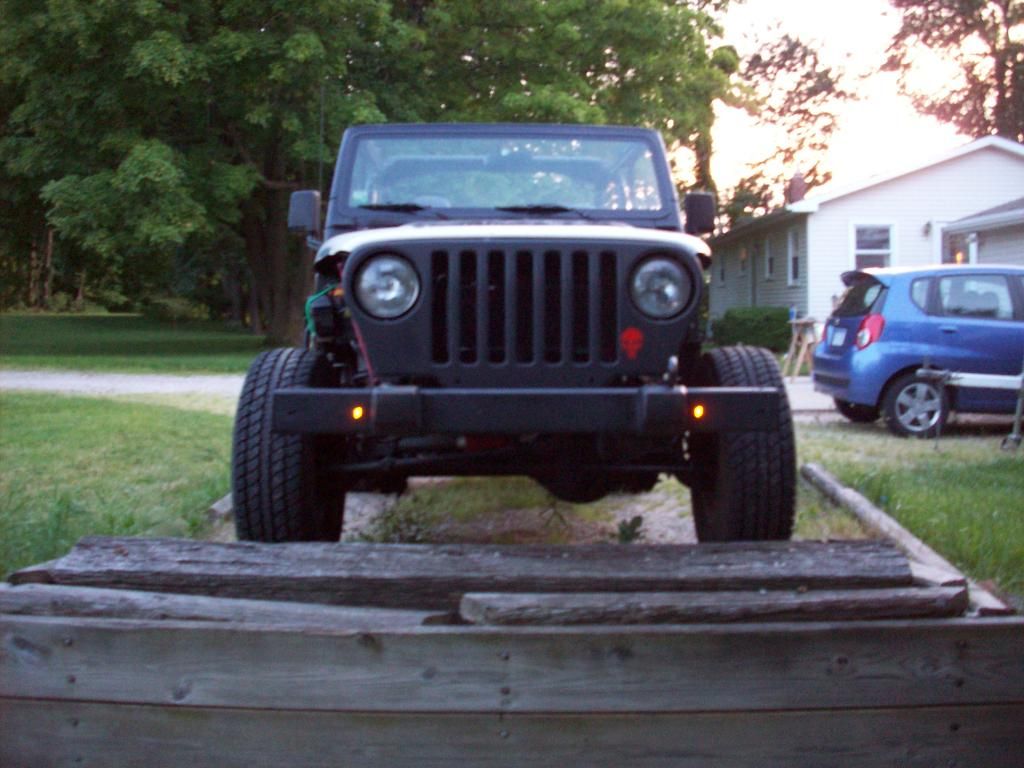

Parking lights:

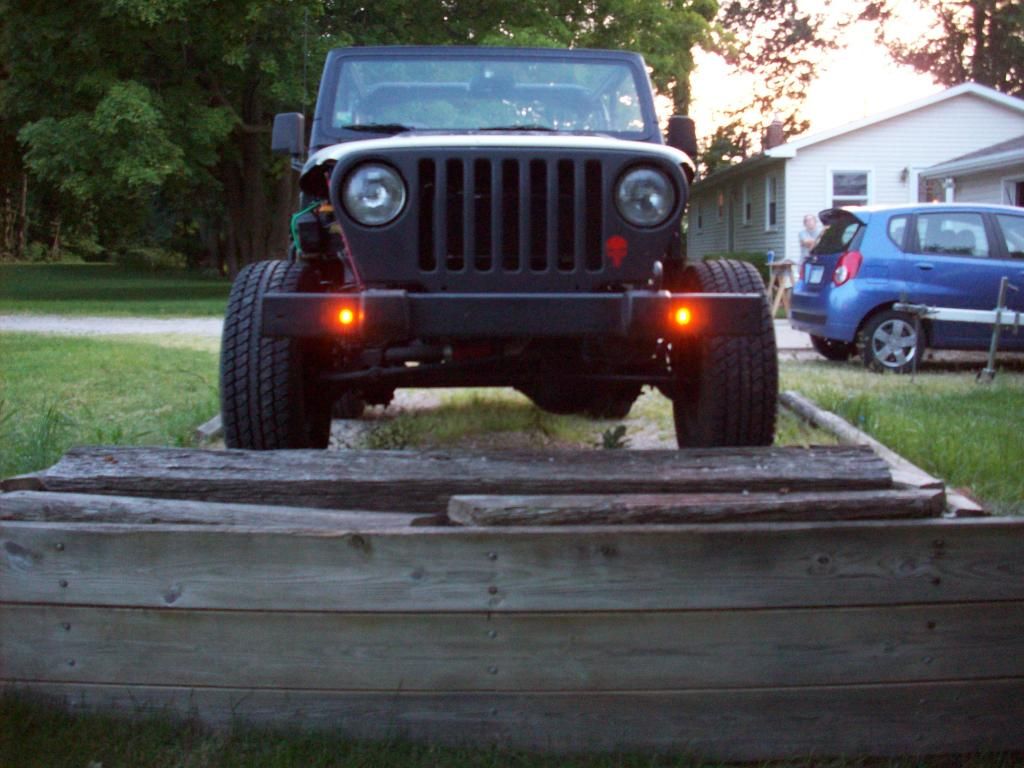

Turn:


"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline
post #547 of 746 Old 08-11-2013, 12:26 PM
milemarker01
Registered User
2001 TJ Wrangler

Join Date: Jan 2013
Location: High Prairie
Posts: 25
Looks like your build has been going as fast as mine lately. I have a question with regards to the OD switch, I can't seem to turn overdrive off. I was wondering how you wired in your switch, I'm sure it's in the thread somewhere and I missed it. Thanks.
milemarker01 is offline
post #548 of 746 Old 08-11-2013, 04:40 PM Thread Starter
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids
Posts: 6,565
Yeah, not much progress.

I have some other projects that have been keeping me busy. Plus trying to enjoy the short summer in Michigan and work on the other Jeep, I haven't had much time.

I never wired the OD defeat. I have a wire under the shifter taped up. All it should require is a momentary switch or button to disable the OD. A short to ground is what triggers the OD defeat.

"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline
post #549 of 746 Old 08-18-2013, 09:55 AM
milemarker01
Registered User
2001 TJ Wrangler

Join Date: Jan 2013
Location: High Prairie
Posts: 25
That's what i figured but for some reason it won't kick off OD. Time to get the multi meter out I guess. Thanks for the reply.
milemarker01 is offline
post #550 of 746 Old 09-03-2013, 07:23 PM
--chris--
Registered User

--chris--'s Avatar
2001 TJ Wrangler

Join Date: Jul 2007
Location: Michigan
Posts: 2,144
Did the GF finally get a new daily driver?

Oh yeah, nice jeep btw.
--chris-- is offline
post #551 of 746 Old 09-03-2013, 08:07 PM Thread Starter
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids
Posts: 6,565
Quote:
Originally Posted by --chris-- View Post
Did the GF finally get a new daily driver?

Oh yeah, nice jeep btw.


You bet she did. We call it "the roller skate."

"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline
post #552 of 746 Old 09-03-2013, 08:23 PM
--chris--
Registered User

--chris--'s Avatar
2001 TJ Wrangler

Join Date: Jul 2007
Location: Michigan
Posts: 2,144
Quote:
Originally Posted by Jason View Post


You bet she did. We call it "the roller skate."
Thats hilarious, a buddy of mine has owned two of those. The first time I seen it he said "Im not sure why they made it look like a roller skate, but they did".

He "wrecked" his first one hitting a traffic cone at freeway speeds. Just a heads up lol.
--chris-- is offline
post #553 of 746 Old 09-03-2013, 08:32 PM Thread Starter
Jason
Registered User
2005 TJ Wrangler

Join Date: May 2009
Location: Eaton Rapids
Posts: 6,565
Say whatever you want about it, it gets good MPG, and it isn't terrible to drive (pretty much the anti-Jeep? Lol.). I bought hers with a 2 year bumper to bumper warranty and maintence. Her old car was getting downright unsafe. I'm just happy she's in a car I don't have to work on or worry about.

"Ugly Betty" Build - 97 TJ 5.9 Magnum / 46RE Swap

Quote:
Originally Posted by ashland82391 View Post
We're men! We don't need no stinkin directions!
Jason is offline
post #554 of 746 Old 09-06-2013, 01:14 PM
--chris--
Registered User

--chris--'s Avatar
2001 TJ Wrangler

Join Date: Jul 2007
Location: Michigan
Posts: 2,144
Quote:
Originally Posted by Jason View Post
Say whatever you want about it, it gets good MPG, and it isn't terrible to drive (pretty much the anti-Jeep? Lol.). I bought hers with a 2 year bumper to bumper warranty and maintence. Her old car was getting downright unsafe. I'm just happy she's in a car I don't have to work on or worry about.
Im not knocking, hell I am eye balling them too! I just laughed when he told me the insurance company "totaled" it for hitting a traffic cone.
--chris-- is offline
post #555 of 746 Old 10-26-2013, 09:29 PM
NeoAnderson
Registered User
1997 TJ Wrangler

Join Date: Sep 2008
Location: Canada
Posts: 41
Awesomesauce. Yer thread has been invaluable for my own 5.9 swap. Best mod ive done yet. Soooo much fun now! I went with an nv4500 tranny and couldnt be happier with that too.

Whats the latest on Ugly Betty? Give us some more gossip to talk about. :-)

97 TJ 5.9/nv4500/yada yada
