Unread 04-07-2013, 09:55 PM   #91
Ripper3494
Registered User
1994 YJ Wrangler

Join Date: Jan 2010
Location: Warrenville, Illinois
Posts: 5,675
Are your shocks mounted single shear on the axle end?

__________________
build thread:
[url]http://www.jeepforum.com/forum/f22/94-yj-6-0-build-spud-1218315/[/url]
1994 yj stretched, locked and loaded - 6.0l vortec lq4, 4l60e, np231, Dana 44s 37" interco trxus m/t, 3.5" bds front leafs, double triangulated 4 link rear on xj front coils.
1997 ZJ limited - BONE stock
2003 tj - 4in skyjacker, 33" mickey thompsons
my on board alternator/welder write up
[url]http://www.jeepforum.com/forum/f12/alternator-welder-write-up-1301614/[/url]
my tj 1/2 doors on a yj write up
[url]http://www.jeepforum.com/forum/f12/tj-uppers-yj-half-doors-hard-top-installation-1417686/[/url]
RC vs BDS
[url]http://www.jeepforum.com/forum/f12/rough-country-vs-bds-1461555/[/url]
Ripper3494 is offline   Reply With Quote
Unread 04-07-2013, 10:38 PM   #92
clintrivera
Registered User
2006 LJ Wrangler

Join Date: Sep 2005
Location: Pacific, Washington
Posts: 2,482
Quote:
Originally Posted by kyle_craig View Post
Looks like things are coming together nicely. Well done so far!
Thanks!
Quote:
Originally Posted by Ripper3494 View Post
Are your shocks mounted single shear on the axle end?
Yes. It's mounted on the same axis as the upper bushing so there should be less deflection.
__________________
Project Indecision: A Jeep Addicts 06 LJ

http://www.jeepforum.com/forum/f22/p...ed-lj-1741722/
clintrivera is offline   Reply With Quote
Unread 04-07-2013, 11:49 PM   #93
Ripper3494
Registered User
1994 YJ Wrangler

Join Date: Jan 2010
Location: Warrenville, Illinois
Posts: 5,675
Quote:
Originally Posted by clintrivera View Post
Thanks!


Yes. It's mounted on the same axis as the upper bushing so there should be less deflection.

I'd be worried about busting that bolt on that lower mount without some sort of support on it. I know because I ran my shocks like that and busted and bent a few bolts. Take a look at these if your interested
http://www.ruffstuffspecialties.com/.../SBSIDEMT.html

Sent from AutoGuide.com App
__________________
build thread:
[url]http://www.jeepforum.com/forum/f22/94-yj-6-0-build-spud-1218315/[/url]
1994 yj stretched, locked and loaded - 6.0l vortec lq4, 4l60e, np231, Dana 44s 37" interco trxus m/t, 3.5" bds front leafs, double triangulated 4 link rear on xj front coils.
1997 ZJ limited - BONE stock
2003 tj - 4in skyjacker, 33" mickey thompsons
my on board alternator/welder write up
[url]http://www.jeepforum.com/forum/f12/alternator-welder-write-up-1301614/[/url]
my tj 1/2 doors on a yj write up
[url]http://www.jeepforum.com/forum/f12/tj-uppers-yj-half-doors-hard-top-installation-1417686/[/url]
RC vs BDS
[url]http://www.jeepforum.com/forum/f12/rough-country-vs-bds-1461555/[/url]
Ripper3494 is offline   Reply With Quote
Unread 04-08-2013, 08:43 AM   #94
clintrivera
Registered User
2006 LJ Wrangler

Join Date: Sep 2005
Location: Pacific, Washington
Posts: 2,482
Quote:
Originally Posted by Ripper3494 View Post
I'd be worried about busting that bolt on that lower mount without some sort of support on it. I know because I ran my shocks like that and busted and bent a few bolts. Take a look at these if your interested
http://www.ruffstuffspecialties.com/.../SBSIDEMT.html

Sent from AutoGuide.com App
Why? It's a shock mount, not a suspension link. The bump stops are properly spaced to bottom before the shock. The mounts are around axle center line so relatively safe from trail damage. The most stress the shock mount will see will be from full axle droop when the opposite axle is stuffed. With the rear anti-rock that won't even bee that much stress since it will be counteracting that force. I'm also not interested in jumping the Jeep. If I was I would buy some limit straps since I'm sure the shocks wouldn't be interested in dealing with that kind of force either.
__________________
Project Indecision: A Jeep Addicts 06 LJ

http://www.jeepforum.com/forum/f22/p...ed-lj-1741722/
clintrivera is offline   Reply With Quote
Unread 04-08-2013, 09:11 AM   #95
Ripper3494
Registered User
1994 YJ Wrangler

Join Date: Jan 2010
Location: Warrenville, Illinois
Posts: 5,675
Its not so much bottoming out or fully extending the shock, it's more of just over time all the pressure that a shock will supply to that bolt while dampening bumps could break it. It's your jeep I don't mean to tell you how to build it, I'm just letting you know I've broken mounts like that before. If you think it will work for your application then I'm sure it will. It just didn't for mine

Sent from AutoGuide.com App
__________________
build thread:
[url]http://www.jeepforum.com/forum/f22/94-yj-6-0-build-spud-1218315/[/url]
1994 yj stretched, locked and loaded - 6.0l vortec lq4, 4l60e, np231, Dana 44s 37" interco trxus m/t, 3.5" bds front leafs, double triangulated 4 link rear on xj front coils.
1997 ZJ limited - BONE stock
2003 tj - 4in skyjacker, 33" mickey thompsons
my on board alternator/welder write up
[url]http://www.jeepforum.com/forum/f12/alternator-welder-write-up-1301614/[/url]
my tj 1/2 doors on a yj write up
[url]http://www.jeepforum.com/forum/f12/tj-uppers-yj-half-doors-hard-top-installation-1417686/[/url]
RC vs BDS
[url]http://www.jeepforum.com/forum/f12/rough-country-vs-bds-1461555/[/url]
Ripper3494 is offline   Reply With Quote
Unread 04-08-2013, 09:29 AM   #96
clintrivera
Registered User
2006 LJ Wrangler

Join Date: Sep 2005
Location: Pacific, Washington
Posts: 2,482
Quote:
Originally Posted by Ripper3494 View Post
Its not so much bottoming out or fully extending the shock, it's more of just over time all the pressure that a shock will supply to that bolt while dampening bumps could break it. It's your jeep I don't mean to tell you how to build it, I'm just letting you know I've broken mounts like that before. If you think it will work for your application then I'm sure it will. It just didn't for mine

Sent from AutoGuide.com App
It's actually not a bolt. It's a shock mount that came with the shock. I have owned around 5-6 Cherokees that have the same single sheer setup stock with a weaker mount with no issues. Blaine has also used single sheer rear shock mounts when he outboards. I have also seen people mount steering linkage in single sheer using heims (and I suppose you can consider tie rod ends single sheer as well) with far more force and no issues. If it were to break, I would just remove the shock and build it bigger when I got home.
__________________
Project Indecision: A Jeep Addicts 06 LJ

http://www.jeepforum.com/forum/f22/p...ed-lj-1741722/
clintrivera is offline   Reply With Quote
Unread 04-08-2013, 12:56 PM   #97
Sundowner
Part-Time Swami

Sundowner's Avatar
2003 TJ Wrangler

Join Date: May 2009
Location: The Republic of Dave
Posts: 6,157
Quote:
Originally Posted by clintrivera View Post

It's actually not a bolt. It's a shock mount that came with the shock. I have owned around 5-6 Cherokees that have the same single sheer setup stock with a weaker mount with no issues. Blaine has also used single sheer rear shock mounts when he outboards. I have also seen people mount steering linkage in single sheer using heims (and I suppose you can consider tie rod ends single sheer as well) with far more force and no issues. If it were to break, I would just remove the shock and build it bigger when I got home.
Unless the shock sees severe stress - which it should not - I can't see how that mount would be troublesome at all... and in that eventuality, the shock is already dead by the time the mount goes.
__________________
If it's worth doing, then it's worth overdoing.

The Republic of Dave: Bringing you the finest in simian testing supplies.

The build, the gear, and the mileage: The Wasteland Survival Guide
Sundowner is offline   Reply With Quote
Unread 04-15-2013, 12:51 PM   #98
2000GrayTJ
Registered User
1999 TJ Wrangler

Join Date: Sep 2009
Location: Winnipeg, Canada
Posts: 660
Quote:
Originally Posted by clintrivera View Post

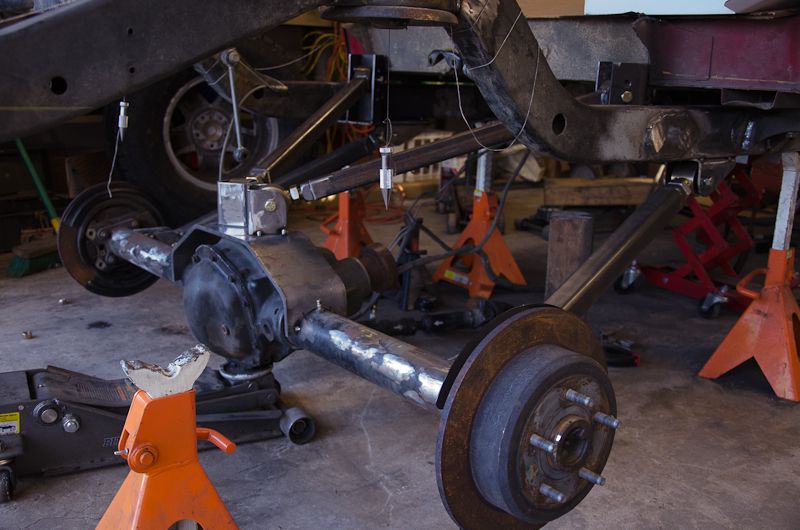

Put in a long day of grinding dust and sparks. I'm now the proud father of my very first triangulated four link. Everything went pretty well considering this was my first time and I was making everything from scratch.

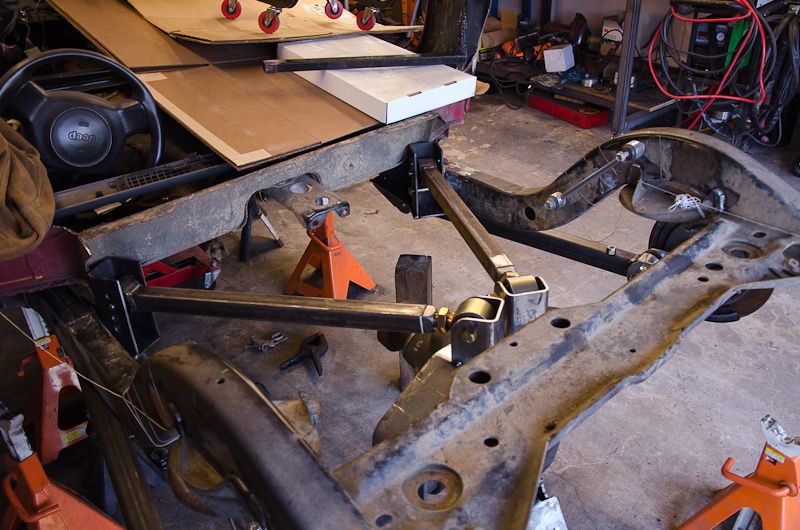

Both my upper and lower links happened to come out at 28". I've read that the upper links should ideally be 80% of the distance of the lower links, and through no planning on my own I actually hit right around 80%. I've cycled the suspension and nothing funny happened, and I only have around 2 degrees of pinon change from full droop to full stuff.

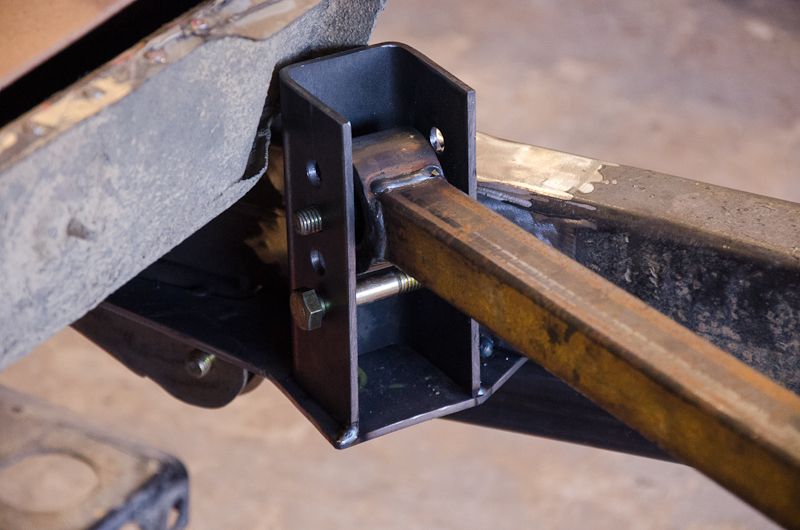

Upper link brackets made from more 3/16" wall 3"X6". I'm going to brace the top of the tower with more 3/16" plate.

Very nice work, makes me seriously reconsider buying all the brackets when the time comes to 4-link. The first thing I noticed was how you placed your upper frame-side brackets ~80% the distance of the lowers, do you by any chance know why this is recommended? (The first thing that comes to mind for me is pinion tracking) It seems almost all "universal" 4-link brackets seem to have the uppers mount almost directly above the lowers, I was just wondering if there was a big advantage to placing them how you did. Also, did you triangulate the lowers ~10 outwards or just perpendicular to the axle? I suppose if you just set the brackets directly inline with the frame you would likely be close to 10?

Definitely staying tuned in for this one
__________________
good from far, far from good.
'99 TJ frame-off rebuild: http://jeepforum.com/forum/f22/99-tj-frame-off-rolled-bold-1199954/
2000GrayTJ is offline   Reply With Quote
Unread 04-15-2013, 01:16 PM   #99
clintrivera
Registered User
2006 LJ Wrangler

Join Date: Sep 2005
Location: Pacific, Washington
Posts: 2,482
Quote:
Originally Posted by 2000GrayTJ View Post
Very nice work, makes me seriously reconsider buying all the brackets when the time comes to 4-link. The first thing I noticed was how you placed your upper frame-side brackets ~80% the distance of the lowers, do you by any chance know why this is recommended? (The first thing that comes to mind for me is pinion tracking) It seems almost all "universal" 4-link brackets seem to have the uppers mount almost directly above the lowers, I was just wondering if there was a big advantage to placing them how you did. Also, did you triangulate the lowers ~10 outwards or just perpendicular to the axle? I suppose if you just set the brackets directly inline with the frame you would likely be close to 10?

Definitely staying tuned in for this one
Making your own brackets isn't as hard as I would have thought. If you have a grinder and a drill press, you are in business. The real time saver is 3" 3/16" wall rectangle tubing. The inner dimension is perfect for "standard" joints. The 80% figure is something I see mentioned all the time but I rarely see people actually use it. I have no idea what the reasoning is. I assume the kits don't use it because it's easier / cheaper to just have the uppers directly above the lowers. I had plenty of room to do whatever, so I figured I would just run it. I only get around 2 degrees of pinon movement between full stuff and full droop which I think is fine.

The lowers are slightly triangulated, probably around 10%. I went from the center of the frame and just placed the brackets on the axle where they wouldn't interfere with the tires.
__________________
Project Indecision: A Jeep Addicts 06 LJ

http://www.jeepforum.com/forum/f22/p...ed-lj-1741722/
clintrivera is offline   Reply With Quote
Unread 04-15-2013, 01:21 PM   #100
Kodiak17
Registered User
1998 TJ Wrangler

Join Date: Sep 2010
Location: Kutztown, PA/ Andover, NJ, Pennsylvania
Posts: 3,706
Opinions on 5.13's + 35's + V8?
__________________
Maintain, wheel, upgrade, repeat.

My build: http://www.jeepforum.com/forum/f22/thor-dd-weekend-warrior-1348534/
Kodiak17 is offline   Reply With Quote
Unread 04-15-2013, 01:31 PM   #101
clintrivera
Registered User
2006 LJ Wrangler

Join Date: Sep 2005
Location: Pacific, Washington
Posts: 2,482
Quote:
Originally Posted by Kodiak17 View Post
Opinions on 5.13's + 35's + V8?
Way too low. 1st gear lasts around 10 feet and it spins pretty quick on the freeway. That's one of the main reasons I sold the axles and went with the JK's. I would need to be around 38-40 inch tires for 5.13's to work well and that wasn't happening with the TJ Rubicon 44's.
__________________
Project Indecision: A Jeep Addicts 06 LJ

http://www.jeepforum.com/forum/f22/p...ed-lj-1741722/
clintrivera is offline   Reply With Quote
Unread 04-15-2013, 03:25 PM   #102
Kodiak17
Registered User
1998 TJ Wrangler

Join Date: Sep 2010
Location: Kutztown, PA/ Andover, NJ, Pennsylvania
Posts: 3,706
Quote:
Originally Posted by clintrivera View Post

Way too low. 1st gear lasts around 10 feet and it spins pretty quick on the freeway. That's one of the main reasons I sold the axles and went with the JK's. I would need to be around 38-40 inch tires for 5.13's to work well and that wasn't happening with the TJ Rubicon 44's.
Thats what I assumed. You think 4.88's would be a better option?
__________________
Maintain, wheel, upgrade, repeat.

My build: http://www.jeepforum.com/forum/f22/thor-dd-weekend-warrior-1348534/
Kodiak17 is offline   Reply With Quote
Unread 04-15-2013, 04:01 PM   #103
clintrivera
Registered User
2006 LJ Wrangler

Join Date: Sep 2005
Location: Pacific, Washington
Posts: 2,482
Quote:
Originally Posted by Kodiak17 View Post
Thats what I assumed. You think 4.88's would be a better option?
4.56 would get it back to factory. There are a lot of guys that run Silverados with 35's and 4.10's and they seem to like it. My Jeep is lighter, so should be good to go, plus my tires are closer to 34 inches than 35. The 4l60E has a pretty deep first gear.
__________________
Project Indecision: A Jeep Addicts 06 LJ

http://www.jeepforum.com/forum/f22/p...ed-lj-1741722/
clintrivera is offline   Reply With Quote
Unread 04-16-2013, 12:13 AM   #104
chmo
Web Wheeler
2006 TJ Wrangler

Join Date: Nov 2009
Location: Abu Dhabi, United Arab Emirates
Posts: 1,218
Quote:
Originally Posted by clintrivera View Post
4.56 would get it back to factory. There are a lot of guys that run Silverados with 35's and 4.10's and they seem to like it. My Jeep is lighter, so should be good to go, plus my tires are closer to 34 inches than 35. The 4l60E has a pretty deep first gear.
ehhemmm ... my 4.88s were already in when I started my swap ... with 33" tires and a preference to not go bigger. So I thought just try it ... and regear eventually later when I break something to 4.10 .

I compensated somehow for the short first of my 4L60E by slightly modding the part throttle shifting tables. I can hold 1st longer and still it shifts up smooth and quick enough.
(Yes ... HPTuner ... and lots of digging)

and yes ... fuel mileage is bad "cruising" with 70mph and about 2700 rpms ... but everything else in the terrain I wheel is GREAT ... my transmission stays reasonably cool in the dunes all day long and I can stay in 4hi which is important for the faster pace.
__________________
"The more I know, the more I realize how much I don't know"
my LS1 swap build thread
THE cheap progressive bump stop solution
chmo is offline   Reply With Quote
Unread 04-16-2013, 01:23 AM   #105
Jacob02tj
Registered User
2002 TJ Wrangler

Join Date: Mar 2013
Location: Thorold, Ontario
Posts: 46
great build. Really looking forward to see whats next
