ok so as i keep saying...lol..its pic update time again

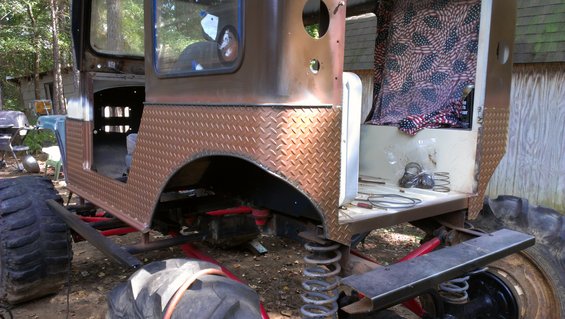

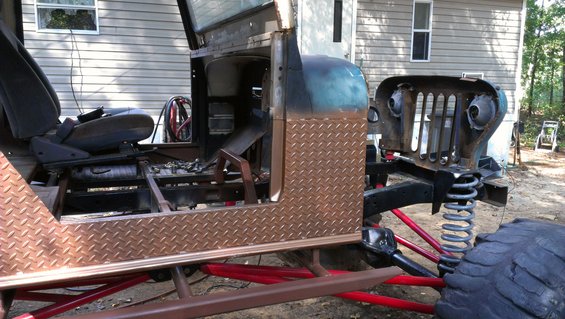

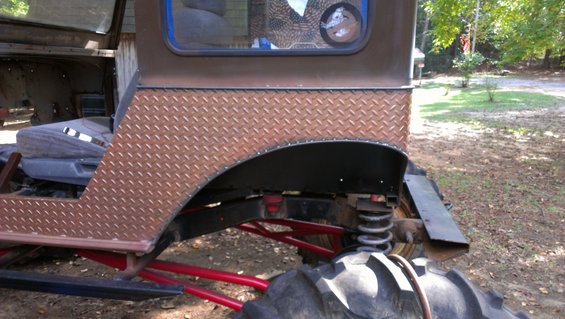

first ill back up to the before and after pics of the 3/8 round trimming of body armor....now bear with me the pics are from two different sides of truck but you can get the jist of it all...
now on to some "Colt Ford"...lol

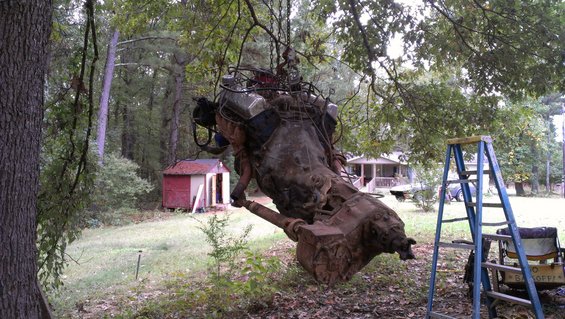

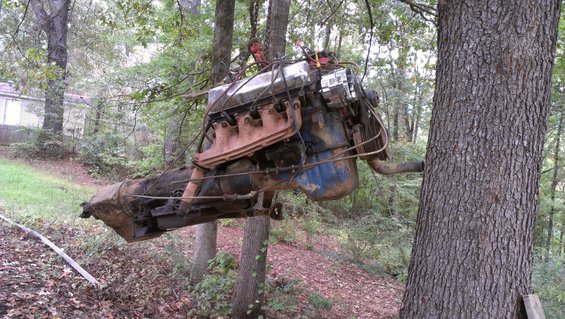

motor hangin from a tree..la la lalala la

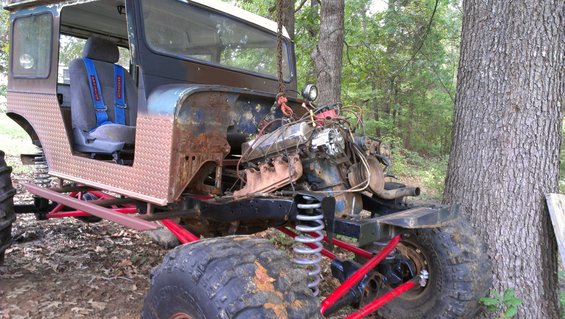

and so here it it as im trying to get it where i want it...lol and prior to eliminating factory firewall...notice the modern "Cab Forward" placement...lmao

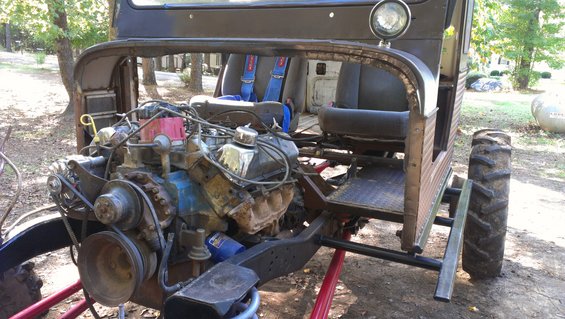

bye-bye firewall...and look at those lovely comfy seats...lol

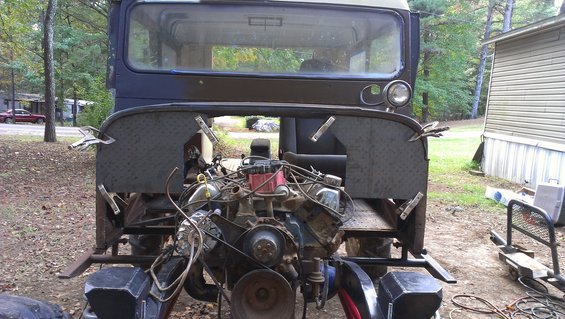

new firewall going in...lol im using more of the diamond plate on the sides as the factory tinfoil firewall was not up to the task of having booster/mc and or battery relocation...thesee peices will tie into thee floors...trans tunnel and center of firewall will be 14ga sheet...
i put the tread towards the inside for consistency reasons plus it will make it a little smoother in the engine bay(easier to clean...lol)
i should have the driver side knocked out here in a bit as well as mounting the booster/mc and gas/brake pedal assembly...
well thats it for now..sorry for the lack of pics...lol ill do better next time
