ok as promised driveshaft 101....

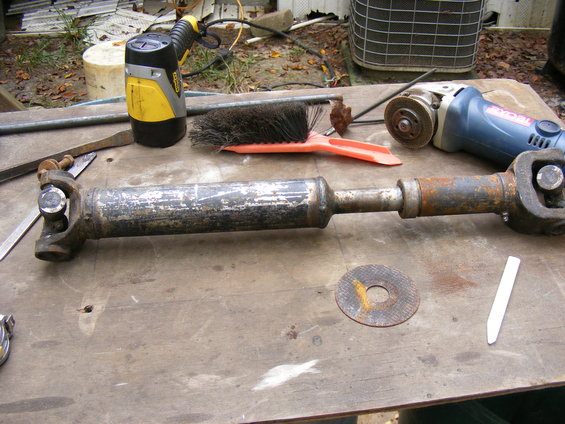

I started by cleaning up and cutting a section of tube from a previously lengthened shaft....

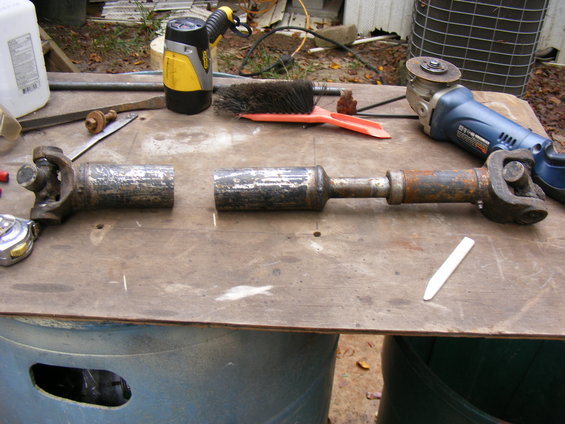

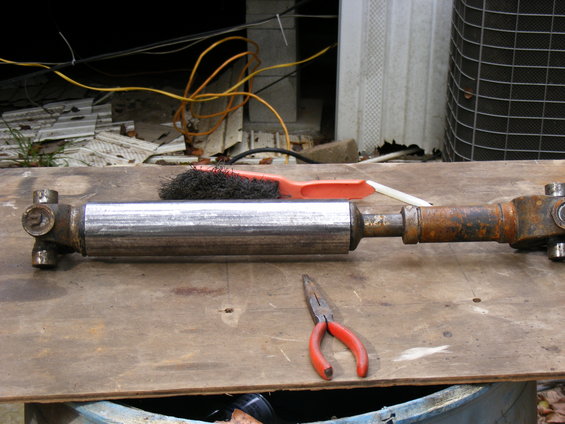

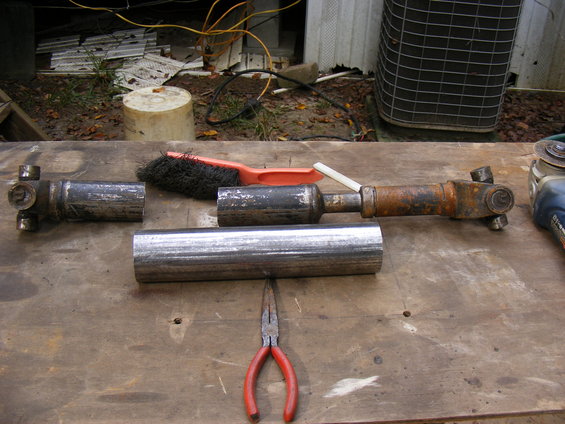

next I cut the factory shaft in two...


after using a short section of angle iron to align the two pieces of shaft I was able to get an accurate shaft measurement....sorry no pics of that the skeeters were after me...anyways the heres the sleeve..

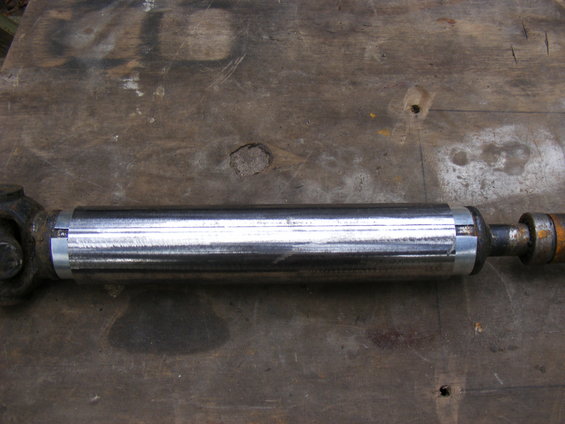

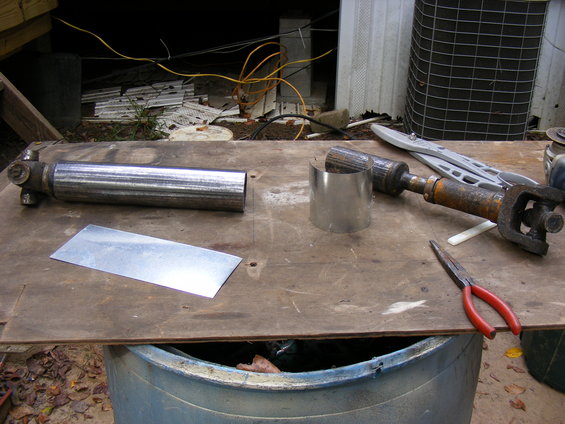

test fit for snugness,,,it was l little loose not much so I cut some strips of 26ga and shimmed it...



one for all you uptight peeps out there...chillax yo its all-good!!!!!

after a couple quick tacks...the final test fit...

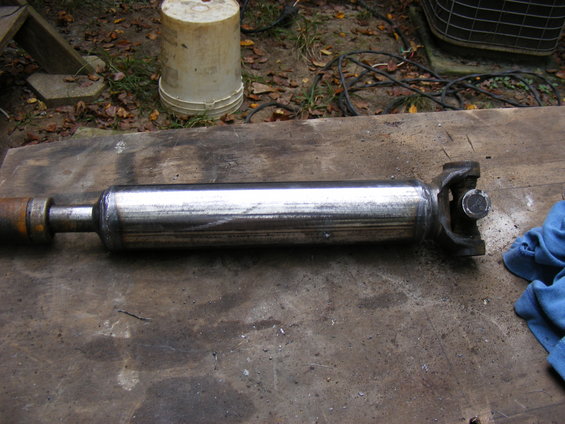

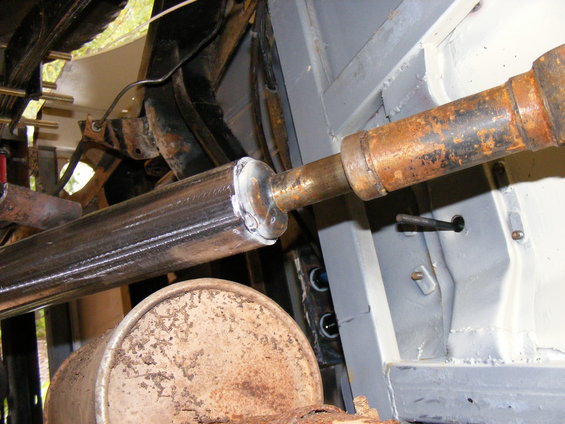

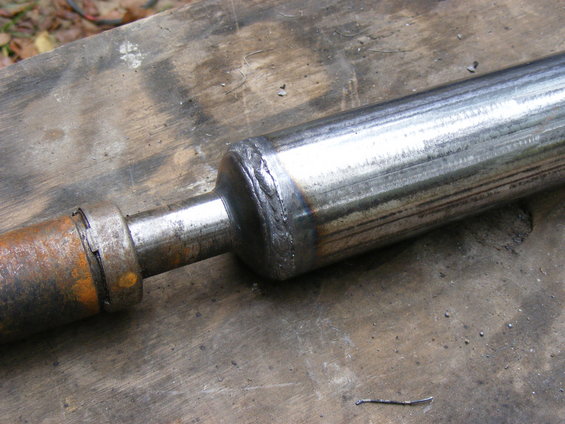

all welded up....yeah I know not as pretty as with gas but hey itll do...





well that's the end of pics for today.....one other thing I forgot to take pics of was I scribed several alignment marks down the entire length of shaft, before cutting....this helps to keep the factory balance close..hopefully I wont have any issues otherwise ill have to have a custom shaft made...ive done this several times with good results, so here to my fingers being crossed....hope you enjoyed

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #515 of 995 Old 10-15-2013, 09:09 PM
ashland82391
Out of money yet...Yup!

ashland82391's Avatar
1993 YJ Wrangler

Join Date: Sep 2011
Location: Chandler
Posts: 7,870
Quote:
Originally Posted by freaknajeep View Post
ok as promised driveshaft 101....

I started by cleaning up and cutting a section of tube from a previously lengthened shaft....

next I cut the factory shaft in two...

after using a short section of angle iron to align the two pieces of shaft I was able to get an accurate shaft measurement....sorry no pics of that the skeeters were after me...anyways the heres the sleeve..

test fit for snugness,,,it was l little loose not much so I cut some strips of 26ga and shimmed it...

one for all you uptight peeps out there...chillax yo its all-good!!!!!

after a couple quick tacks...the final test fit...

all welded up....yeah I know not as pretty as with gas but hey itll do...


well that's the end of pics for today.....one other thing I forgot to take pics of was I scribed several alignment marks down the entire length of shaft, before cutting....this helps to keep the factory balance close..hopefully I wont have any issues otherwise ill have to have a custom shaft made...ive done this several times with good results, so here to my fingers being crossed....hope you enjoyed
Great work man! I'm very interested in how the vibes are going to be. Let us know. I might try doing my own and try saving a 100$.
ashland82391 is offline
post #516 of 995 Old 10-16-2013, 08:43 AM
caronaxtr
Registered User
2001 XJ Cherokee

Join Date: Jun 2012
Location: Hamburg
Posts: 323
Simply amazing, everything you're doing, you're doing with min. tools, and no garage over head. Nothing high tech.

That pinion angle looks like it may give you some vibrations. You thinkin' bout shimmin' or just see how it does & address it at that point?

Keep it goin, I wanna see Picts of it runnin!

Oh ya, keep your rants, run-on sentences, & lack of caps / punctuation. Love it & "F" anyone whose got a problem with it.
caronaxtr is offline
post #517 of 995 Old 10-16-2013, 10:19 AM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
Quote:
Originally Posted by caronaxtr View Post
Simply amazing, everything you're doing, you're doing with min. tools, and no garage over head. Nothing high tech.

That pinion angle looks like it may give you some vibrations. You thinkin' bout shimmin' or just see how it does & address it at that point?

Keep it goin, I wanna see Picts of it runnin!

Oh ya, keep your rants, run-on sentences, & lack of caps / punctuation. Love it & "F" anyone whose got a problem with it.
Thanks....I tried to get the pinion and trans yokes as close to the same angle as possible...I think the axle will shift upwards a small amount oncei go thru and put the final torque on it..it's not fully seated against the springs yet.....in the past I always eliminated the non slip single joint for a CV double joint section...which eliminates all vibes caused by angle...now as to weather or not it'd balanced or true, is a completely different subject altogether...I did my best so we shall see...

Don't worry if I haven't learned how to control my opinion or learned how to type by now, there's about a 100% chance it's not going to happen...lol...

once again thanks for stopping in and saying hi and giving your advice...while I've owned several XJ's these little jeeps with frames different creatures...it's very different when you try to build a streetable version...

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #518 of 995 Old 10-16-2013, 05:57 PM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
well since it was pretty much raining all day today so I donned my rain camo, grabbed some blaze and my noculars, and road out to one of the places I hunt...only real goal was to see if anyone else was thee without permission and to check for sign...passing the first big oak it was apparent there were plenty of possible candidates...this was a tree I normally pass to get to my firs blind location, so I continued on to the area where I had set the first blind up last year, just to find even more sign... I stopped there and went back...last year I observed three different herds of does utilizing different areas of the 250 acres but didn't have the ability to stretch out as far as I would have liked...this year with my new savage model 11.308cal and its 4x12x50 bushnell with adj.paralax, I should have the ability to "reach out and touch someone"...im one of those umm how you say, Dinner Hunters...some would refer to it as being a lazy hunter...around 2:00pm I get in shower, by 3:00 im in the truck...3:45 I pull up at spot, get my camo on, and hike in...now its roughly 4:15-4:20pm...I whip out the machete and whack off a few pine branches, shove em in the ground and sit my but up against the tree...since I chambered a round before I started the hike noise is minimal...now its around 4:45pm...time to pop the top on a dew and wait..usually sometime between 5:00-6:00 if that long pop pop pop out of the woods they come....kablam and walla by 6:30 im usually on the way back to the house with "Deernir"...

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #519 of 995 Old 10-17-2013, 03:49 AM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
It has occurred to me that there are enuff people who don't understand how "easy" it is to work steel into pimpa** pieces, therefore allowing these off-road supply places to overcharge everybody...granted they designed tested and shelled out the bucks for the burn table, the water lubricated drill press, and the metal worker x7000 two station punch/press...and made a few jigs...even tho most of the holes are actually cut with the burn table, it doesn't work on tube...for about 10k in machine's I could start up "Broke D**k 4x4 and Off-Road" ...don't think even at reasonable prices it would take too long to pay off equipment and break a profit...along those same lines tho I would probably need to purchase equipment outright with having to make payments or pay interest....I just know I have to do something...usually get around 7-12k at tax time..might invest instead of buy this time around...not sure yet...

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #520 of 995 Old 10-17-2013, 03:58 AM
ivester1992
Registered User
2006 TJ Wrangler

Join Date: Jan 2012
Location: pickens
Posts: 814
haha il promise some business your way, well so long as you will ship

4.88s, 35 bfg a/t, 4.5 inch rubicon express springs, rear 4 link, single radius front, 6 inch rc 2.0 shocks, rc quick discos, eautogrilles rockers and corners.
ivester1992 is offline
post #521 of 995 Old 10-17-2013, 11:10 AM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
Quote:
Originally Posted by ivester1992 View Post
haha il promise some business your way, well so long as you will ship
of course id ship...lol...this year is going to be concrete and roof time(i.e. shop)....see that's my delima...come tax time jeeps are usually under construction and need parts...so ive been choosing between being able to buy parts or buy concrete and building materials...but I guess having a dry safe place to store and work on the jeeps would be very awesome...especially when bare metal is involved...and I could prolly work faster cuz of ease of jacking and all my tools right there instead of around the corner and across the yard in the shed...

speaking of dry places to work...I think I see sunshine...rain rain go away...I want to work on my jeep today..lol...

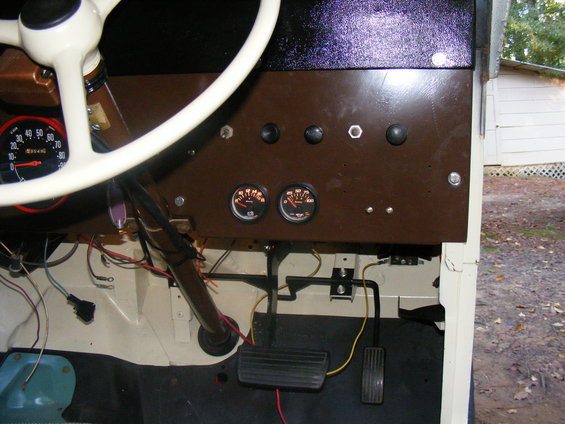

todas work is prolly going to consist of finishing up under dash items, installing some airhorns so peeps can here me coming, and tring to figure out fuel guage wiring...one of those "I can remember this...I don't need no stinkin notes" things...DOH...well ill take pics as usual...

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #522 of 995 Old 10-17-2013, 09:27 PM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
well today basicly sucked donkey balls....found out neither one of the gauges(that looked nice) I reinstalled in the main gauge worked(fuel/temp)...however the two that are well quite faded work superbly...hhrrmmpph...so now I have to rip the main gauge back out disassemble it and switch out the gauges...at least I have functional parts to use, ugly or not...it is a very small area of ugly that I wont really notice but...........back to that adhd..oh look a jeep thing...maybe I could have tested them before hand...oh well...on a different note..i had a left over engine compartment service light from one of my old Datsun 240Z's...so I installed it under hood as if it was there from factory...it has a 3ft cord so its like a mini shop light...when wrapped up it fits in its housing completely enclosed, ill post pics later...main gauge light and aux gauge light all fire up with ignition since the switch rheostat was bad...I did not alter main harness so if I buy new switch everything goes back factory...the original set up for the blower motor was a switch made onto/around the actuator cable..its no bueno...I have a spare wiper switch for a 2 spd motor, blower is a 2 spd motor....see where im going with this(just add relays)....I didn't bother with the air horns as factory horns blast just fine...was actually quite impressed...lol...

I would like to take a moment to plug a fellow jeepers thread...EgulAyes 1980 CJ build....if it wasn't for his passion for detailed posts, I would not have had a schematic from which to figure out my gauge issues...granted it was hand drawn but a very well labeled and clear precise drawing...as far as I know im the only one to stop in and give him a shout...well ill get pics posted in morning till then check out EgulAyes thread....

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #523 of 995 Old 10-18-2013, 11:29 AM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
ok once again as promised pics...

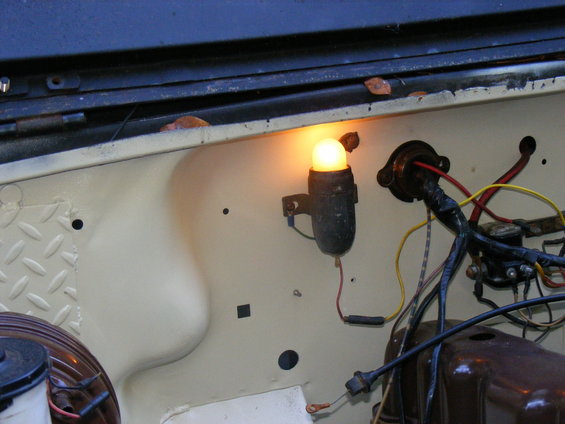

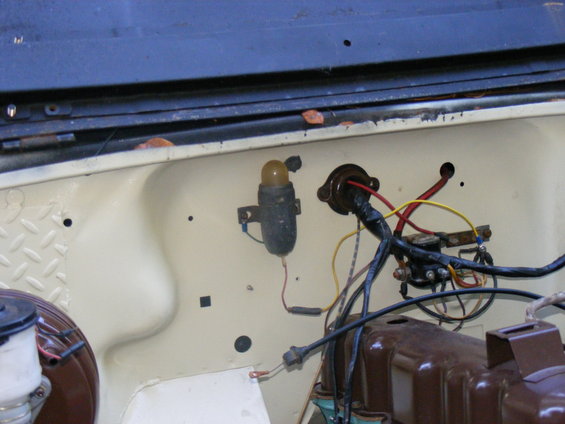

first up the little under hood light form one of my retired 72 Datsun 240z's....it looks factory.....i prolly ought to paint it up all pretty like...sorry for the crappy nighttime pic my hands were shaking pretty bad...oh and it has a 3ft reach cord is stored in housing..




rest are just lighting pics...some day some nite...
gauges

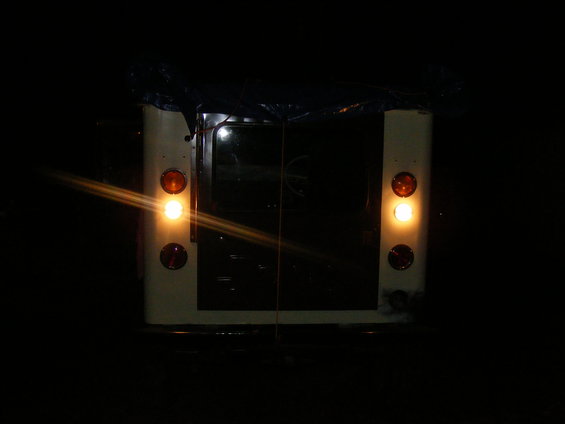

disappearing reverse lights...lol

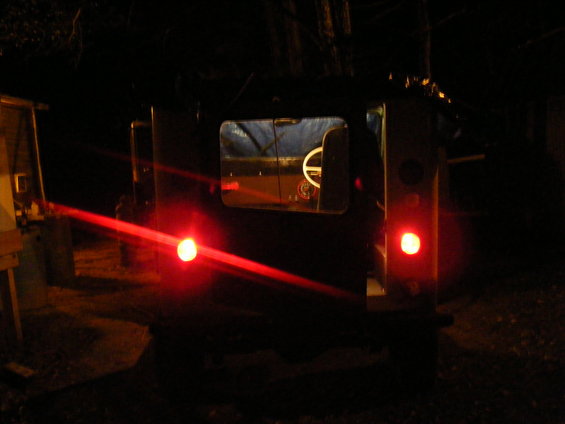

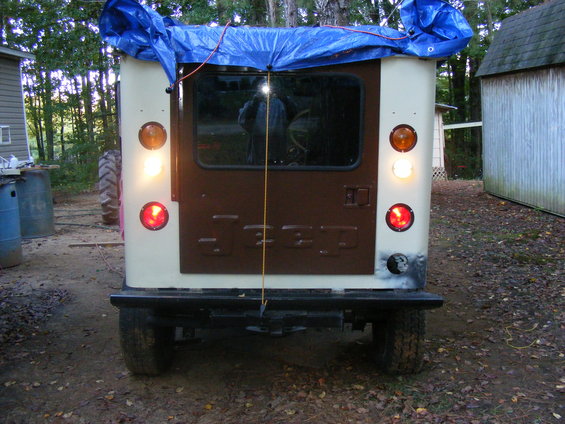

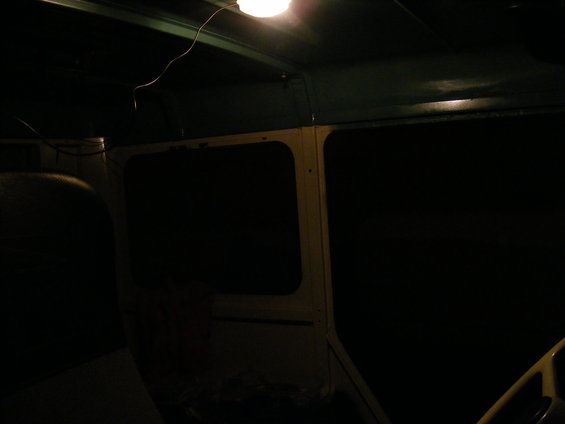

rear parking and check out the brightness of the interior light...ha ill need to get some nightshades...lol

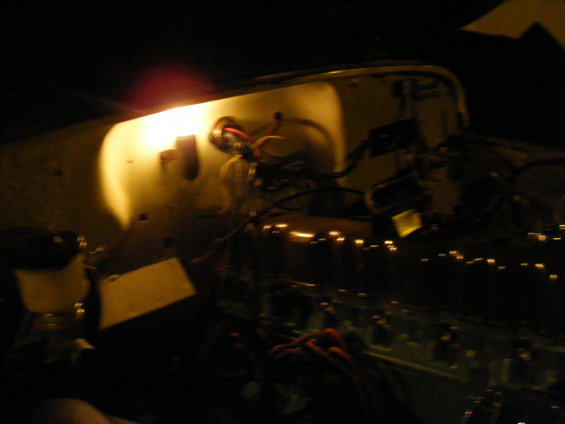

interior light...originally this was mounted on the bottomside of the cardboard headliner which coverd its wire...im going to have to extend it a little in order to route in a manner as to attach it...

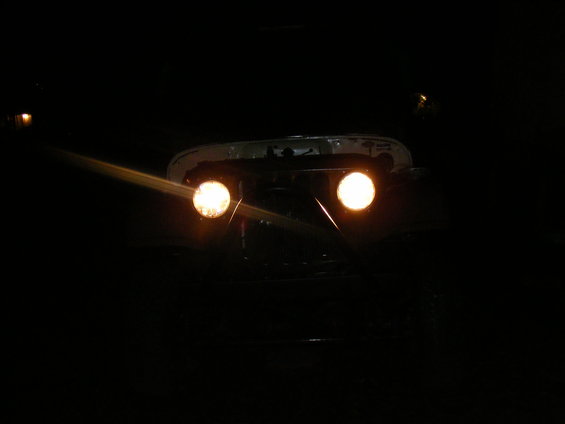

and then head lights.woo hoo so so exciting...yay go teamzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzz zz...sorry fell asleep...lol
