"Special Delivery" a '71 DJ5-B...

So since i pretty much finished up the xj project

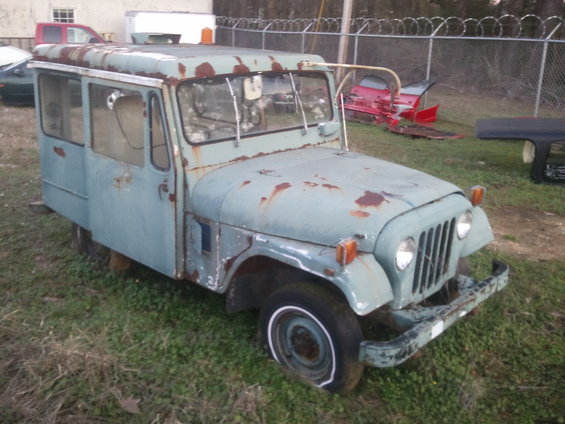

and i decided sure it looks bad to the bone but didnt like the ride...i picked up this lil jewel for cheep

so here goes...lots of pics for now most should be pretty self explanatory but i will do a little narration

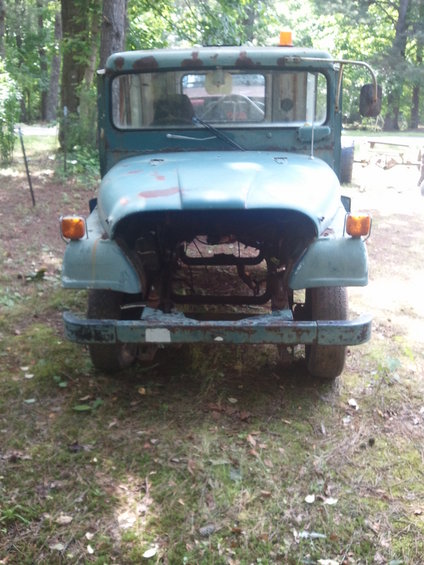

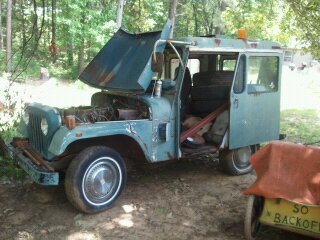

donor parts


bye- bye drive train


bye-bye suspension


haha drag jeep...lol

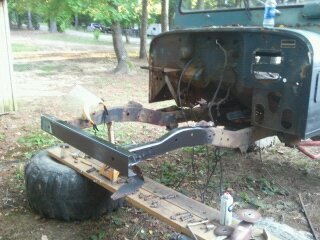

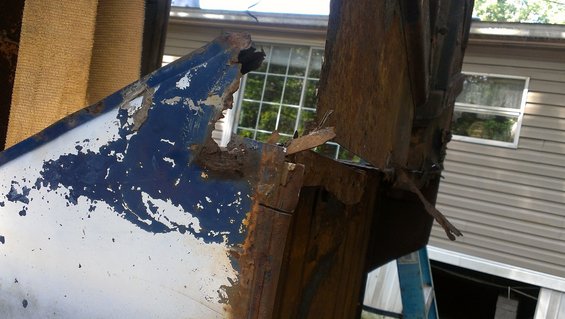

cancer removal/door opening modifications

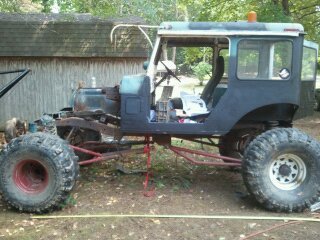

modded door opening and suspension mock just for giggles

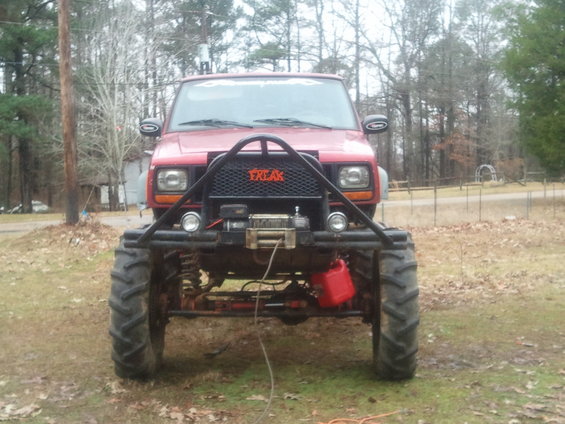

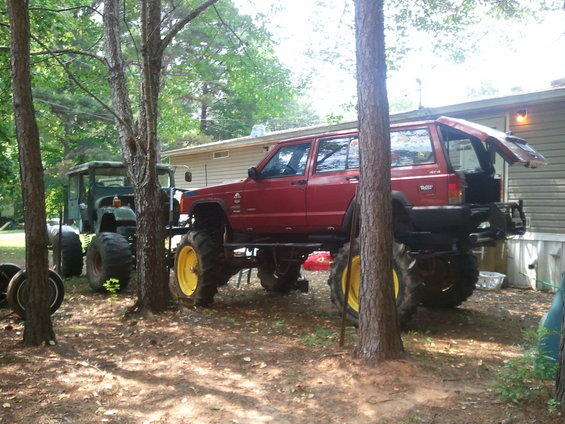

just a pic of the xj and mail jeep kisssin

so now on to real work



11gauge inch and 1/2 square tube subframe for tub/body

grill moved up to bumper

axle housings cleaned and painted

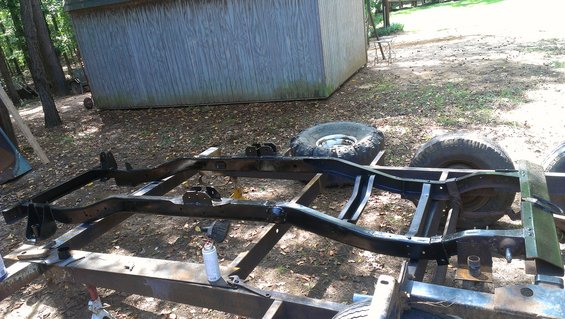

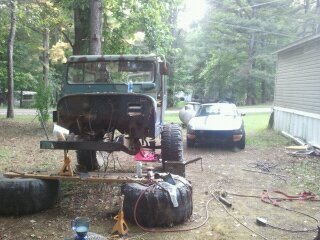

frame mostly finished


still have to make permanent rear upper spring buckets since i wont know exactly where the need to be untill i have drivetrain and body back on...

so heres the list of parts getting thrown at it...
winches: xrc10 front
m8000 rear
gears: 4.56:1 front and rear...rear spooled....lockrs would be nice but have 3 girls and a grandbaby on the way

drive train: ford 400/c6/205(soon to be twin sticked)
axles: hp d44 front/d60 rear
tires: 11.2x24 r-1s for now new 38.5x15 boggers to come round tax time...lol


ok thats about it for now will post more pics tomorrow mostly regarding suspension...would really love some feed back on this one...have a thread on nc4x4 but no one seems to care they are all ecours or nuthin...im a po-boy if i
want to go fast i have other rides for that...lol


Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
Sponsored Links
Advertisement

post #2 of 995 Old 08-31-2012, 07:12 AM
AngryTJ
Registered User
2005 TJ Wrangler

Join Date: Nov 2010
Posts: 4,468
Is that mockup the actual WB your planning on? Pretty unique project

Follow me on Instagram @ Tarantula_TJ


Tarantula_TJ Build
AngryTJ is offline
post #3 of 995 Old 08-31-2012, 09:24 AM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
1
Quote:
Originally Posted by AngryTJ View Post
Is that mockup the actual WB your planning on? Pretty unique project
No the mock up was right at 120" i have a final wheel base of 110"...suspension minus shocks and front knuckles is finished...body is still sitting on my 72 1ton ford flat bed...im cosidering sending my front housing off to that guy in michigan for the d44-50 hybrid conversion...supposed to strong as a 60 but keeping the ground clearance

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #4 of 995 Old 08-31-2012, 09:30 AM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
And the xj will soon revert back to a rolling chassis as its drivetrain and recovery gear are getting pulled for the mail jeep...would consider tradeing it for a stock beater 4wd xj 92-95..dents acceptable...i need one for hunting even the interior could be trashy..it will just get nasty n bloody anyway

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #5 of 995 Old 08-31-2012, 02:51 PM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
ok so a few more pics...lol

frame again...

front arms...

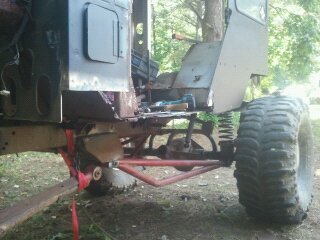

rear suspension


the front joints are currie "johnny joints" at frame and procomp polly at axle...where as the rears are all "johnny joints"
I fabbed th rear suspension about 3 years ago and had it under a 93xj till i basicly destroyed the truck...lol...and i know how extreme it flexes but i am unsure of my front hard to tell with no weight on frame...well thats all for now check back in a day or two for more exciting lack of progress...lmao

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #6 of 995 Old 09-01-2012, 01:23 AM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
Ok so here are more pics of suspension...



Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #7 of 995 Old 09-02-2012, 07:19 PM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
ok well a thunderstorm came thru and cut my work time short...but i managed to get all four balljoints replaced and knuckles all painted and bolted up...what a P.I.A....lol...oh yeah and fabbed up the tie bar and bolted up some spare spindles and rotors so i could roll it around...

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #8 of 995 Old 09-04-2012, 02:07 PM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
ok so finally got the body off of the back of my flatbed...and on the trailer and moved around to where the "outdoor shadetree fabshop" is lol...started hacking away at some stuff the PO had scabbed in there to i guess hold it togethr...lol what a mess...tomorrow i go to get some steel and will finish up fabbing the subframe...as well as im going to start relieving the XJ of its drivetrain front shafts/lockouts and recovery gear....hopefully i will have the motor and trans combo grafted in by friday and ready to start getting body back on...will have more pics tomorrow as well

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #9 of 995 Old 09-04-2012, 07:15 PM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
ok just some pics...heee heee i know youve heard of a tire swing...but what about a jeep swing...lol





well there it is...lol

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #10 of 995 Old 09-04-2012, 07:59 PM
AngryTJ
Registered User
2005 TJ Wrangler

Join Date: Nov 2010
Posts: 4,468
That suspension and those control arms are very interesting. Have you done a jeep like that with the frame mounts all the way to the center of the frame?

Follow me on Instagram @ Tarantula_TJ


Tarantula_TJ Build
AngryTJ is offline
post #11 of 995 Old 09-04-2012, 08:33 PM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
Quote:
Originally Posted by AngryTJ View Post
That suspension and those control arms are very interesting. Have you done a jeep like that with the frame mounts all the way to the center of the frame?
Yes but it was on a xj and i didnt strengthen the unibody enough first..it lived for about a year before i ripped it in half...lol...but it flexed like u wouldnt believe the whole time...
I plan on doing an endo/exo cage so basicaly a buggy with a jeep body fused in the middle

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #12 of 995 Old 09-05-2012, 10:53 AM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
^^^ continued from above...i also am building the body a full subframe that will be welded in...it will consist of outer 2x2x3/16 rocker tubes connected by 1-1/2x1-1/2x1/8 crosstubes and will have a tubular trans tunnel...also am relocating and adding body mounts to accomodate subframee and fullsise poly body bushings and will be held in place by 5/8x4 grade 8 hardware...well i just got back from the steel house time to go burn some wire...... pics to come soon

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #13 of 995 Old 09-05-2012, 11:01 AM
dayriesw
Web Wheeler

dayriesw's Avatar
1987 MJ Comanche

Join Date: Jul 2009
Location: Louisiana
Posts: 6,134
Looks like an interesting build. I am watching.

06 WK 5.7 Hemi Overland - Daily
87 MJ Chief 57k original miles... getting built in the backyard. 37s, waggy axles, D300, 6 speed, etc.

Gone - 05 LJ on 37s, 79 FSJ Chief on 38s, 85 CJ-7 on 31s
dayriesw is offline
post #14 of 995 Old 09-05-2012, 01:12 PM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
Quote:
Originally Posted by dayriesw View Post
Looks like an interesting build. I am watching.
thanks i need all the support/criticism i can get...in the past i had a team of beer drinkin offroad buddies to well to put it bluntly...stand around and say that'll never work all the while not offering any other options or helping hand for that matter..but none the less they were there...so now im new to my area and no beer drinkin buddies yet i got to get to the orv park and holler "hey yall watch this " first...you know how it is...lol...no really im srious i live in the deep south you can ride all day without a hitch and some folks might say hi...but you have oh ummm say a planned break in the first 5min or so and everyone stops to help..and friends are made...i preffer the broken rear u-joint method my self takes about 5 min to fix but the friends you make last a lifetime...lmao

Be carefull while Hugging the Trees...They leave dents on your Jeep....

Shhhhhh I'm not crazy...It's just the voices in my head
freaknajeep is offline
post #15 of 995 Old 09-05-2012, 08:40 PM Thread Starter
freaknajeep
Registered User
1971 DJ

Join Date: Jan 2011
Location: Tupelo
Posts: 937
ok so made some good progress today..ill try to narrate as i post a few pics...

a pic of the first design on subframe...i changed it up a bit...but it will soon become clear as to what is really goin on...lol

just a pic so others with rusty jeeps can feel my pain...lol also you can see where i startd hacking away at the midsection.

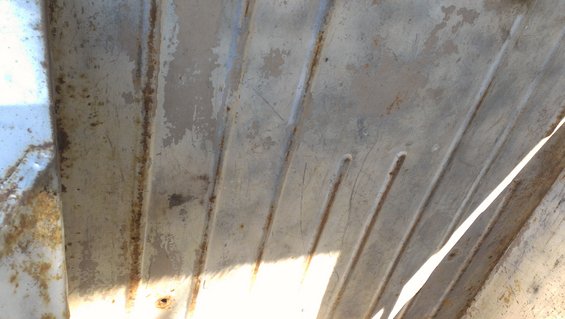

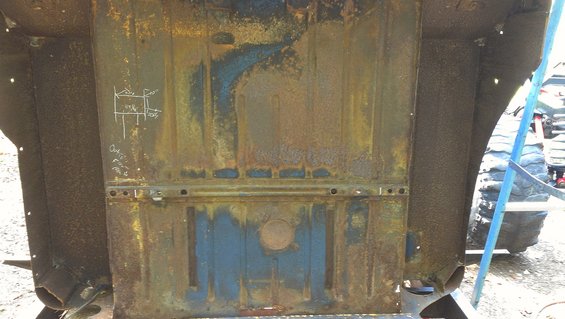

underside of rear floor...some surface rust soon to be delt with

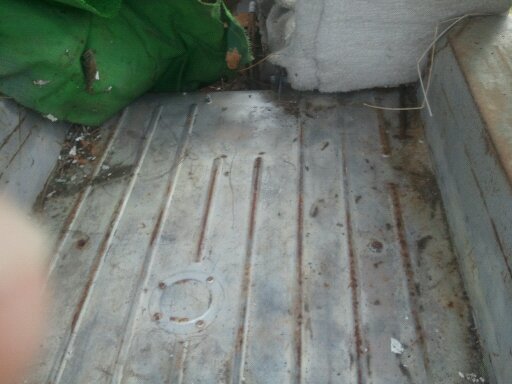

top side of rear floor

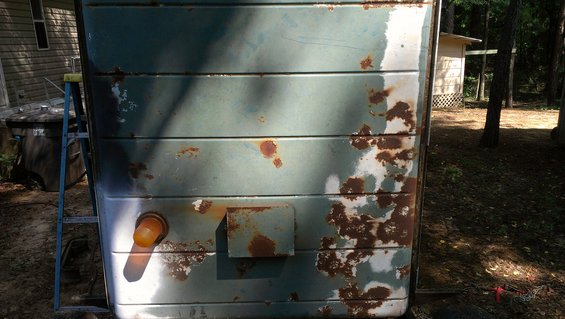

roof...also a little surface rust soon to be delt with...and new guts and guard for the strobe and the vent in middle will be the snorkle vent
