Project Stay out of the Pines.

Going to be a build with tons of pics of the long arm build up on a TJ. All work is designed, cut, welded, fabricated, etc by Joe from EndlessMtnFab EndlessMtnFab
Quote:
Originally Posted by EndlessMtnFab

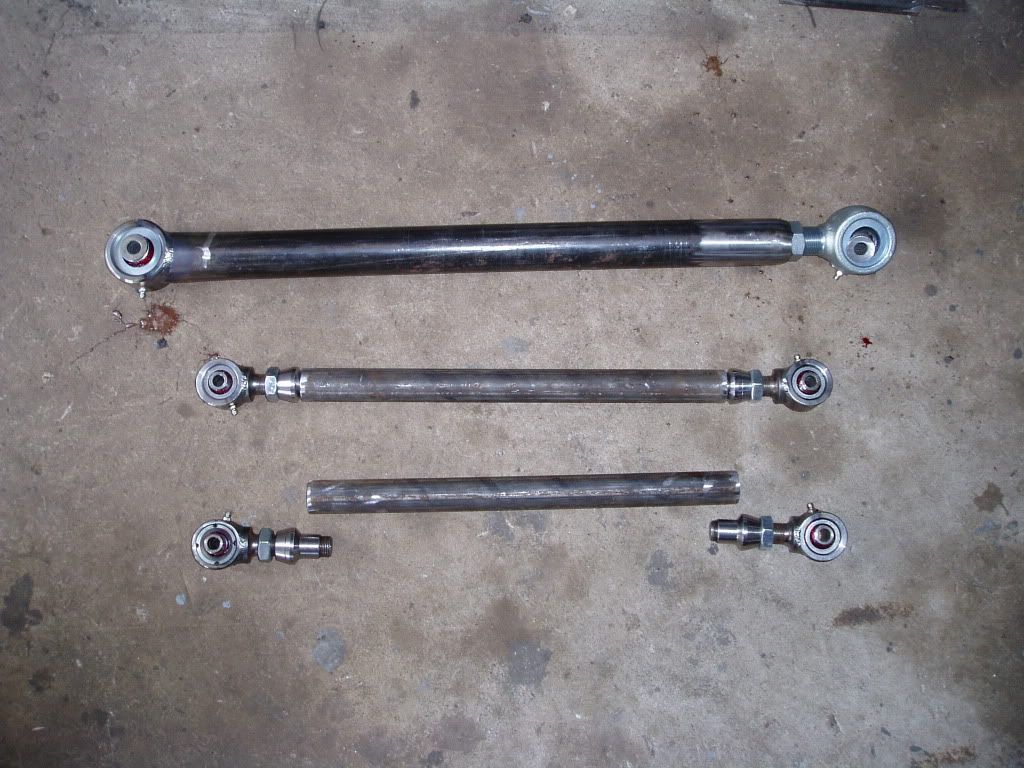

Bolting on a long arm kit can generally be done in a weekend. Properly designing & building a suspension takes time. Although not an "easy" task, most folks with a bit of knowledge and skill can build a long arm and wheel it. But it takes a little extra effort to set one up for suitable street driving.

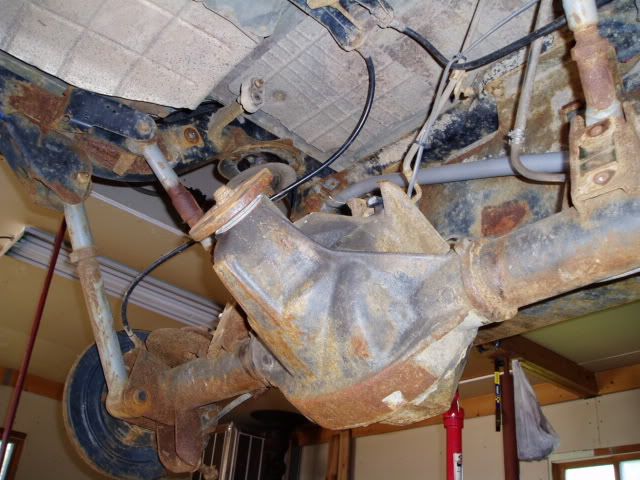

8.8 axle Pre-Removal



8.8 Removal





Ballistic Fab Brackets


8.8 truss Mock-up









__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association

Last edited by MuddyJeepZJ; 05-19-2010 at 10:23 PM..
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 05-19-2010, 10:04 PM   #2
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031
231 Transfer Case Upgrade/Rebuild
Quote:
Originally Posted by EndlessMtnFab
Ryan is also up against some driveline angle issues. His tucked skid, combined with 4.5 inch springs leaves him with a drivesshaft angle of 22 and a pinion angle of 19. The average 1310 CV maxes out at roughly 25 and Ryan is currently using 18 so far. This doesn't leave sufficient amount for droop. In fact .... the CV binds before the coils can fully unseat. The solution we are considering is a clearanced 1350 Setup to allow for greater strength AND flex. A clearanced 1350 generally offers 32-35 of movement.







Rear Coil Relocation













__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 05-19-2010, 10:05 PM   #3
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031

Frame Repair
Quote:
Originally Posted by EndlessMtnFab

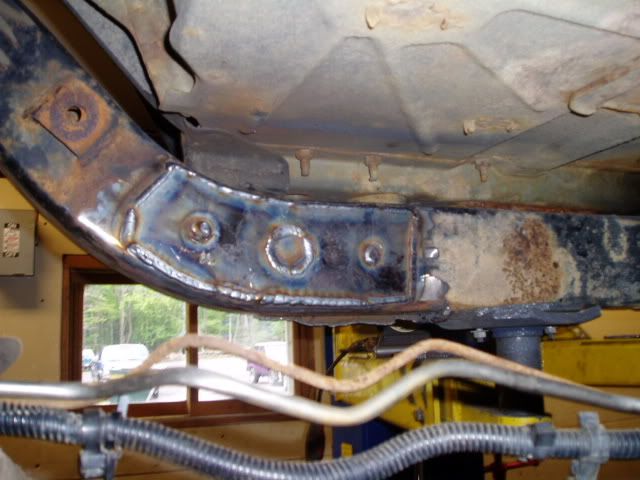

In regards to the repair .... both sides will be cut out equally. The passenger side damage is not as extensive as the driver side; however, I do see random spots of soft/pocked metal and will be pro-active in the repair. The patch will be .125 plate and will be "frenched" into the cuts. Once welded, I will grind everything flush and plate over with a larger piece to ensure sufficient overlap. The overlapping plate will be perimeter & plug welded.
















__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 05-24-2010, 10:28 PM   #4
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031
8.8 Bracket Removal and Truss Build













__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 05-24-2010, 10:29 PM   #5
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031














__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 05-25-2010, 09:49 PM   #6
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031

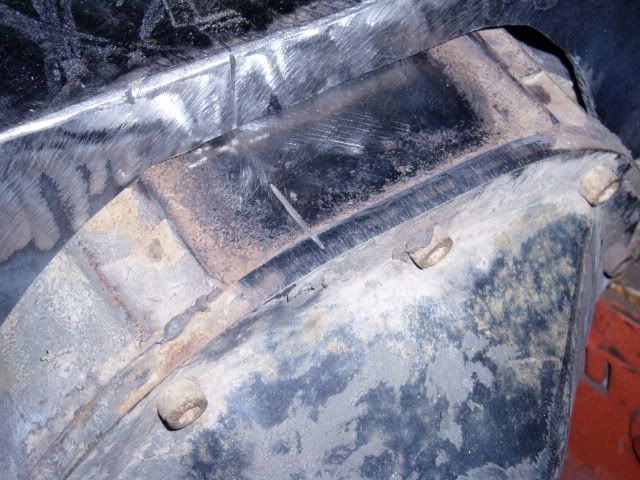

Finishing up the Rear truss.


Bent to attach to truss

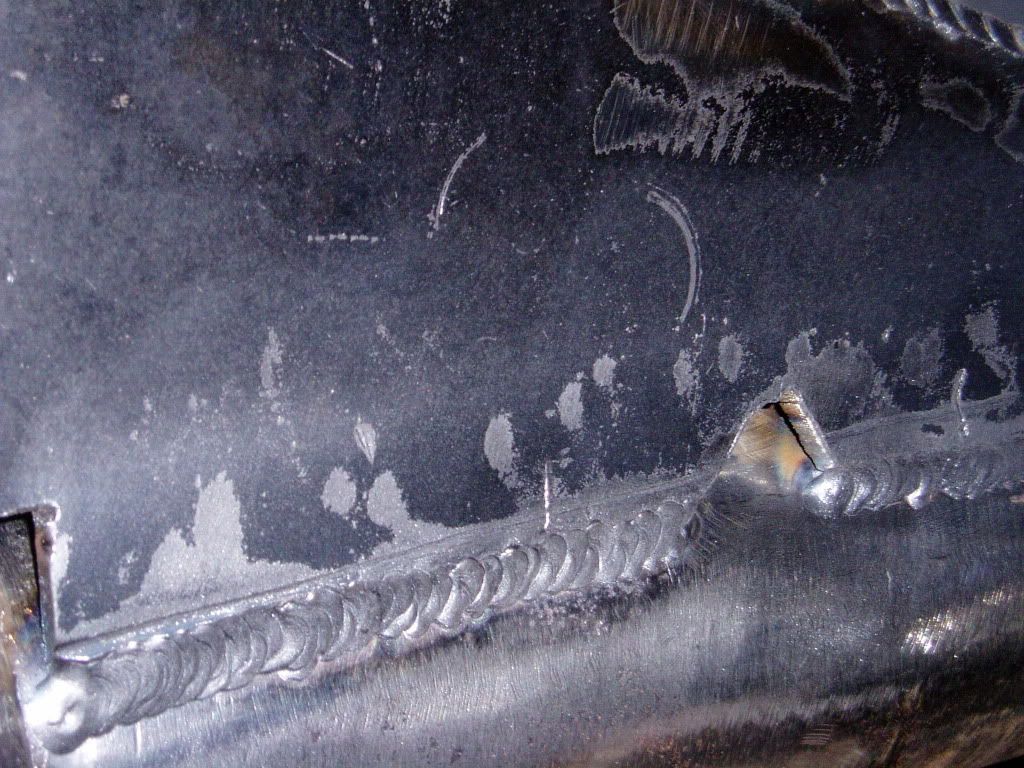

Welded into place

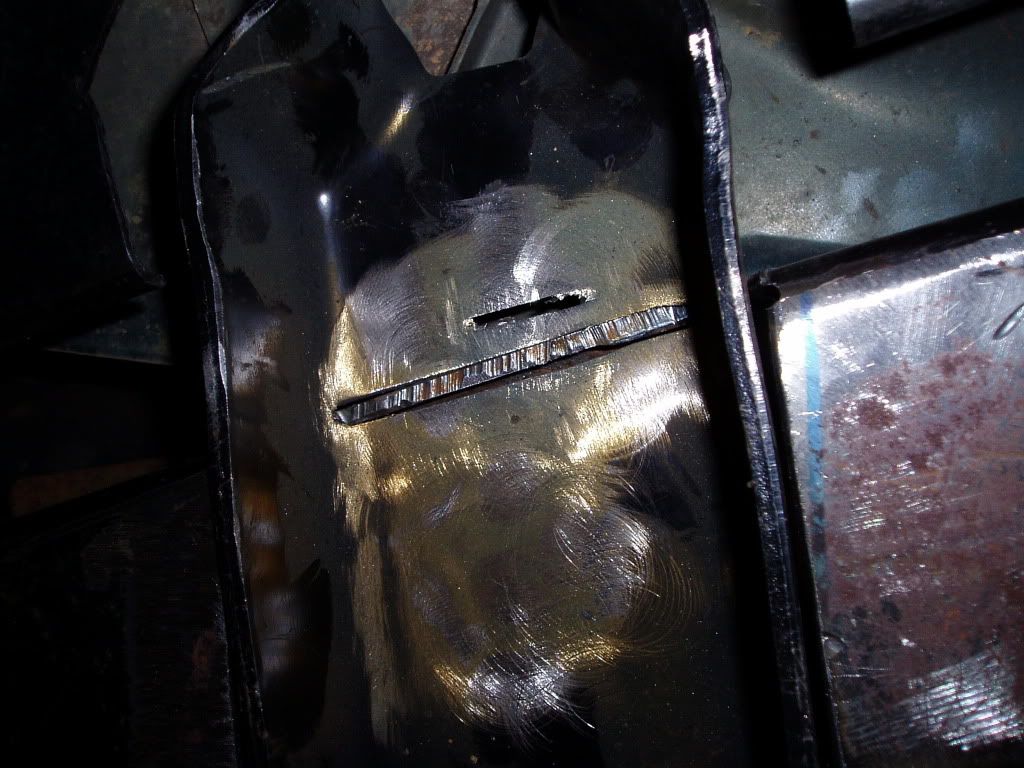

ABS Sensor Removal and hole filled





Lower Control Arm Brackets




__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 05-31-2010, 07:52 PM   #7
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031

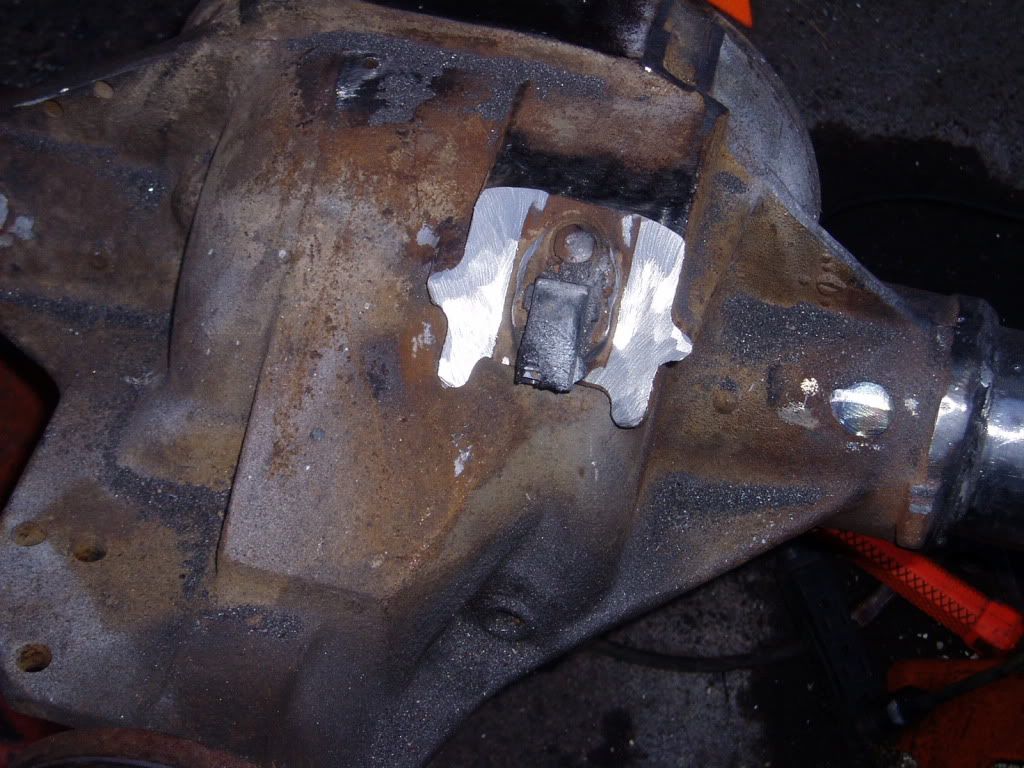

8.8 Breather tube relocation

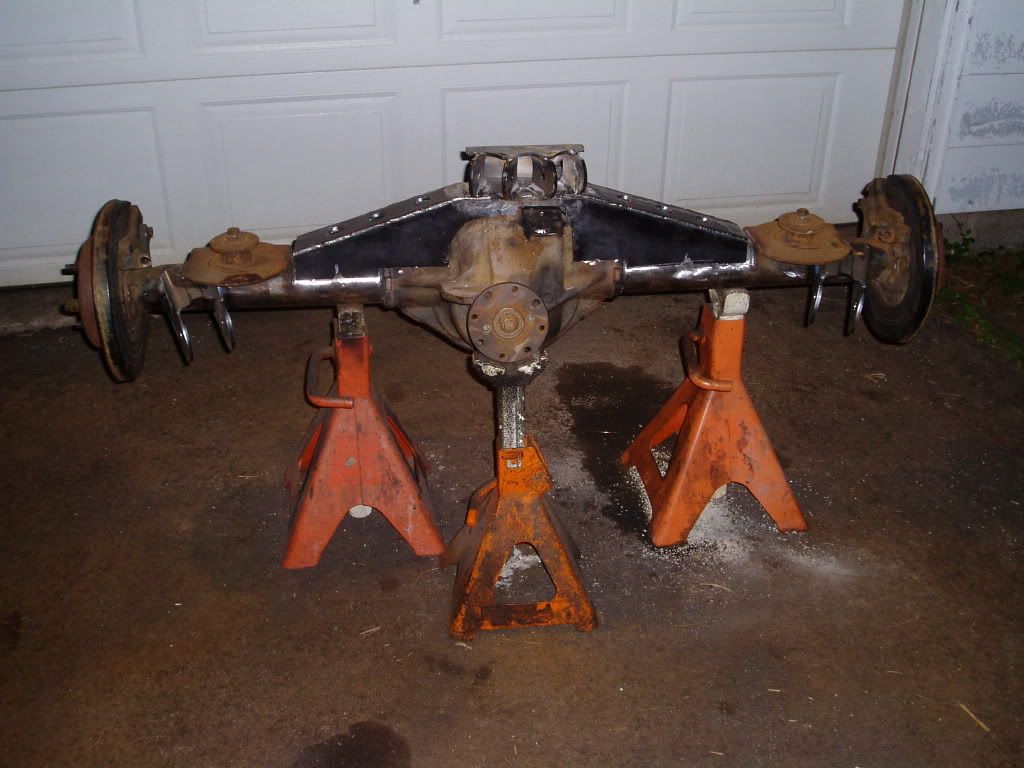

Truss Welded Up




LCA mounted on Axle

__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 05-31-2010, 07:58 PM   #8
Hendrix
TJOTY 2013

Hendrix's Avatar
1997 TJ Wrangler

Join Date: Apr 2009
Location: FT Myers, Florida
Posts: 4,724
Thats some great work so far. Crawled
Hendrix is offline   Reply With Quote Quick reply to this message
Unread 05-31-2010, 08:24 PM   #9
littledevilTJ
Registered User
2004 TJ Wrangler

Join Date: Jul 2008
Location: Middleburg, FL
Posts: 698
damn thats a lot of rust!!!
__________________
My OLD build thread:http://www.jeepforum.com/forum/f22/0...roject-935798/

Florida Specific Forum
www.floridajeepers.net
littledevilTJ is offline   Reply With Quote Quick reply to this message
Unread 05-31-2010, 09:18 PM   #10
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031
Quote:
Originally Posted by littledevilTJ View Post
damn thats a lot of rust!!!
Yeah I was shocked myself. Hence the name of the thread. The amount of rusted off pieces of metal along with sand inside he frame was amazing.
__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 05-31-2010, 09:20 PM   #11
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031
Cross Member Round #1 using 2x5 steel






After making the proper height allowances to clear the transfer case and allow access to remove the nuts and bolts it was determined that the 2x5 piece of metal had far too much movement for our liking and we decided to move on to another idea.

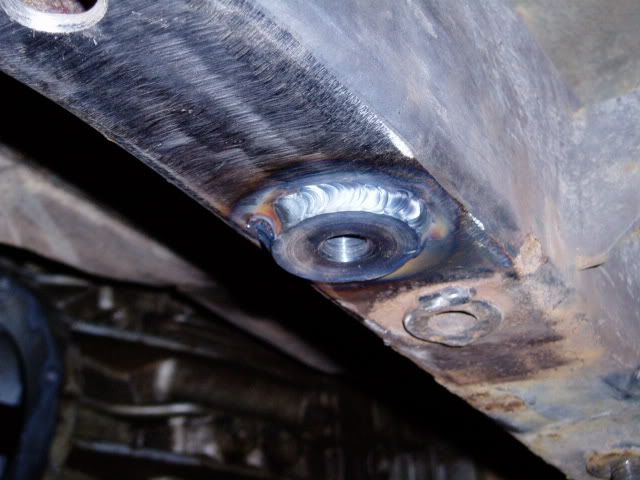

Threaded bungs being inserted into frame rail for cross member to attach to

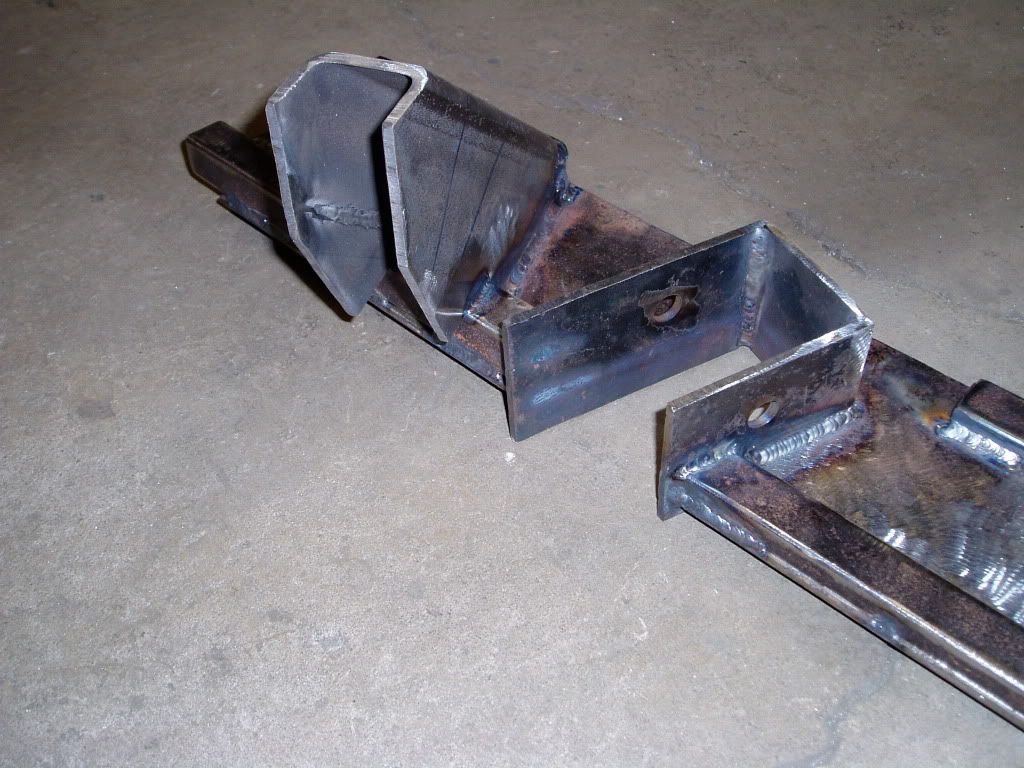

Cross Member Round 2 using 1/4" flat steel


Save a Horse ride a band saw!

Cutting the UCA brackets out of 2x5
__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 05-31-2010, 09:22 PM   #12
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031



Rear cross member mocked up with LCA and UCA brackets in place.
Additional bracing will be coming after final fitment as well.
__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 06-06-2010, 09:10 PM   #13
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031
Cross Member Round #2











__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 06-24-2010, 09:38 PM   #14
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031
Getting close to the back being complete.















__________________
2004 Jeep Wrangler Rubicon
2003 Dodge Ram 3500
My Build Thread
New Jersey Jeep Association
MuddyJeepZJ is offline   Reply With Quote Quick reply to this message
Unread 06-25-2010, 10:38 PM   #15
MuddyJeepZJ
Registered User
2004 TJ Wrangler

Join Date: Jan 2002
Location: Forked River, NJ
Posts: 2,031
Ford Shock Mounts
