Project (s)Low - '94 LCOG Build

Decided to start a build log for my wrangler, but since its a daily driver it will be progressing rather slowly. Sorry

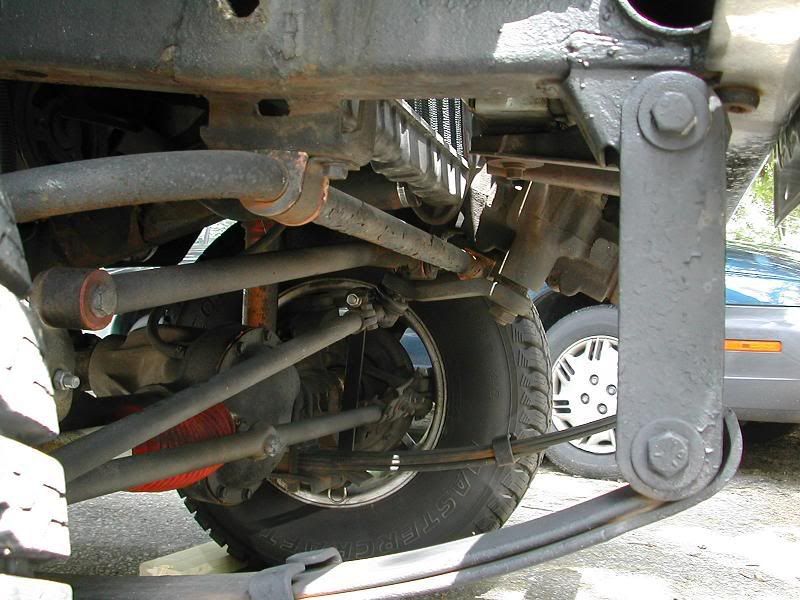

Here she is the day I got her home. Previous owner had a Rancho 2.5" lift kit with some ungodly 2" lift shackles. Even with shims on the axle, they still messed with the steering geometry, so I removed them quickly. Track and sway bars were soon to follow.

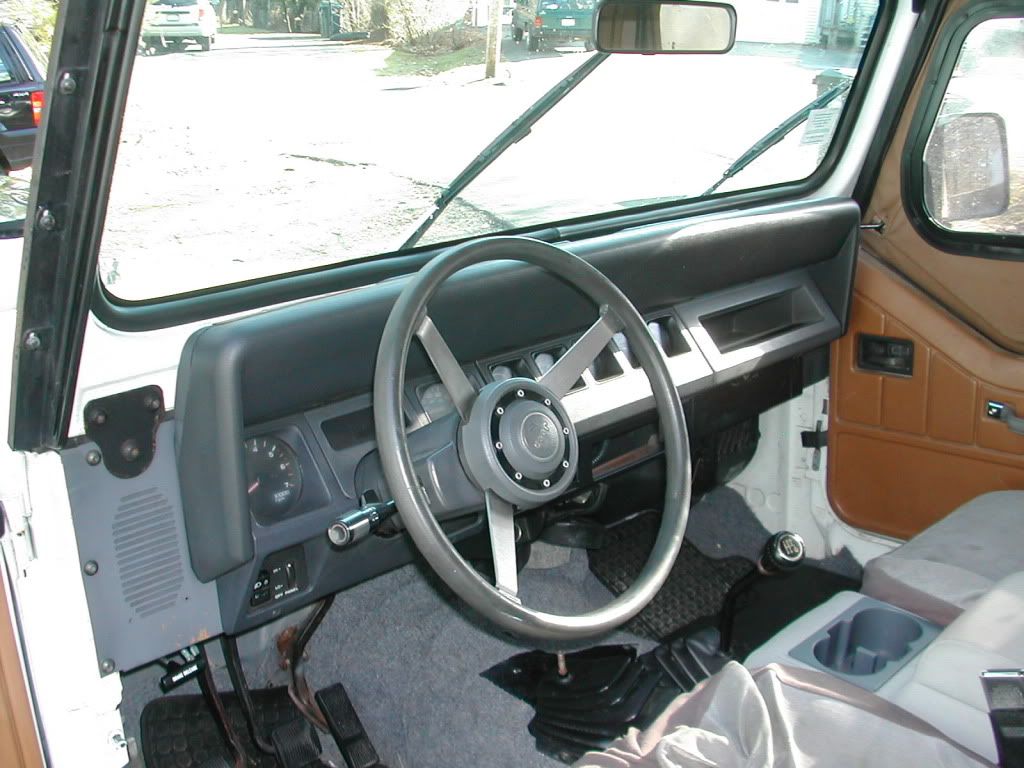

Next, I didn't like the interior color, so I switched it to gray.













__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote
Unread 11-19-2009, 08:13 AM   #2
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,035
Next I installed an 8" center console... If I were to do it again, I would install a 6.5" center console, since the 8" is very tight in the newer YJ's.



A very simple, yet so very useful mod. Notice there are 3 wires to the light: 2 ground and 1 12v. I changed how the light is wired inside the unit; I have it setup now so I can use the switch to turn the light on and off even with the door closed, and the door turns on the light as well. I did this by running the 12v straight to the light bulb, and off the other side of the light bulb 2 grounds: 1 through the switch, and the other to the switch on the door.



And eventually I would like to possibly turn my YJ into a small bed, so I removed the rear seat for more cargo space. A full rhinolining will come in the spring.



Then something unfortunate happened... In my driveway.



That's right, my AX-5 grenaded in my driveway, simply moving it from one space to another. Then ensued to long disasterous conversion to the AX-15. The only real issue was a brand new pressure plate from Autozone turned out to be garbage. Here is the full thread:

http://www.jeepforum.com/forum/f12/1...ersion-852641/

AX-15 ready to go in (3 times none the less)



While my Wrangler was down, I installed a 2" budget boost on the grand cherokee and swapped over the tires.





Here are 2 distribution blocks I picked up for future mods. Connected to the battery by Kicker Hyperflex 4awg wire. Eventually I will do the "Big-3" battery/alternator wire upgrade.



And a shot of the beast lurking under the hood:

__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote
Unread 11-19-2009, 08:16 AM   #3
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,035

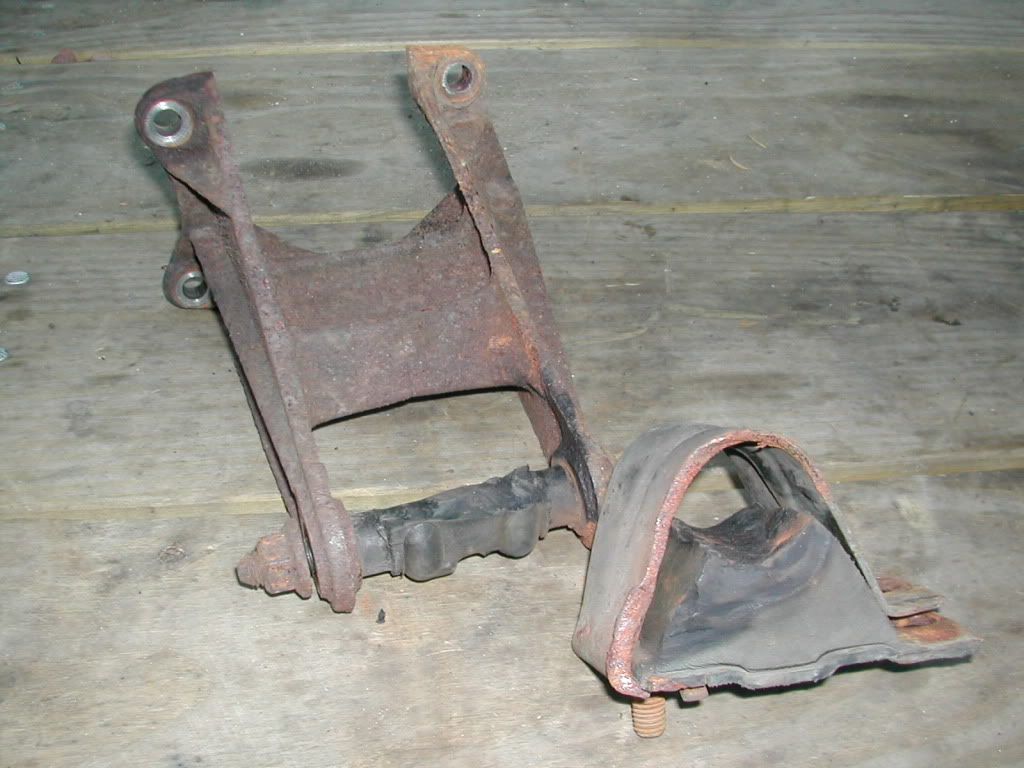

During the transmission conversion, I found my engine mounts to be trashed. The passenger side cradle was rusted out, and the damn thing nearly fell on my face while working on the transmission.

So what is one to do, but upgrade? Ordered some Brown Dog Extreme motor mounts with the ultra-flex rubber. These things are SOLID. 1/4" steel plate construction, powder coated a nice yellow. Worth every penny.

__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote
Unread 11-19-2009, 08:21 AM   #4
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,035
Future mods include: Tube fenders front and rear, Rhinolined interior, possible Scrambler style hard top convserion for the winter, and 33's if not 35's. Depends on how much clearance I can gain by flat-fenders and just maybe a highlined front end.
__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote
Unread 11-19-2009, 09:50 AM   #5
1997_Sport
Registered User
1991

Join Date: Nov 2008
Location: Bel Air, Maryland
Posts: 4,343
You should beable to run 35s with the tub fenders and highline kit. But wow, thats one extremely clean YJ. Looks good, and keep up the work.
__________________
-Mike

No jeep but I do have a 04.5 Cummins with a 4in exhaust, edge j/a, and I guess thats it....for now
1997_Sport is offline   Reply With Quote
Unread 11-19-2009, 02:32 PM   #6
Nates93yj
Registered User

Nates93yj's Avatar
2004 TJ Wrangler

Join Date: Feb 2009
Location: Dubuque
Posts: 1,159
Cant wait, looks like a good build
__________________
NATE
2003 GMC 2500 Duramax
2004 Jeep Wrangler Columbia Edition DD and Trail Rig
1993 Jeep Wrangler Nates93yj BuildSOLD
Nates93yj is offline   Reply With Quote
Unread 11-19-2009, 02:37 PM   #7
ImpactFabWorks
Registered User
1990 YJ Wrangler

Join Date: Jan 2009
Location: victorville,ca
Posts: 1,864
the PO of mine put some huge shackles on mine also. i just got around to replacing them with some boom shackles
__________________
1990 YJ = The Toy/ My Daily Driver
1996 XJ= Wifes Daily Driver


www.Impact-FabWorks.com

Impact-FabWorks Facebook


Please fill out your profile, It helps us help you!!!
ImpactFabWorks is offline   Reply With Quote
Unread 11-21-2009, 01:20 PM   #8
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,035
Got the engine mounts all installed. Driver side went in with NO issues... slid the engine forward an inch and it bolted up just fine. Passenger side was much harder because the engine had shifted due to the old mounts being nearly nonexistent. I need to loosen the through-bolt, but it drives completely different now, nearly no noises at all. As you can see in the last two pictures, the driver side rubber was destroyed, and the passenger side cradle was rusted out. I am honestly surprised my engine never fell out of the jeep -- No sarcasm.











__________________
-Matt

White '94 YJ Sport
Black '98 ZJ Laredo - 45x60 Surco Rack - 2" Budget Boost, Addco Front Swaybar

Project (s)Low - A build log.
UltimatE is offline   Reply With Quote
Unread 11-21-2009, 06:00 PM   #9
Tom95YJ
[] Eye'd Jeep Connoisseur

Tom95YJ's Avatar
1999 XJ Cherokee

Join Date: Sep 2004
Location: Salt Lake City, Utah
Posts: 8,221
I hope you enjoy those browndog MM's I love mine But I wish I went with the rubber bushings the poly ones can get annoying at redlights when the whole jeep vibrates
__________________
'89 YJ The Smurf Build Thread
'99 XJ Black Betty Build Thread
Tom95YJ is offline   Reply With Quote
Unread 01-20-2010, 11:10 AM   #10
UltimatE
Resident Audio Guru

UltimatE's Avatar
1994 YJ Wrangler

Join Date: Sep 2004
Location: Worcester, Mass
Posts: 7,035
Just a small update, since its winter I hate working on the Jeeps in the cold -- Motivation drops significantly. I was tired of the chrome-2x4-strapped-to-the-front-of-my-Jeep look, so I made a shorty out of the front bumper. Done with simply a hack saw and some elbow grease. I think it greatly improves the overall look.

Before:



After:





Another project I did previously was to make a custom radio console to fit in front of the shifter, since I despise the stock location and have already upgraded my center console.

Stock location will most likely be covered up with the stereo plate delete (write up around here somewhere) and be used for switches.



New location for the radio.



I don't have a picture of the template I used, but cardboard is man's best friend when custom designing almost anything. Here are all the pieces cut.

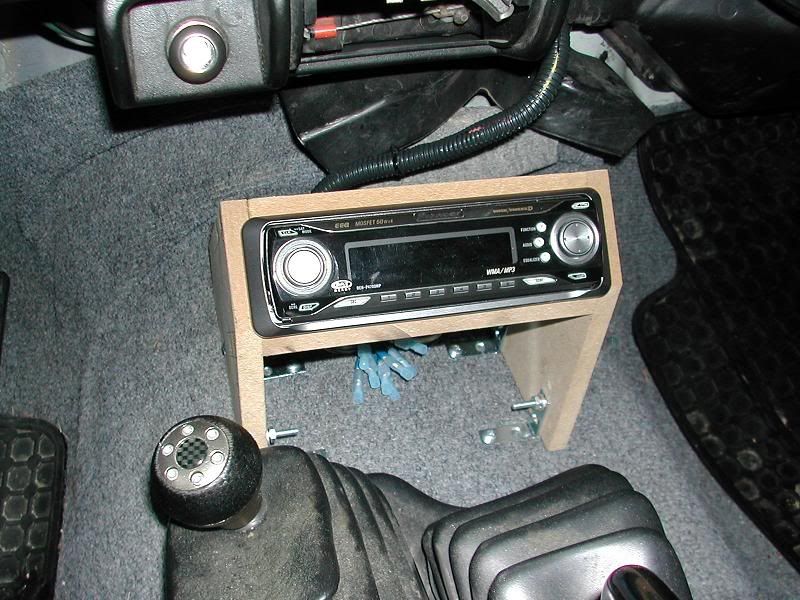

Starting to come together. Glued and screwed.
