I spent some time getting the old motor out of my shop and on the trailer. I think I got all the good stuff off of it. I also got the trans pan off and the filter changed.

This is what you want to see nice red fluid.

Also tore the filter apart and thankfully nothing in there but some fluid.
Pan off:

Pan cleaned up. it was clean when I pulled it. No chunks or alot of crap on the magnet. Fluid was red and did not smell burt at all. Filter wasnt OEM which means it has been changed at least once before. Thats good news.
So it was fairly uneventfull. Except for what ever mouth breather changed the filter last time used 3 different head size bolts to put the pan back on. All the threads were the same so Im lost on that one.


Until I went to NAPA to get a new filter. Idiot gave me a filter for a shallow pan. Went back up there and they say " You didnt tell me it was a deep pan". They didnt ask me. How was I suppose to know? Ends up the 4x4 tranny always has a deep pan. I told them I had a 4x4. Whatever, wasted hour.

new filter


Threw the pan back on, cleaned up all the spilled tranny fluid and threw that pig on the motor. Pins were a little sticky had to bring it home with a bolt the last hair. TC spins freely so all is suppost to be well. I ended up not being happy that I had to bring the tranny home with a bolt. So I pulled it and found an alignment pin was sticking out to far. They are suppose to be 1/2" from the block. One of mine stuck out 3/4".I drove it in 1/4" and sanded the pins to remove a little rust. After that the tranny went right on.


Which brings me to a question. I seated the torque converter and measured the mounting face to the TC lugs and got just over an inch. Which I understand is good.

Then after installing the trans I measured the flywheel to TC mounting lugs and got right at 3/16" (.187") or a hair shorter. my .187 guage is actually .186, yea China. The spec is 1/8" - 3/16". Do I throw a washer in there? or bolt it together and run it?

__________________
New Project "Pissed Wife"

http://www.jeepforum.com/forum/f22/project-pissed-wife-747535/
Phase II 5.3L/4L60e then NV3550
http://www.jeepforum.com/forum/f22/p...stall-1400506/
Why J? is offline   Reply With Quote
Unread 08-12-2012, 09:22 AM   #47
Why J?
Registered User
1993 YJ Wrangler

Join Date: Sep 2004
Location: Knoxville Tn
Posts: 3,437
I still need to figure out if I need a washer beteen the flywheel and TC. I'm right on the edge of the spec at 3/16" between the fully seated torque converter mounting lugs and the flywheel. I may just grab some .06" washes and call it good. Not sure what to do if anyone knows please chime in.

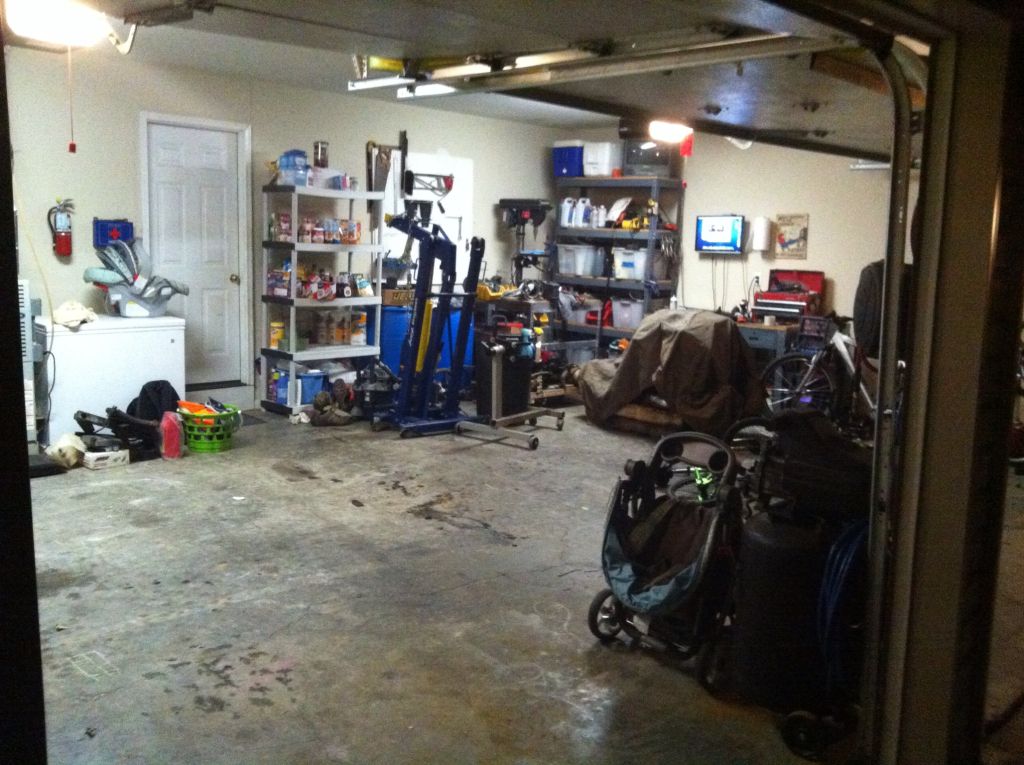

I spent last night cleaning the shop up and getting ready to tear the Jeep down. My wifes kiddy bus should be fixed on Monday. Warranty tranny thing. So I get back my DD and the Jeep can go out of service.

Im lucky and have a 3 car garage so I may park the Jeep sideways to help with pulling and installing motors.

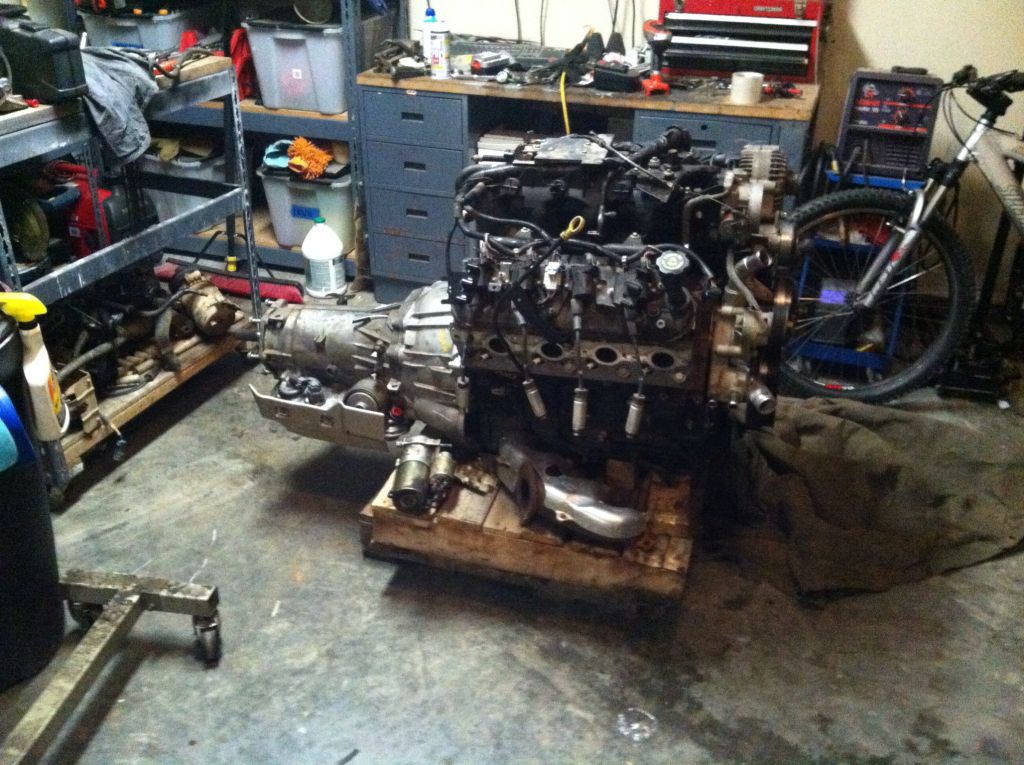

Got the motor up on a palet waiting for parts. Which hopefully will be arriving this week.

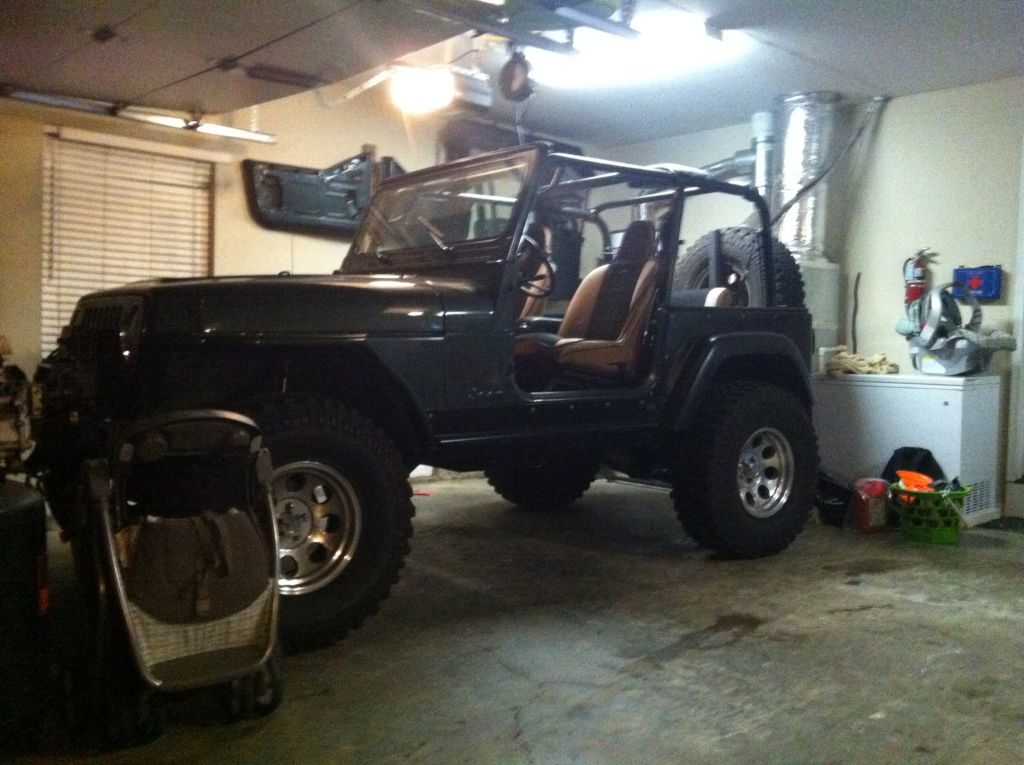

And she waits.


Im such a pic whore.
__________________
New Project "Pissed Wife"

http://www.jeepforum.com/forum/showthread.php?t=747535
Phase II 5.3L/4L60e then NV3550
http://www.jeepforum.com/forum/f22/p...stall-1400506/
Why J? is offline   Reply With Quote
Unread 08-14-2012, 07:41 PM   #48
Why J?
Registered User
1993 YJ Wrangler

Join Date: Sep 2004
Location: Knoxville Tn
Posts: 3,437
Got the tranny mounted up for the last time last night. I put a quart of Dex vi in the TC. I ended up with a TC to flywheel gap of a little over 3/16" so I threw in a .060" washer. Spec is 1/8" to 3/16". so that is done.

Also the wifey got her kid bus back so its on like Donkey Kong!

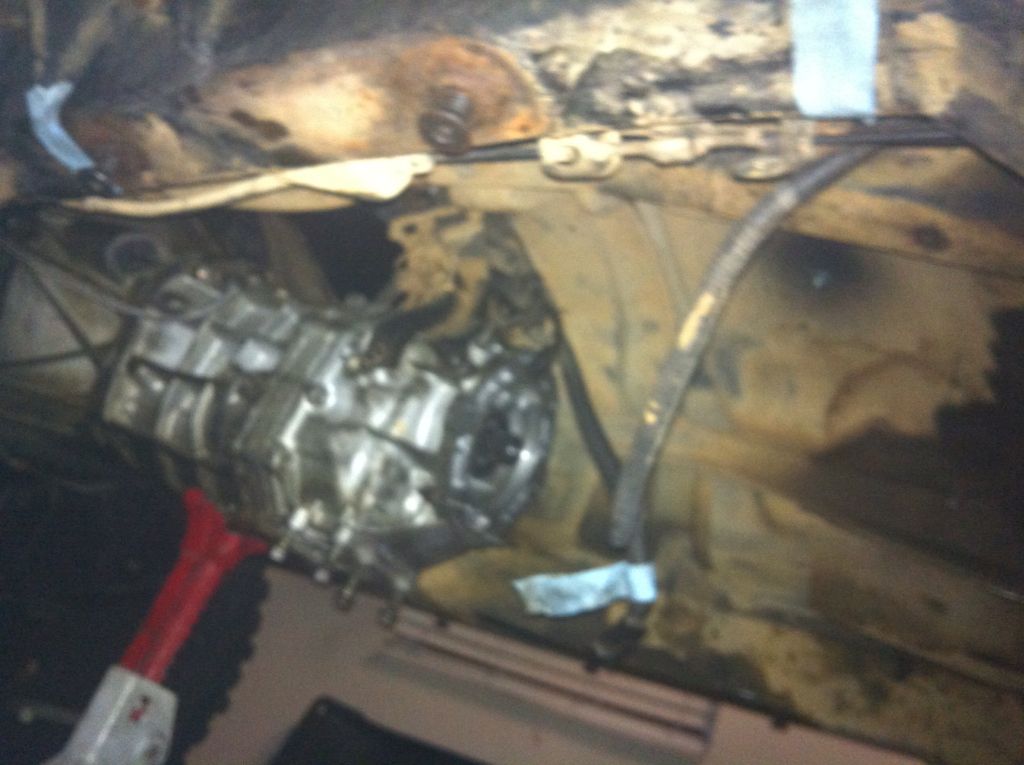

I got started tearing the Jeep down. Got the front and read drive shafts off, skid plate, t-case and exhaust. Some parts also started showing up. Got the EGR block off and the Novak 231 tcase shifter along with Novak GenIII weld in engine mounts. If time allows I would like to get the motor and trans out of the Jeep by the end of the weekend.

Egr block off:

goes here:

Throw this out!

Also threw out the EVAP purge valvue and pluged that hole with a rubber plug.

Here is where I stand as of 1am last night

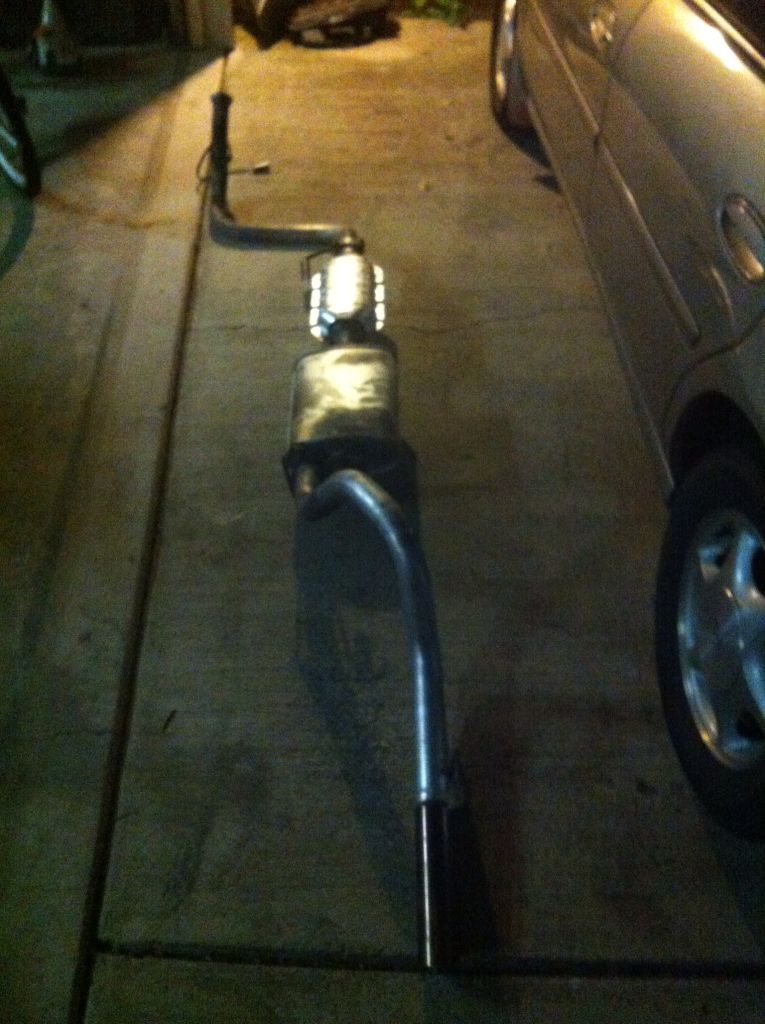

Anyone want to buy a 6 month old 6cyl exhaust system?
