Delmarva Offroad - Orange Peel - TJ Buggy Build

2011 SEASON REBUILD STARTS ON PAGE 16 HERE
2012 SEASON REBUILD STARTS ON PAGE 22 HERE

Figured it deserved its own thread... Here is the old thread of how I got to this point from a bone stock Jeep in 4 years I think.
http://www.jeepforum.com/forum/f9/sl...-build-540449/

Here is what I am starting with. 98 TJ. Stretched 2 inches, 44 and 30. Teralow. Locked Front and Rear with 36" iroks. 2" of lift in the front, no lift in the rear.



The build...
Double triangulated 4 link rear, 3 link w/ pan hard front. HP60, 14B. 5.38s. D300. 39.5" Rockers. Tube from the seats back and from the motor mounts forward.

Started with hacking the tub:


Lost the little axles:


HP60 with the truss on it:


Started to shave the bottom of the 14b:



Axles waiting:


Plasma cutter came in so I began chopping the frame:


Tubing arrived:


Took the "body" off to start on a tranny mount and finish cutting and capping the frame rails:



Capped the frame, then put the body back on to get final measurements for the chassis:


Start of the layout on the new chassis:



And that is where I leave you today. Tomorrow I need to finish the tranny mount, then going to start bending for the chassis!

__________________
Michael Ferrari
Team 120 - DOR Racing - Racing for Operation Homefront
Operation Homefront (OHF) provides emergency financial and other assistance to the families of our service members and wounded warriors.
Thanks to our Sponsors:
Delmarva Offroad - F-O-A Shocks - BD Turnkey Engine - Under Cover Fab - Jer-C Transmissions - Quigley Driveshafts

Delmarva Offroad
You call it rolling, we call it R&D! 443-951-JEEP
mferrari is offline   Reply With Quote
Unread 12-30-2009, 11:17 PM   #2
SnowYJ
Registered User
1988 MJ Comanche

Join Date: Jun 2009
Location: OR
Posts: 1,058
holy crap, look sgood
__________________
I go to college and I drive a Jeep.
SnowYJ is offline   Reply With Quote
Unread 12-30-2009, 11:20 PM   #3
mferrari
DelmarvaOffroad.com

mferrari's Avatar
1998 TJ Wrangler

Join Date: May 2005
Location: Ocean City, MD
Posts: 2,647
Thanks, sorry for the mess in the shop. Working on a cage for one customer and axles for another along with my personal buggy. I need a bigger shop
__________________
Michael Ferrari
Team 120 - DOR Racing - Racing for Operation Homefront
Operation Homefront (OHF) provides emergency financial and other assistance to the families of our service members and wounded warriors.
Thanks to our Sponsors:
Delmarva Offroad - F-O-A Shocks - BD Turnkey Engine - Under Cover Fab - Jer-C Transmissions - Quigley Driveshafts

Delmarva Offroad
You call it rolling, we call it R&D! 443-951-JEEP
mferrari is offline   Reply With Quote
Unread 12-30-2009, 11:33 PM   #4
uvalax236
Registered User
2006 TJ Wrangler

Join Date: Jan 2005
Location: Richmond, Virginia
Posts: 247
Looks awesome! Keep up the great work!
__________________
06 Solar Yellow AT
Banks Headers, ARB Periscope, Clayton LA/TT,
Coast 1350 Shaft, JKS BL/BMML/Quicker Discos/Adj BumpStops,
RE 4.5 Springs/BrakeLines/HD TB, Currie Steering, VVME 3000k, 6000k HID Systems, IPF H4 Headlights,
315/75/16 Nitto Terra Grapplers on Moab's, 5.13's and TruSpeed
uvalax236 is offline   Reply With Quote
Unread 12-31-2009, 01:44 AM   #5
rs4race
Registered User
1997 TJ Wrangler

Join Date: Aug 2009
Location: Bellevue, WA
Posts: 1,117
I finally get to see the beginning of one of these builds! One question tho. Why hack up everything? Looks like you have tons of material, besides the body why not make a new frame that you can bolt the body to?

Its just something Ive always wondered with these builds.
rs4race is offline   Reply With Quote
Unread 12-31-2009, 08:21 AM   #6
00jeepsahara
Registered User
2000 TJ Wrangler

Join Date: Aug 2006
Location: TEXAS
Posts: 380
nice build. Like the new cage design. What are you planning for suspension?
Are you also using the stock d300 casing? Have you looked into STAKs replace a case. Works great when your flipping a 300.
__________________
2000 Jeep Wrangler Sahara
113" Wheelbase
42 Iroks
17" Allied Beadlocks
D60/14BFF
00jeepsahara is offline   Reply With Quote
Unread 12-31-2009, 09:51 AM   #7
mferrari
DelmarvaOffroad.com

mferrari's Avatar
1998 TJ Wrangler

Join Date: May 2005
Location: Ocean City, MD
Posts: 2,647
Quote:
Originally Posted by rs4race View Post
I finally get to see the beginning of one of these builds! One question tho. Why hack up everything? Looks like you have tons of material, besides the body why not make a new frame that you can bolt the body to?

Its just something Ive always wondered with these builds.
Originally I was planning on using more of the tub than I am going to end up using so I just decided to cut it all up. I also was thinking about selling the Jeep as a whole and starting from scratch but there was no way with the economy the way it is that the Jeep would have sold so I parted out what I wasn't using. Since I had the frame it made an easy starting point to work with. Plus now I can still say it's a Jeep
__________________
Michael Ferrari
Team 120 - DOR Racing - Racing for Operation Homefront
Operation Homefront (OHF) provides emergency financial and other assistance to the families of our service members and wounded warriors.
Thanks to our Sponsors:
Delmarva Offroad - F-O-A Shocks - BD Turnkey Engine - Under Cover Fab - Jer-C Transmissions - Quigley Driveshafts

Delmarva Offroad
You call it rolling, we call it R&D! 443-951-JEEP
mferrari is offline   Reply With Quote
Unread 12-31-2009, 09:54 AM   #8
mferrari
DelmarvaOffroad.com

mferrari's Avatar
1998 TJ Wrangler

Join Date: May 2005
Location: Ocean City, MD
Posts: 2,647
Quote:
Originally Posted by 00jeepsahara View Post
nice build. Like the new cage design. What are you planning for suspension?
Are you also using the stock d300 casing? Have you looked into STAKs replace a case. Works great when your flipping a 300.
Suspension will be double triangulated 4 link in the rear. Front will be a 3 link w/ pan hard (not going full hydro at this time). Both should sit on 14" air shocks but waiting to get the chassis sqaured away before I order them.

Right now I am still deciding on using the stock casting or using a Stak case for it. I am more leaning towards using the stock case because within a year or 2 I want to get a 3 speed case.




Going out to the shop to finish up some axles for a customer and then gonna spend osme time and start on the chassis today.
__________________
Michael Ferrari
Team 120 - DOR Racing - Racing for Operation Homefront
Operation Homefront (OHF) provides emergency financial and other assistance to the families of our service members and wounded warriors.
Thanks to our Sponsors:
Delmarva Offroad - F-O-A Shocks - BD Turnkey Engine - Under Cover Fab - Jer-C Transmissions - Quigley Driveshafts

Delmarva Offroad
You call it rolling, we call it R&D! 443-951-JEEP
mferrari is offline   Reply With Quote
Unread 12-31-2009, 10:23 AM   #9
Imped
Web Wheeler

Imped's Avatar
2004 TJ Wrangler

Join Date: Feb 2008
Location: Indianapolis
Posts: 19,258
Awesome! Thanks for posting.
__________________
OlllllllO
Float Test Build
IndyORV
Imped is online now   Reply With Quote
Unread 01-01-2010, 10:06 PM   #10
mferrari
DelmarvaOffroad.com

mferrari's Avatar
1998 TJ Wrangler

Join Date: May 2005
Location: Ocean City, MD
Posts: 2,647

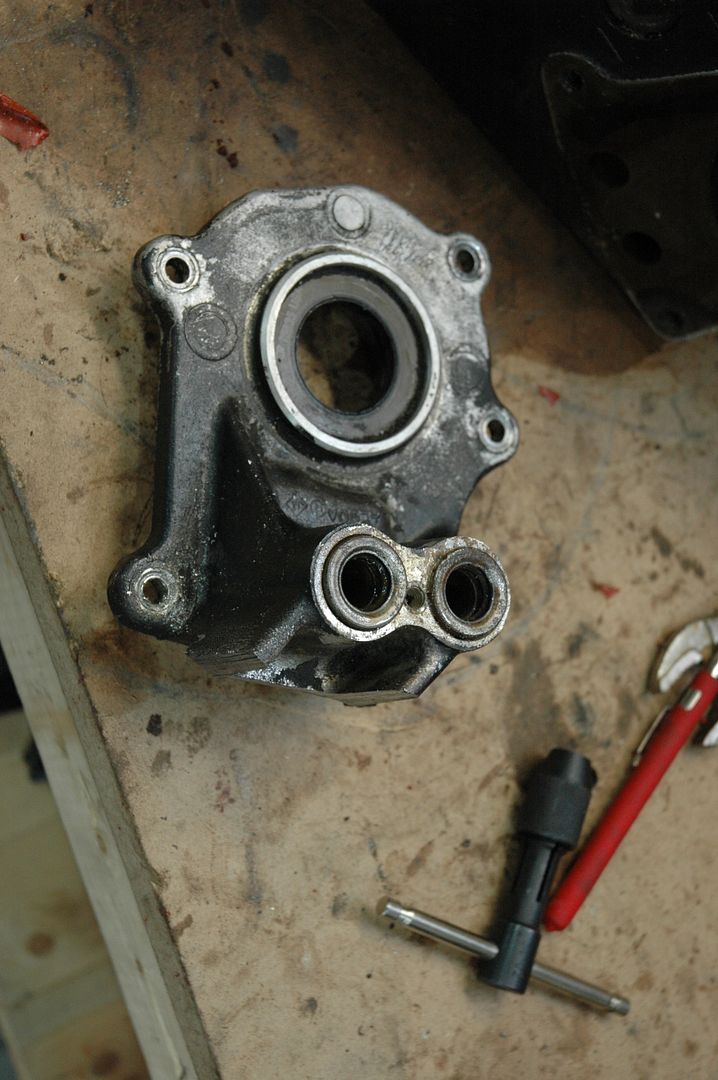

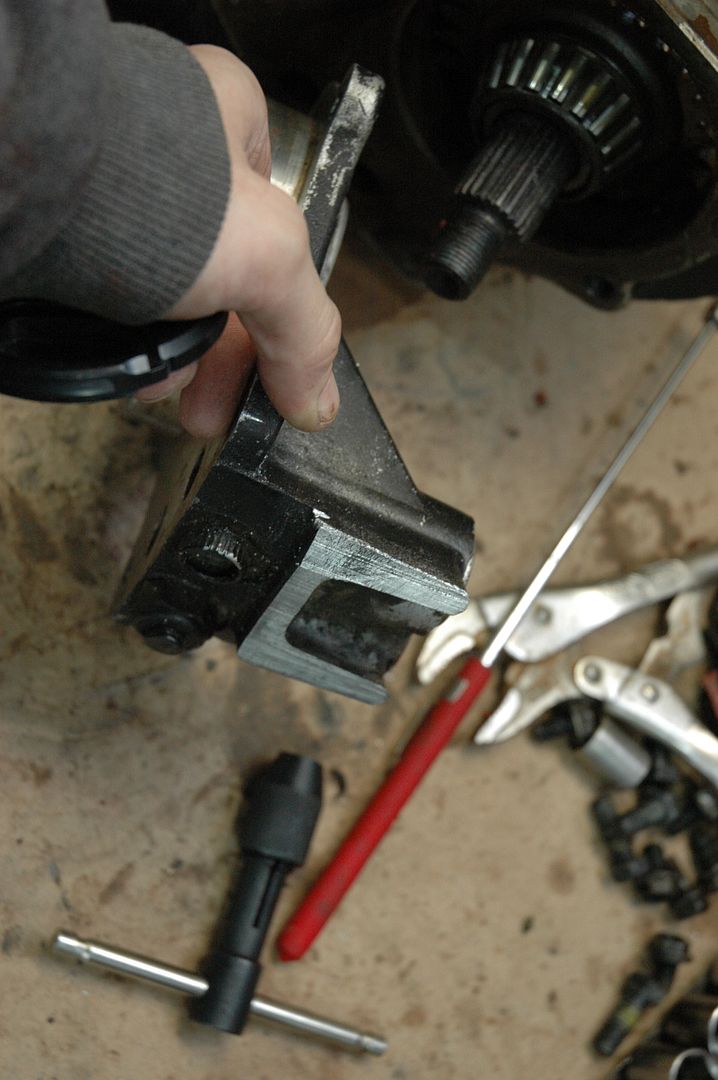

Spent some time today trying to figure out what to do with this D300. I broke out the bandsaw and cut down the old shifter crap:

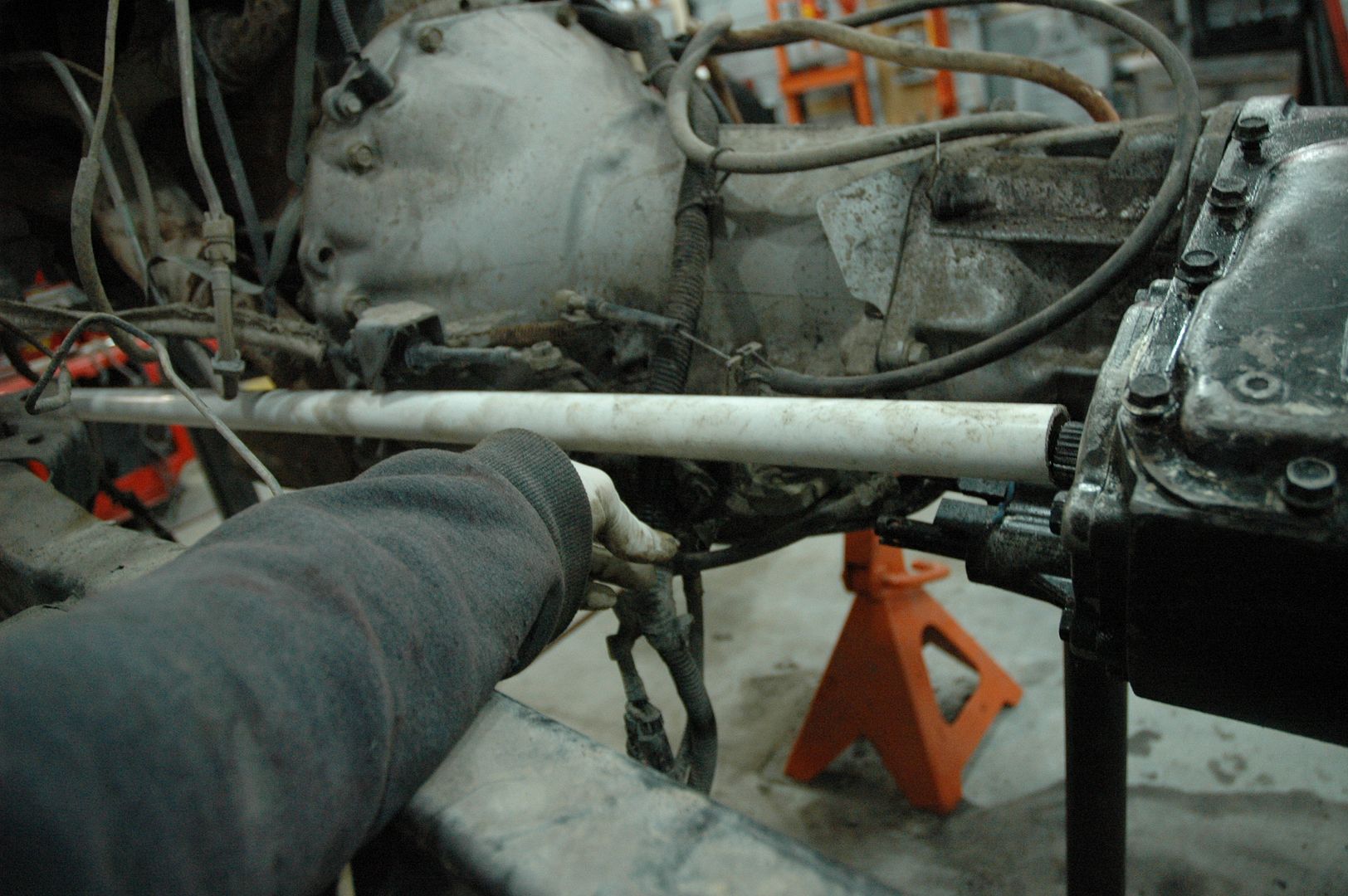

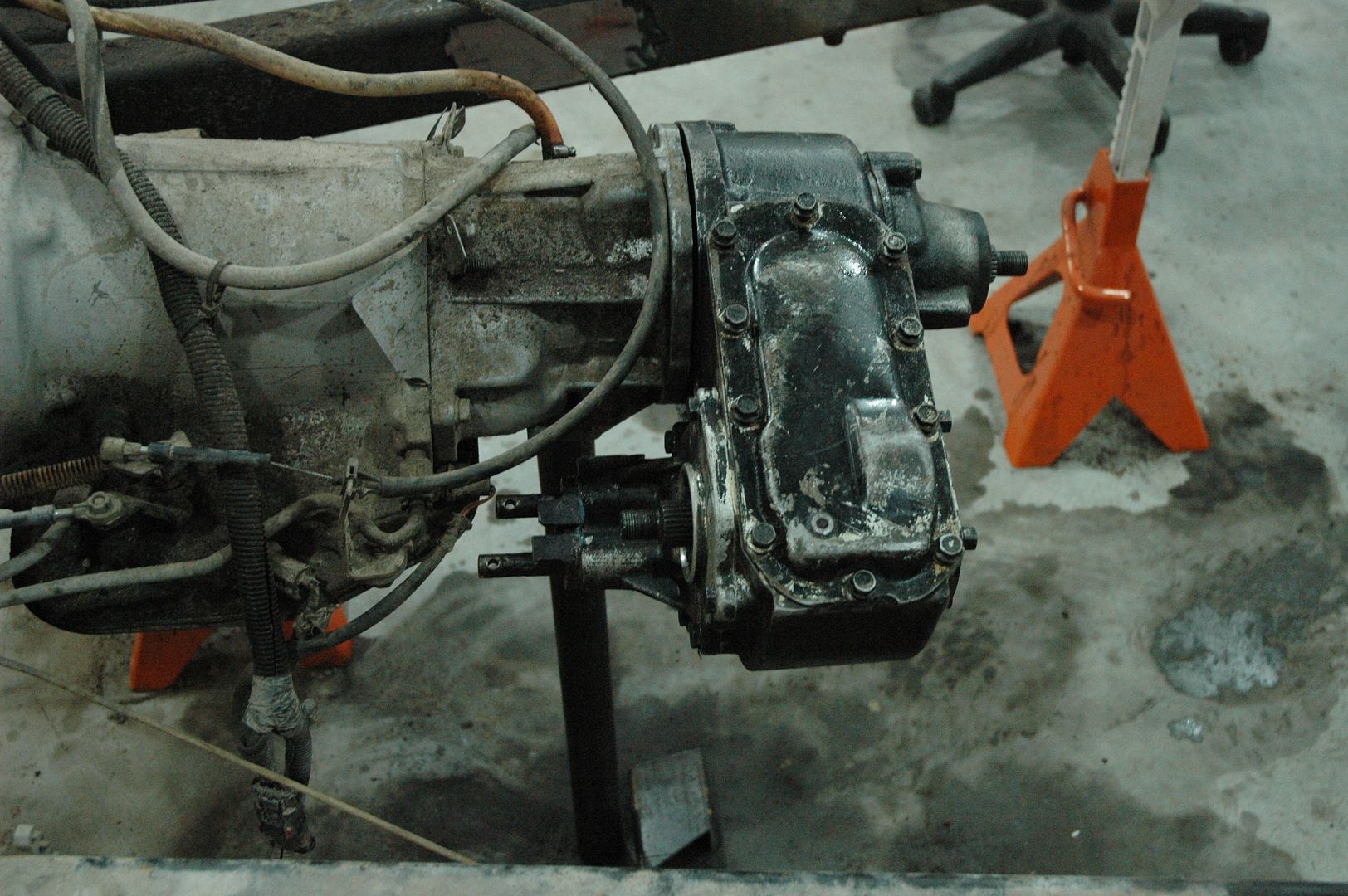

Ok so now that made a little more clearance for the mount. But the next problem... The driveshaft and shifters. Looks like I am going to need a 2 piece shaft to fit around the transmission. Also may run into some trouble with clearance for the shifter but I may be able to work around that...

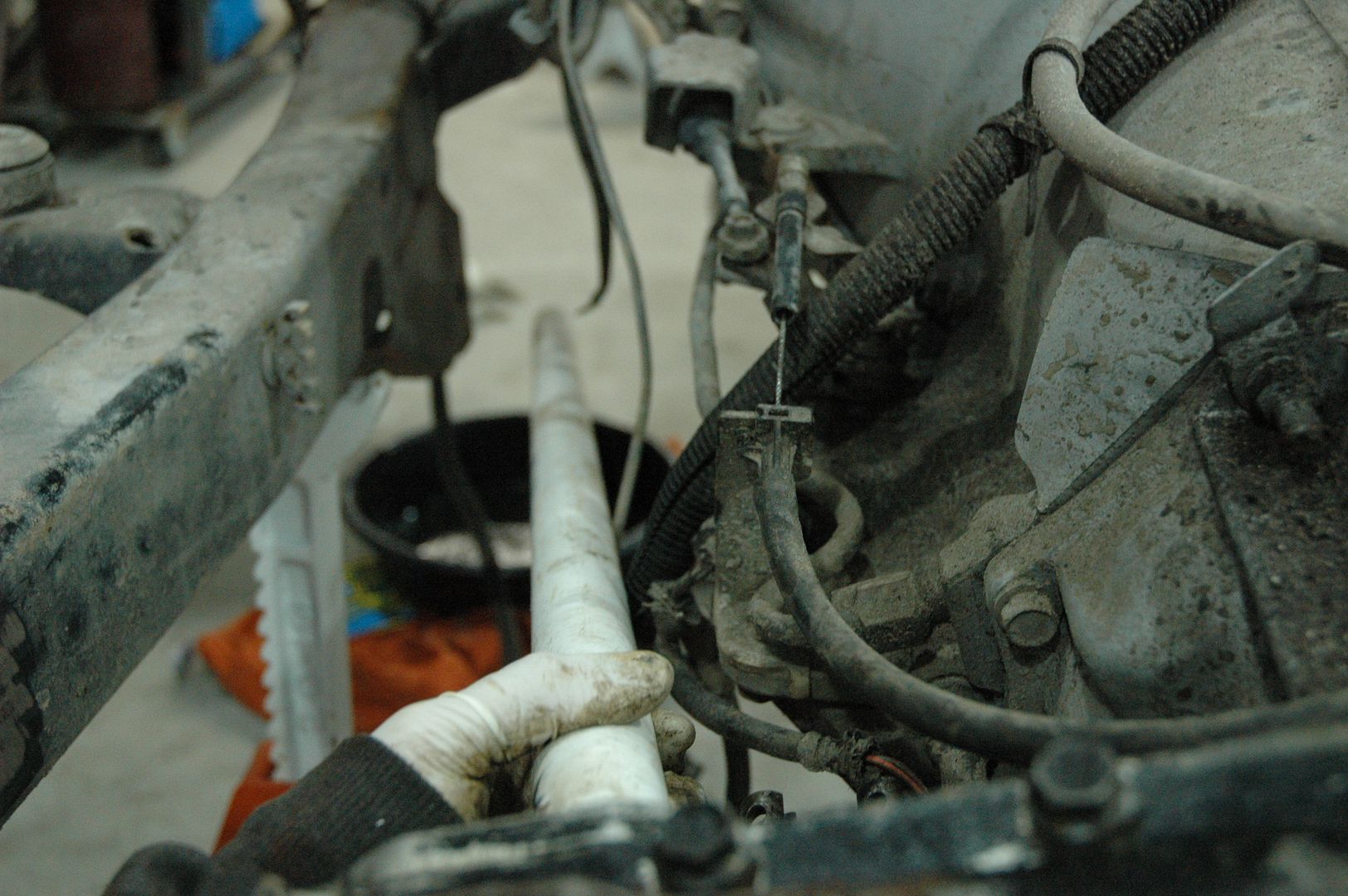

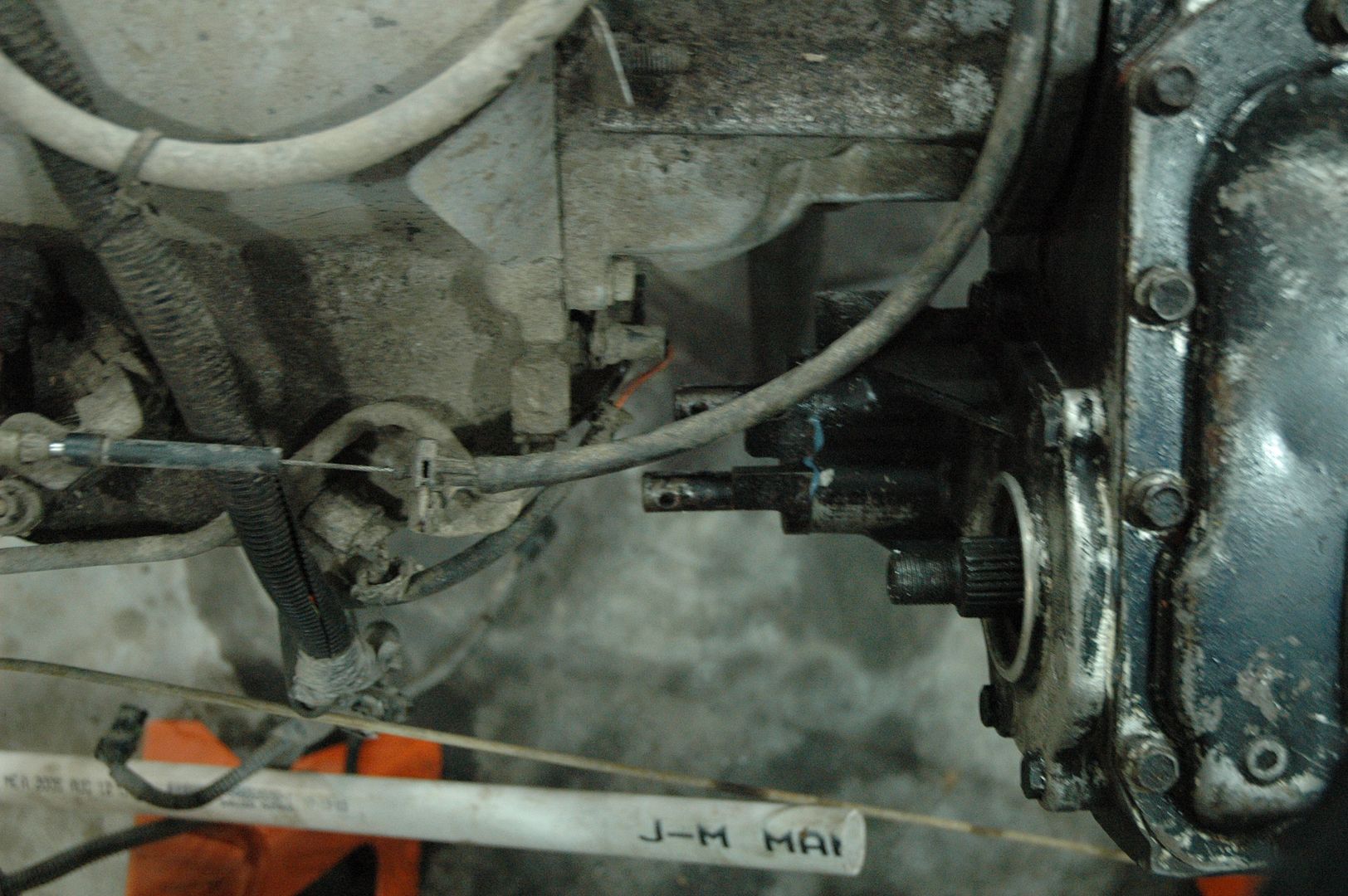

Shifter clearance:

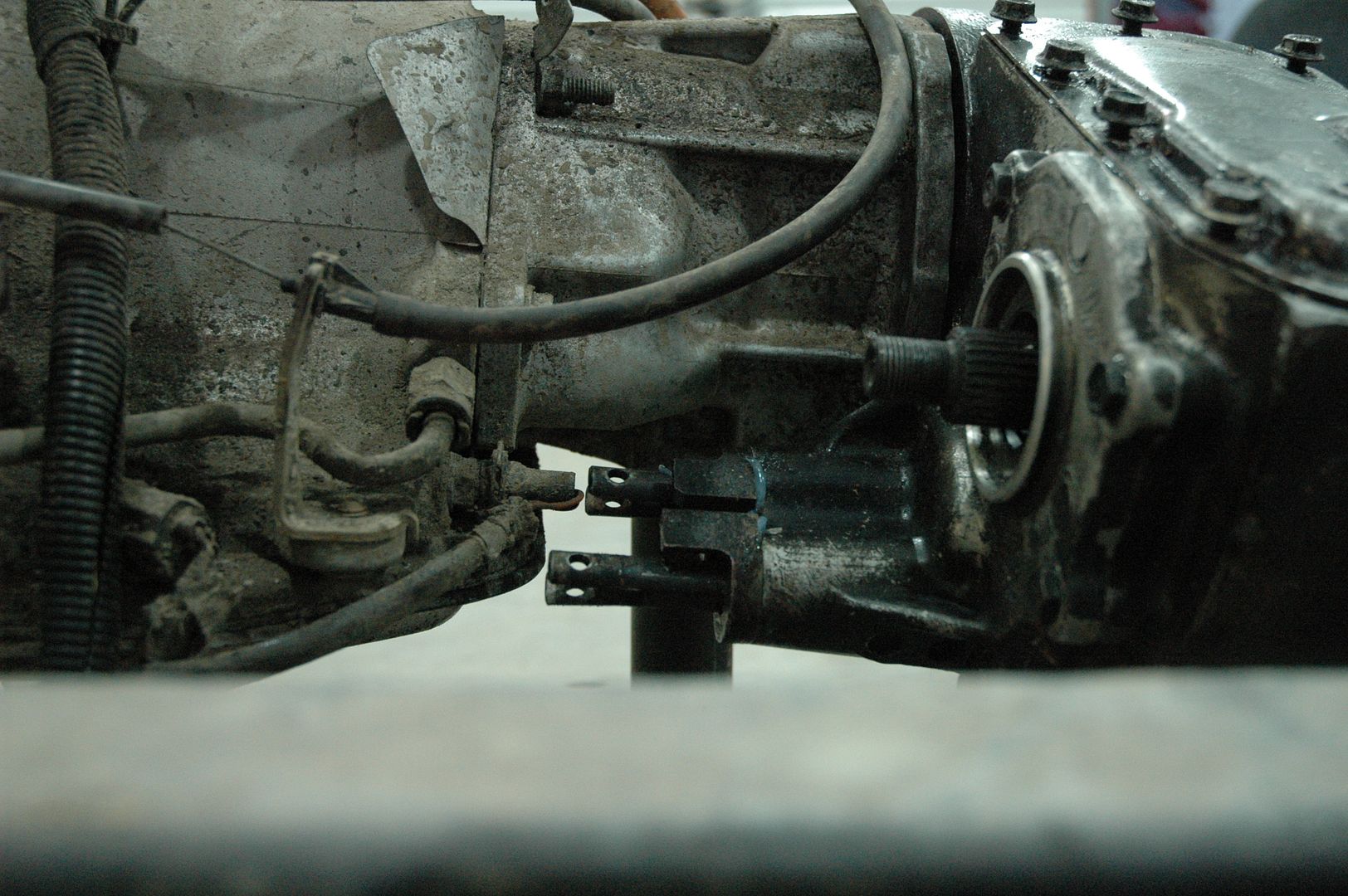

Top View:

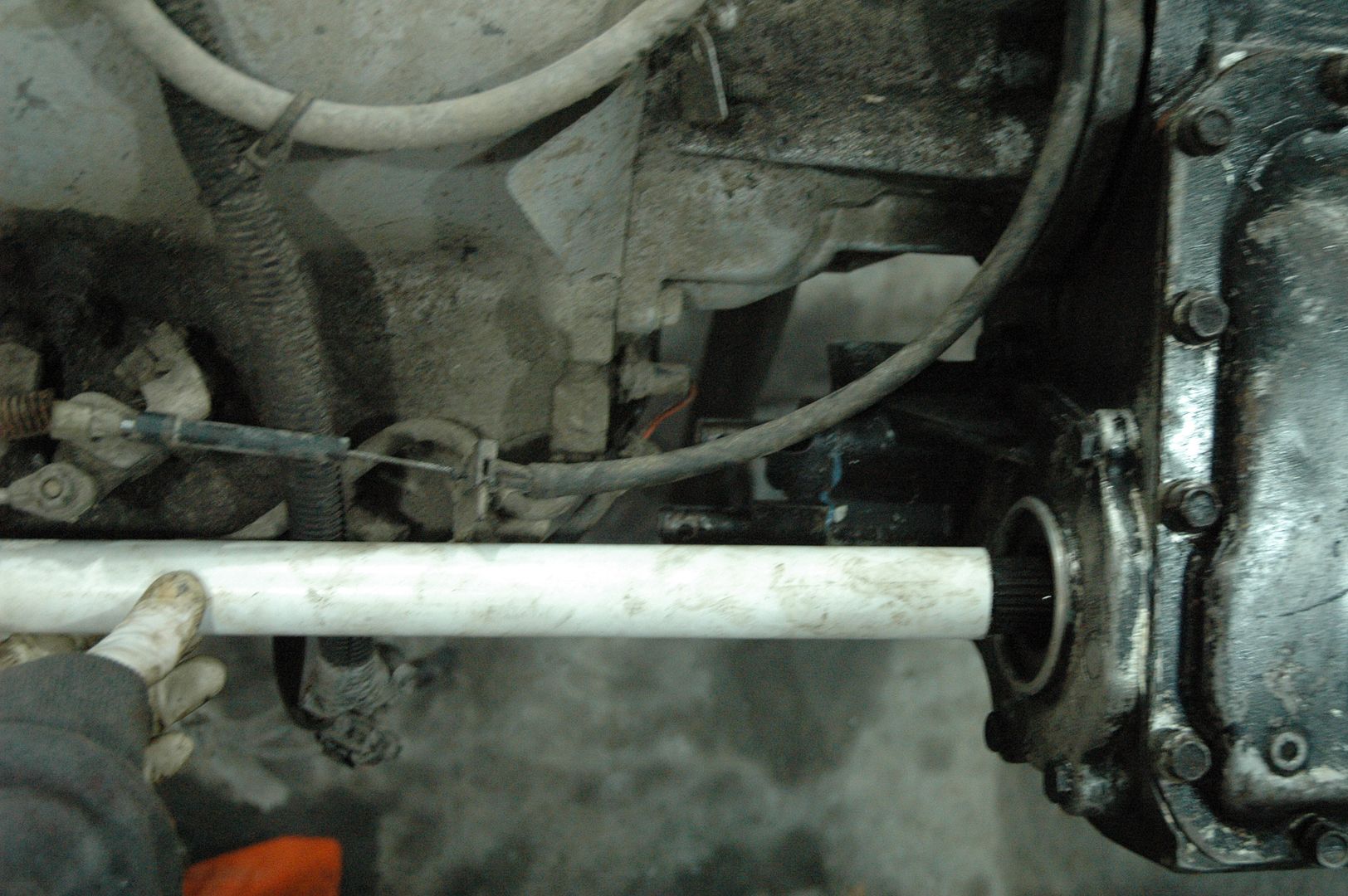

Back w/ "driveshaft":






Also while I had the D300 apart, I decided to grind the shift rail to allow me to use 2wd High in the Front with the rear in N.

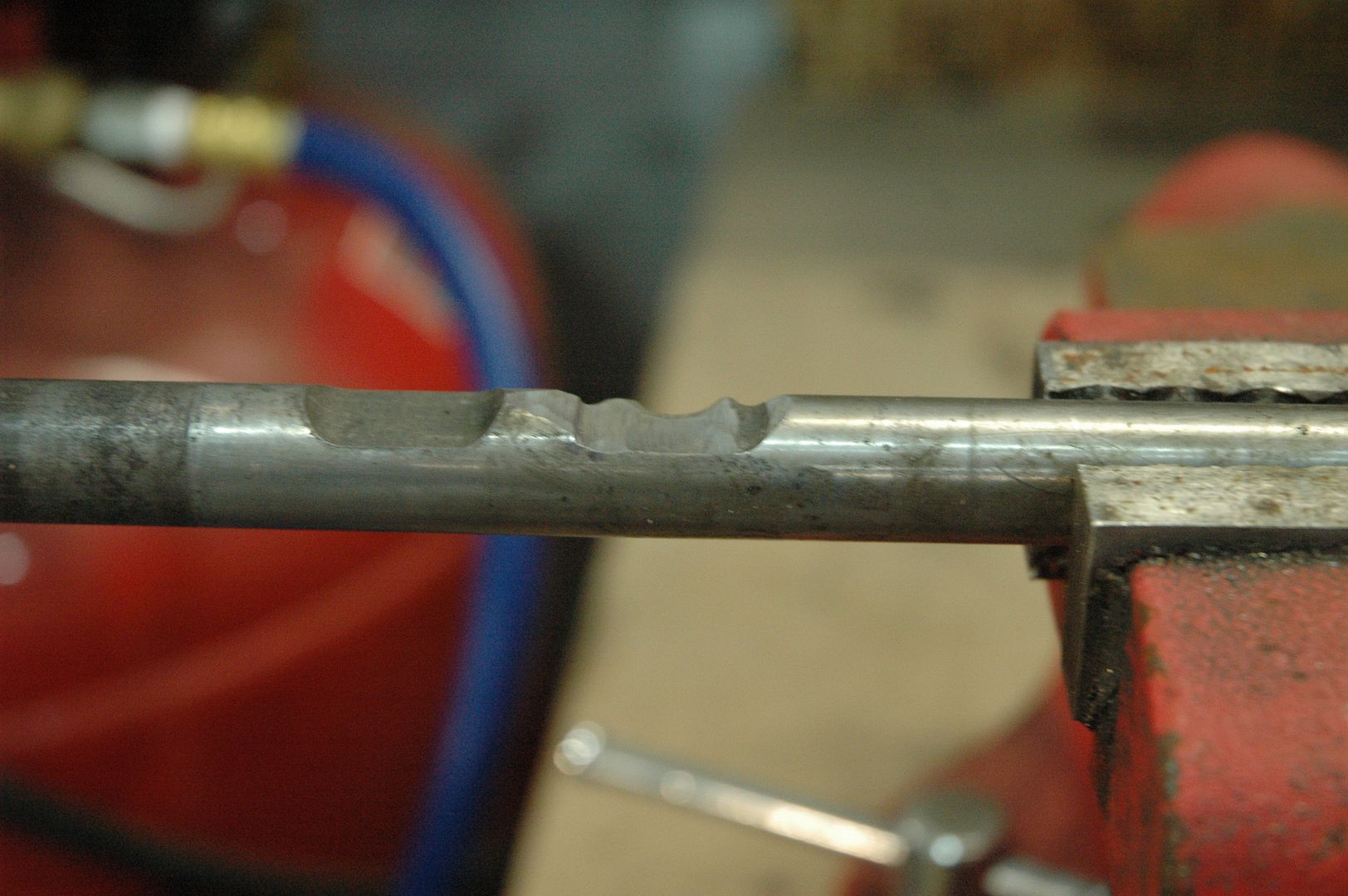

Before (Marker is where you grind to):

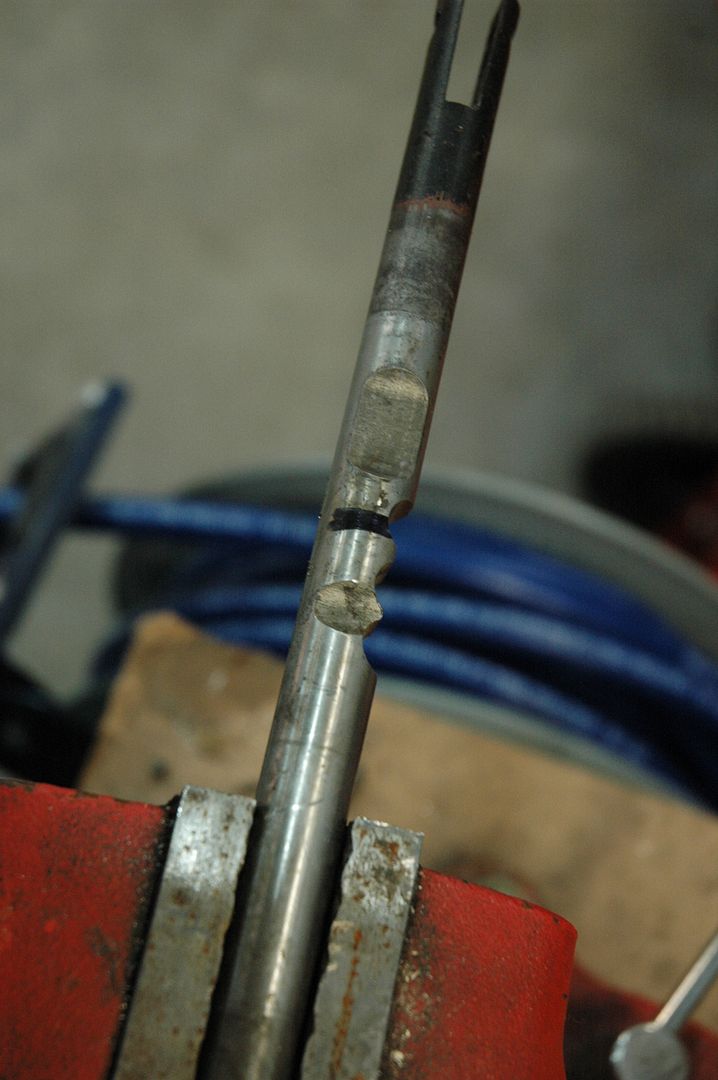

Afer:

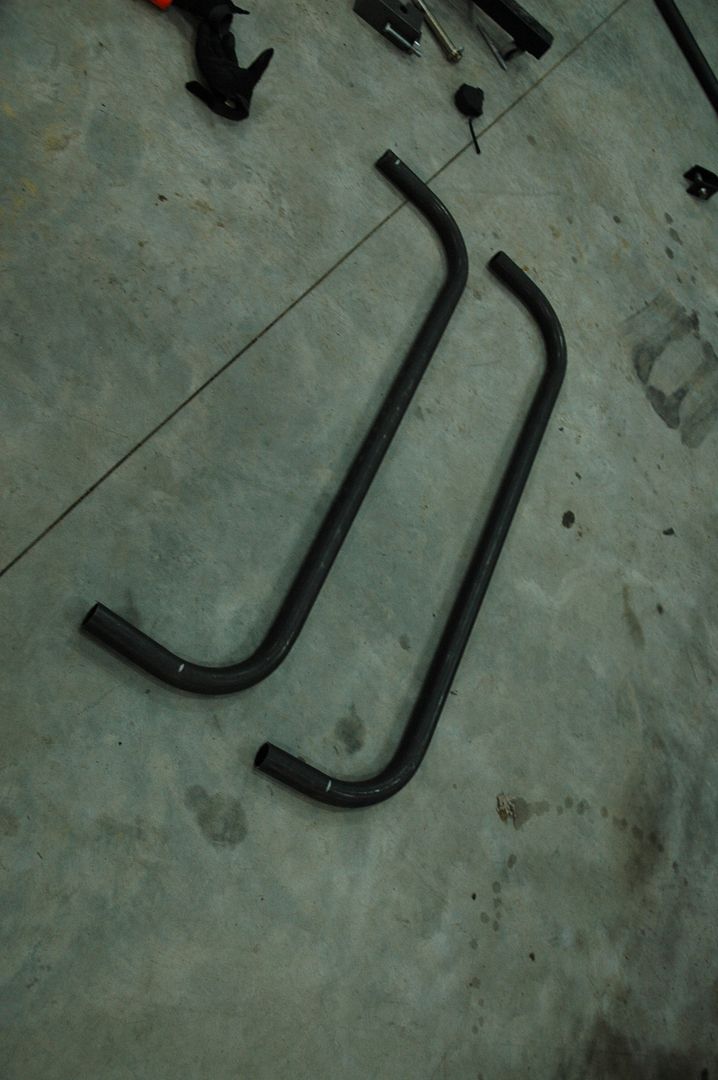

Also bent the first tubes for the chassis... The slider pieces to weld on the frame that will run right along the tub line.
