Little bit of tinkering aka Tinkertoy

Two years ago after our second visit to the Hammers and running Clawhammer, Sledge Hammer and Big Johnson a friend and me both decided that to keep our daily driver Jeeps in one piece something a bit more carried away was needed to have fun and keep our Jeeps from looking better than something that sits in a junk yard. So after some horse trading and side work I got my hands on a 2004 TJ that had been rolled. I ended up with the Jeep minus axles, transfercase and suspension.

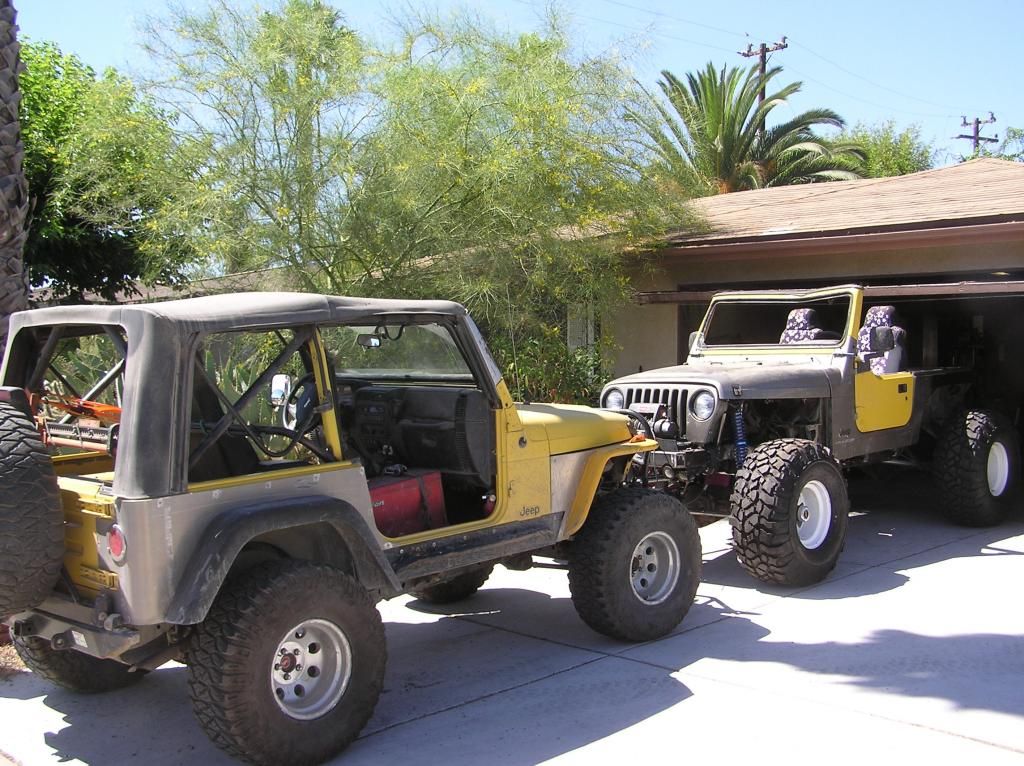

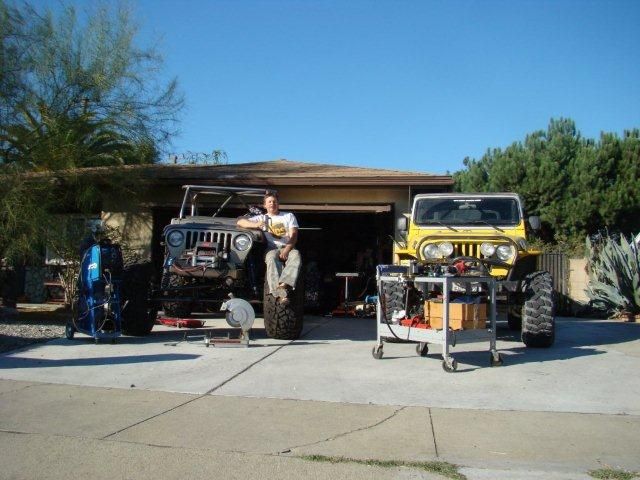

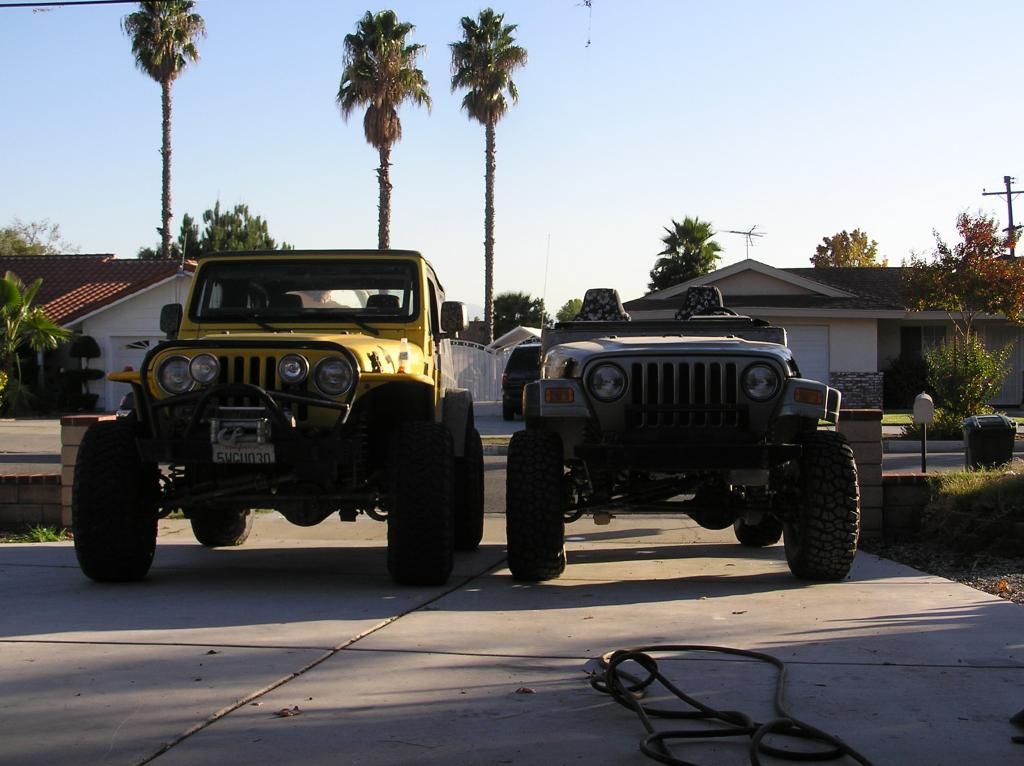

Here she is after I knocked the tub back in shape, sitting next to my little Jeep.




Once that was done the axle hunt was on ended up with a 14 bolt for the rear and a Dana60 HP out of a 79 Ford F350

Once I got some more side work done I really got going on it last May
I wanted everything underneath flat so no control arm brackets, skid plates or anything beneath the frame

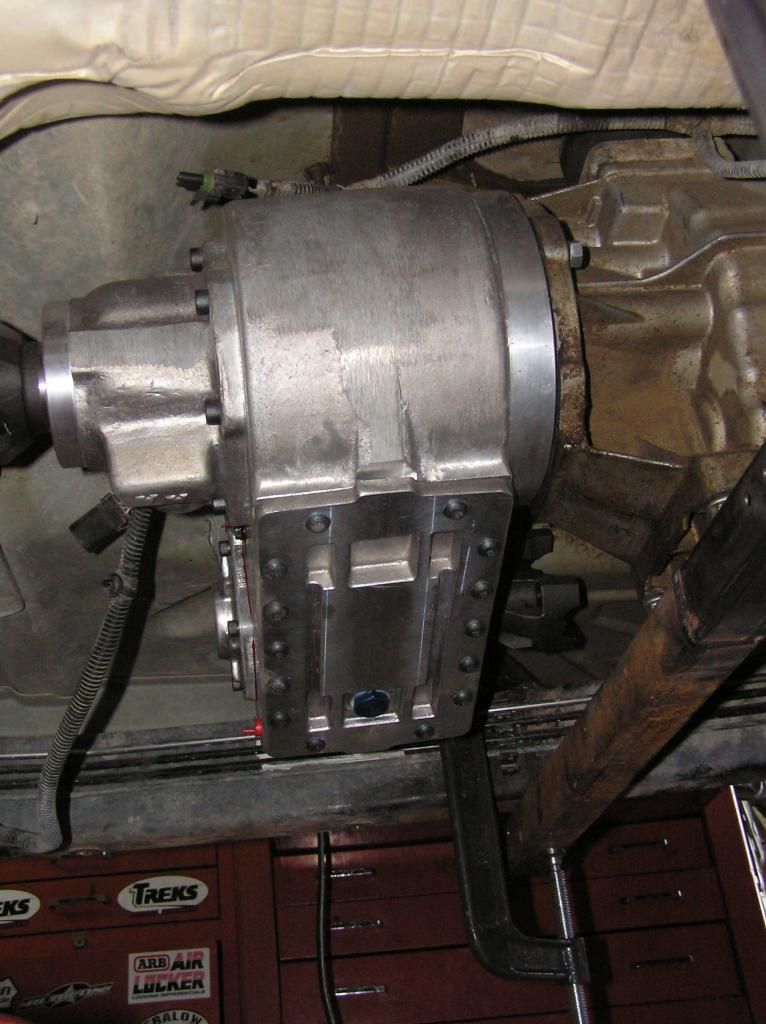

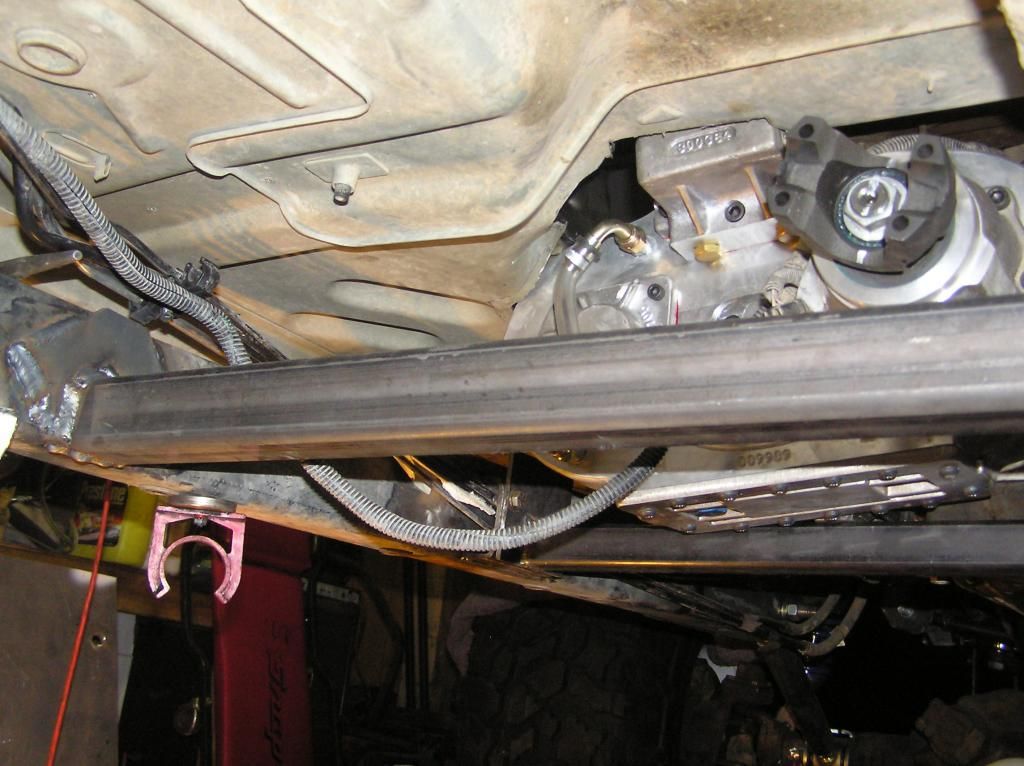

Since I was waiting for some parts started to think how the transfercase was going to go under there



Whole bunch of sheetmetal had to go to make that fit

__________________
Come Y'all and enter, make this the best contest yet!

http://www.jeepforum.com/forum/f9/february-tj-month-contest-submit-now-2061065/
aw12345 is offline   Reply With Quote
Unread 04-10-2011, 12:16 AM   #2
aw12345
Registered User
2004 TJ Wrangler

Join Date: Oct 2006
Location: ontario, Cali
Posts: 5,999

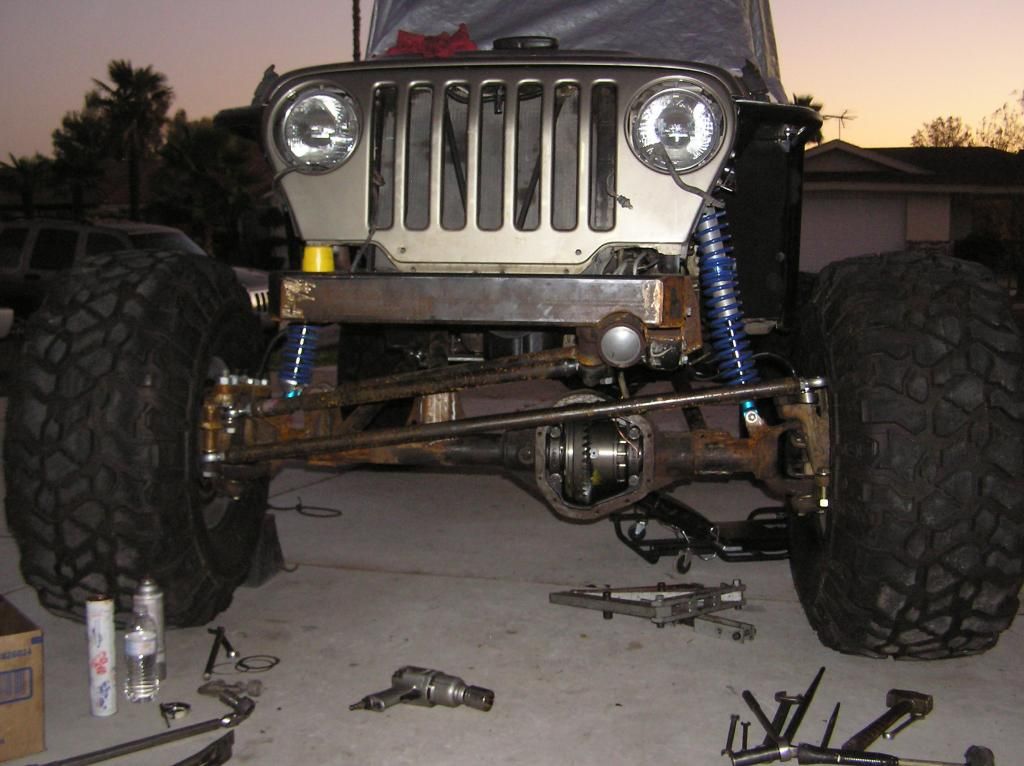

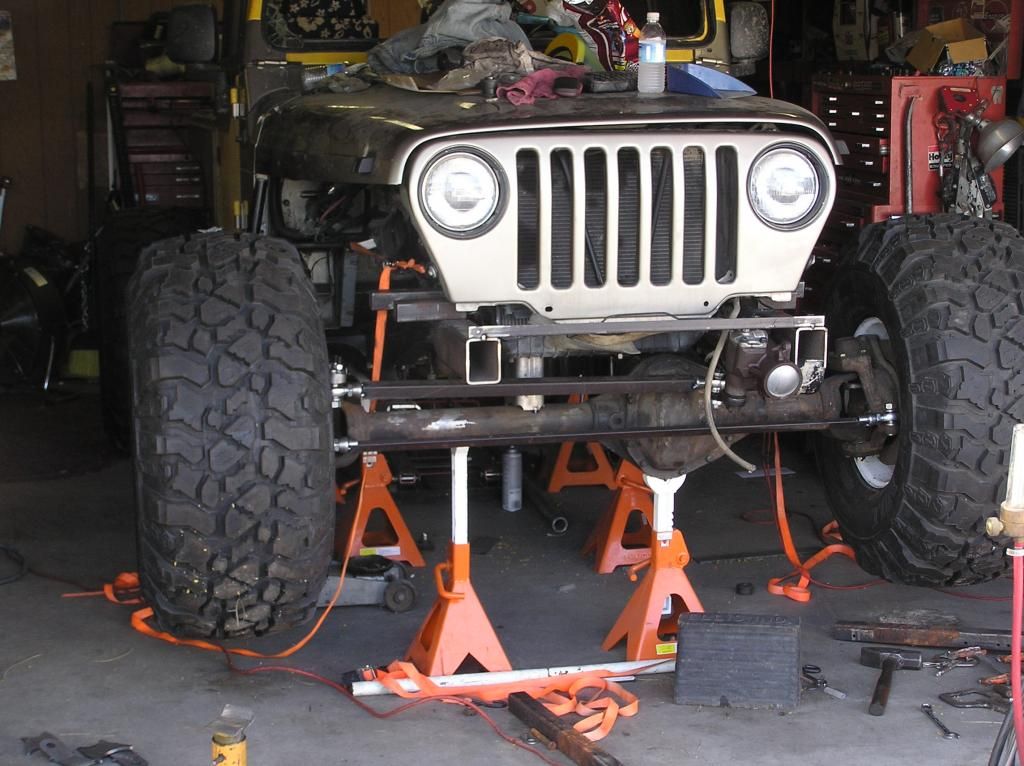

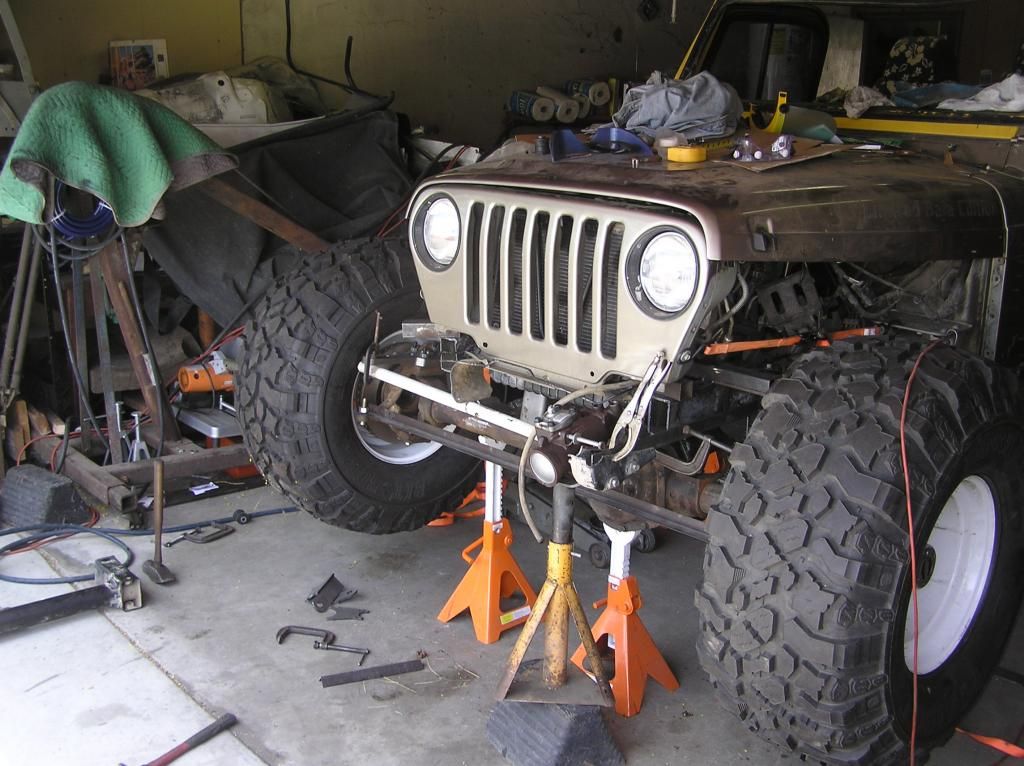

Started to get a handle on the front suspension

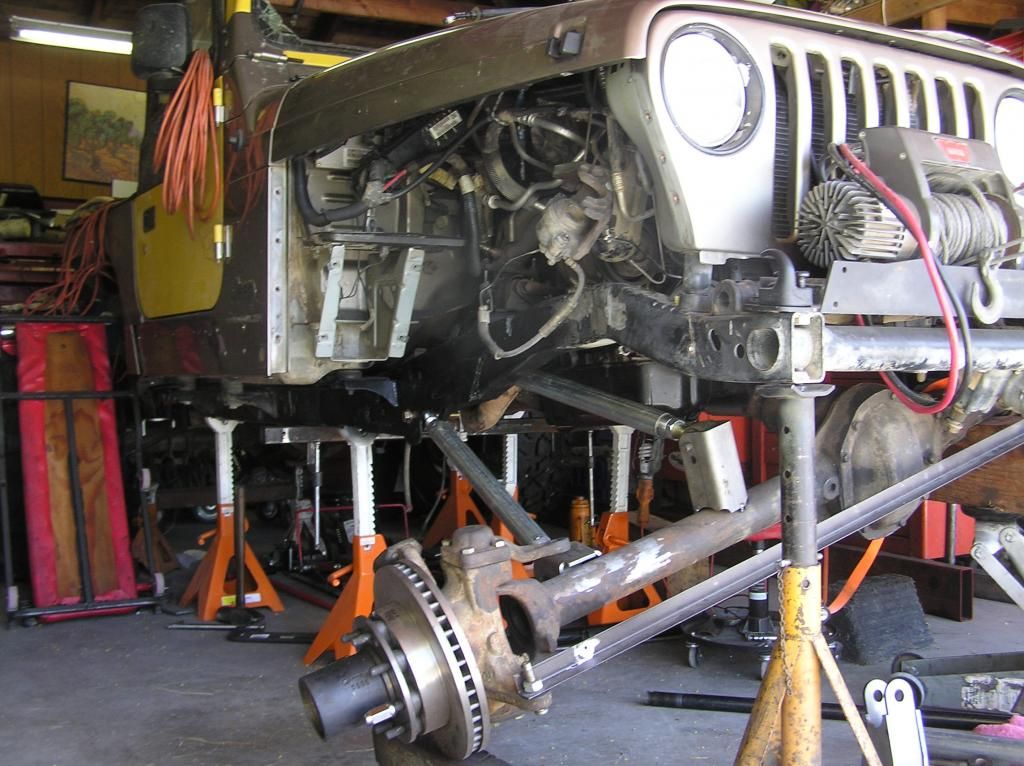

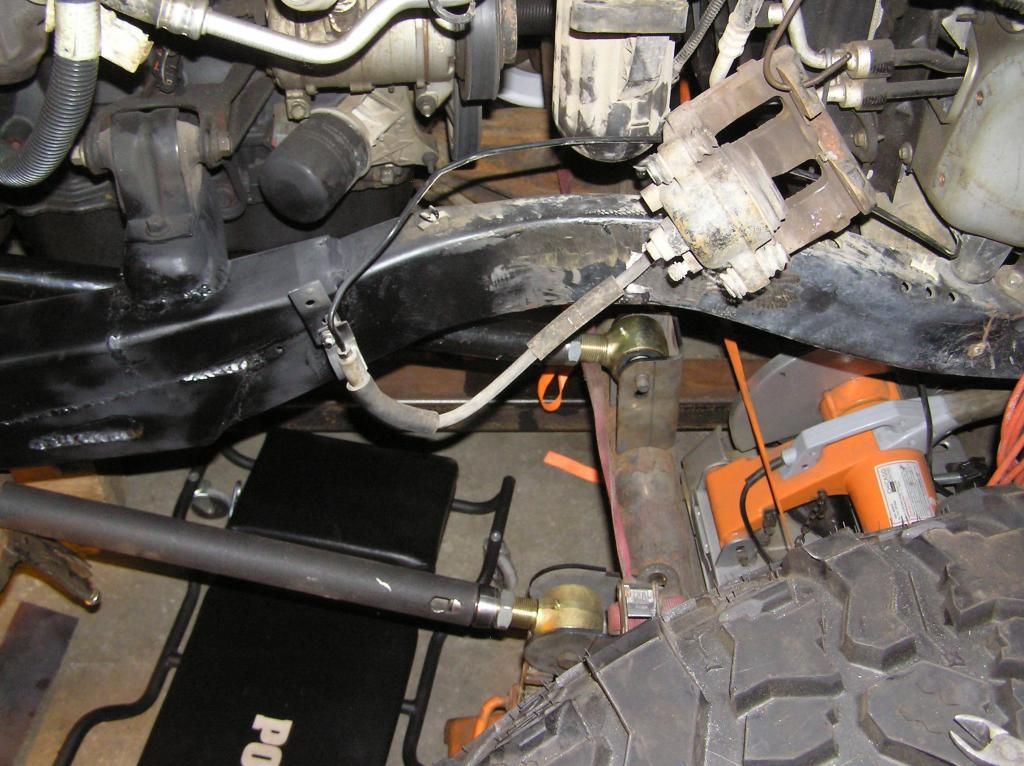

Had to modify the frame a bit to get some clearance for the axle and some room for the steering

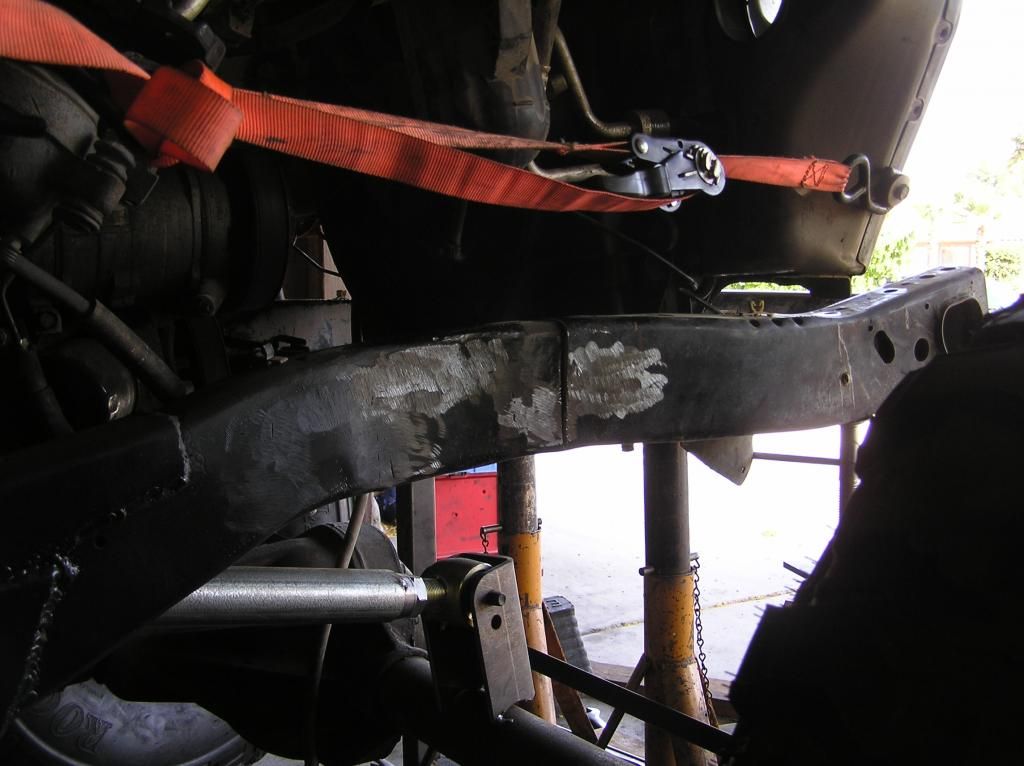

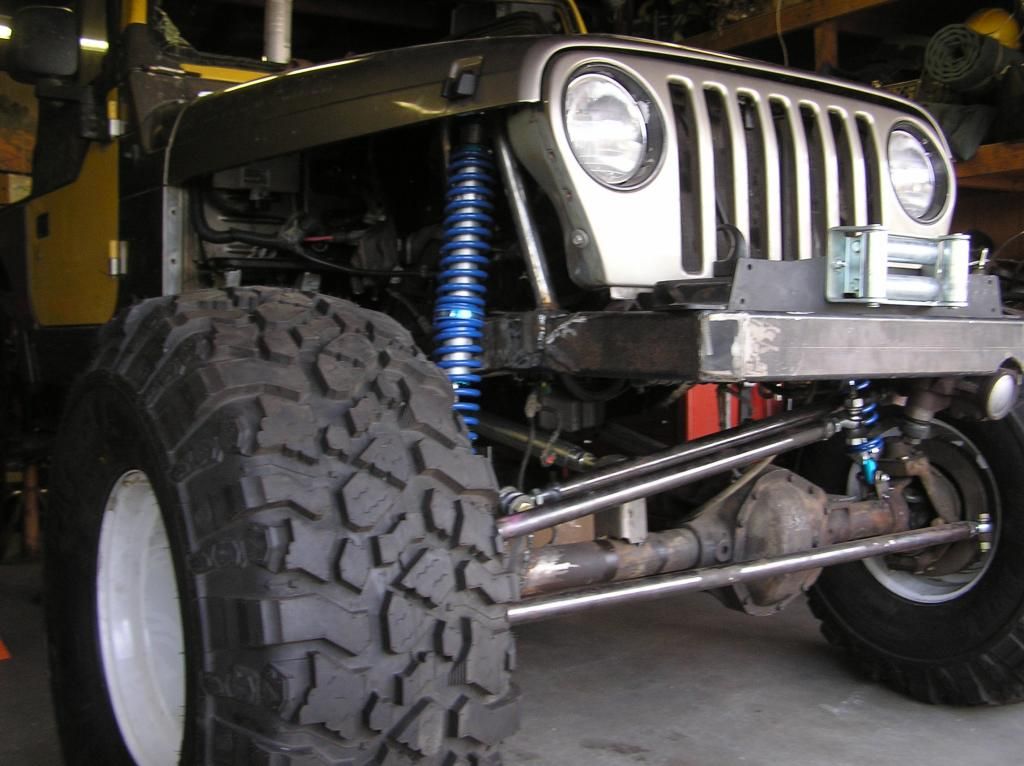

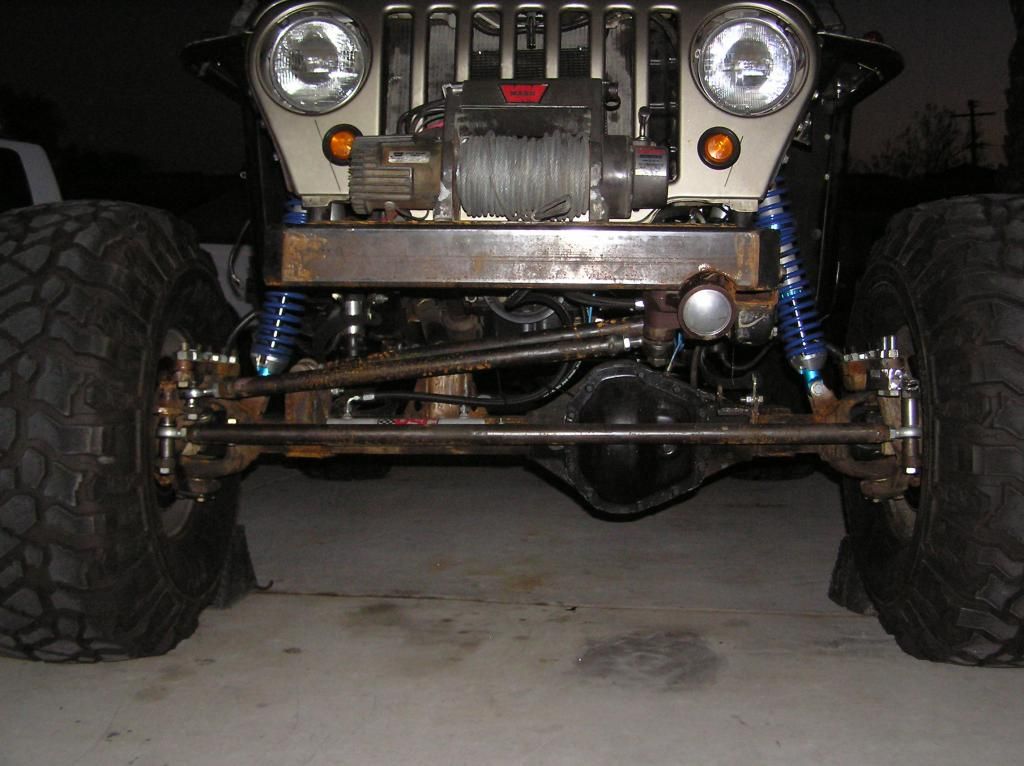

Cut the front of the frame off and replaced it with some rectangular tubing, this way the steering box can come forward to accommodate the front wheel base Stretch. Front axle moved about 6 inches forward





[IMG]http://i131.photobucket.com/albums/p289/aartw12345/tinkertoy/
bigyeller099.jpg[/IMG]
__________________
Come Y'all and enter, make this the best contest yet!

http://www.jeepforum.com/forum/f9/february-tj-month-contest-submit-now-2061065/
aw12345 is offline   Reply With Quote
Unread 04-10-2011, 12:41 AM   #3
aw12345
Registered User
2004 TJ Wrangler

Join Date: Oct 2006
Location: ontario, Cali
Posts: 5,999

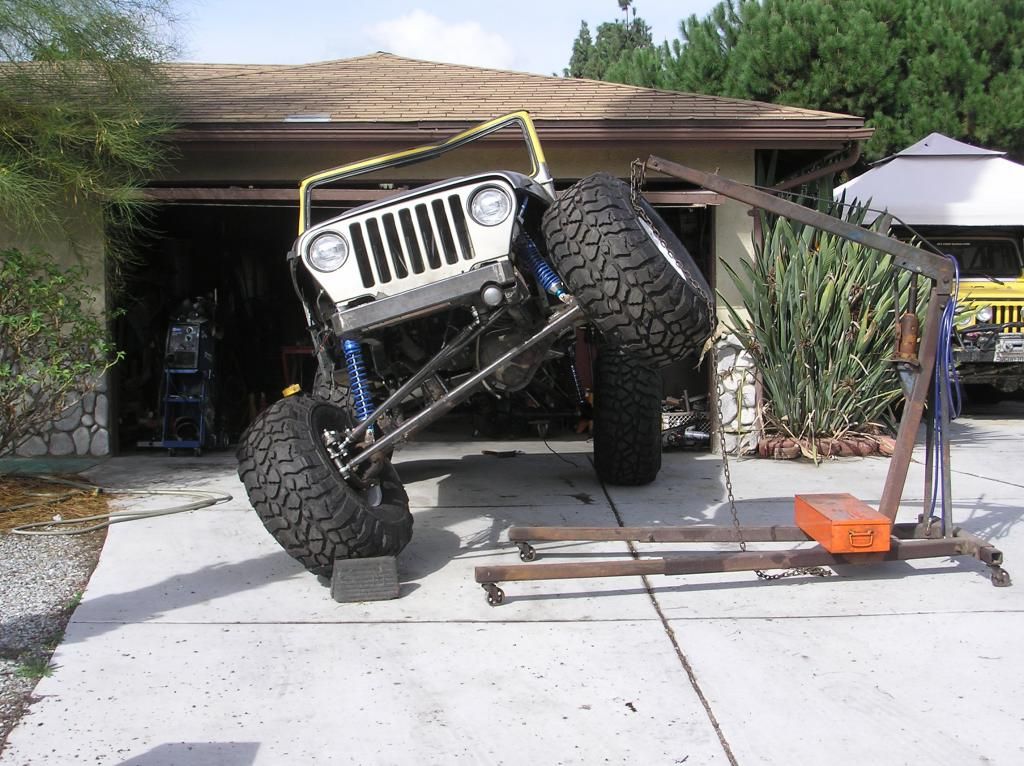

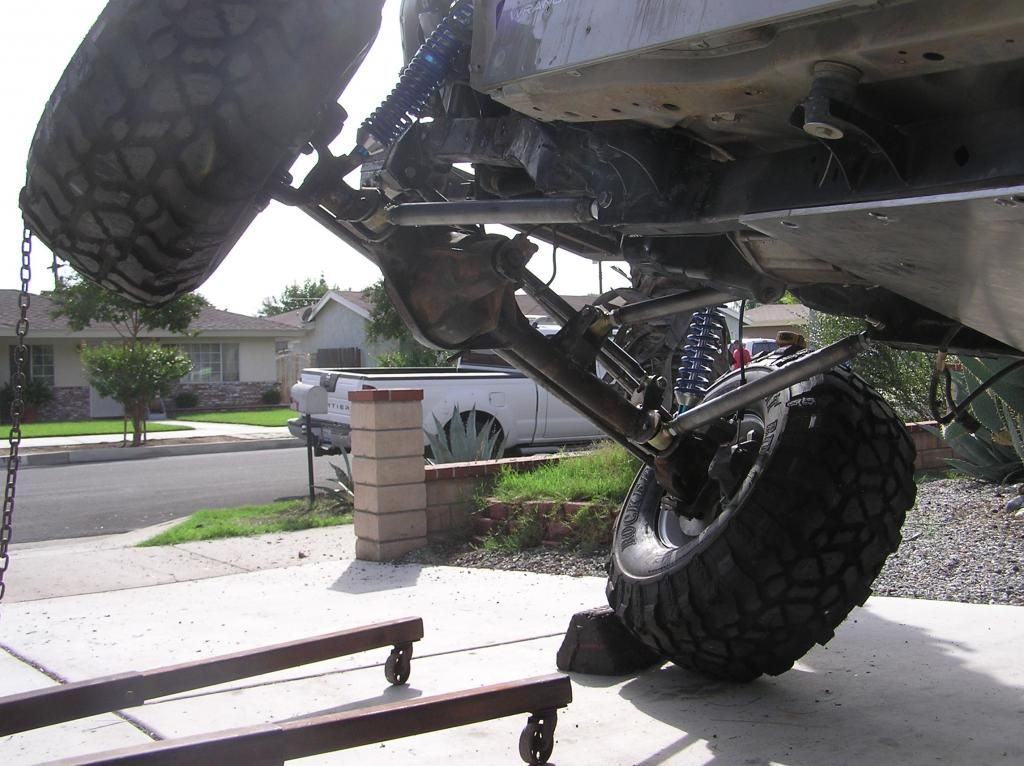

Then picked up the coil overs and look ma the front sits on it's own weight.

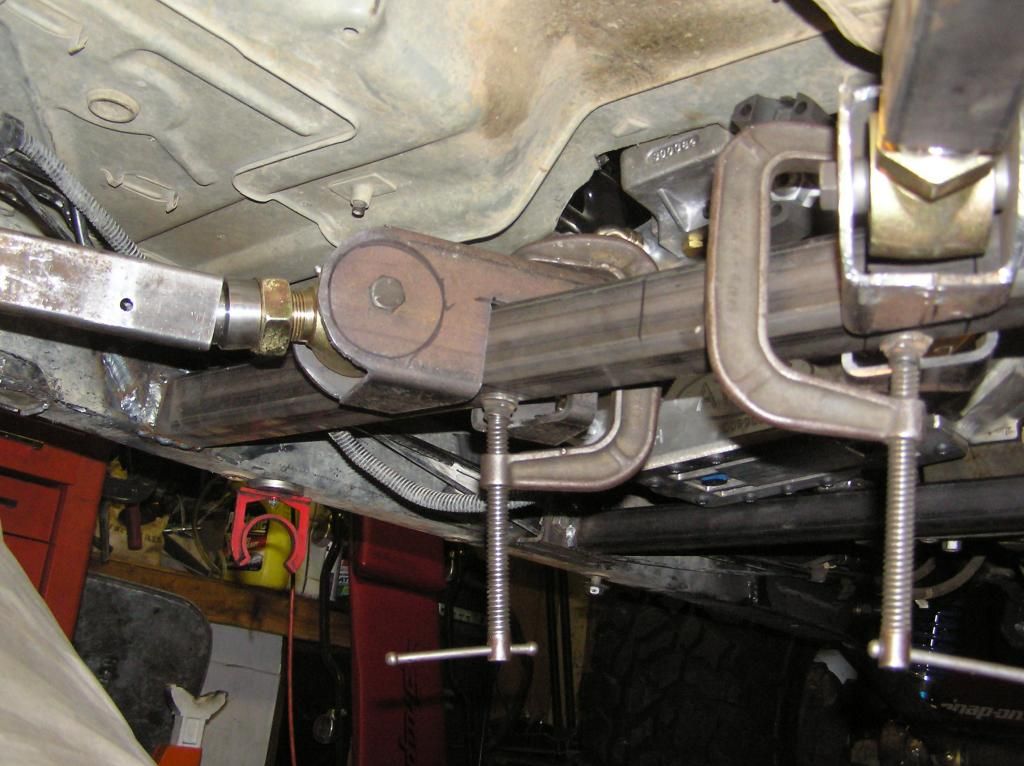

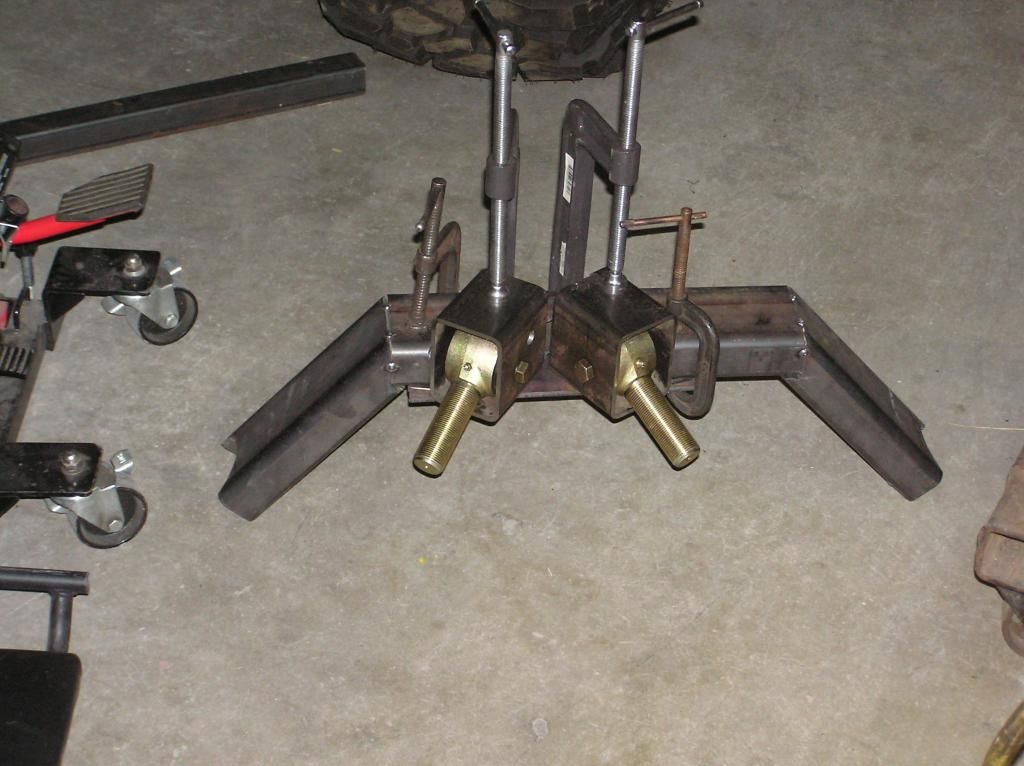

From there I moved on to making some crossmembers and came up with a lo pro mount for the trans




Once that was tackled, I sacrificed a week vacation and used that time to make a start on a rear suspension









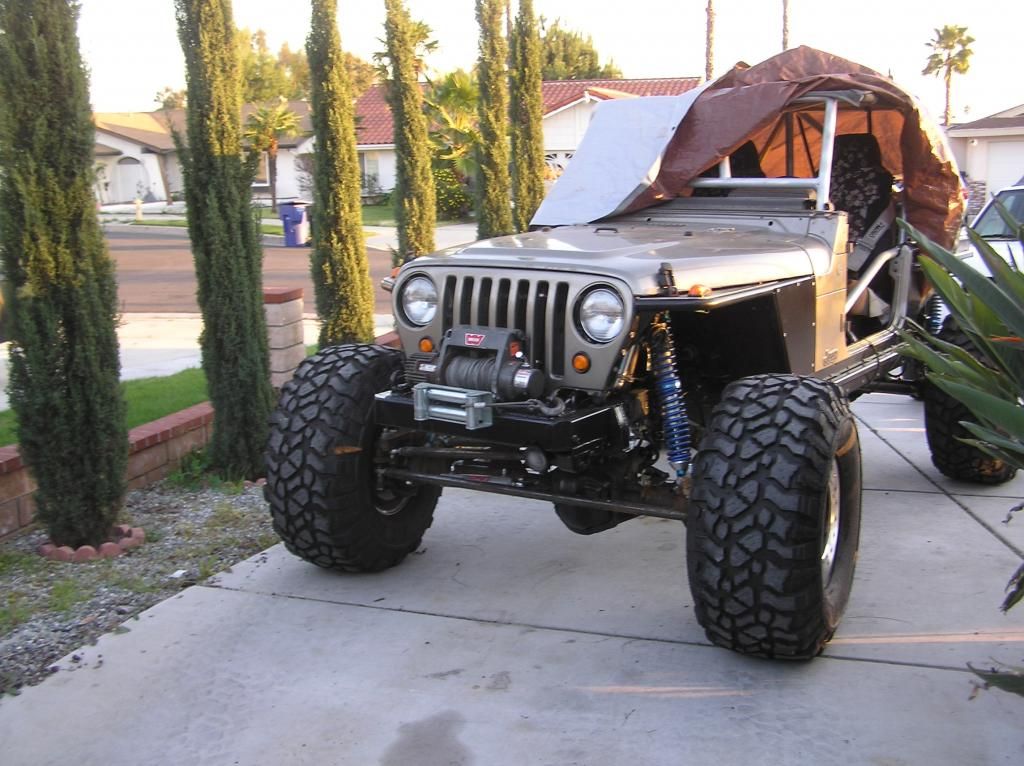

Then the next day it stuck it's nose out of the garage for the first time







That put me towards the end of August of last year.

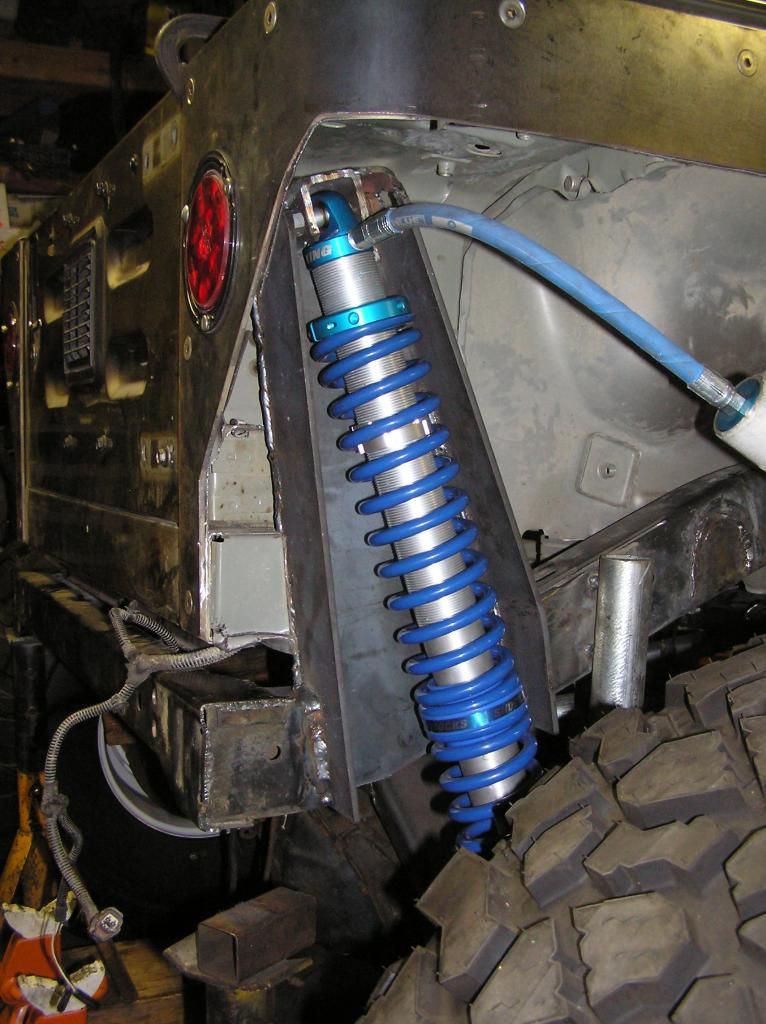

Then I started to make the mounts for the rear coil overs

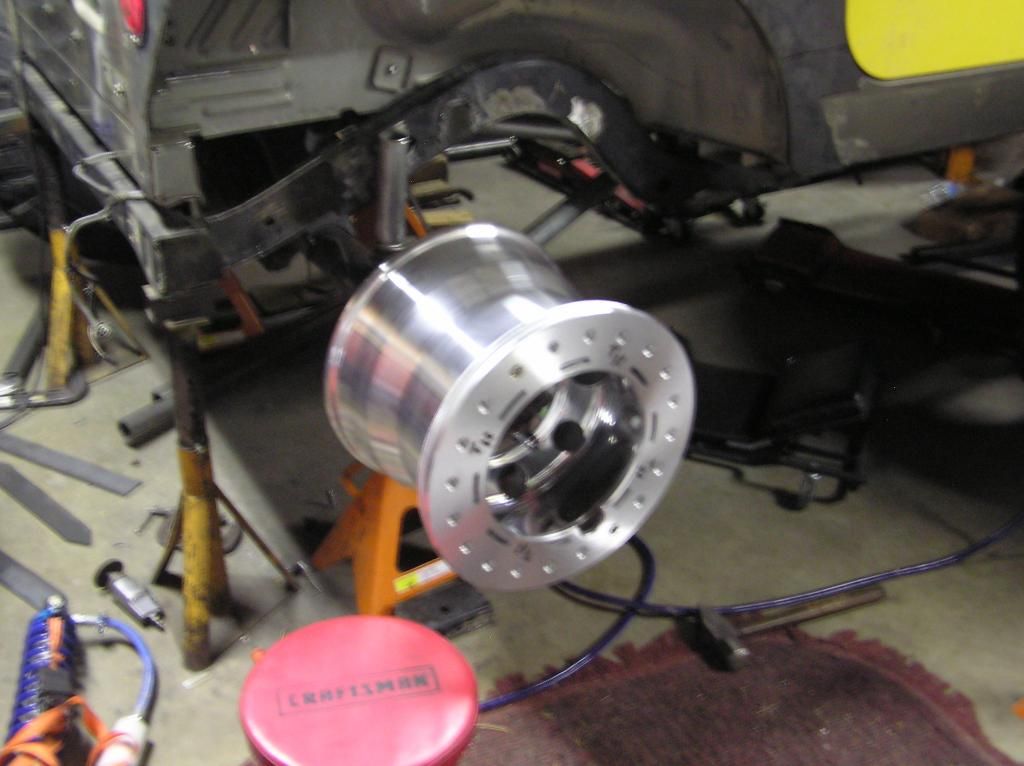

Got some nice beadlocks for it also

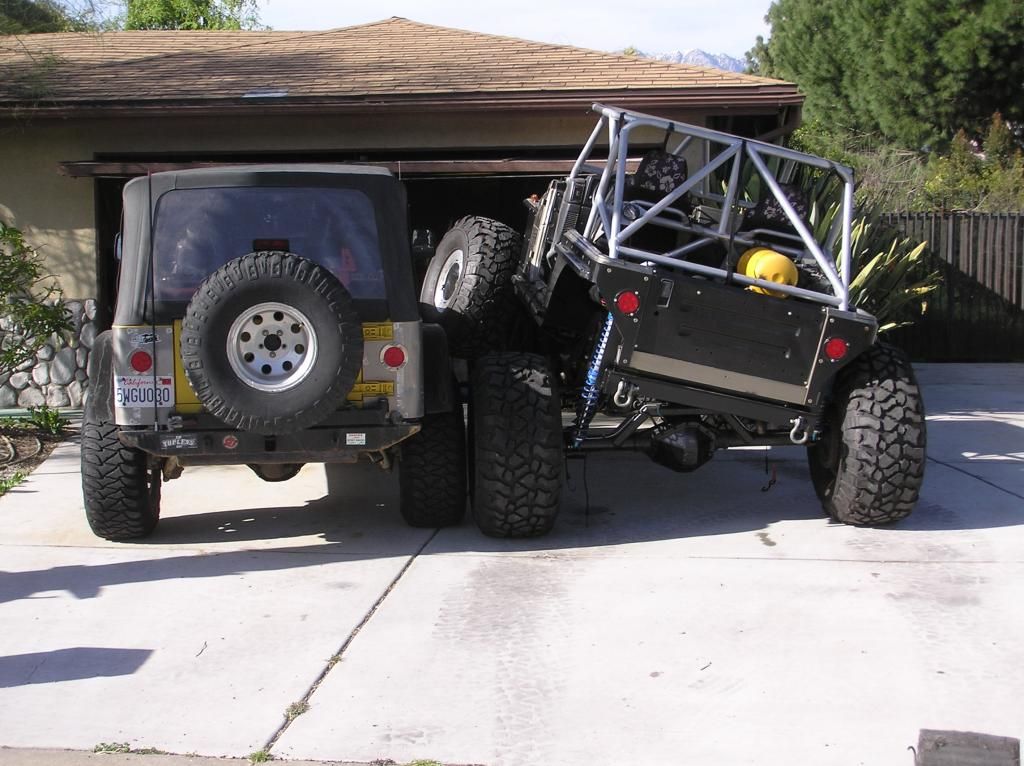

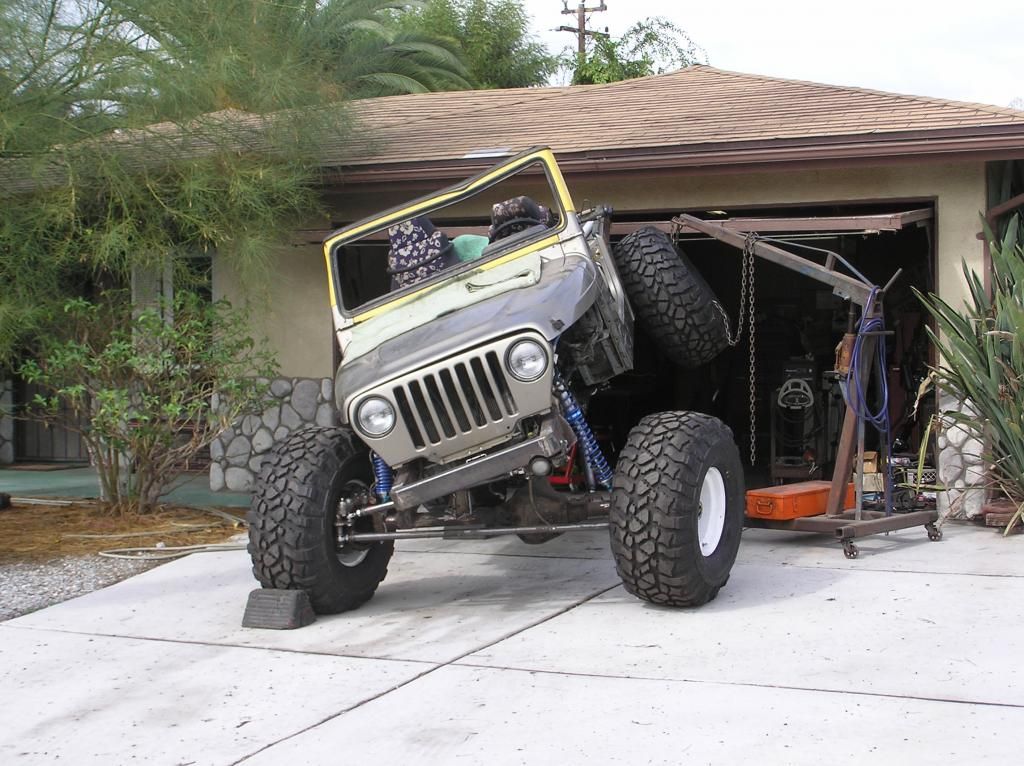

Week or so later rolled it outside to see how well it would flex and check for clearances





__________________
Come Y'all and enter, make this the best contest yet!

http://www.jeepforum.com/forum/f9/february-tj-month-contest-submit-now-2061065/
aw12345 is offline   Reply With Quote
Unread 04-10-2011, 12:47 AM   #4
motorsports3
Registered User
1997 XJ Cherokee

Join Date: Apr 2009
Location: Miami
Posts: 504
Sick build!
motorsports3 is offline   Reply With Quote
Unread 04-10-2011, 12:56 AM   #5
aw12345
Registered User
2004 TJ Wrangler

Join Date: Oct 2006
Location: ontario, Cali
Posts: 5,999

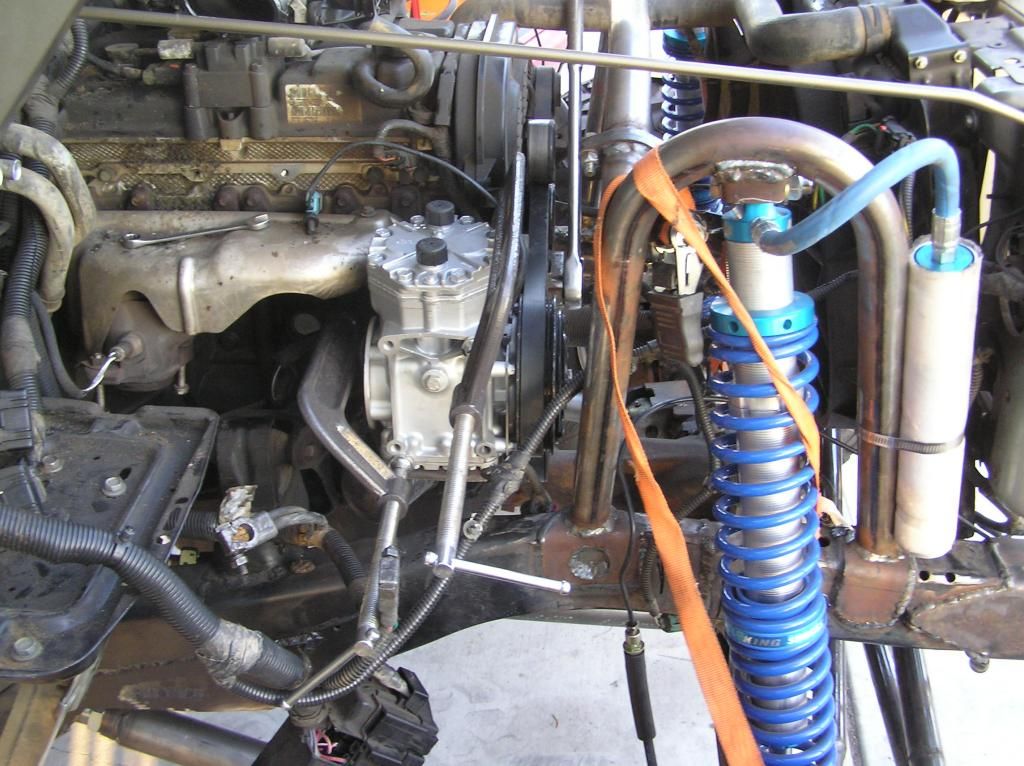

Then started making a bracket for the York compressor for the onboard air

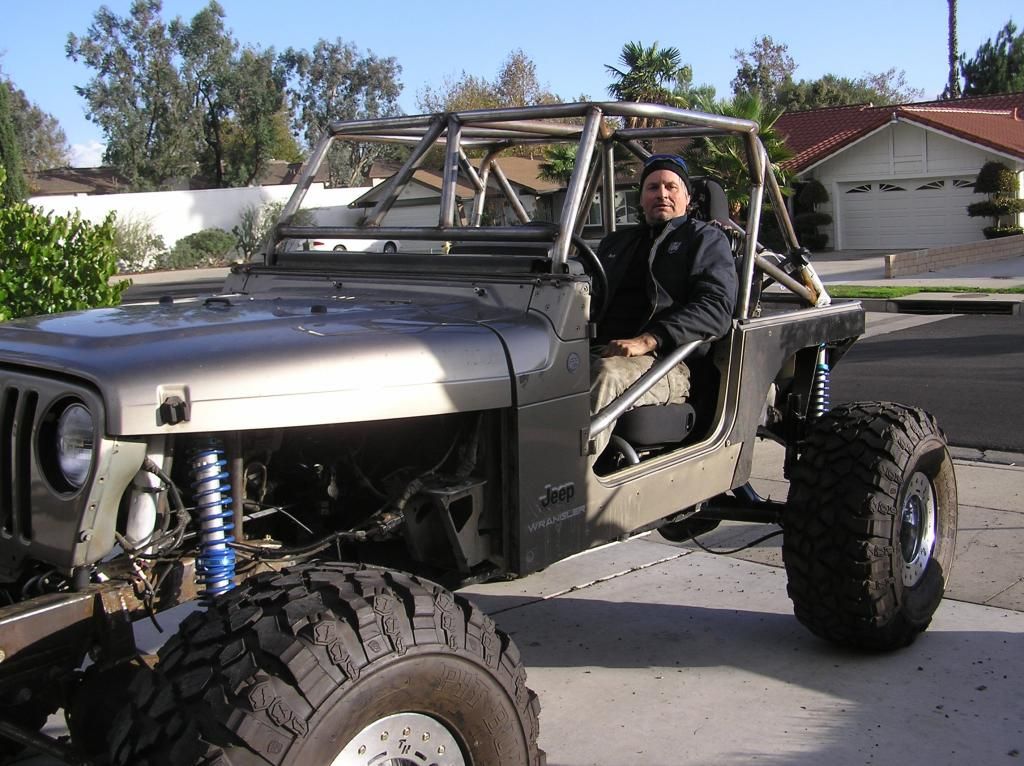

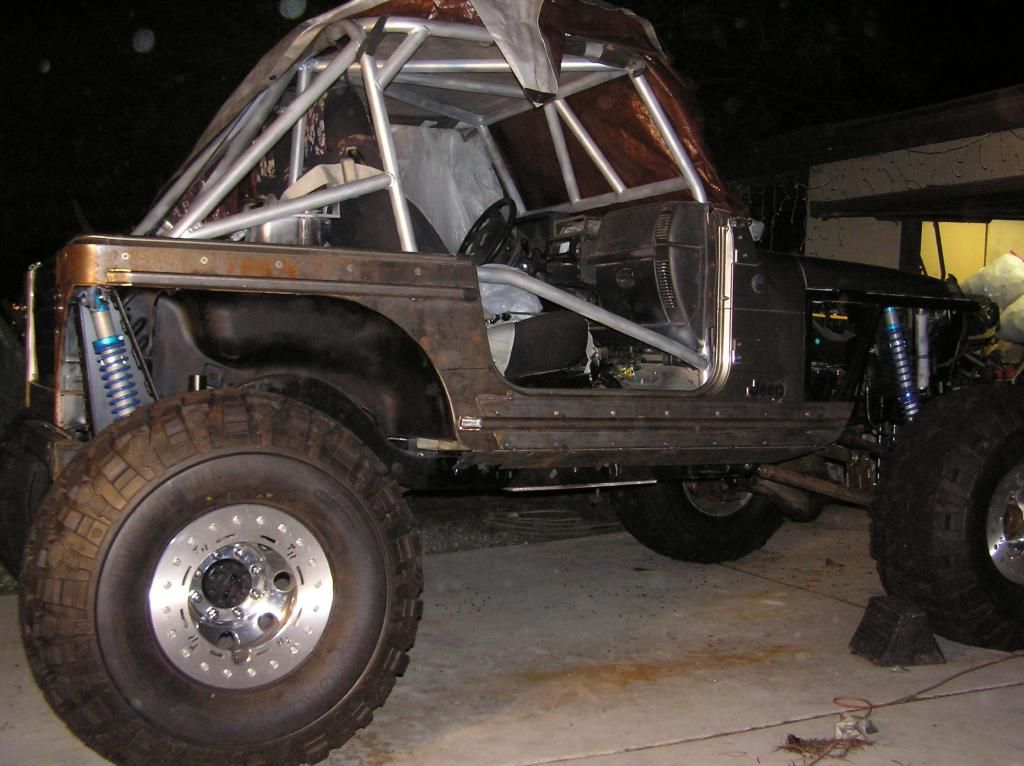

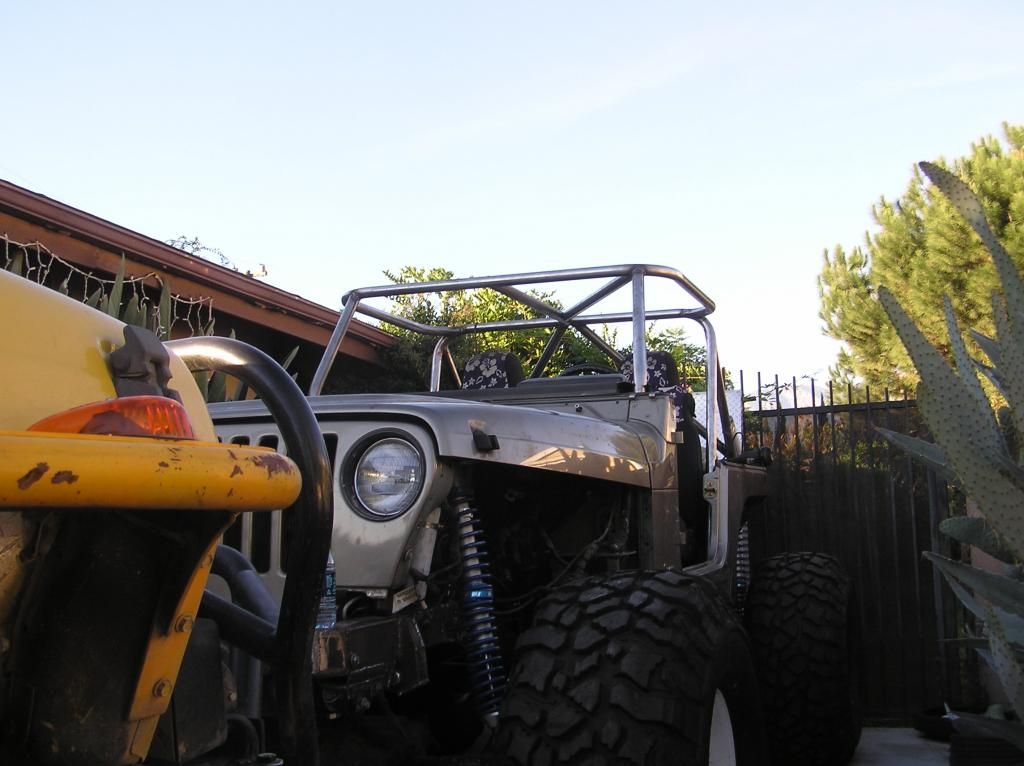

Then borrowed a tube bender and started on a roll cage







Then stuck the rear driveshaft in and drove it for the first time down the street

__________________
Come Y'all and enter, make this the best contest yet!

http://www.jeepforum.com/forum/f9/february-tj-month-contest-submit-now-2061065/
aw12345 is offline   Reply With Quote
Unread 04-10-2011, 01:16 AM   #6
aw12345
Registered User
2004 TJ Wrangler

Join Date: Oct 2006
Location: ontario, Cali
Posts: 5,999

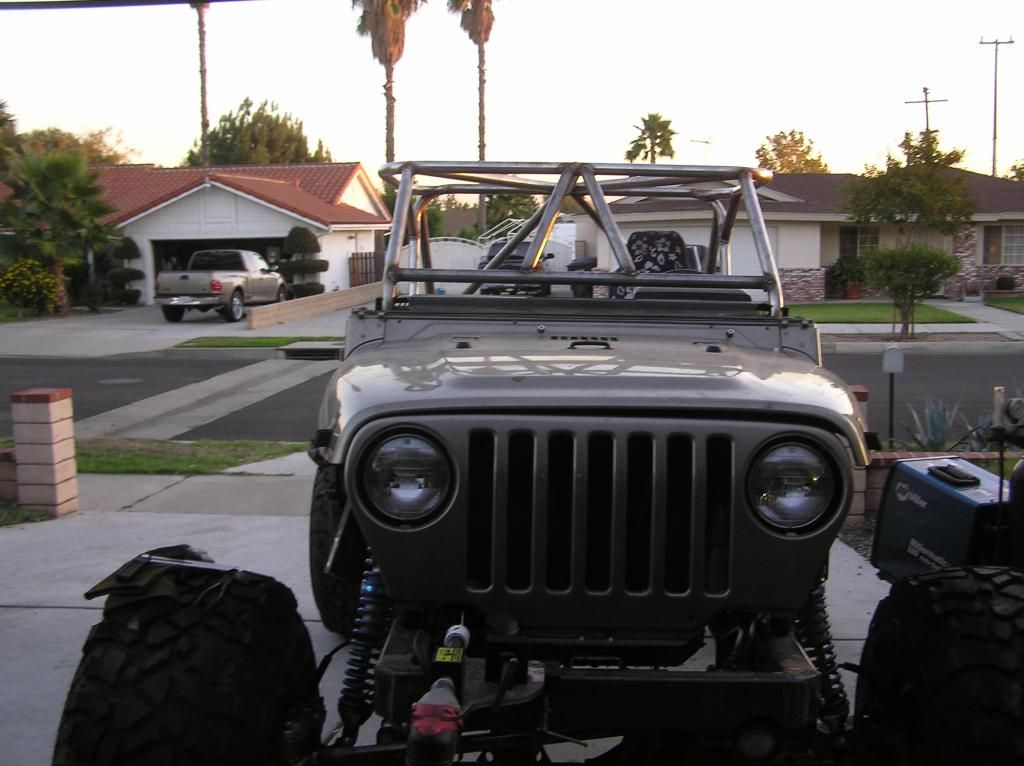

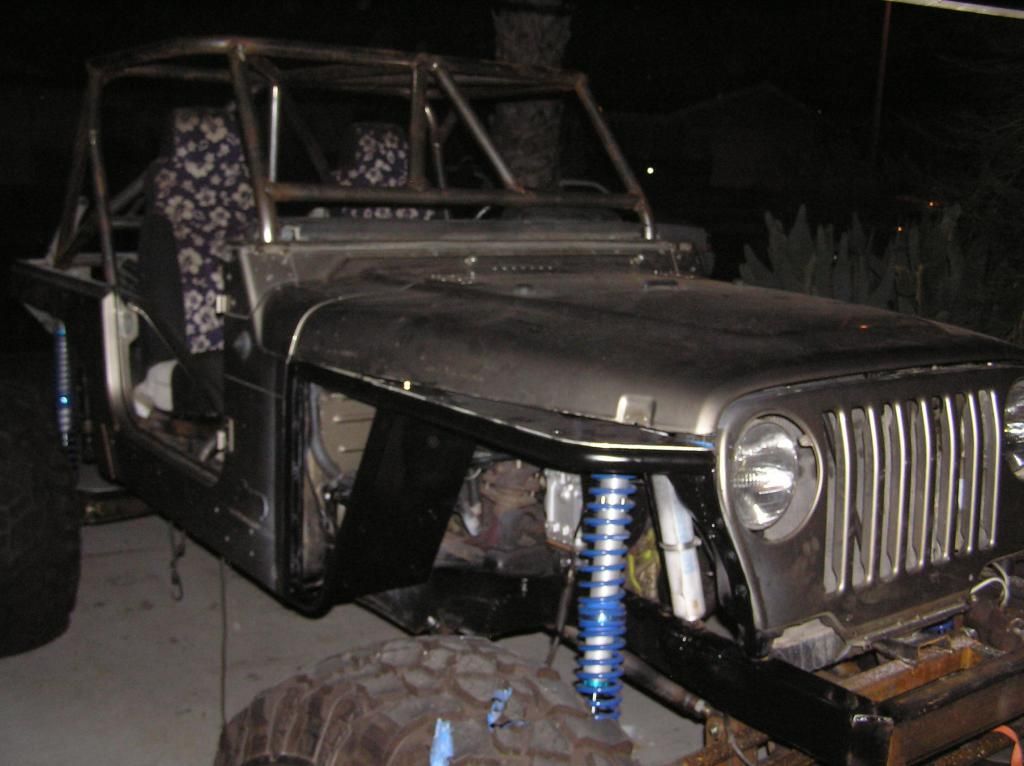

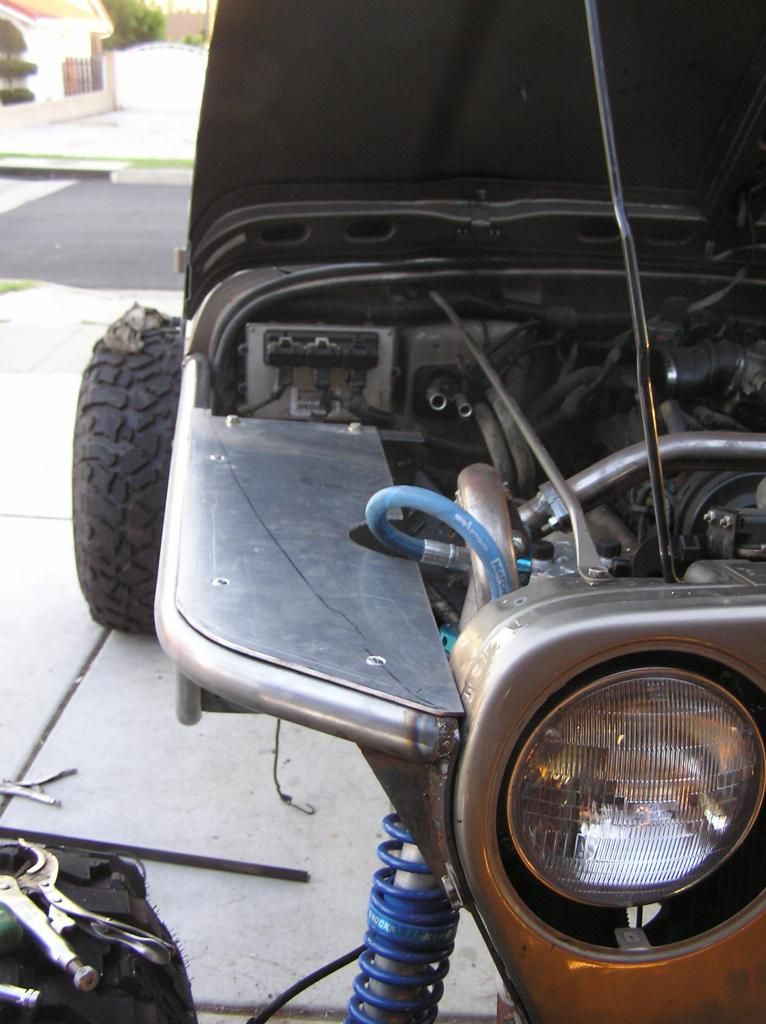

Then on to hi lining the hood and making some tube fenders

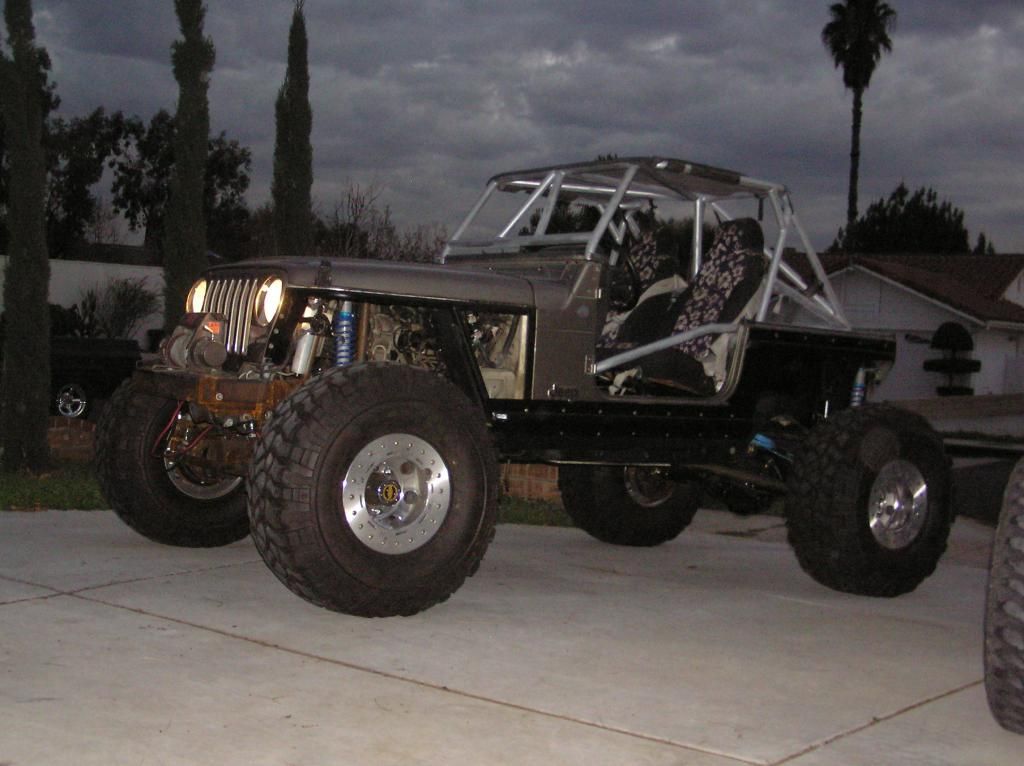

Time for a poser shot lol





Time to get the gearing changed and install the lockers



Once that was successfully concluded I started on the onboard air system

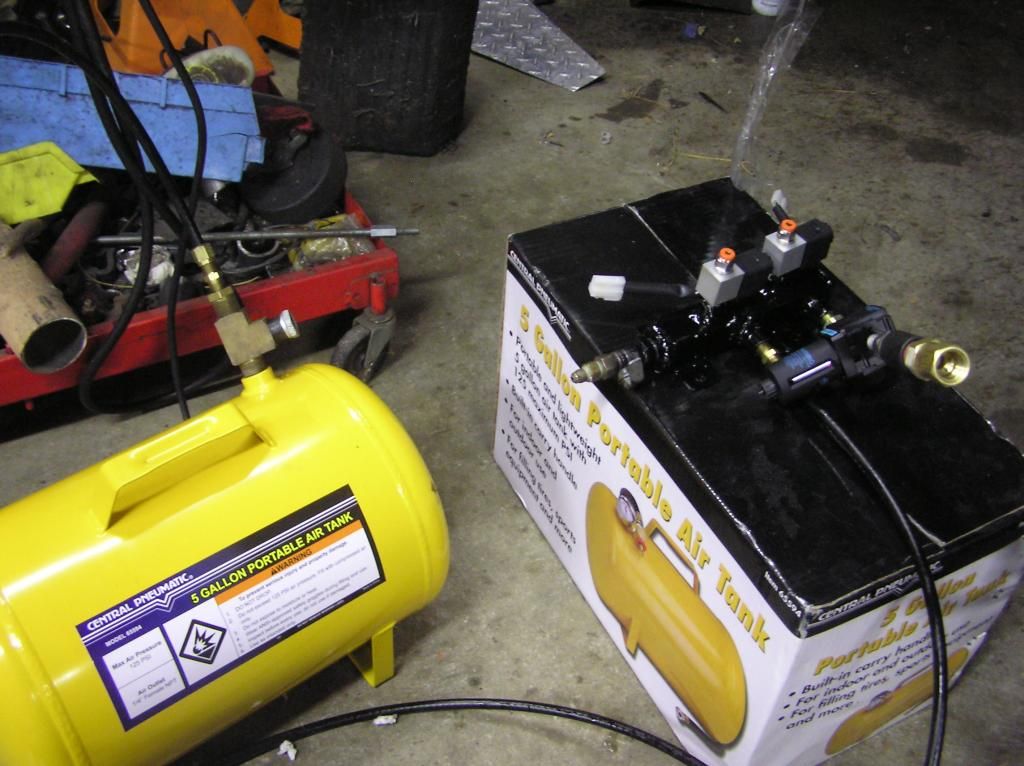

So I made a manifold and got this tank from harbor freight

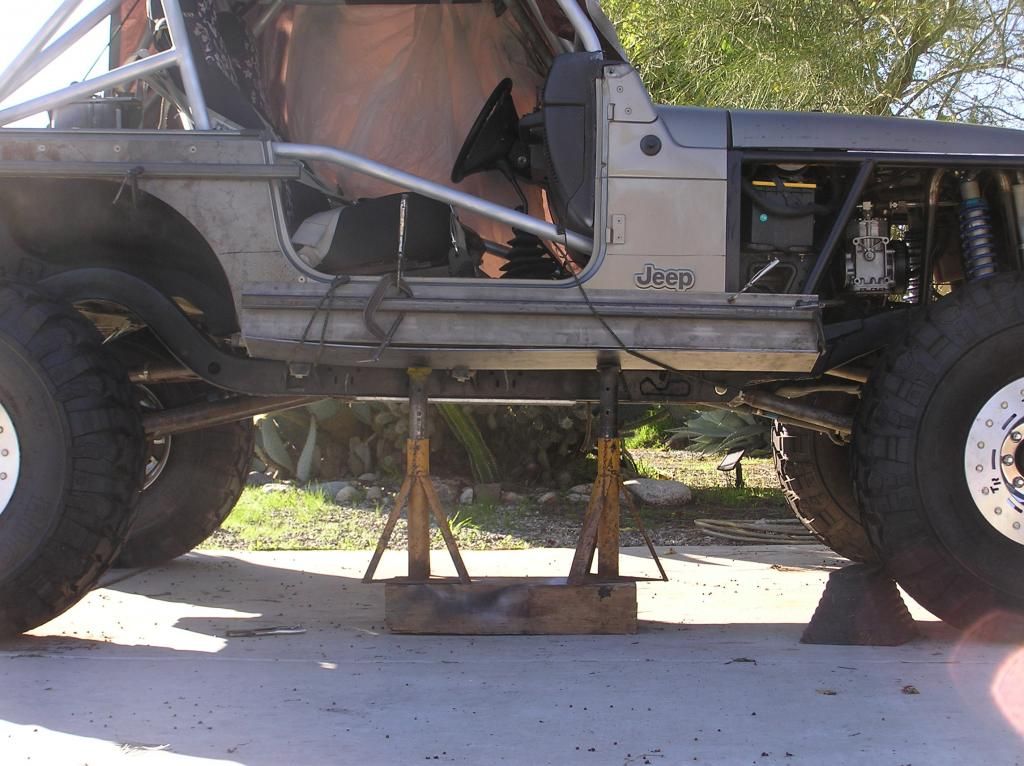

Once that was all plumbed it was on to some rock sliders







__________________
Come Y'all and enter, make this the best contest yet!

http://www.jeepforum.com/forum/f9/february-tj-month-contest-submit-now-2061065/
aw12345 is offline   Reply With Quote
Unread 04-10-2011, 01:20 AM   #7
aw12345
Registered User
2004 TJ Wrangler

Join Date: Oct 2006
Location: ontario, Cali
Posts: 5,999

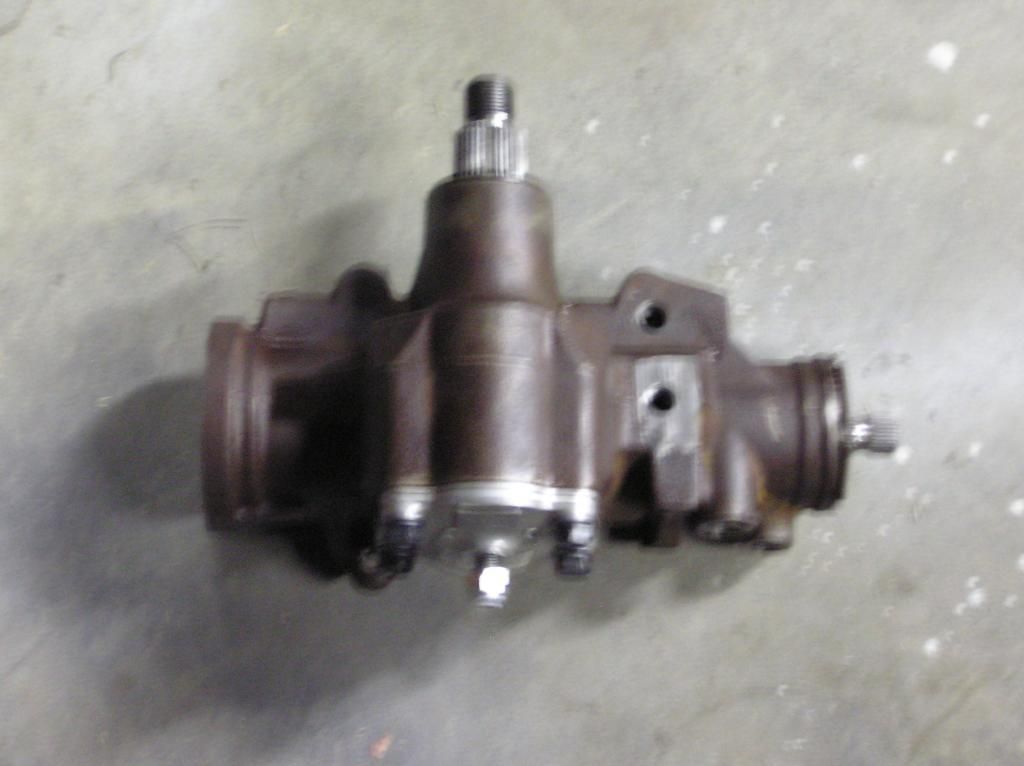

Became time to tackle the steering box and PCS ram

So took the steering box back out and drilled and tapped it



From there found a place for the reservoir



Mounted the ram

__________________
Come Y'all and enter, make this the best contest yet!

http://www.jeepforum.com/forum/f9/february-tj-month-contest-submit-now-2061065/
aw12345 is offline   Reply With Quote
Unread 04-10-2011, 01:46 AM   #8
aw12345
Registered User
2004 TJ Wrangler

Join Date: Oct 2006
Location: ontario, Cali
Posts: 5,999
Getting closer to the finish

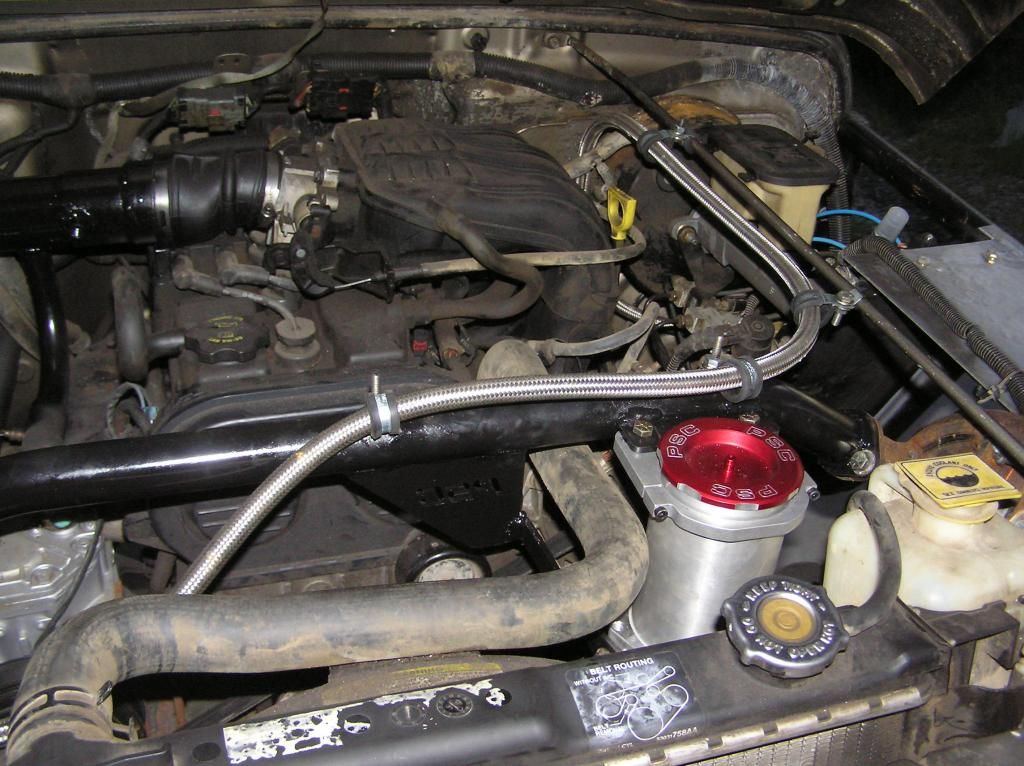

Cleaned up wiring etc under the hood

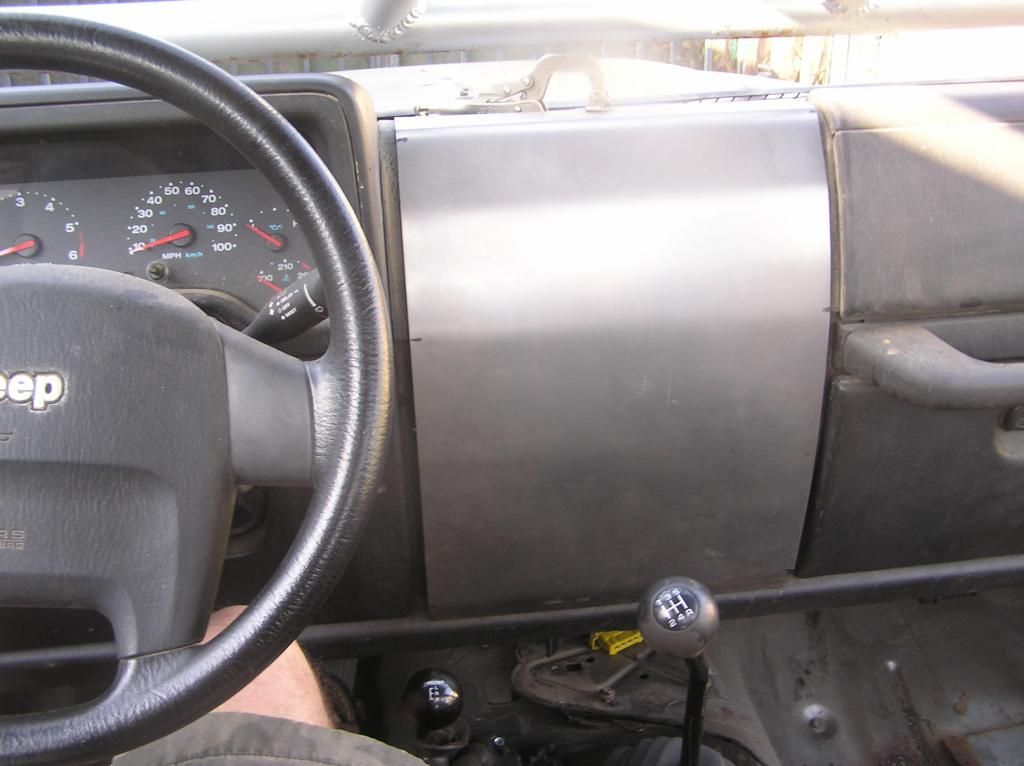

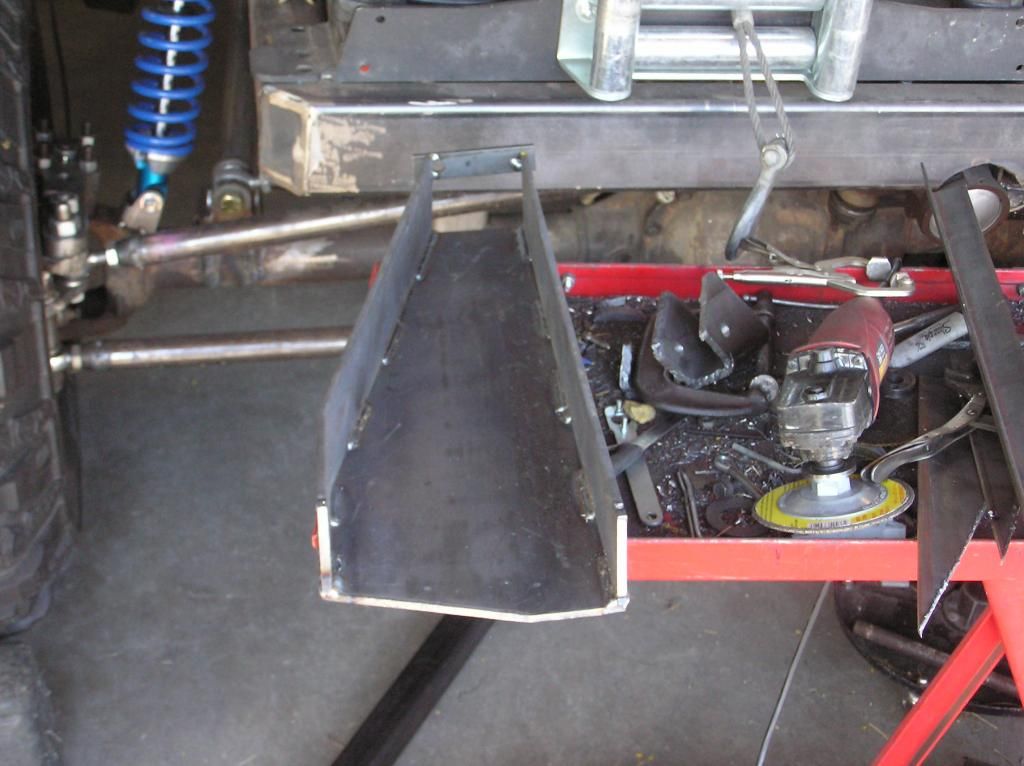

Time to mess with the center console, the stock stuff had to go to make enough clearance for the shifters and I wanted it gone period

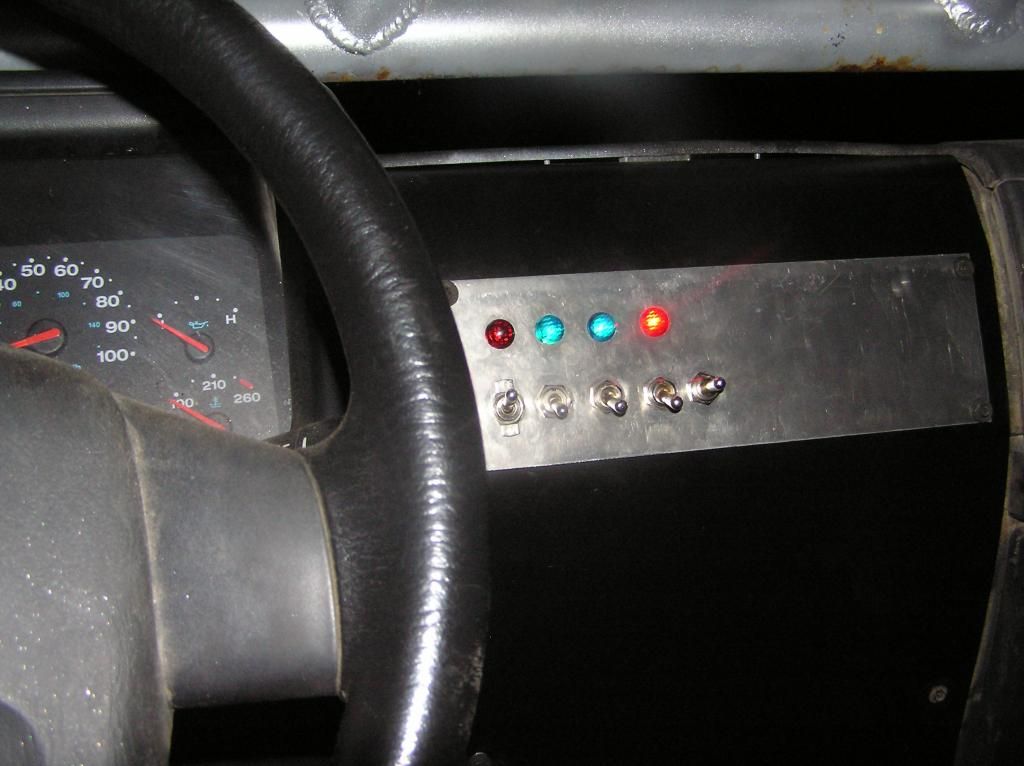

Plenty of room for more switches and idiot lights



On to trying the lockers out

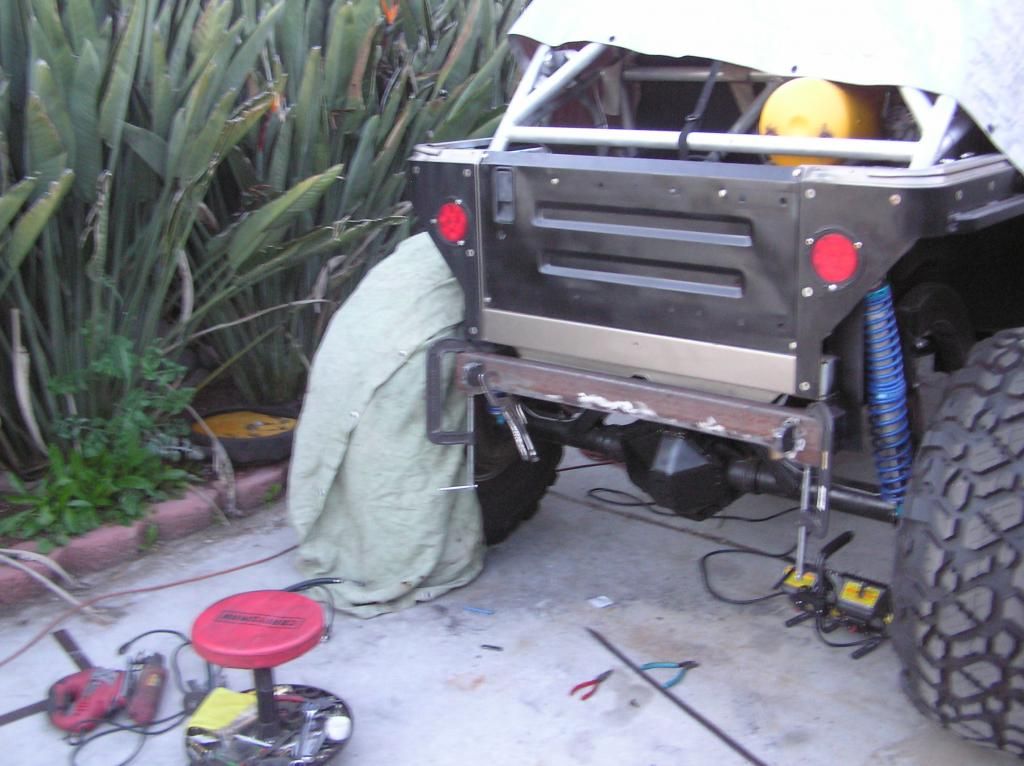

Also in betwixed and between made a rear bumper with some shackle mounts

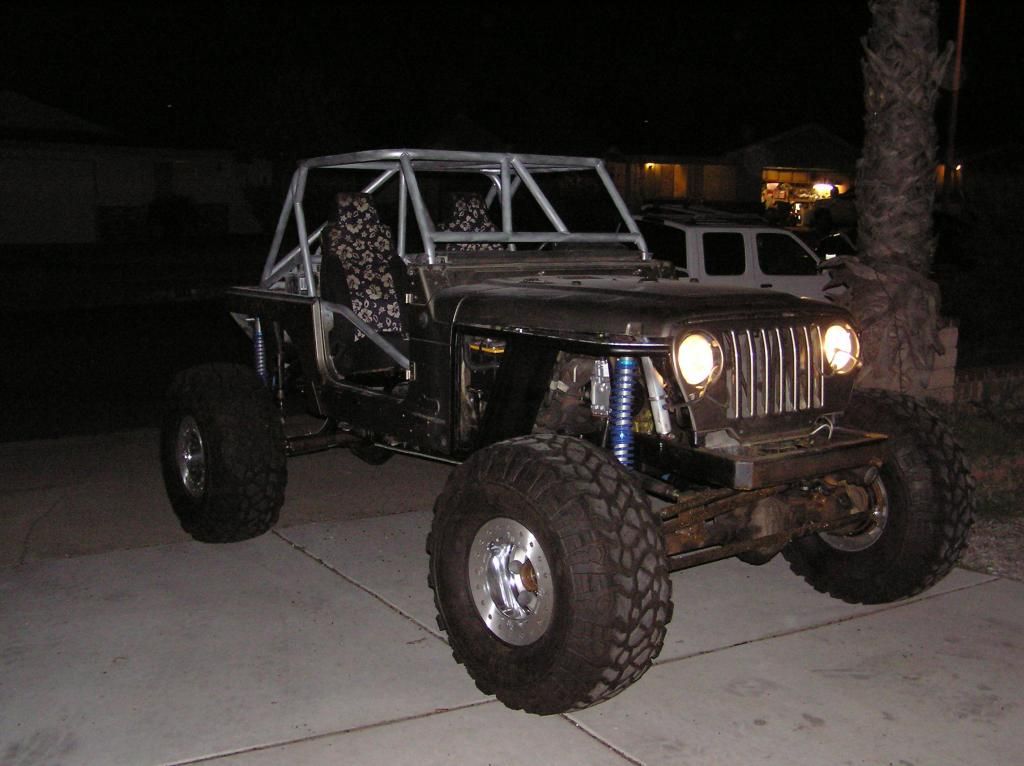

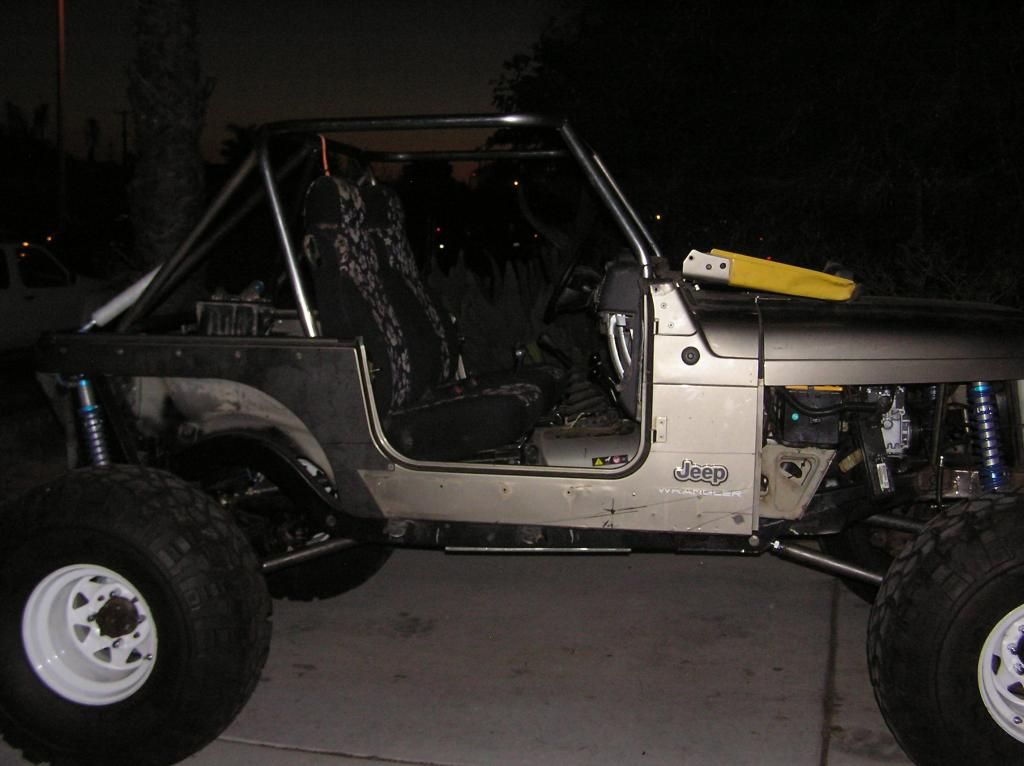

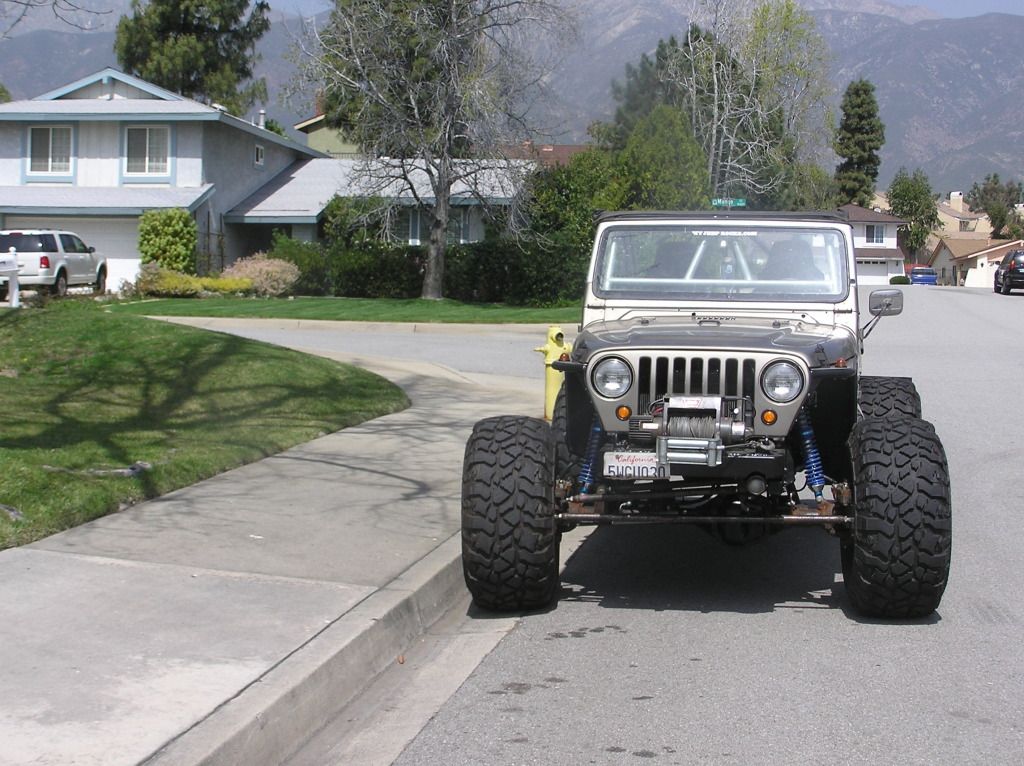

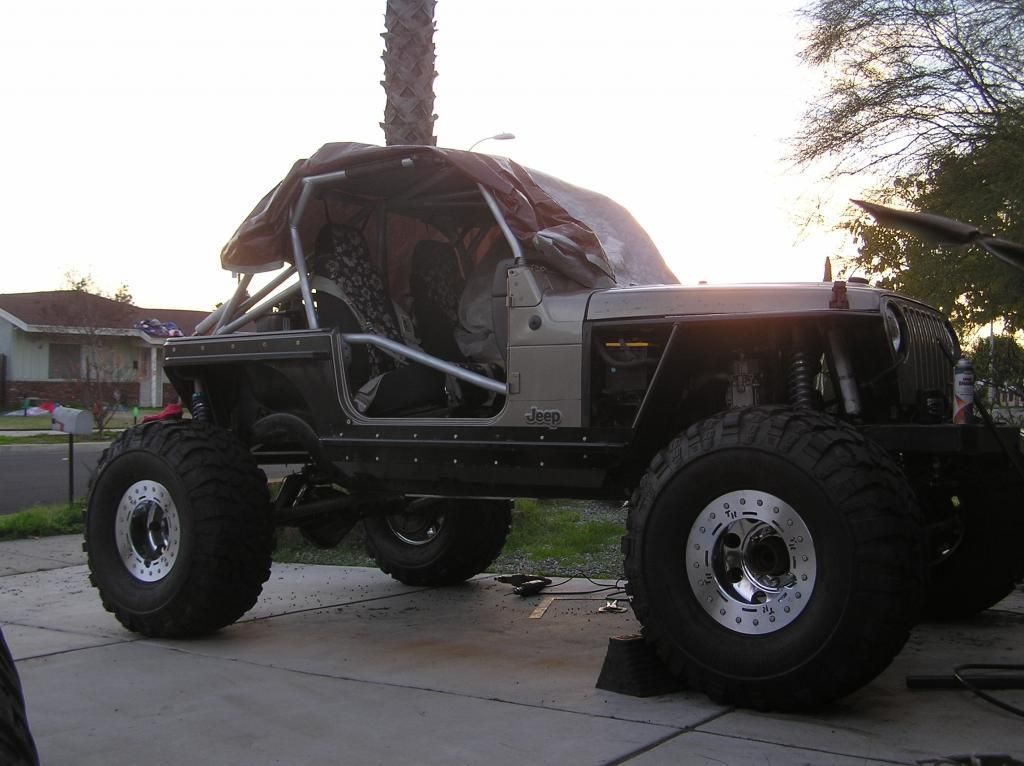

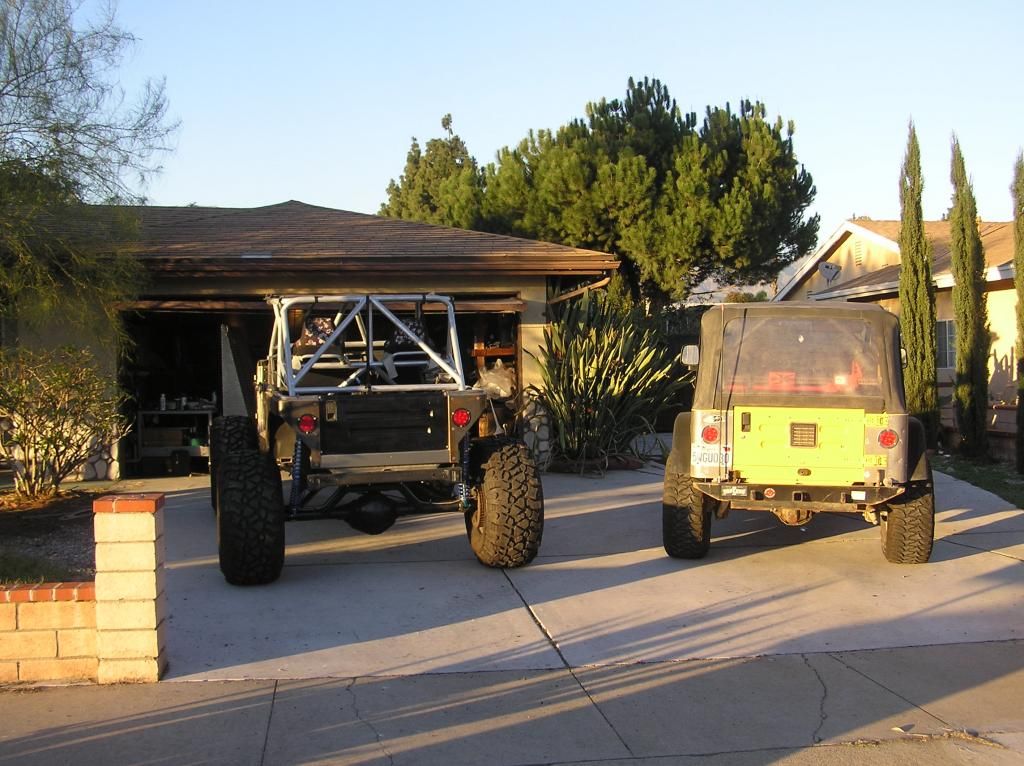

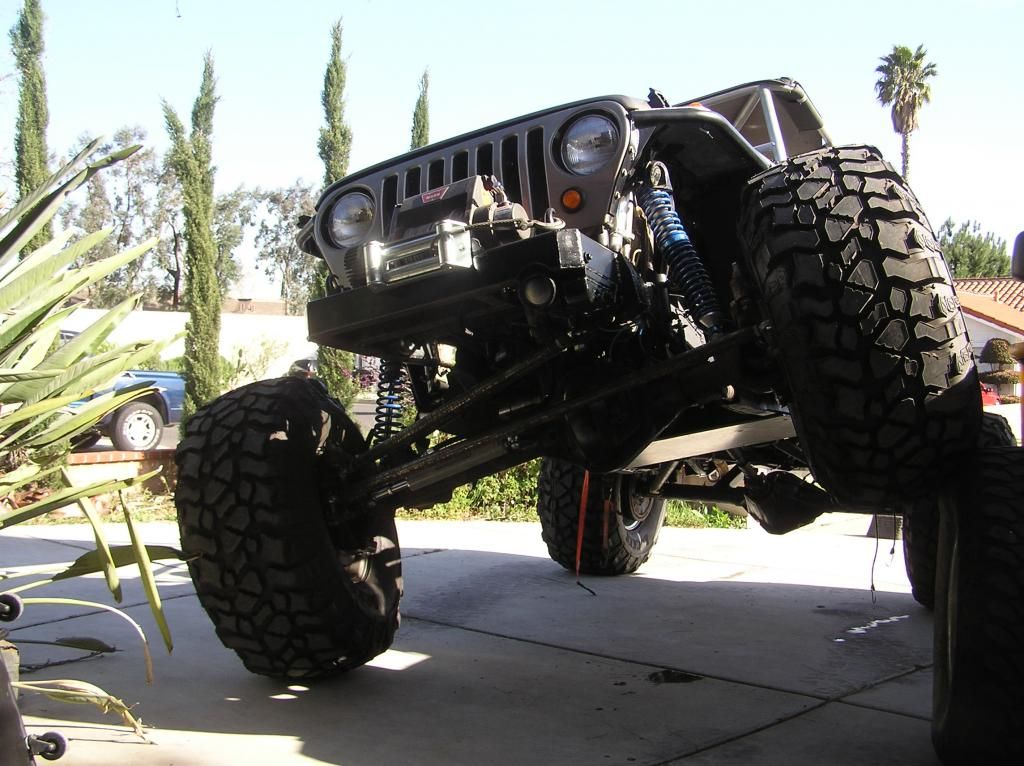

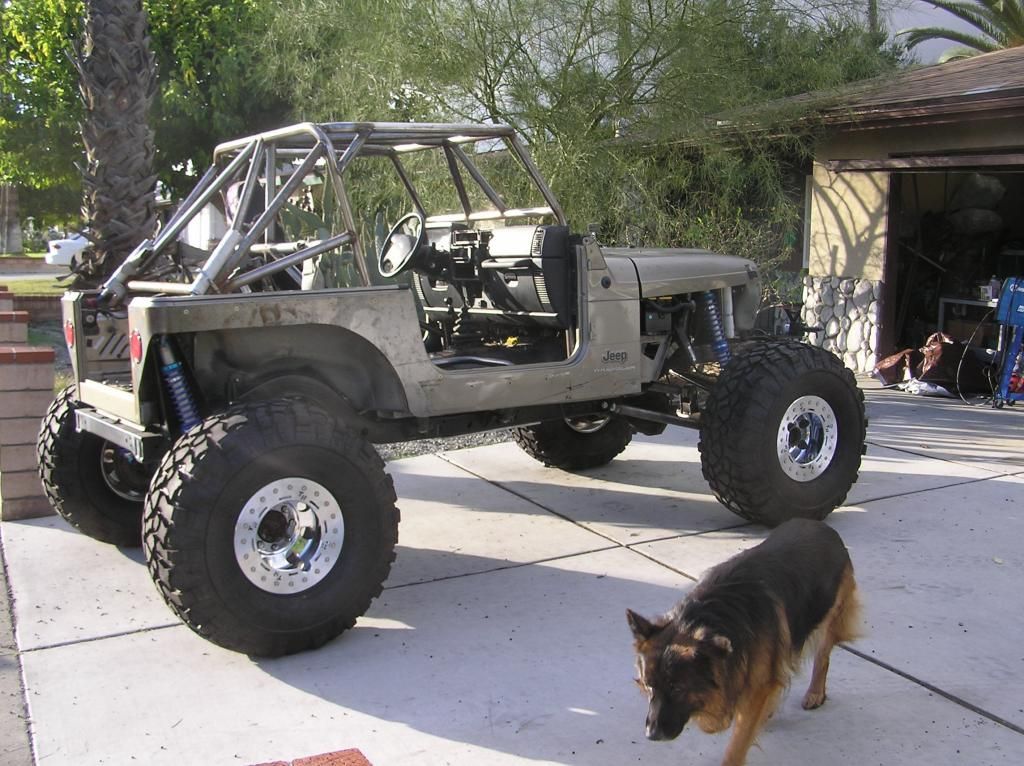

The finished product



Time for it's first road trip and shake down

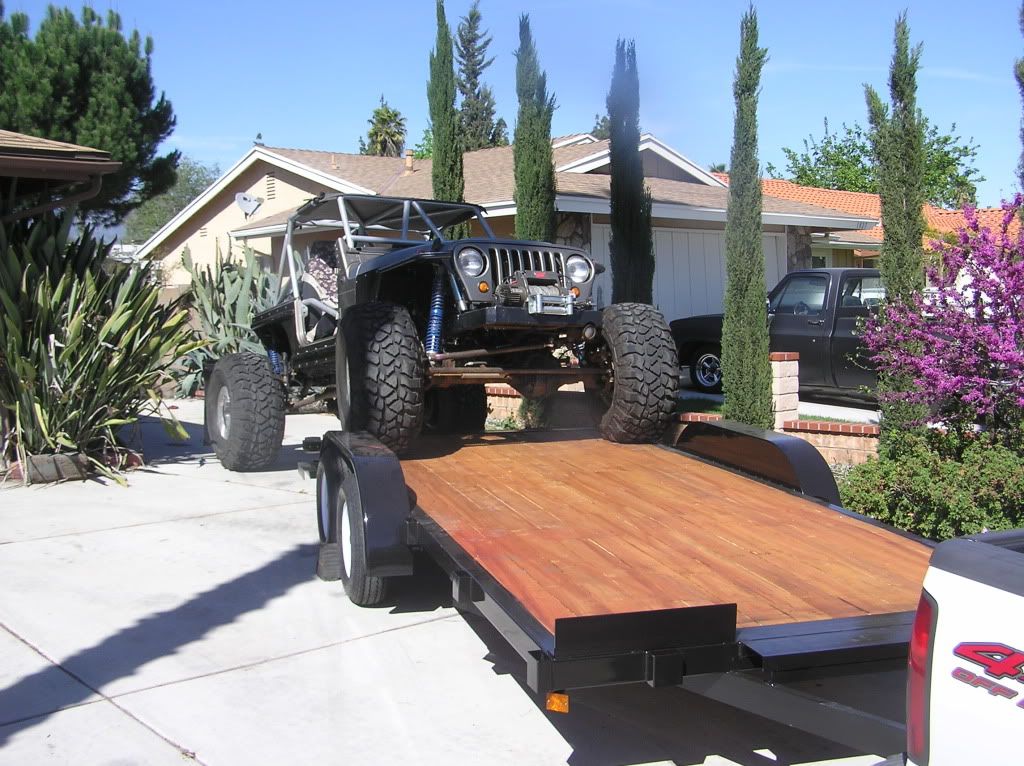

Finally got a trailer to drag it to the trail.



The fenders on the trailer did not clear so out came the plasma and of the came. They are now easily removable

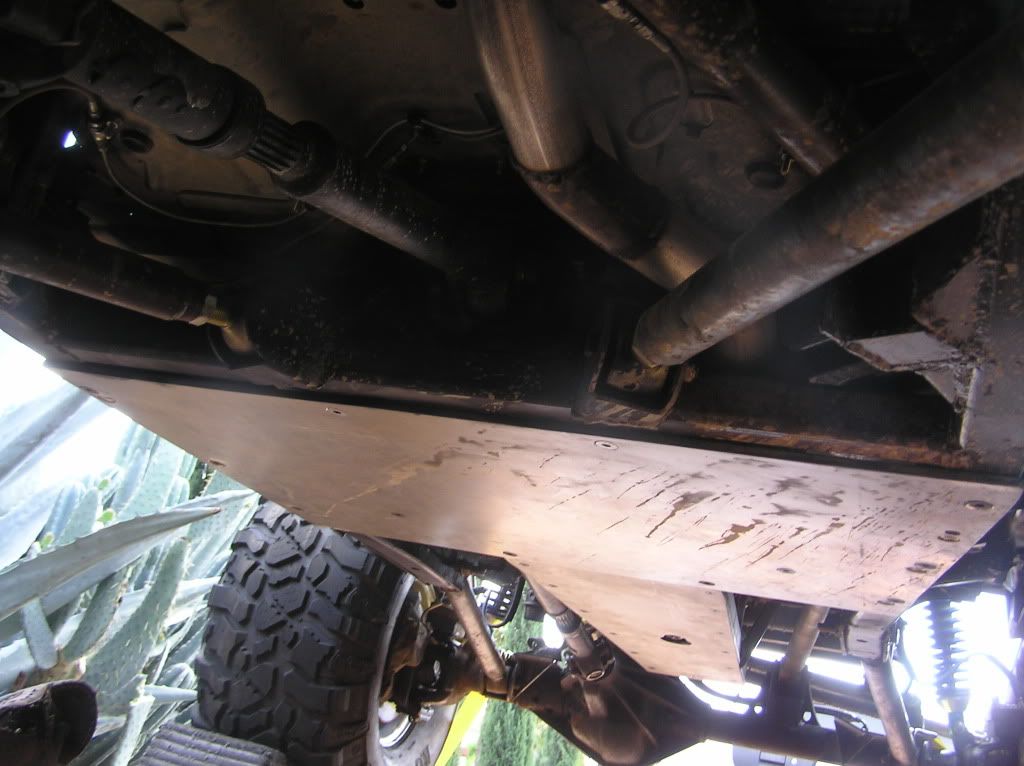

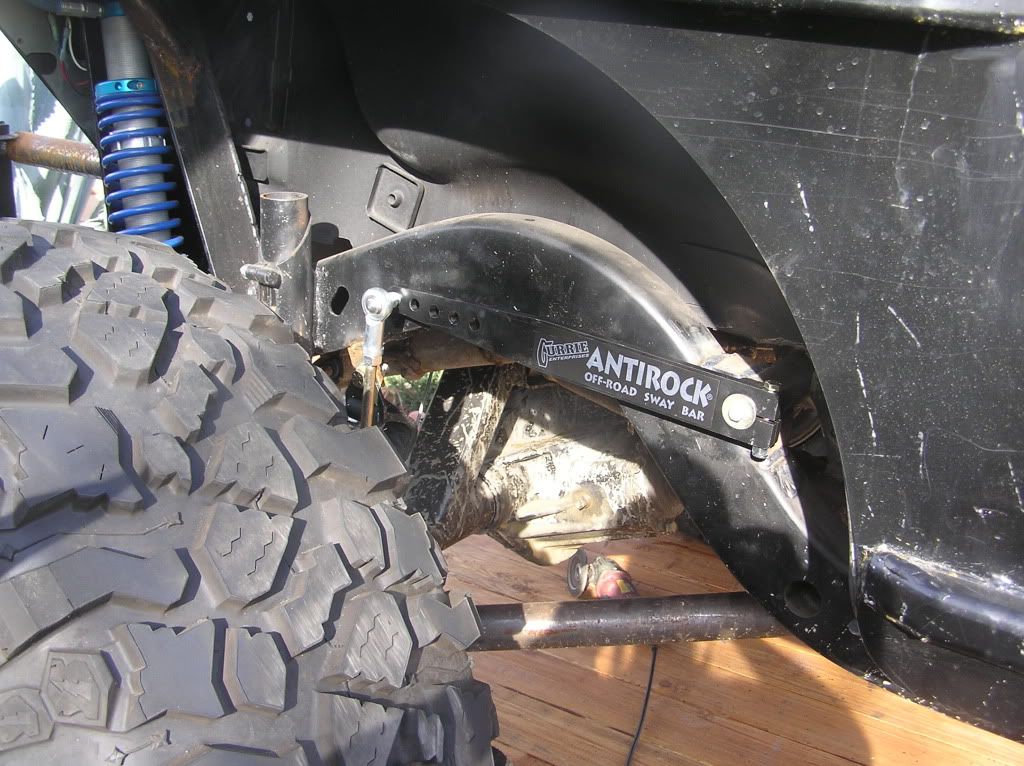

This week's chores were to install a rear anti rock and make an engine and trans skidplate





Well that took eleven months of all my free time and vacation time
So that's all folks I need a break and I am going wheelin
