It was tough to get the passengers side A pillar where I wanted it . Rather than fight the spring of the tube , I used a ratchet strap to place the base of the A pillar exactly where I wanted it .

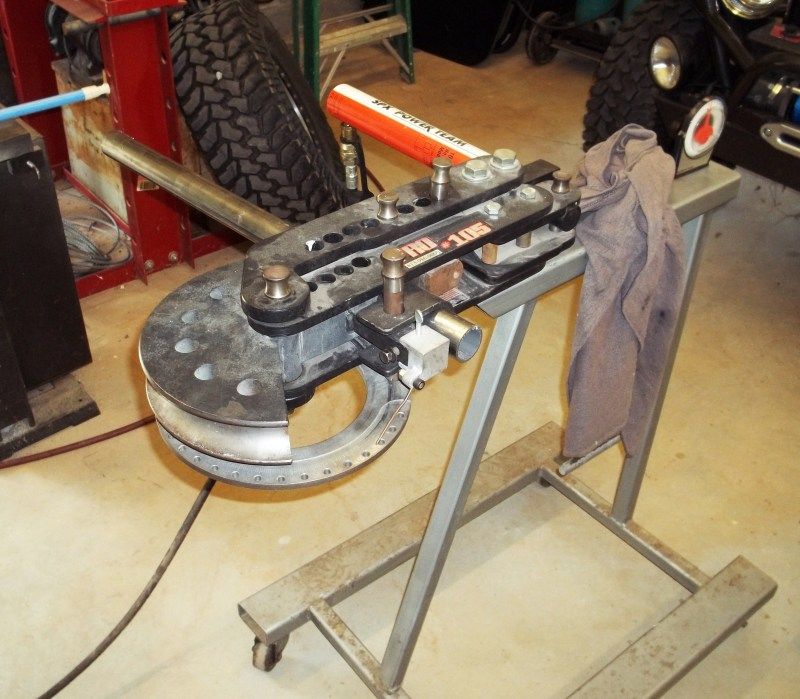

Whether you get a pre bent kit or make your own , this is an invaluable tool . Theres lots of brands , but this one has served me well . I use old style Lenox holesaws ( re branded as fastenals) and I can get two or three cages out of one hole saw . I use a Milwaukee Hole Hawg which turns slow , and I think that helps extend the life of my holesaws .

This is how I make floor plates . I tack one end together so that as I drill them they stay square to each other . An added bonus is the tack welds will help you orient the plates as you install them in case they arent drilled perfectly square .

And this is where I am as of today . Still have a few spreaders to cut and notch , then on to the back . I hope to finish it up on Monday .

On a side note thanks to all who serve and have served this weekend .


Free stickers and picture hosting at Jeep-Owner.com
G Beasley is offline
post #152 of Old 05-28-2012, 12:59 PM Thread Starter
G Beasley
Registered User
2005 LJ Wrangler

Join Date: Nov 2001
Location: Eden
Posts: 5,700
Let me start by saying , tube work is humbling ...

I am stuck on my last two tubes that have to be done before I can start welding up the last of the cage . The diagonals that go in the rear require double fish-mouths on both ends and they are not the same angles on any of the four sides .

Pics tonight , I am only in now on a wife imposed lunchbreak/ rehydration stop .

Free stickers and picture hosting at Jeep-Owner.com
G Beasley is offline
post #153 of Old 05-28-2012, 02:12 PM
dayriesw
Web Wheeler

dayriesw's Avatar
1987 MJ Comanche

Join Date: Jul 2009
Location: Louisiana
Posts: 6,113
Cage looks good from what I can see. You should try and wheel with the windshield down once when you get a chance. Keep up the hard work.

06 WK 5.7 Hemi Overland
87 MJ Chief 57k original miles... getting built in the backyard.
dayriesw is offline
post #154 of Old 05-28-2012, 08:37 PM Thread Starter
G Beasley
Registered User
2005 LJ Wrangler

Join Date: Nov 2001
Location: Eden
Posts: 5,700
Quote:
Originally Posted by dayriesw View Post
Cage looks good from what I can see. You should try and wheel with the windshield down once when you get a chance. Keep up the hard work.
Windshield down is the best ! And its just one of the reasons for a cage . More pics !

Bending the spreaders .

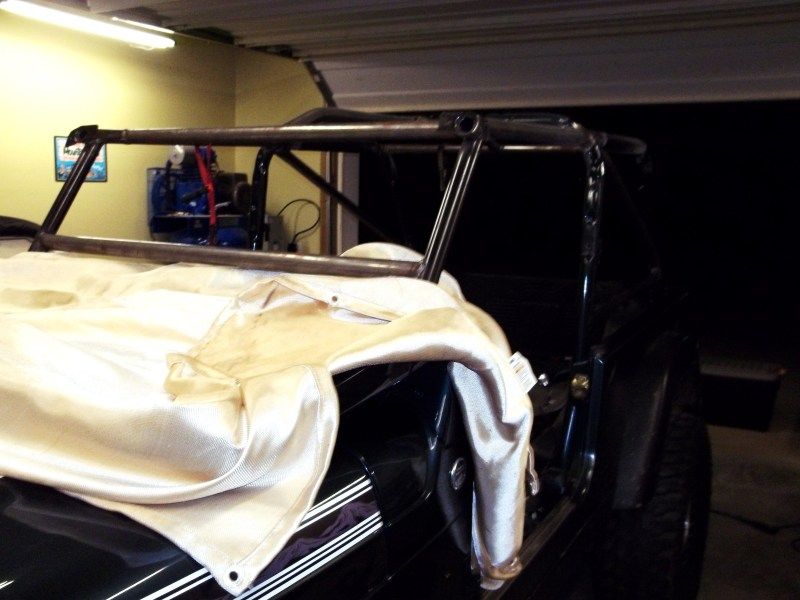

Spreaders in place .

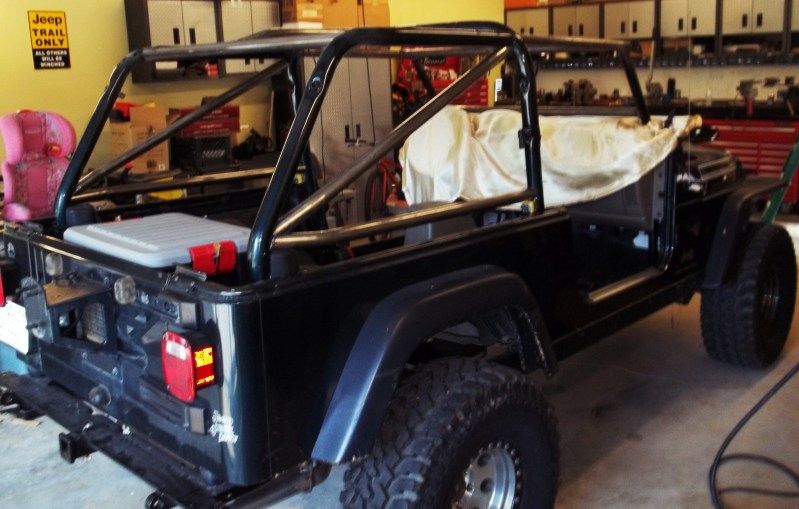

From the front .

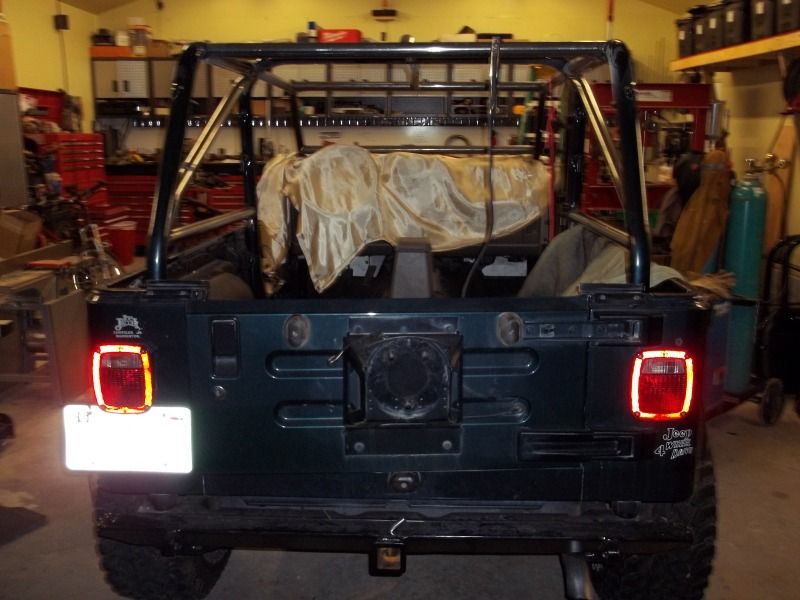

Rear diagonals in place . Sadly they dont fit as well as I like so they are going to the scrap bin .


And the Currie / Savvy ultimate setup is out of the box and ready to go in next weekend . It is BEEFY compared to the stock stuff !

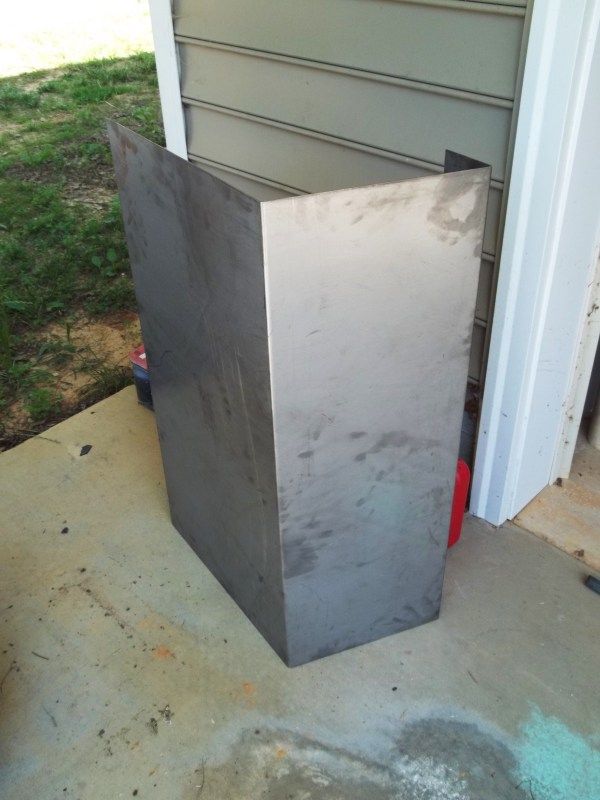

This is another project that I had bent up at the machine shop . I still need to weld the reinforcements and the sides in . Anyone want to guess what it is ?
