Unread 11-06-2012, 04:39 PM   #241
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 1,018
I have been working with Jim over at OTRATTW on some custom switch covers.
He did the artwork for free since I bought over $300 in switches lol
I have 20 total switches and 12 of which needed custom engraving and symbols. Cant wait till I get them


__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote Quick reply to this message
Unread 11-07-2012, 08:01 AM   #242
babyhulk
Member

babyhulk's Avatar
2005 TJ Wrangler

Join Date: Jul 2009
Location: concord, North Carolina
Posts: 197
Same switches i run in my jeep and i love them.
babyhulk is offline   Reply With Quote Quick reply to this message
Unread 11-10-2012, 12:36 AM   #243
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 1,018

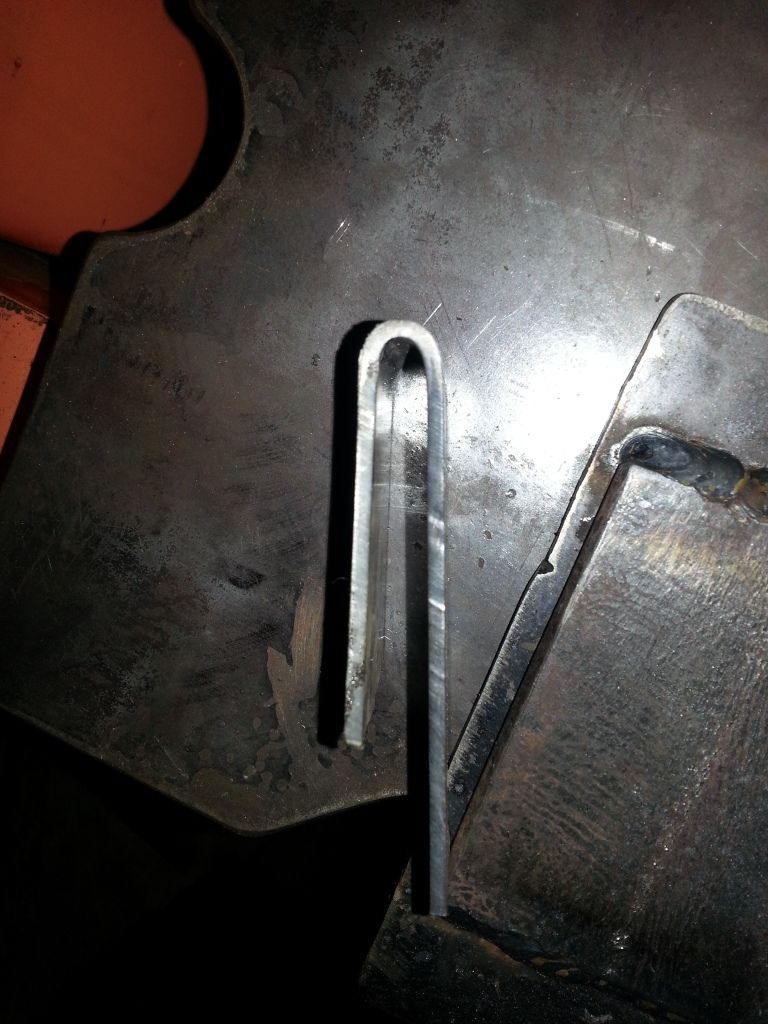

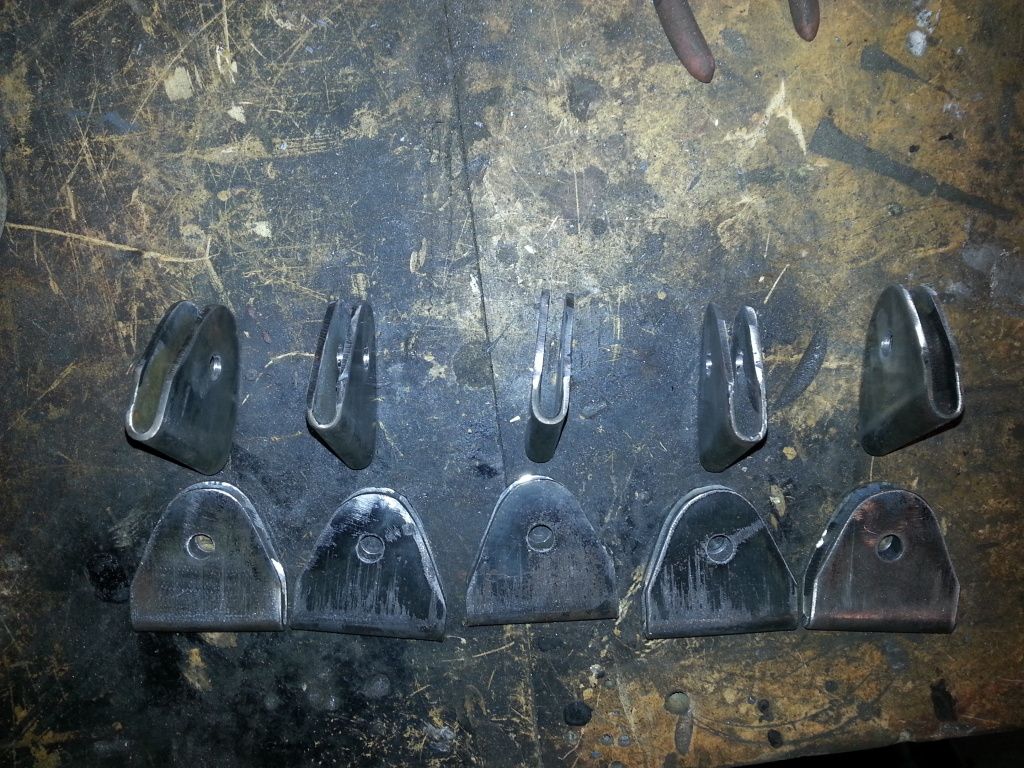

came home from school and made a double shear tab break. Instead of paying $4 a tab, i could make them for the cost of a couple hrs making this.


Sample piece. Bent it like butter
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote Quick reply to this message
Unread 11-10-2012, 02:42 AM   #244
straightsixjeep
Registered User
1998 XJ Cherokee

Join Date: Jan 2012
Location: ks
Posts: 2,208
Thats awesome good job.
straightsixjeep is offline   Reply With Quote Quick reply to this message
Unread 11-10-2012, 09:37 PM   #245
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 1,018

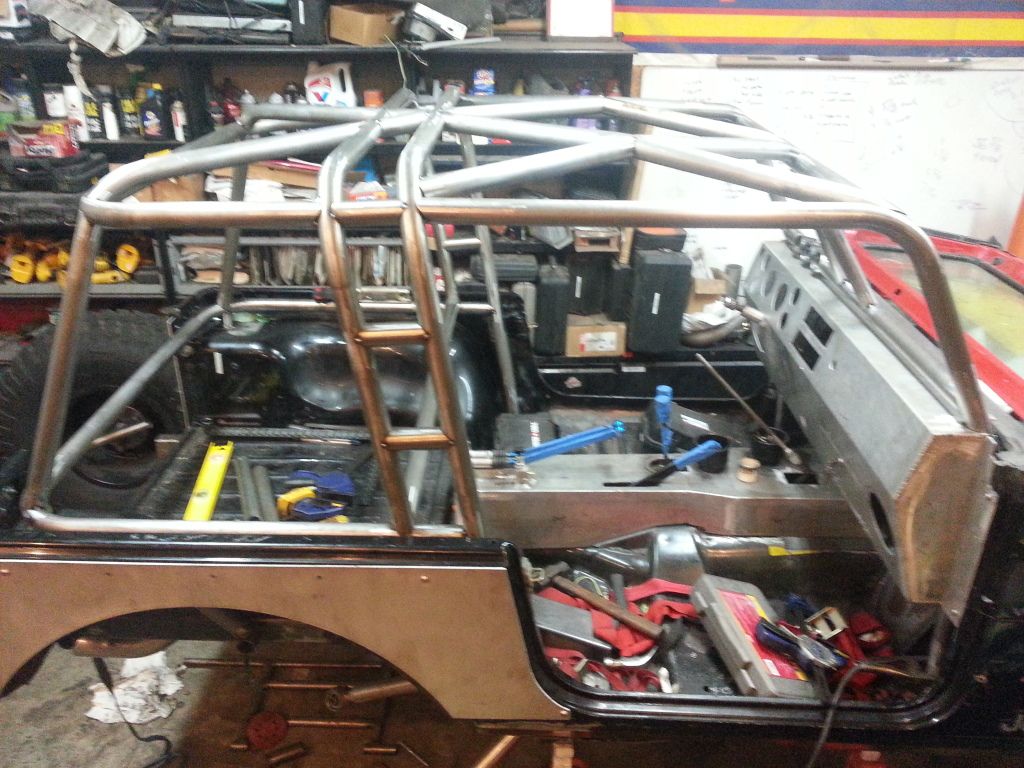

made all 10 of the seat belt tabs.

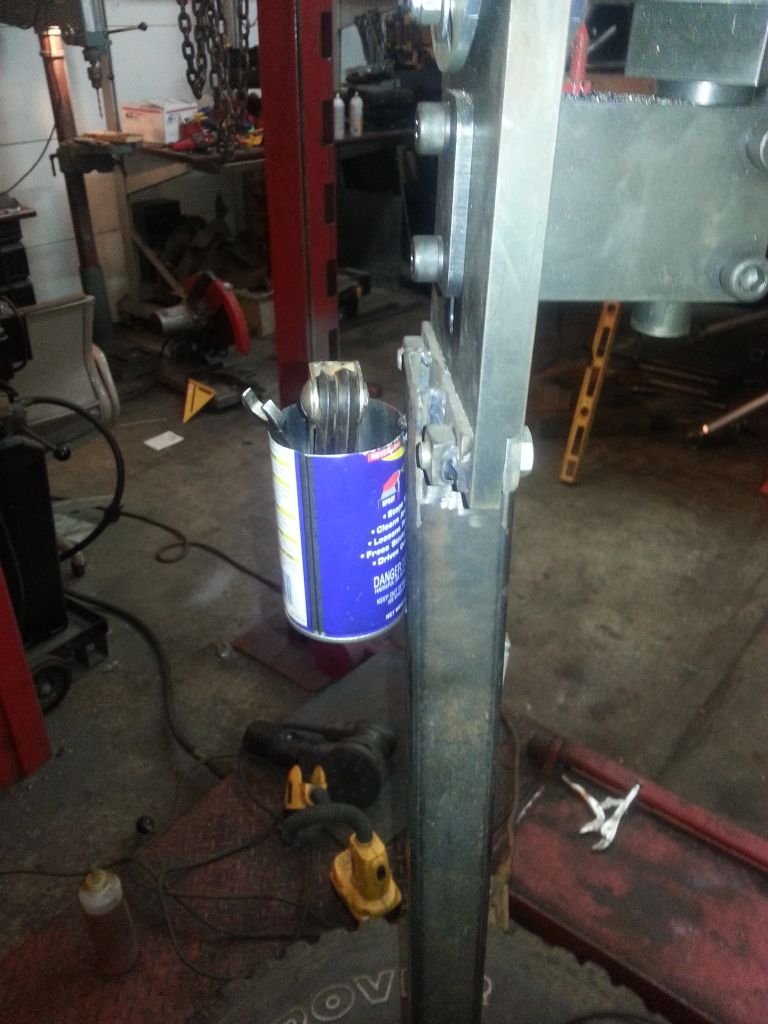

I knew empty wd-40 can were useful. Welded it to my knotcher so I can keep the allen keys and wrench handy now.


Finished the top of the cage. Plus put the driver side b spreaders in.




Need to finish the seat mounts and the x behind the seats. That will come tomorrow.
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote Quick reply to this message
Unread 11-10-2012, 10:44 PM   #246
Hendrix
TJOTY 2013

Hendrix's Avatar
1997 TJ Wrangler

Join Date: Apr 2009
Location: FT Myers, Florida
Posts: 4,740
Looks great, how about a side view of the double shear press brake?
Hendrix is offline   Reply With Quote Quick reply to this message
Unread 11-10-2012, 10:48 PM   #247
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 1,018
Quote:
Originally Posted by Hendrix
Looks great, how about a side view of the double shear press brake?
Thanks Man. I'll take a photo in the morning. I had to modify it little. All it is, is 2 angle iron pieces with a half inch gap. Originally the angle iron was 3x3. Today I cut it down to 2x3. Made it easier to remove the tap.
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote Quick reply to this message
Unread 11-10-2012, 10:52 PM   #248
gst95dsm
Chop, Wheel and Rebuild..

gst95dsm's Avatar
2002 TJ Wrangler

Join Date: Dec 2007
Location: Fresno CA
Posts: 4,268
Wow nice work man!
gst95dsm is offline   Reply With Quote Quick reply to this message
Unread 11-11-2012, 02:38 PM   #249
kellerumps
See Ya Coach.

kellerumps's Avatar
2004 TJ Wrangler

Join Date: Jul 2009
Location: Paris, IL
Posts: 714
Quote:
Originally Posted by ksilovich View Post
came home from school and made a double shear tab break. Instead of paying $4 a tab, i could make them for the cost of a couple hrs making this.


Sample piece. Bent it like butter
I know I'm not very smart......but I dont get how that works?
__________________
I don't look for problems....They find me.

Member of: IndyOrv
kellerumps is offline   Reply With Quote Quick reply to this message
Unread 11-12-2012, 12:58 PM   #250
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 1,018

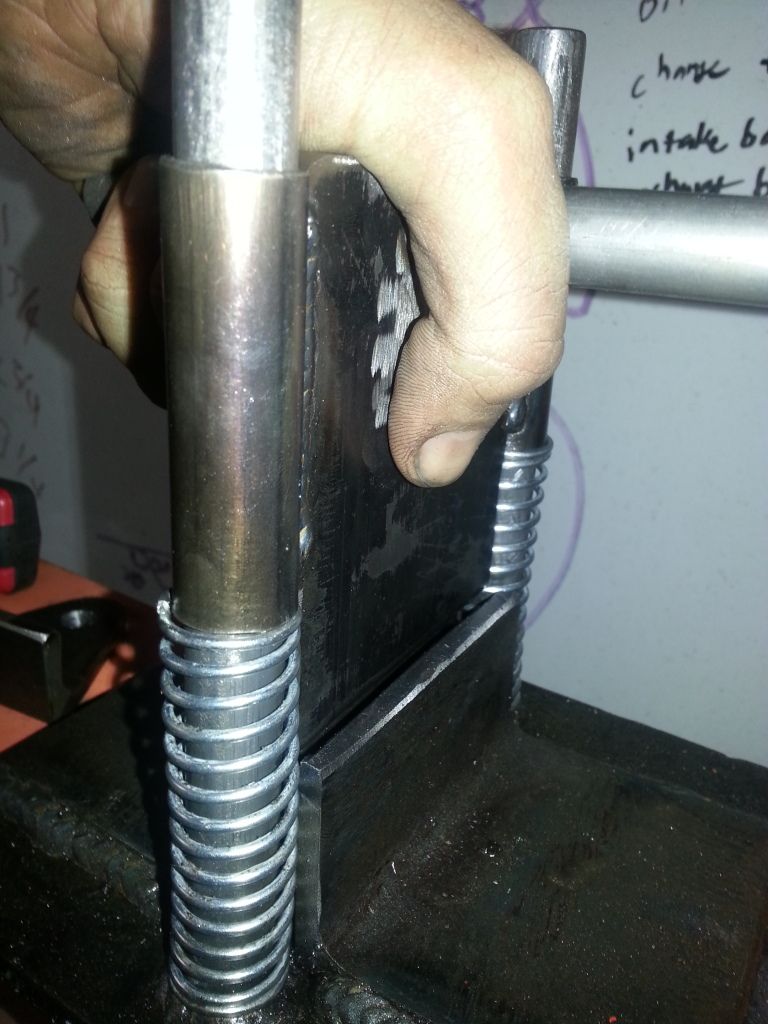

Doug. It works by pressing a piece of 1/8 plate in the center of the gap. This then pushes the steel down causing it to fold up. As it goes down you will get a nice u shape. The gap is set at 1/2" and the dies is 1/4".

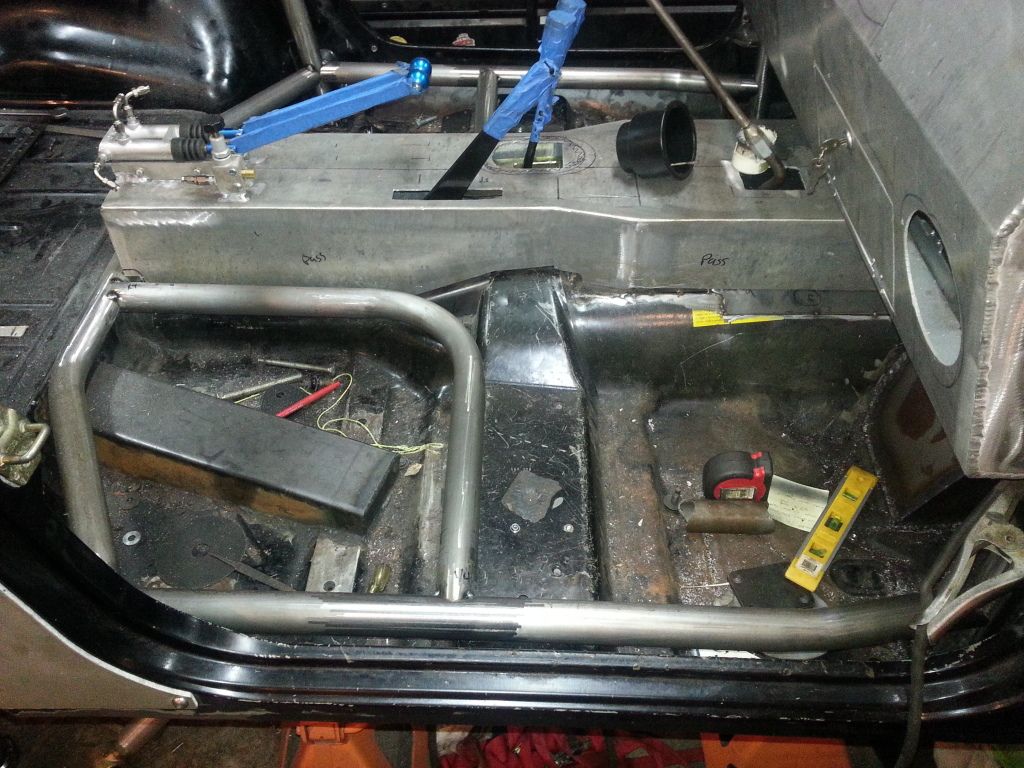

On another note. I worked on the cage under the seats. This was a pain to get correct. Cause on the seat sliders I am using and how tall I am. I want the seats as low as possible so I have head room, seeing as I'm 6' 2".
Really the only tubes I have left is the x behind the seat.

__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote Quick reply to this message
Unread 11-18-2012, 10:16 PM   #251
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 1,018

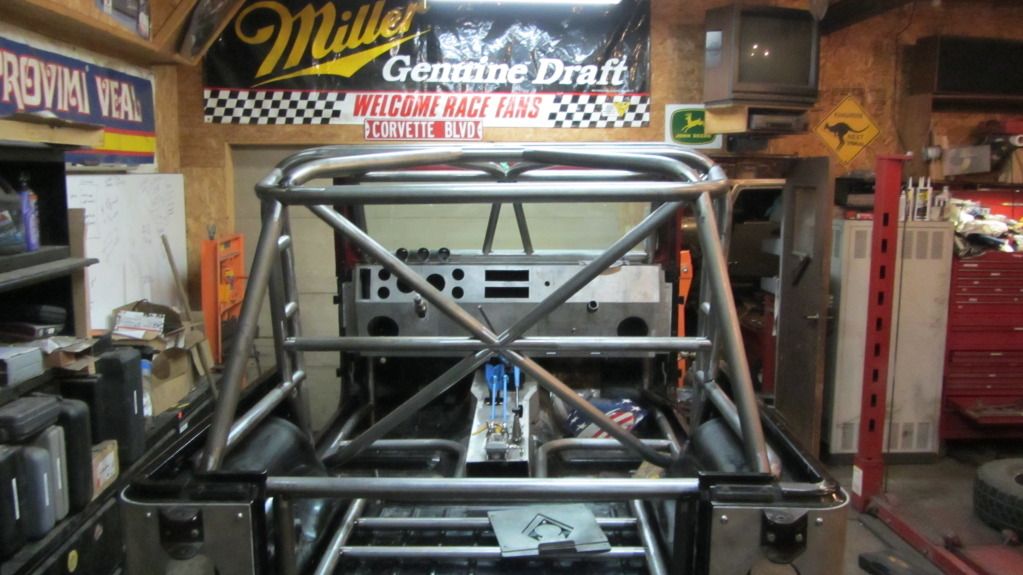

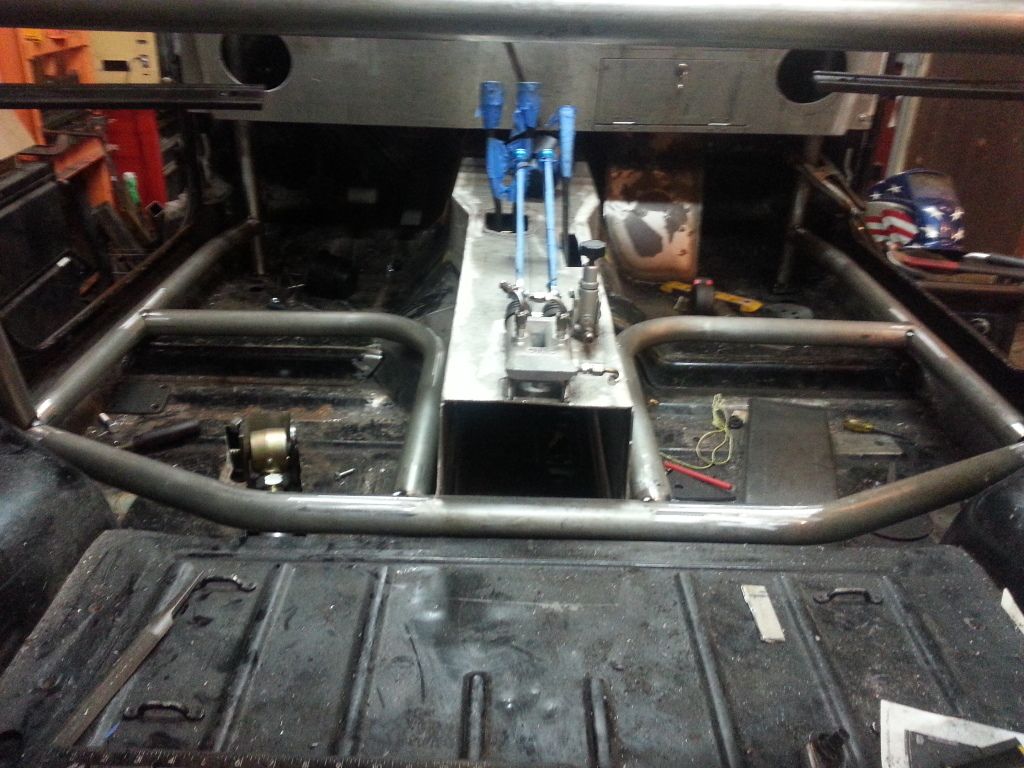

Worked on the cage yet again. Only thing I have left is to mount the seats and weld the whole thing.

This weekend I got the x behind the seats in, then I got the gusset from the second b to the first b in. Then I did the rear of the cage so the fuel cell and tool box will be supported by the cage and not the tub. Then I put a tube going through the dash on the passenger side so I can make a removable handle.







Left enough room so I can make a bottle holder between the tool box and fuel cell. My plan is to have two radiator bottles, two gear oil, one 5 qt bottle of oil, and then some power steering and brake fluid. Only plan on carrying those items on long wheeling trips like Moab and Rubicon.
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote Quick reply to this message
Unread 11-19-2012, 12:09 AM   #252
Hendrix
TJOTY 2013

Hendrix's Avatar
1997 TJ Wrangler

Join Date: Apr 2009
Location: FT Myers, Florida
Posts: 4,740
Dude, that's one fine looking cage.
Hendrix is offline   Reply With Quote Quick reply to this message
Unread 11-19-2012, 07:29 AM   #253
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 1,018
Quote:
Originally Posted by Hendrix View Post
Dude, that's one fine looking cage.
Thanks man
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote Quick reply to this message
Unread 11-21-2012, 11:03 PM   #254
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 1,018
Finally broke down and bought my 1.25" die.
So I bent up some grab handles and made the grab bar for the passenger.


Then I spent some time thinking how I wanted to do my rear rack.

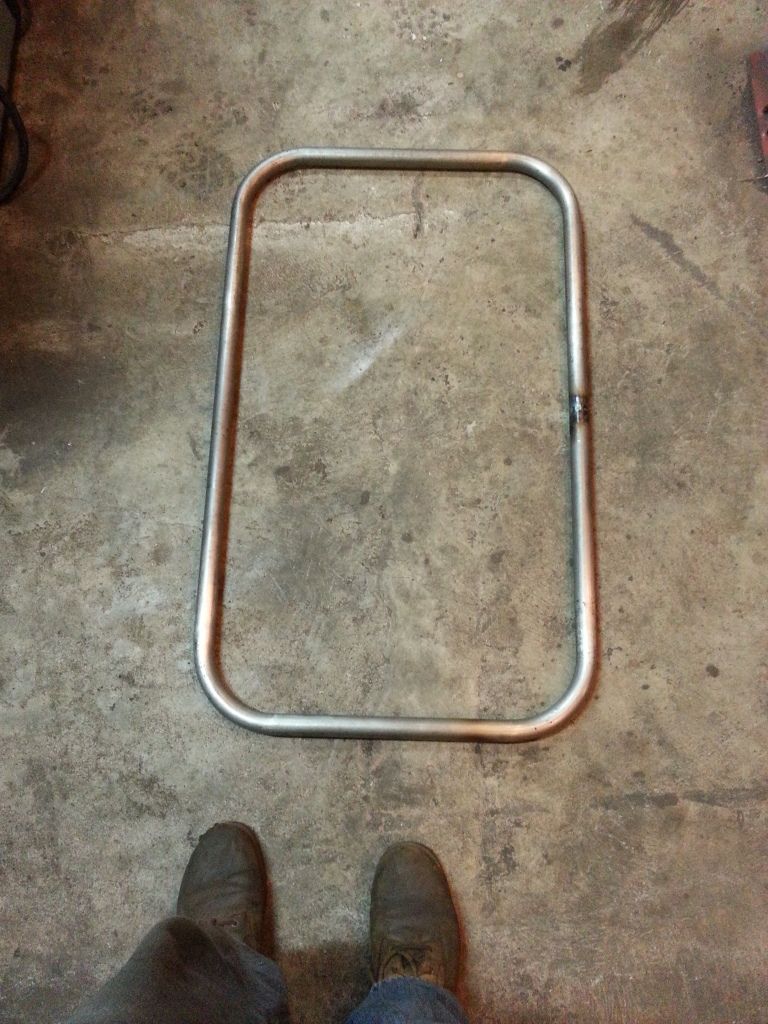

So then I bent this up and tig-ed the two ends together.


Going to get a buddy of mine to cut the bottom and sides out for me on his plasma table (since my dad wont let me buy one to put in the garage )
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote Quick reply to this message
Unread 11-24-2012, 12:02 AM   #255
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 1,018

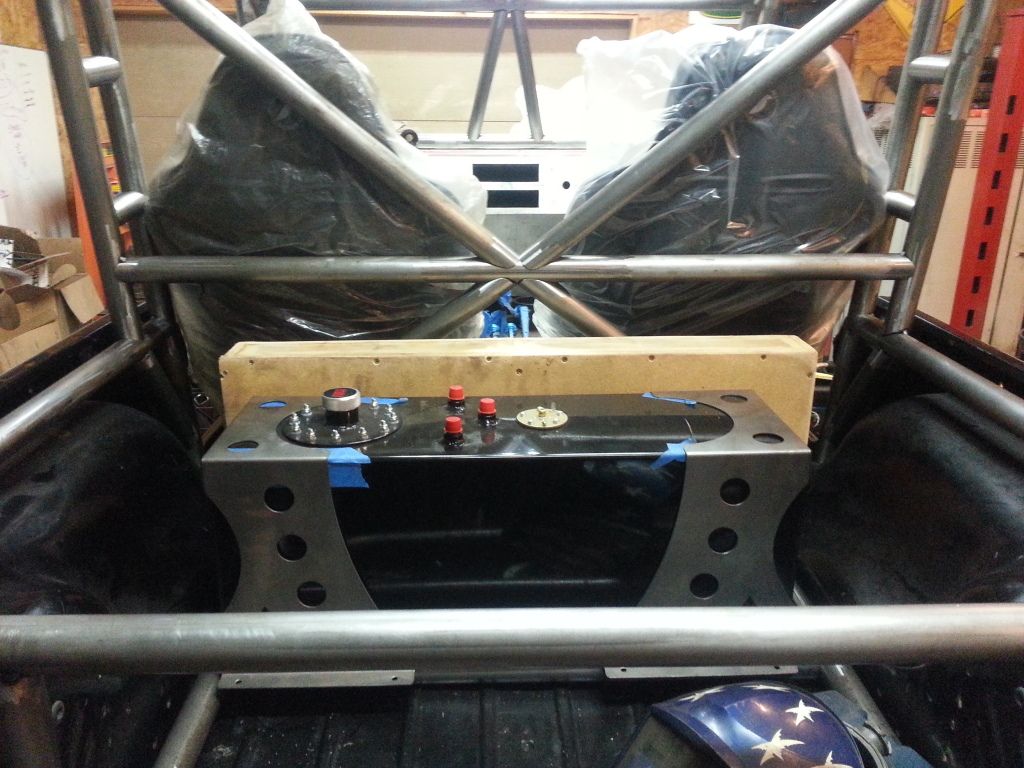

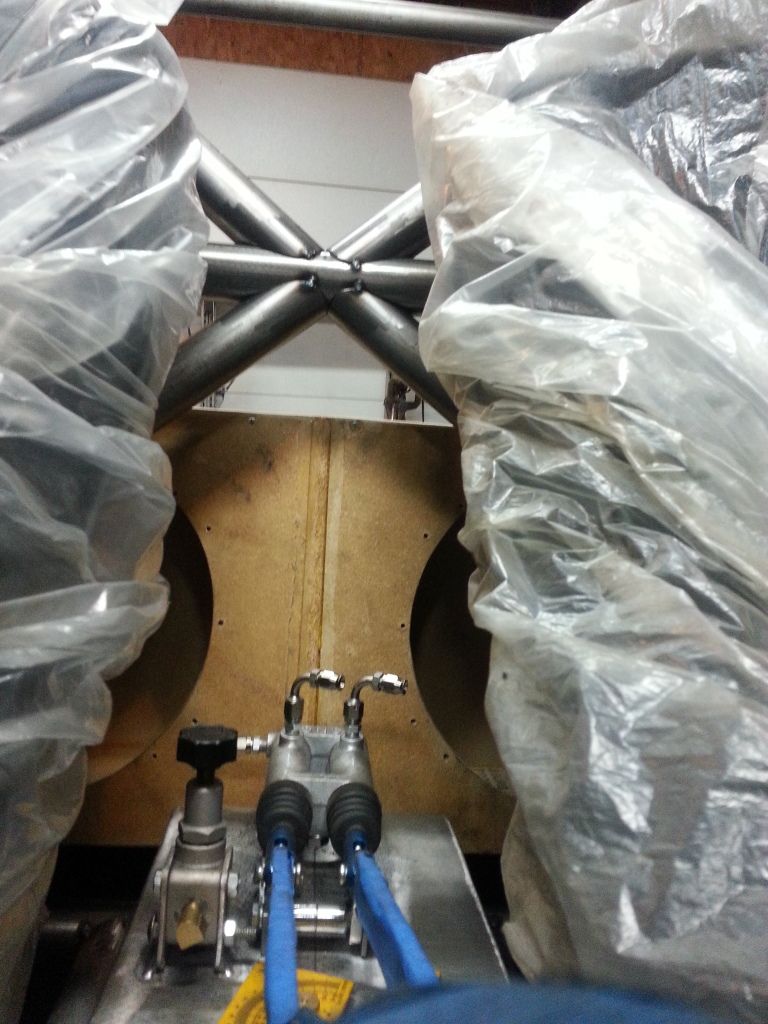

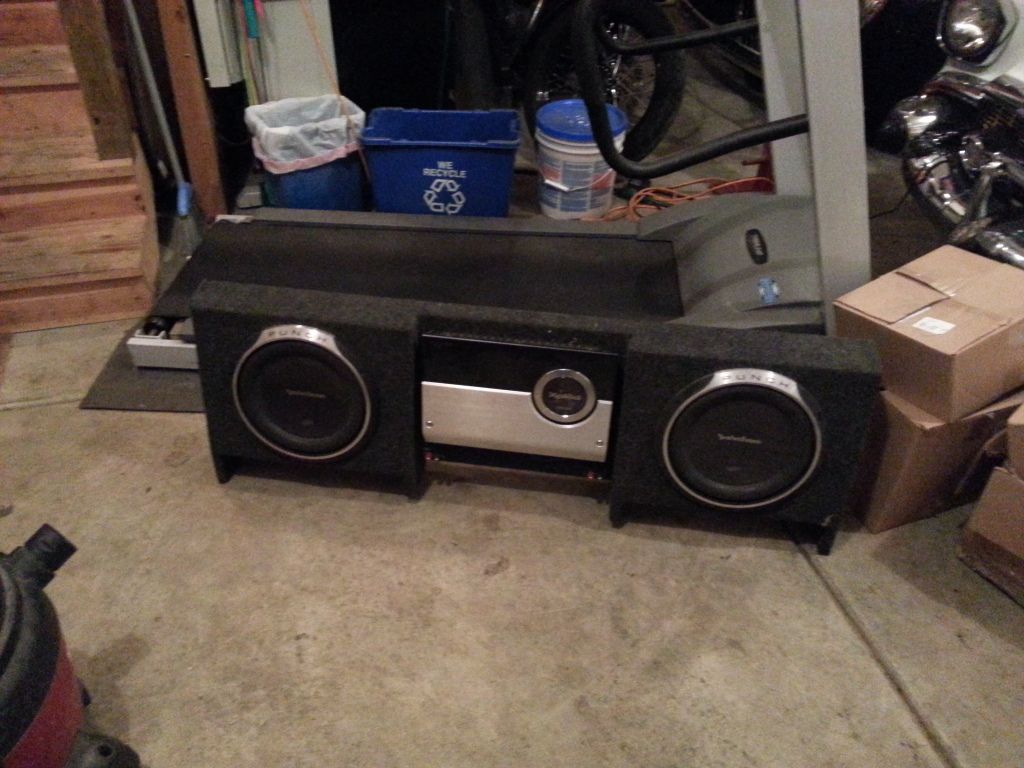

Today I took my old sub box that I made for my old 2000 GMC 3500 dump truck and modified it a little. Turns out its almost a perfect fit.


Took the center out and cut it down.

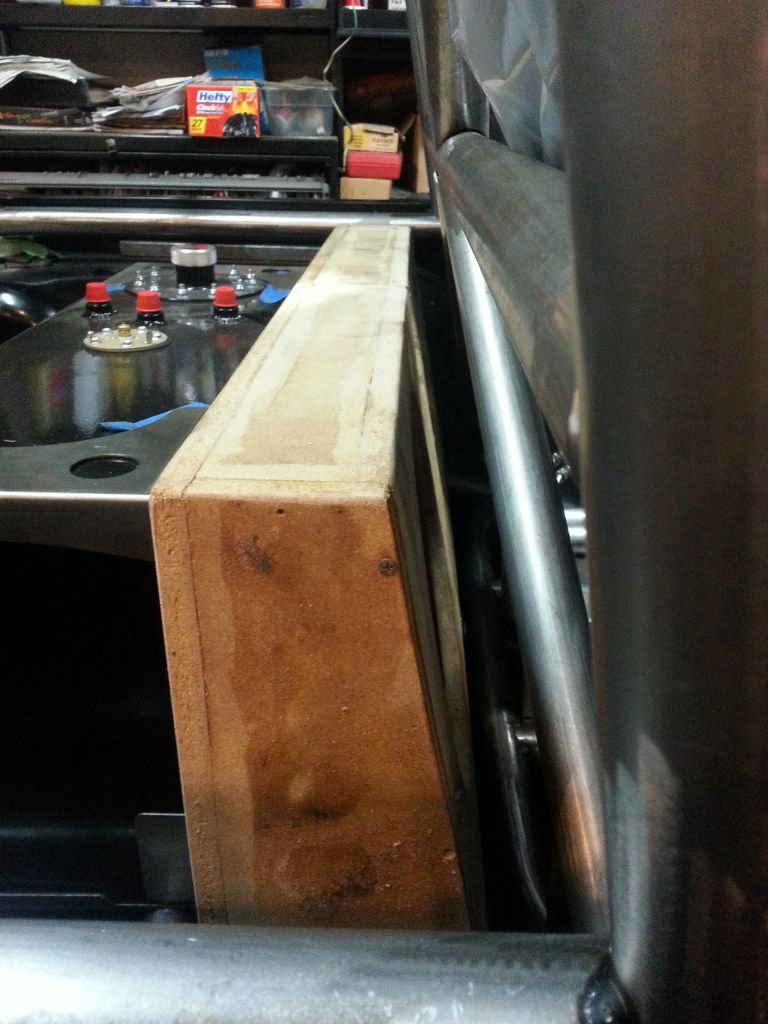

I plan to throw a coat of fiberglass resin over it to make it water proof.

Then I moved on to the seat mounts.

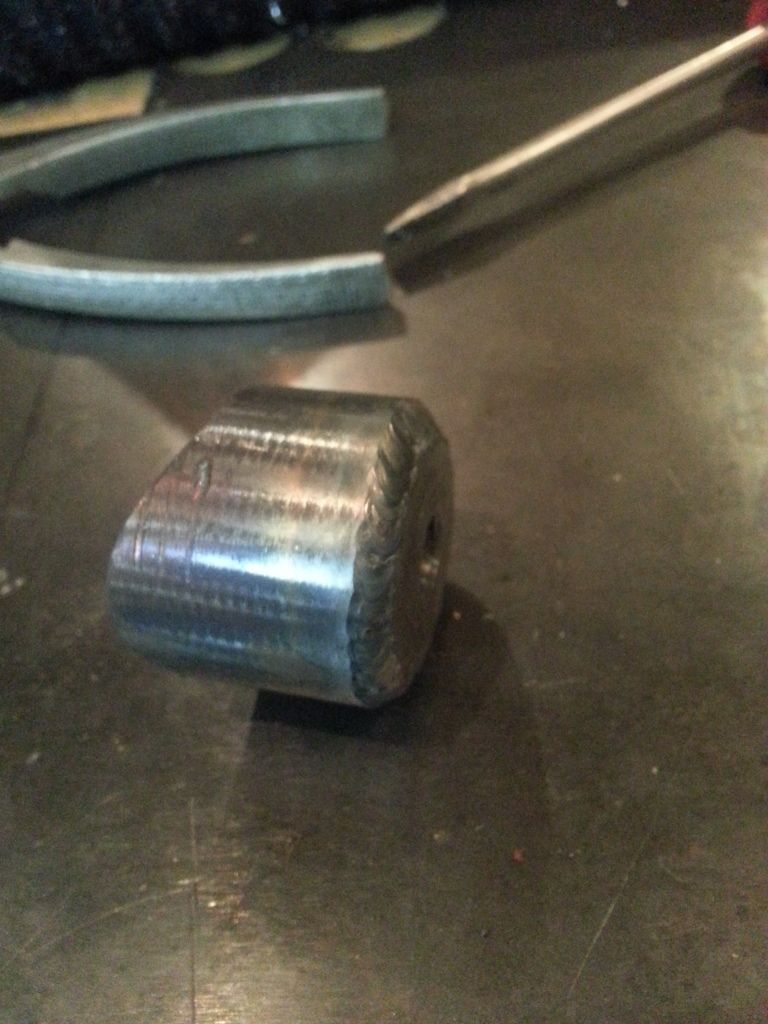

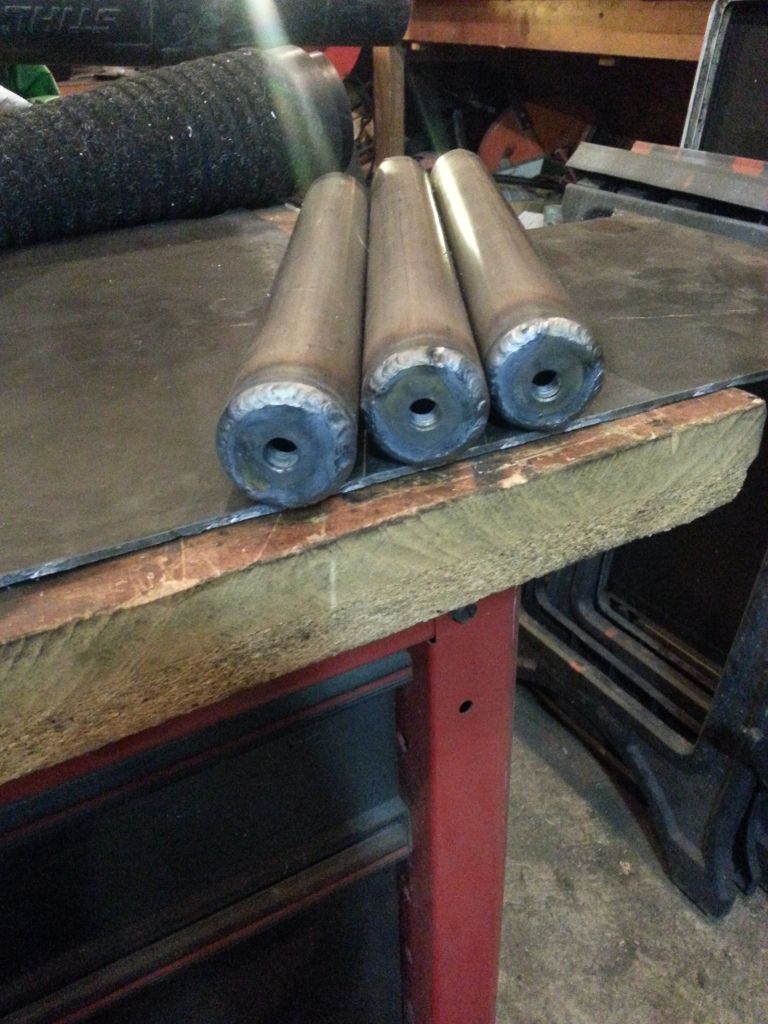

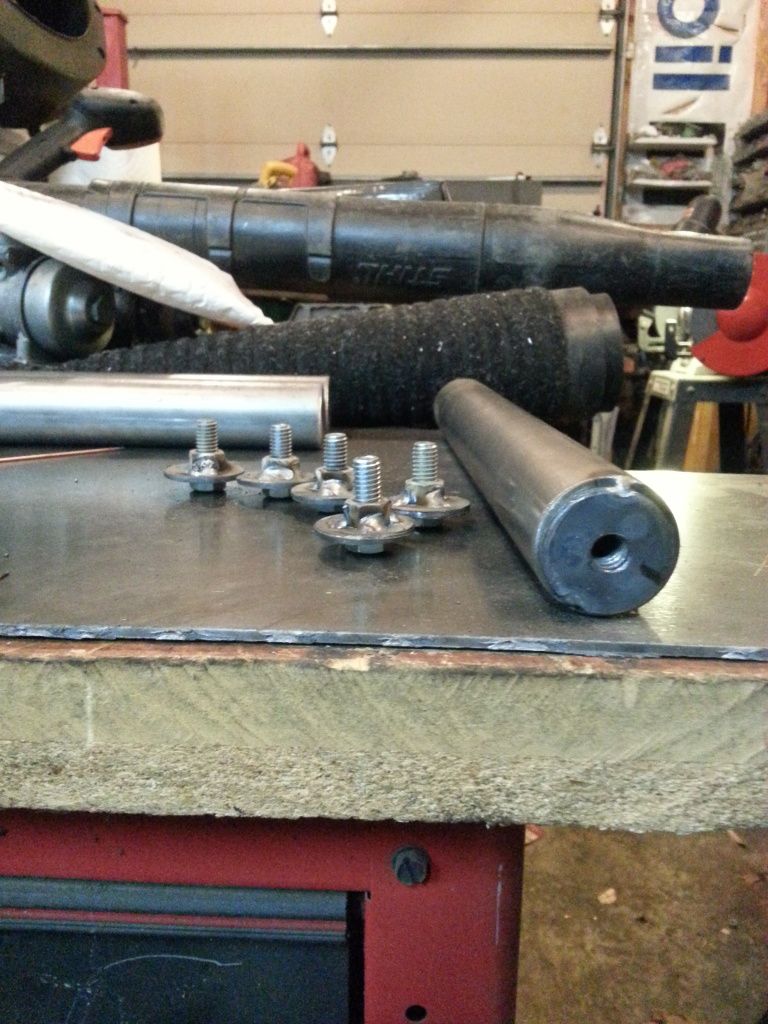

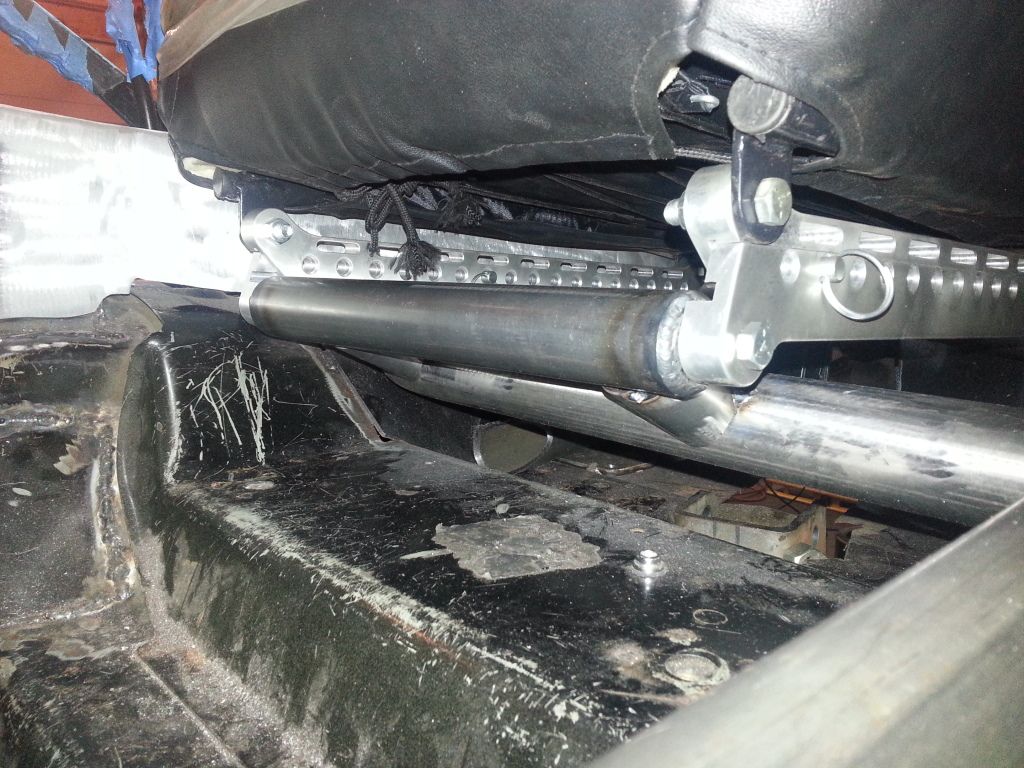

I used a hole saw and cut out some circles, then welded a nut on the back of them, and then tig welded them on to some tube.



Power of Blue

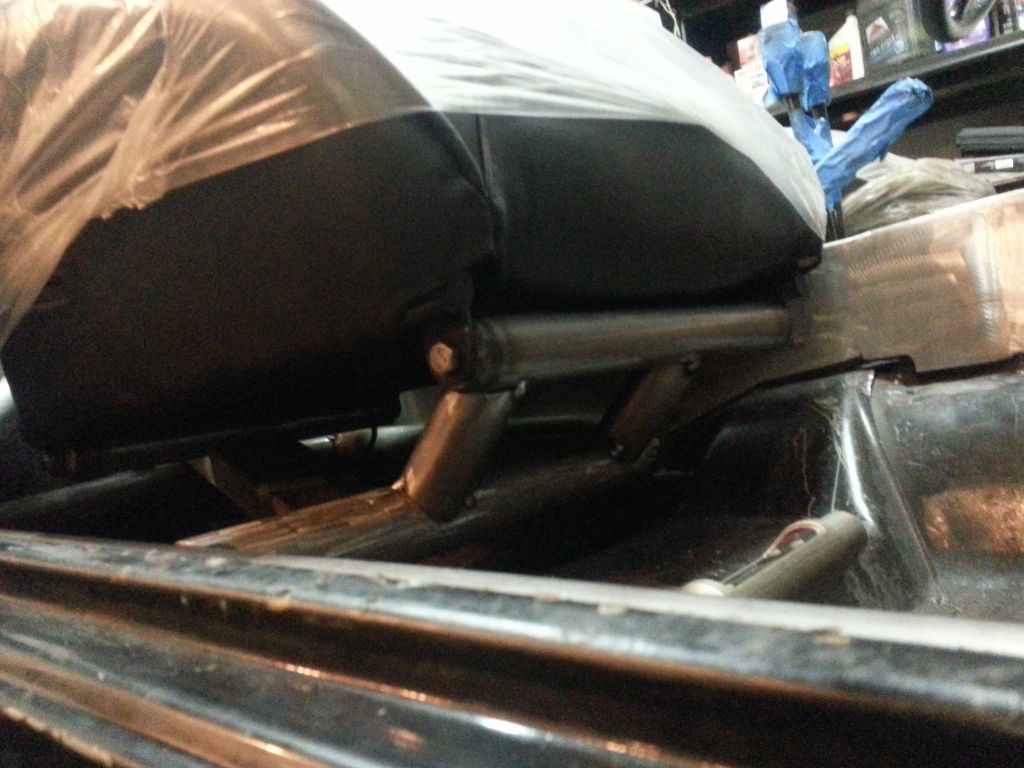

Driver side with the seat slider


Passenger side


From the top of my head to the top of the cage is about 3.5~4" of head room.
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote Quick reply to this message
