Unread 09-03-2012, 11:39 AM   #151
10-3-TJ
Member

10-3-TJ's Avatar
1998 TJ Wrangler

Join Date: May 2009
Location: , The BIG O !
Posts: 320
Electrical engineer is what i need.. i am starting my wiring today and honestly it might as well be greek or Spanish

Awesome build. Love it

__________________
"We have enough youth, how about a fountain of smart"

"Look no further than yourself, for all of the good and all of the evil that exist in this world, resides in the heart of man and his propensity to use it".
10-3-TJ is offline   Reply With Quote
Unread 09-03-2012, 02:42 PM   #152
djflyy
Registered User
1999 TJ Wrangler

Join Date: Mar 2008
Location: Boston, MA
Posts: 3,469
Quote:
Originally Posted by ksilovich View Post
Mine are just 2" clearance marker lights. They are only 2 wire led. So what you do is add 2 diodes and a resister to make them a 3 wire turn signal. When I get to that point of wiring it all I take some photos and explain what i did. Its not hard to do at all. But then again I am an electrical engineer
Thanks. I'm a touring audio engineer so electricity is a common thing in my life (multiple 400 amp tie-ins per day), no explanation necessary! Thank you though. I'll look around more for lights, I just haven't found the right ones yet. For now I've got 3/4" LED markers in my TNTs as turn signals, which I will switch to the running lights and run the 2" markers as turn signals when the time comes.

__________________
Boston Jeep Build Thread
North Shore Jeeps Website

Quote:
Originally Posted by bmosing View Post
Cleaning this thing up is similar to a slightly abused pornstar throwing on a bunch of makeup to try to hide her eternal scars, but I think she doesn't look too bad
djflyy is offline   Reply With Quote
Unread 09-03-2012, 03:50 PM   #153
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 824
Quote:
Originally Posted by 10-3-TJ View Post
Electrical engineer is what i need.. i am starting my wiring today and honestly it might as well be greek or Spanish

Awesome build. Love it
Its not that hard to wire these things up. These engines are simple .


Quote:
Originally Posted by djflyy View Post
For now I've got 3/4" LED markers in my TNTs as turn signals, which I will switch to the running lights and run the 2" markers as turn signals when the time comes.
Sounds good. Its really not hard to make the 2 wire to a 3 if you really want to make the 2" light a running light and turn light. I think I have some photos of it on my computer back at school. I check when I head back tomorrow.



Well today was the only day I worked on the jeep all week end. And of coarse I ran into problems. My radiator was 1/4" too low for my ram PS hose.

So i had to raise the whole radiator up and it was a *****. Once I finished that I made all the power steering hoses.





I also got my South Bend Clutch on friday. Dam this thing wasnt cheap
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote
Unread 09-03-2012, 09:42 PM   #154
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 824
worked on some more hoses.
Took me awhile to figure out where the second heater hose connects to. Come to find out if you remove one of the temp switch on the side there is a 1/2 npt fitting. So i got my self a 1/2npt to 5/8 barb and it work great.


Upper heater hose


Found me a lower radiator hose.


Then I bent up a tube for my front suck down winch. Just waiting for it to come in the mail
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote
Unread 09-06-2012, 07:06 PM   #155
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 824
Drew up some logic today after class. It will combined my rear turn and brake signal to one wire. It will also combined my front turn and running lights to one wire. In addition it will control my low/high fan. With the addition of lighting a red led when I switch the fan off. Then there is the Engine Fault LED, Low radiator level LED, low window wiper fluid LED, parking brake LED.
Inputs on the left, Outputs on the right

I could have used a micro controller to do most of this, but for right now I just want the fast and simple way. Later on I might clean up the relays with an IC. But for now this will do.
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote
Unread 09-06-2012, 07:51 PM   #156
kellerumps
See Ya Coach.

kellerumps's Avatar
2004 TJ Wrangler

Join Date: Jul 2009
Location: Paris, IL
Posts: 688
Quote:
Originally Posted by ksilovich View Post
Drew up some logic today after class. It will combined my rear turn and brake signal to one wire. It will also combined my front turn and running lights to one wire. In addition it will control my low/high fan. With the addition of lighting a red led when I switch the fan off. Then there is the Engine Fault LED, Low radiator level LED, low window wiper fluid LED, parking brake LED.
Inputs on the left, Outputs on the right

I could have used a micro controller to do most of this, but for right now I just want the fast and simple way. Later on I might clean up the relays with an IC. But for now this will do.

THANK YOU for the head-ache you just gave me......
__________________
I don't look for problems....They find me.

Member of: IndyOrv
kellerumps is offline   Reply With Quote
Unread 09-06-2012, 08:11 PM   #157
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 824
Quote:
Originally Posted by kellerumps View Post
THANK YOU for the head-ache you just gave me......
Your very welcome. What will happen when I post the complete wiring harness? Will your head explode? lol
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote
Unread 09-06-2012, 08:19 PM   #158
Jeffro06
October 2012 TJOTM

Jeffro06's Avatar
2006 TJ Wrangler

Join Date: Jun 2007
Location: Total, Confusion
Posts: 9,555
Quote:
Originally Posted by ksilovich View Post
Your very welcome. What will happen when I post the complete wiring harness? Will your head explode? lol
You just like to show off.
__________________
Member of JGW (Jeff's Gone Wheeling) and IndyORV
My Old YJ Build My Mods My YouTube Channel

Moab Trails I've done: Onion Creek, Long Canyon, Dome Plateau, Top of The World (2), Fins-N-Things (2), Poison Spider,
Golden Spike, Gold Bar Rim, Hell's Revenge (2), Baby Lion Back, Cliff Hanger, Moab Rim, Kane Creek Canyon, Strike Ravine

Shortcuts to key points in my build: MTRk's OME 2" HD Lift Antirock Skidrow steering box & radiator skids LoD rear bumper
Rokmen Mercenary bumper w/Superwinch Rokmen sliders Skidrow engine skid Rampage Top CB set up
Custom trunk Rokmen 1" Billet spacers JJ track bar Rokmen Adjustable Control Arms Currectlync Steering
Rokmen Trail Corners Metalcloak Overlines Kentrol Hood Latches JK Turn Signals Xenon 4" Flat Flares Hood Decal Duratracs
Derale Tranny Cooler DieHard Factor 55 Thimble Ten Factory Front Chromo Shafts

Get your build sheet here.
Jeffro06 is offline   Reply With Quote
Unread 09-07-2012, 07:06 AM   #159
woods9898
Registered User
1995 XJ Cherokee

Join Date: Sep 2012
Location: norristown, pa
Posts: 32
amazing freakin amazing
woods9898 is offline   Reply With Quote
Unread 09-07-2012, 07:25 AM   #160
Imped
Web Wheeler

Imped's Avatar
2004 TJ Wrangler

Join Date: Feb 2008
Location: Indianapolis
Posts: 19,253
Yep, that ****'s over my head by a mile. My brain wasn't built to understand electronics past the basics and I've accepted that.
__________________
OlllllllO
Float Test Build
IndyORV
Imped is offline   Reply With Quote
Unread 09-07-2012, 01:07 PM   #161
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 824
Quote:
Originally Posted by Jeffro06 View Post
You just like to show off.
I do

Quote:
Originally Posted by Imped View Post
Yep, that ****'s over my head by a mile. My brain wasn't built to understand electronics past the basics and I've accepted that.
Well you now know who to come to for that kinda s***

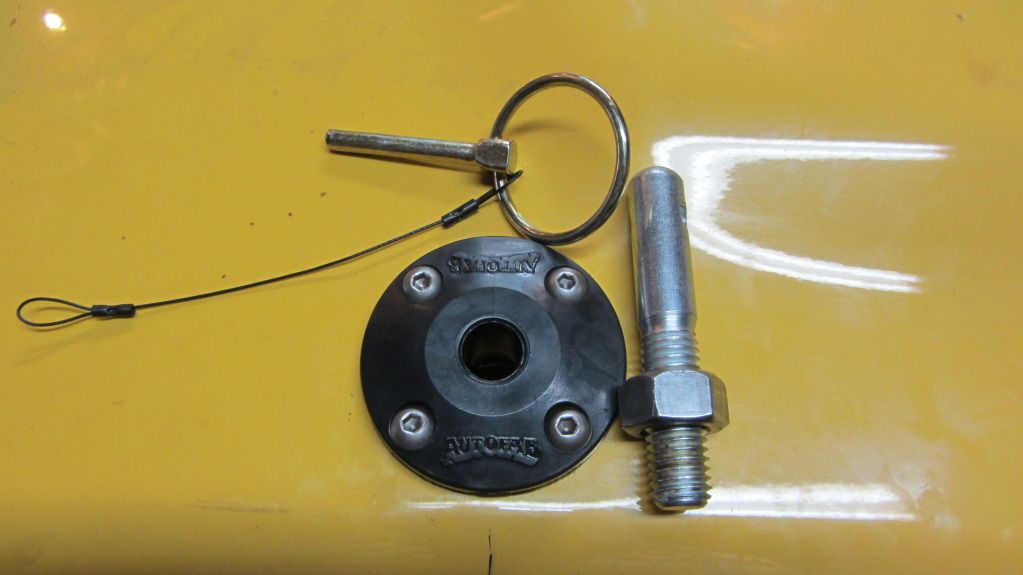

Today I came home to find a couple presents
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote
Unread 09-07-2012, 04:41 PM   #162
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 824

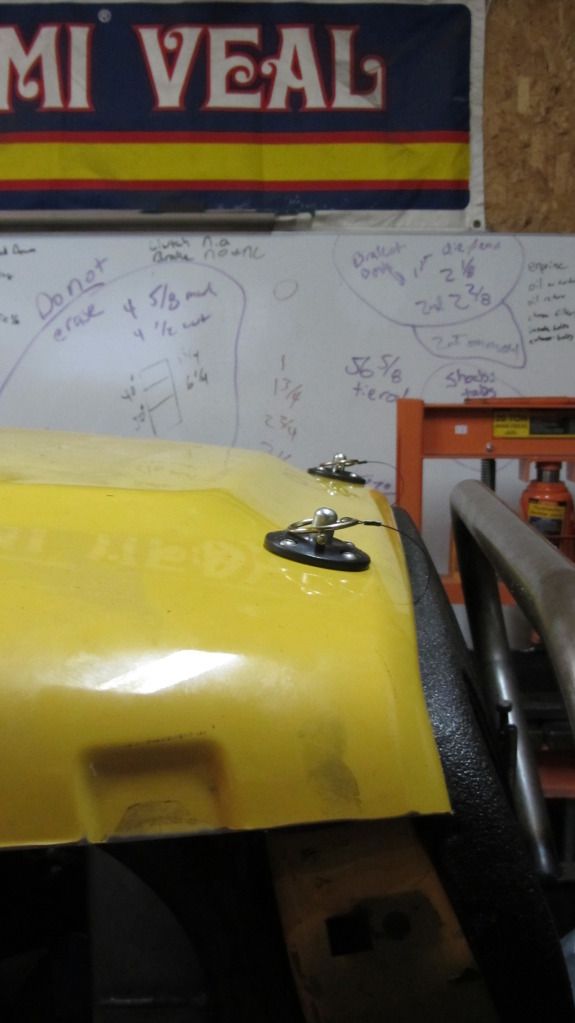

Hood pins - check


__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote
Unread 09-08-2012, 12:36 AM   #163
Hendrix
TJOTY 2013

Hendrix's Avatar
1997 TJ Wrangler

Join Date: Apr 2009
Location: Nashville
Posts: 4,655
Who made your hydro assist hoses? Can you remember how long they are? Thanks.

Btw my hood is already set up for auto fab hood pins. :shh:
Hendrix is offline   Reply With Quote
Unread 09-08-2012, 01:18 AM   #164
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 824
Quote:
Originally Posted by Hendrix View Post
Who made your hydro assist hoses? Can you remember how long they are? Thanks.

Btw my hood is already set up for auto fab hood pins. :shh:
I made all the hoses myself. I used Russell stainless steel 6an power steering lines and then Russell hose ends. I have no idea on the lengths cause all i did is put one end on then I ran the hose, dropped the axle and cut the line. I never pulled a tape measure out once doing it. LOL

Hose - http://www.summitracing.com/parts/RUS-632640
90* end - http://www.summitracing.com/parts/RUS-620421/
straight end - http://www.summitracing.com/parts/RUS-620401
6an to 1/4npt - http://www.summitracing.com/parts/SUM-220647B

I have some 3an hoses and fittings to do for all my brake lines.

As for the hood, tell me when I can pick it up. I have your dollar in my wallet with your name on it
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote
Unread 09-08-2012, 01:19 AM   #165
ksilovich
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: Ottawa, IL
Posts: 824
This is how they work.
__________________
Jeffery 2.0 : Cummins 4bt, 40's, ORI's, D60, 14B, lots of AL
ksilovich is offline   Reply With Quote
