post #361 of 577 Old 02-11-2013, 09:34 PM
tdij
Registered User
1993 YJ Wrangler

Join Date: Oct 2011
Location: Breckenridge
Posts: 346
I'm sure it feels good to have one "finished"

What's left up front? Brackets and assembly?

I was pretty sure you are planning MTR's... I'm assuming that is Josh's new rubber?

tdij is offline
Sponsored Links
Advertisement

post #362 of 577 Old 02-12-2013, 06:51 AM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
I have to finish burning in the brackets on the front, lock and gear, and reassemble with all the new parts. Not much right! Then tie rod and drag link.

I may also have to do a MC swap. I am not sure if I will since my vehicle came with disk brakes at all four conrners. From all of my reading, the Dodge 2500 MC is the way to go to push the dual piston calipers. It is a direct swap into a Jeep.

I can see the light at the end of the tunnel. It is also nice to be running out of parts to buy.

Those are Hoover's tires. He must be feeling rich these days. Take off some KM2 40's and put brand new ones on.
Jeepin72 is offline
post #363 of 577 Old 02-12-2013, 06:51 AM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
By the way, my kung fu is not worthy, you did a one day engine swap! Sweet.
Jeepin72 is offline
post #364 of 577 Old 02-12-2013, 04:36 PM
tdij
Registered User
1993 YJ Wrangler

Join Date: Oct 2011
Location: Breckenridge
Posts: 346
Quote:
Originally Posted by Jeepin72
By the way, my kung fu is not worthy, you did a one day engine swap! Sweet.
I think the same thing about your attention to detail... I don't have the patience for a six month axle swap!!! You have my respect for sure!
tdij is offline
post #365 of 577 Old 02-12-2013, 07:33 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521

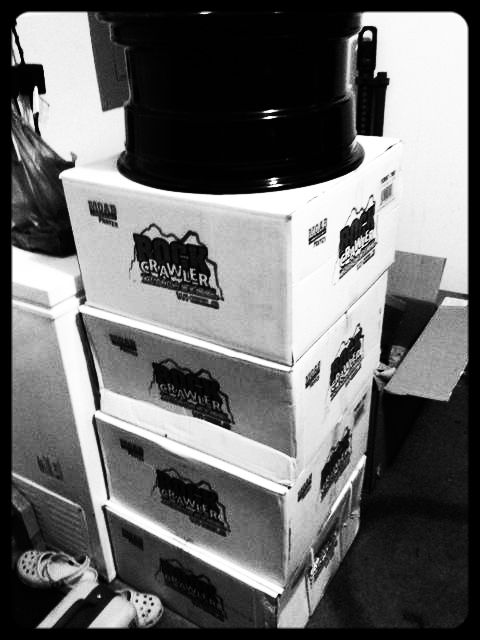

Got my new wheels today. 17x9 8x6.5 with 4.25 BS. Just some basic Pro Comp steelies for now. I can save up and do beadlocks and the what not after this swap is done.



Jeepin72 is offline
post #366 of 577 Old 02-15-2013, 04:42 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Notes for self:

The full floater flange pattern for the 79 Dodge Dana 60

3.97 Bolt Hole
4.74 Outside Diameter
34 1/4" Shaft length
Jeepin72 is offline
post #367 of 577 Old 02-15-2013, 04:47 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Notes for self: Clearing out the Giant folder of notes

Rear brake shoes are 2 1/5 inches wide

Original parking brake cables - estimated housing length 31", brake end exposed 4 1/2" and lever end 3 1/4"
Jeepin72 is offline
post #368 of 577 Old 02-15-2013, 04:49 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Notes to self: More crap to ignore

Rough measurements:
Coils - 37 1/2 wide
18.75 from center
27" center
Jeepin72 is offline
post #369 of 577 Old 02-16-2013, 12:26 AM
tdij
Registered User
1993 YJ Wrangler

Join Date: Oct 2011
Location: Breckenridge
Posts: 346
Note to self: Jeepin72's axles are sexy! I don't need all those measurements to know that!
tdij is offline
post #370 of 577 Old 02-16-2013, 08:17 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521


Right now they are gorgeous hunks of nothing...till they are slung and work...
Jeepin72 is offline
post #371 of 577 Old 03-05-2013, 05:37 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Clayton Front High Steer Brackets

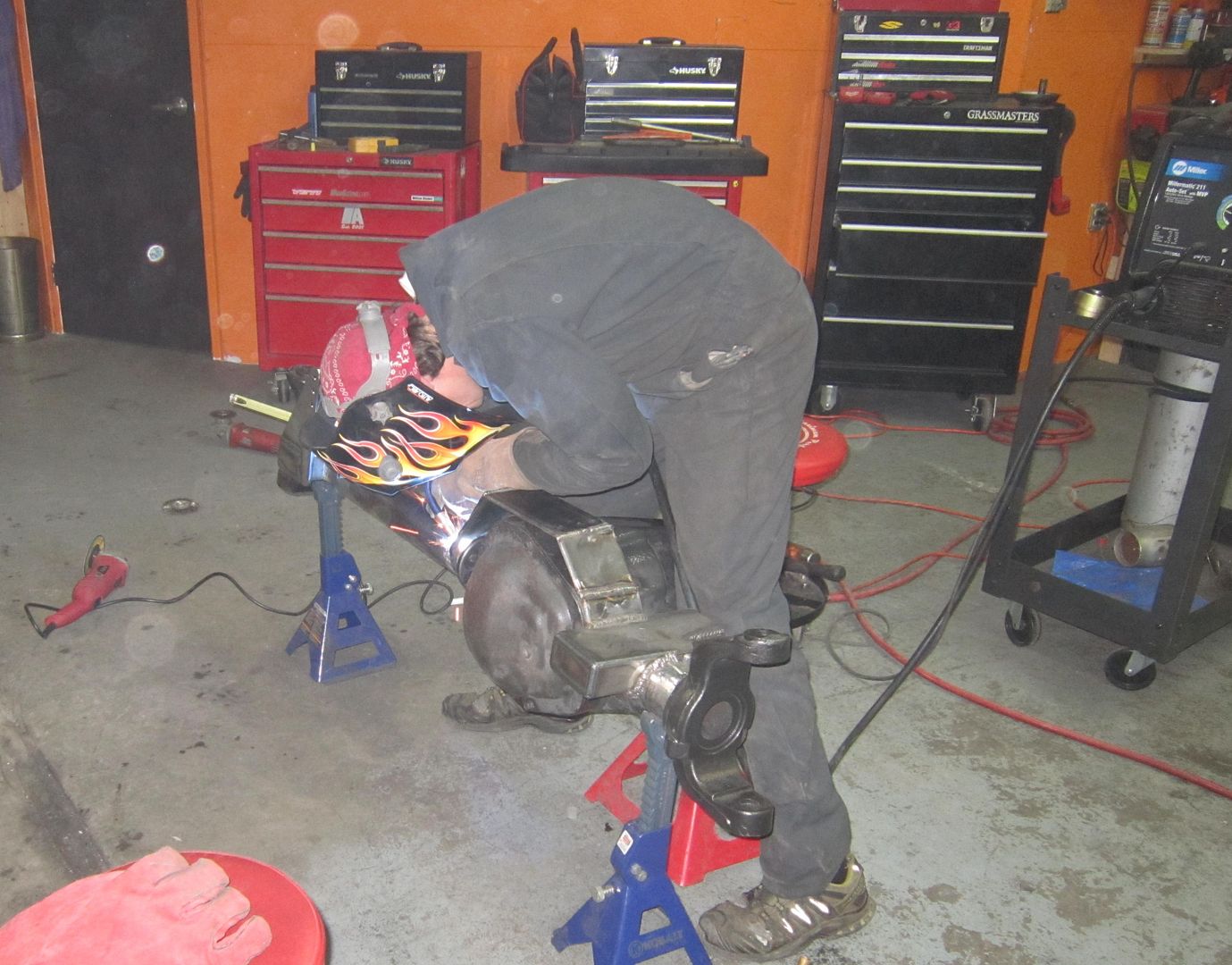

Yesterday, I got the front Clayton high steer brackets for a raduis arm coil sprung TJ welded onto the Ford Dana 60. As was previously mentioned, some modifications had to be made to run the axle full width. If this thing was narrowed to 66" some of these problems would be eliminated.

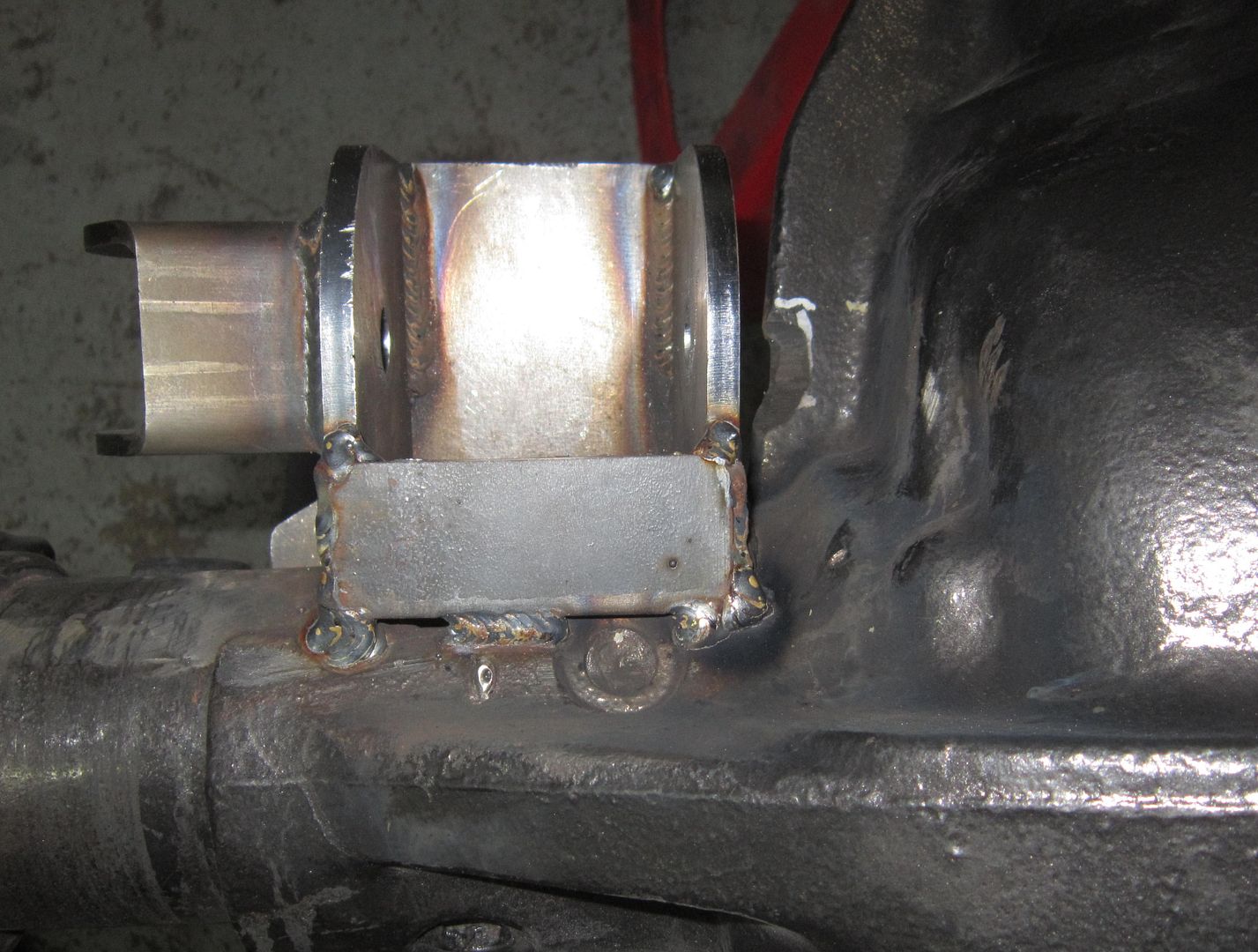

You previously saw a picture of the spring perch and main assembly welded onto the short side. Here is how the LCA bracket on the short side ended up under that main assembly. This picture is of the axle upside down. The inner plate of the LCA bracket is welded to the cast on its radius, and to the main plate on its upper edge.

The outside plate is welded to the tube and the upper assembly. I added a lower bridge to join the two plates. That bridge was also tied into the cast. I threw a JJ in it and there is more than enough range of motion.



Here you can see where the cuts I made to the cast landed us. I could have cut less of the cast in hindsigt. You can see the plug welds remained.

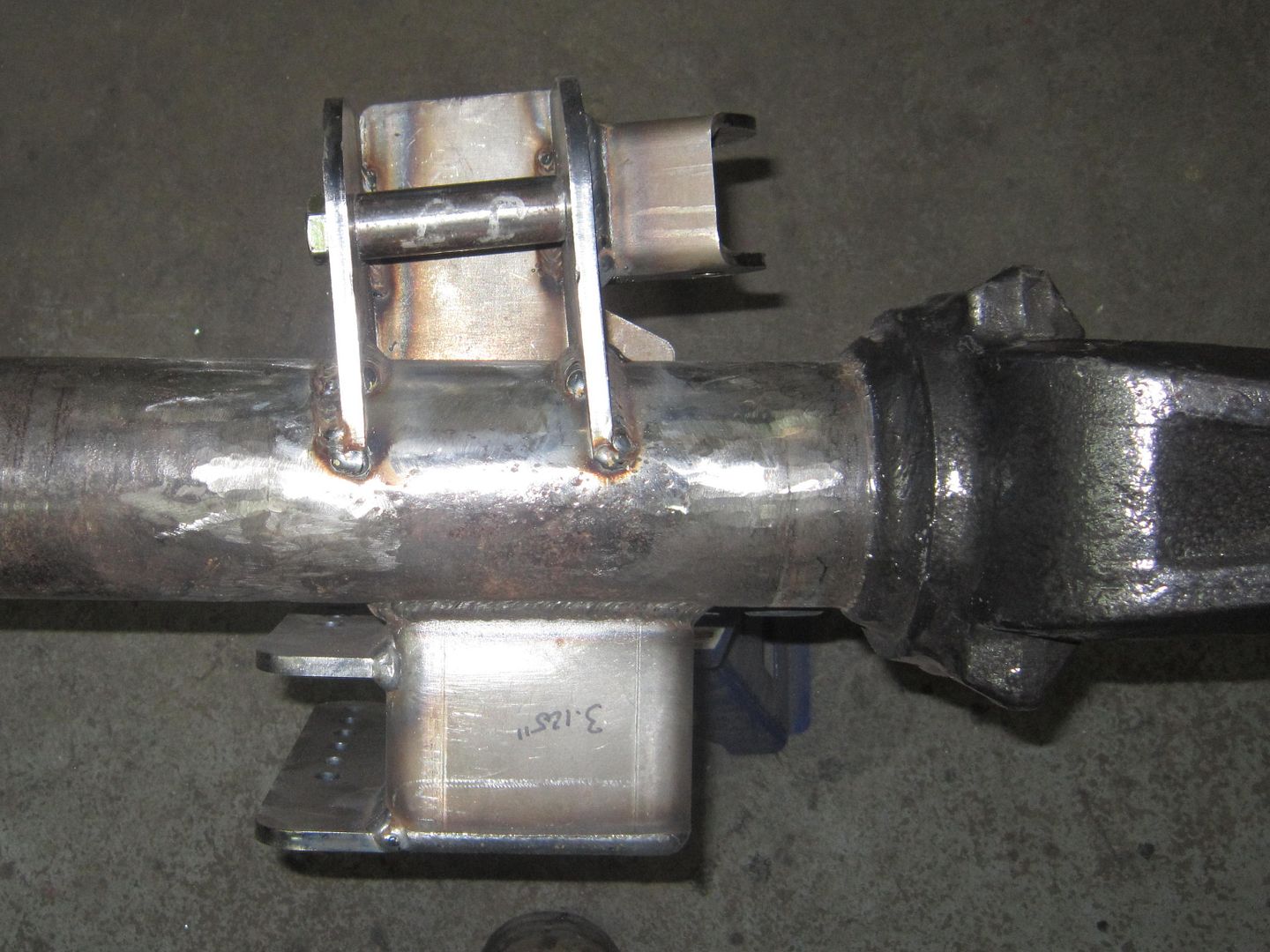

Here is looking at the bottom of the long side. Notice that the brackets are all high clearance. Nothing hangs below the tube. Out front is the multi location trackbar bracket.

Jeepin72 is offline
post #372 of 577 Old 03-05-2013, 05:47 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Clayton Front High Steer Brackets

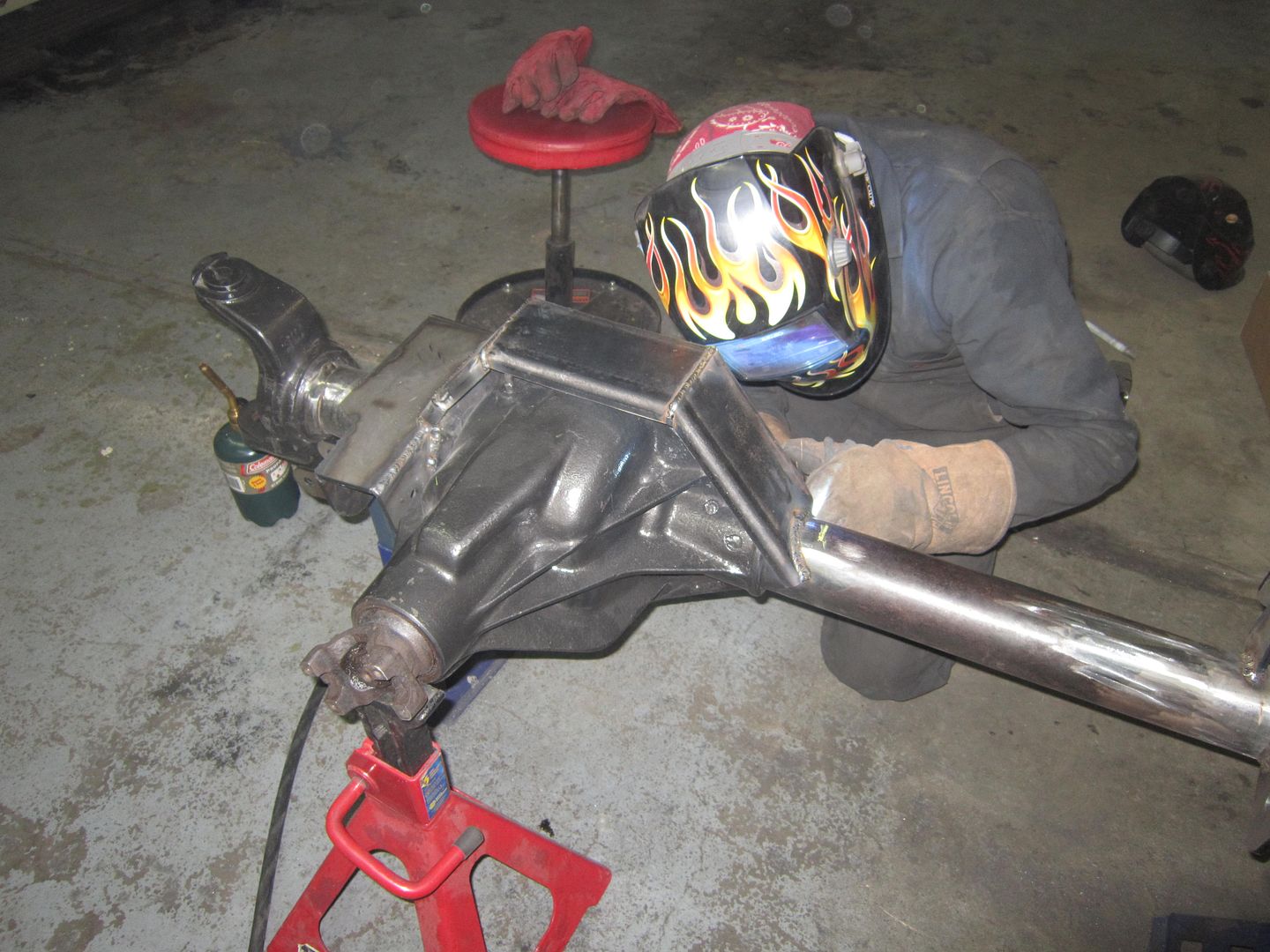

I built a "truss" over the pumpkin to weld the drivers side raduis arm to. I did not want to rely on welding it straight to cast. I know that is a contradiction of sorts to things previously stated, but why not build a bridge.

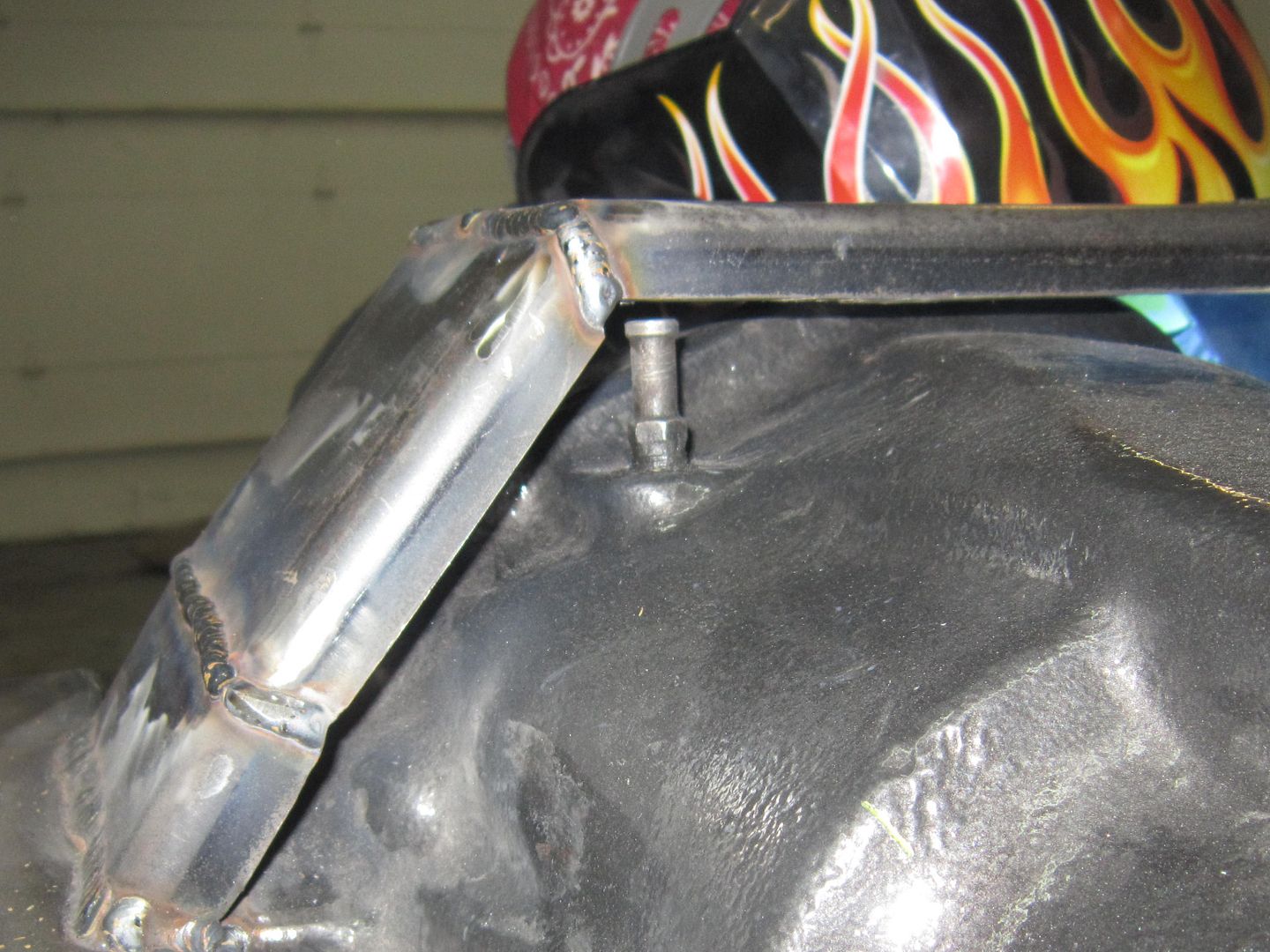

I used 2x4 3/16 wall rectangular tube. I cut the rectangular tube in half on the short side to minize the height of the bridge. I left 3/4 of a bend on the back side and cut front clean to keep it as low as possible.

The reason being is that the radius arm bracket would end up way too high if I didn't. As it was I had to cut 2.5" off of the radius arm bracket. The Clayton radius arm brackets are both JJ's that you build after welding.



I will use a hole saw and cut a hole for the breather tube.



I plan on fabricating some gussets to fill in the front of the bridge around the diff cover of the for added rigidity. I also will fab up a link tieing the bridge to the tombstone, and the tombstone to the trackbar bracket.

Jeepin72 is offline
post #373 of 577 Old 03-05-2013, 05:54 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Clayton Front TJ Brackets - High Steer

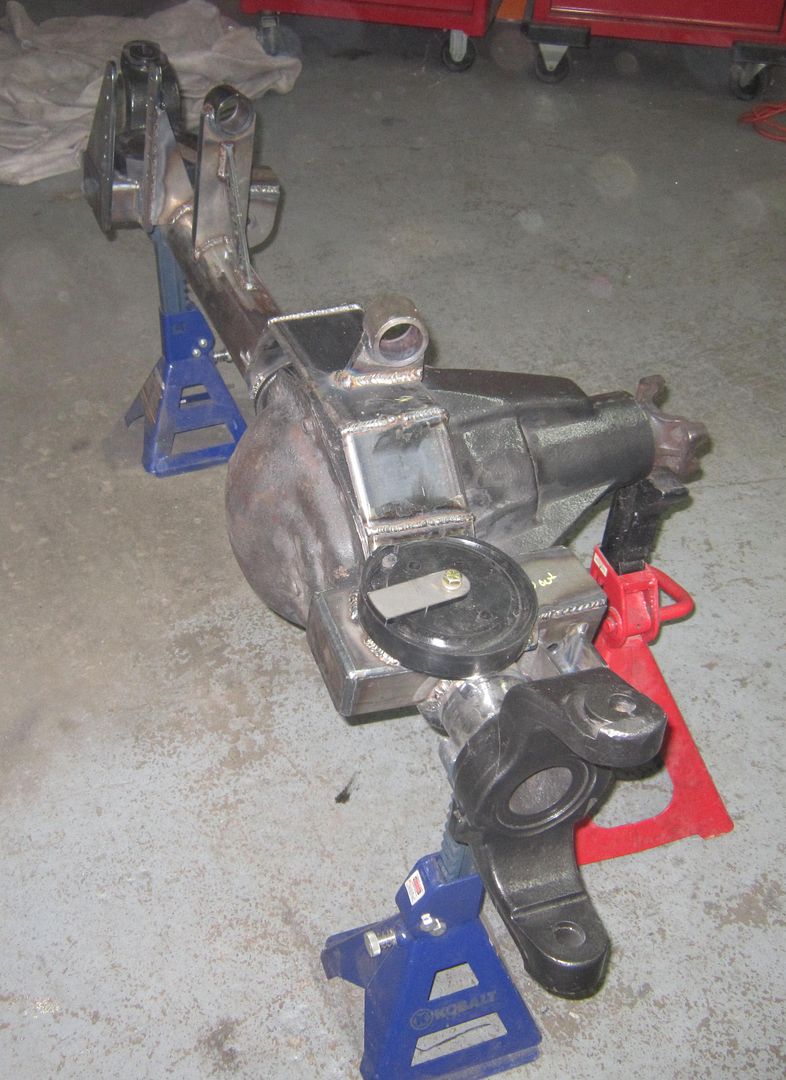

So as was previosly mentioned, the control arm brackets had to be movd out one inch since the pumpkin is where it is on a full width. I feared I would have to move out the lower coil retainers as well.

Luckily, with some mods, I ended up only 1/4" to the outside of where Clayton's schematics places them.







What is troubling, is that the passenger side coil retainer seems to be in conflict with the trackbar tower. I didn't notice this until it was too late. I have some ideas on how to modify this if it turns out to be a problem.

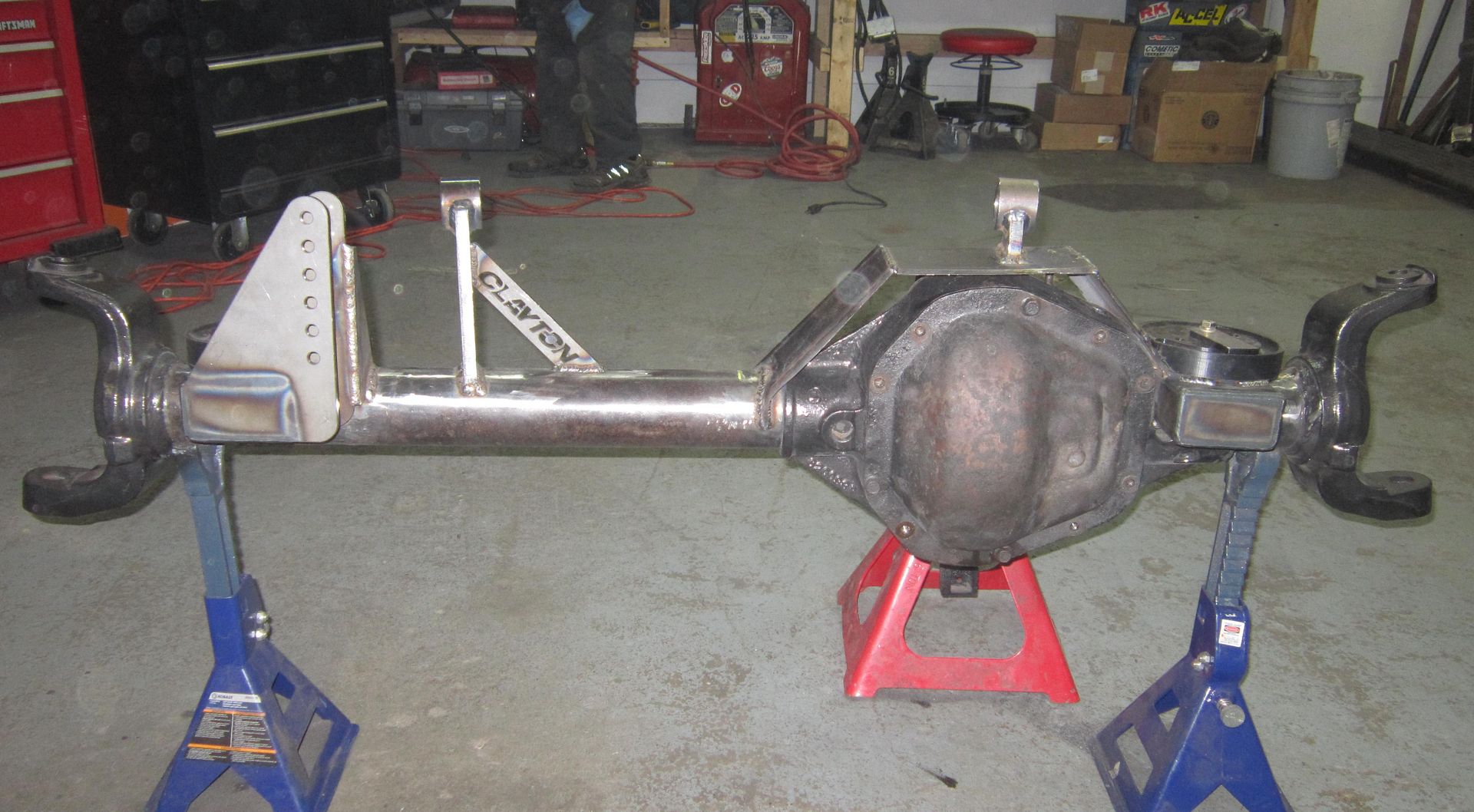

Where the day was finished.



Jeepin72 is offline
post #374 of 577 Old 03-05-2013, 09:31 PM
tdij
Registered User
1993 YJ Wrangler

Join Date: Oct 2011
Location: Breckenridge
Posts: 346
Sweet! Nice to see the front coming together! Kinda wish I would have made it over yesterday... but I stopped by work on the way over and had a few dozen things come up! $$$$
tdij is offline
post #375 of 577 Old 03-06-2013, 05:48 AM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Yeah, I can imagine that it was a day you could not pass up. I saw some pictures of the yard sale on the interstate. Wow!
Jeepin72 is offline
