post #182 of 577 Old 08-06-2012, 04:08 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Garvin Rack - Meet the F-ugly

Thanks for the input guys! I am not sure if I will use this, but here is what I spent the day doing...

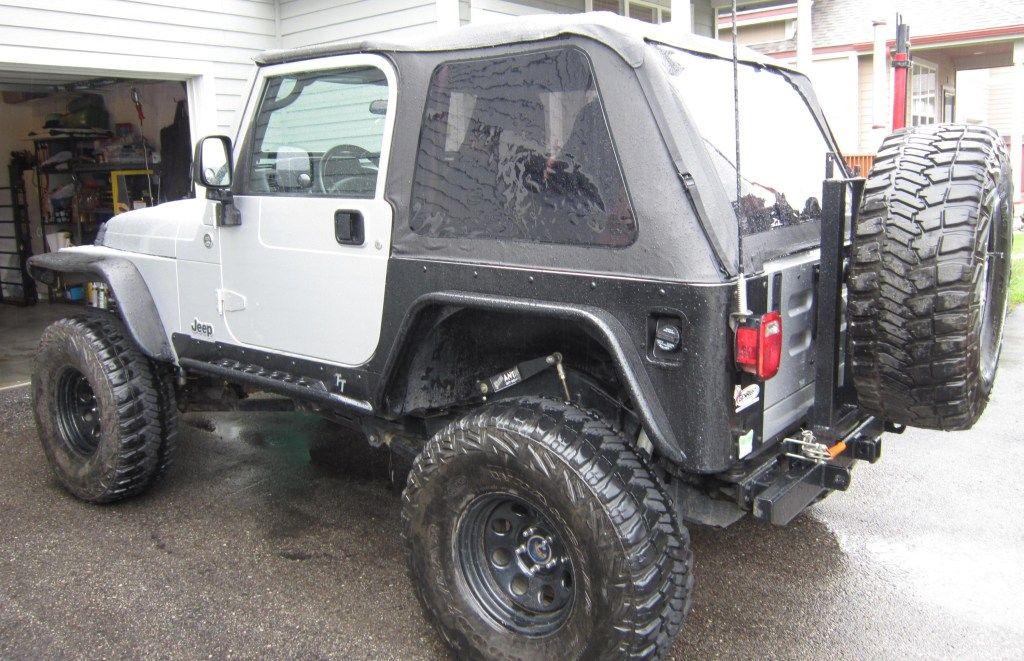

The vehicle...



Based on Hoovails pic I decided I would try to build my own rack for the tire Garvin Industries Wilderness Series swing out tire carrier. The system is meant to have a rack, can mounts, and a shovel and axe mount attached. For more money of course. It is bolted to the rear cross-member and I also had it welded for added strength years ago when I put it on.

The rack was going to be another $315.00, ouch. I don't even want to keep the tire carrier so I was not about to invest that coin into it.

I did not want the system that Hoovail posted, but his coment on building one and the pic inspired me to get off my duff and learn to weld. Thanks for the offer Hoovail, but I had the time today and I know we are all busy. If this system fails I will for sure be hitting you up.

A while back I scored a FREE SMAW welder. I know it was free because it was SMAW, but what the heck. You have to start somewhere!

I didn't want the system Hoovail posted becasue I wanted to use my new Trasharoo. My toddler is not potty trained, so carrying poopy diapers and the what not in a trash bag inside the Jeep till the next USFS dumpster is not an option (see earlier posts about the ripped bad in Moab).

The Trasharoo will hold a trash bag and more. It's made of heavy canvass and buckles to the spare tire.



The Garvin carrier has plenty of tabs and mounts for the above mentioned gear.











So I bought some steel angles down at the hardware store and came up with the fugly. I am sort of handy with a grinder so the cutting was not hard. I have only welded once before for about a 5 second span. Today was the day to learn. In fact, I hadn't actually struck an arc with the welder since my buddy installed my 220 line in the garage.

Some of the welds are ugly as all get out, but by the end I think I started to figure out what I was doing. I would love some tips from you guys in the future!





The beast is ugly, but it is my beast... I made it, even if ends up as scrap, you have to start somewere!

So, here is the rack I built...

















I bought some class 8.8 10mm bolts hold this baby on (not pictured).





I seems durable enough to hold a cooler. It majically fits my largest cooler... I spent some time with a flapper wheel cleaning it up but it started to rain so I was done for the day. Maybe paint next week.

What do you think guys? Will it hold a cooler? Needed supports?

I still think I might use this as an excuse to get a Rampage top anyways. Don't tell my wife...
Jeepin72 is offline
post #183 of 577 Old 08-06-2012, 04:26 PM
tdij
Registered User
1993 YJ Wrangler

Join Date: Oct 2011
Location: Breckenridge
Posts: 346
Those welds look a lot like my welds lately! I've learned to TIG and arc weld this summer now that I don't have access to a MIG... learning to weld is entertaining!

I like it... hard to tell about the strength of it from the pics. I would think you would want to tie it into more than just those two tabs, but maybe not?

Either way... props to you for doing it... once you get the welding down... building your own stuff becomes really cool.

Run it... we can always strap it down if it fails. Then you'll have a good idea of how to improve it!

Secret's safe with me... after all... it is for your families comfort!
tdij is offline
post #184 of 577 Old 08-06-2012, 04:57 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Yeah, I am concerned about the two tabs as well. The angles have one of their side facing forward so the rack would lean on that side under load. I am not sure where else to tie them in. The Garvin system has arms that reach down to the lower portion of the bumper, but I don't see any holes. Nor can I find any good pics.

I will see what I can do. It only needs to survive this trip! I can continue to to learn to fab as time goes on...
Jeepin72 is offline
post #185 of 577 Old 08-06-2012, 05:06 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Ok, I still have one flat piece of steel left. I could bolt that to the piece of angle I welded to the passenger side to brace the rack and then drill a hole near the bottom of the carrier to get a nice long angle. I am no math whizz. Would that help the stress of the load?
Jeepin72 is offline
post #186 of 577 Old 08-06-2012, 05:15 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Oh yeah, total investment so far....$40.00
Jeepin72 is offline
post #187 of 577 Old 08-06-2012, 07:59 PM
hoovail
Registered User
2001 TJ Wrangler

Join Date: Jan 2008
Location: Central Colorado
Posts: 681
Your first welds EVER...you should be stoked, looks great! As Drew mentioned, if it fails, strap it and learn from it!

As far as the Rampage top, when its being used as a Safari, it ties into the surrounds just like the factory top above the door. You can run without it attached. It would flop a bit, just like it would with the factory top. In other words, the surrounds are not necessarily needed.

My Build!


Real Jeeps are built, not "bolt-on"!
hoovail is offline
post #188 of 577 Old 08-06-2012, 08:00 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
I ordered it several hours ago...sweet
Jeepin72 is offline
post #189 of 577 Old 08-06-2012, 11:07 PM
tdij
Registered User
1993 YJ Wrangler

Join Date: Oct 2011
Location: Breckenridge
Posts: 346
One more person to be jealous of... I want to get it an make it fit my YJ... cause it is hands down a far better product than the best bowless tops out there for the YJ.
tdij is offline
post #190 of 577 Old 08-07-2012, 07:29 PM
hoovail
Registered User
2001 TJ Wrangler

Join Date: Jan 2008
Location: Central Colorado
Posts: 681
Quote:
Originally Posted by Jeepin72 View Post
I ordered it several hours ago...sweet
Good choice, your gonna love it!

My Build!


Real Jeeps are built, not "bolt-on"!
hoovail is offline
post #191 of 577 Old 08-13-2012, 01:22 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521

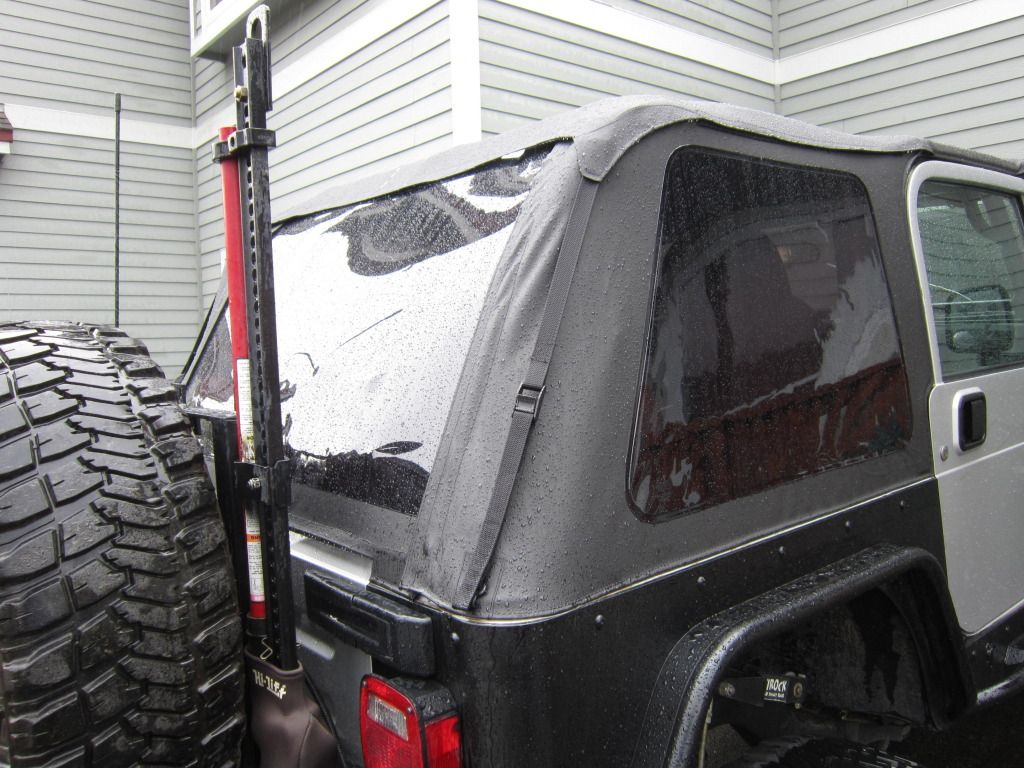

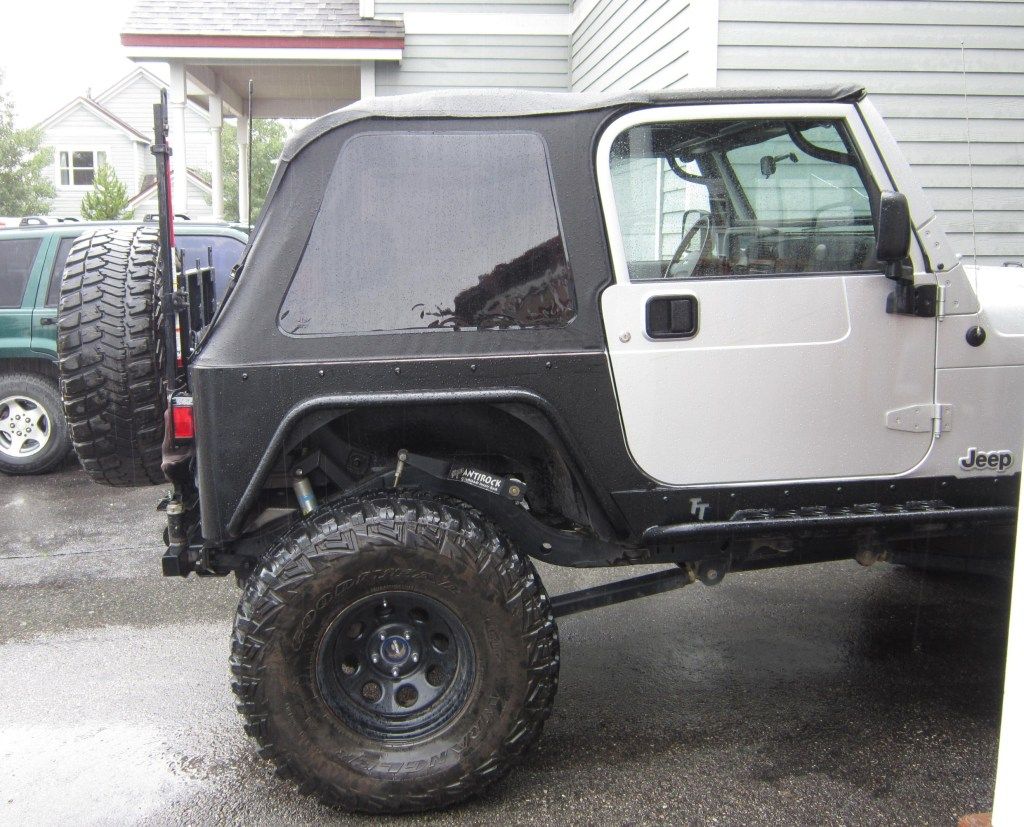

Rampage Frameless Soft Top

Easy to install. Heavy zippers. Huge windows. Dark tint. Gear pockets. Overall, I am impressed.

The only existing part I had to change was the location of my rear spreader bar. The buckles for the rear window were right where I had the spreader. It worked, but I didn't like how taught the top was on top of the bar and buckles. It moved the bar forward about a centimeter and all was well.

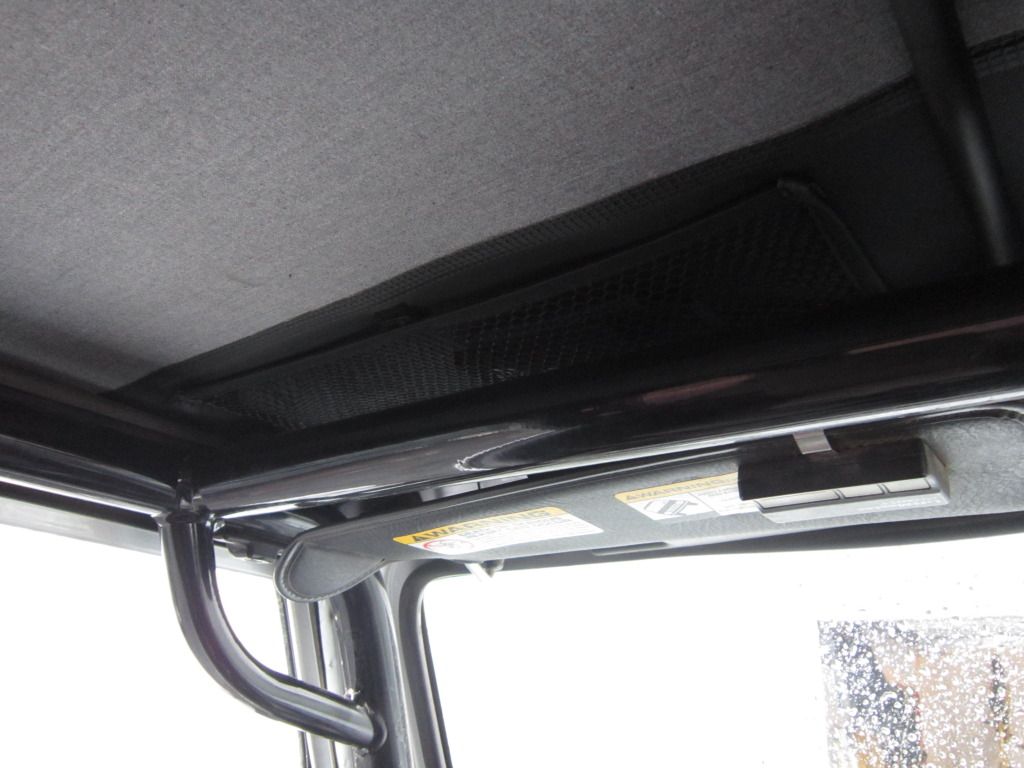

Gear Pocket

Jeepin72 is offline
post #192 of 577 Old 08-13-2012, 02:41 PM
hoovail
Registered User
2001 TJ Wrangler

Join Date: Jan 2008
Location: Central Colorado
Posts: 681
That rear spreader may come in useful down the road if the top starts to sag!

My Build!


Real Jeeps are built, not "bolt-on"!
hoovail is offline
post #193 of 577 Old 08-13-2012, 02:52 PM
tdij
Registered User
1993 YJ Wrangler

Join Date: Oct 2011
Location: Breckenridge
Posts: 346
Very nice. Does it look like it will work with the rack?
tdij is offline
post #194 of 577 Old 08-13-2012, 02:57 PM
AngryTJ
Registered User
2005 TJ Wrangler

Join Date: Nov 2010
Posts: 4,468
Quote:
Originally Posted by Jeepin72 View Post
I had to change was the location of my rear spreader bar.
Do you have a pic from the inside?

Follow me on Instagram @ Tarantula_TJ


Tarantula_TJ Build
AngryTJ is offline
post #195 of 577 Old 08-13-2012, 03:01 PM Thread Starter
Jeepin72
Registered User
2005 TJ Wrangler

Join Date: Apr 2009
Location: "The Kingdom"
Posts: 1,521
Yes it should work with the rack fine. Since there is no B bow the rack will sit high enough. Since there are no forward bows the front clamp will work as well. Now I haven't lifted it up there yet...

I won't need it on this trip since I have the fugly. It looks like all the gear will fit without it.

A couple of years ago we had to take two cars to Moab to camp for a week. I don't think we will for next family run.

The rear spreader absolutely is keeping the top tight.
Jeepin72 is offline
